15-level volume adjustment, supports external audio equipment
Space-saving: The screen is designed with a stand and string holes, allowing the receiver to be placed on the counter or hung on the wall
Four-key functions: Call; Cancel; Pay; Order
Replaced battery. NOTE: There is Not Included Battery in our package, and 4pcs 1.5V AAA battery
Paste label logo freely
PC material for durable use

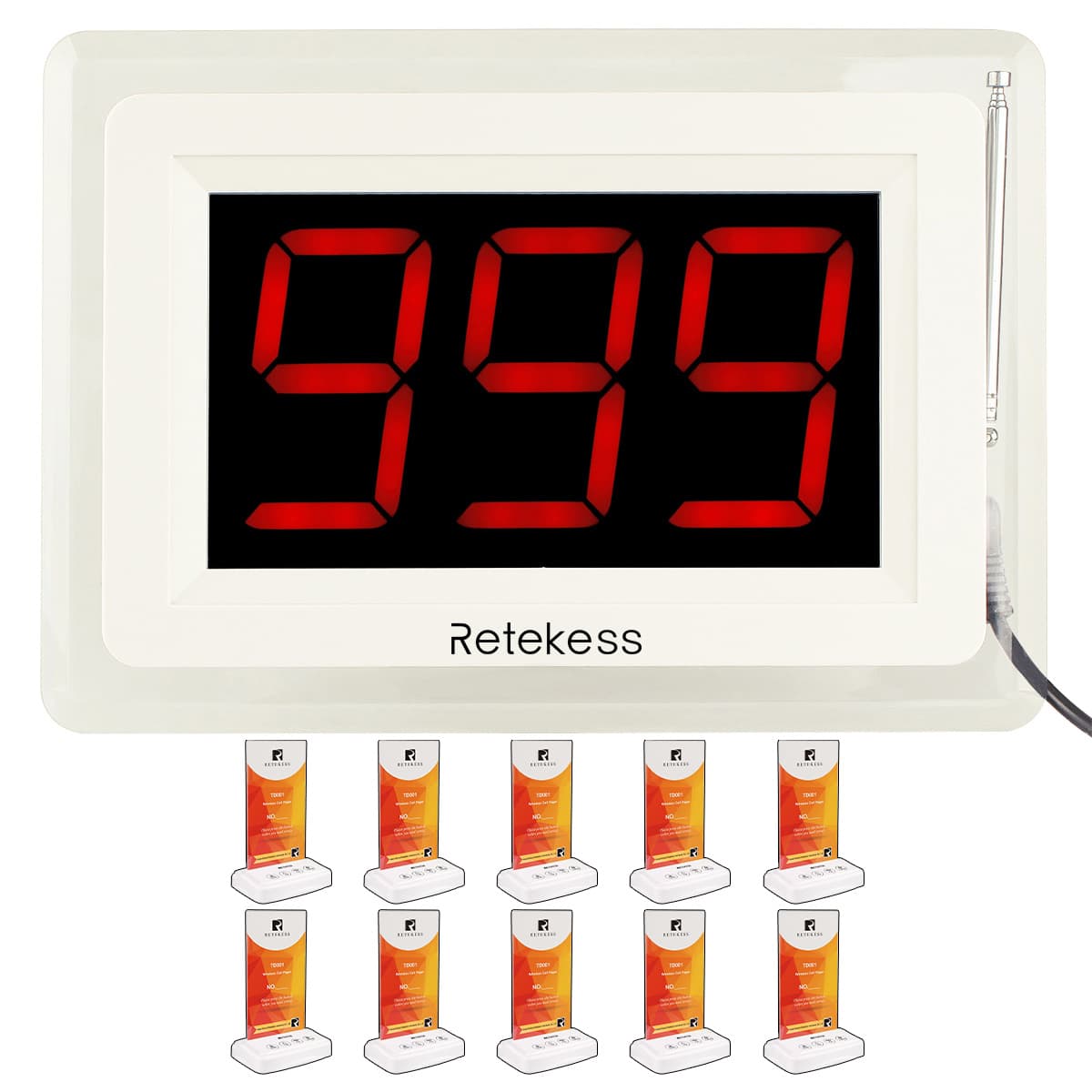

Retekess Wireless Calling System T114 Display Receiver and T117 Service Call Button for Restaurants, Hotels, Bars, Cafes, and Food Cournts
Advantages:
Long Working Distance
Open area working range up to 200 meters or 656 feet; signal transmission distance; high sensitivity receiving technology, product signal stability
Adjustable 1-15 levels Volume
Screen receiver with 15-level volume adjustment for nursing pager system; support external audio equipment; freely adjust according to your needs
Humanized Design
Screen: Bracket and string hole design; compact size; it won't take up much space; you can put the receiver on the counter or hang it on the wall
Button: with a double-sided sticker; so you can stick it on the table; don't worry about losing the pager; screwless design, easy to remove the back cover and replace the battery
Feature of Retekess T114 Display Receiver:
Add up to 999 call buttons
Single caller host can match up to 999 Pager buttons for any occasion;
You can always add up to more pagers to the pager system as your business grows
Multi-function Display Settings
You can set fixed or cycle calling records display; And Display Time is Adjustable from 001--180 seconds
Large LED Display Screen
Large display screen, easy to read; thus both you and your customers would not worry about missing the meal anymore
Features of Retekess TD001 Wireless Call Button:
4 key functions: Call; Cancel; Pay; Order; can meet varied needs, easy to use
Use PC material for durable use
Advanced work chip; restaurant pager use newest chipset with learning code; so the transmission signal can be more stable; less interfaces
Replaced battery; NOTE: There is Not Included Battery in our package, and 4pcs 1.5V AAA battery need for the white table card, it is easy to get; and you can replace the battery when they run out; easy to operate
Paste the label logo freely; you can place paper logo pasted on the acrylic plate; and it can helpful to show your business information
Applications:
Restaurant, bars, cafe, pizza shops, F&B industry
1
Please fill in your procurement needs and contact information
Specification:
T114 Display Receiver |
TD001 Table Call Button |
||
| Frequency | 433MHz | RF frequency | 433MHz |
| Decoding | learning code | Modulation mode | ASK (AM) |
| With transmitter quantity | max 999pcs | Working chip | learning code |
| Prompt modes | Dingdong / Music / English voice report | Power | 4pcs 1.5V AAA battery (not included) |
| Letters show | A.B.C.D.E.F | Emission distance | 800 meters (open area) |
| Adapter | AC 100-240V 50/60Hz, output: DC 9V/1A | Working temperature | -20 Celsius to 55 Celsius |
| Working current | <600mA | Size | 180 x 108 x 46mm / 7.1 x 4.3 x 1.8 in |
| Standby current | <60mA | Weight | 212g / 7.5oz |
| Size | 230 x 160 x 35mm / 9 x 6.3 x 1.3 in | ||
| Weight | 350g / 0.77lb | ||
Package Includes:
Option |
Package Includes |
| 1 Display Receiver + 6 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 6 x Retekess TD001 Pager 1 x Acrylic plate |
| 1 Display Receiver + 10 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 10 x Retekess TD001 Pager 1 x Acrylic plate |
| 1 Display Receiver + 15 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 15 x Retekess TD001 Pager 1 x Acrylic plate |
| 1 Display Receiver + 20 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 20 x Retekess TD001 Pager 1 x Acrylic plate |
Q: How is the quality of the call button?
A: It uses high-quality PC material to be more sturdy, supports long time use
Q: What kind of battery?
A: The TD001 call button is powered by 4pcs 1.5V AAA battery (not included) and you can replace the batteries yourself.
Q: How many buttons does the call button support?
A: It has 4 main functions: order, call, pay and cancel. Simple operation, one-click response
Q: How compatible is the call button?
A: TD001 call button is compatible with all Retekess wireless receivers
