The screen receiver has an operating range of up to 200 meters or 656 feet; the signal is stable
On-screen receiver with 15-level volume adjustment, supports external audio equipment
Add up to 999 waterproof TD009 call buttons
Space-saving: the screen is designed with brackets and string holes, the receiver can be placed on the counter or hung on the wall
With lanyard, wearable for patient and elderly. With double-sided tape, it can be pasted on the table

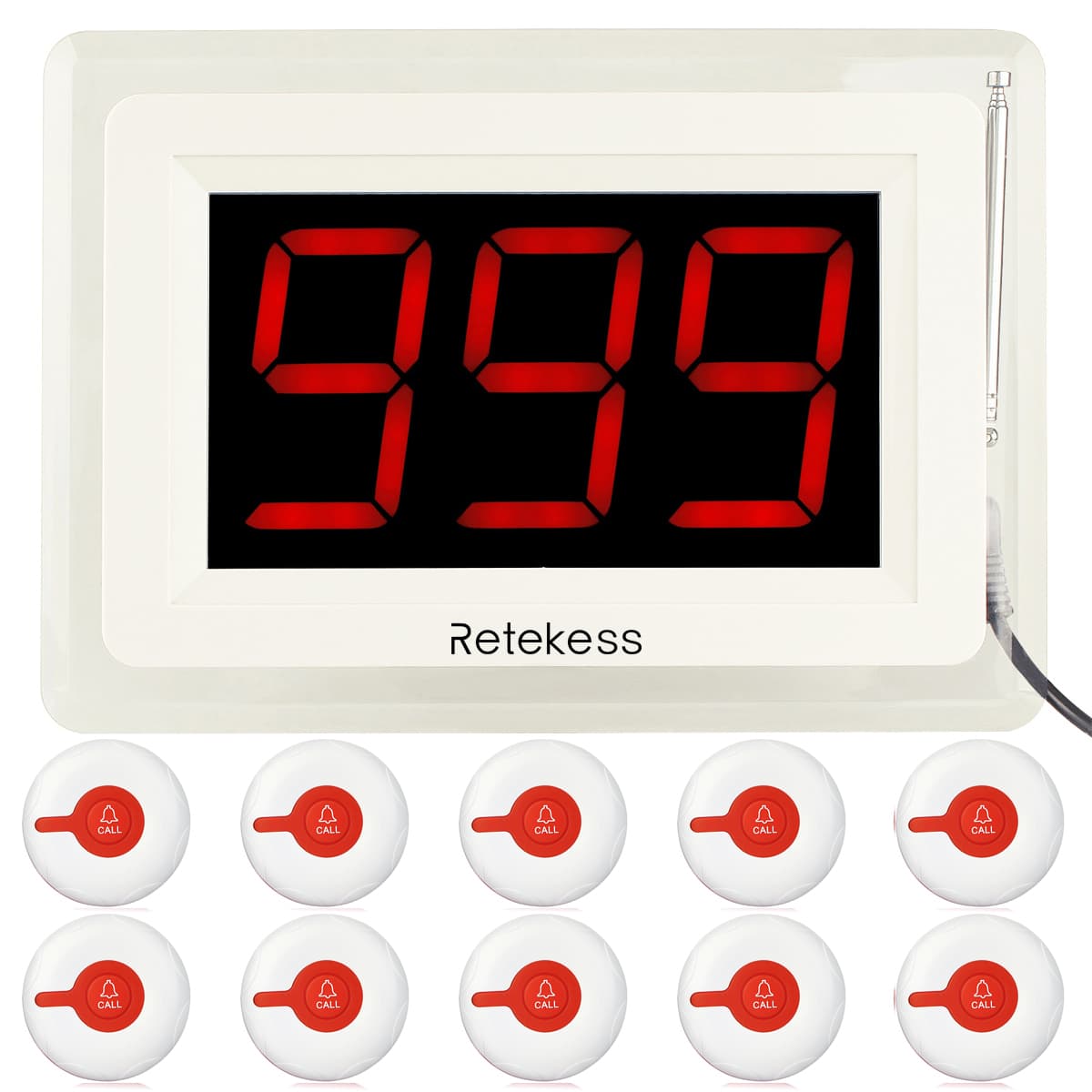

Retekess Wireless Calling System T114 Display Receiver and TD009 Waterproof Call Button for Clinics and Hospitals
Advantages:
Long Working Distance
200 meters or 656 feet in outdoor working area; signal transmission distance; high sensitivity receiving technology, product signal stability
Adjustable 1-15 levels Volume
15-level volume adjustment for nursing pager system; support external audio equipment; freely adjust according to your needs
Humanized Design
Screen: Bracket and string hole design; compact size; it won't take up much space; you can put the receiver on the counter or hang it on the wall
Feature of Retekess T114 Display Receiver:
Add up to 999 call buttons
Single caller host can match up to 999 Pager buttons for any occasion;
You can always add up to more healthcare pagers to the pager system as your business grows
Multi-function Display Settings
You can set fixed or cycle calling records display; And Display Time is Adjustable from 001--180 seconds
Large LED Display Screen
Large display screen, easy to read; thus both you and your customers would not worry about missing the meal anymore
Features of Retekess TD009 Waterproof Call Button:
One-key to push for service or nursing, easy to use
Small size, low current draw
Waterproof, resistant to falling, more stable signal
The battery power supply time is long
The call distance of the open space reaches 150 meters
Humanized design: sticker to table. Or lanyard to wear
Applications:
Hospital, Clinic, Nursing home, Healthcare Center
Please fill in your procurement needs and contact information
Specifications:
T114 Display Receiver |
TD009 Call Button |
||
| Frequency | 433MHz | RF frequency | 433MHz |
| Decoding | learning code | Modulation mode | ASK (AM) |
| With transmitter quantity | max 999pcs | Working chip | learning code |
| Prompt modes | Dingdong / Music / English voice report | Power | 12V23A battery (included) |
| Letters show | A.B.C.D.E.F | Working current | 17mA |
| Adapter | AC 100-240V 50/60Hz, output: DC 9V/1A | Emission distance | 150 meters (outside) |
| Working current | <600mA | Working temperature | -20 Celsius to 55 Celsius |
| Standby current | <60mA | Size |
66 x 66 x 27mm / 2.6 x 2.6 x 1 in |
| Size | 230 x 160 x 35mm / 9 x 6.3 x 1.3 in | Weight | 42g / 1.7oz |
| Weight | 350g / 0.77lb | ||
Package Includes:
Option |
Package Includes |
| 1 Display Receiver + 6 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 6 x Retekess TD009 Call Transmitter Buttons 6 X Lanyards 6 X Stickers |
| 1 Display Receiver + 10 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 10 x Retekess TD009 Call Transmitter Buttons 10 X Lanyards 10 X Stickers |
| 1 Display Receiver + 15 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 15 x Retekess TD009 Call Transmitter Buttons 15 X Lanyards 15 X Stickers |
| 1 Display Receiver + 20 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 20 x Retekess TD009 Call Transmitter Buttons 20 X Lanyards 20 X Stickers |
Q: Can I buy the lanyard style TD009 button seperately?
A: Yes, we have a lanyard version, check here
