Retekess T130 Church Translation Equipment for Simultaneous Interpretation PLL with 64-port Charging Case

SKU: F9423AX4-F9424AX60-F9423D@1-LP24032604

Regular price $1,859.99 $ 1,679.99

T130 church translation system is easy to set up and carry

Transmitter has a communication range of 50 meters/196 feet

1 transmitter can be used with any number of receivers

Transmitter built-in 900mAh Li-ion battery works for 12 hours

Receiver with built-in 600mAh Li-ion battery works for 18 hours

Microphone jack can also be connected to audio devices

PLL technology to avoid interference and ensure clear sound

99 channels

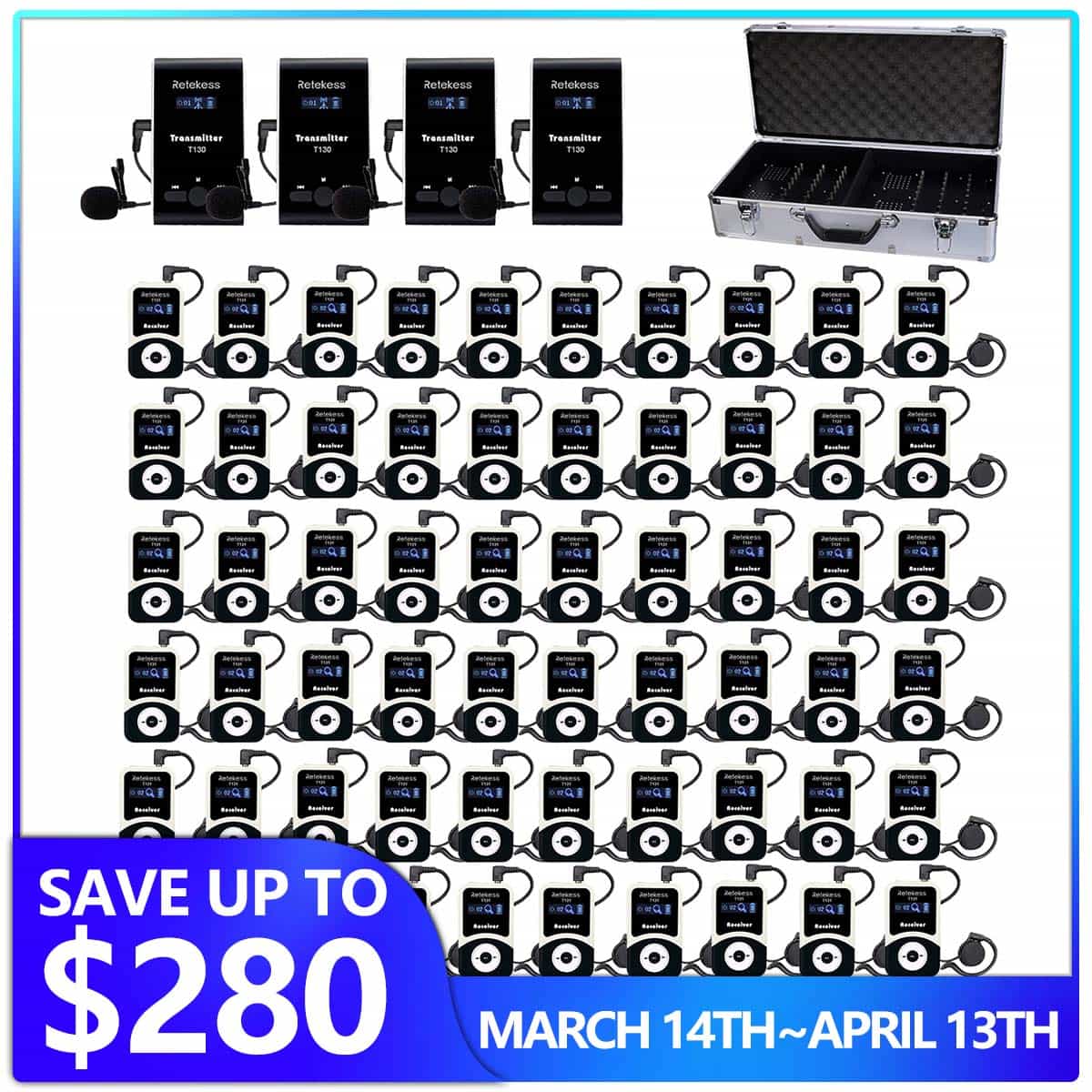

T130 church translation equipment includes 4 transmitters, 60 receivers and a 64-port portable charging storage case

In Stock Out Of Stock

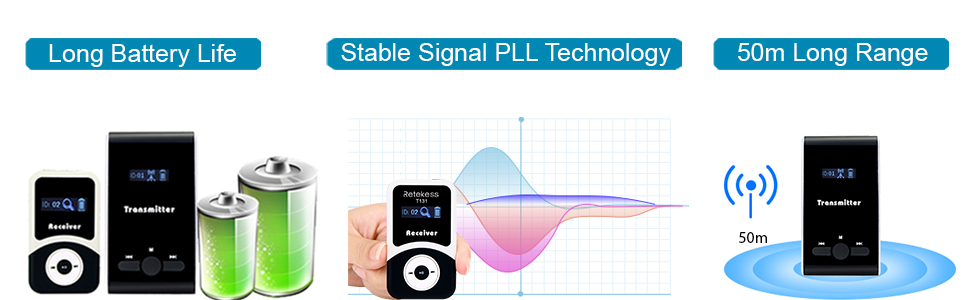

Long battery life

DC 5V 1A USB charging cradle, when fully charged, the transmitter can be used continuously for 12h and the receiver can be used continuously for 18 hours, which is enough for most translation activities.

PLL technology to stabilize the signal

The T130 simultaneous interpretation system uses phase-locked loop frequency synthesis technology, which automatically avoids interference to ensure signal stability and clear sound, and it is impossible for interpreters and listeners to hear background noise or static from the headphones.

Transmission distance

The transmitter has an operating range of 50 meters, which means listeners can spread out without having to crowd near the transmitter. In addition, the interpreter can sit approximately 50 meters away from the listener and the listener will not be disturbed by the interpreter's voice because they are too close to them.

T130 church translation system

Support for auxiliary audio input

The interpreter can either speak into the microphone or use a 3.5mm AUX cable (not included) to connect the transmitter to an audio device such as an mp3 player, computer, smartphone, radio, etc. Churches can use it to play music or other voice files.

3.5 mm headphone jack

The headphones for the receiver are replaceable, you can also use your own headphones with 3.5mm jack. Our TT003 3.5mm universal headset is a good choice if you want your listeners to wear more comfortable double-sided headphones.

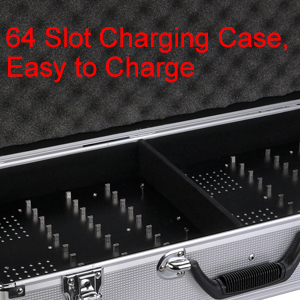

Portable Charging Case

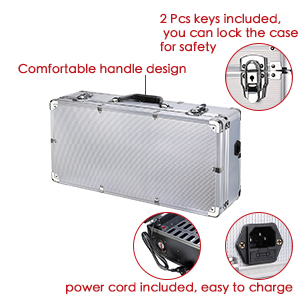

The aluminum charging case is durable, and fire, moisture, and dust resistant. You can lock the clasp and close it with the 2 included keys. You can easily charge 4 transmitters and 60 receivers using only the included charging cable. It can also be used as a storage case, which is great for taking on the go.

t130 charging case                storage case           Aluminum charging case

99 channels

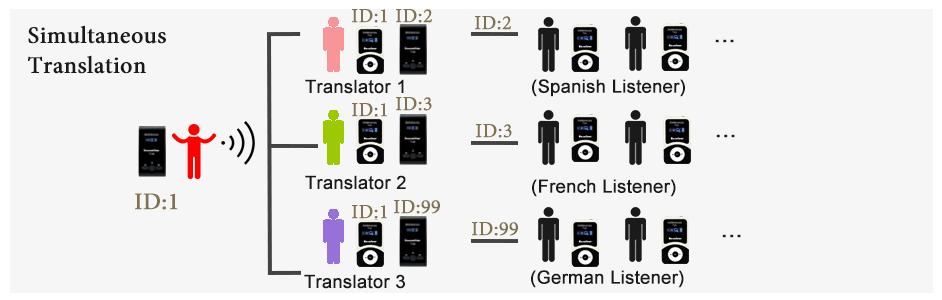

99 channels mean that you can set up 99 groups in the same area. If your listeners are from many different countries, you will need to set up several groups in different languages. The 99 channels of the translation device do not interfere with each other and will not crosstalk.

Multiple applications

Wherever there is a multilingual audience, be it in a courtroom, church, school, or factory, the T130 portable translation equipment is suitable and works well.

Instructions for T130 Simultaneous Interpretation System

Please fill in your procurement needs and contact information

Portable Simultaneous Interpretation Equipment Specification:

 T130 Wireless Transmitter
Frequency range 195-230MHz
Channel 99 channels
Frequency response 50Hz-18000Hz
Power 10mW
Power 10mW
Frequency stability +/-0.005%
Modulation deviation +/-75KHz
Power supply Built-in 900mAh lithium battery
Working hours 12 hours
Charge DC 5V 1A, mini USB jack
Working distance 60m (196ft)
Size 99 x 56 x 14mm / 3.9 x 2.2 x 0.5 in
Weight 58g / 0.13lb
 T131 Wireless Receiver
Frequency range 195-230MHz
Channel 99 channels
Frequency response 50Hz-18000Hz
Power supply Built-in 600mAh lithium battery
Working hours 18 hours
Charge DC 5V 1A, mini USB jack
Size 72 x 42 x 12mm / 2.8 x 1.6 x 0.5 in
Weight 45g / 0.1lb

 64-port charging case
Input properties Input voltage AC90-250VAC, 47~63Hz
AC input current 1.5A/230VAC
Power supply efficiency 76%
Inrush current cold start current 36A/230V
Leakage current <2mA/240VAC
Output characteristics DC output voltage 5V
Output voltage tolerance ±1%
Output current range 0~7A (single power supply)
Output power 140W
Ripple and noise 80mVp-p
Protection characteristics Overload protection Overload protection starts at 115%~135% of rated output power
Protection mode: hiccup mode, automatically recovers after abnormal load conditions are removed
Overvoltage protection 145%~170% of rated output voltage
Protection mode: hiccup mode, automatically recovers after abnormal conditions are removed
Over-temperature protection When the internal contact temperature of the transistor exceeds 150°C, over-temperature protection is activated.
Protection mode: hiccup mode, automatically resumes when the temperature returns to normal
working environment Working temperature and humidity -10℃~+60℃; 20%~90%RH (please refer to the load derating curve)
Safety Voltage resistance Between input and output: 1.5KVAC Input and ground: 1.5KVAC Output and ground: 0.5KVAC
Insulation resistance between input and output: input and ground, output and ground: 100M Ohms/500VDC
Size 575 x290 x 140mm
Weight 4320g
Remarks: 1. Unless otherwise specified, all parameters are measured under the conditions of 230VAC voltage input, rated load and 25℃.
2. The ripple and noise voltages are measured on a 20MHz bandwidth oscilloscope with 0.1u and 47u capacitors added to the end of a 12-inch twisted pair.
3. Tolerance is the sum of voltage setting error, voltage regulation rate and current regulation rate.

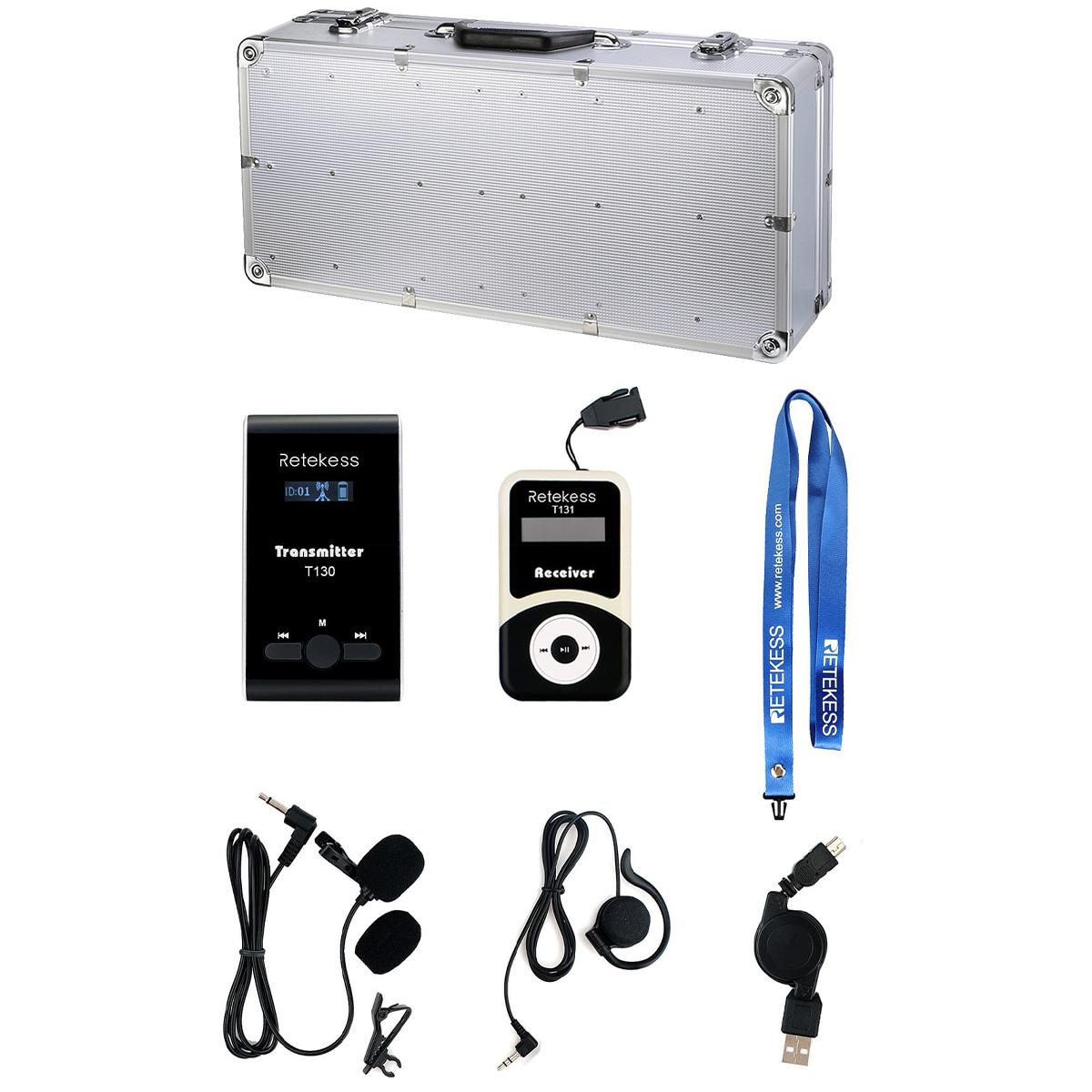

Package Includes:

t130-church-translation-equipment 4 x transmitter
60 x receiver
4 x Microphone
 60  x earpiece
64  x Charging cable
64  x Lanyard
1 x  64-port charging case

Question: can the device translate creole to English?

Answer: Hello friend, the device is in need of human translation, the system can't translate. Click to see how the T130 simultaneous interpretation equipment works.

Question: Can the equipment support human interpretation into 4 languages at the same time? Thank you!

Answer:  Hello friend, yes, you need to use 4 different frequencies for 4 languages.

Question: I purchased the transmitter at 100t with two hooks over the ear earphones. the earphones are broken. how can I get two replacement earphones?

Answer: Hello friend, so sorry for this issue, if you need two replacement earphones, you can contact us.

Question: Can I connect from pc speaker out to the transmitter mic by 3.5mm male to the male connector?

Answer: Hello friend, the tour guide system support AUX cable to connect pc. Any issue, pls email us freely.
