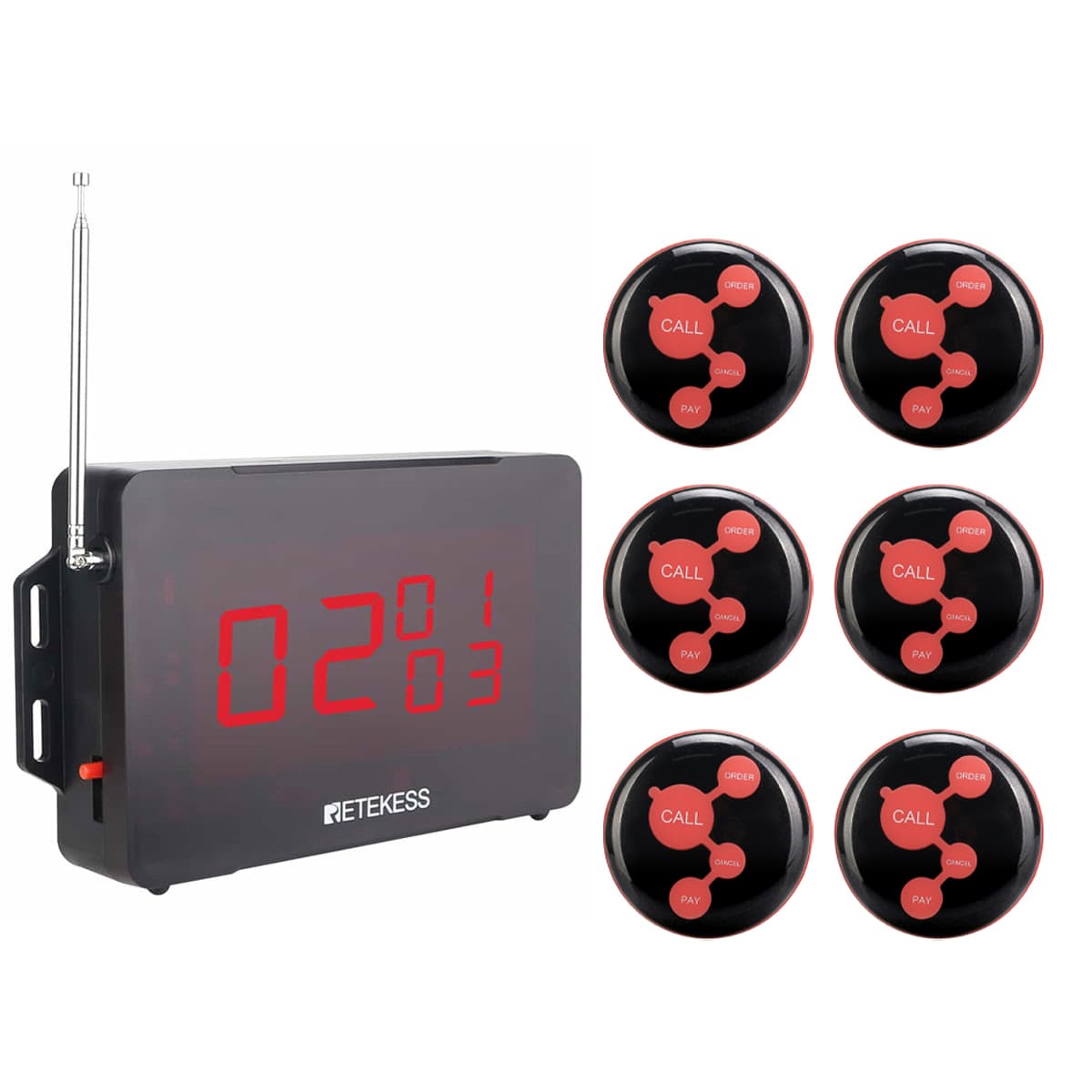

Retekess TD136 Service Call Display Receiver with TD010 Call Button
Adjust the volume from 0-15 levels
9 call modes can be selected at will to meet the usage scenarios of restaurants
4-keys call button for easy operation
Equipped with double-sided adhesive, easy to fix, dustproof and portable
Widely used in restaurants, hotels, clubs, etc., to improve customer satisfaction
Retekess TD136 display receiver for service calling system with TD010 wireless call buttons can very popular in restaurants, clubs, coffees, hotels, etc.
It not only helps employees improve efficiency and serve more customers. It can also optimize customer experience and provide customers with channels to quickly obtain services, thereby enhancing customer satisfaction.
TD136 Display Receiver
Menu setting with voice prompts, simple and convenient operation
Can be set up individually 1 group / 2 groups / 3 groups of the same screen display. can display 3 groups of calling numbers at the same time, distinguish the calling sequence, avoid missing any information, and make it more convenient to use.
9 call modes can be selected at will
2W speaker, clear voice, and loud voice
You can choose to set the number of call voice annunciation
Support 6 countries English, French, German, Spanish, Italian, and Russian voice broadcast
One caller can be used for multiple receivers
Can be used for about 4-5 hours when it is fully charged, and it can be used normally even if it cannot be placed where it is convenient to access the power source.

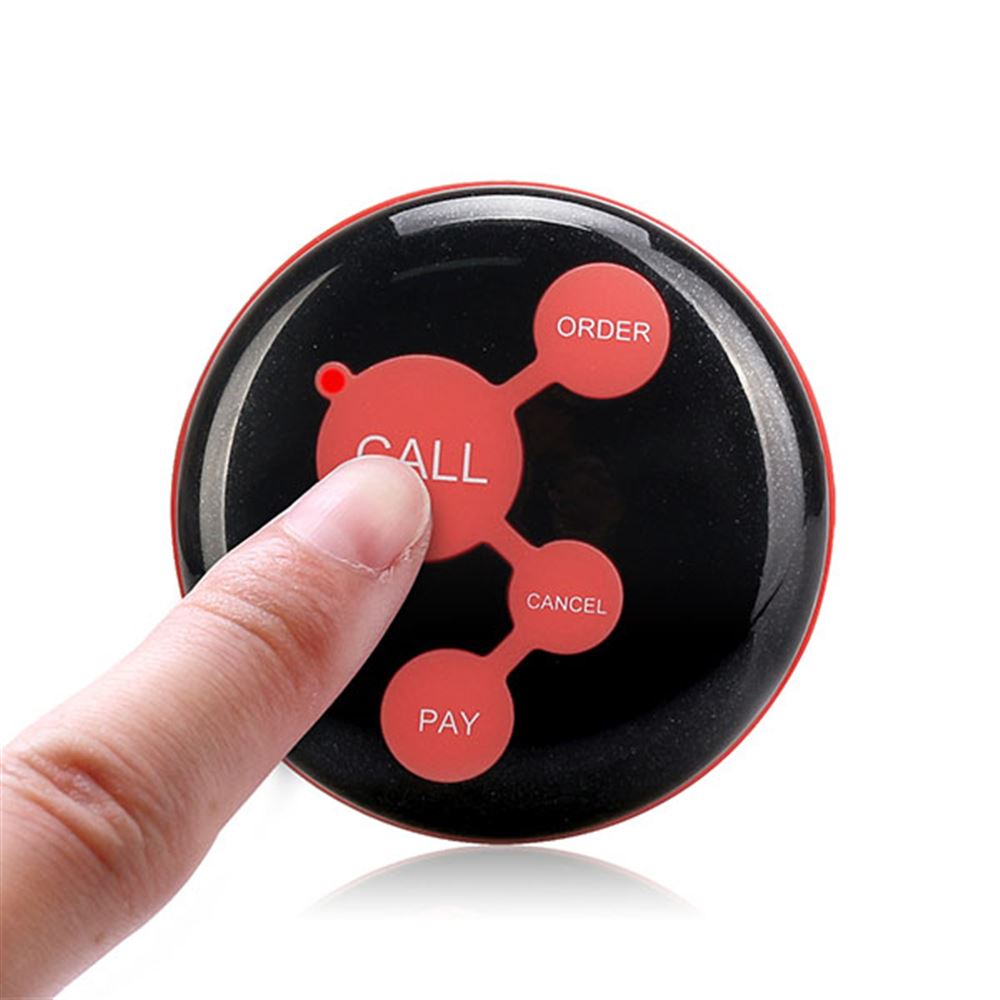

TD010 Call Button Transmitter
Each button is equipped with double-sided tape for easy installation.
Can meet the needs for long distances, and the open area has a range of up to 40m. Stable signal so that you will not miss the needs of customers.
How to Use This Unit
The receiver must be paired with the call button, when the guest needs service, ordering, or check out press the button corresponding to the pager on the table, then the receiver at the service counter displays the table number, and the waiter can go forward to provide the corresponding service after receiving the call.
TD136 Service Calling Display Receiver with TD010 call button solves the problem
Receive and display customer call information, broadcast and display call records to avoid missing
Optimize service environment and customer order management to improve service quality
Can realize humanized service and management
Simplify workflow, save labor costs and improve work efficiency
Maybe You Want to Know
Applications:
Widely used; applied to restaurant; nursing home; cafes; supermarkets; hotel; hospital wards; emergency center; banks; schools; which can help you improve quality of service
Please fill in your procurement needs and contact information
Specifications:
TD136 Display Receiver |
TD010 Call Button |
||
|
Dimension |
230*131*40mm |
Operating temperature |
-10~50°C |
|
Material |
ABS |
Storage temperature |
-20~60°C |
|
Modulation |
AM(OOK) |
Wireless coding |
EV1527 |
|
Rx Frequency |
433MHz |
Battery |
12V 23A |
|
Standby time |
20h |
Operating current |
15±3mA |
|
Built-in battery |
550mAh |
Operating frequency |
433MHz |
|
Built-in battery for continuous working hours |
4h~5h |
Range |
100 m(Open area) |
|
Power Adapter |
INPUT:100-240V~50/60Hz 0.5A MAX OUTPUT:DC12V 1A |
Size |
Ø60*21.3mm |
|
Material |
ABS+ Silica gel |
||
|
Product Weight |
38g |
||
|
Waterproof |
IP67 |
||
Package Includes:
TD136 Display Receiver×1
Adapter ×1
Manual ×1
TD010 Call Buttons x 6/10/15/20 (quantity optional)
Q: Can I buy more TD010 buttons?
A: Click here, and jump to the TD010 white call buttons to purchase.
Q: What is the working distance of this combination?
A: It depends on the working distance of the button transmitter. TD010 can reach 100 meters/ 328 ft in open areas
