Transmitter keypad for restaurant pager system with built-in 1000mAh built-in battery; can be used for 4 hours without plug in the socket; very suitable for outdoor work such as food truck
Each pager has a built-in 300mAh battery; which can be used for 20 hours
Equipped with anti-dumping bracket to avoid scattering
Working distance can reach 500m/1640ft at the open area; giving guests more free space
Prompt mode: vibration/buzzer/flashing lights

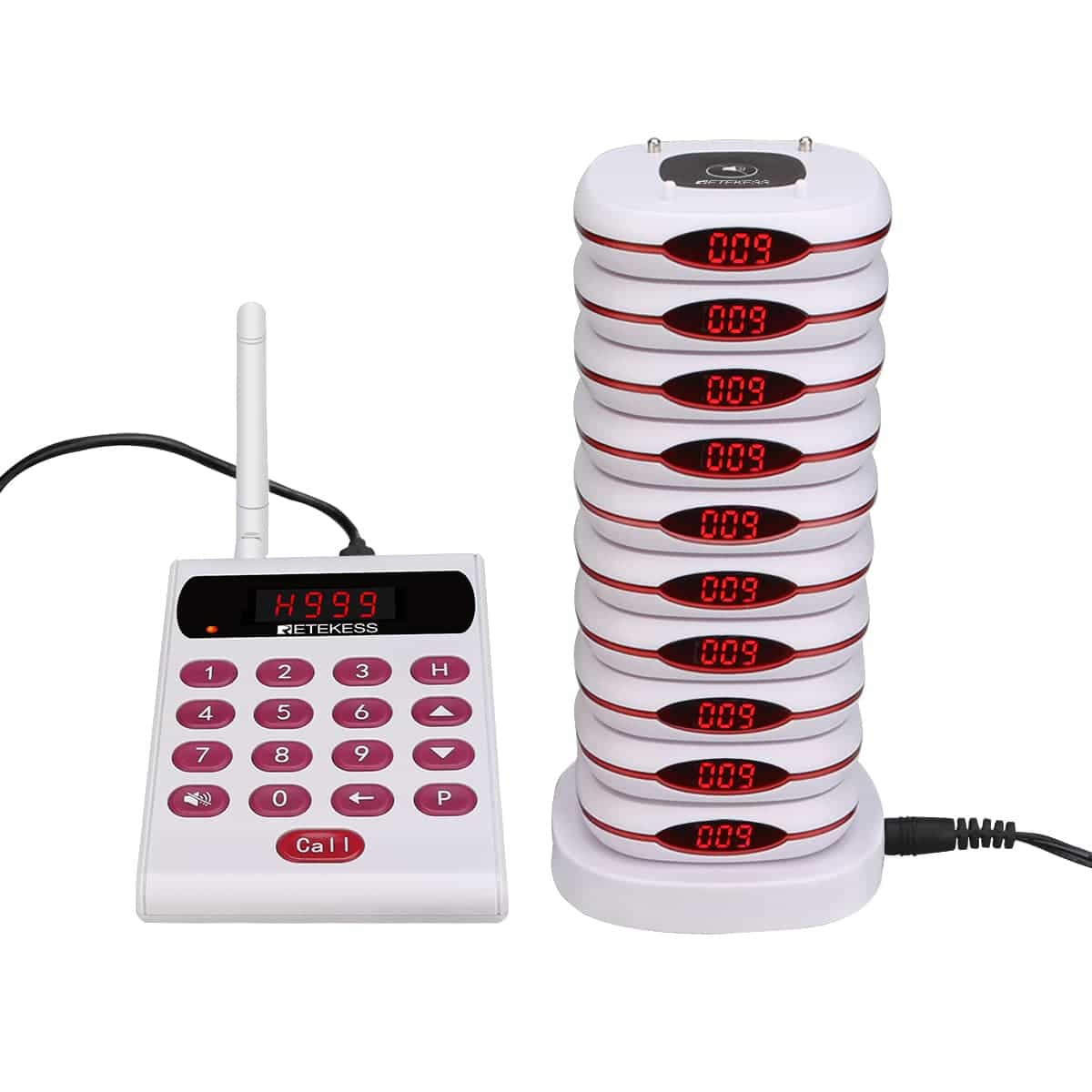

Retekess TD161 Restaurant Pager Buzzer Paging System Transmitter With Backup Battery Long Range For Cafe Food Court Truck Clinic
Advantages:
1. The transmitting host has a built-in 1000mAh lithium battery, which can call pagers without being plugged in, and it can be used for 4 hours unplugged. And it can also be charged by mobile power, suitable for mobile use
- 2. Equipped with anti-dumping bracket to avoid scattering
3. Reminder modes: vibrate + flash + beep
4. The charging base supports cascading and can charge up to 1 to 20
Features:
1. New black appearance; comfortable mechanical keys.
2. Using AM technology, the signal is stronger and more stable. Working distance 500M outdoors.
3. The pager has a built-in magnet for more reliable charging. And equipped with anti-dumping bracket to avoid scattering
4. One button to mute, Press MUTE then 999 (S999 displayed) then press CALL, all charging pagers change to MUTE mode. Press MUTE then 000 (S000 displayed) then press CALL, all charging pagers change to normal mode.
5. Call History: Press button H to check the recent 10 called numbers.
6. One-Call-Off, In CALL mode, press 999 then CALL, all charging pagers will be off.
7. Charging reminder, The LED light flashes when the pagers is in the charging state. After the pagers is fully charged, the indicator light will be always on.
8. The pager has a mute button, support for one-button reset.
9. It can support up to 998 pagers, and multiple keyboards can call the same pager
- The startup host adds startup and shutdown procedures H + ↓ for startup, H + ↑ for shutdown (the host presses H and 3 seconds, the host shuts down; long press H and 3 seconds, the host turns on. This operation is invalid in the charging state.)
-
Note: Please use the keypad transmitter on the table which be made of wood, plastic, glass and other materials, and avoid the table top of metal and marble
Applications:
Restaurants, Cafes, food trucks, bars, hospital waiting room, factory
Please fill in your procurement needs and contact information
Specification:
Keypad Transmitter | PAGER | ||
Input power | DC12V/2A | Built-in battery | lithium battery 3.7V300mAh |
Transmission frequency | 433.92MHz | Receive frequency | 433.92MHz |
Transmission power | 23dBm | Standby current | <12mA |
Standby power consumption | <120mW | Standby time | 20h |
Modulation mode | OOK | Receiving sensitivity | -108dBm |
Extension capacity | 998 | Transmission distance | 500m open and visible |
Dimensions | 110*165*50mm | Prompt mode | vibration / buzzer / flashing light |
Maximum output | DC5V/2A*2 | Reminder duration: | 1-999 seconds |
Built-in battery | lithium battery 3.7V1000mAh | Input power | Type-CDC5V/2A |
Package Includes:
-
Options Package Details 1 keypad + 10 pagers - 1 x Keypad Transmitter, 10 x Pagers, 1 x Antenna, 1 x Power Adapter, 1 x Manual, 1 x Charger Base, 1 x Bracket, 1 x Type-C Line
1 keypad + 20 pagers - 1 x Keypad Transmitter, 20 x Pagers, 1 x Antenna, 1 x Power Adapter, 1 x Manual, 2 x Charger Bases, 1 x Bracket, 2 x Type-C Lines
1 keypad + 30 pagers - 1 x Keypad Transmitter, 30 x Pagers, 1 x Antenna, 1 x Power Adapter, 1 x Manual, 3 x Charger Bases, 1 x Bracket, 3 x Type-C Lines
