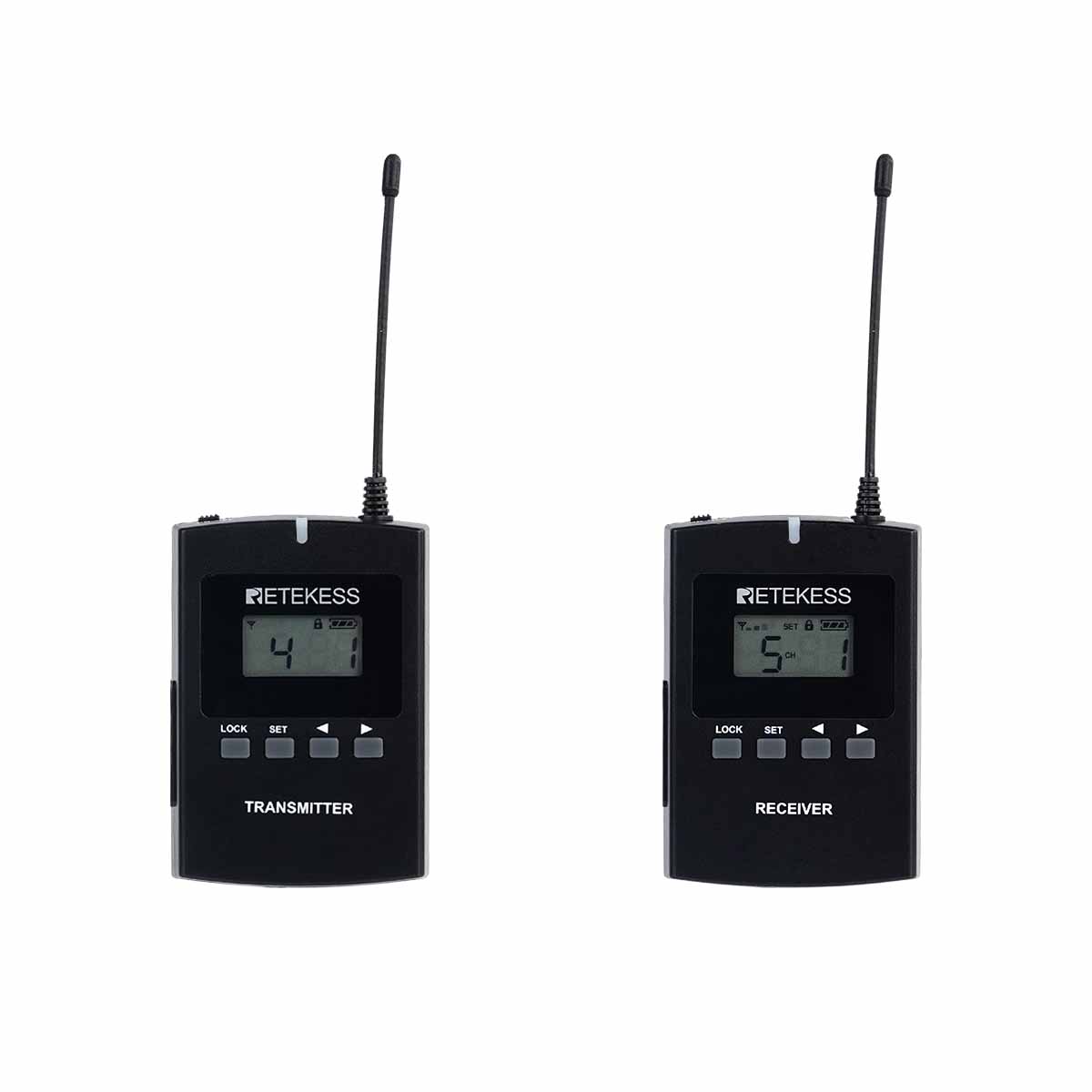

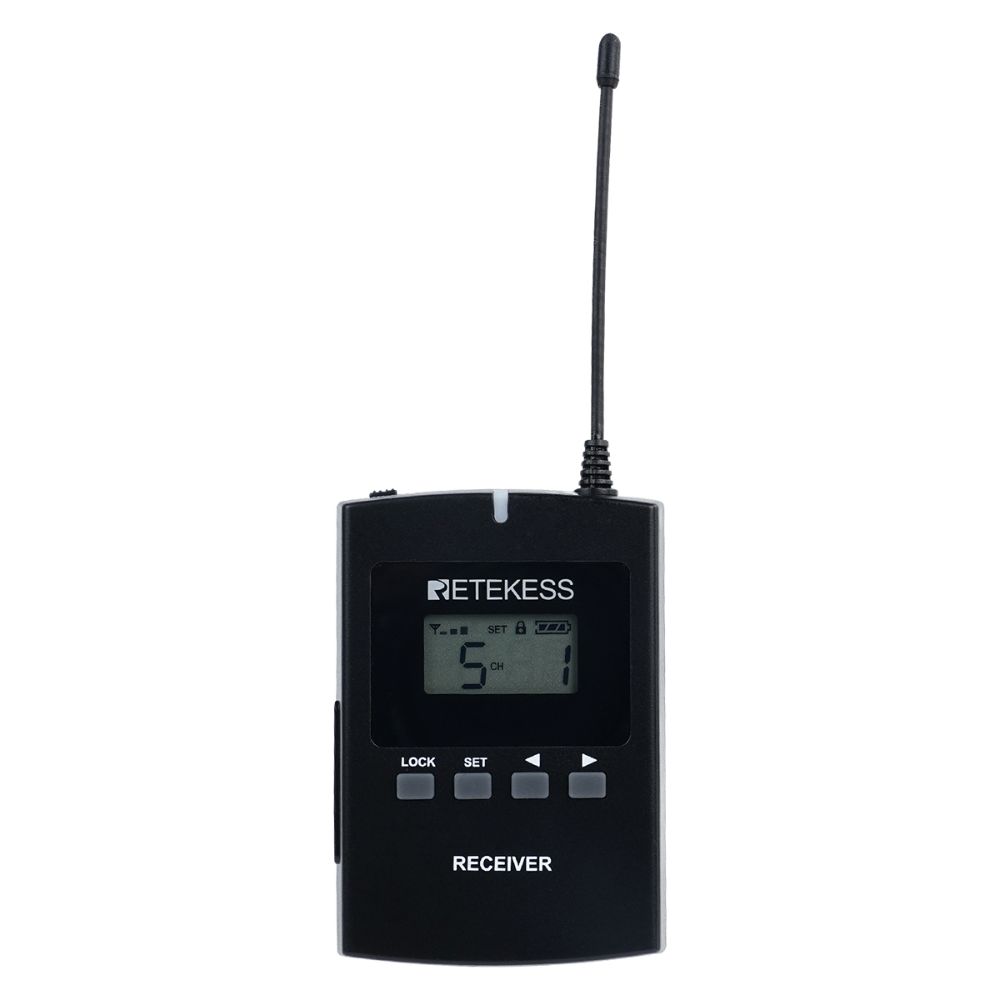

Retekess TT124 Two Way Tour Guide System For Factory Training Group Communication
13 channels allow 13 groups to work simultaneously in one area
Two-way interactive mode and one-way narration mode can be switched
Two-way tour guide system has a communication distance of over 200 meters
Adjustable volume of transmitter and receiver
High fidelity sound quality, no delay in sound transmission
Wireless 2-way communication system is easy to use
Note: Shipment within 5 business days
Bulk order Inquiry
OverView
TT124 two-way tour guide system is used for factory tours, goup communication, group tours, training and teaching, conference interpretation, church interpretation, museum interpretation, etc. Each device is equipped with a lanyard and the volume can be adjusted freely, so it can be used comfortably on any occasion.
Long transmission distance
The transmitter has an operating range of 200 meters or more, allowing the audience to move freely within 200 meters of the interpreter without having to crowd together. When visiting a factory, the narrator does not have to worry about people at the back of the line not hearing him.
Long standby time
The transmitter can be used for 7 hours continuously when fully charged, and the receiver can be used for 12 hours continuously, which is enough for most tours.

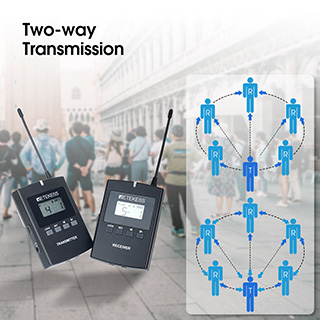

Two-way communication
The transmitter can talk directly to the receiver, and the receiver can talk to all group members, including the transmitter, by simply pressing the SET button or the talk button on the headset.
Button Lock Function
The TT124 two-way tour guide system can lock the device by pressing the lock button so that both the narrator and the audience can make physical movements without the fear of accidentally touching the button and affecting the normal progress of the event.
Add receivers
A single transmitter can work with multiple receivers on the same channel. As your group grows in size, you can add as many receivers as you need, simply by tuning them to the same channel.
Small and lightweight
The transmitter and receiver are compact, weighing only 72 grams. This means that one person can easily carry all the equipment used by a team.
UHF frequency transmission
Because of the UHF frequency, the TT124 two-way tour guide system is highly resistant to interference and has a more stable signal, minimizing noise and allowing your team to enjoy crystal-clear sound.
Spec
Specifications of the main transmitter | Specifications of the vice transmitter | ||
Frequency Range | 863.0.0MHz-865.0MHz & 823.0.0MHz-832.0MHz | Frequency Range | 863.0.0MHz-865.0MHz & 823.0.0MHz-832.0MHz |
Channel Number: | 13CH | Channel Number: | 13CH |
Transmitter Power | 18dBm | Receiver Sensitivity | -100dBm(Typical) |
Supply Voltage | 3.0-5.0VDC | Supply Voltage | 3.0-5.0VDC |
Audio Input | 3.5mm line | Audio Input | 3.5mm line |
power supply | 2500mA | power supply | 2500mA |
Oscillator | All digital | Oscillator | All digital |
Frequency Response | 20Hz-16KHz | Frequency Response | 20Hz-16KHz |
SNR | 80dB(Typical) | SNR | 80dB(Typical) |
Image Rejection | >80dB | Image Rejection | >80dB |
Image& Spurious Rejection | >75dB | Image& Spurious Rejection | >75dB |
channel Spacing | 1MHz | channel Spacing | 1MHz |
Separation | 75dB(Typical) | Separation | 75dB(Typical) |
Distortion | <1% | Distortion | <1% |
Working currency | 80mA(18dBm) | Working currency | 80mA(18dBm) |
Furthest Distance | 200Meter | Furthest Distance | 200Meter |
Size | 70*50*17mm | Size | 70*50*17mm |
Wight | 72g | Wight | 72g |
Package List :
Classification of packages | package includes |
1TX+1RX |
1x main transmitter |
1x vice transmitter | |
2x headset with microphone | |
2x charging cable | |
1x User manual | |
1TX+6RX |
1x main transmitter |
6x vice transmitter | |
7x headset with microphone | |
7x charging cable | |
1x User manual | |
1TX+10RX |
1x main transmitter |
10x vice transmitter | |
11x headset with microphone | |
11x charging cable | |
1x User manual | |
1TX+15RX |
1x main transmitter |
15x vice transmitter | |
16x headset with microphone | |
16x charging cable | |
1x User manual | |
1TX+20RX |
1x main transmitter |
20x vice transmitter | |
21x headset with microphone | |
21x charging cable | |
1x User manual |
FAQ
Q: How many vice transmitter can you use with one main transmitter?
A: You can use unlimited vice transmitters(receivers) with one main transmitter.
Q: Can all the tour guide system talk?
A: Yes, all the transmitter and receivers can talk.
