Retekess T-AC04 Garage Keyless Entry Pad,Access Control Keypad,Door Keypad

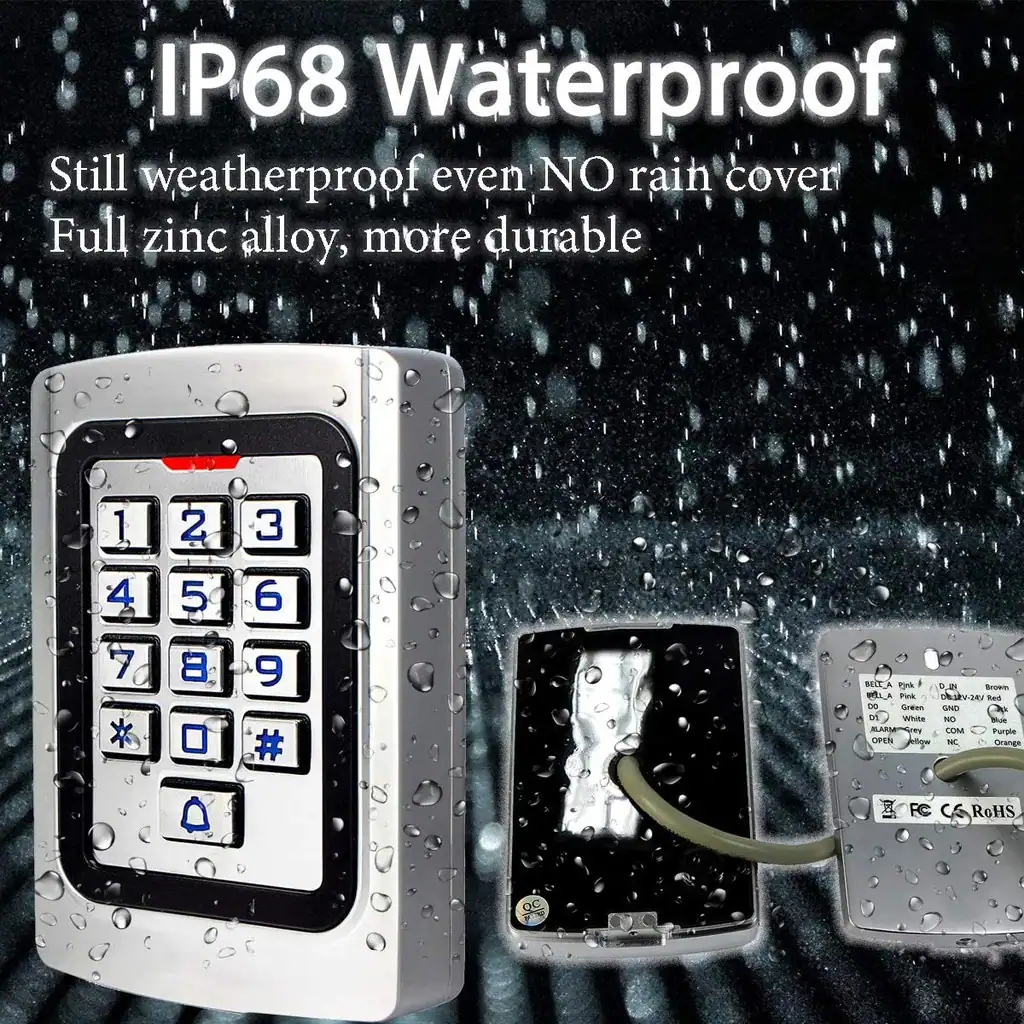

IP68 Waterproof & dust-proof
Illuminated courtesy blue lighting, so you can operate the access control system in night to see the keypad number clear; Also it woks with low power consumption about 30mA
Unique Metal Exterior Design:Strong Ambient Temperature: -45℃-60℃

Wiegand Output
Card Reading Distance:1.18~2.36inch
Power Supply: DC 12-24V
Electric lock output: Max 3A
Alarm output: Max 20A
Password: 4 digit PIN code
Wiegand output: With Wiegand output interface, Wg26 card number buttons output

Alloy Electroplated
Alloy Electroplated anti-vandal case
Anti explosion and pry, which is durable to use. Widely used in home, office, residential area and other public places

Support 200 Users
Easy install, supporting 2,000 users
Rugged zinc alloy suited for outdoor use
User modification password.It is easy for Users can revise the door password
Good choice for factories, warehouses, laboratories, banks

Output Short Circuit Protection
Each relay has programmable output time from 1~99 seconds or toggle
Can be programmed for use with a doorbell
Alarm time can be choose from 0-3 minutes
After card is lost, usable keyboard delete card, thoroughly eliminate safety lapses

3 Modes Access
Support 3 Modes Access: Card, PIN, Card+PIN
Card Type: 125 KHz EM & 13.56MHZ mifare card
Adjustable door output time, door open time functions
