Description

The pager uses a large-capacity battery, no need to charge frequently

IP67 waterproof Sealed silicon rubber ring

Resistance to falling and dust-proof

More stable and strong pagers

Support change your own logo, just need to remove the 2 screws

Support 9998 pagers in all, 9999 number is used as out of range alarm

Spec

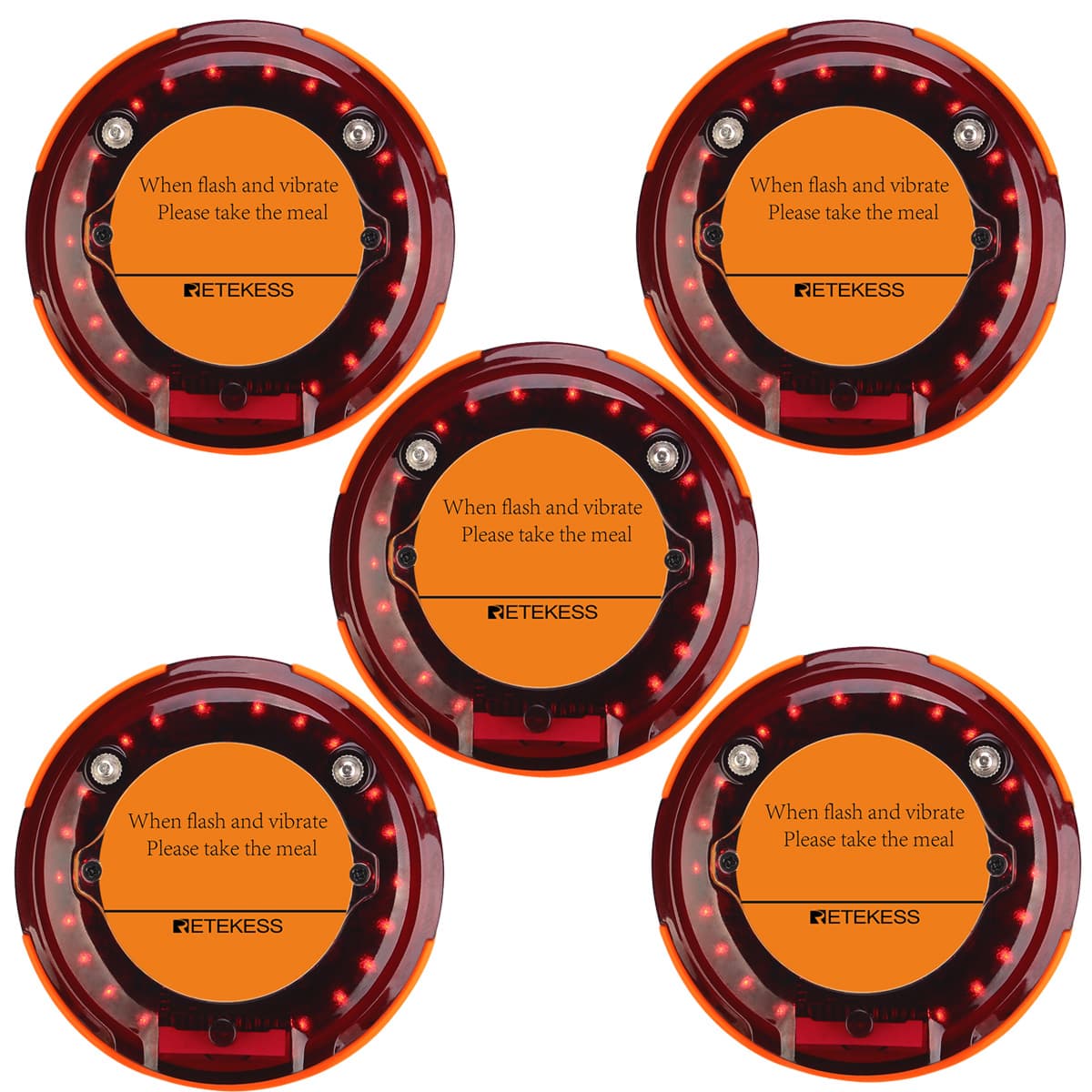

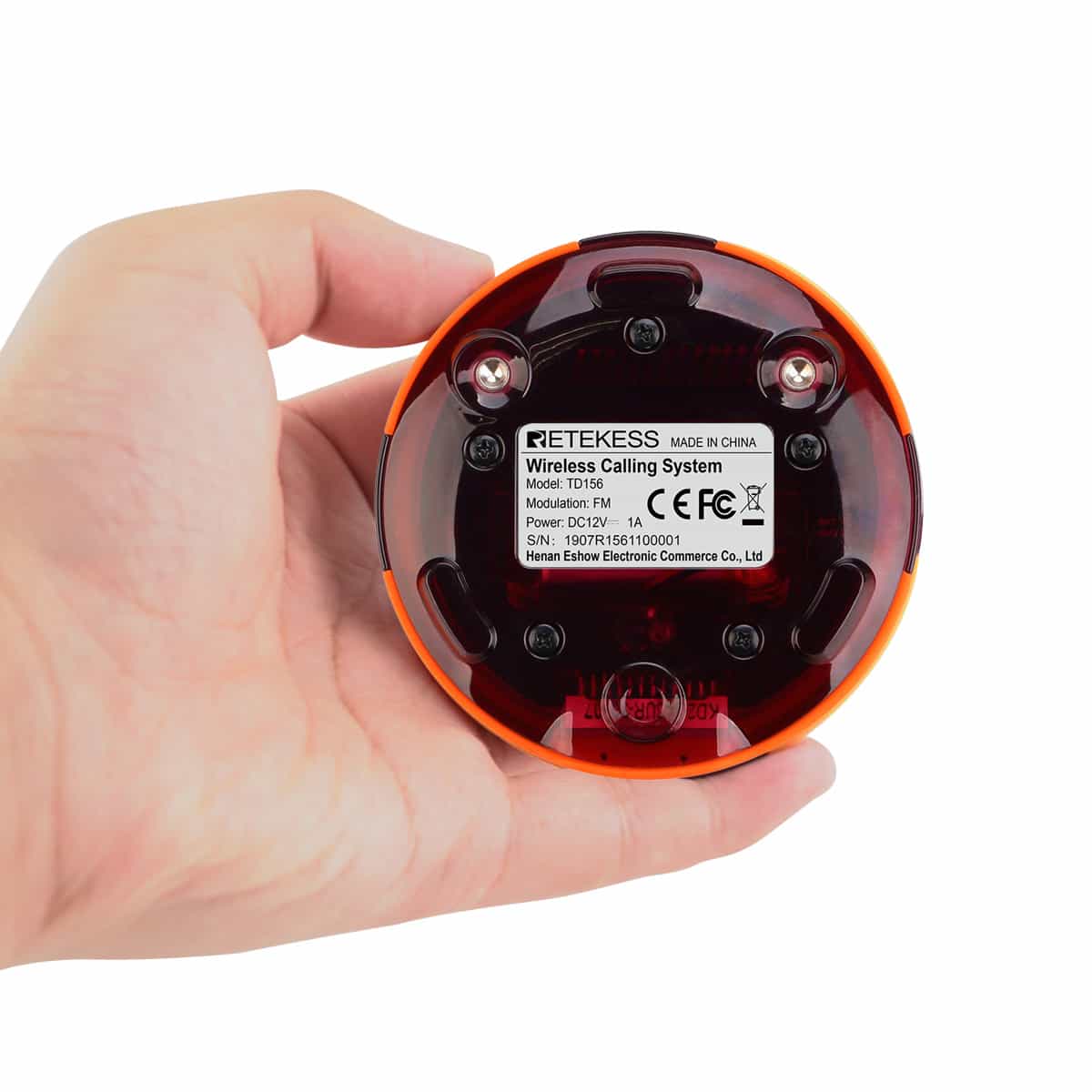

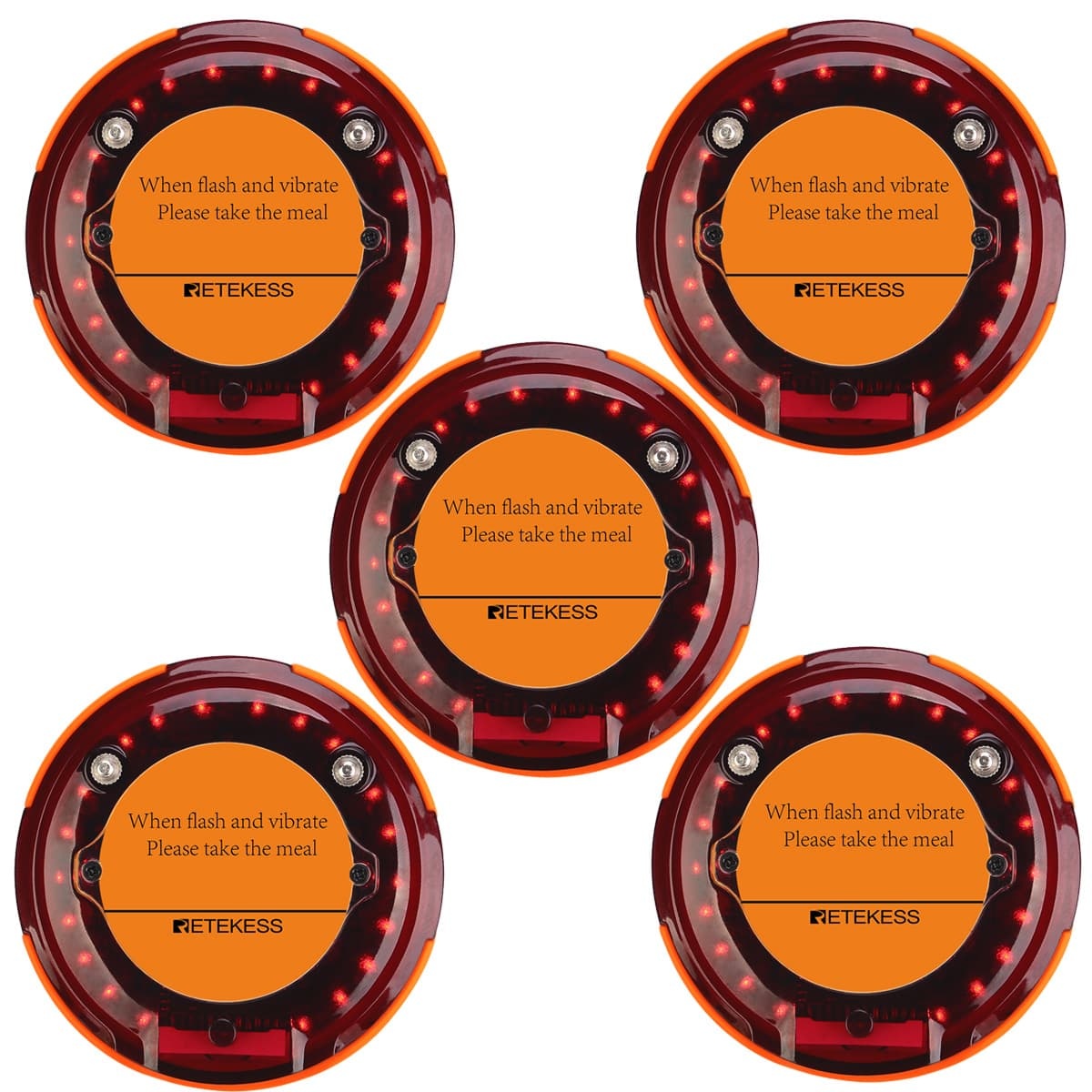

Coaster Pager
Dimensions 3.15 × 0.59 in
Housing Material PC
Receiving Sensitivity -120 dB
Standby Time Approximately 48 hours
Battery Built-in 500 mAh rechargeable lithium battery
Receiving Frequency 424.8–469.025 MHz

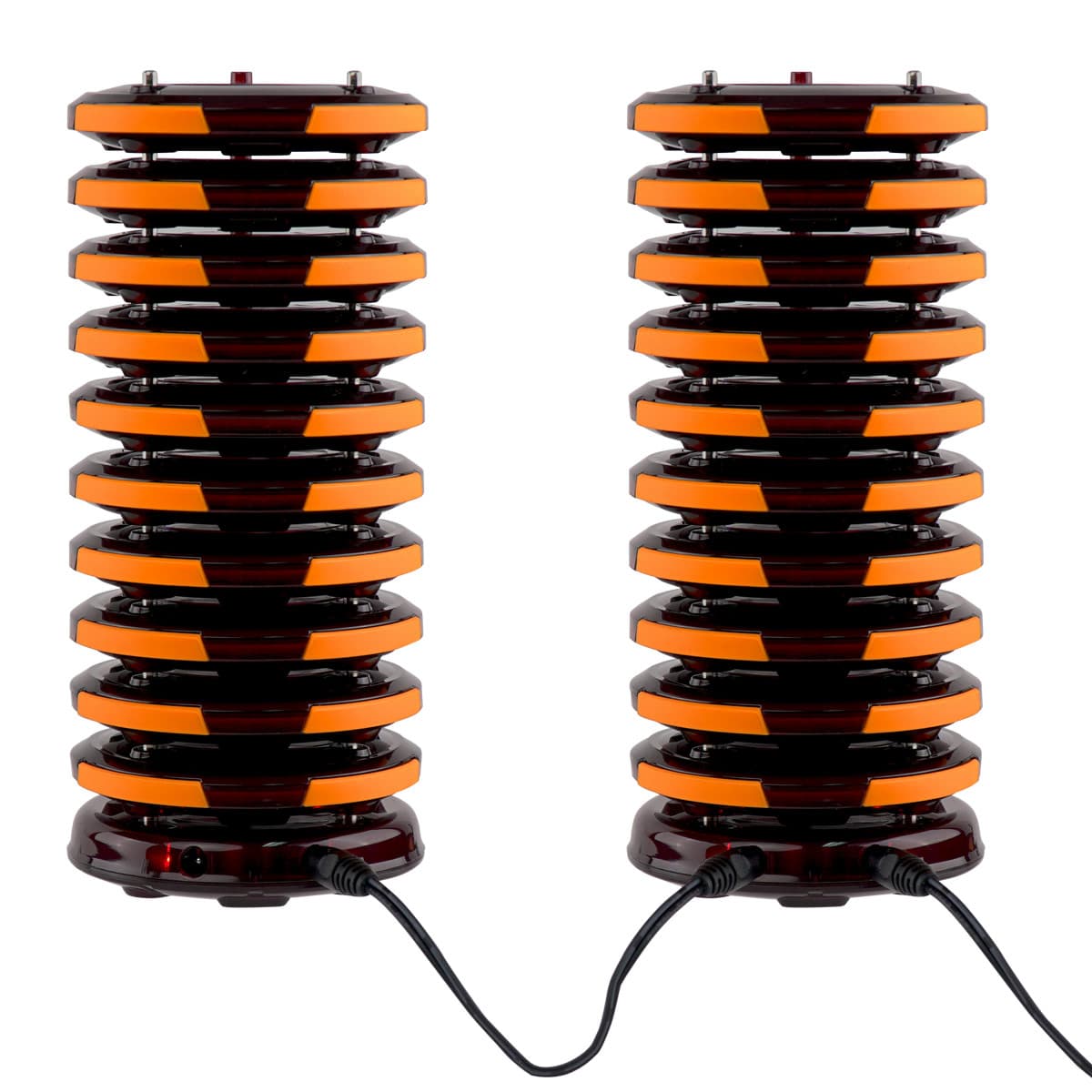

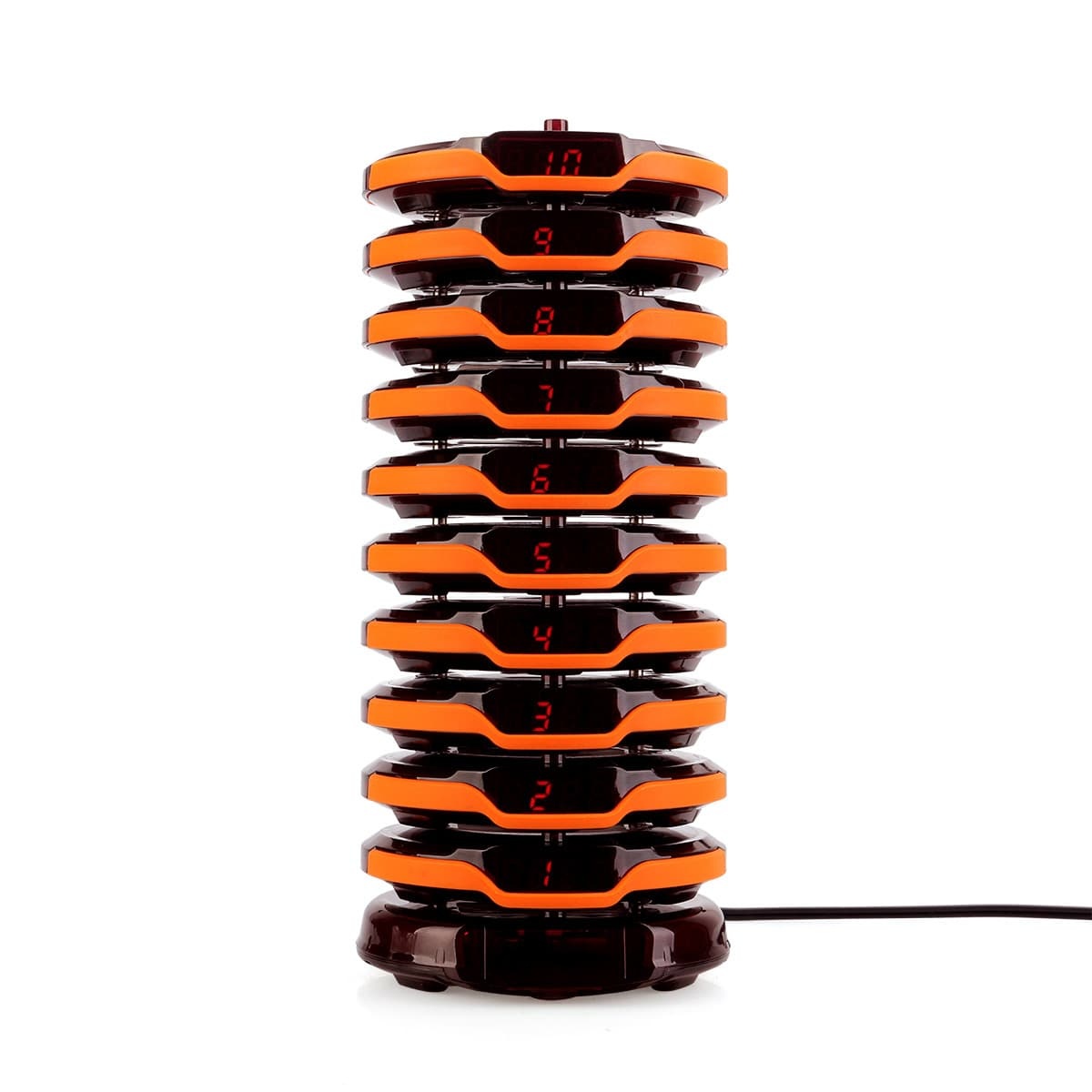

Charging Base Adapter

Input: AC 100–240V, 50/60Hz

Output: DC 12V, 2A

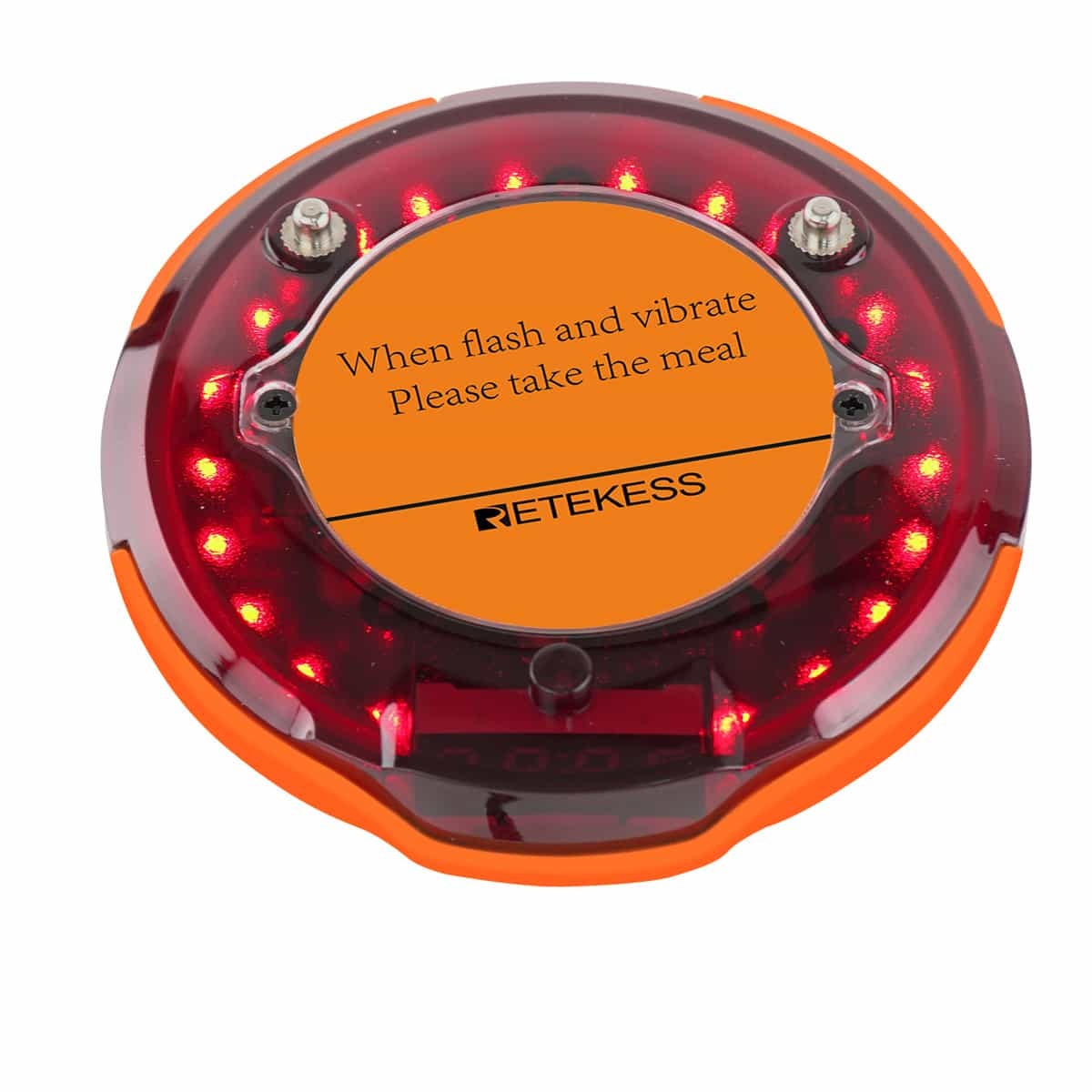

Alert Modes Vibration, buzzer and LED flashing
Transmission Range Up to 800 m in an open area
Waterproof Rating IP67
Coaster Pager
Dimensions 3.15 × 0.59 in
Housing Material PC
Receiving Sensitivity -120 dB
Standby Time Approximately 48 hours
Battery Built-in 500 mAh rechargeable lithium battery
Receiving Frequency 424.8–469.025 MHz
Charging Base Adapter

Input: AC 100–240V, 50/60Hz

Output: DC 12V, 2A

Alert Modes Vibration, buzzer and LED flashing
Transmission Range Up to 800 m in an open area
Waterproof Rating IP67

FAQ

Q: How does the TD156 restaurant pager system work?

A: After a customer places an order, staff gives the customer a pager and records its ID. When the order is ready, staff enters the corresponding ID on the transmitter keypad to send a page. The customer can then return to the pickup counter to collect the order and return the pager.

Q: What is the range of the TD156 pager system?

A: The TD156 pager system offers a range of up to 800 m (2,624 ft) in open areas. The actual range may vary depending on the surrounding environment.

Q: Are TD156 guest pagers waterproof?

A: Yes. TD156 pagers feature an IP67 protection rating, making them suitable for environments where water exposure is a concern.

Q: What alert options does the TD156 pager system offer?

A: TD156 pagers support vibration, audible alerts, and LED flashing. The vibration, sound, and LED flashing settings can be adjusted to fast, medium, or slow modes.

Q: How long is the standby time of TD156 pagers?

A: TD156 pagers offer approximately 48 hours of standby time.

Q: What pager IDs can be set on the TD156 system?

A: The TD156 keypad supports pager ID settings from 1 to 9,998, allowing different IDs to be assigned to pagers within the system.

Q: Can I adjust the out-of-range alarm time on the TD156?

A: Yes. The TD156 supports out-of-range alarm time settings from 0 to 30 minutes.

Q: Can I adjust the service countdown and reminder duration?

A: Yes. The TD156 supports service countdown settings from 0 to 99 minutes and reminder duration settings from 5 to 99 seconds.

Q: Can I customize TD156 guest pagers with my company logo?

A: Yes. Logo customization is available. Please provide your logo in PSD format so our team can prepare the design and printing.

Q: How can I quickly turn off TD156 pagers?

A: Place the pagers on the charging base, enter 0 on the transmitter keypad, and press the Call button to turn them off.
