Retekess TT006 Portable 64 Slot Charge Case Storage Box for T130 TT106 receiver

Order Status: In Stock Unavailable
Brand:


It is made of the aluminum alloy

You can put down all the accessories. It is very convenient for you.

64 ports Charging case for Retekess T130 T131 TT106 tour guide system

it is a durable and fire-resistant Portable design, you can take it anywhere.


Charging case
14 People are Looking for this Product

Description

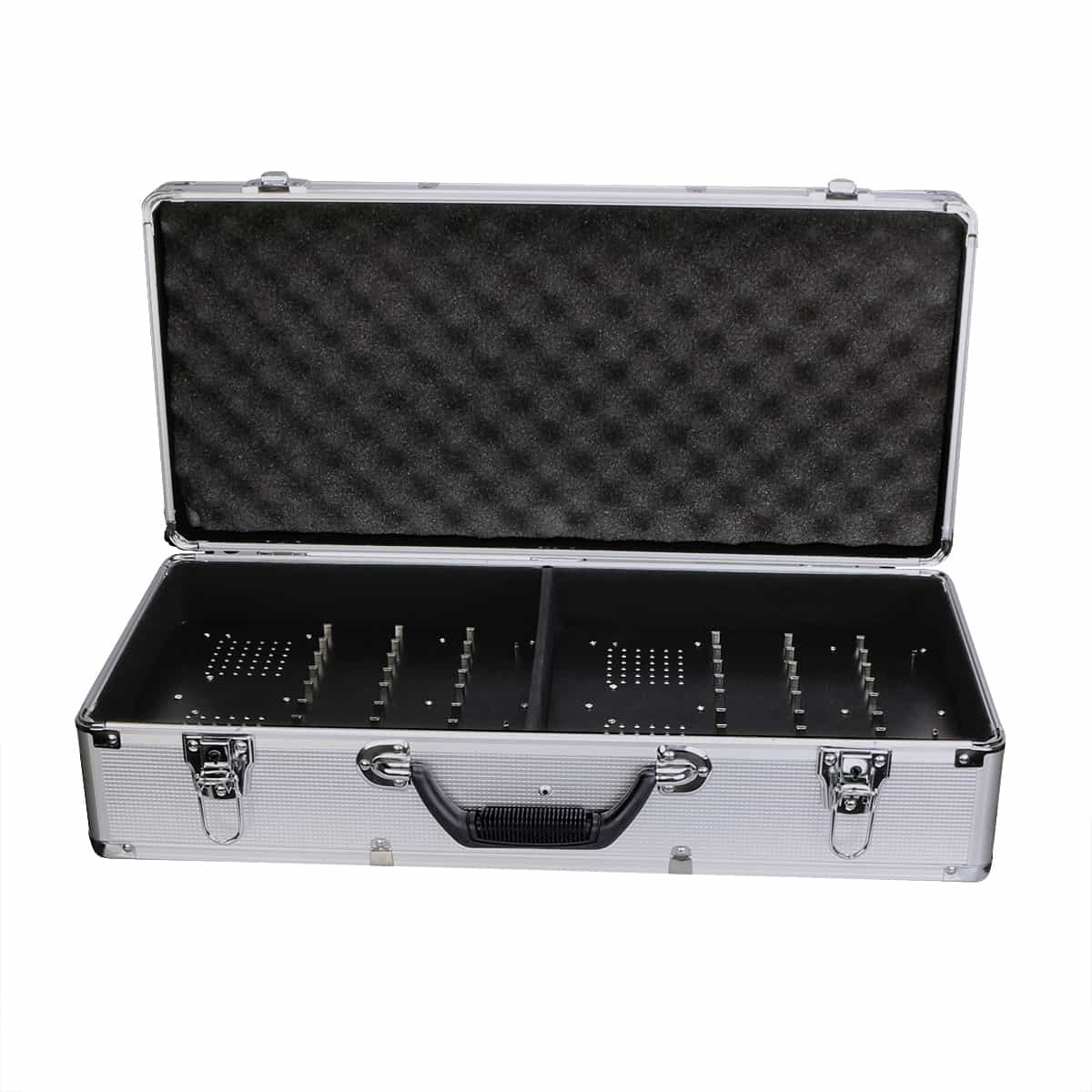

Retekess Silver TT006 Portable 64 Slot Charge Case Storage Box for T130 T131 TT106 Wireless Tour Guide System

It is made of aluminum alloy, it is durable and fire-resistant

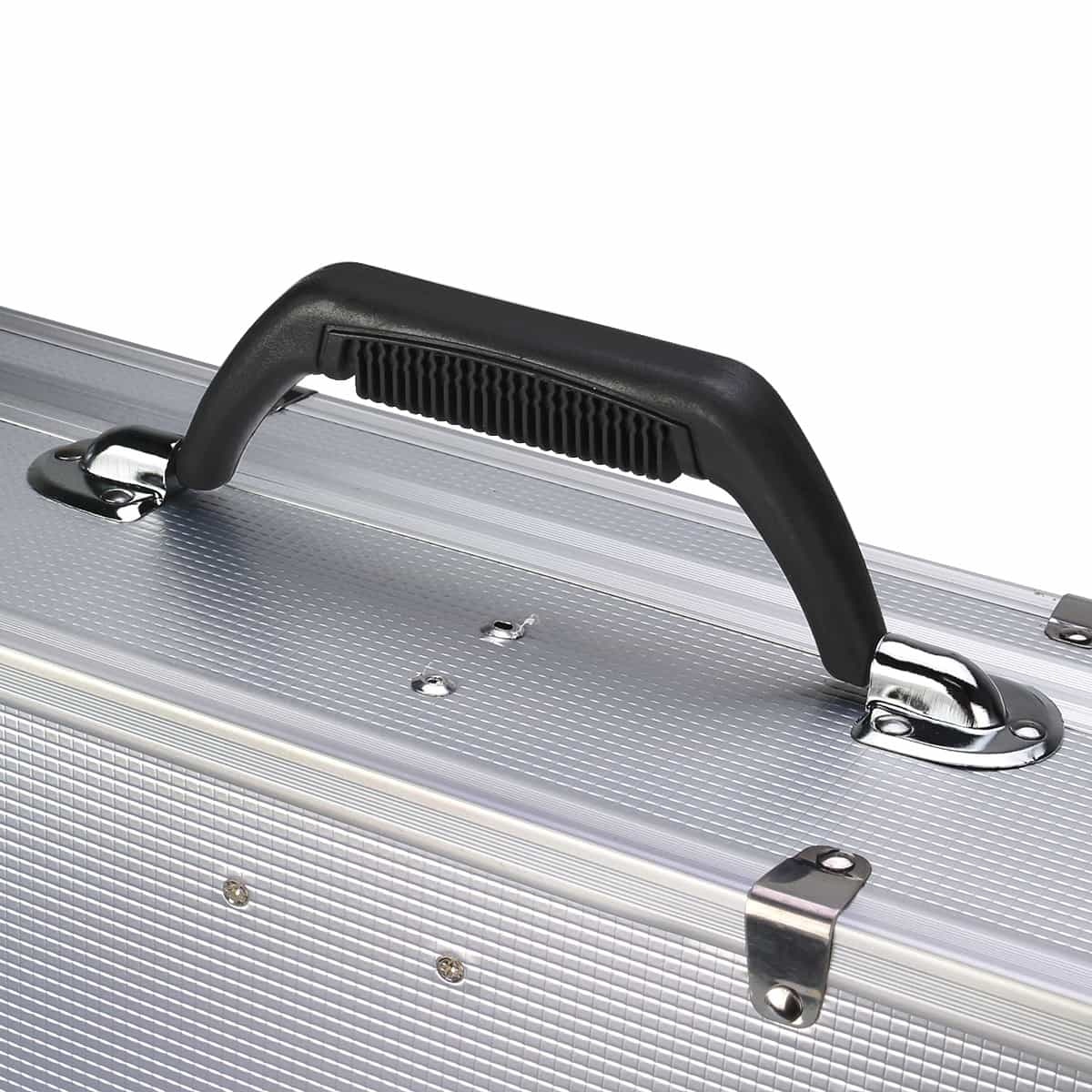

Portable design, you can take it anywhere.

You can put down all the accessories. It is very convenient for you.

This is 64 ports charging case, we also have 30 ports charging case, if you need it, pls feel free to contact us.

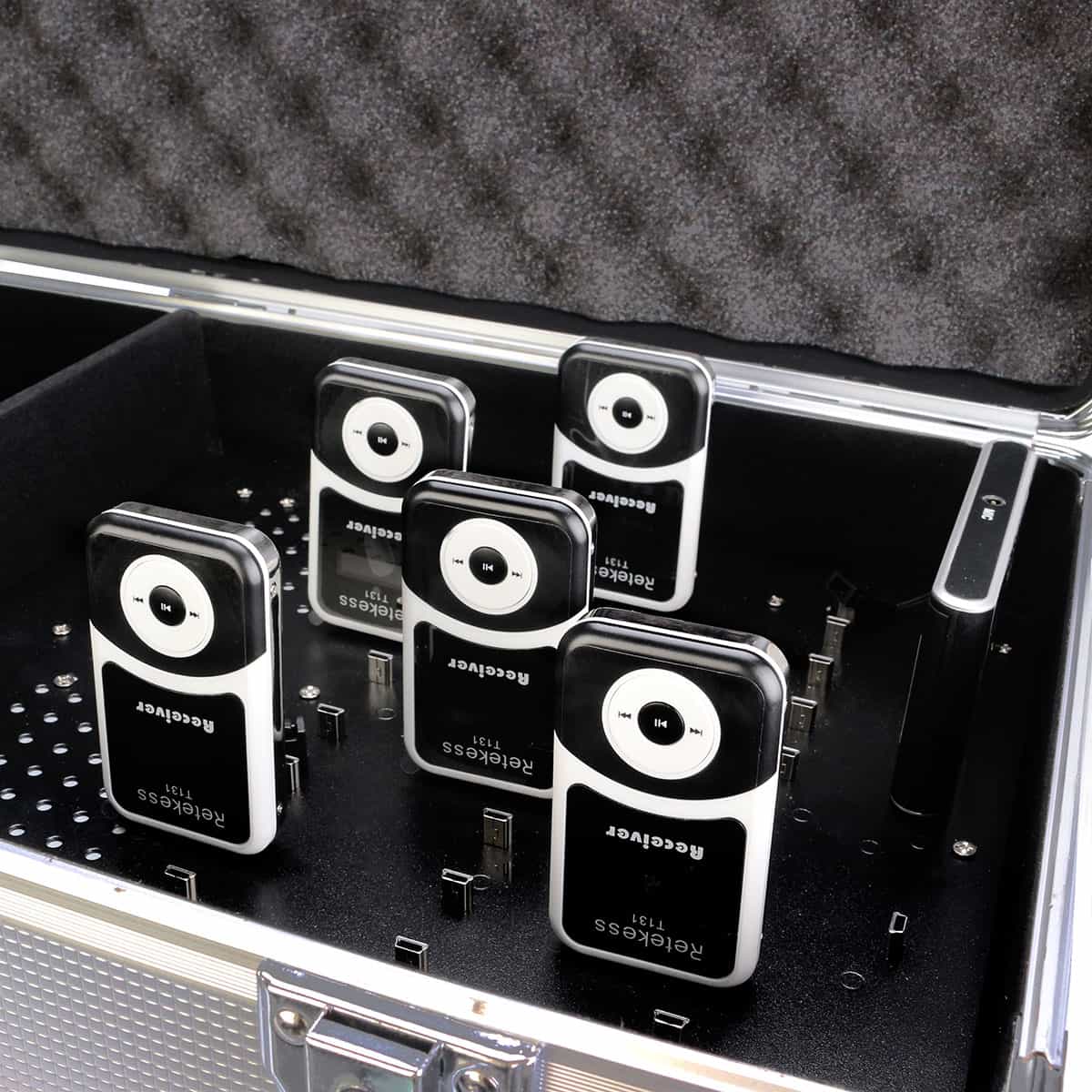

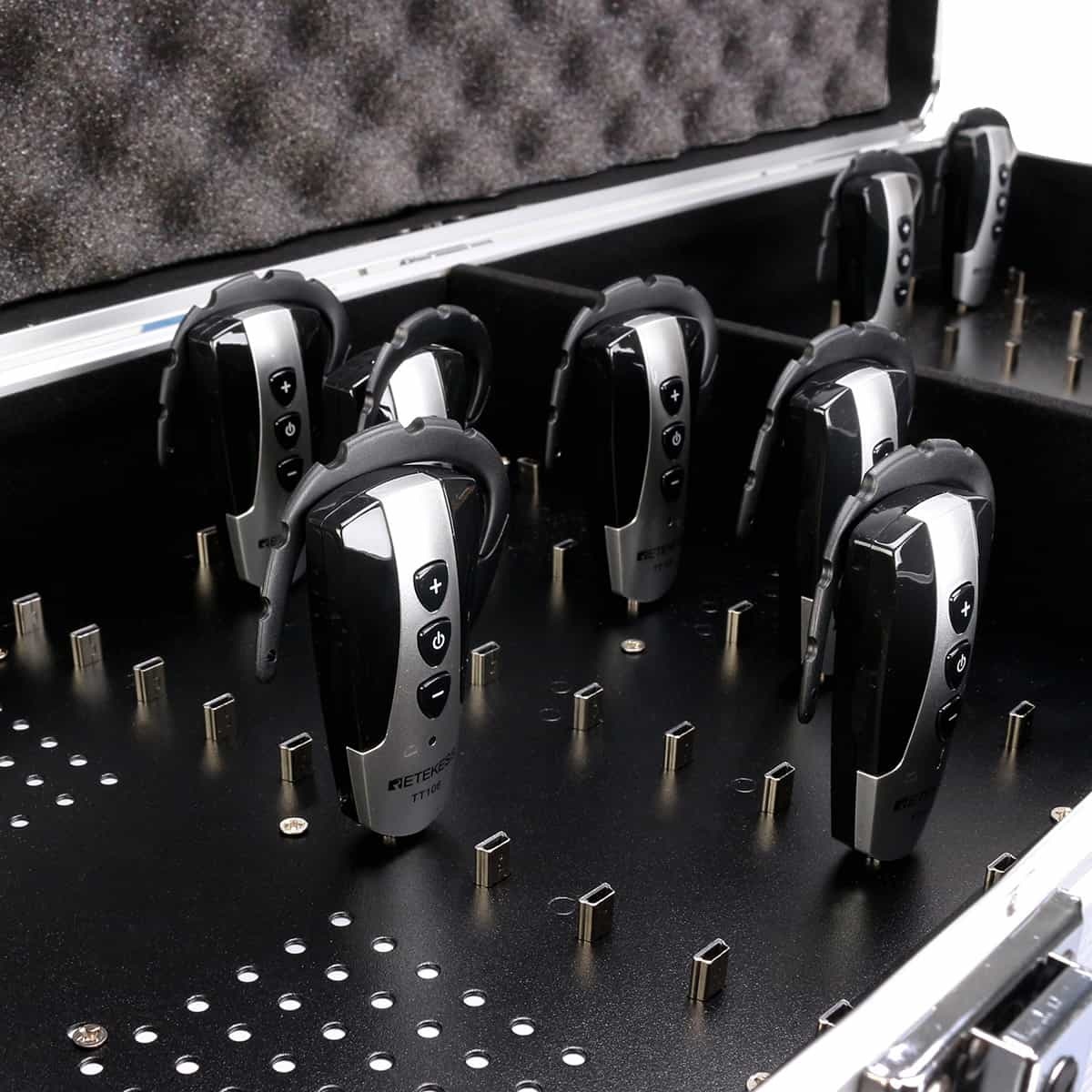

This charging case is very useful for tour guides, translators, you can take it with you with all your tour guide systems and translation devices, and you can put all  the accessories in it. It can also save a lot of time for you. Giving the products to your customers one by one is very easy, don't worry about the wires



Spec

Specification:

Input properties Input voltage AC90-250VAC, 47~63Hz
AC input current 1.5A/230VAC
Power supply efficiency 76%
Inrush current cold start current 36A/230V
Leakage current <2mA/240VAC
Output characteristics DC output voltage 5V
Output voltage tolerance ±1%
Output current range 0~7A (single power supply)
Output power 140W
Ripple and noise 80mVp-p
Protection characteristics Overload protection Overload protection starts at 115%~135% of rated output power
Protection mode: hiccup mode, automatically recovers after abnormal load conditions are removed
Overvoltage protection 145%~170% of rated output voltage
Protection mode: hiccup mode, automatically recovers after abnormal conditions are removed
Over-temperature protection When the internal contact temperature of the transistor exceeds 150°C, over-temperature protection is activated.
Protection mode: hiccup mode, automatically resumes when the temperature returns to normal
working environment Working temperature and humidity -10℃~+60℃; 20%~90%RH (please refer to the load derating curve)
Safety Voltage resistance Between input and output: 1.5KVAC Input and ground: 1.5KVAC Output and ground: 0.5KVAC
Insulation resistance between input and output: input and ground, output and ground: 100M Ohms/500VDC
Size 575 x290 x 140mm
Weight 4320g
Remarks: 1. Unless otherwise specified, all parameters are measured under the conditions of 230VAC voltage input, rated load and 25℃.
2. The ripple and noise voltages are measured on a 20MHz bandwidth oscilloscope with 0.1u and 47u capacitors added to the end of a 12-inch twisted pair.
3. Tolerance is the sum of voltage setting error, voltage regulation rate and current regulation rate.

      Package Includes:

1 x 64 slot charging case

1 x Charging cable
