SVN W2 6x Zoom PTZ Camera Product Specifications

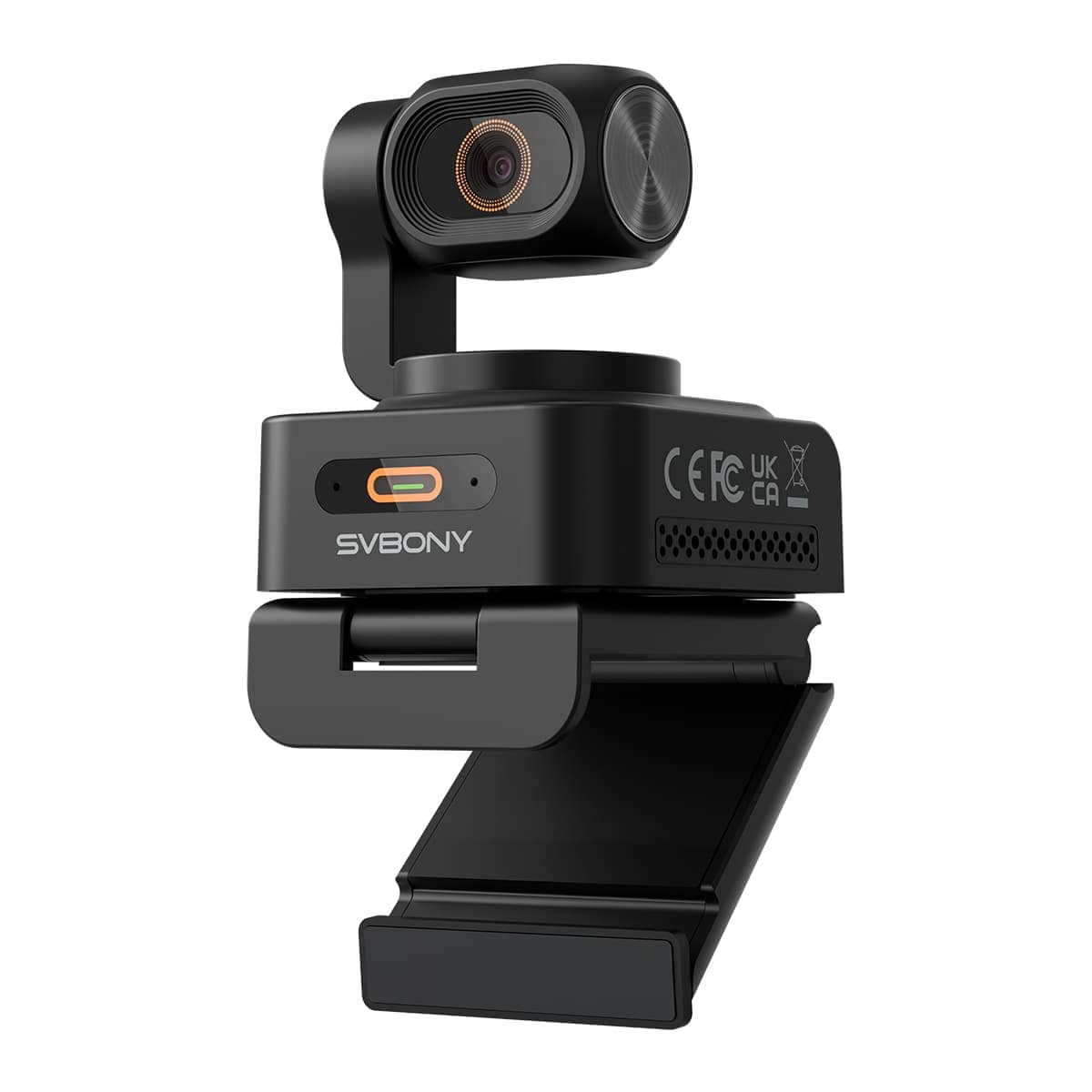

SVN W2 Integrated PTZ Camera

Dimensions

5.5 × 5.689 × 6.418 cm

Weight

95 g

Image Sensor

4K 1/2" CMOS Sensor

Video Output Interface

1 × Type-C Port

Audio Input

Built-in Dual Microphones

Video Signal

4K@30fps, 2K@30fps, 1080P@60fps, 1080P@30fps (Compatible with the following resolutions and frame rates)

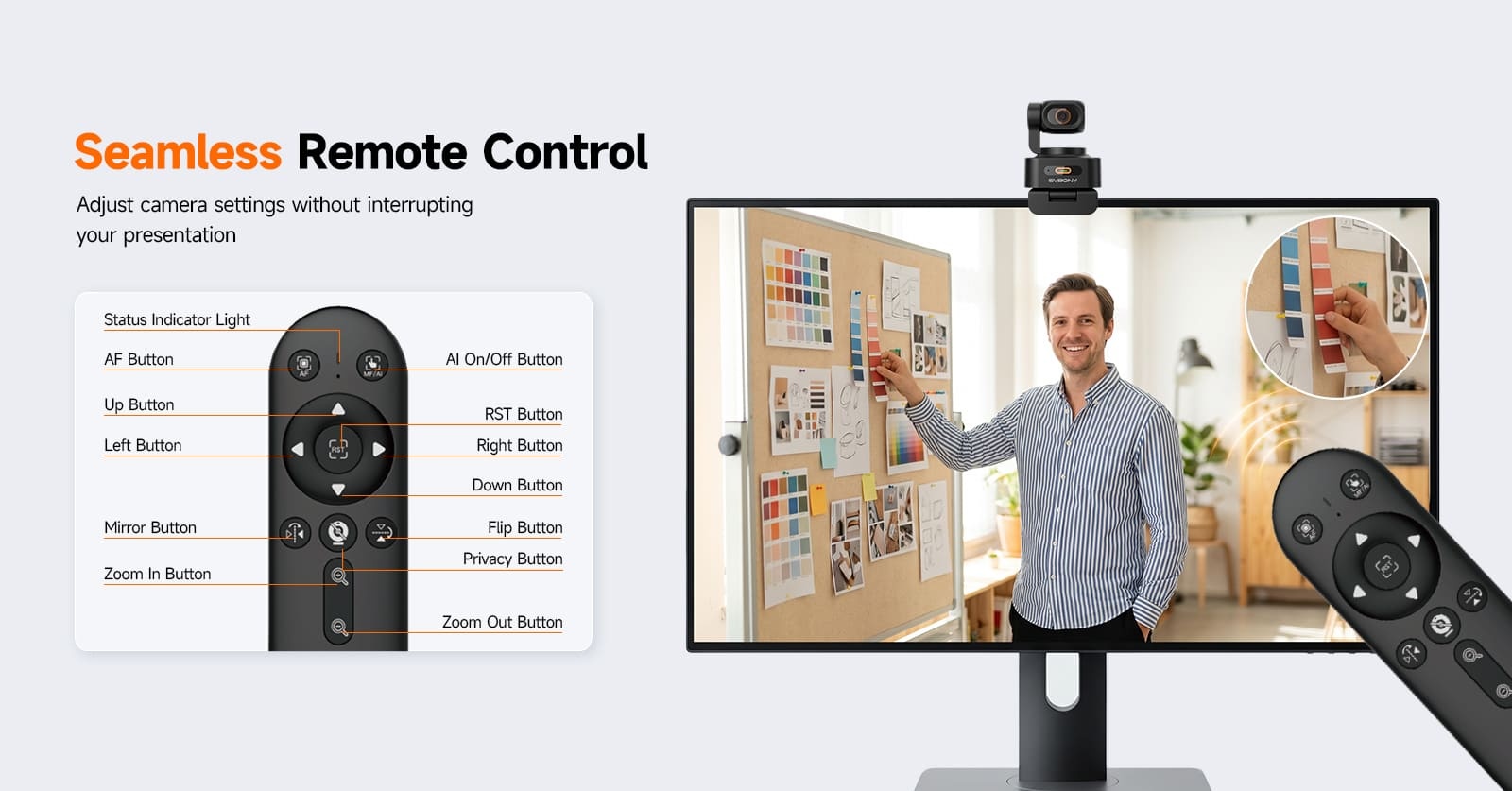

Remote Control

Supports: Zoom In/Out, Horizontal Mirroring, Vertical Flipping, One-touch Screen Off, One-touch Mute, One-touch AI Toggle

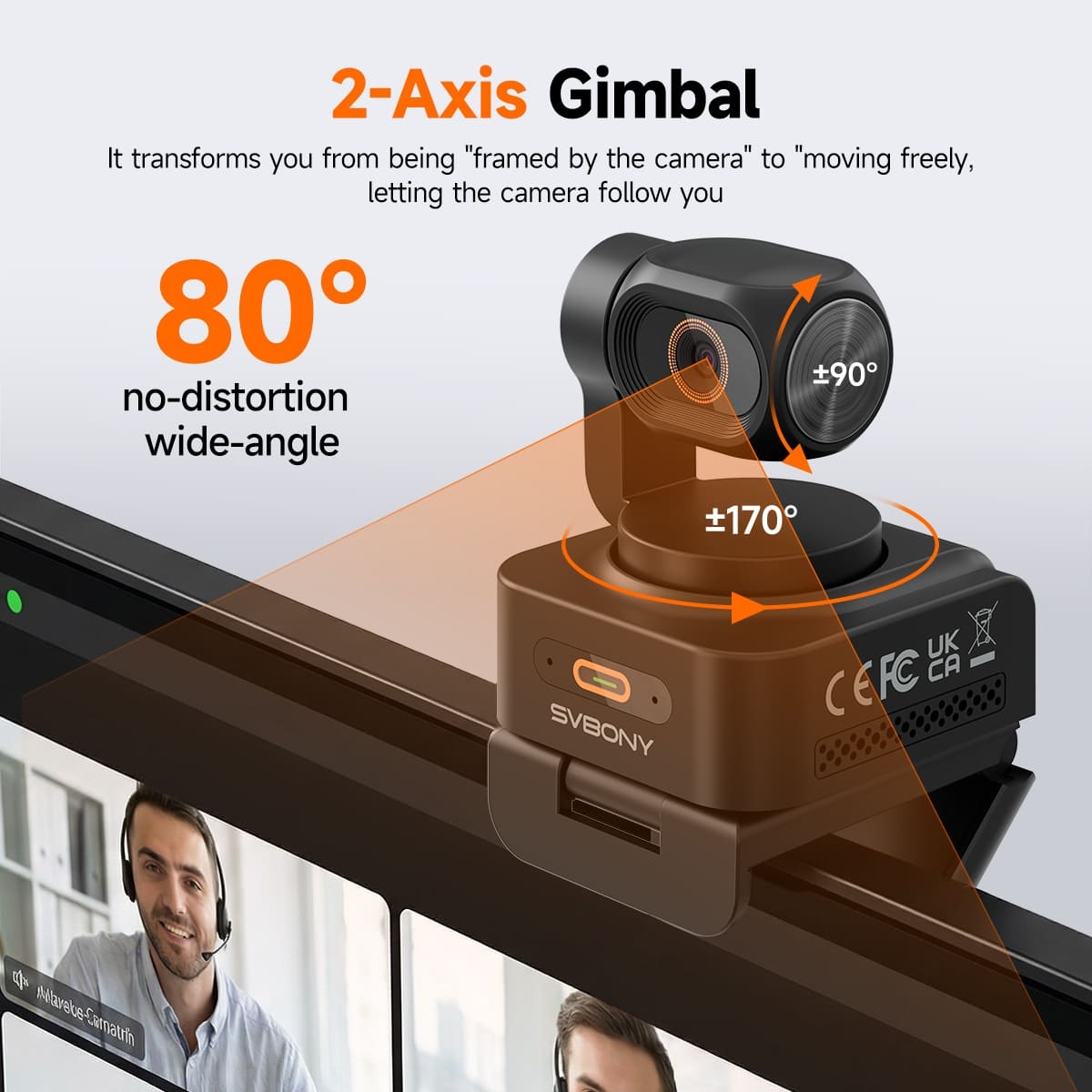

Pan & Tilt Angles

±170° Horizontal Field of View; ±90° Vertical Tilt Angle Supported

Field of View

80°

Focal Length

f = 2.1 mm

Aperture

F2.2

Indicator Light

(1) Green: In the powered-on standby state, the indicator light is green, signifying that the device is currently in a normal operating mode—neither in AI mode nor in remote control mode.

(2) Blue: Indicates that the device is currently in AI mode; at this point, the product can be controlled via gestures or the remote control.

(3) Red: Indicates that the device has lost track of its subject in AI mode. When the target person moves outside the tracking range, the device will cease tracking, and the indicator light will turn red. Once the target person reappears within the tracking range, the light will revert to blue, resuming AI mode.

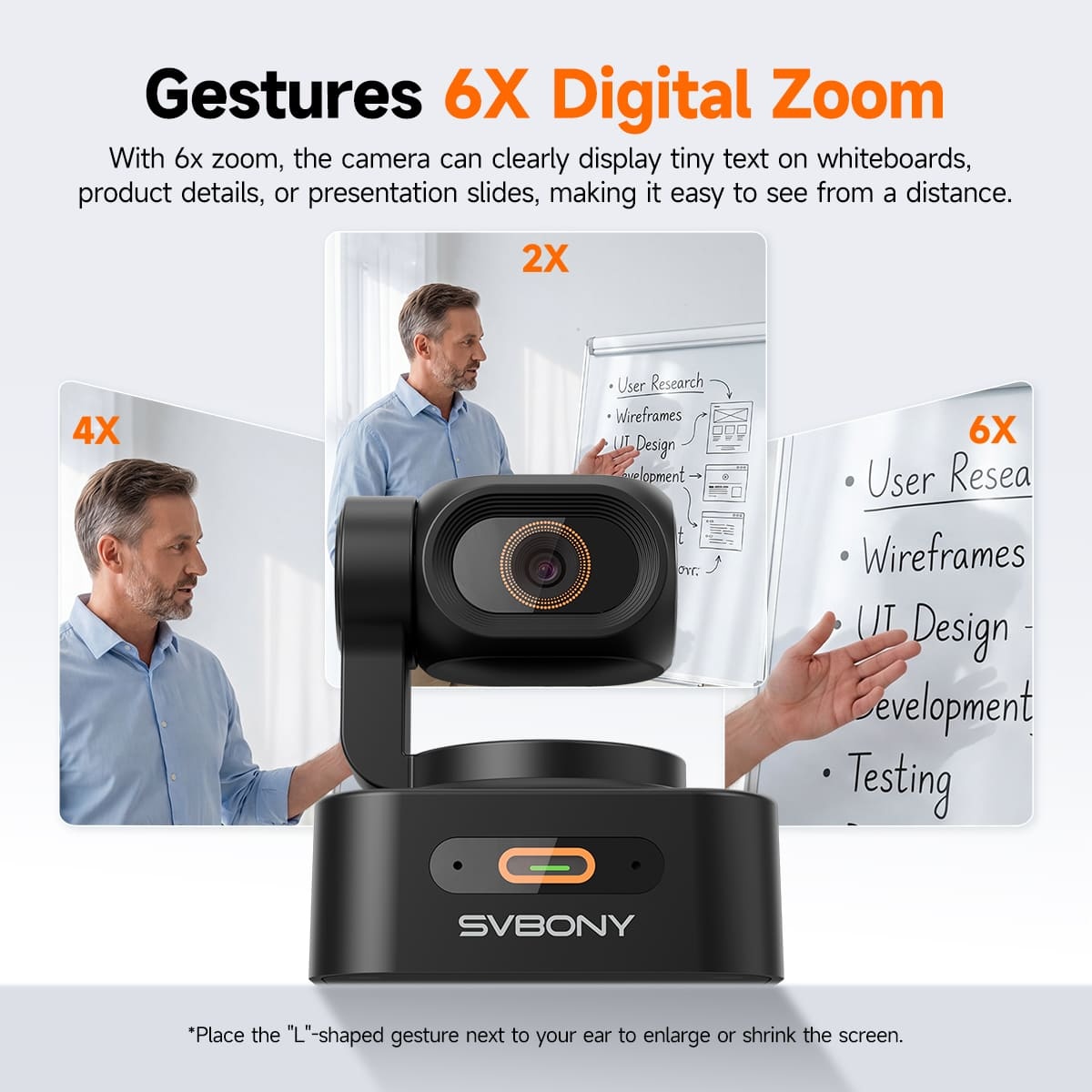

AI Gesture Control

Spread five fingers to enable/disable AI tracking mode; spread index finger and thumb to zoom in/out.

Operating Voltage & Current

5V/350mA

Power Consumption

5W (Max)

Storage Temperature

-10°C to +60°C

Storage Humidity

20% to 90%

Operating Temperature

-10°C to +50°C

Operating Humidity

20% to 80%

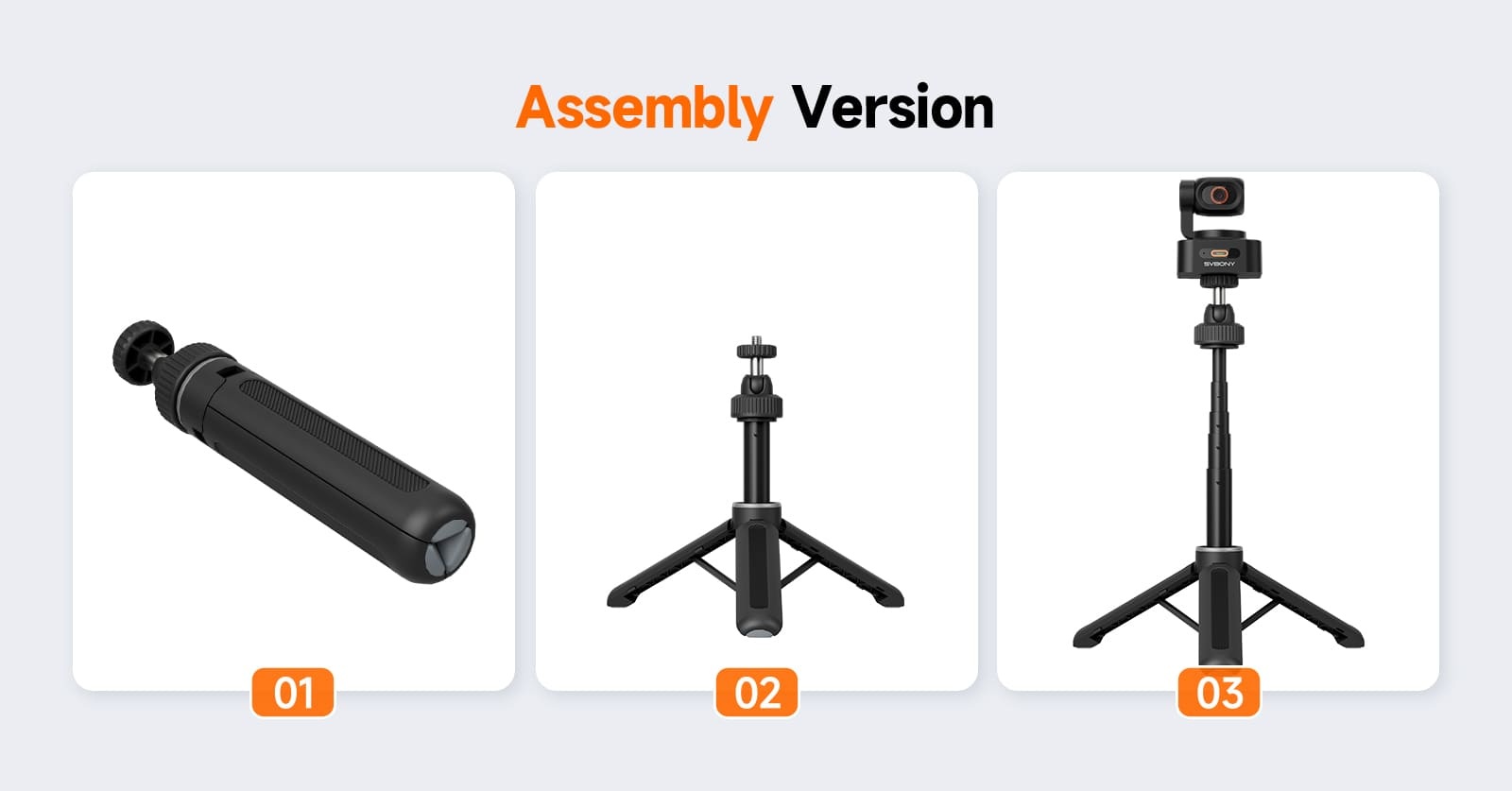

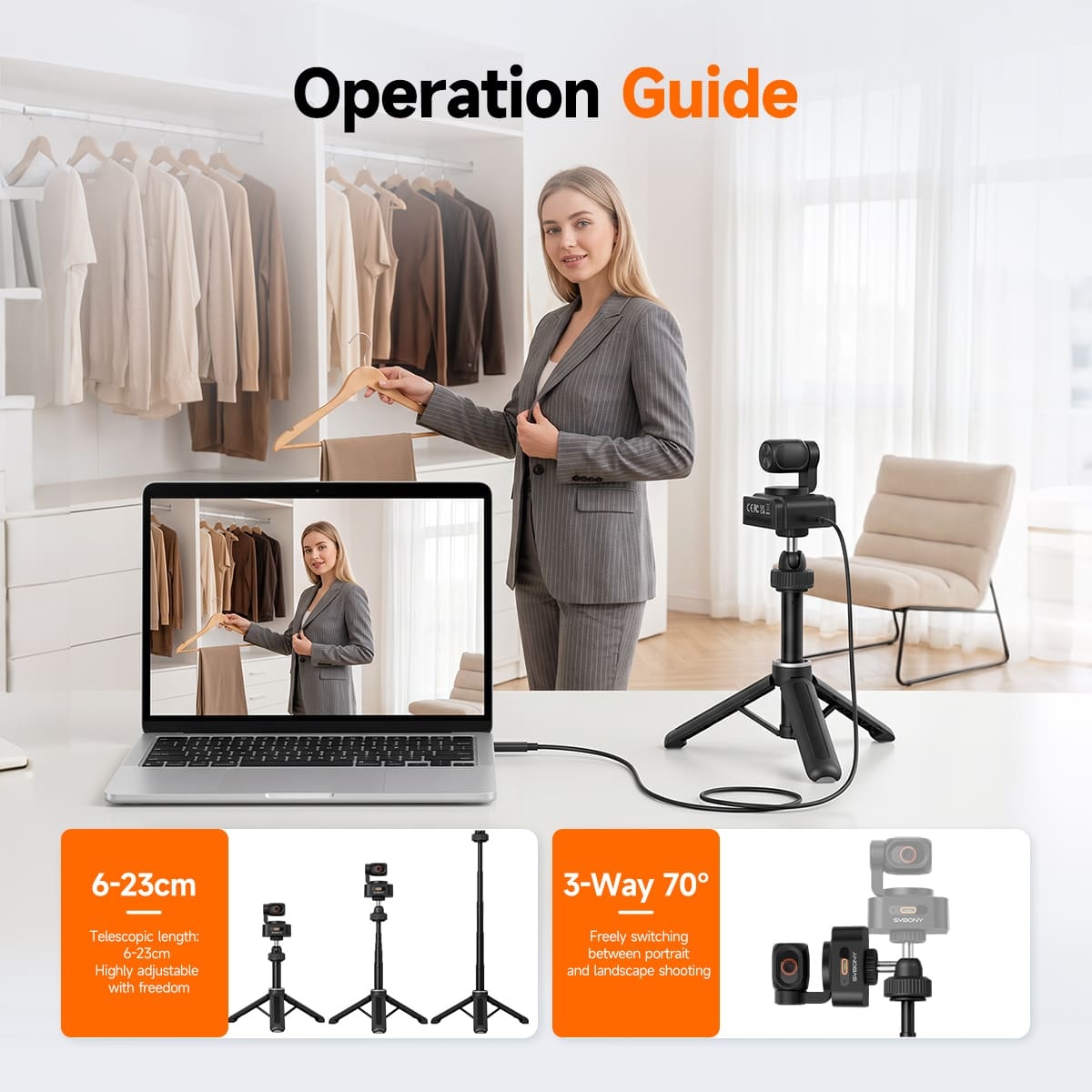

Tripod Stand

Usage Scenarios

Live streaming, photography, videography, handheld outdoor shooting, fixed-position shooting, etc.

Extension Method

1/4-inch Standard Thread Mount

Compatible Models

Compatible with devices featuring a 1/4-inch thread (360° cameras, action cameras, mobile phone accessories, etc.)

Load Capacity

≈ 1 kg

Material

A6 + GF + ABS + Silicone + Aluminum Alloy + Stainless Steel

Product Dimensions (Folded)

168 × 30.5 × 30.5 mm

Net Weight

≈ 110 g

Gross Weight

≈ 125 g

SVN W2 6x Zoom PTZ Camera — Packing List

SVN W2

Product Name

Quantity

2.1m USB Cable

X1

SVN W2 Webcam

X1

Magnetic Mount

X1

User Manual

X1

Remote Control

X1

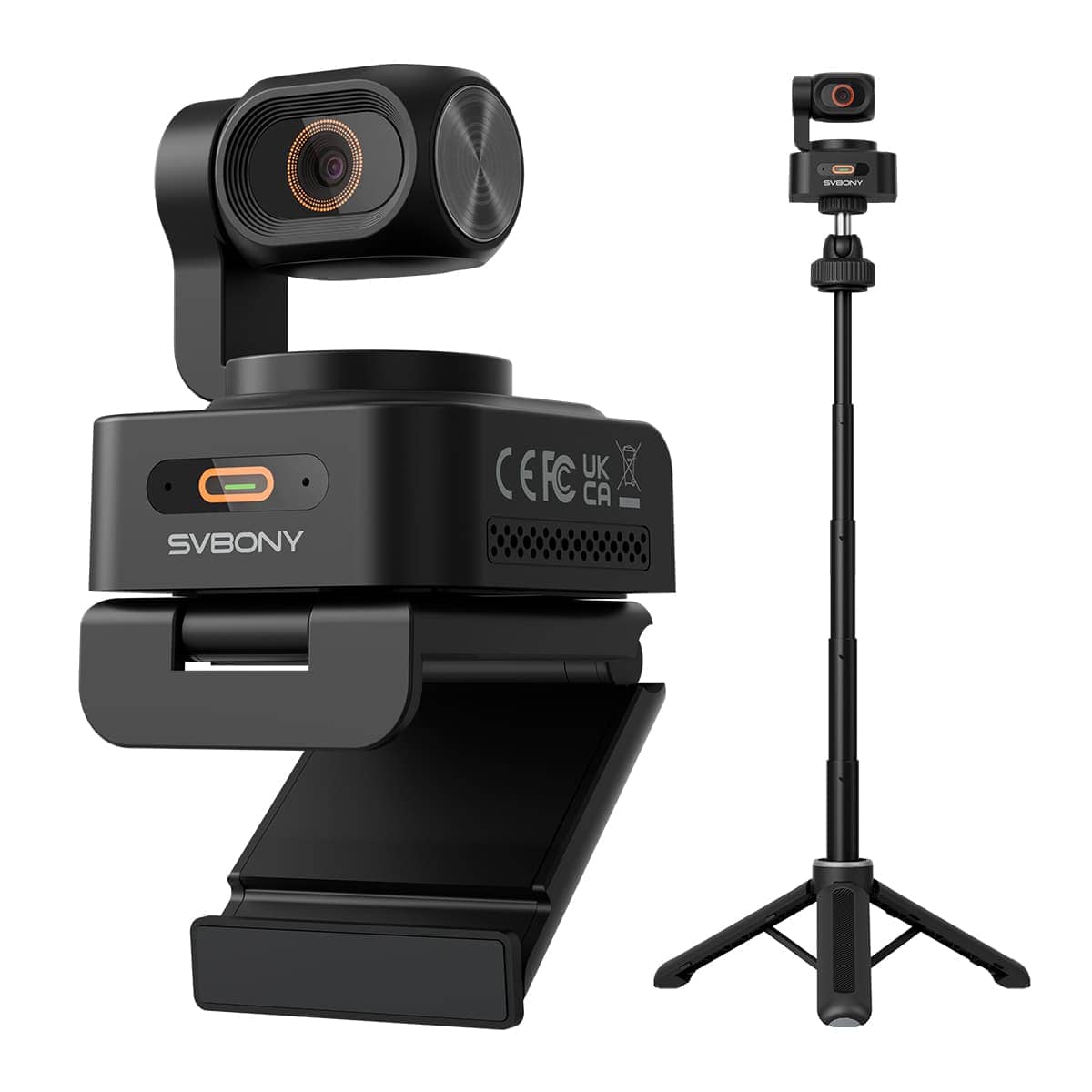

SVN W2 + Tripod Stand

SVN W2 Webcam

X1

Magnetic Mount

X1

Telescopic Tripod

X1

2.1m USB Cable

X1

Remote Control

X1

User Manual

X1
