Retekess T114 paging system adopts RF wireless and learning code technology
Support 999 wireless call buttons for your business grows
Easy to install and match the call buttons to use
Large digital display for servers check
Volume adjustable 1-15 levels
Can connect 3.5mm audio
Suitable for noisy food court; bar; factory; but also suitable for hospital; clinic; office; nursing home that need to maintain a quiet environment
Add to Favorites Delivery & Returns Inquiry
Description
Retekess T114 Wireless Queue Calling System
Retekess T114 wireless queue calling system could work with 999 pcs wireless call buttons, easy to install and use, ideal for restaurants, cafe shops, bars, SPAs, hotels, clinic, hoptital,club and so on.
This receiver host use RF wireless and learning code technology. It can pair up to 999 wireless calling transmitter and 1 management remote controller. The receiver host uses advanced industrial micro processor and high-sensitivity receiving technology which make the products very stable.
Queue Calling System Features:
1. Support 999 call buttons with one display
2. 15 levels volume adjustment, the voice is 5 times than the normal device.
3. There are 6 notice modes
4. 3 voice mode, dingdong, English broadcast, music.
Wireless Calling System Support Extra Stereo Device
All operations have voice prompt,easy to understand

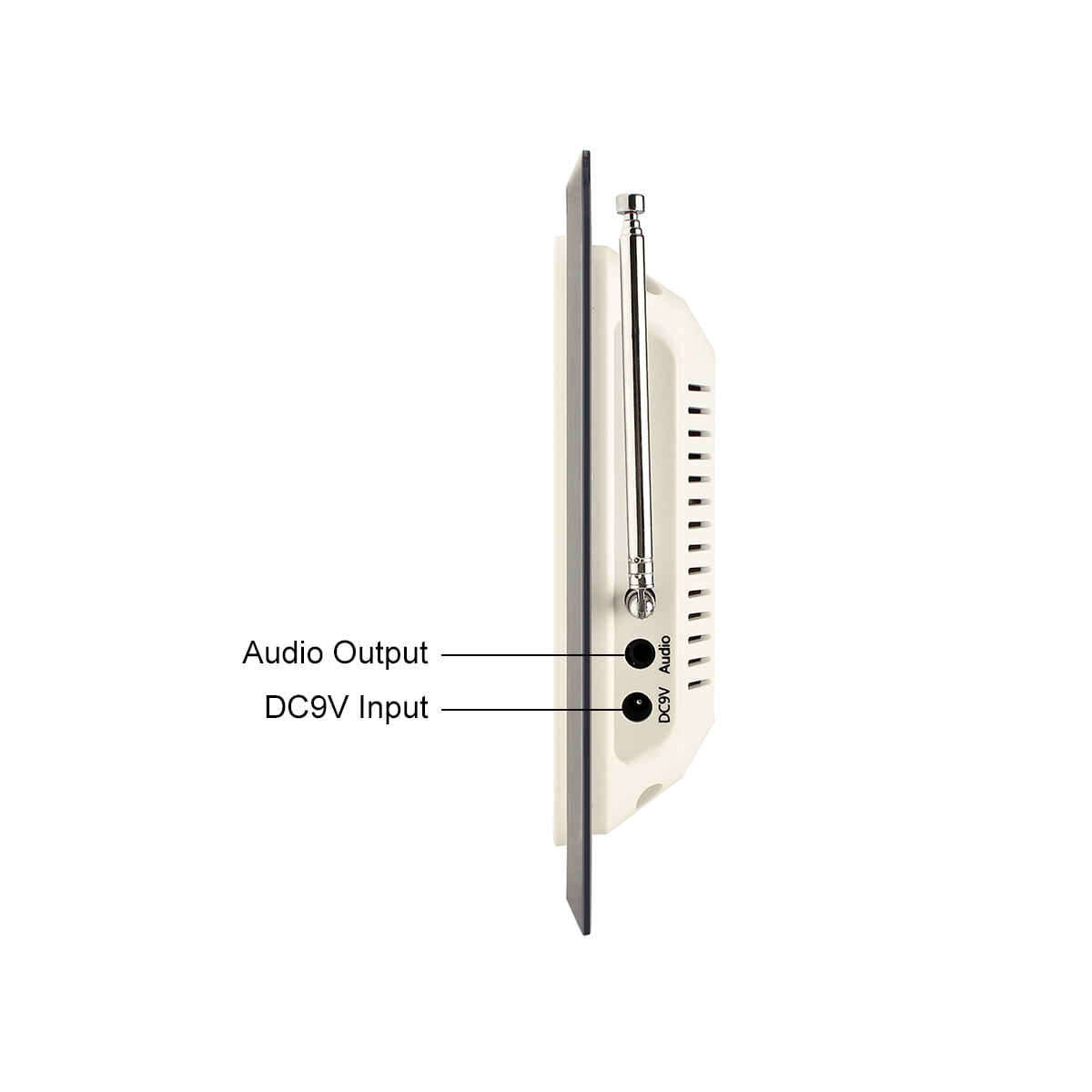

Audio output interface, Support 3.5mm Stereo Device Connection, then amplify the calling sound
Calling System
You can set fixed or cycle calling records display, also Display Time is Adjustable from 001--180 seconds, 0 means no cycle
Delete time setting from 000--240 seconds, 000 means do not delete
Prompt time setting from 000--180 seconds, 000 means no prompt
Screen Display

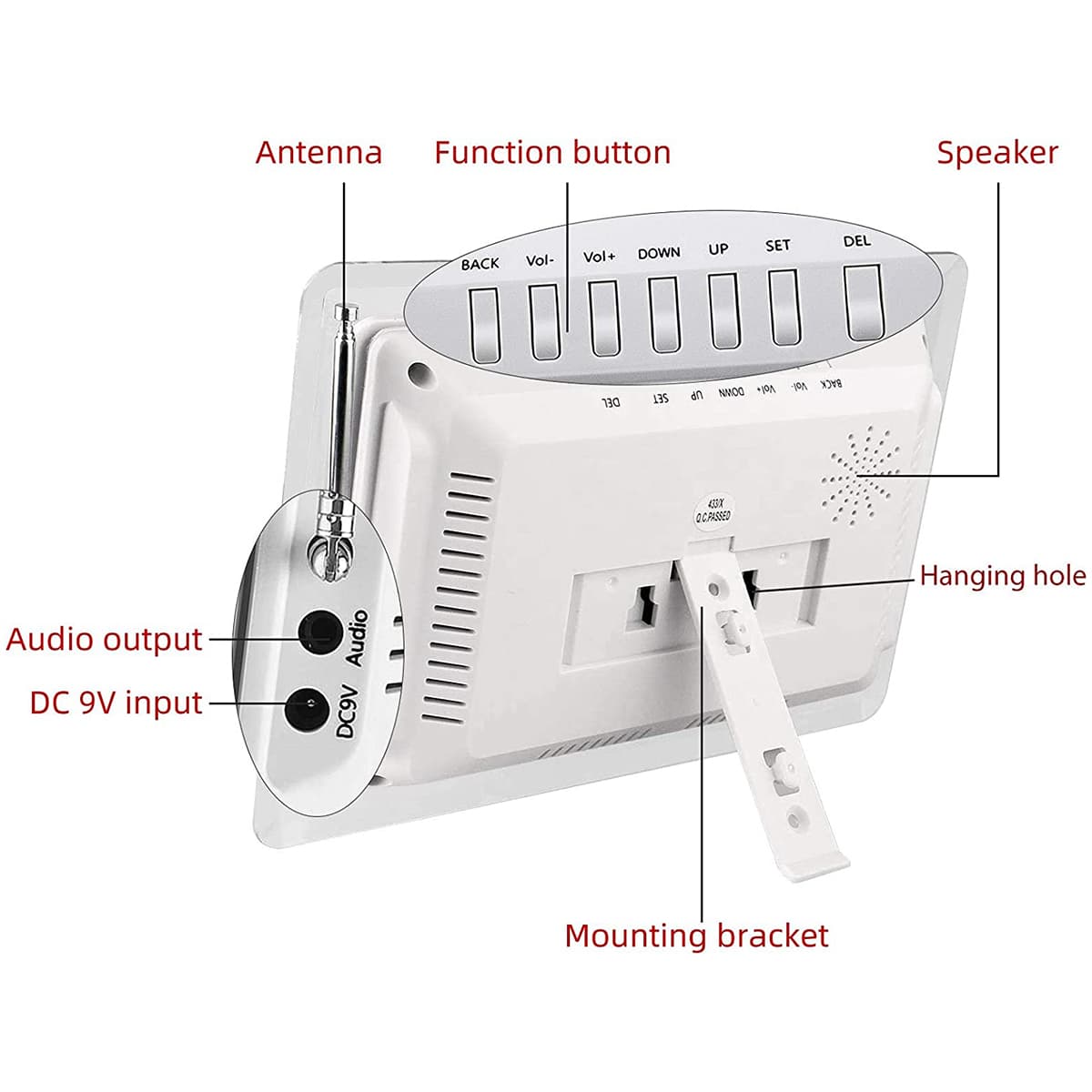

Bracket and string hole on the receiver’s back, easy to place, you can set it on the counter or hang it on the wall by string, save your space and satisfy your various requirements

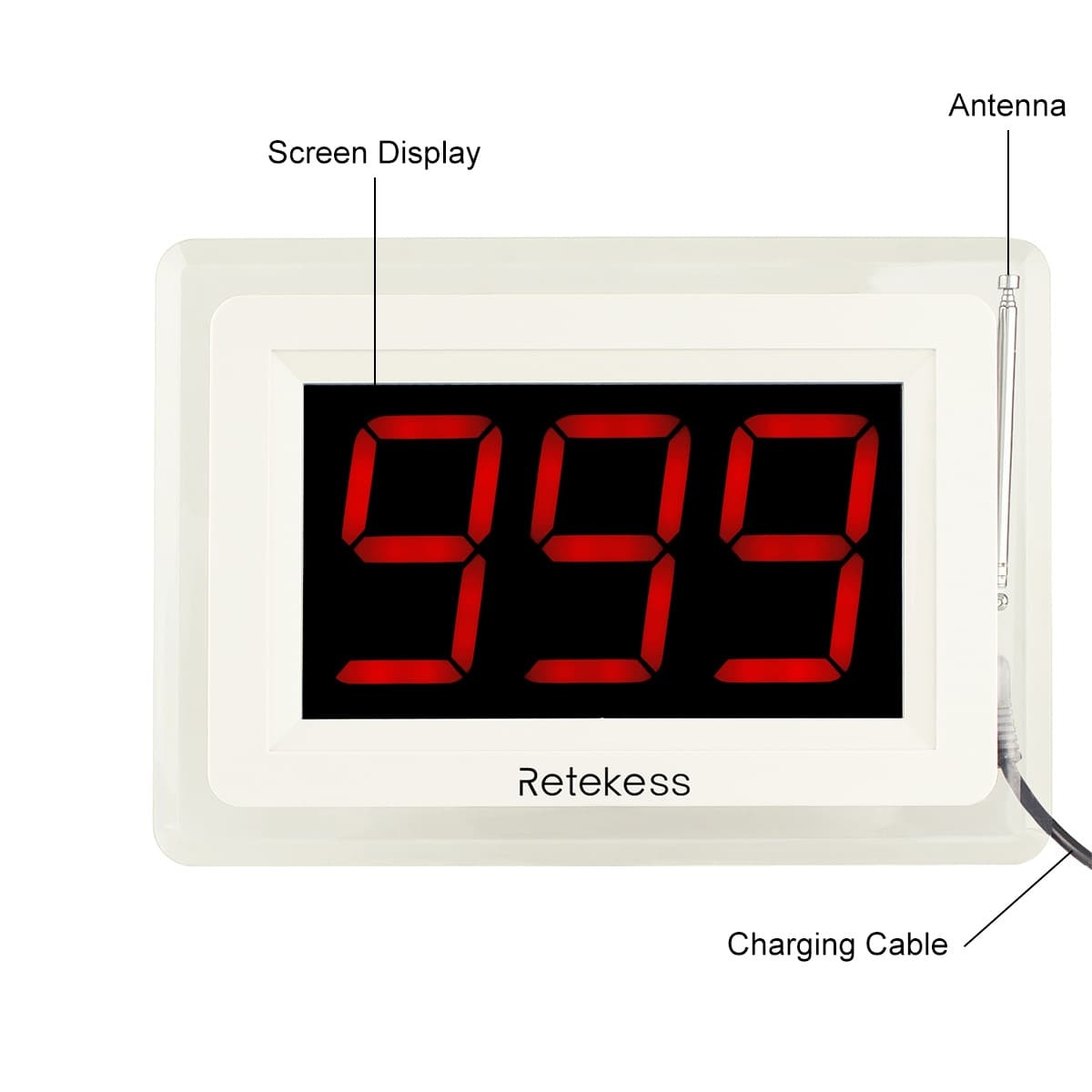

Three-digit and colourful LED display, easy to read even at a distance
Support the English letter beginning display: A,B,C,D,E
Will also display the pager corresponding to the key service A/B/C(A: order; B: call;C: pay)
Working Mode:
-
Normal mode1: screen display 001-999, sound ‘Dingdong + No.1-999 call’
-
Normal mode2: screen display 001-999, sound ‘No.1-999 call’
-
Area mode: screen display A01-F99, sound ‘Dingdong + A-F area + No.1-99 call’
-
Room mode: screen display 001-999, sound ‘Dingdong + Room1-99 + No.1-9 call’
-
Hospital mode: screen display 001-999, sound ‘Dingdong + Room1-99 + No.1-9 emergency call’
-
99-channel mode: screen display 01A/B/C-99A/B/C, sound ‘Dingdong + No.1-99 call’ and show the button function A/B/C (A: order, B: call, C: pay)
How we package your parcels of wireless calling system queue call system?
How we produce wireless pager system ?
Spec
|
Transmisor |
Receptor |
||
|
Rango de frecuencia |
195-216MHz |
Rango de frecuencia |
195-216MHz |
| Canales | 49CH | Canales | 49CH |
| Tensión de trabajo | DC 3.7V | Tensión de trabajo | DC 3.7V |
| Entrada de micrófono/auxiliar | 3.5mm |
Enchufe de audífonos |
3.5mm |
| Respuesta frecuente |
50-18000Hz |
Respuesta frecuente | 50-18000Hz |
| SNR | 80dB(Típico) | SNR | 80dB(Típico) |
| Rechazo espurio de RF | ≥90dB | Rechazo espurio de RF | ≥90dB |
|
T.H.D |
<0.3% |
T.H.D |
<0.3% |
| Rango de operación | 100m（línea de visión） | Rango de operación | 100m（línea de visión） |
| Capacidad de la batería | 4200mAh | Capacidad de la batería |
900mAh |
| Duración de la batería | Aproximadamente 20 horas típicas | Duración de la batería | Aproximadamente 20 horas típicas |
| Peso | 120g（sin accesorios） | Peso | 30g（sin accesorios） |
| Tamaño | 103*61*25.8mm（sin antena） | Tamaño | 73*42*12mm |
| Estuche de carga TT001 | |
|
Color |
plata |
| Material | aleación de aluminio |
| Entrada | AC110-220V, 50 / 60Hz |
| Salida | DC 5V, 7A |
| Tamaño | 500 x 265 x 140 mm / 19,7 x 10,4 x 5,5 pulgadas |
| Peso | 3200 g / 7 libras |
paquete incluye:
| 2 x transmisor |
| 2x micrófono de solapa |
| 25 x receptor |
| 25 x auricular |
| 27 x cordón |
| 27 x cable de carga |
| 1 x estuche de carga |
Specification:
| Receiver Display Host | |
| Frequency | 433MHz |
| Decoding | learning code |
| With transmitter quantity | max 999pcs |
| Prompt modes | Dingdong / Music / English voice report |
| Letters show | A.B.C.D.E.F |
| Adapter | AC 100-240V 50/60Hz, output: DC 9V/1A |
| Working current | <600mA |
| Standby current | <60mA |

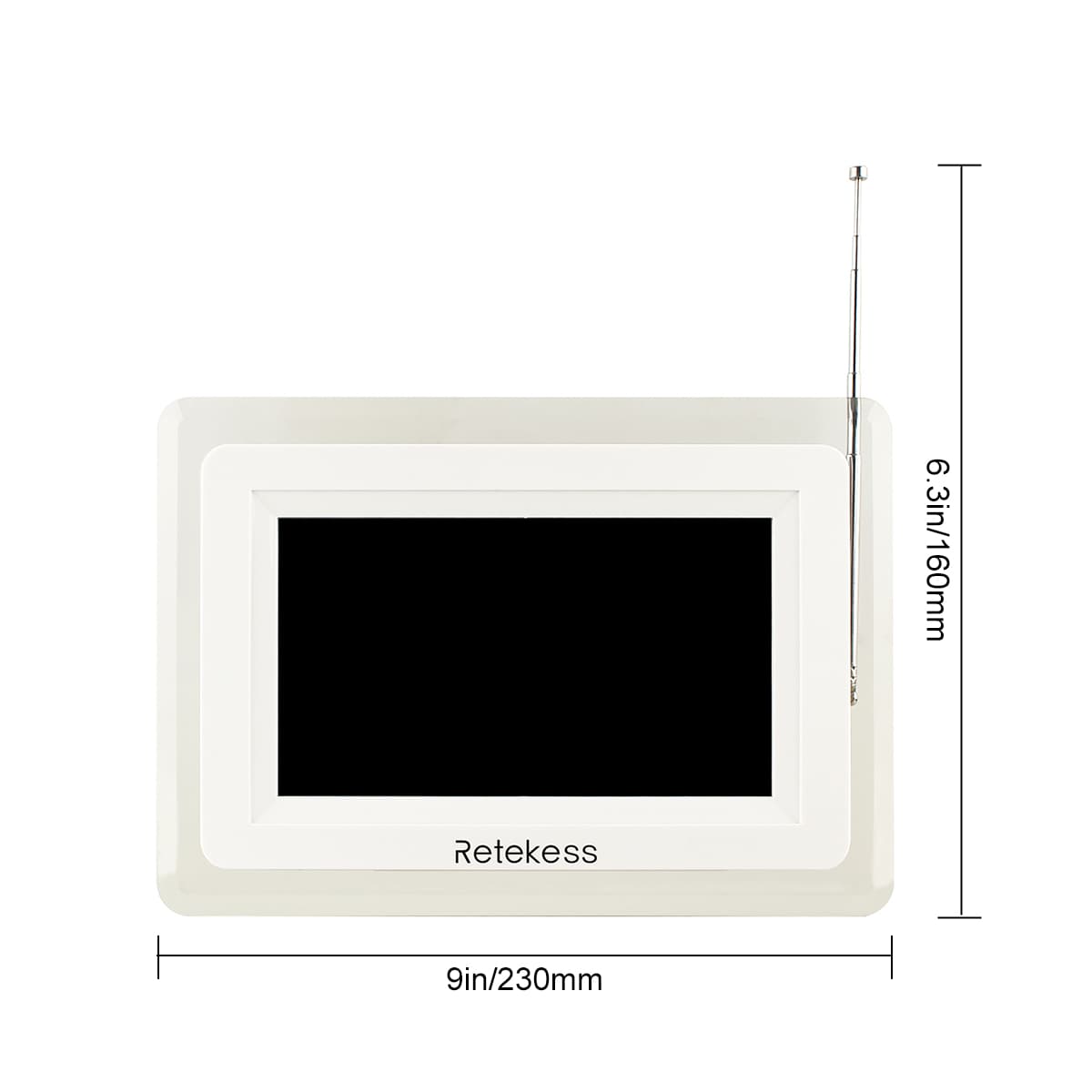

| Size | 230 x 160 x 35mm / 9 x 6.3 x 1.3 in |
| Weight | 350g / 0.77lb |
Package:
Option |
Package details |
| 1 Display Receiver |
1X T114 display receiver 1X charging plug 1X User manual |
| 3 Display Receivers |
3X T114 display receivers 3X charging plugs 1X User manual |
Features
P: Si aumenta la demanda, ¿puedo agregar más receptores?
R: Sí, un transmisor admite trabajar con numerosos receptores, los receptores individuales se venden en el sitio web, solo pida tantos como necesite.
P: ¿Habrá un retraso en el sonido que se escucha?
R: No hay demora en la comunicación con este sistema de guía turístico y los oyentes pueden recibir audio en tiempo real.
P: ¿Cuál es la política de garantía para este sistema de guía turístico T130S T131S?
R: Todos los modelos de sistemas de guías turísticos Retekess admiten devoluciones sin motivo de 30 días y una garantía de dos años.
Q: How many pieces call button can I use in this display?
A: Max up to 999pcs.
Q: Do you have other color of this call button？
A: Yes, we have the black one, but the mini quantity is 200pcs.
Q: Can you add a watch receiver to the T114 Wireless calling system?
A: Yes, you can add watch receivers to the T114 wireless calling system.
