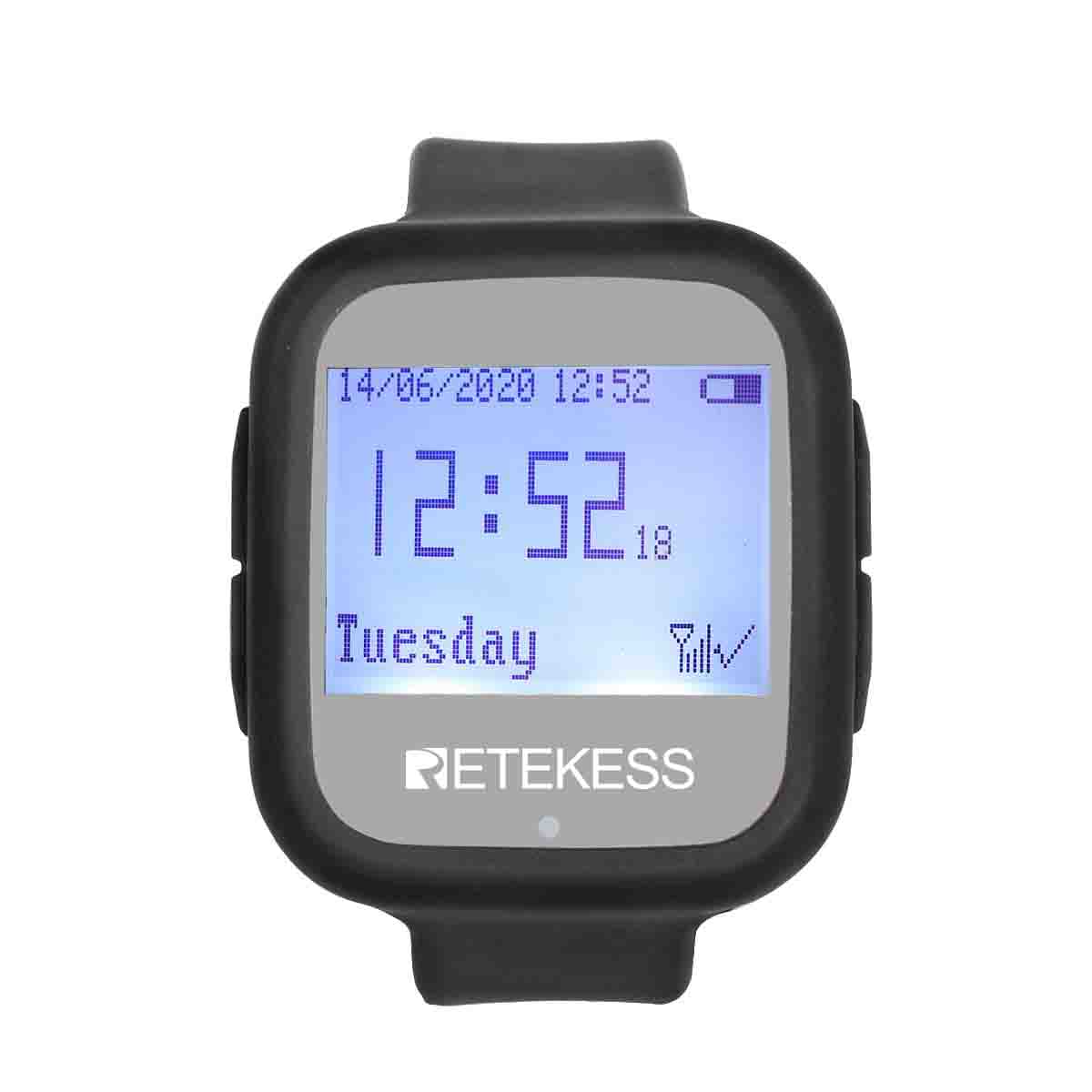

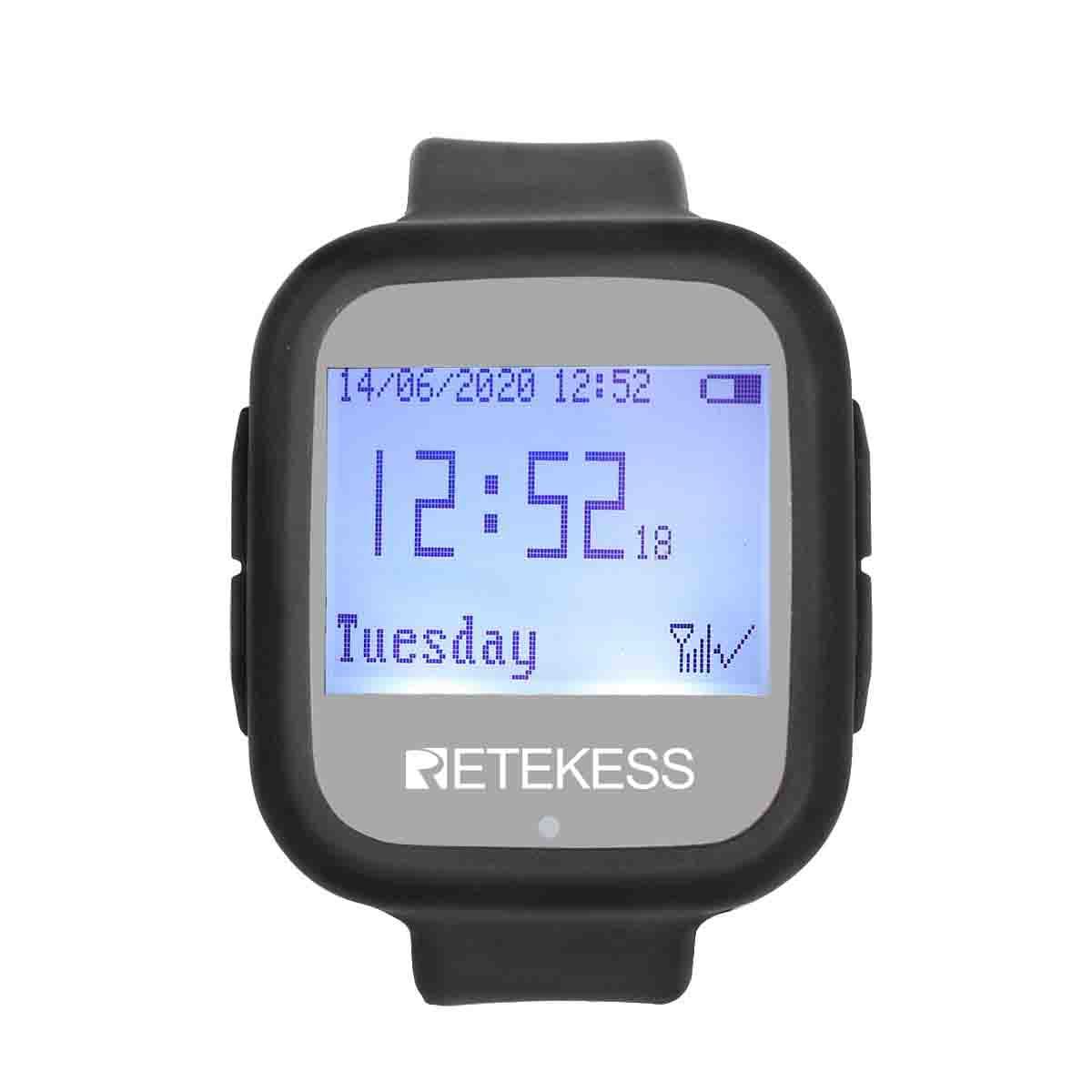

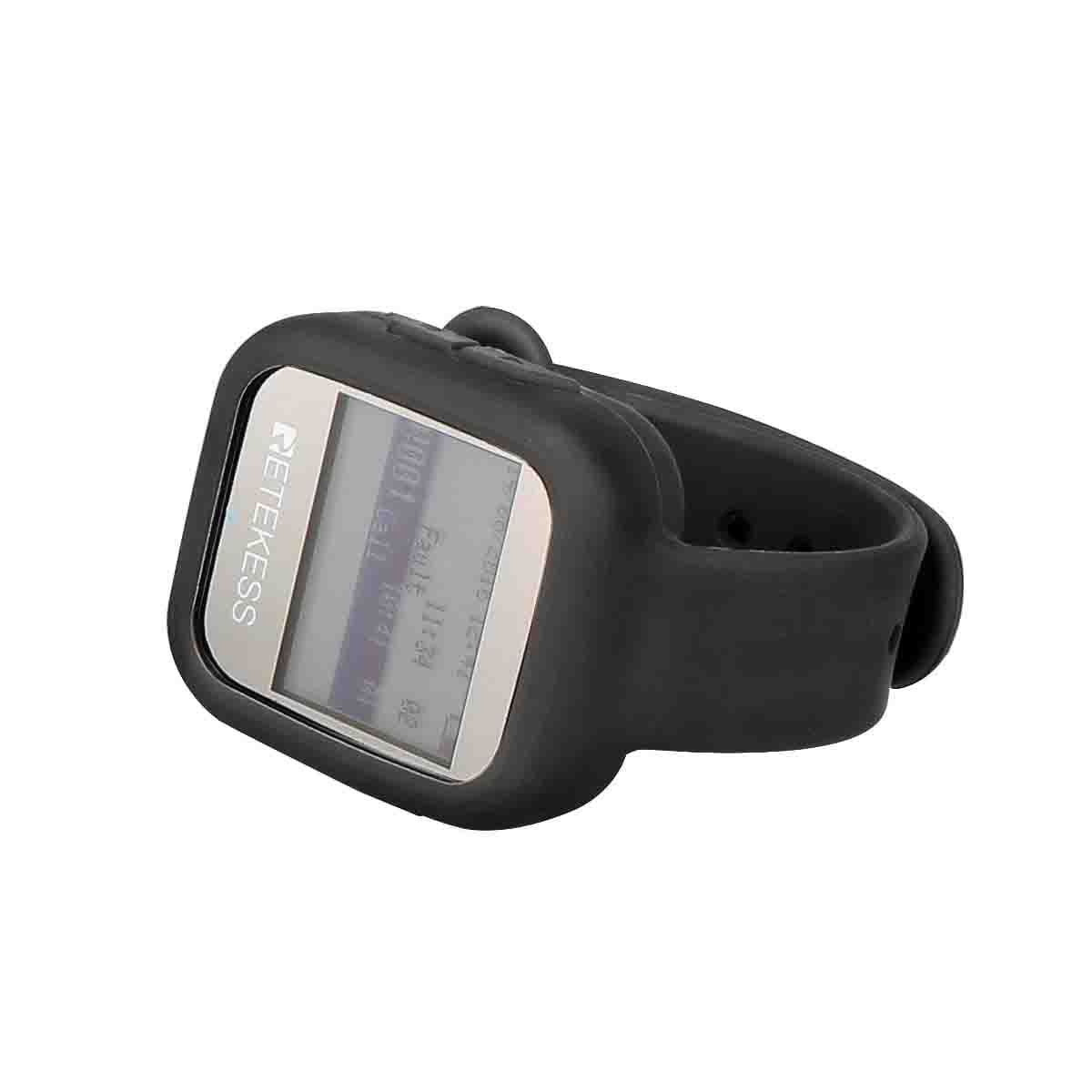

Retekess TD106 watch receive Key content can be customized Dot matrix LCD screen
7 prompt modes: light vibration and sound, combine freely
One number can learn more than one call button
IP54 waterproof TD106 watch receiver has a 400mAh rechargeable battery
Charging for 3-4 hours; standby for 48 hours
Add to Favorites Delivery & Returns Inquiry
Description:
The design is inspired by constellations, dynamic and fashionable
The surface of the black pager adopts environmentally friendly PU technology, with a pearl effect
Made of ABS and silicone, waterproof, and drop resistant

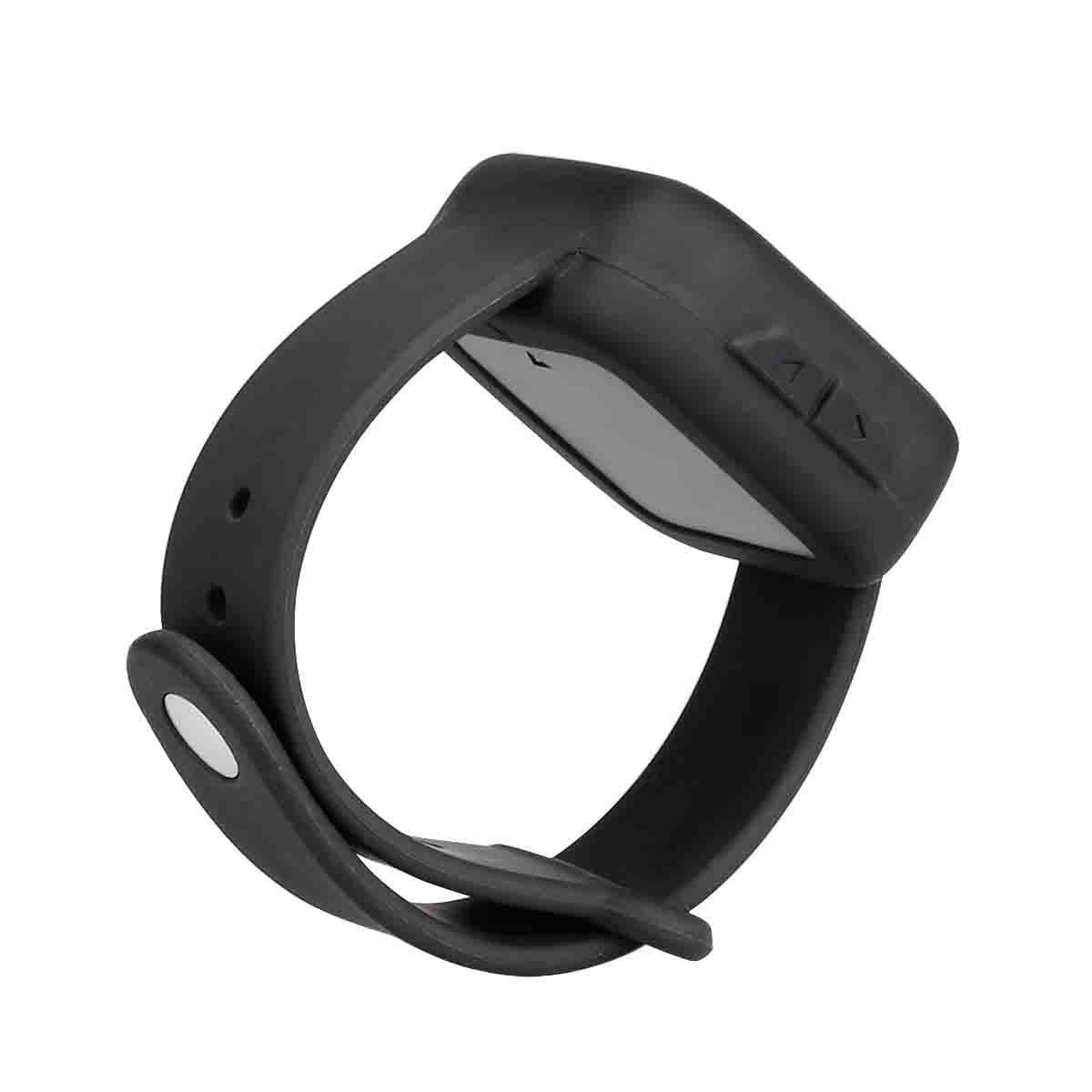

Pager with base for easy fixing and disassembly, you can take off the belt very easily and clean it

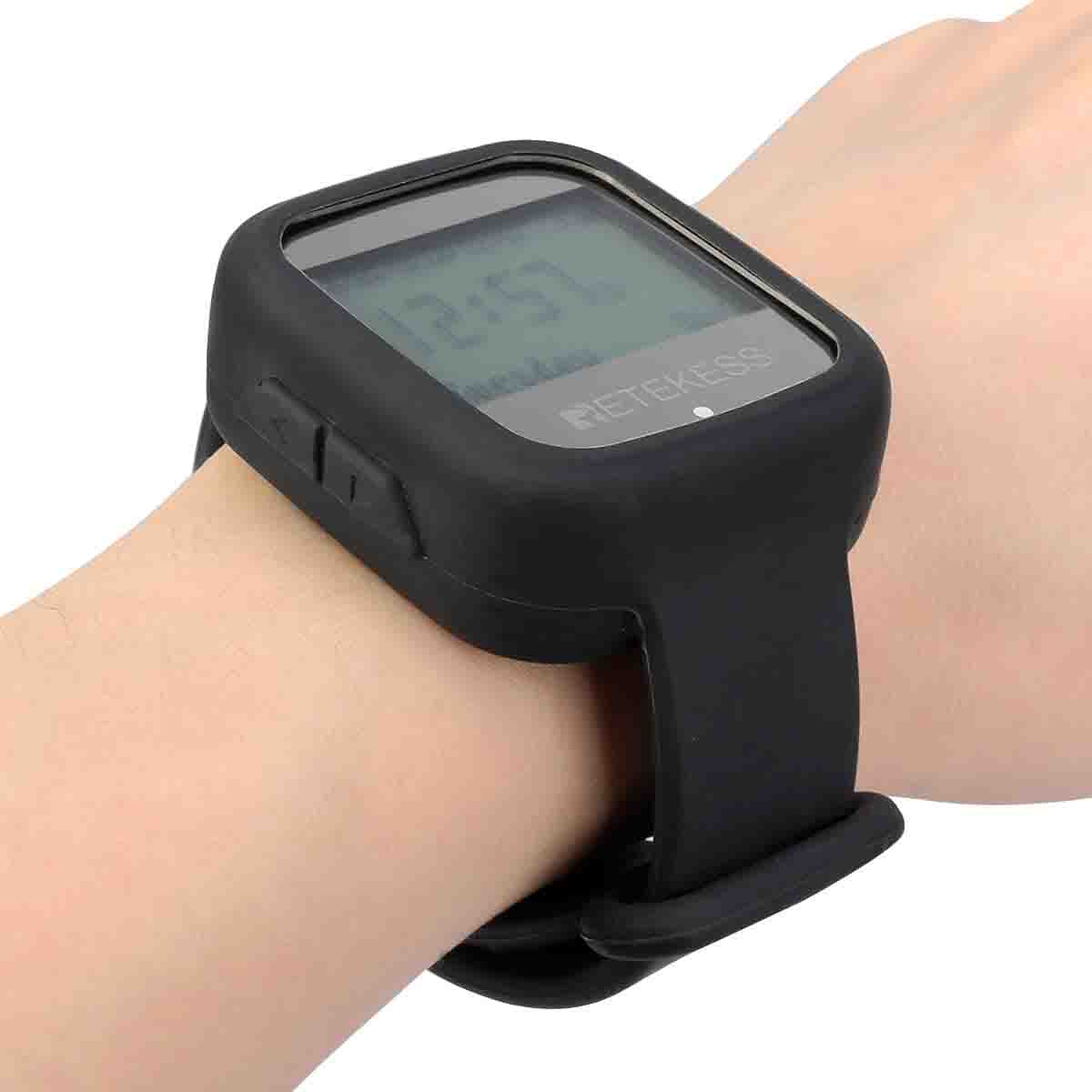

It is very soft and wears very comfortable
Function:
1. Add call button and Delete call button
2. Custom Key content by yourself
3. Single key and multi-key working mode
4. Live view and queue view display mode
5. Three notice modes, light vibration, and sound combine freely
6. Prompt time setting, Remove time setting, and Cycling time setting
Add call button and Delete call button
Add call button: It supports 500 call buttons and 4 figures, you can combine 0-9 and 26 English letters freely
Delete call button:You can delete one encode or all at one time
Key function
You can set the key content by yourself if the one in the watch receiver doesn’t have the one you need
Work mode
Single key:one key can only pair one receiver, ex. Eg. TD005 call button has 5 keys, you want to use 5 keys, you need to pair with 5 watch receivers
Multi-key:If you have a 3 keys call button, all three keys can pair with one watch receiver. And all 3 keys can custom the key content
Waterproof
It is an IP54 waterproof receiver, so if you need a waterproof one, you can choose this one
Display mode
You can set a live view that shows the latest record on the first line
You can set queue view which shows the new earliest call record on the first line
You can set a date and time
It will show English on the screen
Prompt mode
light vibration and sound, combine freely
Time setting
Notice timing:choose from 0-15 seconds,0 means notice all the time until press has done
Remove timing:call record delete, choose from 0-99seconds. 0 means never clean
cycle timing:call record notice time, choose from 0-99second before the call record cleaned, it will show the notice again after the setting time.
00 means no cycle notice
Charging time
When you charge, there will be a red indicator, when it is fully charged, there is no light. It can be on standby for 50 hours
Factory reset
Find factory reset and long-press yes, it will be done
Keyboard set
This watch receiver can be used with a keypad call system, only work with specified one(which not included) receive 00-09 means the same area of
the keypad, 10 areas available. OFF ALL means turn off this function.
Note: All Retekess call buttons can work with TD106
T130P Transmisor | T131P Receptor | ||
Frecuencia de carga | 195-216MHz | Frecuencia de carga | 195-216MHz |
Número de canales | 49CH | Número de canales | 49CH |
Tensión de funcionamiento | DC 3.7V | Tensión de funcionamiento | DC 3.7V |
Potencia de salida del transmisor | 18dBm | ||
Entrada de audio/entrada de micrófono | 3.5mm | Entrada de audio/entrada de micrófono | 3.5mm line |
Rango de respuesta de frecuencia | 50-18000Hz | Rango de respuesta de frecuencia | 50-18000Hz |
relación señal-ruido (SNR) | 80dB (Typical) | relación señal-ruido (SNR) | 80dB (Typical) |
relación de rechazo de imagen especular | ≥ 90dB | relación de rechazo de imagen especular | ≥ 90dB |
Distorsión | <0.3% | Distorsión | <0.3% |
rango de trabajo efectivo | 160 meters (open) | rango de trabajo efectivo | 160 meters (open) |
Capacidad de la batería | 4200mAh | Capacidad de la batería | 1200mAh |
Horas Laborales | about 20 hours | Horas Laborales | about 36 hours |
Peso del transmisor | 140g / 0.3lb | Peso del transmisor | 49g / 0.11lb |
Tamaño | 205 x 60 x 20mm / 8 x 2.3 x 0.7 in | Tamaño | 83x 42 x 12mm / 3.3 x 1.6 x 0.5 in |
Lista de paquetes:
2 transmisores + 30 receptores + caja de carga de 32 ranuras | Transmisor*2, Receptor*30, Micrófono de solapa*2, Micrófono de diadema*2, Auricular en forma de D*30, Cable de carga USB*32, Cordón*32, Manual del usuario*1, Estuche de carga de 32 ranuras*1 |
1 transmisor + 15 receptores + base de carga de 16 ranuras | Transmisor*1, Receptor*15, Micrófono de solapa*1, Micrófono de diadema*1, Auricular en forma de D*15, Cable de carga USB*16, Cordón*16, Manual del usuario*1, Base de carga de 16 ranuras*1 |
1 transmisor + 20 receptores + bolsa de almacenamiento de 60 ranuras | Transmisor * 1, Receptor * 20, Micrófono de solapa * 1, Auriculares en forma de D * 20, Cable de carga USB * 21, Cordón * 21, Manual del usuario * 1, Estuche de transporte de 60 puertos * 1 |
2 transmisores + 30 receptores + bolsa de almacenamiento de 60 ranuras | Transmisor * 2, Receptor * 30, Micrófono de solapa * 2, Auriculares en forma de D * 30, Cable de carga USB * 32, Cordón * 32, Manual del usuario * 1, Estuche de transporte de 60 puertos * 1 |
2 transmisores + 58 receptores + bolsa de almacenamiento de 60 ranuras | Transmisor * 2, Receptor * 58, Micrófono de solapa * 2, Auriculares en forma de D * 58, Cable de carga USB * 60, Cordón * 60, Manual del usuario * 1, Estuche de transporte de 60 puertos * 1 |
Retekess watch server TD106 |
|
Working voltage | DC3.7V |
Input power | 5V |
Standby current | <8.5mA |
Battery | 400 m AH |
Wireless frequency | 433MHz |
Receive Sensitivity | -108 |
Receiving distance | 100 meter (open area) |
Working temperature | -10℃ ~50℃ |
Size | 47×45×18mm |
Net Weight | 48g |
Color | Black |
Standby time | >2 Day |
Waterproof Grade | IP54 |
Standy time | 50 hours |

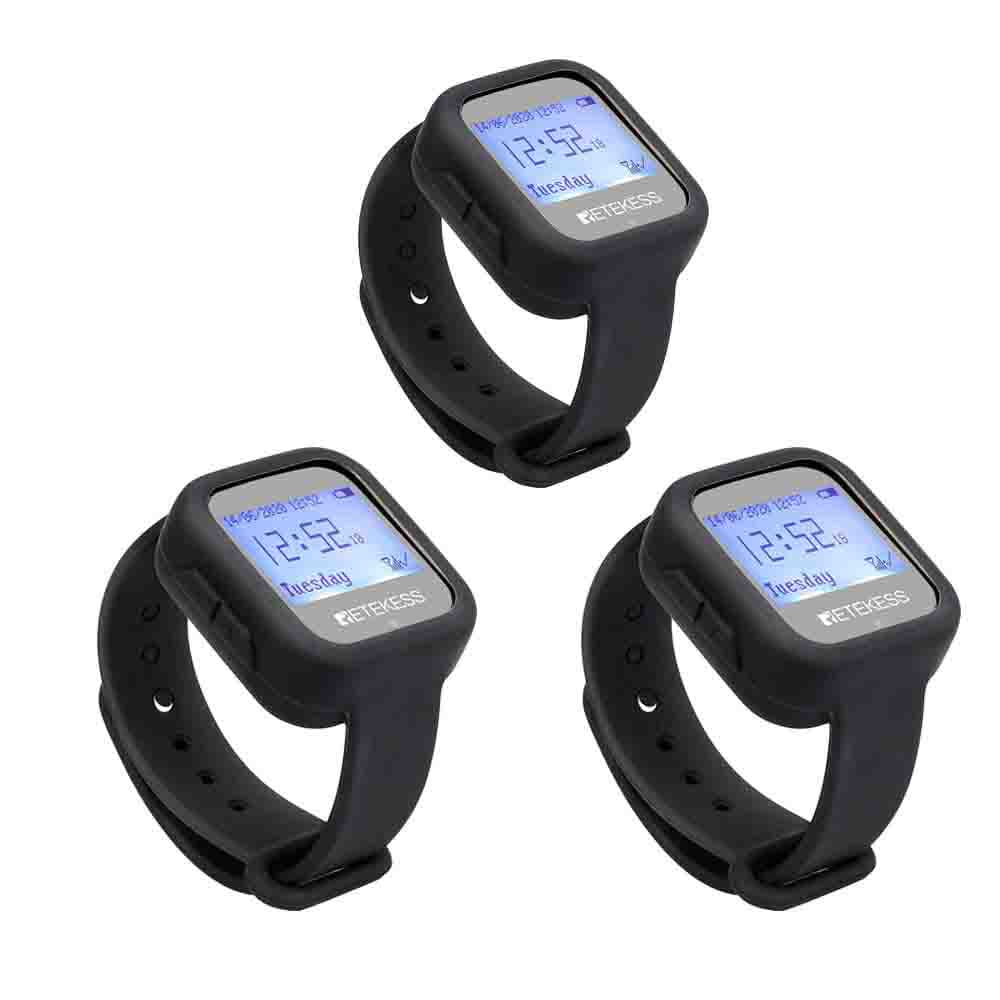

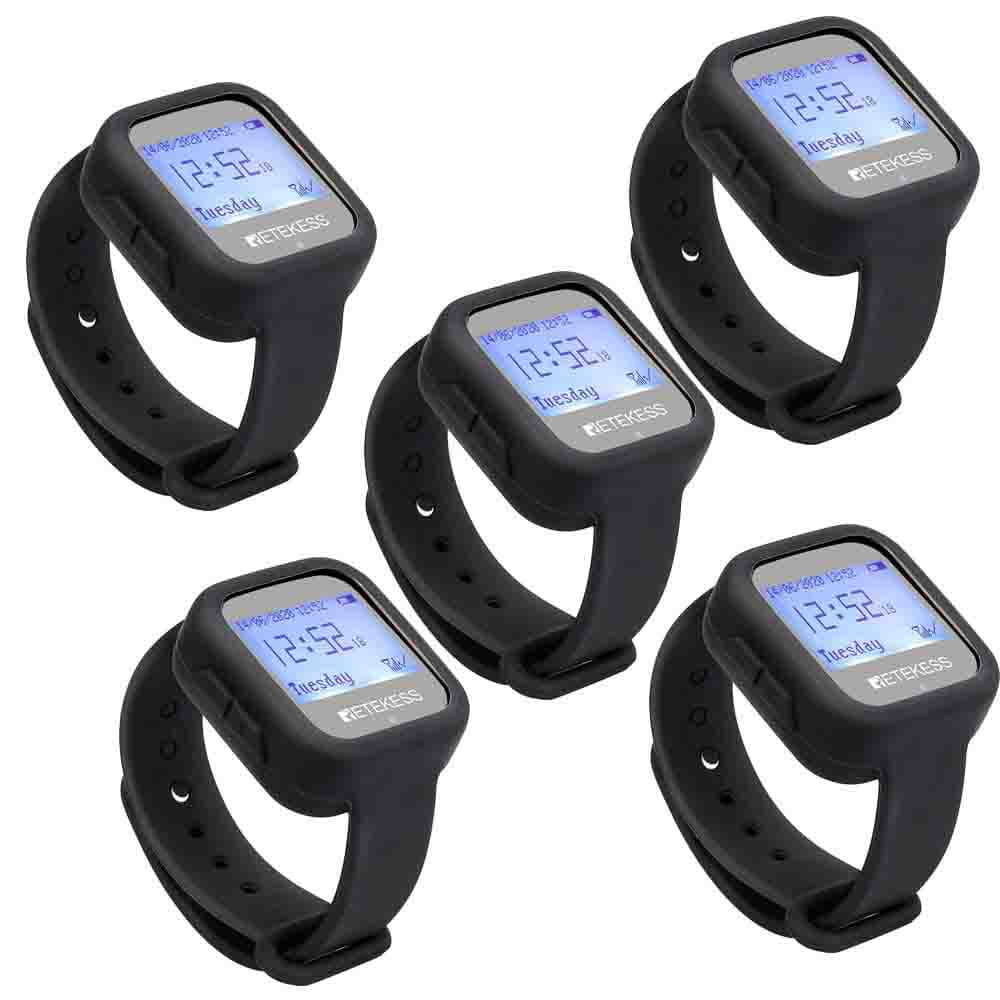

2/3/5 x TD106 Wireless Watch Receivers (Quantity optional)
1 x Micro-USB cable
1 x User manual
P: ¿Cuál es la política de garantía de este sistemas de audio para visitas guiadas T130S T131S?
R: Todos los modelos de sistemas de guía turística Retekess admiten devoluciones de 30 días sin motivo y una garantía de dos años.
P: Necesito más receptores y aquí no hay la combinación que quiero, ¿qué hago?
R: Si no encuentra la combinación que desea en el sitio web, póngase en contacto con nosotros y nuestro equipo de atención al cliente le ayudará en el plazo de 1 día laborable.
5 (Overall) | Based on 2 Reviews
Watches have been great, took a while to get set up but have worked perfectly for what we need
Preciso de 20 peças so da pulseira
