Touch screen, easy to operate, powerful Retekess TD113 watch pager
Silicone material, comfortable use experience server call system

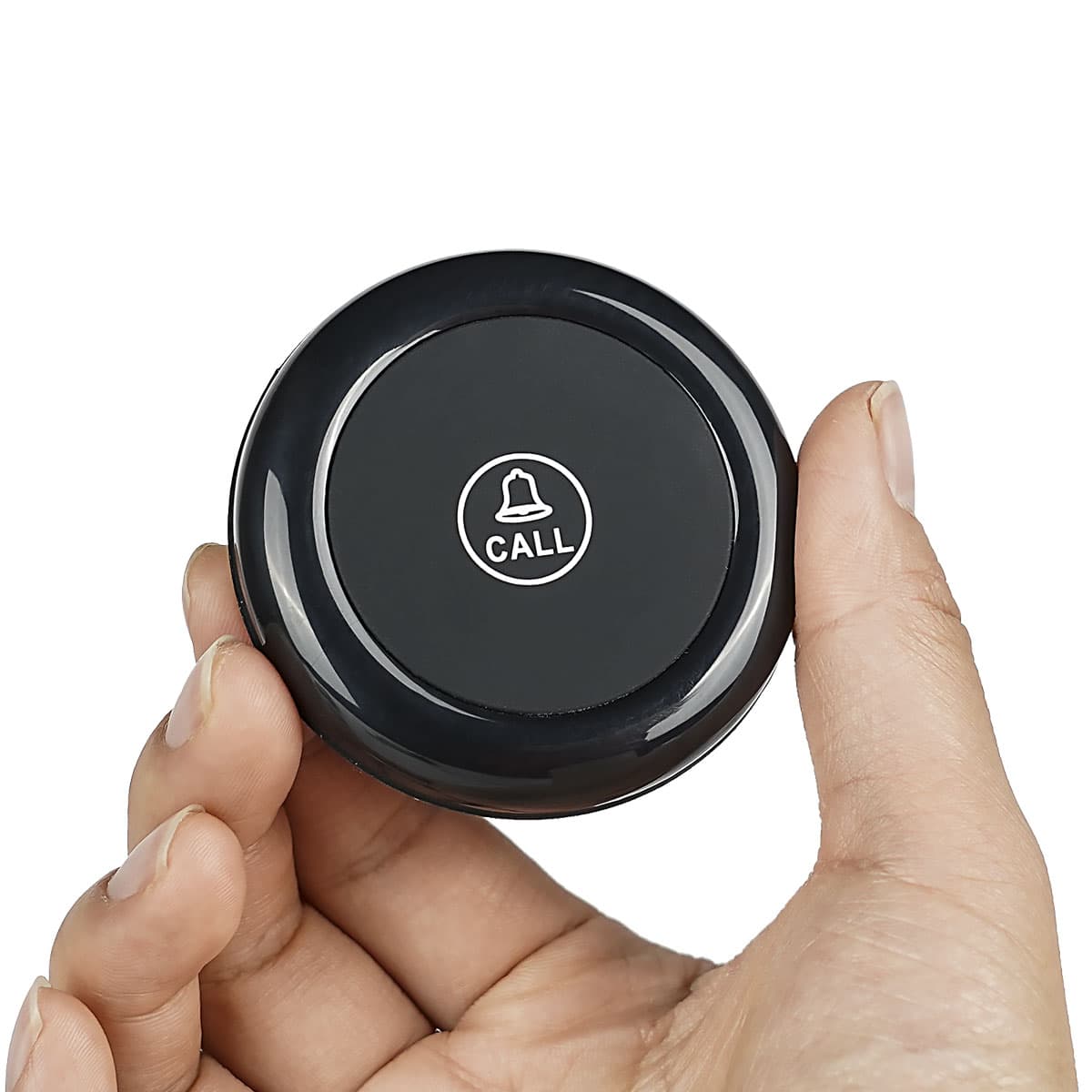

Waterproof multi-key series button TD032 with indicator light
IP67 waterproof, no fear of splashing
Alarm sound/vibration different levels can be set
One-click view of call history on the main interface

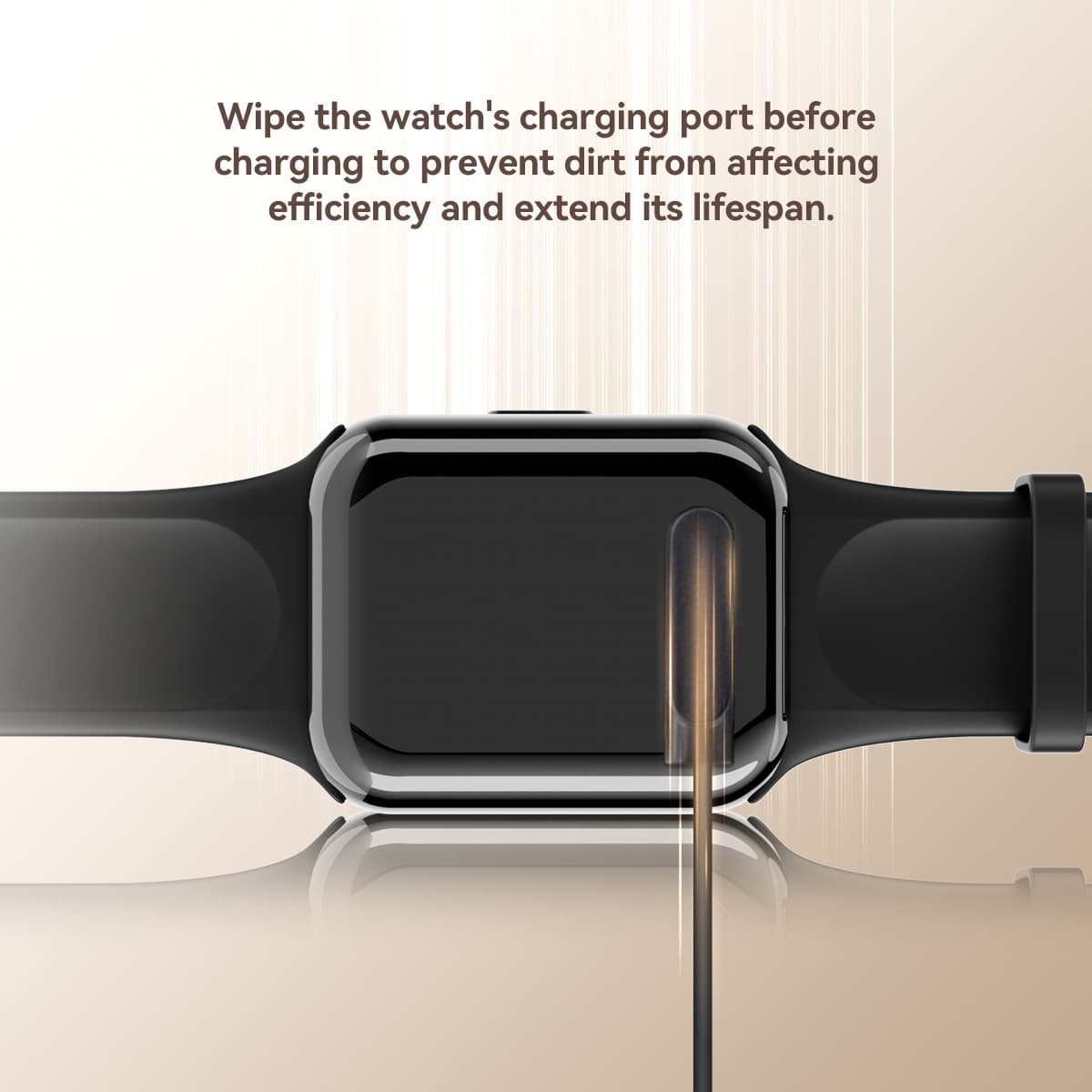

Note: Please wipe the charging port of TD113 with a dry cloth before charging
Add to Favorites Delivery & Returns Inquiry
Description

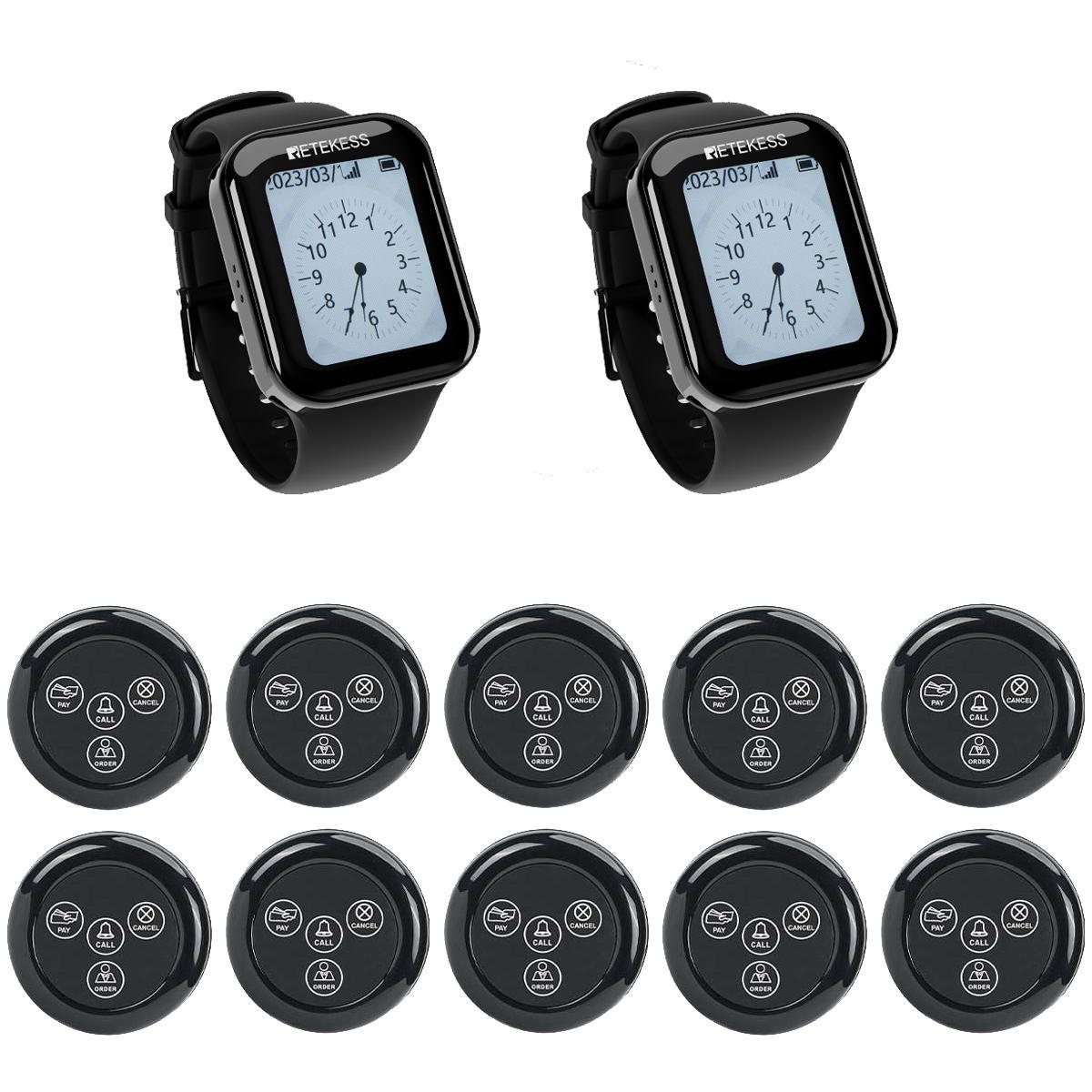

Retekess TD113 Server Call Pager Watch Receiver with TD032 Server Call Button
With excellent waterproof performance and working performance server pager system for restaurants, bars, clubs, lounges, storage, etc..
Perfectly combining functionality and comfort, staffs and customers enjoy an orderly atmosphere with server pager system.
1-100 level volume keys, vibration effect and adjustable screen brightness ensure visualization in all environments.
15 large function icons for easy switching.

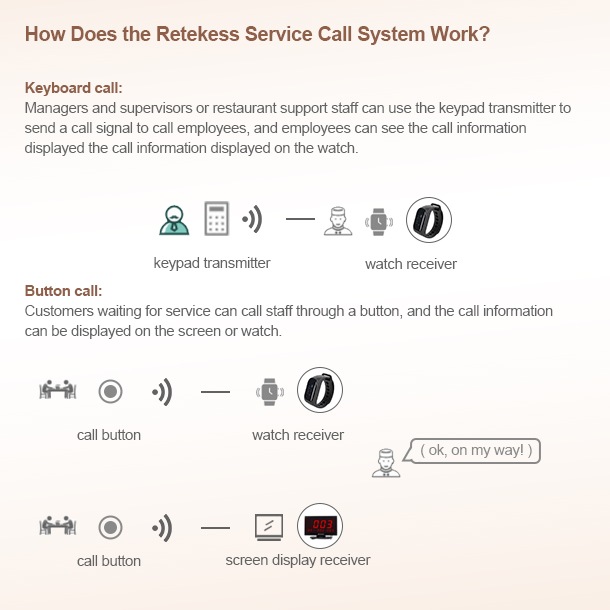

Can be paired with single button or multi-button mode - 001 call, 001 pay, 001 order.
Retekess TD113 staff pager system Application
Restaurants, cafes, bars, lounges, clubs, corporate hospitality, social organizations.

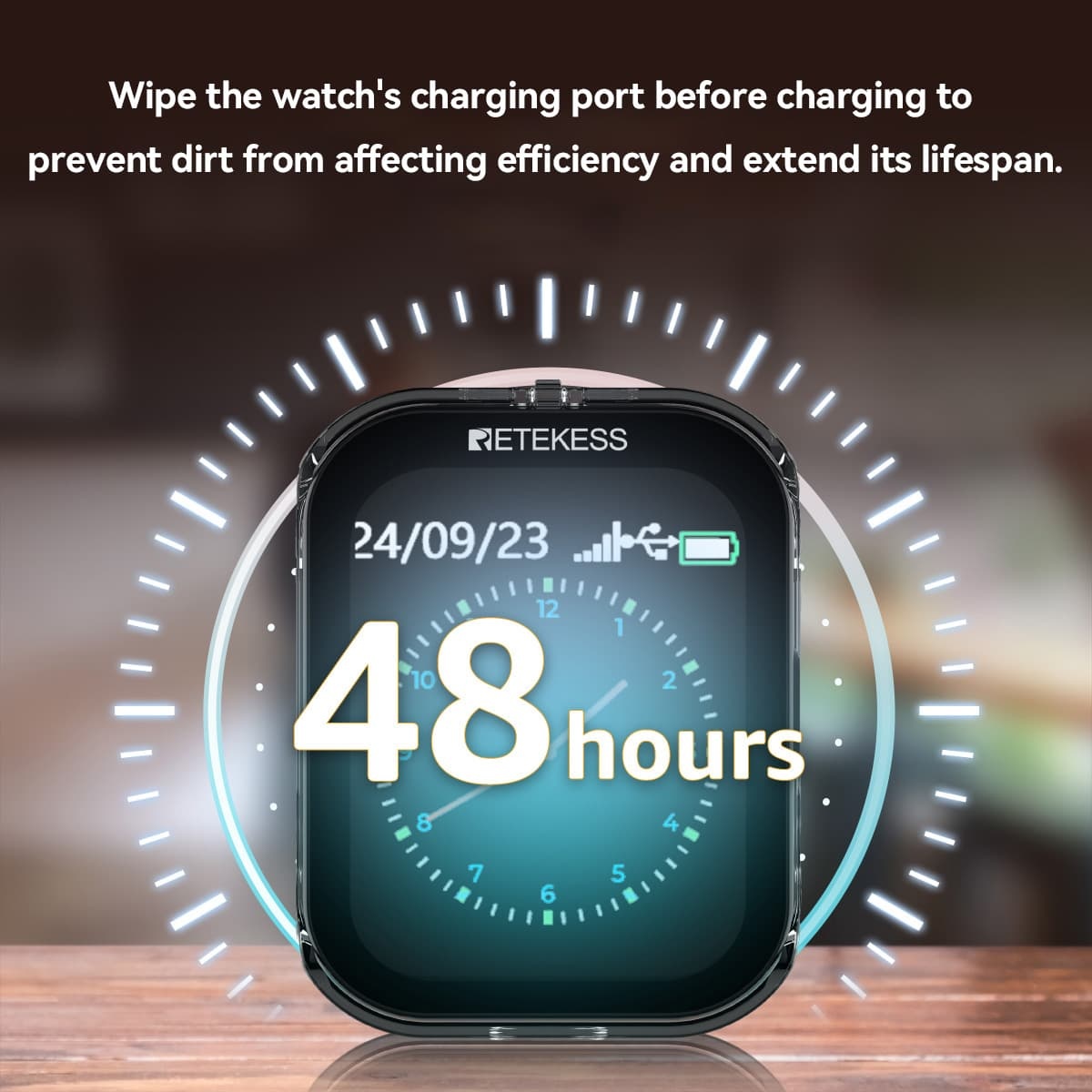

Note: Before charging the TD113, wipe the watch's charging port to remove sweat or dirt, ensuring efficient charging and prolonging the service life.
Retekess TD113 staff paging system Features
Performance
TD113 IP67 waterproof / TD032 call button IP55 waterproof rating.
80 meters working distance.
Standby time more than 24 hours.

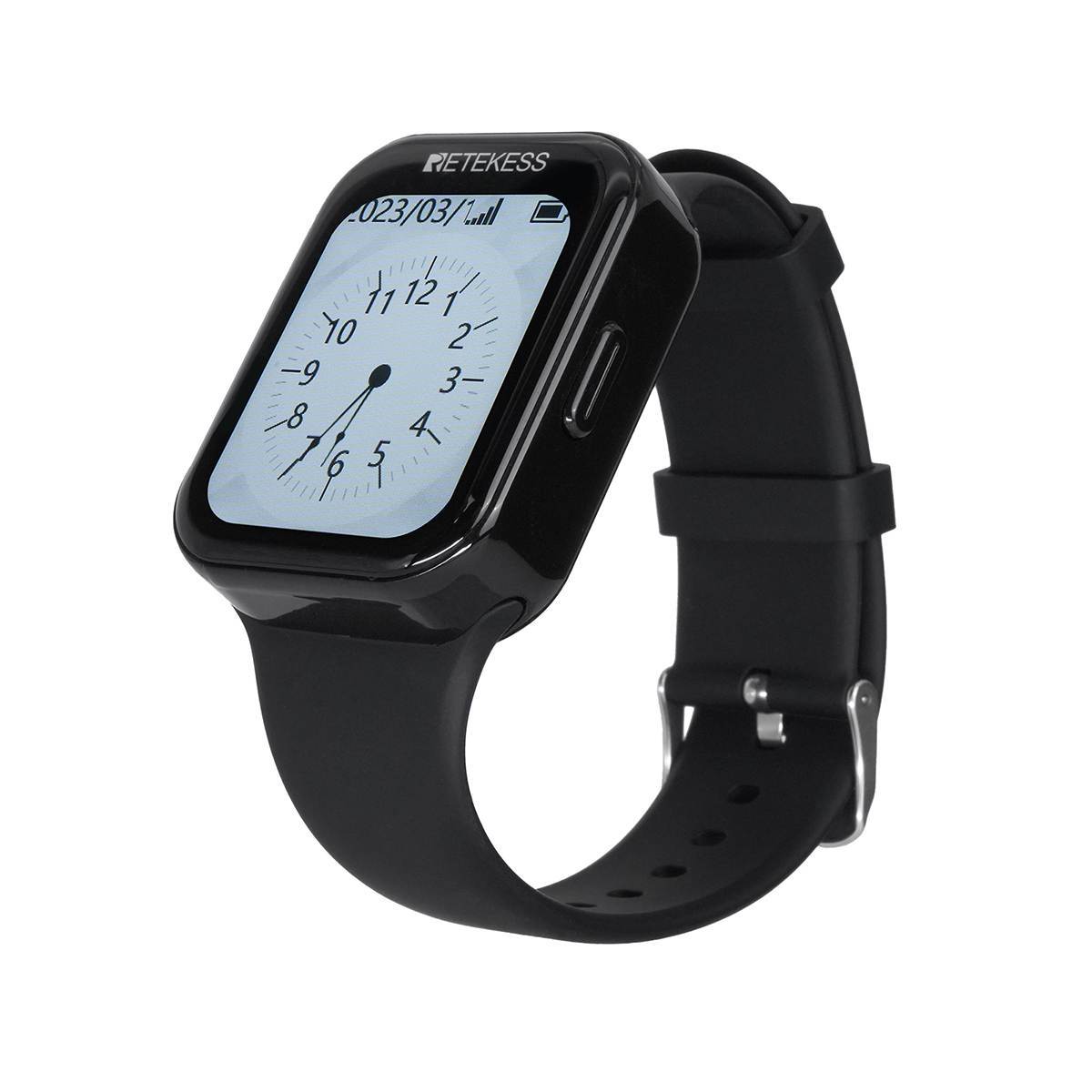

Watch Features

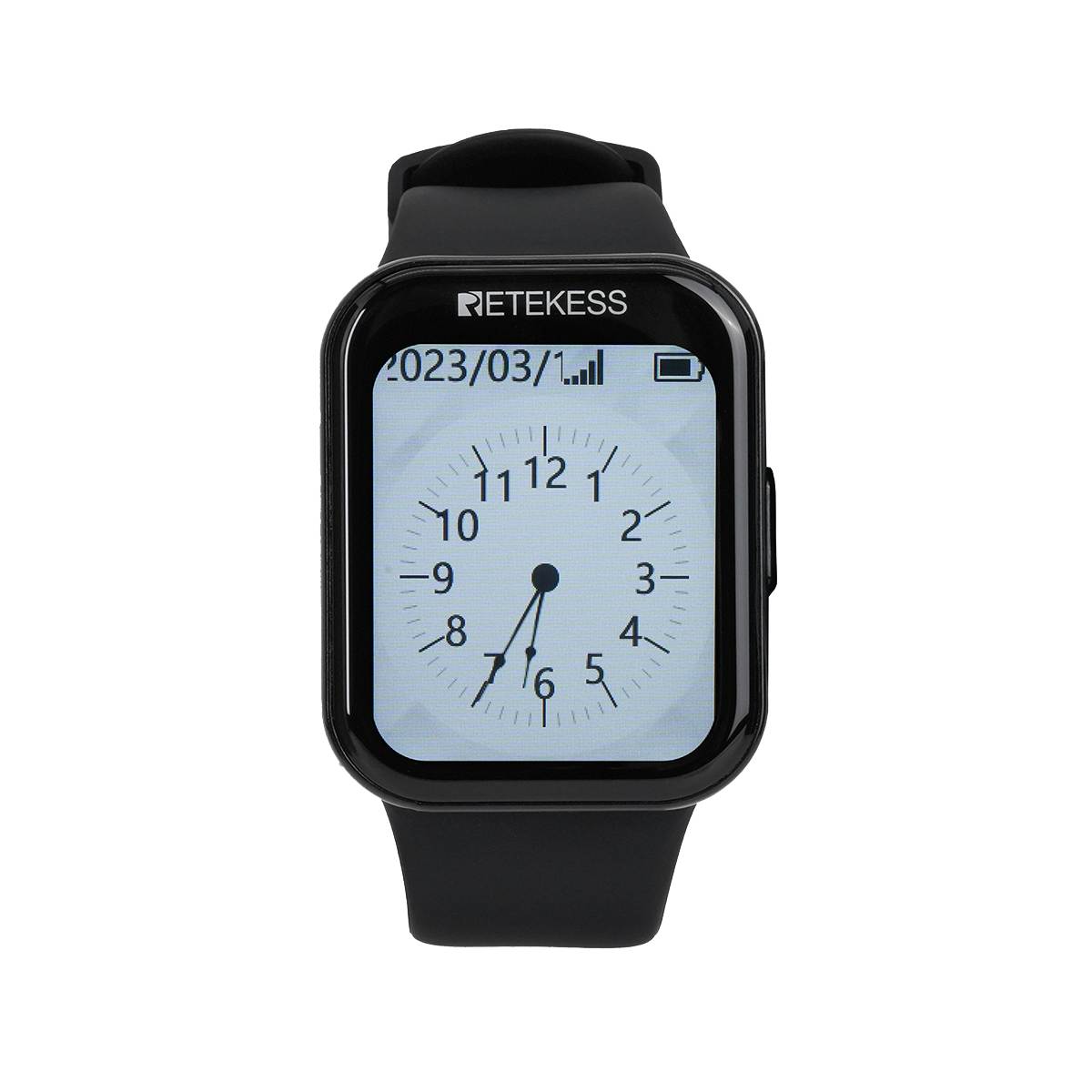

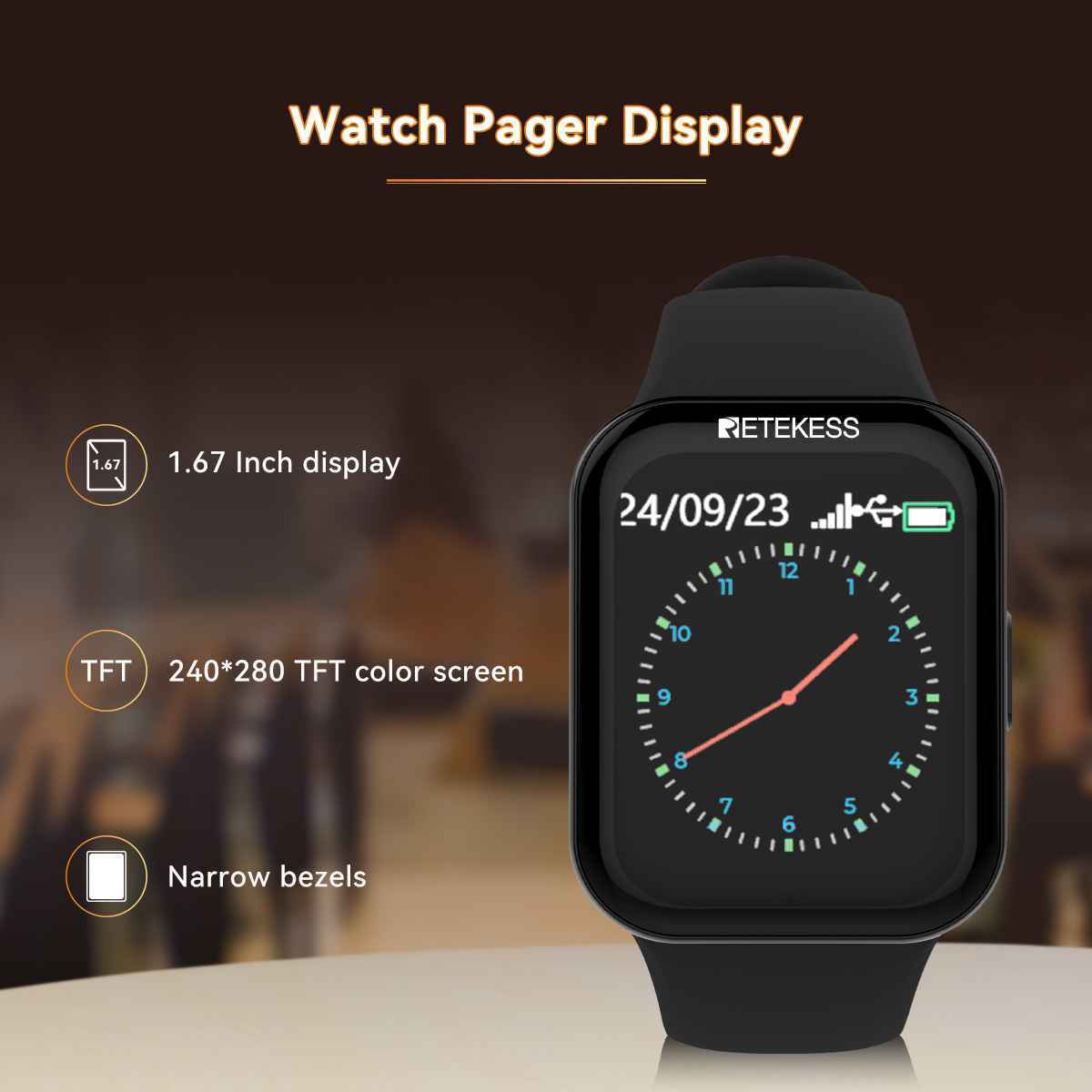

Curved touch screen. (1.69 inch 204 *280 TFT color screen)

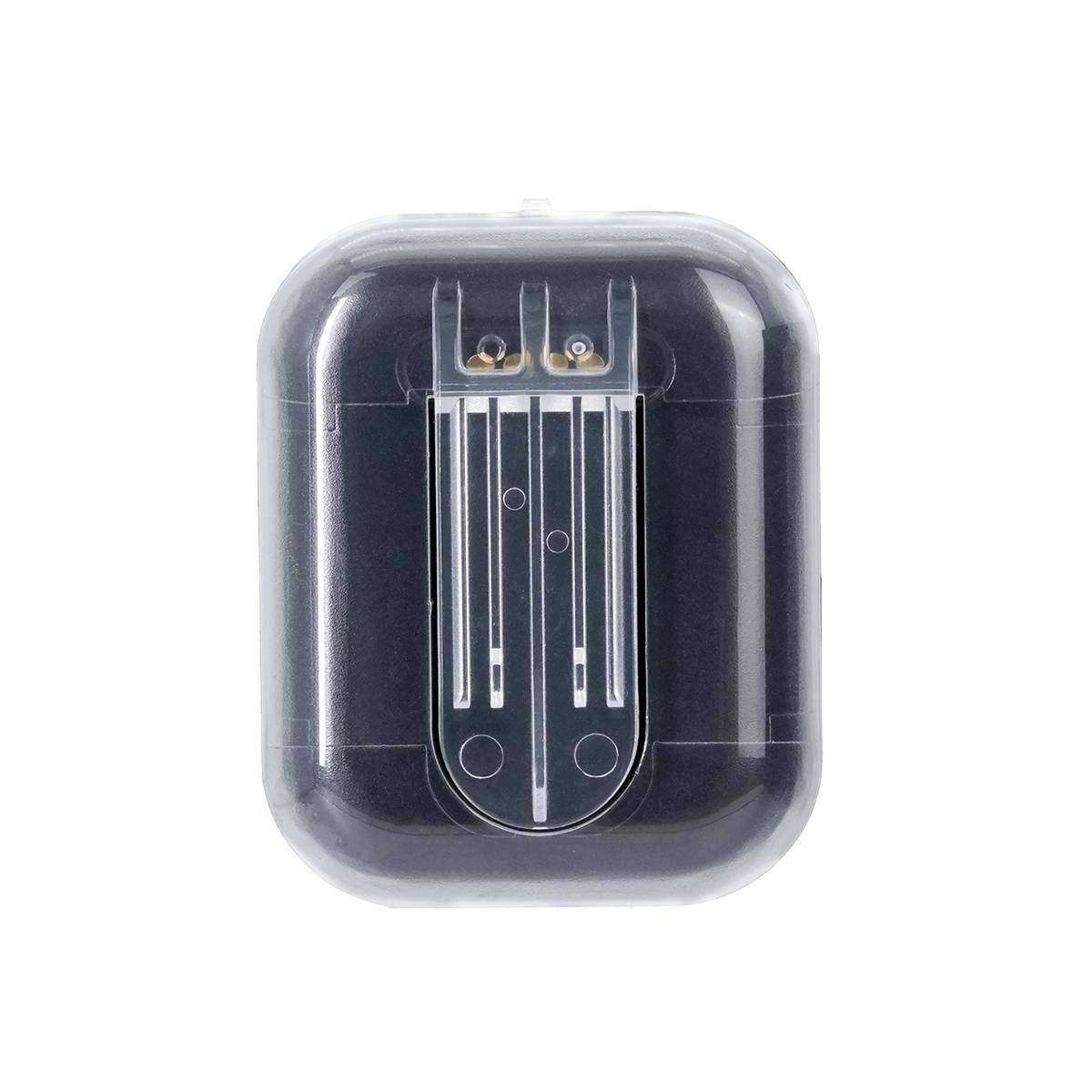

Wearing method: strap, back clip, lanyard. The strap can be disassembled horizontally.

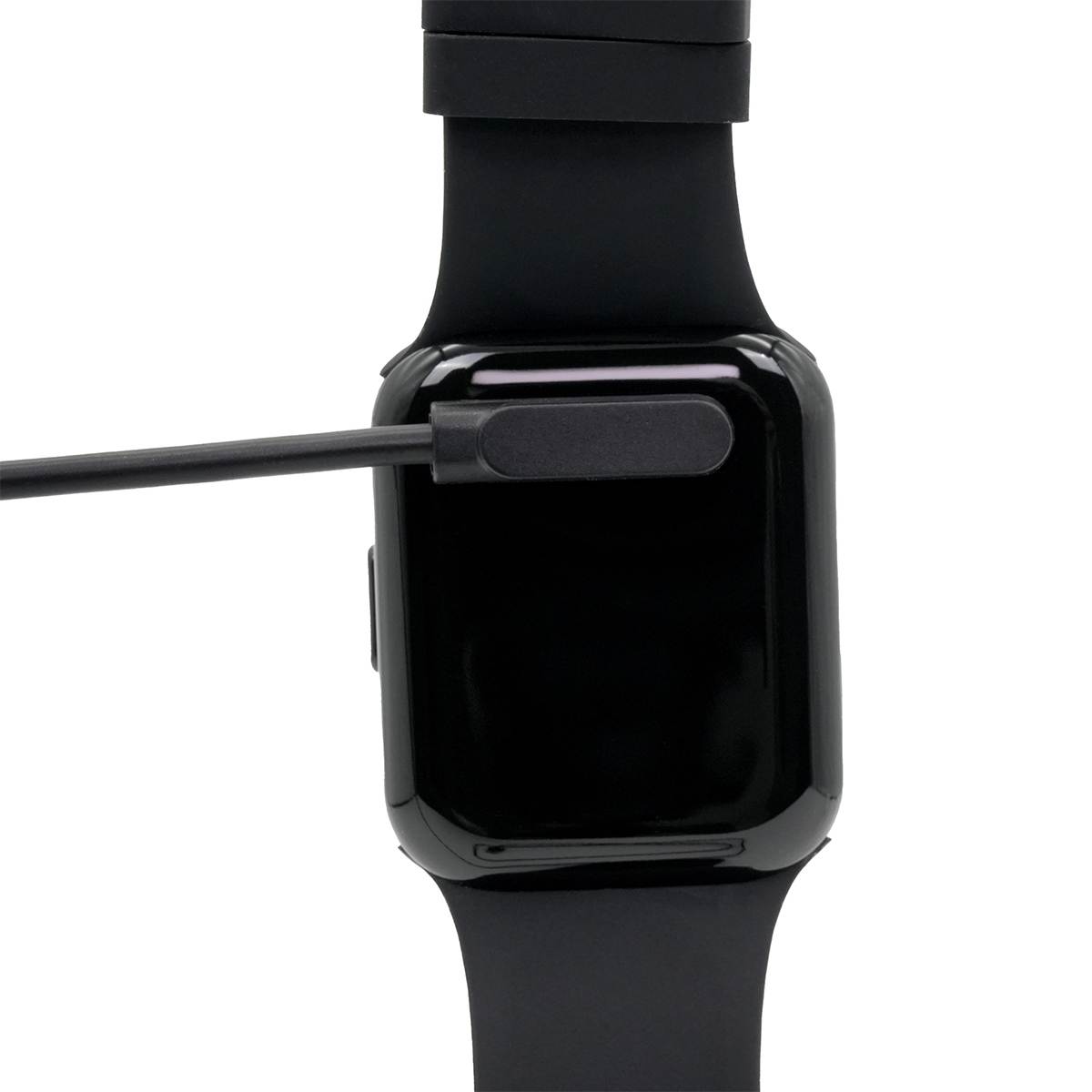

Magnetic charging method.

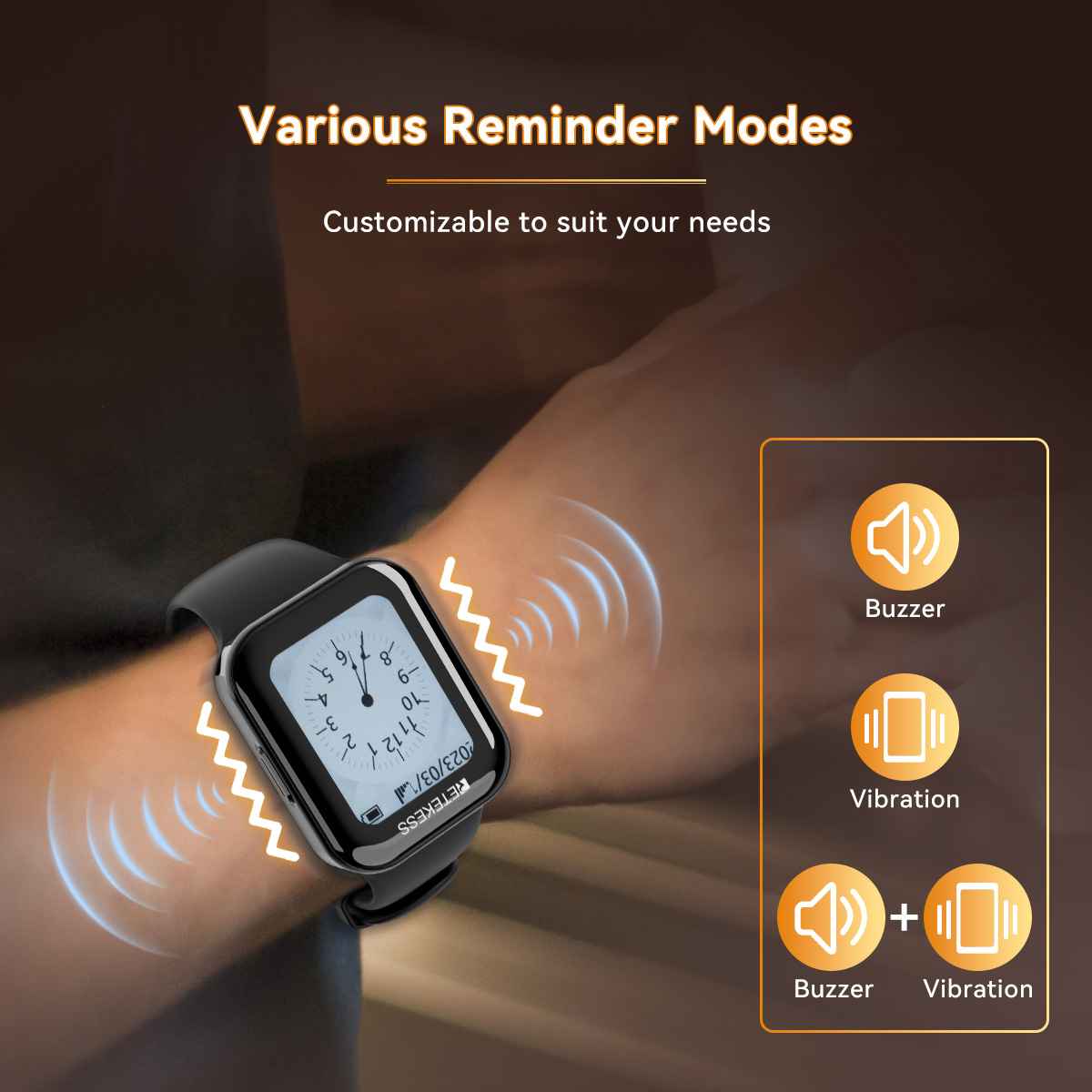

Alert Function
Vibration/sound/screen display.
7 ringtones can be changed.
Vibration, volume, brightness can be adjusted from 1 to 100 levels.
Alarm duration can be adjusted from 0 to 30 seconds, 0 means no reminder.
Interactive Features
Messages can be sent and received between watches.
Messages can only be edited via software. (USB transmitter required)

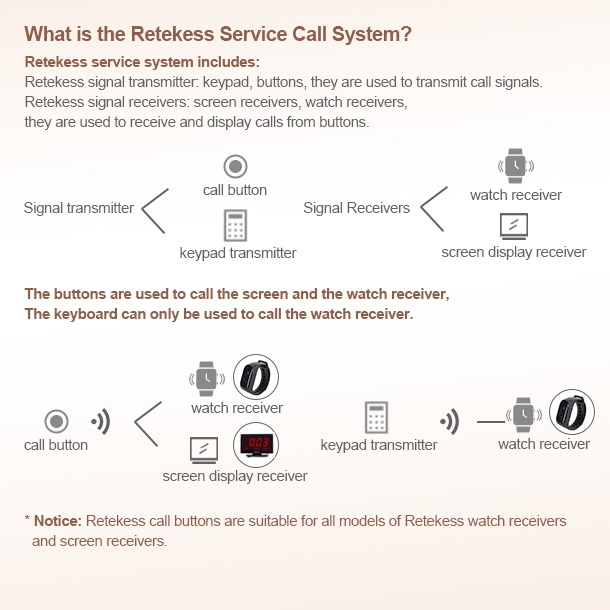

TD113 can be paired with all Retekess buttons.
Extended Functions
Calculator function.
9 languages. (English, German, Russian, French, Portuguese, Spanish, Italian, Japanese, Chinese)
Call log.
Timed tasks - timed alarm, timed shutdown, timed switching of wireless receiving switch.
Customized Features
Optional single-key button call mode or multi-key button call mode.
11 personalized watch faces.
Comparison between Retekess TD112 watch receiver and Retekess TD113：
|
TD112 |
TD113 | |
| Design and Display | Narrow frame and lightweight (0.69 inch OLED Screen) |
Curved touch screen (1.69 inch 204 *280 TFT color screen) |
| Wearing Way | Wrist strap（Non-removable） | Wrist strap（Translational disassembly） Clip Lanyard（Not included in the package） |
| Communication Features | One-way communication Receive and display the call form button or keyboard |
Two-way communication Message templates can be modified via software |
| Integrated Functions | √ |
√ |
| Alert Features | Vibration Display calling number No sound |
Vibration |
| Alert Duration | Vibration Time：1 to 15 seconds can be set. Display Time：00 to 10 minutes （00 means the calling information will never auto-cleared） |
0-30s , 0 means no reminder |
| Working Range |
80m Max(open space) |
80m Max(open space) Working distance is different when paired with different buttons |
| Waterproof Level | IP67 | IP67 |
| Standby Time | About 20 hours |
About 24 hours |
| Size | / | 37*64.5*16mm |
Spec
|
TD113 Watch Pager |
|
|
Frequency |
433.92MHz |
|
Modulation |
OOK /FSK/ Mode (optional) |
|
Size |
37*64.5*16mm |
|
Display |
1.69 inch 204 *280 TFT color screen |
|
Communication mode |
bidirectional/dual-mode |
|
Working range |
80m Max |
|
Alert modes |
Vibration, ringtone |
|
Battery |
500mAh Li-ion Battery |
|
Water resistance |
IP67 rating |
|
Receiving sensitivity |
-121dbm |
|
Operating voltage |
3.7V |
|
Interface |
magnetic charging connector |
|

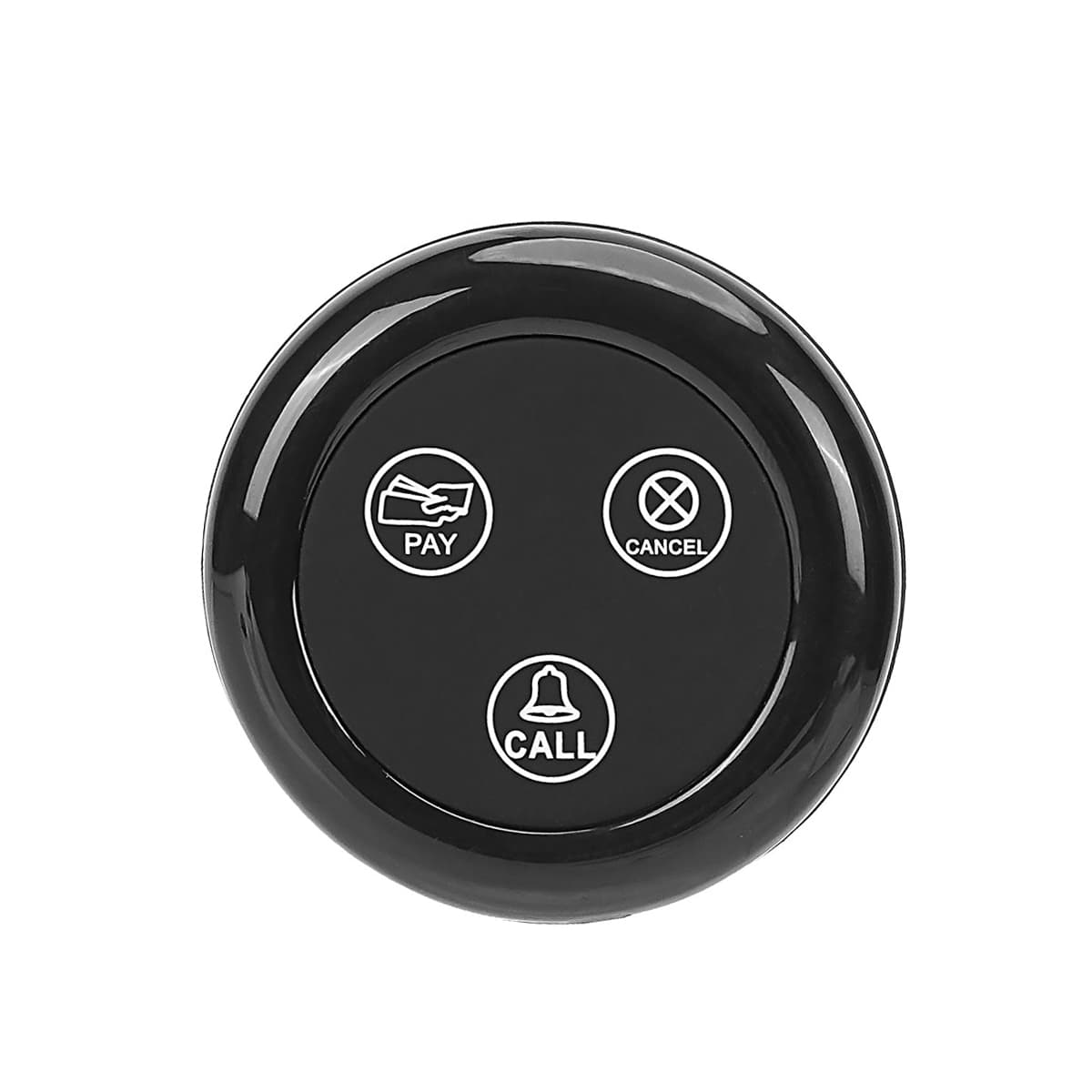

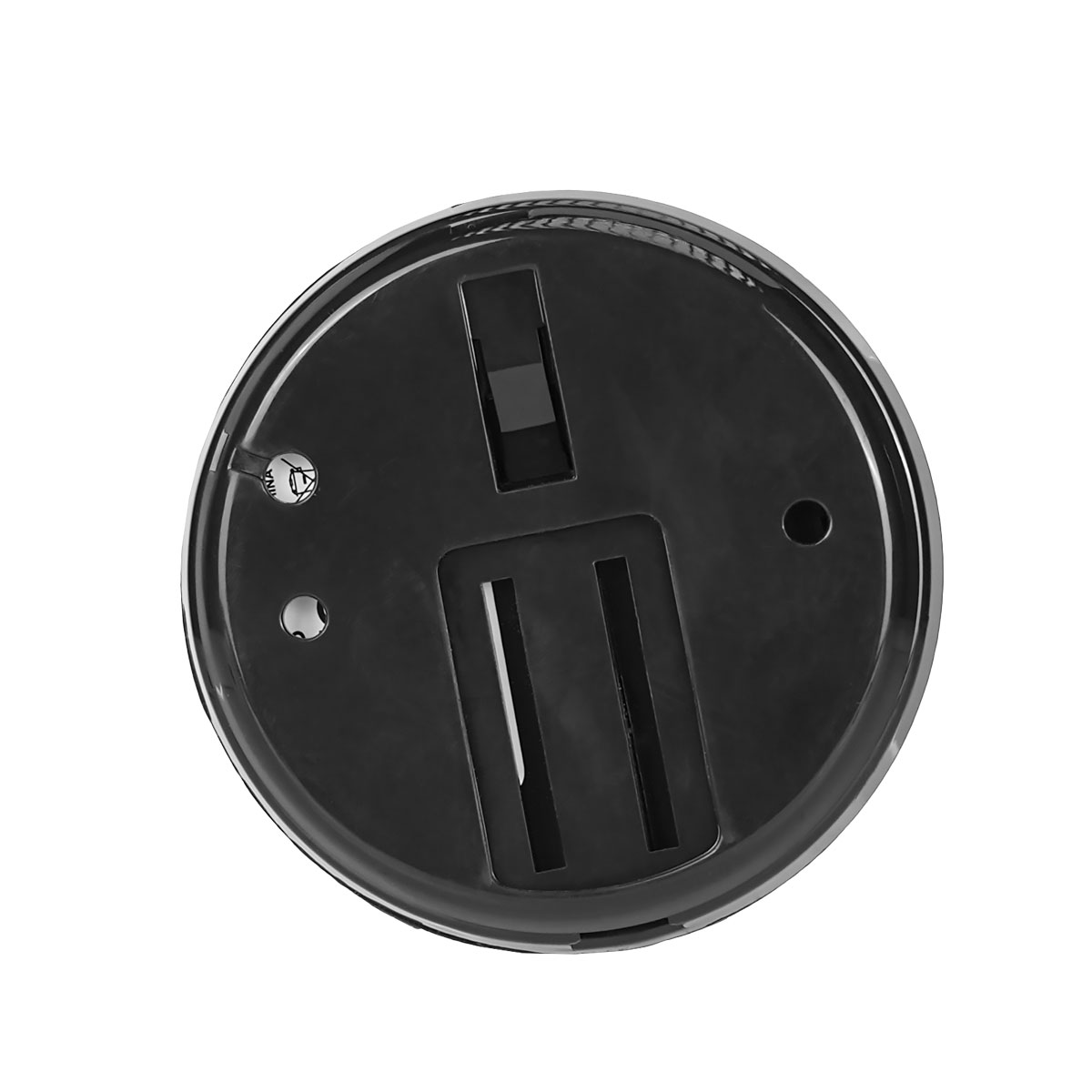

TD032 Waterproof Call Button Silicone Pad |
|
|
Working frequency |
433MHz AM |
|
Coding method |
EV1527 |
|
Transmission power |
0.05W |
|
Sensitivity |
19db |
|
Indicator light |
Red |
|
Press keys |
1/2/3/4 independent physical keys |
|
Battery |
23A 12V |
|
Working voltage |
12V |
|
Waterproof |
IP55 |
|
Transmission distance |
> 80m (visible in open space) |
|
Dimension |
60MMX 16MM |
Features
Q: How many buttons can the TD113 watch match?
A: The watch receiver can pair at least 300 buttons.
If you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at support@retekess.com
