Description

Retekess TD164 wireless pager system works on 433.92MHz with FSK modulation, delivering a stable signal and long-range coverage.

—The transmitter features touch-sensitive buttons for quick and easy operation, along with precise response and a comfortable user experience.

—Retekess TD164 Wireless Paging System features a modern and stylish design, with a hidden digital display and a glossy piano-finish shell for an eye-catching appearance.

Retekess TD164 Wireless Long Range Paging System is ideal for restaurants, leisure and entertainment venues, and any location where customers need to wait in line, such as banks, shopping centers, clinics, children’s play centers, factories, car dealerships, and examination centers.

TD164 Wireless Paging System Features:

Long Service Time

The pager offers up to 30 hours of standby time.

It can easily support a full day of operation without affecting service efficiency.

Long-Range Guest Paging System

Using 433.92MHz wireless transmission, the range can reach up to 800 meters / 2,624 feet in open areas.

It is suitable for large spaces, such as large hotels, food courts, and truck parking areas.

Paging System with Call History

The system allows you to access up to 10 recent call records, helping staff quickly follow up with customers who may have missed their notifications.

Simply press the query button to view previous call records and reconnect if needed.

One-key Shutdown and One-key Mute

Includes One-key Shutdown (press 999 + Call) and One-key Mute (press Mute + 999).

To cancel mute mode, press Mute + 000.

Charging Mode Reminder

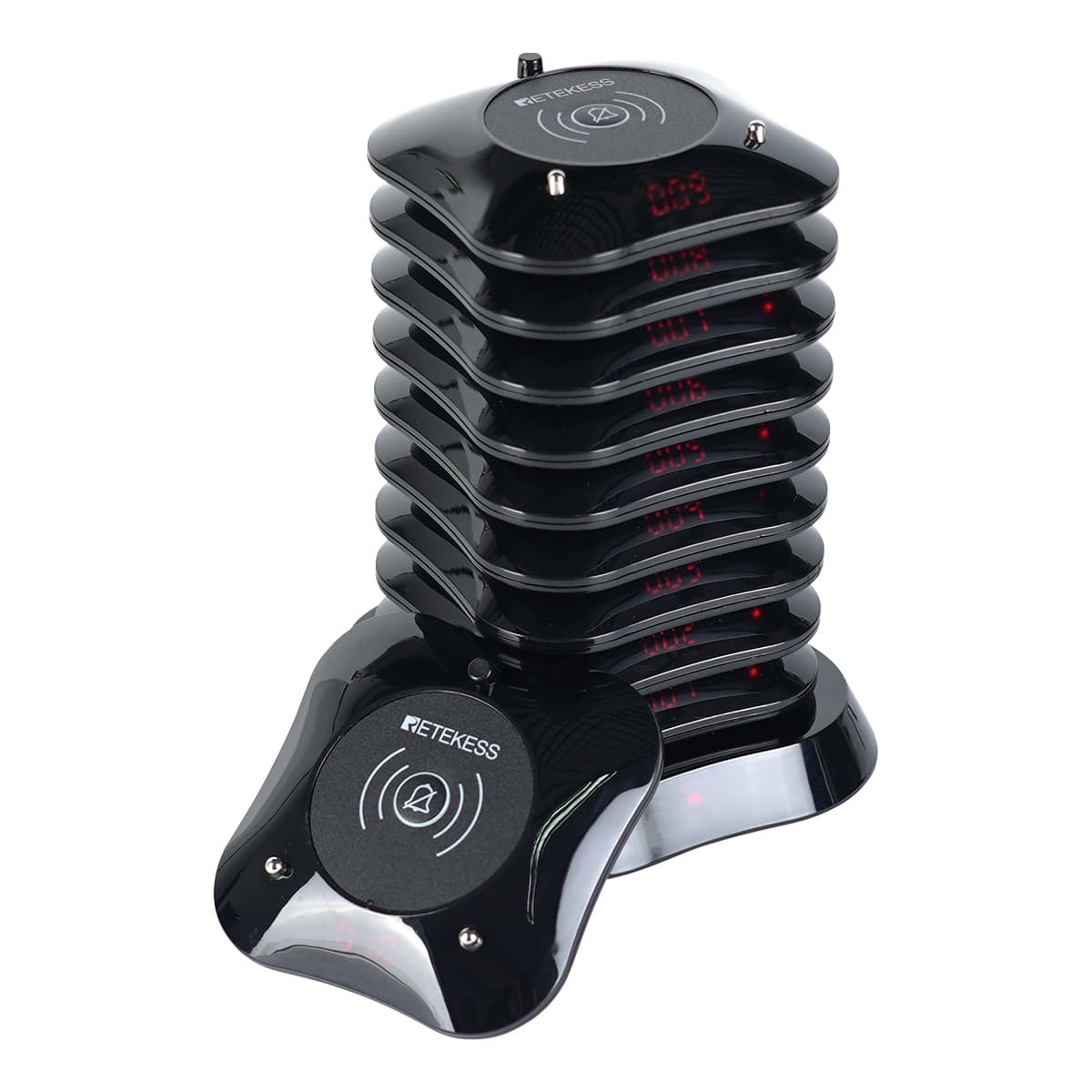

When the pager is placed on the charging base, the LED light flashes while charging and stays solid when fully charged.

Add Receivers Up To 998 pcs

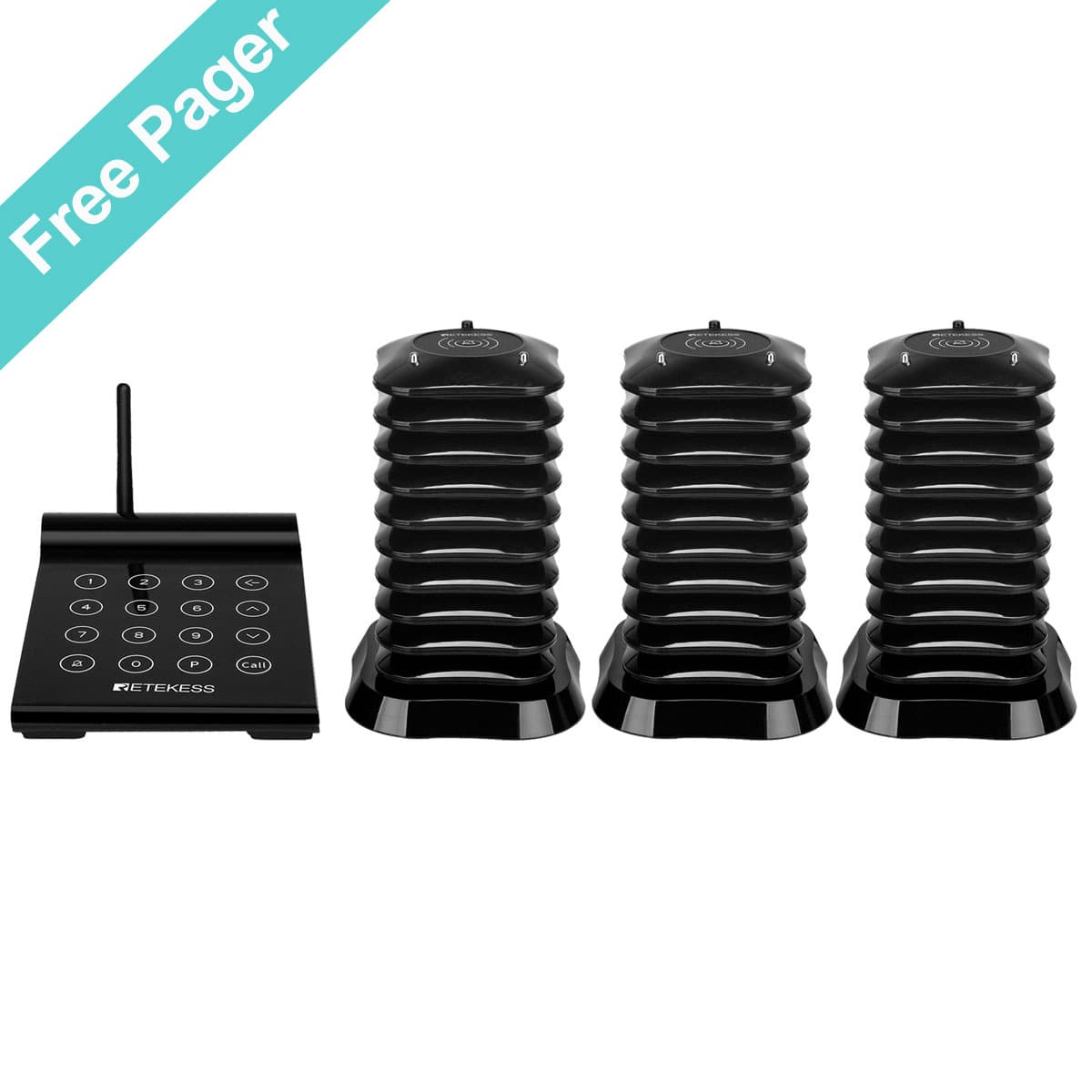

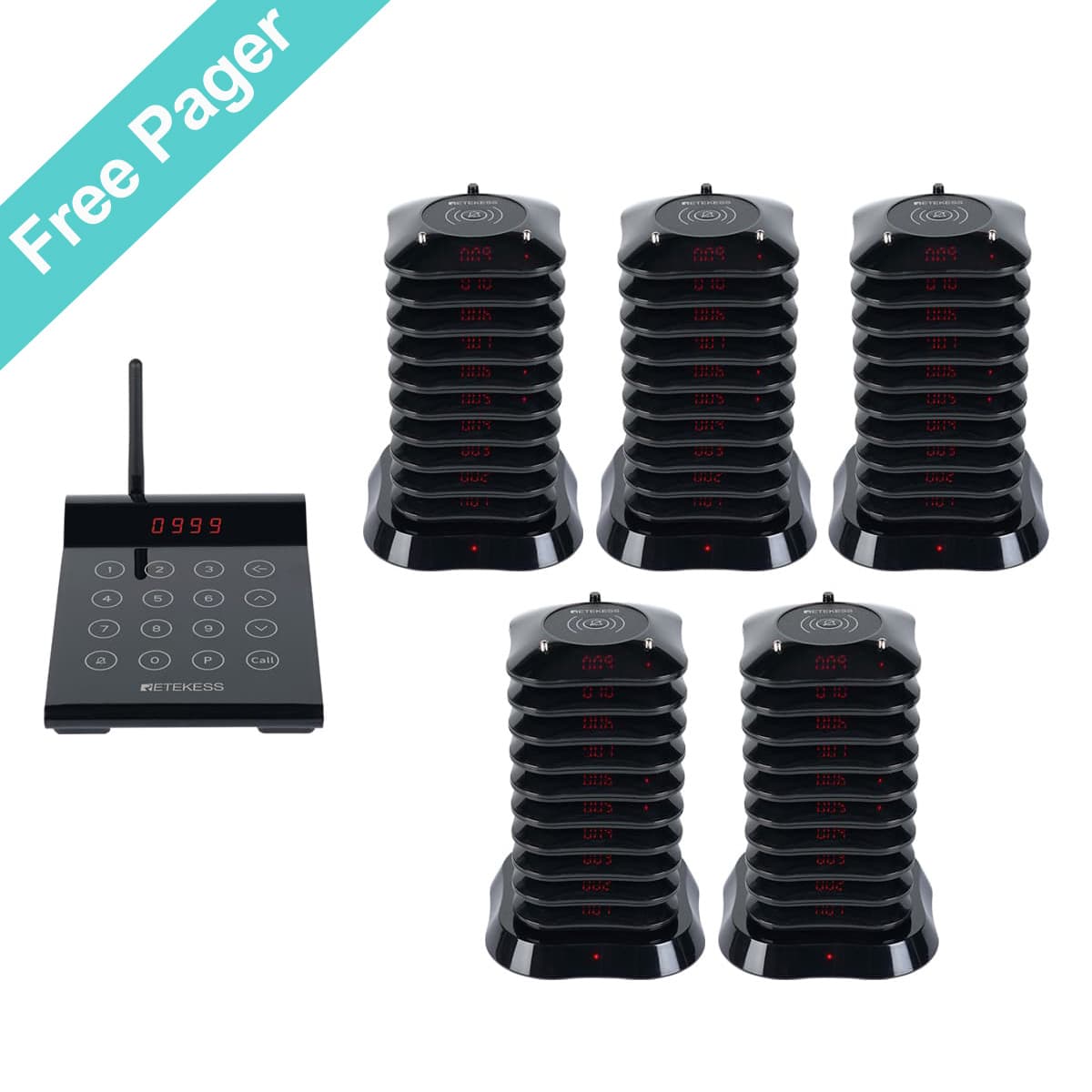

One transmitter can be paired with up to 998 pagers.

As your business grows, you can easily add more pagers for expanded coverage.

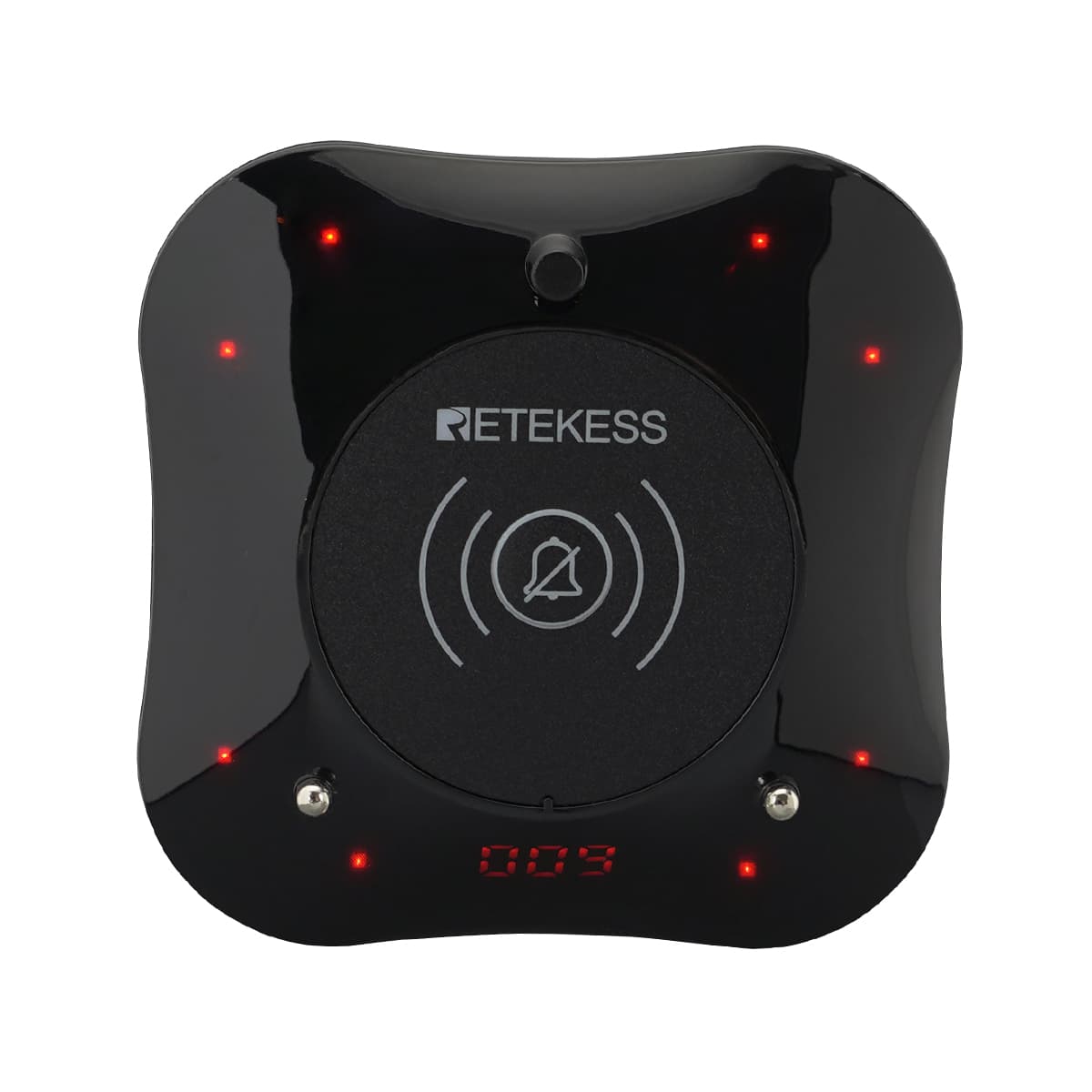

Guests Can Stop the Alert with Guest Pager

There is a mute button on the front of the pager.

Customers can easily stop the alert after receiving the notification.

Mode Reminder Self-check Function

After the pager is removed from the charging base, it will beep once to indicate that it is in non-silent mode.

When set to silent mode, there will be no beep when the pager is removed from the charging base.

Easy to Check Pager ID, Fewer Mistakes

Pager IDs are displayed above the pager for easy identification by staff and to help reduce confusion.

The larger keypad is more convenient to use, easier to clean, and the touch keypad is waterproof and oil-resistant.

Note: Please place the keypad transmitter on a table made of wood, plastic, glass, or other non-metal materials, and avoid using it on metal or marble tabletops.

Spec

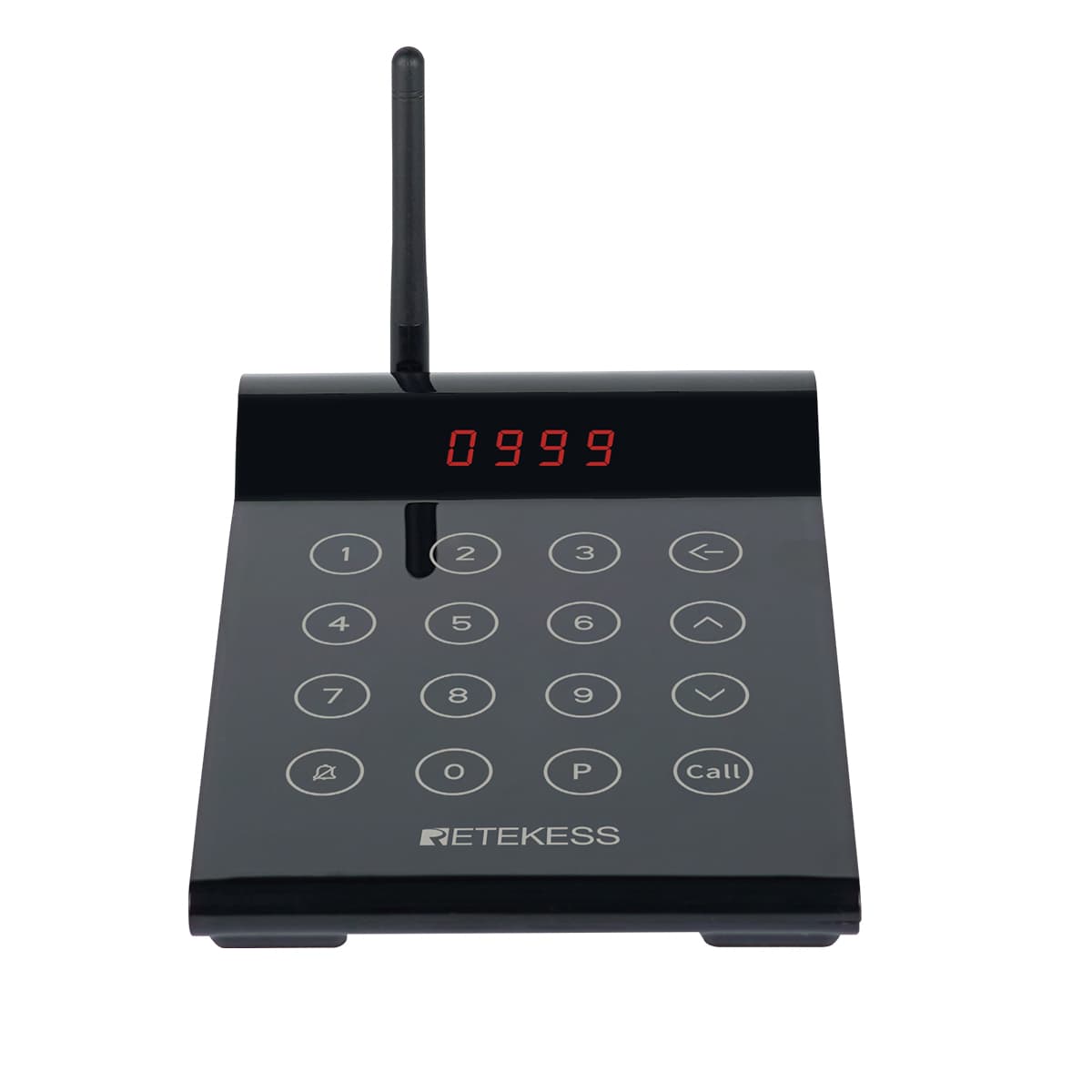

Keypad transmitter
Input Power DC 12V/2A
Transmit frequency 433.92MHz
Transmitting Power 0.4W
Standby Power <120mW
Modulation FSK
Max number of pagers 998 PCS
Max. Power DC5V/2A*2
Size 220*215*26mm/8.66*8.46*1.02inch
Net weight 233g

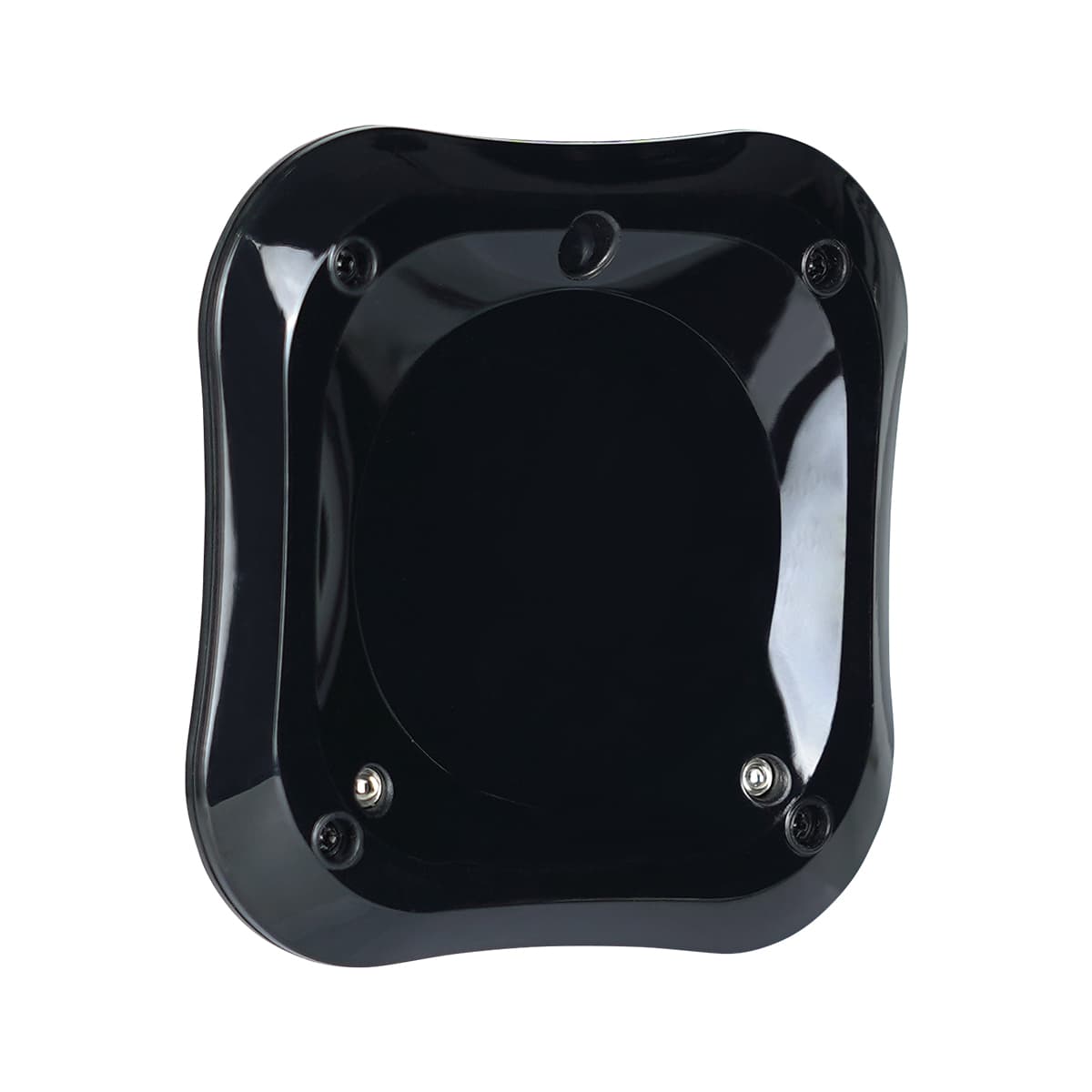

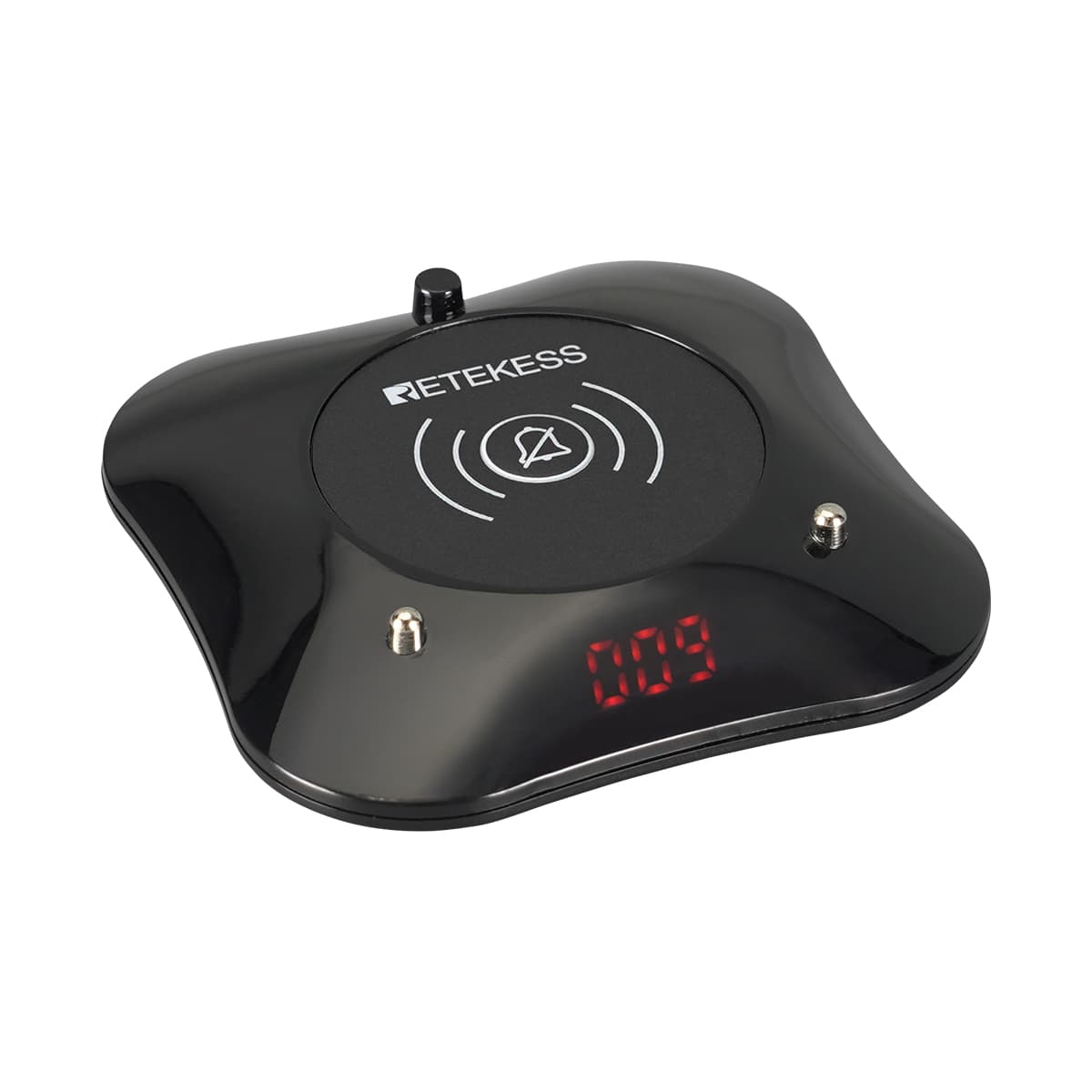

Coaster pager
Working Voltage Lithium battery: 3.7V 300mAh
Receiving frequency 433.92MHz
Standby current <12mA
Standby time 30h
Receiving Sensitivity -115dBm
Transmission distance 800m
Alert mode Buzzing+Flashing+Vibration, Flashing+Vibration

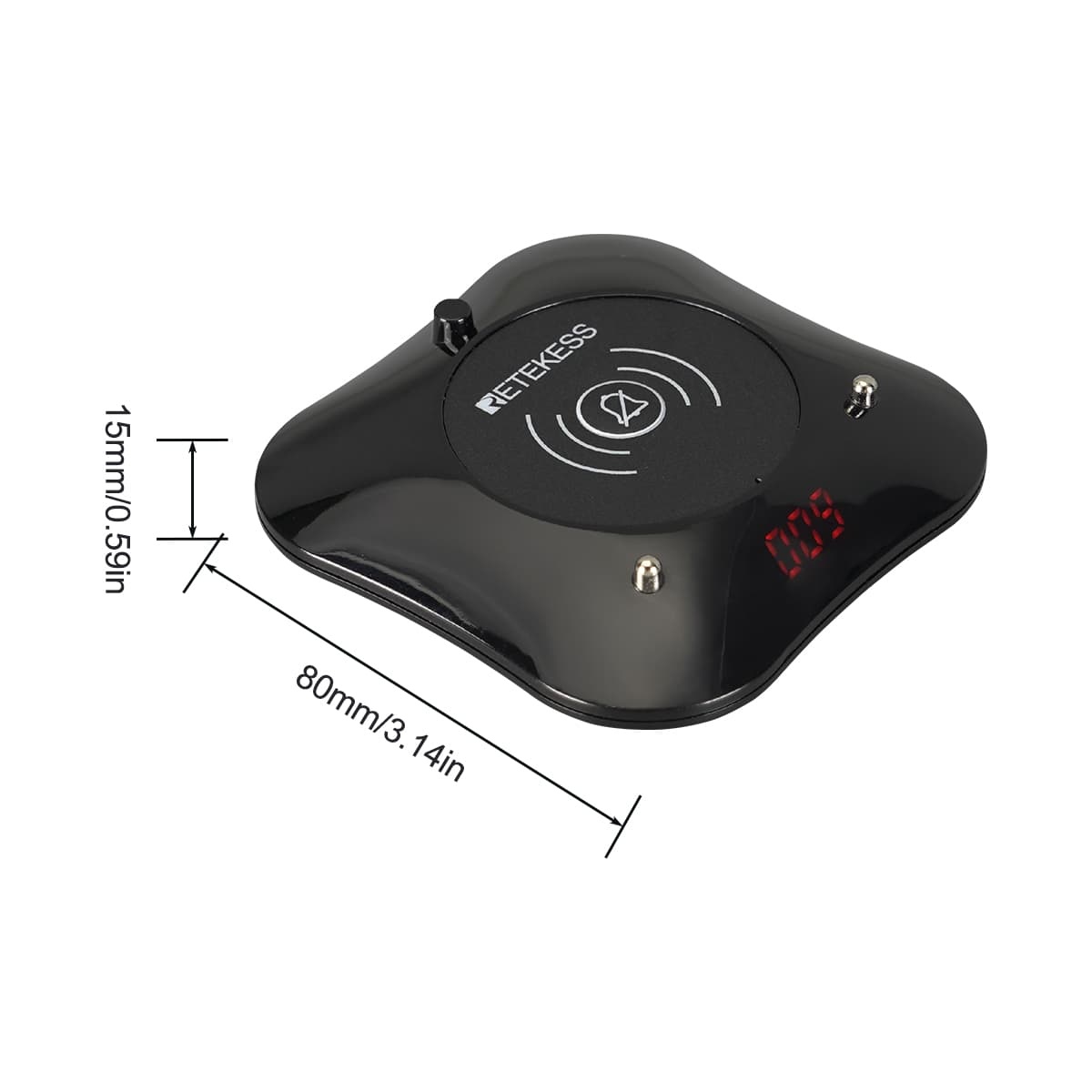

Size 80*80*18mm/3.15*3.15*0.71inch
Net weight 55g
Reminder duration 30s

FAQ

Q: How many pagers can I use in one group?

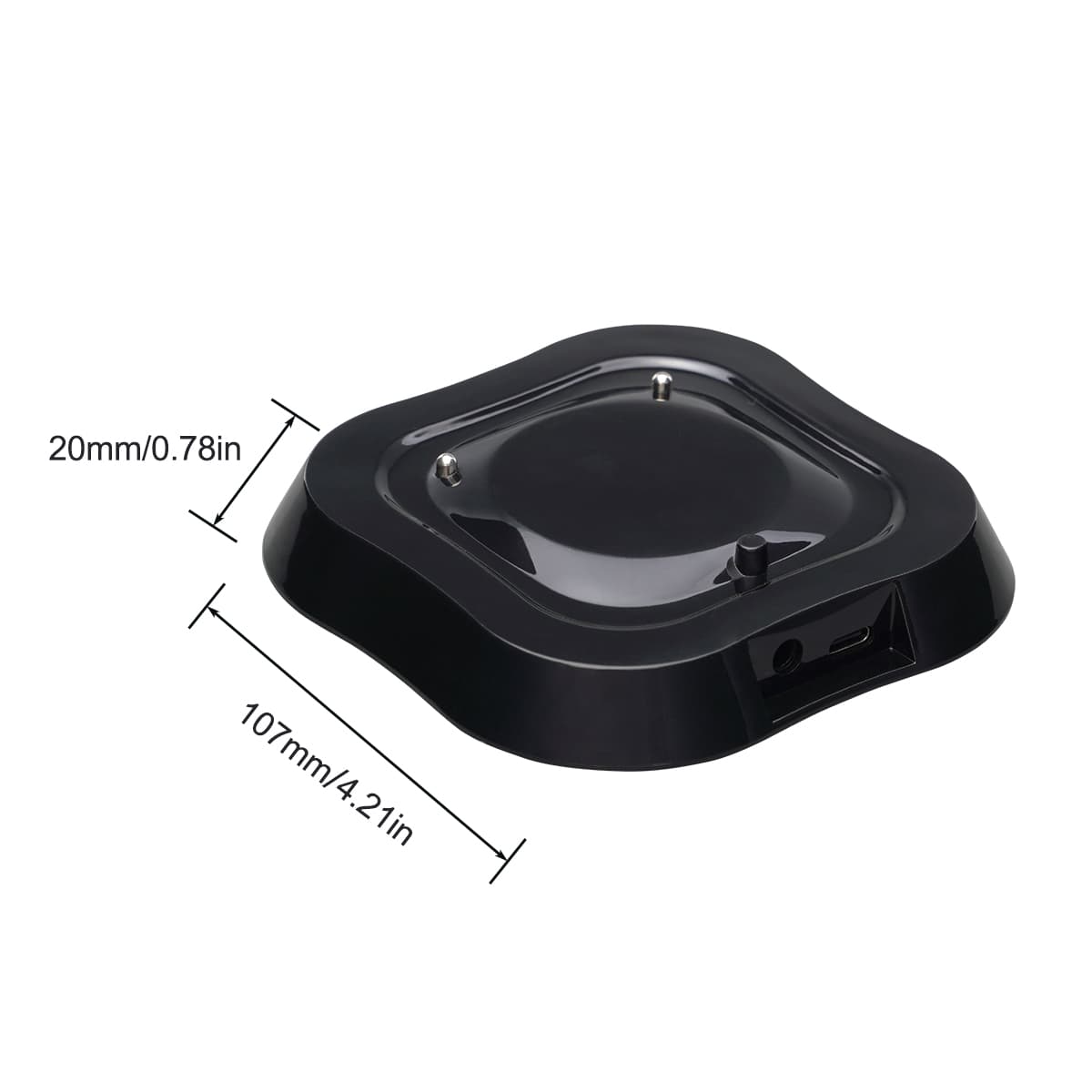

A: TD164 Wireless  Long Range Paging System supports 998 pagers. you can use 998 pagers with one transmitter, and in addition, you need to buy a charging base. A charging base can charge 10 pagers at the same time.

Q: How long can I use the pagers?

A: It can work 30 hours once you charge fully.

Q: How many reminder modes does TD164 Wireless Paging System has?

A: There are two ways: Vibration+beep+light and vibration+light.

Q: How far do pagers reach?

A: The transmission distance reaches 800m in open areas.

Q: Can I use 2 pieces of transmitters in one group?

A: Yes, you can. Retekess TD164 Wireless Long Range Paging System supports 2 transmitter keyboards to call a receiver at the same time.

If you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at [email protected]
