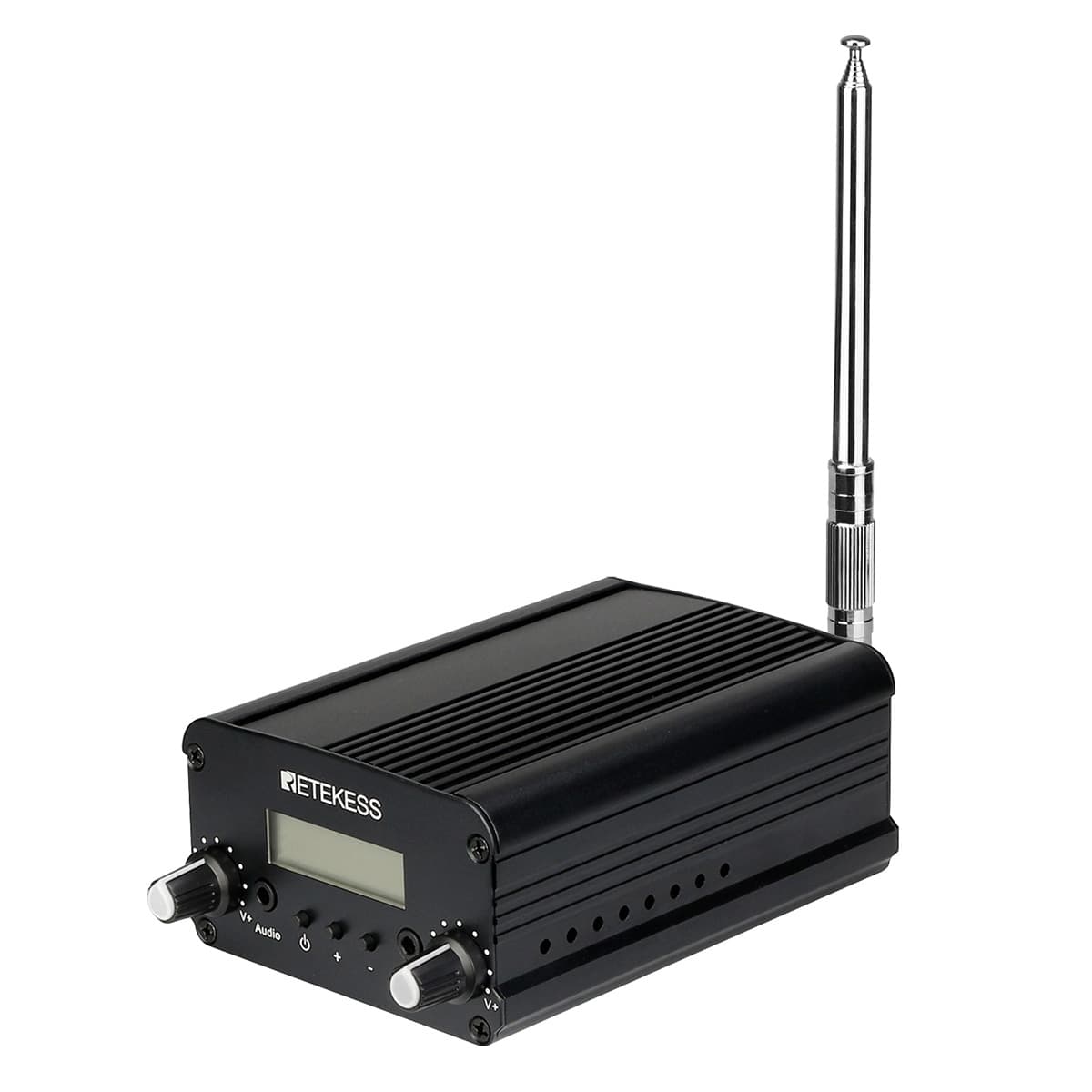

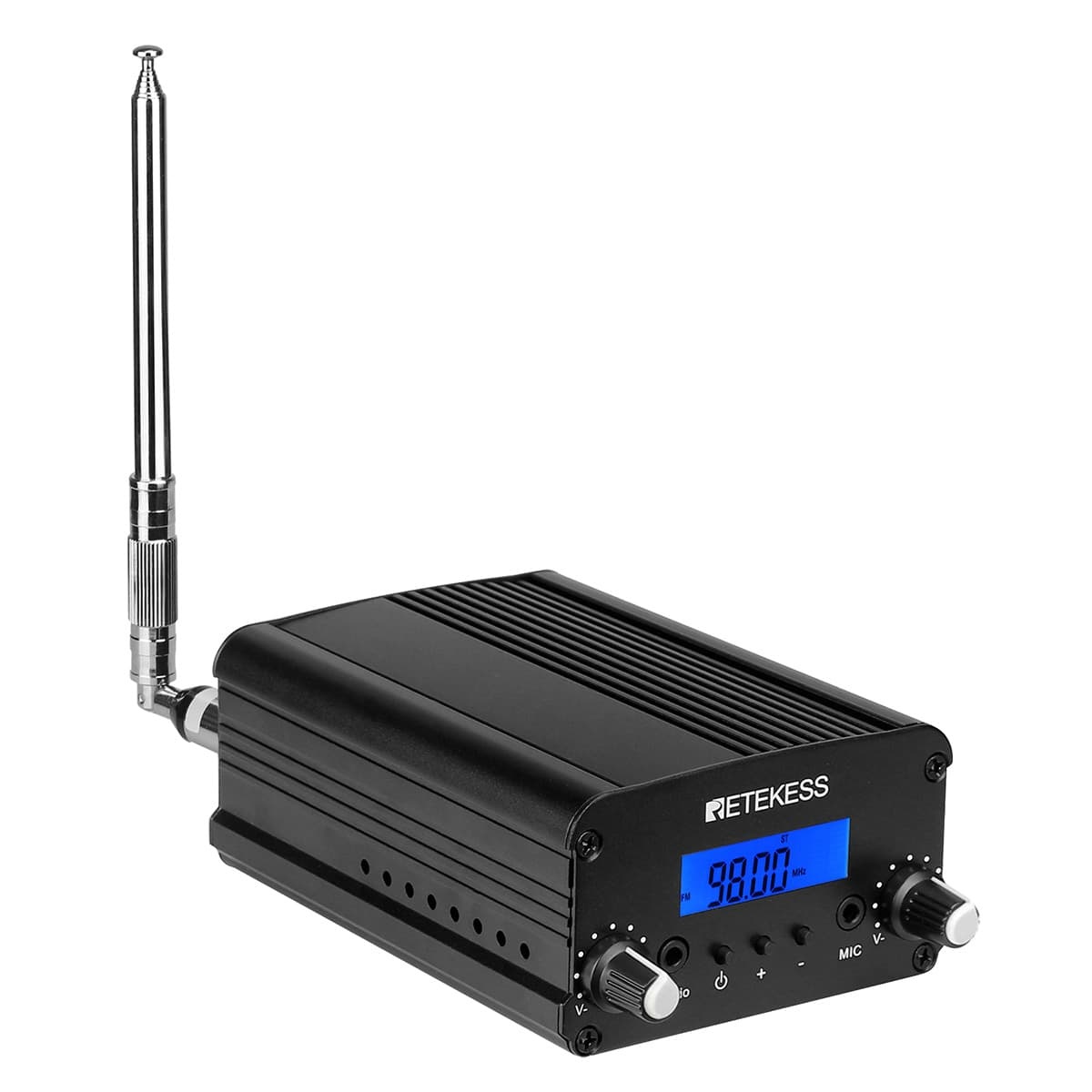

TR509 FM Transmitter Broadcast Station For Drive in Service

Order Status: In Stock Unavailable
Brand:


TR509 FM Transmitter is approved by FCC and IC

Long range transmitter with stable signal transmission

Stereo audio mode and accept speak and audio input at the same time

Works well with mixer board

FM transmitter for drive in church service, theater, factories, schools, supermarkets, farms, light show and create your own radio station


14 People are Looking for this Product

Description

Retekess TR509 FM transmitter is the upgrade model of TR508. Compared with TR508 broadcast transmitter, the TR509 has higher power and longer range.

The broadcast transmitter is super easy to install and operate. It is used by coming out of a P. A. System or out of a device such as a phone or laptop. It takes the music or spoken word from your device or P.A. system and sends it for anyone to listen on their radio in their car or home. However, that person has to be sitting within the transmission range of the transmitter and use the same frequency.

The FM transmitter works well for a light display with music playing, drive-in church service, drive-in cinema, drive-in Bingo and many other drive-in services, shopping mall broadcast, conference, etc.

Key Features

Durable and easy to install and operate

Stereo audio mode

Long range transmitter with stable signal transmission and crystal clear sound

Reduced harmonic ( clean signal )

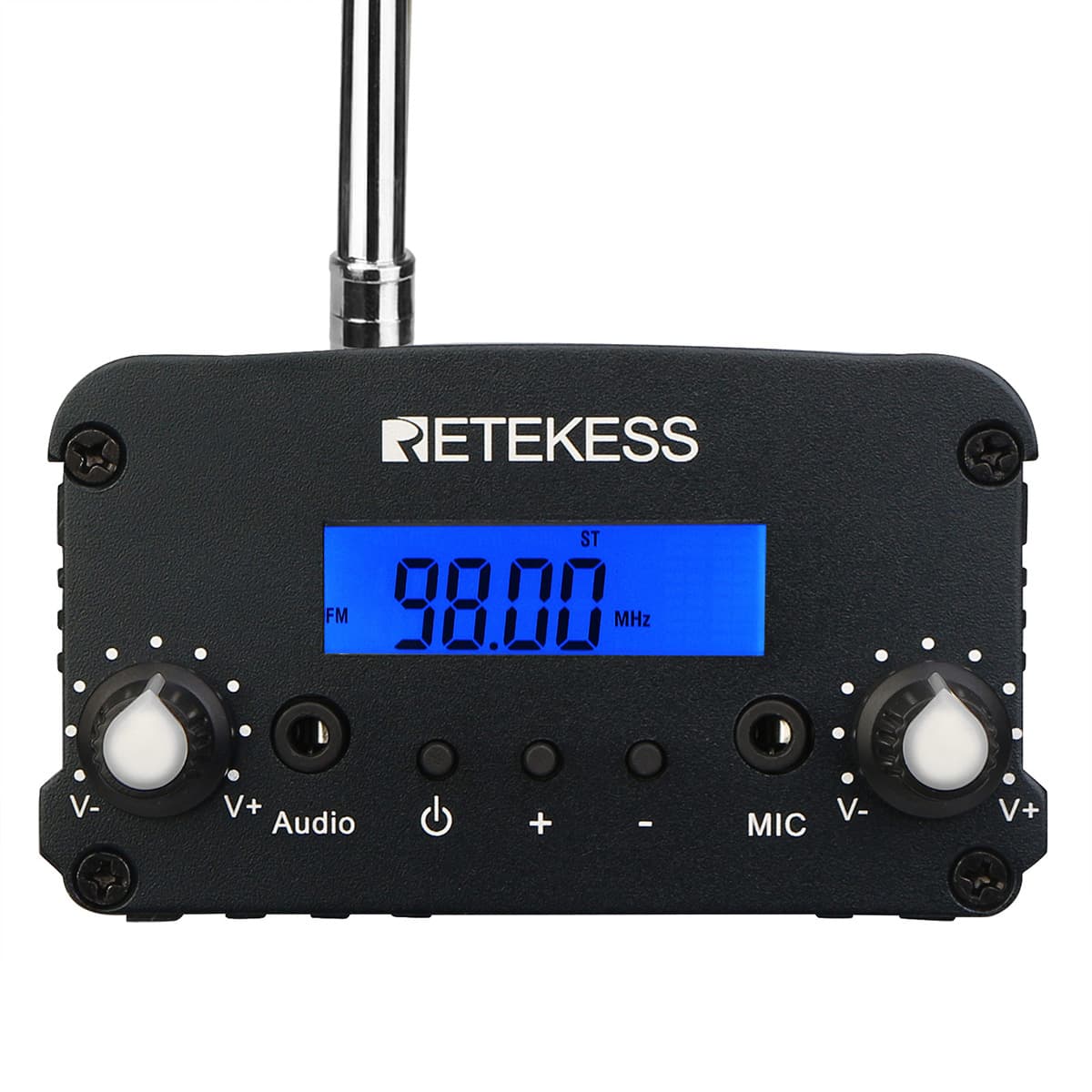

3.5mm Aux input and Mic input at the same time and volume are controlled by separated buttons

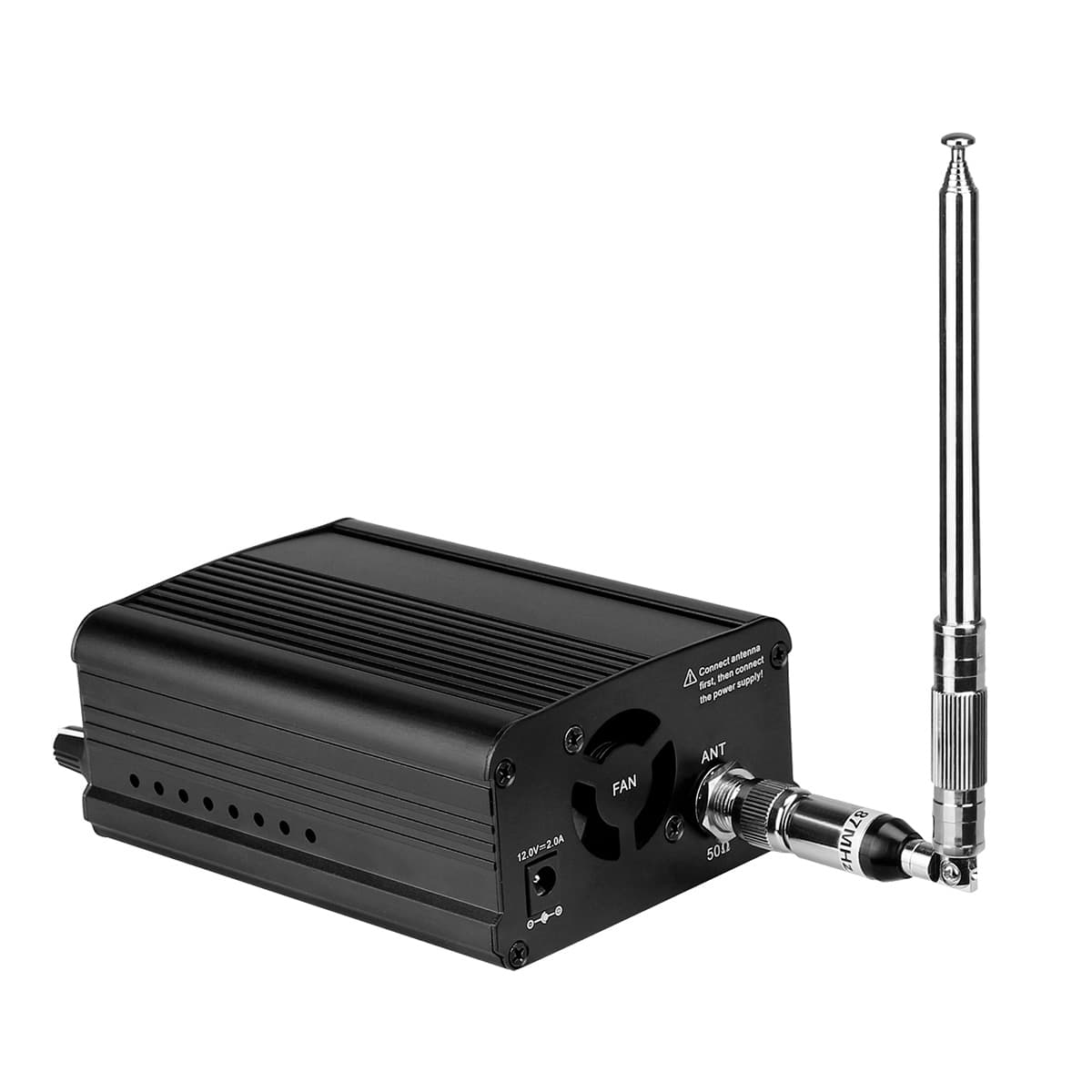

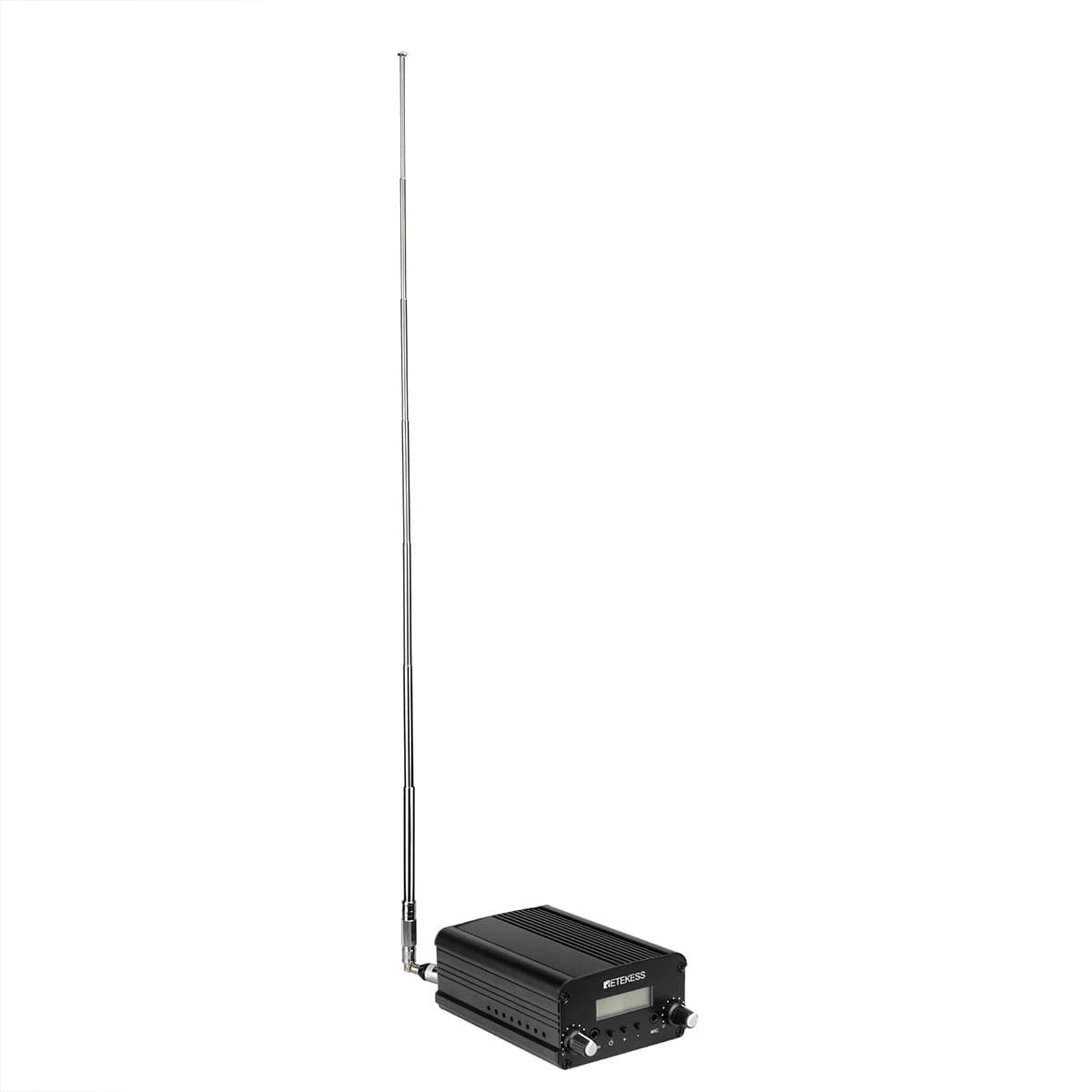

Removable antenna and you can replace a remote antenna to improve the broadcasting effect

Spec

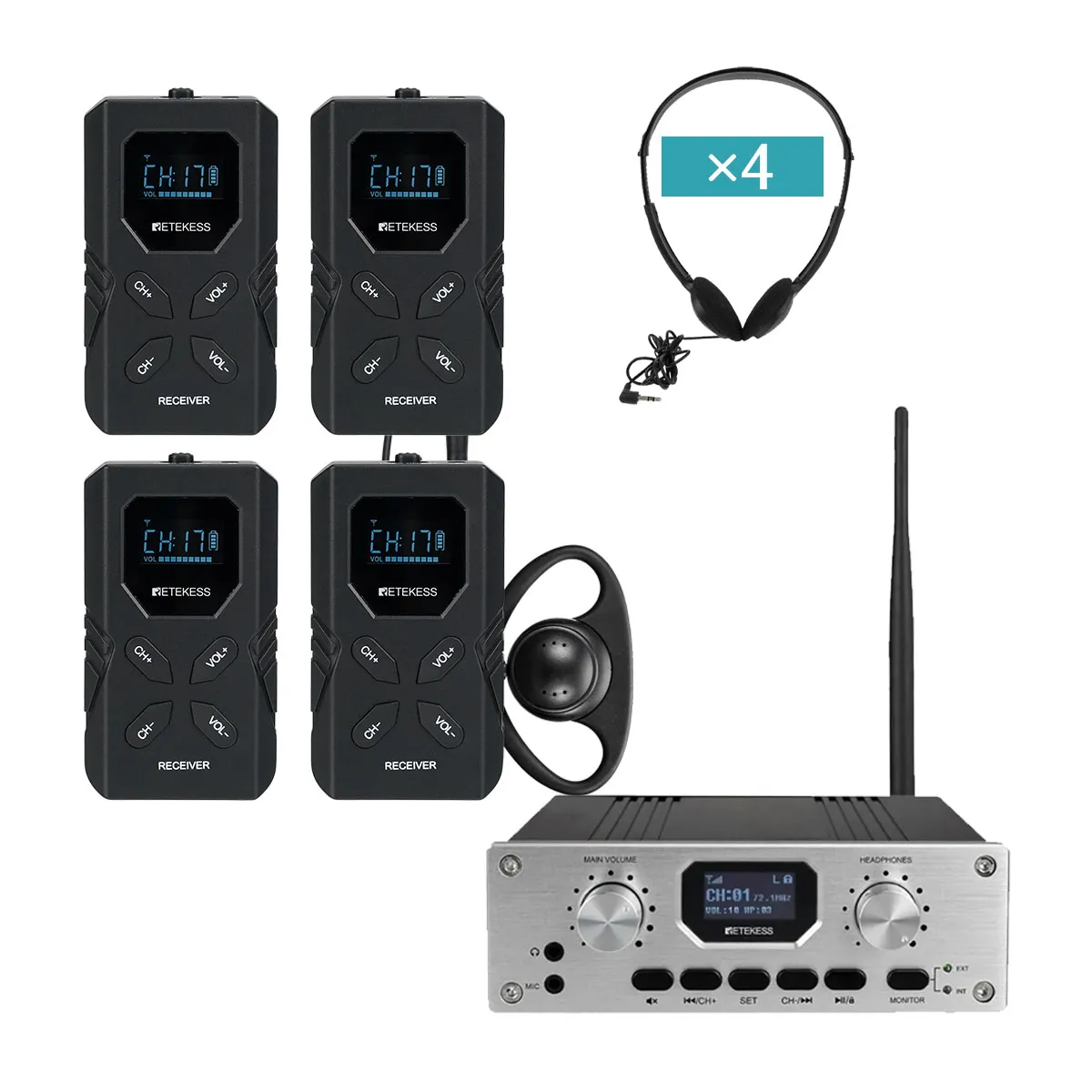

TT119 Transmisor
Tamaño 173*154*58mm
Peso de la unidad principal 1030g
Temperatura de funcionamiento -20~+40 Grado Celsius
Frecuencia 72~76MHz
Número de canales 17
Tensión de Tensión de Funcionamiento 12V
Fuente de alimentación 100-240V AC
Relación Entre Señal y Manía >60dB
Radiación Espurio ≤-60dB
Espacientre Canales 100KHz
Separación Estéreo 1KHz>35dB
Audio de Entrada XLR, AUX, RCA, U disk MIC
Distancia de Transmisión 300 meters (power H file, open and no obstruction)
Distorsión  ≤0.2%
Función de Almacenamiento Función de almacenamiento del fallo de alimentación
Función de Grabación Grabación del disco de U se puede realizar
Entrada del Micrófono Micrófono unidireccional, control de ganancia automático
TT118 Receptor

Rango de Frecuencia

72-76MHz

Canal

17 canales

Fuente de alimentación

2 AA Baterías

Horas de Trabajo

10 horas

Voltaje de trabajo

3V

Rango de trabajo

80 metros

Tamaño

53*93.5*20mm

Peso

188g

Detalles del embalaje del producto

Clasificación de paquetes   El paquete incluye
1TX+5RX

1x TT119 transmisor; 5x TT118 receptor; 5xAuriculares; 1x Adaptador de corriente; 5 x cordón; 1x Manual de usuario; 1x micrófono de auricular

1 TX + 10 RX

1x TT119  transmisor; 10x TT118 receptor; 10xAuriculares; 1x Adaptador de corriente; 10 x cordón; 1x Manual de usuario; 1x micrófono de auricular

1 TX + 20 RX

1x TT119  transmisor; 20x TT118 receptor; 20xAuriculares; 1x Adaptador de corriente; 20 x cordón; 1x Manual de usuario; 1x micrófono de auricular



TR509 FM Broadcast Transmitter Specification:

Working voltage: 11~13V DC(Rated voltage 12 v)

Working current: 1.67A

Frequency stability: ±10PPM

Stepped frequency: 100KHz

The operating temperature of the environment: -10℃~50℃

Output impedance: 50Ω

Harmonic and noise radiation: ≤-60dB

1Audio distortion: <0.30%

Frequency response: 50HZ~15000HZ

Preemphasis delay: 75us

Degree of separation: ≥35 dB

Input level: ≤15 dBV

Modulation frequency deviation: ±75KHZ

SNR(Signal to Noise Ratio): ≥60 dB

Item Dimensions: 128 (L) x 95 (W) x 55 (H) mm

Weight: body 479g(include antenna)

  • Package Content:
  • 1*TR509 Transmitter

    1* TNC Antenna

    1* 3.5mm Audio Cable

    1* Power Adapter (US, EU, UK standard options)

    1* User Manual

Features

¿Cuál es la política de garantía?

Ofrecemos una garantía de 2 años. (El período de garantía para los accesorios es de dos meses. Los accesorios incluyen, entre otros, antenas, auriculares, etc.)



Q: How to do you switch between the audio and the microphone inputs?

A: Both inputs are live at the same time with separate volume controls. There is no switch that turns one off and the other on.

Q: Is this a stereo transmitter

A: Yes, the signal is stereo when the source audio is stereo.

Q: Can I use it for the drive-in church in the parking lot?

A: Yes, you can. The TR509 FM transmitter works well with the mixer board, long range with stable signal
