Description

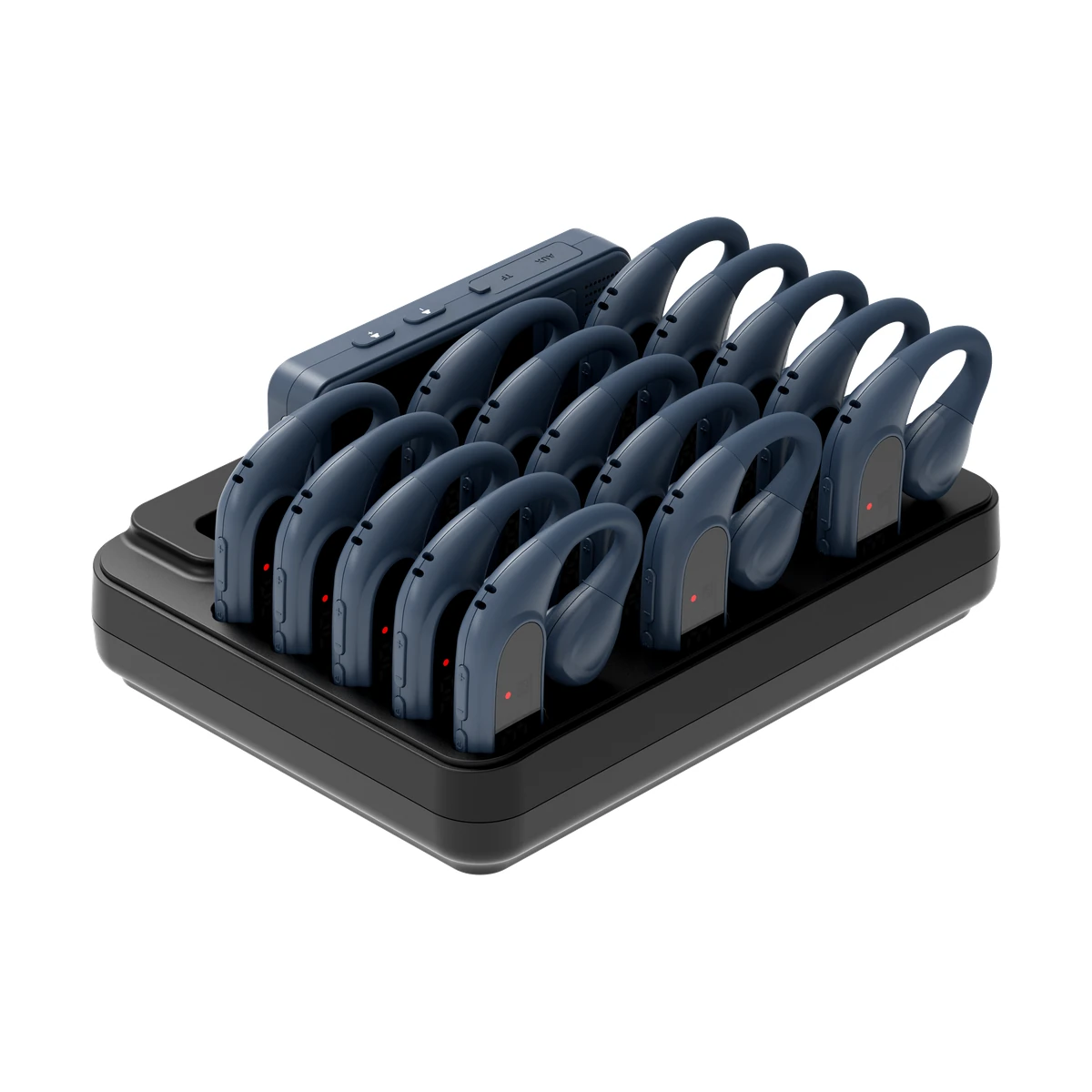

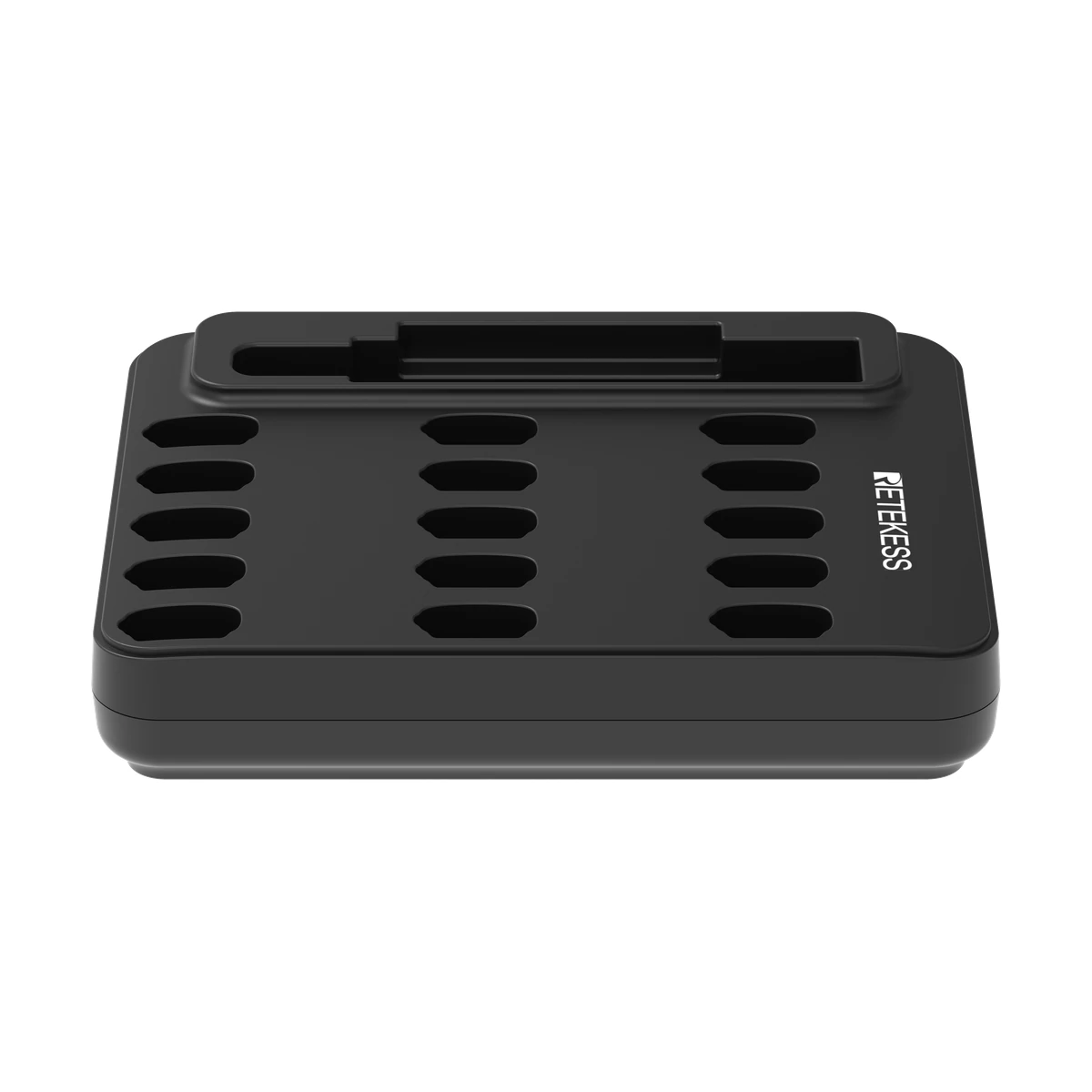

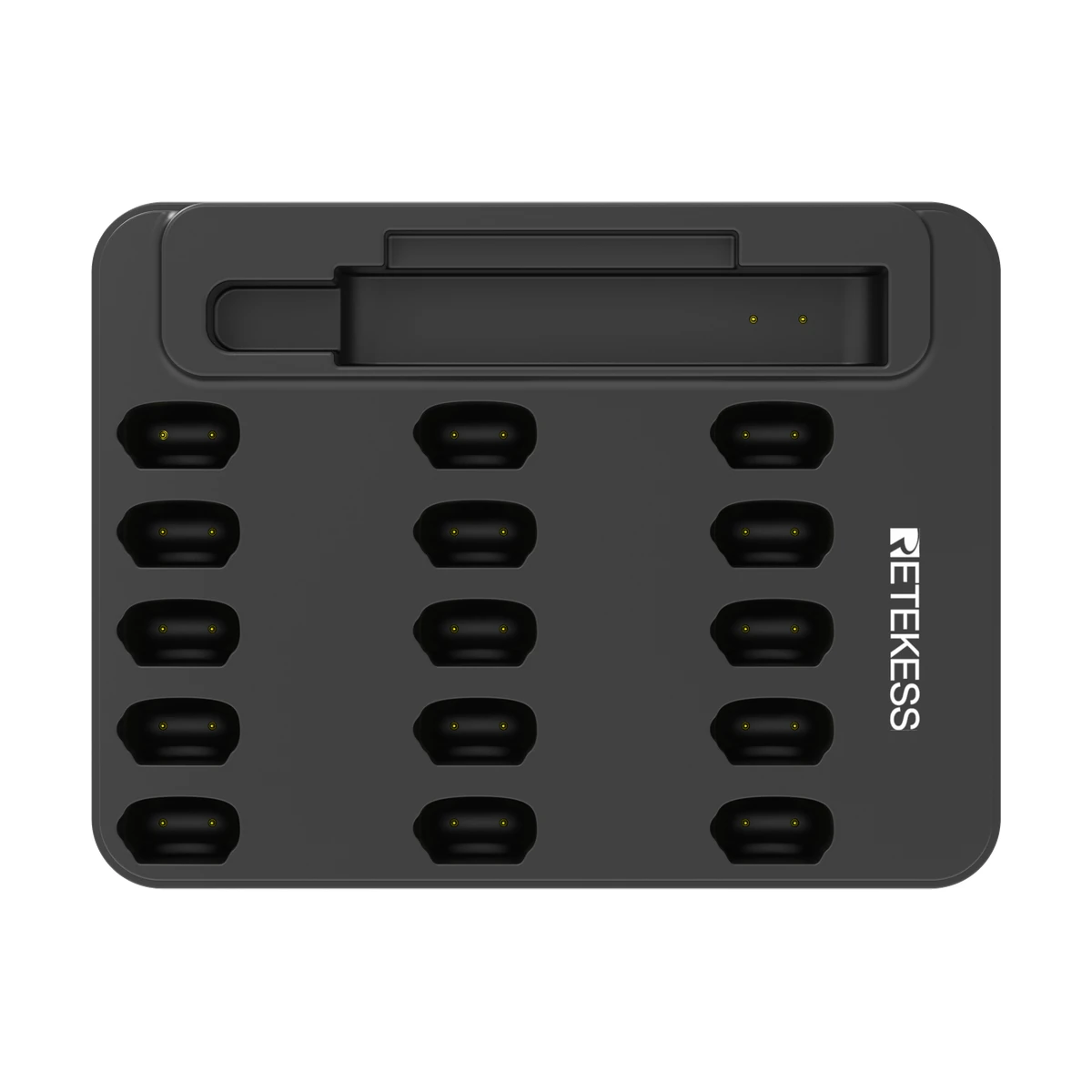

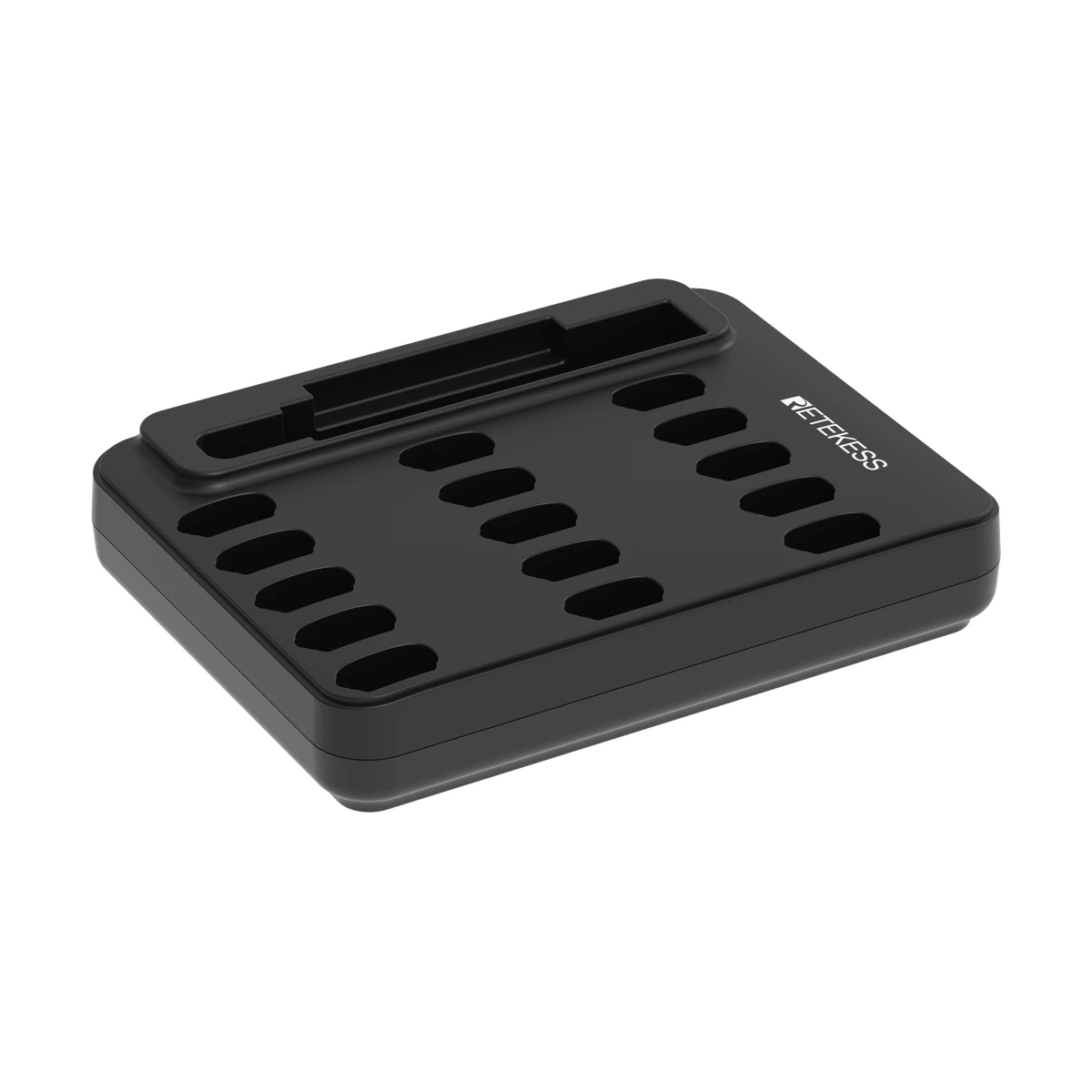

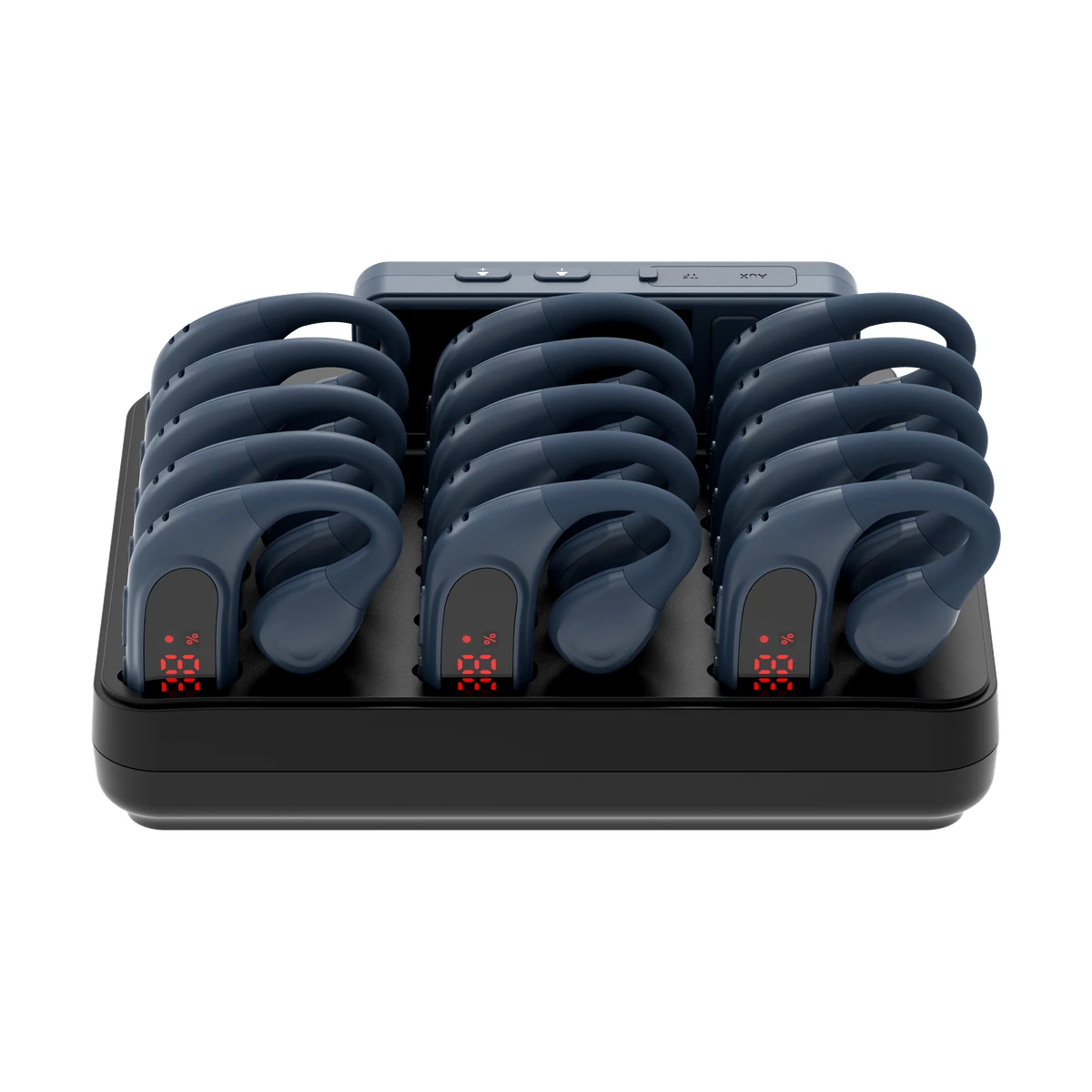

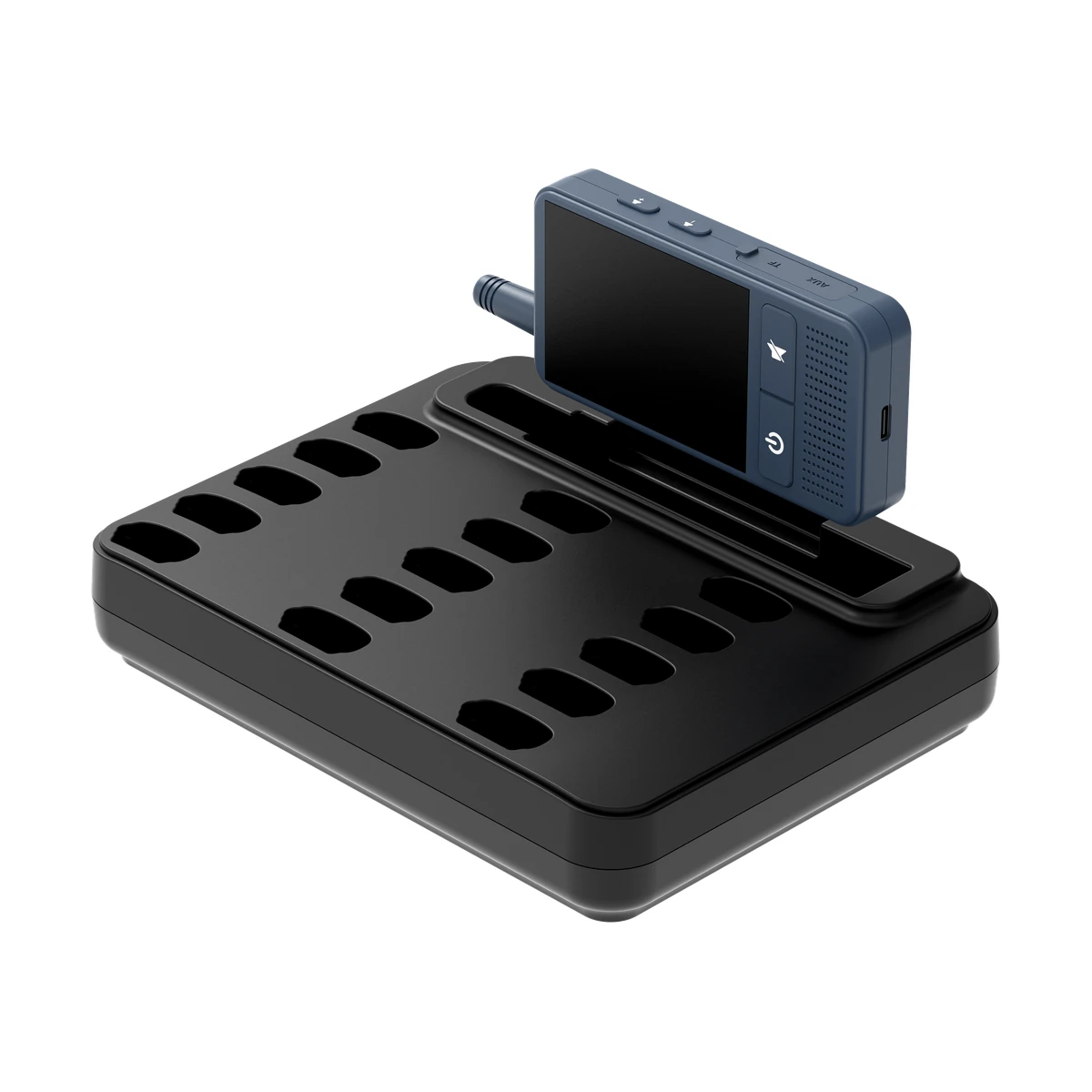

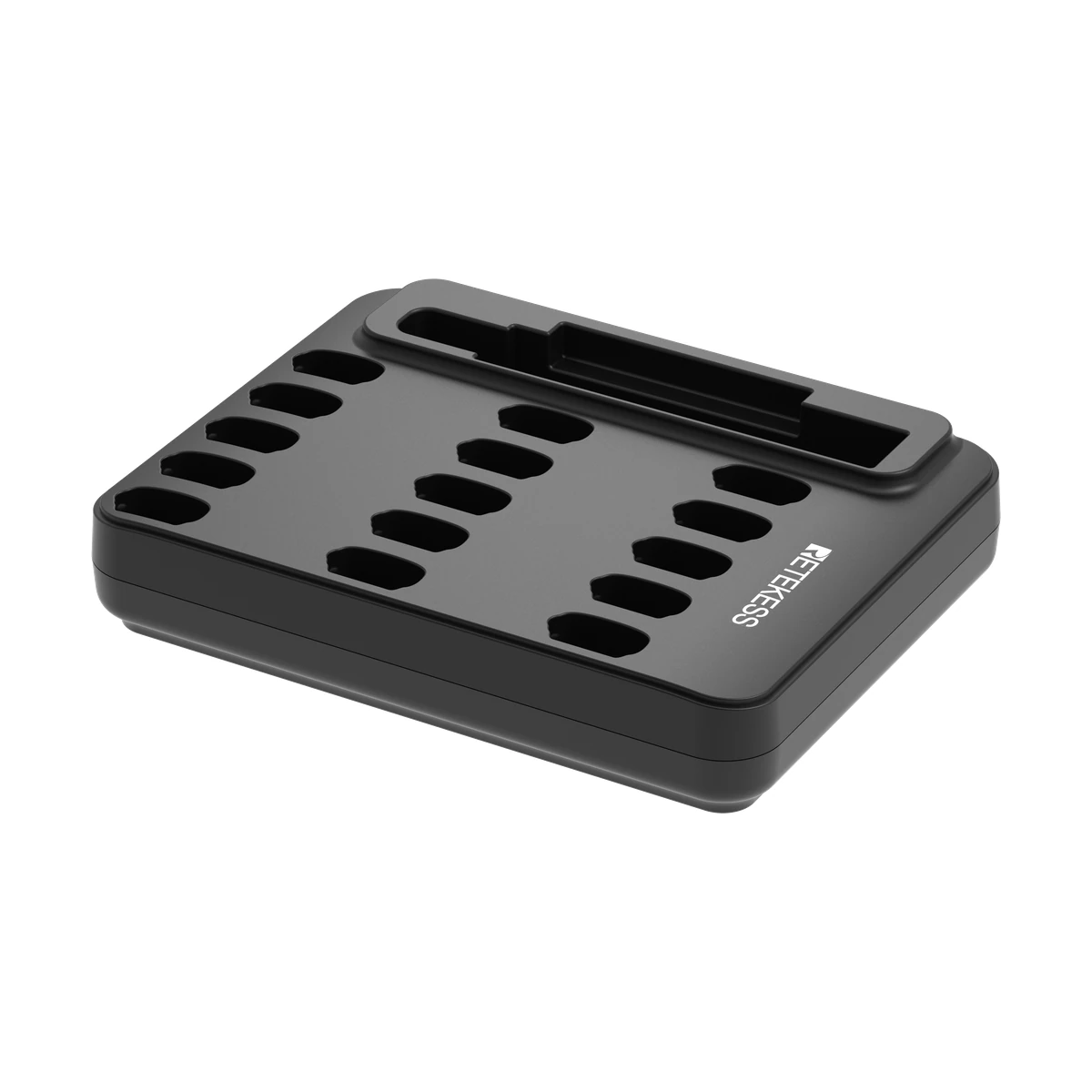

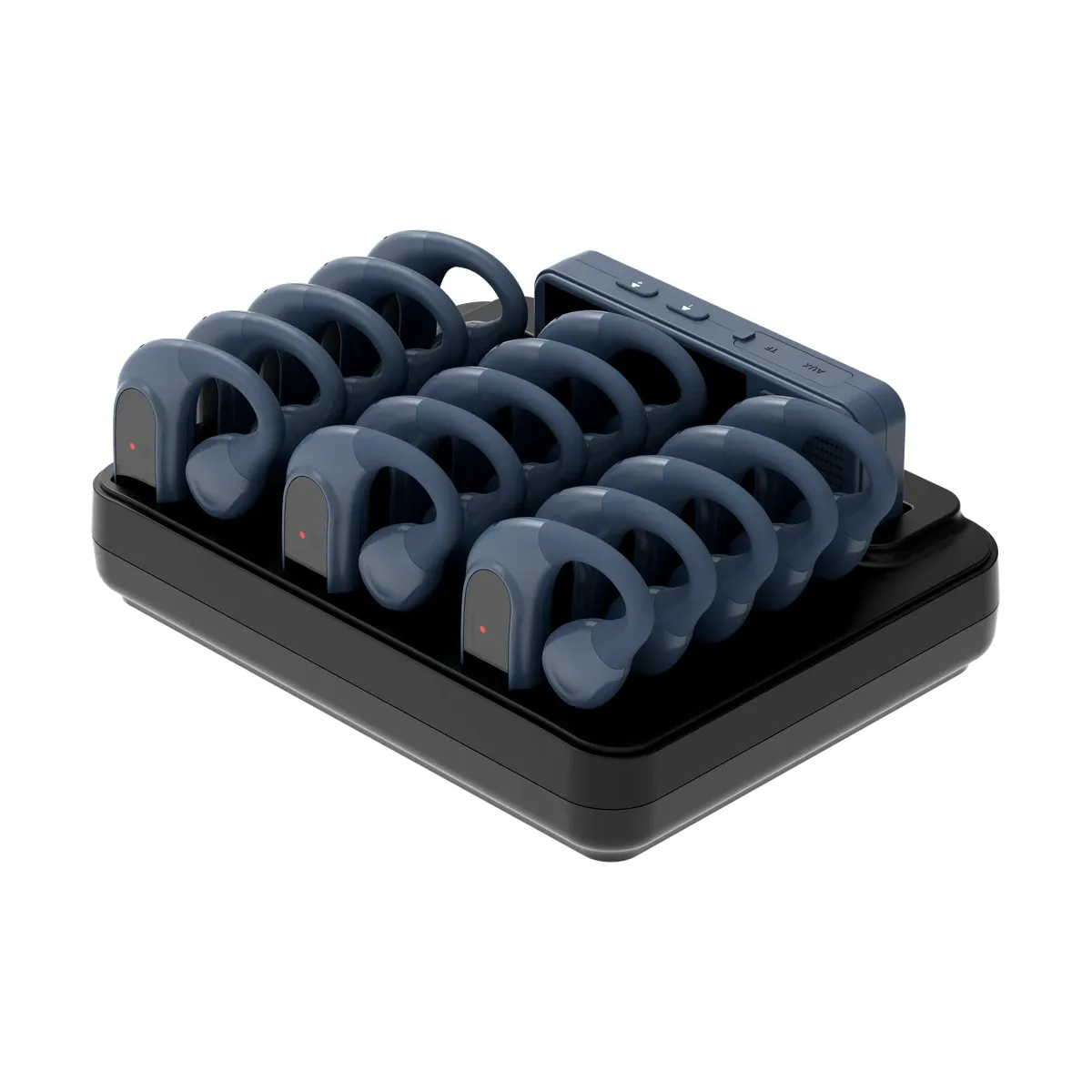

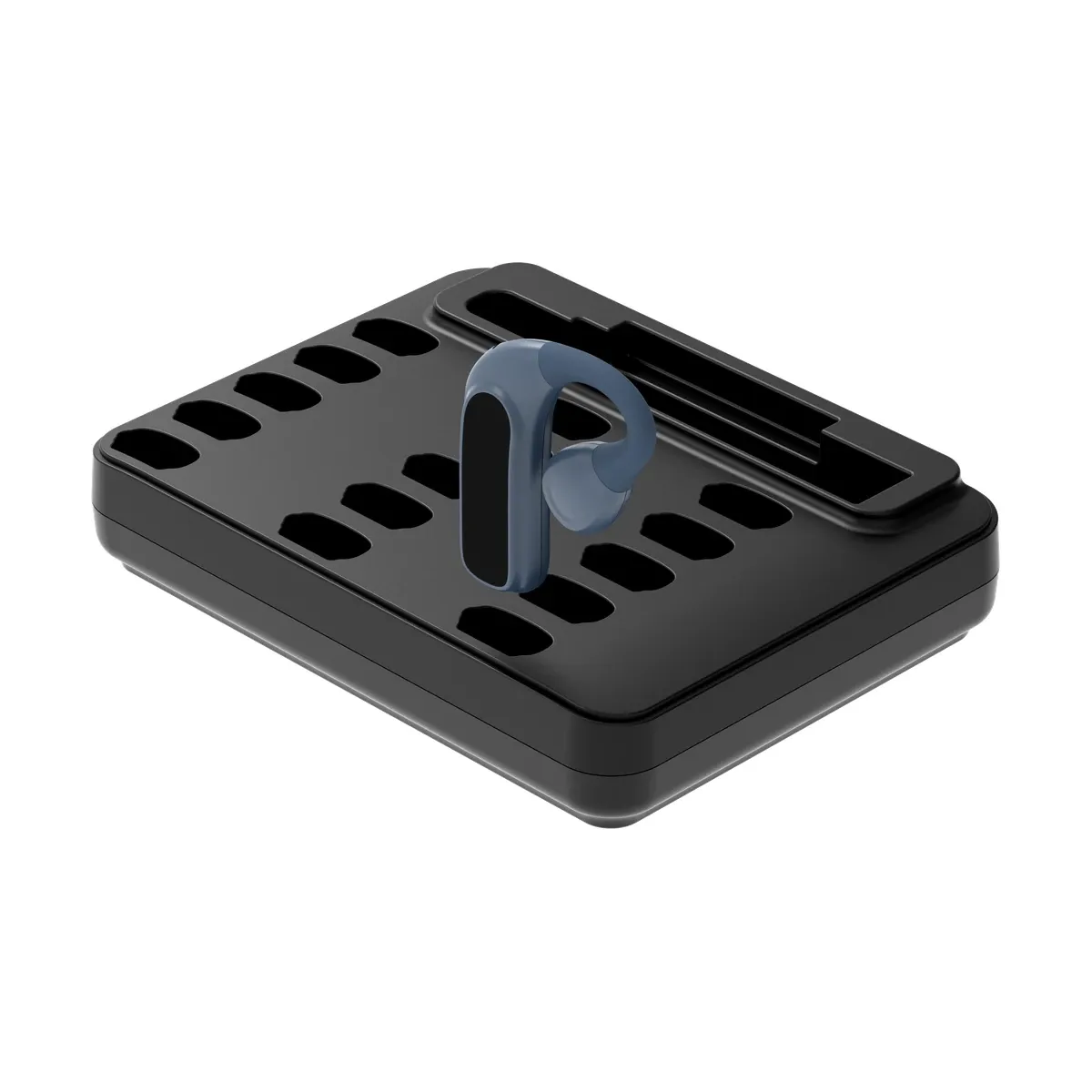

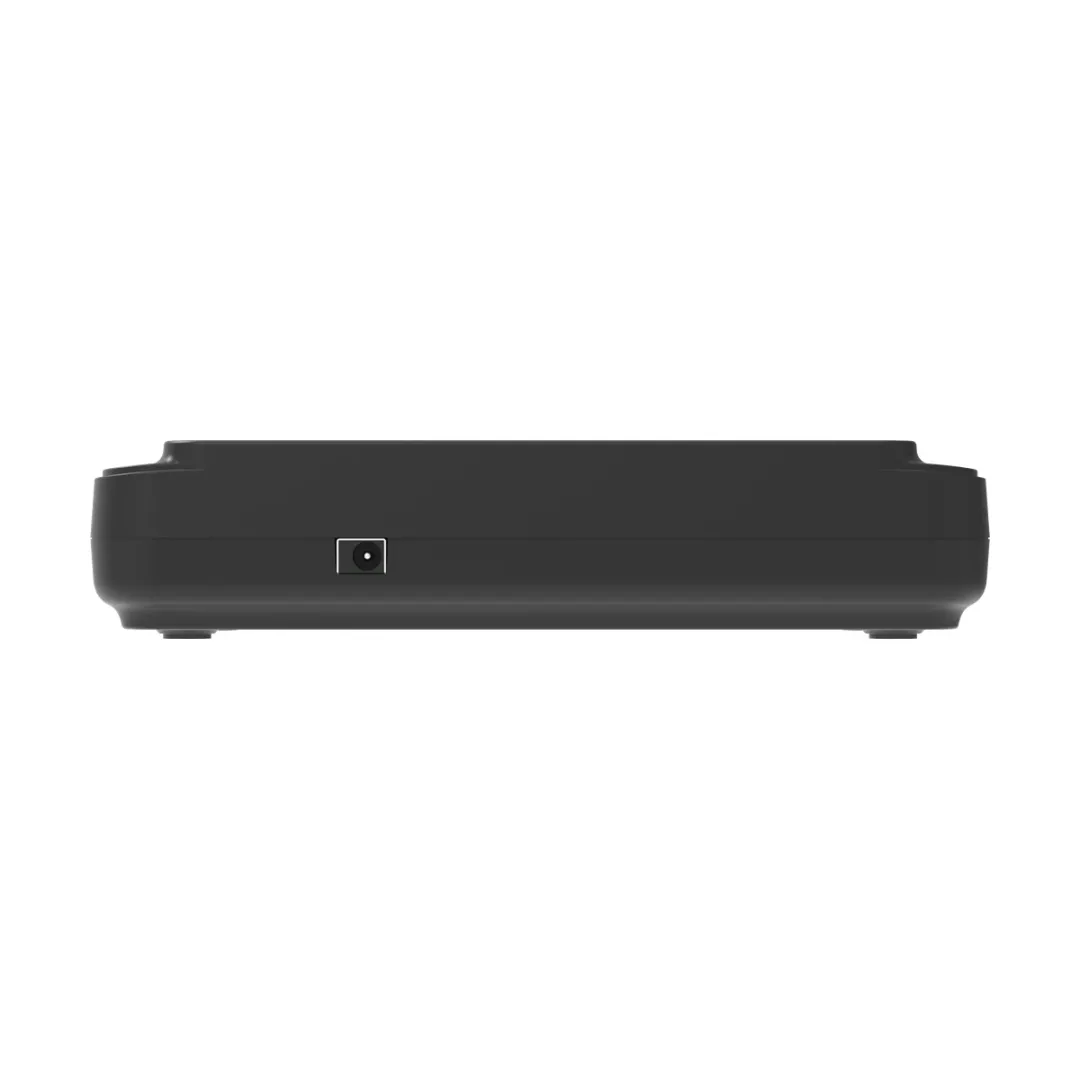

TT039 1-16 Slot Bay Charger for TT133

TT039 is a 1-16 slot charger designed for TT133 tour guide system devices. It helps charge multiple units together for easier daily preparation, storage, and equipment management.

Product Description

The TT039 1-16 slot charger is designed for users who need a practical way to charge multiple TT133 tour guide system devices at the same time.

It supports up to 16 units in one charging setup, helping simplify equipment preparation before use and collection after use.

TT039 provides a more organized charging solution for repeated group-use environments.

Applications

Suitable for guided tours, museums, visitor reception, school activities, factory visits, training sessions, and other scenarios where TT133 devices need to be charged together.

Compatibility

Compatible with TT133 tour guide system devices.

Compatible model details: TT133

Spec

TT133 Touchscreen Transmitter
Dimensions 110 × 56 × 18mm
Weight Approx. 110g
ID Range 0–99
RF Frequency Range 2402–2480MHz
RF Output Power 20dBm
Frequency Stability 10ppm
Operating Temperature 0°C–45°C
Charging Voltage 5V
Signal-to-Noise Ratio (SNR) -95dB
Frequency Response 20Hz–20kHz
Channel Spacing 2MHz
Total Harmonic Distortion (THD) -75dB
Audio I/O Ports MIC input, AUX input, headphone output
Headphone Monitoring Supports simultaneous monitoring of MIC and AUX audio
Operating Current Screen off: <80mA; screen on: <120mA
Charging Current Max. 1.5A
Battery Life* Up to 20 hours (screen off)
Transmission Range* Up to 150m
Charging Time* Approx. 2 hours
Battery Built-in Li-ion battery, model 654050, 3.7V, 2000mAh / 7.4Wh, 33.3g
Extinguishing Agent for Battery Fire Water, foam
Bluetooth Version Bluetooth 5.4
TT133 Touchscreen Earhook Receiver
Dimensions 65 × 60 × 12mm
Weight Approx. 18g
ID Range 0–99
RF Frequency Range 2402–2480MHz
Frequency Stability 10ppm
Operating Temperature 0°C–45°C
Charging Voltage 5V
Signal-to-Noise Ratio (SNR) -95dB
Frequency Response 20Hz–20kHz
Operating Current 13mA
Sensitivity -94dBm
Charging Current 120mA
Battery Life* Up to 12 hours
Transmission Range* Up to 150m
Charging Time* Approx. 2.5 hours
Battery Built-in Li-ion battery, model 501430, 3.7V, 180mAh / 0.67Wh, 3.8g
Extinguishing Agent for Battery Fire Water, foam
15-Slot Charging Case
Dimensions 184 × 138 × 34mm
Weight 242g
Input Power DC 12V ⎓ 2A
Output Power 15W
Charging Slots 1 transmitter slot + 15 receiver slots
20-Slot Charging Case
Dimensions 248 × 153 × 81mm
Weight 838g
Input Power 12V ⎓ 3A
Output Power 20W
Charging Slots 1 transmitter slot + 20 receiver slots
Battery Built-in Li-ion battery, model 126090, 3.7V, 8000mAh / 29.6Wh, 103.6g
Extinguishing Agent for Battery Fire Water, foam
50-Slot Charging Case
Dimensions 460 × 290 × 145mm
Weight 3.32kg
Input Power 12V ⎓ 6A
Output Power 50W
Charging Slots 2 transmitter slots + 50 receiver slots
