TM102 Quiz Game Buzzer System

The Retekess TM102 quiz game buzzer system is easy to use and designed for classroom activities, quiz competitions, Jeopardy-style review games, family games, gatherings with friends, game shows, and company events. With colorful light indicators, 3 game modes, and support for up to 32 buttons, it helps make group answering more organized, interactive, and fun.

3 Game Modes for Different Play Styles

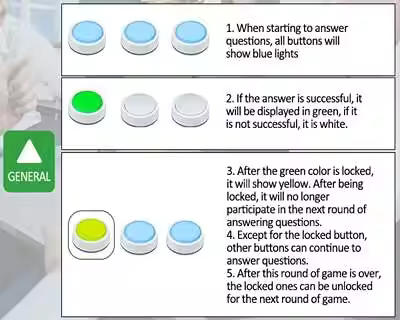

General Mode: When the game starts, the fastest-pressed button lights up green. The remaining buttons stay unlit. The system can also be set so that up to five buttons light up in different colors, allowing the host to identify the answering order.

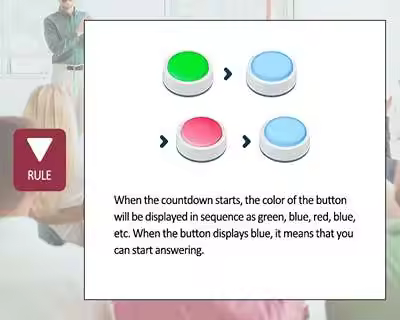

Rule Mode: The question can only be answered when the button shows a steady blue light. Pressing the button while it is still flashing counts as a foul, and that button will be locked with a red light.

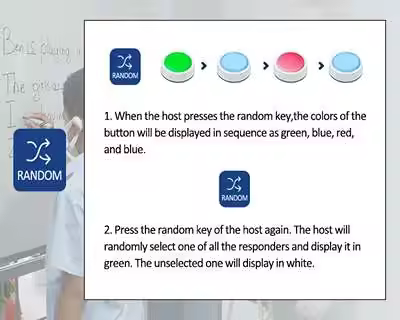

Random Mode: After the host presses “Random,” all buttons start flashing. When the flashing stops, one button turns green to indicate the player selected to answer the question, while the other buttons remain locked.

The number of winning players can be set from 1 to 5 in “Sort,” giving the host more flexibility for different game formats.

Lock Function for Flexible Game Control

The console has a lock function. After the first button is locked, the remaining buttons are reset and the next round can begin. If the first player's answer is wrong and you want the remaining players to continue answering, there is no need to lock it, and the next eligible player can continue.

Color Light Indicators and Battery Status

The light colors help show the answering order clearly: first button solid green, second button flashing green, third button solid blue, fourth button flashing blue, and fifth button flashing yellow.

The colors can also indicate battery level. Green means high battery, blue means medium battery, and red means low battery.

80 m (262 ft) Working Range

The signal transmission range can reach 80 m (262 ft) in open areas. No wiring is required, giving users more freedom of operation and making it suitable for family games and school competitions.

Battery Design and Type-C Charging

The host is powered by 3 AAA batteries (not included), making it convenient for mobile use. The buttons are rechargeable, can operate for up to 25 hours, and feature Type-C charging ports.

Durable and Easy to Use

The hamburger-sized button is larger and more comfortable to press. It has withstood 20,000 press tests for reliable durability. Both the host and the buttons have physical switches, and one-click shutdown helps save power.

Expandable to 32 Buttons

The TM102 supports up to 32 buttons, allowing more people to participate in the game.

Other Useful Features

Great for group settings, with anti-slip buttons on the bottom, reliable build quality, and easy programming.

Check out the video below the top image to see how it works.

Applications of the TM102 Game Buzzer

The TM102 is suitable for bar trivia nights, bridal trivia at weddings, corporate events, anniversaries, birthdays, family reunions, retirement homes, schools, academic activities, bar and bat mitzvahs, church and religious functions, trade shows, and home educational use.

Why choose Retekess TM102?

Support up to 5 winners for more participation.

Rule Mode adds more excitement because answering too early counts as a foul.

Random Mode adds more fun because no one knows who will answer next.

Easy to use: one button to start, one button to lock, one button to check battery level, and one button to switch game modes.

Specifications

Spec

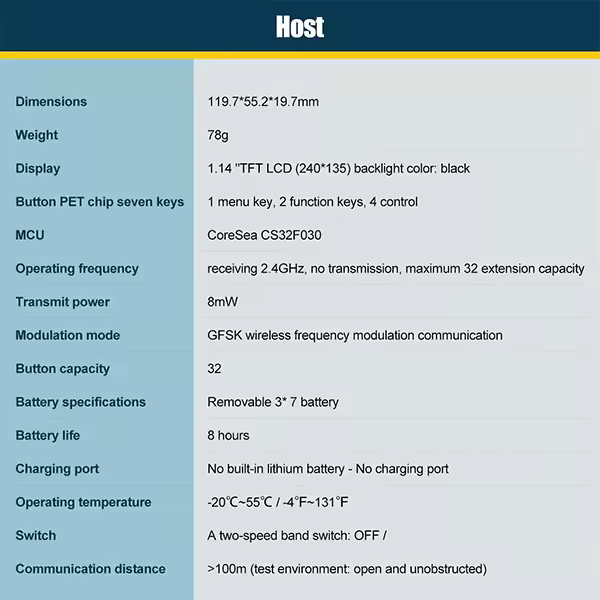

Host

Item Specification
Dimensions 119.7*55.2*19.7mm
Weight 78g
Display 1.14" TFT LCD (240*135) backlight color: black
Button PET chip seven keys 1 menu key, 2 function keys, 4 control
MCU CoreSea CS32F030
Operating frequency receiving 2.4GHz, no transmission, maximum 32 extension capacity
Transmit power 8mW
Modulation mode GFSK wireless frequency modulation communication
Button capacity 32
Battery specifications Removable 3*7 battery
Battery life 8 hours
Charging port No built-in lithium battery - No charging port
Operating temperature -20℃~55℃ / -4℉~131℉
Switch A two-speed band switch: OFF /
Communication distance >100m (test environment: open and unobstructed)

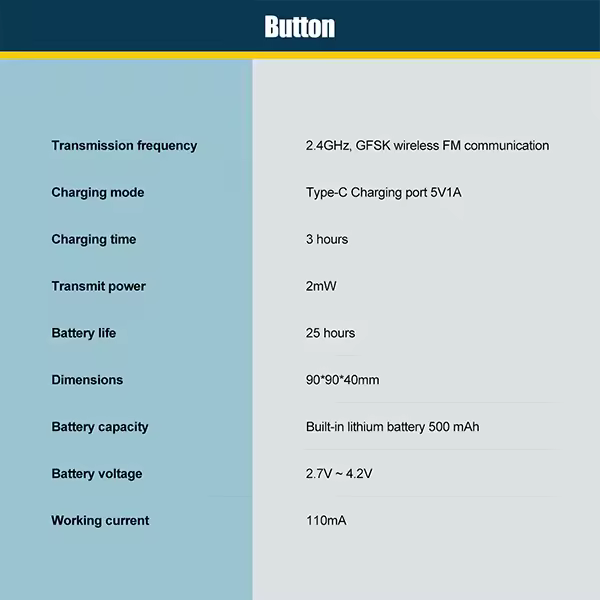

Button

Item Specification
Transmission frequency 2.4GHz, GFSK wireless FM communication
Charging mode Type-C charging port 5V1A
Charging time 3 hours
Transmit power 2mW
Battery life 25 hours
Dimensions 90*90*40mm
Battery capacity Built-in lithium battery 500 mAh
Battery voltage 2.7V ~ 4.2V
Working current 110mA

FAQ

Click here to view the blog on the differences between TM101 and TM102 quiz bowl buzzer systems

Q: How many call button can I use?

A:  support Max 32 call buttons, if you need others, pls contact us to get the best price for you.

Q: What does it mean that the top 5 players can be displayed in general mode?


A:  Under general circumstances, there will only be one button for the player who successfully answered.
However, in general mode, set the number in Sort to 2 in the settings.
There will be two players who successfully answered. Their buttons will flash and light up.

Set the number in Sort to 3 in the settings.
There will be 3 players who successfully answered. Their buttons will flash and light up.

The numbers 1-5 in Sort can be selected.

Q: What if I want the buzzer to be muted for everyone who answers a question incorrectly, so that each person only has one chance to answer, and everyone who answers the question incorrectly will be muted until someone provides the correct answer. What can I do?

A: Yes, this can be set. In SORT you can set whether to display colors other than the first one. Select and confirm the number 1 in SORT. The buttons other than the first place have no color. Because they are not the first to press the button, their buttons will be locked as no color until the next round starts again.

Or in the rules mode, the button flashes to indicate the countdown, and when the light is light blue, it indicates that the answer can begin. Pressing the button in advance will be considered a foul, and only one person can answer successfully.

Q: I live in Europe/US, can I use this sets?

A: Yes, it adopts 2.4G wireless technology, it is free in the whole world.

Q: When do I know the call button need to be changed battery?

A: There will be low-power reminder, it will flash red light.

Q: Can I use the TM102 buttons with the Retekess TM101 screen?

A: No, they cannot be used together.

If you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at [email protected]
