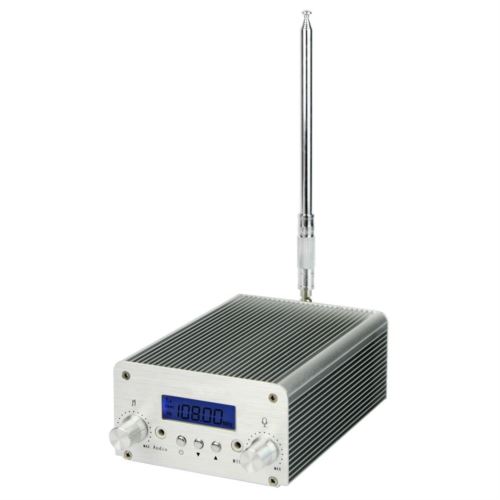

Retekess TR505 FM Transmitter Long Range 0-25W Broadcast

SKU: F9226A

Regular price $369.99

In Stock

TR505 FM broadcast transmitter Transmit power 0-25W continuously adjustable TF card player Support USB sound card input Display OLED screen

FM transmitter

0-25W continuously adjustable transmit power

fm radio

FM transmitter applications

Professional broadcasting, Museums, Tourist Attractions, Zoos & Theme Parks, Cruise Ships & Buses, Schools, Meetings&Lectures, Employee&Dealers Training, Hotels and Resorts, Educational Institutions, Theaters, Governmental Agencies

Real FM Broadcast Station

FM transmitter +Power + Telescopic antenna + Audio line

OLED display

180-degree wide field of vision

High contrast

0-25W continuously adjustable transmit power

the most transmission distance of 4-5 km (2.4-3.1 mi) in the open air

Frequency range: 87.5~108 MHz

Frequency step: 100Khz

Frequency response: 50Hz~15000Hz

Antenna connector type:TNC

200 x 150 x 58mm size, 950g weight FM transmitter

FM long range transmitter

The motherboard is adopted by next-generation integrated NC FM stereo radio transmitter chip, built-in PLL frequency, and high power which supports long distance.

FM radio station broadcast crystal sound quality

Comes with TF card player, support lossless format FLAC/WAV, TF card playback, support to display song name, sound mode, cycle mode settings

Support USB sound card input, to avoid the interference of audio line input; Support dynamic microphone, reverb, delay parameter settings Support reader mode, insert the data cable to connect the computer, you can directly edit the TF card inserted in the machine

PC control

Connect to the computer via Micro USB, plus the supporting intelligent broadcast software to realize a variety of intelligent unattended broadcasts, regular fixed-frequency playback of specified audio and document broadcasts, etc.

Looking to set up a small radio broadcast station for churches, this Fm Transmitter works perfectly. You can adjust the power from 0- 20 watts, support TF card, The most transmission distance up to 4-5 km (2.4-3.1 mi), Enjoy your music

FM transmitter

Please fill in your procurement needs and contact information

FM Transmitter Specifications:
RF output power 0~25W
Audio distortion 0.3%
Antenna connector type TNC
Input Voltage 100~240V 50/60Hz
Output Power DC 12V 5A

Package Includes:
1 x 25W FM transmitter
1 x Power adapter
1 x Magnet sucker with 8m cable
1 x Antenna
1 x Audio cable
1 x English

  • Display using high-standard OLED screen; 180-degree wide field of vision; high contrast

  • Comes with high-fidelity TF card player; support lossless format FLAC or WAV;compatible with a variety of other commonly used formats

  • TF card playback; support to display song name; sound mode; cycle mode settings

  • Support USB sound card input; to avoid the interference of audio line input;Temperature protection;when the temperature inside the machine is too high; automatically enter the protection state

  • Transmit power 0-25W continuously adjustable; The most transmission distance of 4-5 km (2.4-3.1 mi) in the open air
