Description

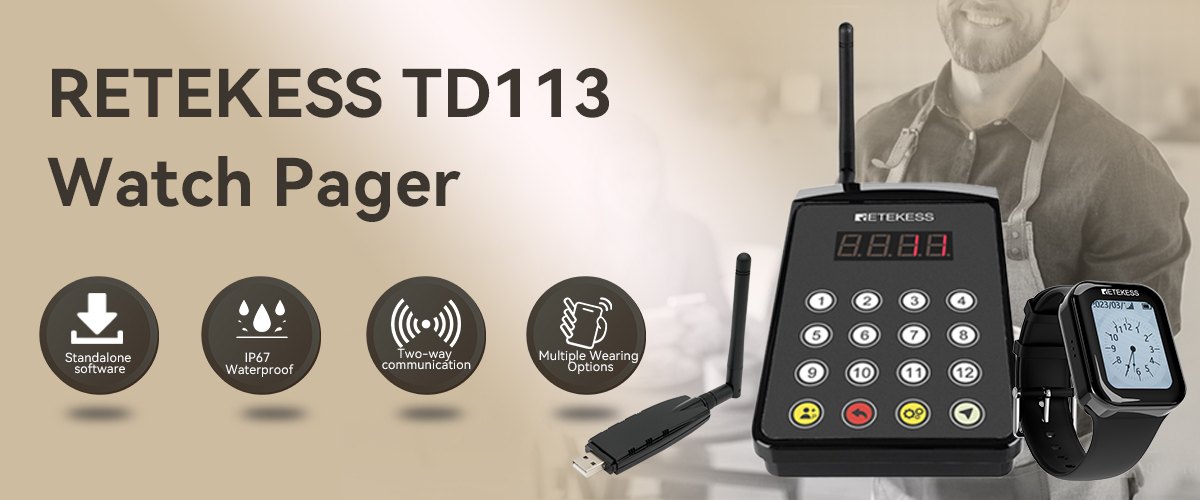

The Retekess TD113 watch receiver with TD029 keypad is designed for more efficient staff communication and task coordination. With standalone management software, a touch screen interface, IP67 waterproof protection, and two-way communication, it is a practical solution for restaurants, cafés, hotels, and other service environments that need faster response and smoother daily operations.

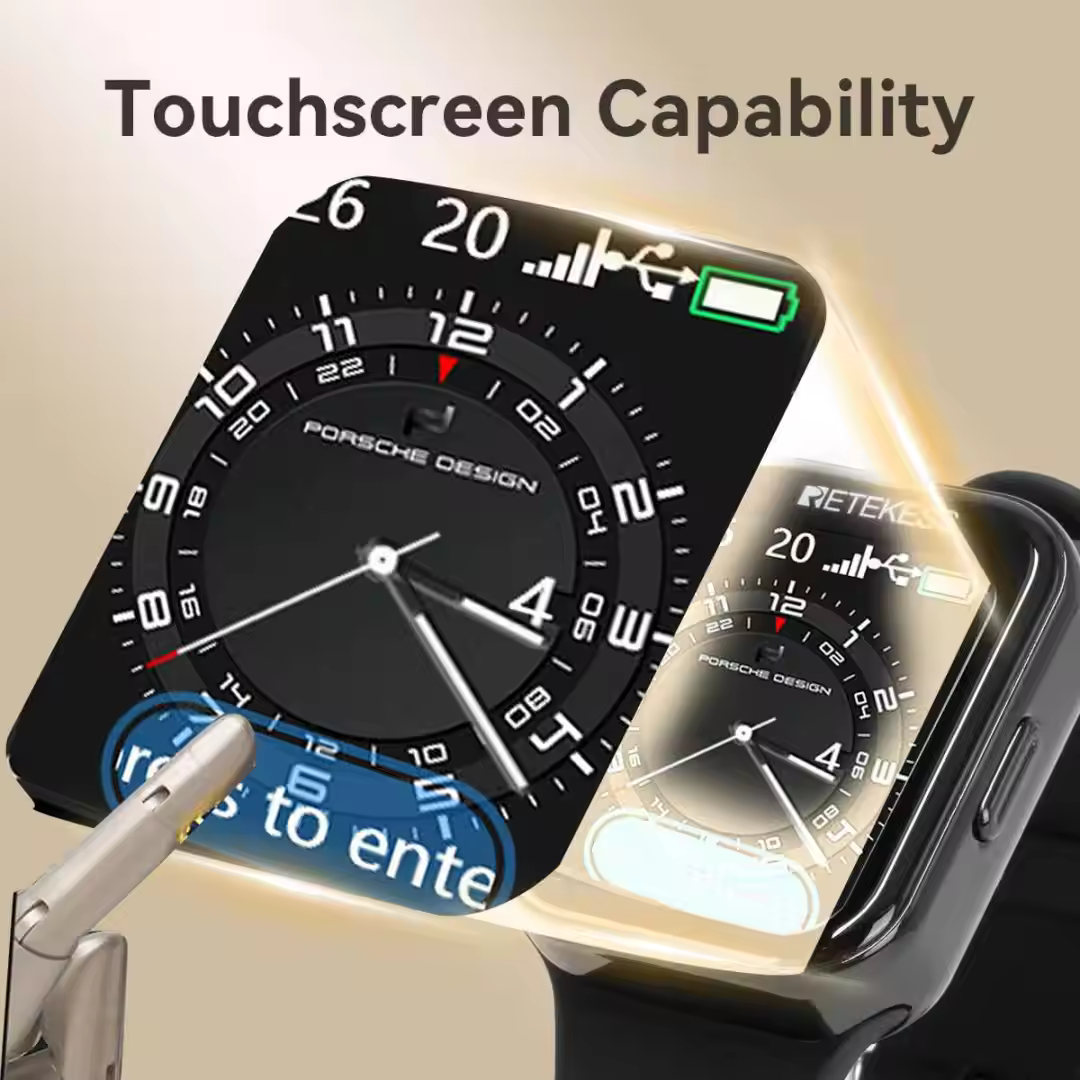

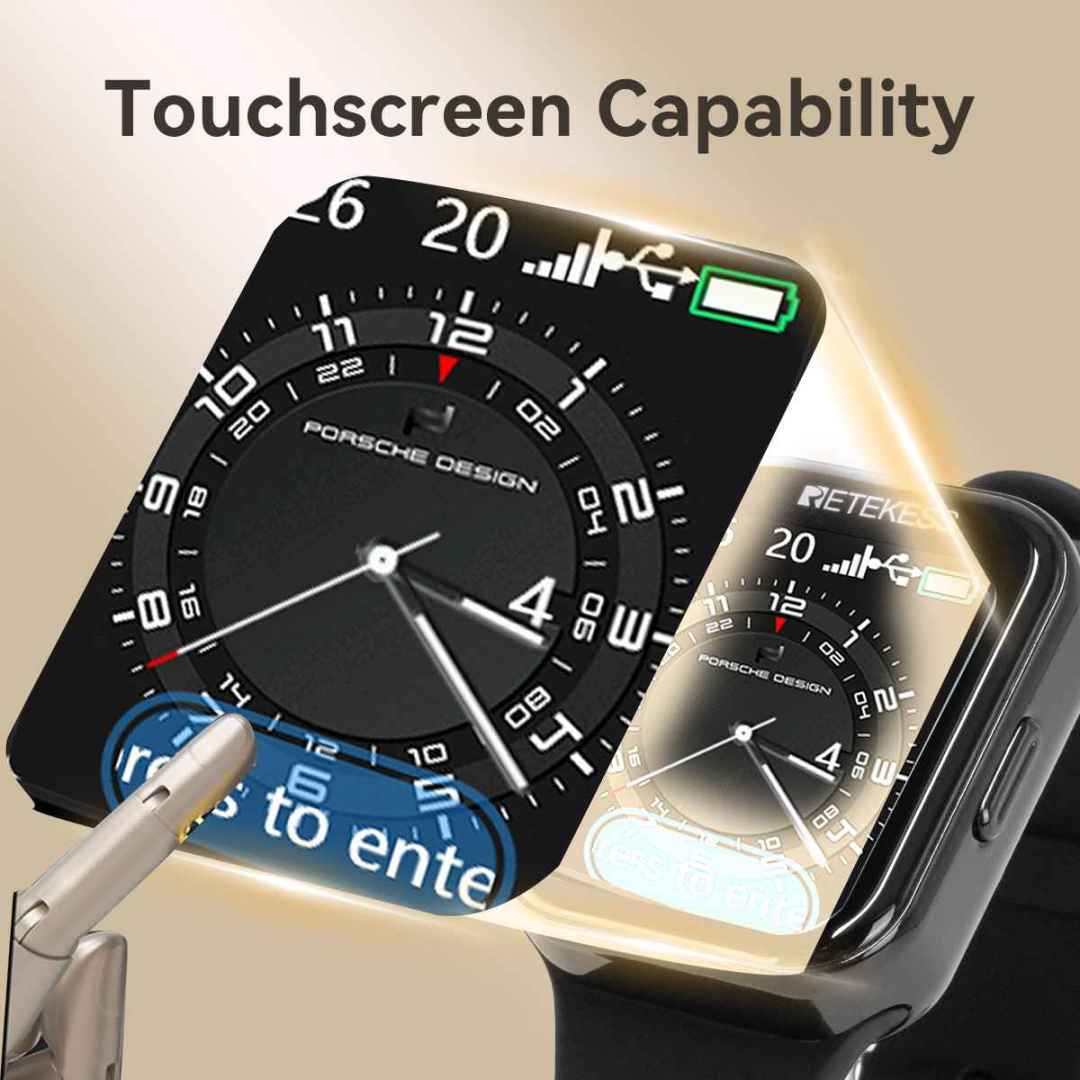

Touch Screen with Large Icons

The TD113 features a smooth touch screen with large icons for quick and intuitive operation. The larger display makes it easier to view call details, navigate settings, and manage tasks during busy shifts.

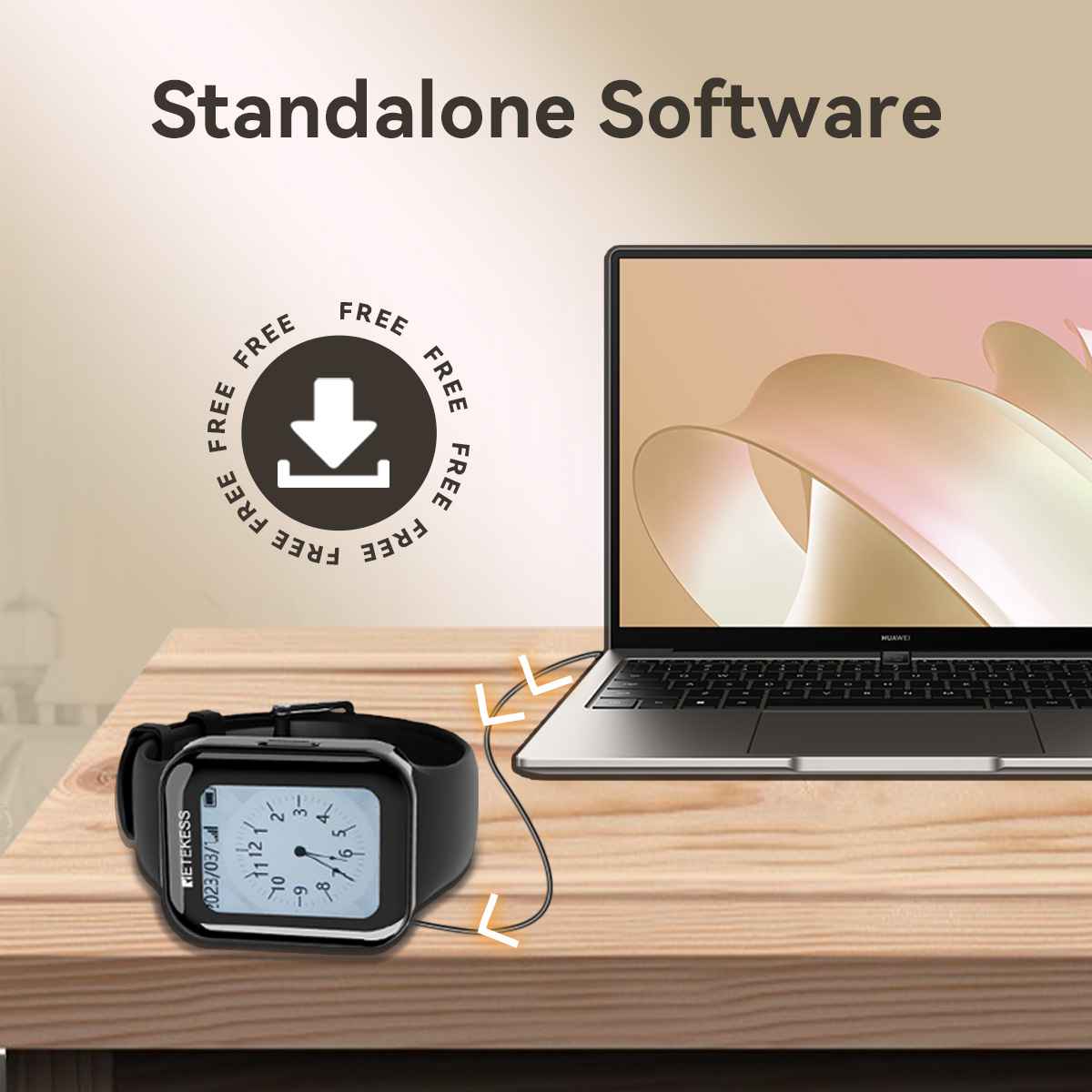

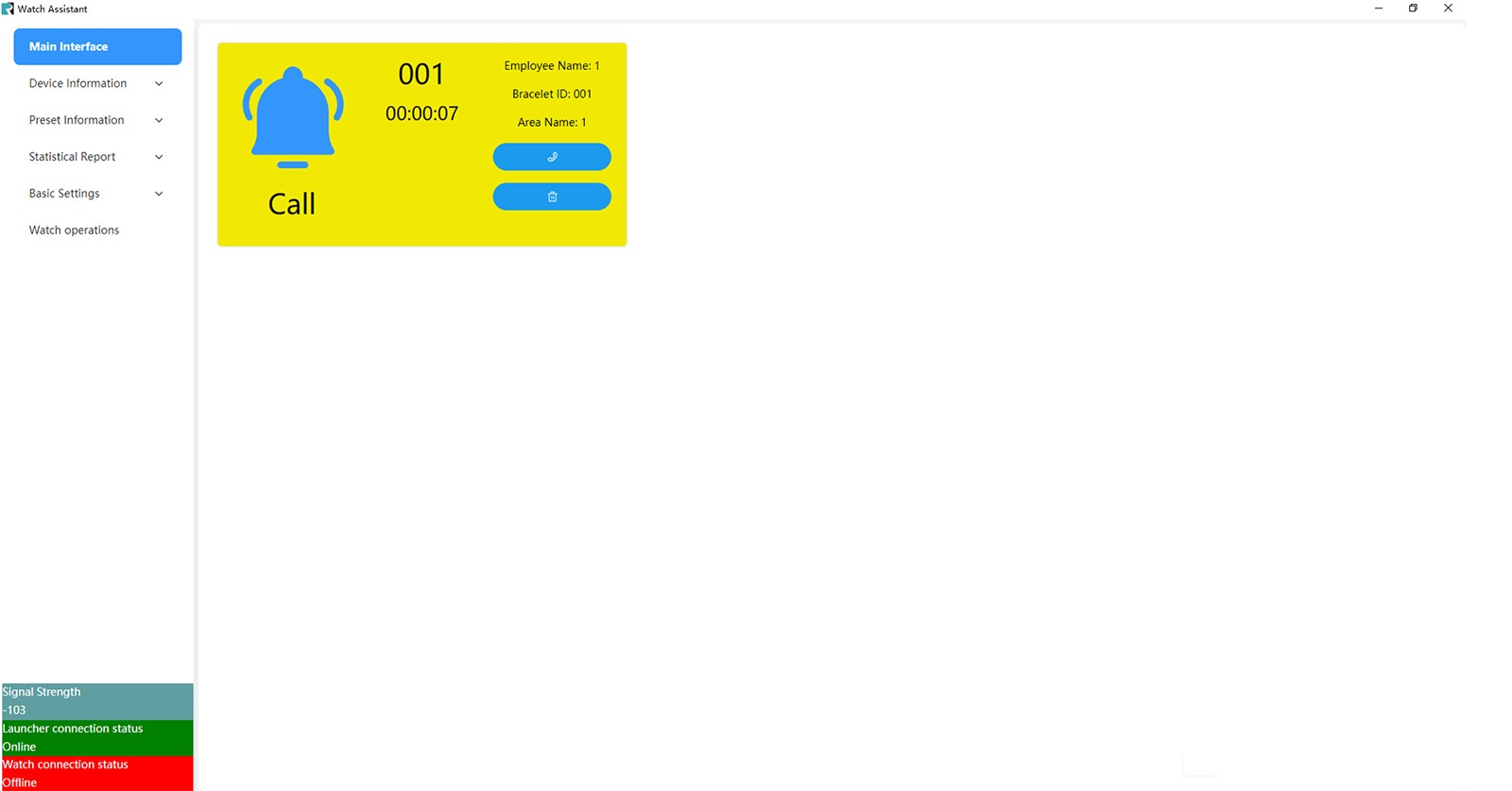

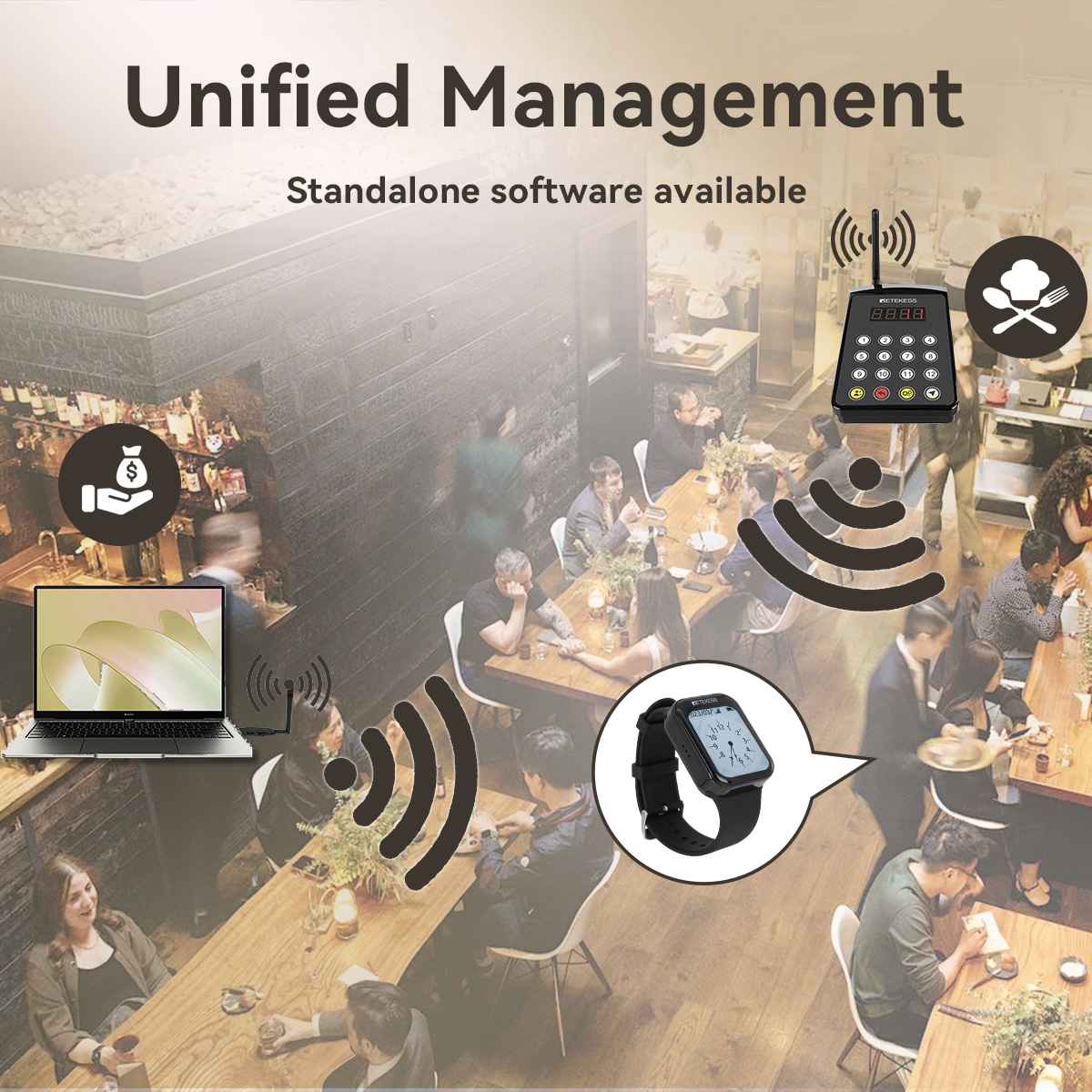

Free Management Software

The included standalone management software helps simplify device setup and daily operation at no extra cost. Users can manage call information more efficiently, and call logs can also be exported for easier record tracking.

9-Language Support

The TD113 supports 9 languages: English, German, Russian, French, Portuguese, Spanish, Italian, Japanese, and Chinese, making it easier to use in multilingual teams and international service environments.

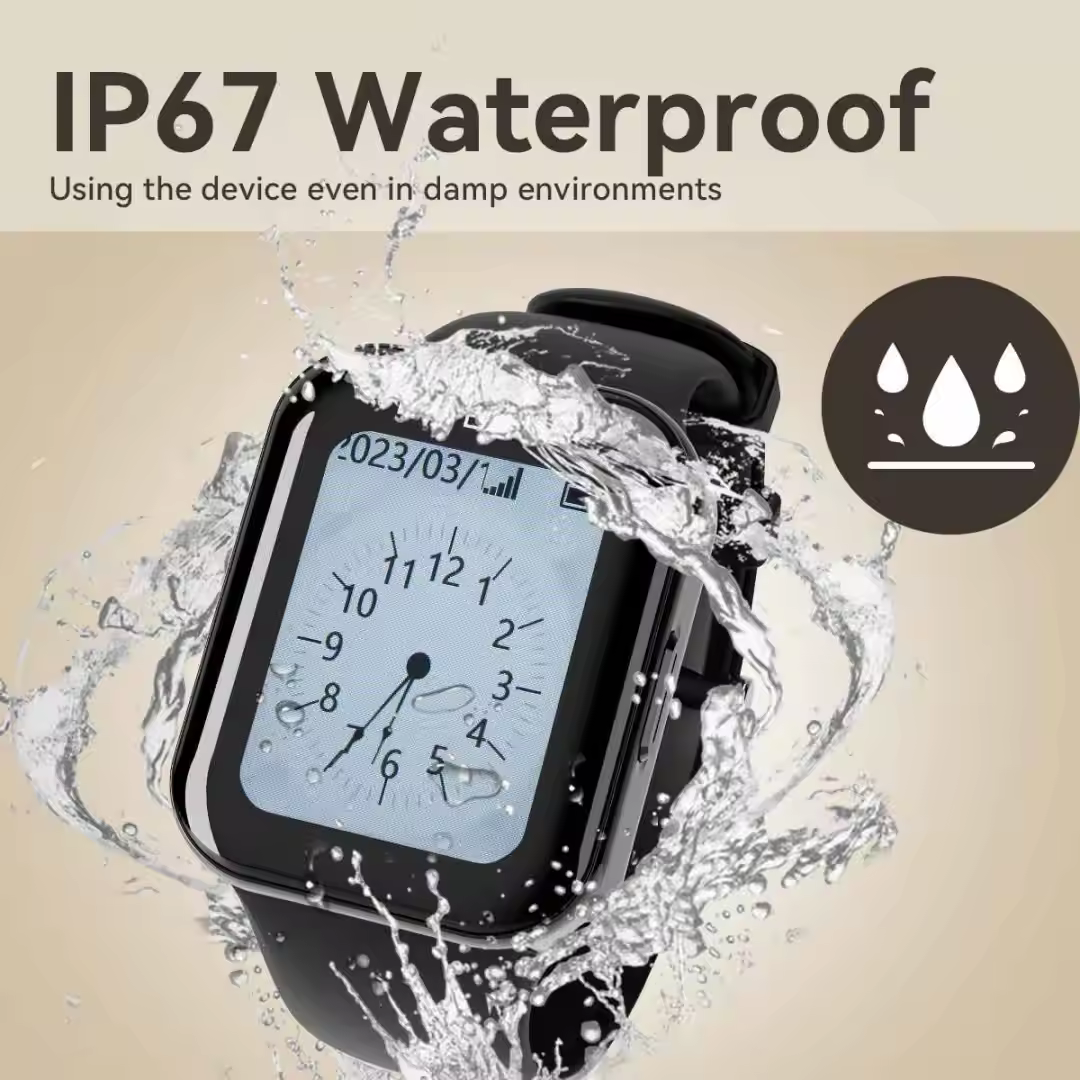

IP67 Waterproof Design

With an IP67 waterproof rating, the TD113 is built for demanding environments such as kitchens, service counters, and other areas where splashes or moisture may be present.

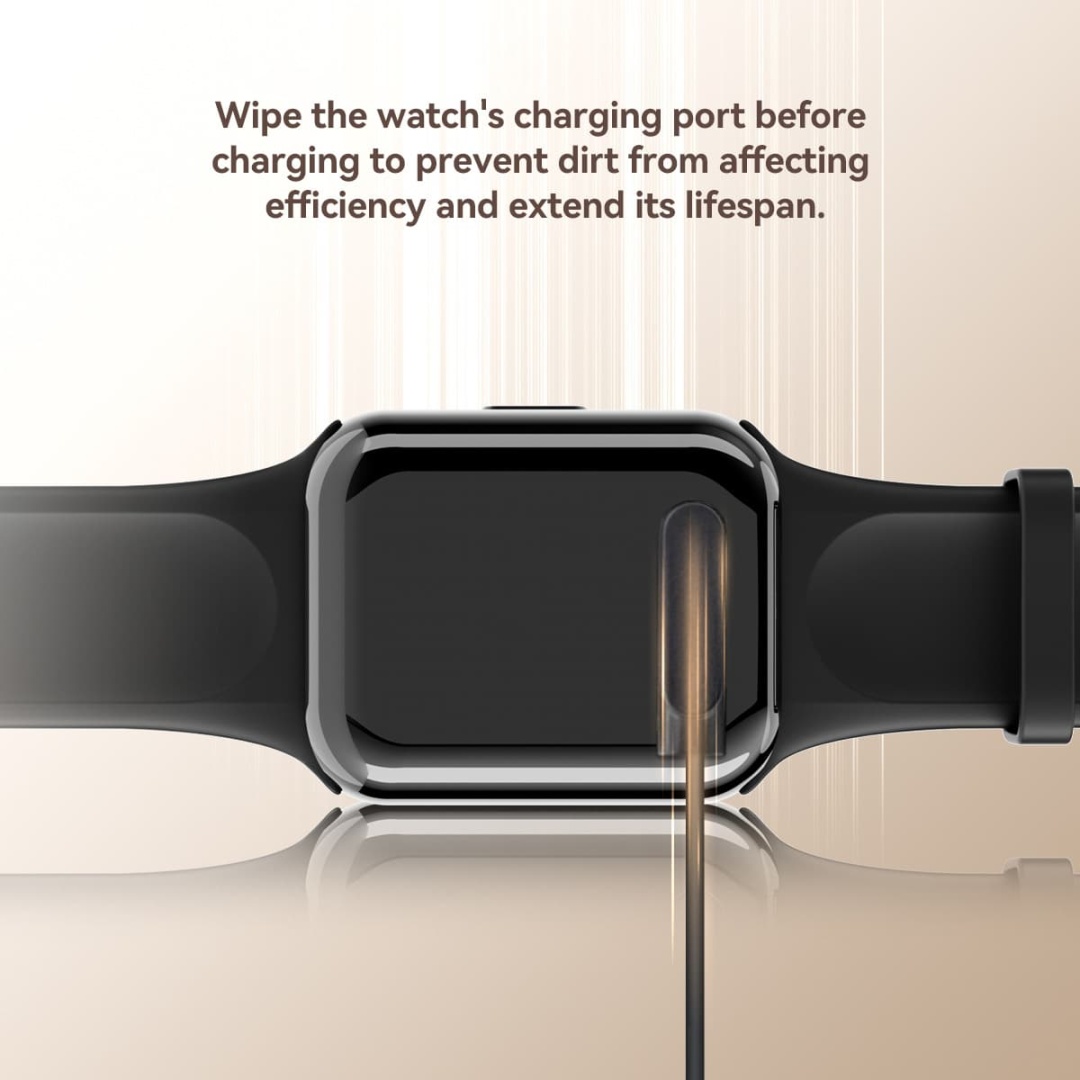

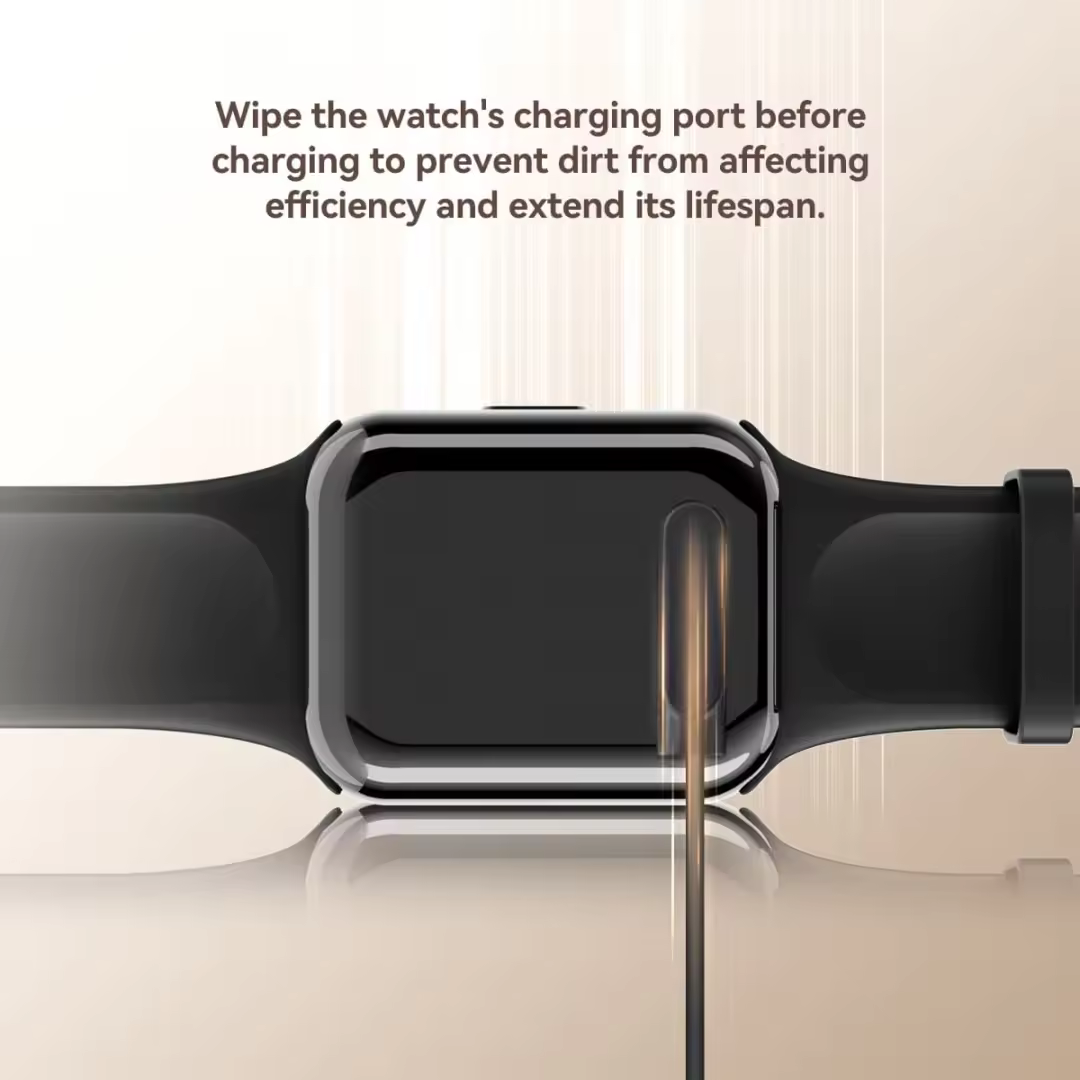

Note: Before charging the TD113, wipe the charging port with a dry cloth to remove sweat or dirt. This helps ensure stable charging performance and extends the service life of the device.

Two-Way Communication

In PACK mode, one watch can send preset messages to another watch. For example: “Please come to Area A” or “Processed.” This helps improve communication between staff members and reduce missed or delayed responses.

Three Wearing Options

The TD113 can be worn with a wrist strap, back clip, or lanyard. These flexible wearing options help improve comfort during long shifts and allow staff to choose the most practical way to wear the device.

Custom Alerts and Personalized Display

The TD113 supports adjustable screen brightness, 7 ringtone options, vibration and sound alerts, and 11 watch face themes. These features allow users to customize the device for different working environments and personal preferences.

48+ Hours Standby Time

Powered by a 500 mAh battery, the watch receiver provides 48 hours or more of standby time, helping reduce charging interruptions and support long working hours.

Built for Better Coordination

With fast touch response, message synchronization, and visible call records, the TD113 helps teams stay organized and respond more quickly to service requests.

Comparison Between Retekess TD112 Watch Receiver and TD113

Item TD112 TD113
Design and Display Narrow frame and lightweight
0.69 in OLED screen
Curved touch screen
1.69 in 204 × 280 TFT color screen
Wearing Options Wrist strap only (non-removable) Removable wrist strap
Back clip
Lanyard (not included)
Communication Features One-way communication
Receives and displays calls from buttons or keypad transmitters
Two-way communication
Receives and displays calls from buttons or keypad transmitters
Can receive or send preset messages between watches
Integrated Functions Yes Yes
Alert Features Vibration
Display call number
No sound
Vibration
7 ringtones
Adjustable volume
Display call number

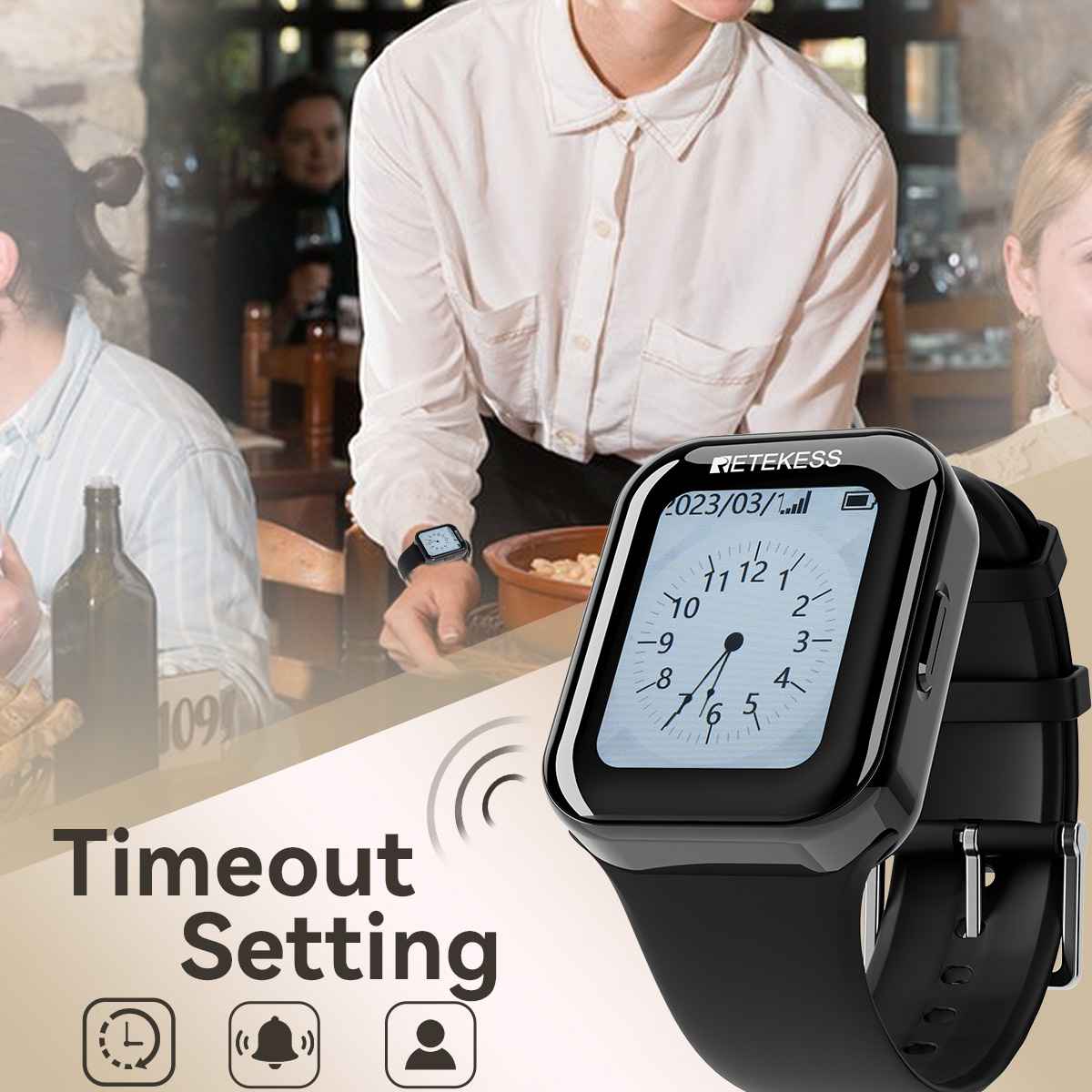

Alert Duration Vibration time: 1 to 15 seconds
Display time: 0 to 10 minutes
00 means the call information will not clear automatically
0 to 30 seconds
0 means no reminder
Working Range Up to 80 m (262 ft) in open areas
Actual range varies depending on the paired button
Up to 80 m (262 ft) in open areas
Actual range varies depending on the paired button
Waterproof Rating IP67 IP67
Standby Time 48 hours or more 48 hours or more
Power-saving mode available
Size / 37 × 64.5 × 16 mm
1.46 × 2.54 × 0.63 in

Spec

TD113 Watch Pager

Frequency

 433.92MHz

Modulation

OOK/FSK

Communication mode

bidirectional/dual-mode

Alert modes

vibration, ringtone

Battery

500mAh Li-ion Battery

Water resistance

IP67 rating

Receiving sensitivity

-121dbm

Operating voltage

3.7V

Interface

magnetic charging connector

Keypad TD029

Transmitting frequency

AM 433MHz

Modulation method

OOK

Adapter

DC 12V/1A

Standby power consumption

2.4W

Rated power

2.88W

Shell material

ABS+PC

Size

162*98*40

Package includes:

Kit Qty

Package Includes

1 Watch + 6 Buttons

1 Watch, 6 call buttons, 6 stickers, 1 USB magnetic 4PIN charging cable, 1 Transparent PC case, 1 Watch strap, 1 User manuel

1 Watch + 10 Buttons

1 Watch, 10 call buttons, 10 stickers, 1 USB magnetic 4PIN charging cable, 1 Transparent PC case, 1 Watch strap, 1 User manuel

1 Watch + 15 Buttons

1 Watch, 15 call buttons, 15 stickers, 1 USB magnetic 4PIN charging cable, 1 Transparent PC case, 1 Watch strap, 1 User manuel

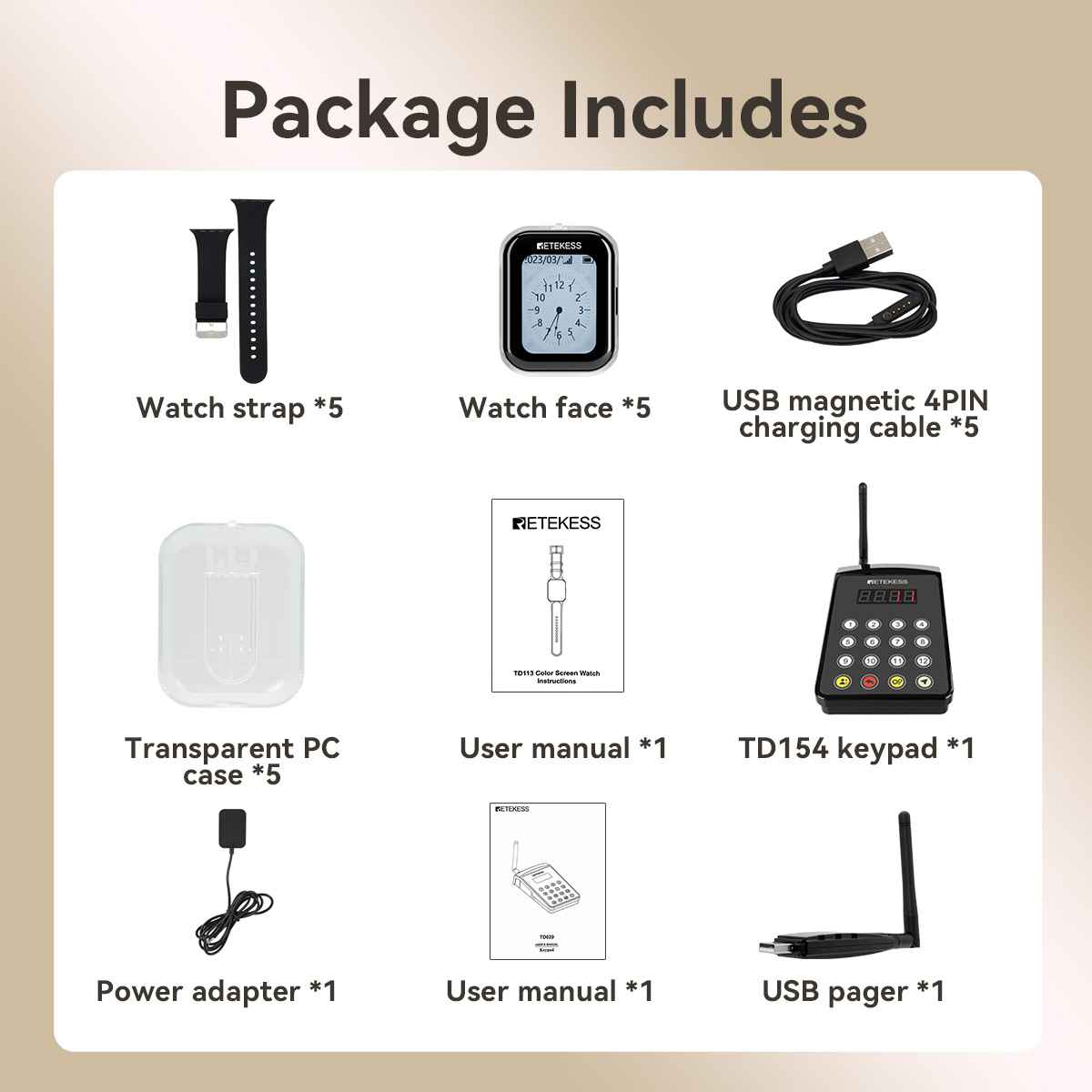

Package includes:

Kit Qty

Package Includes

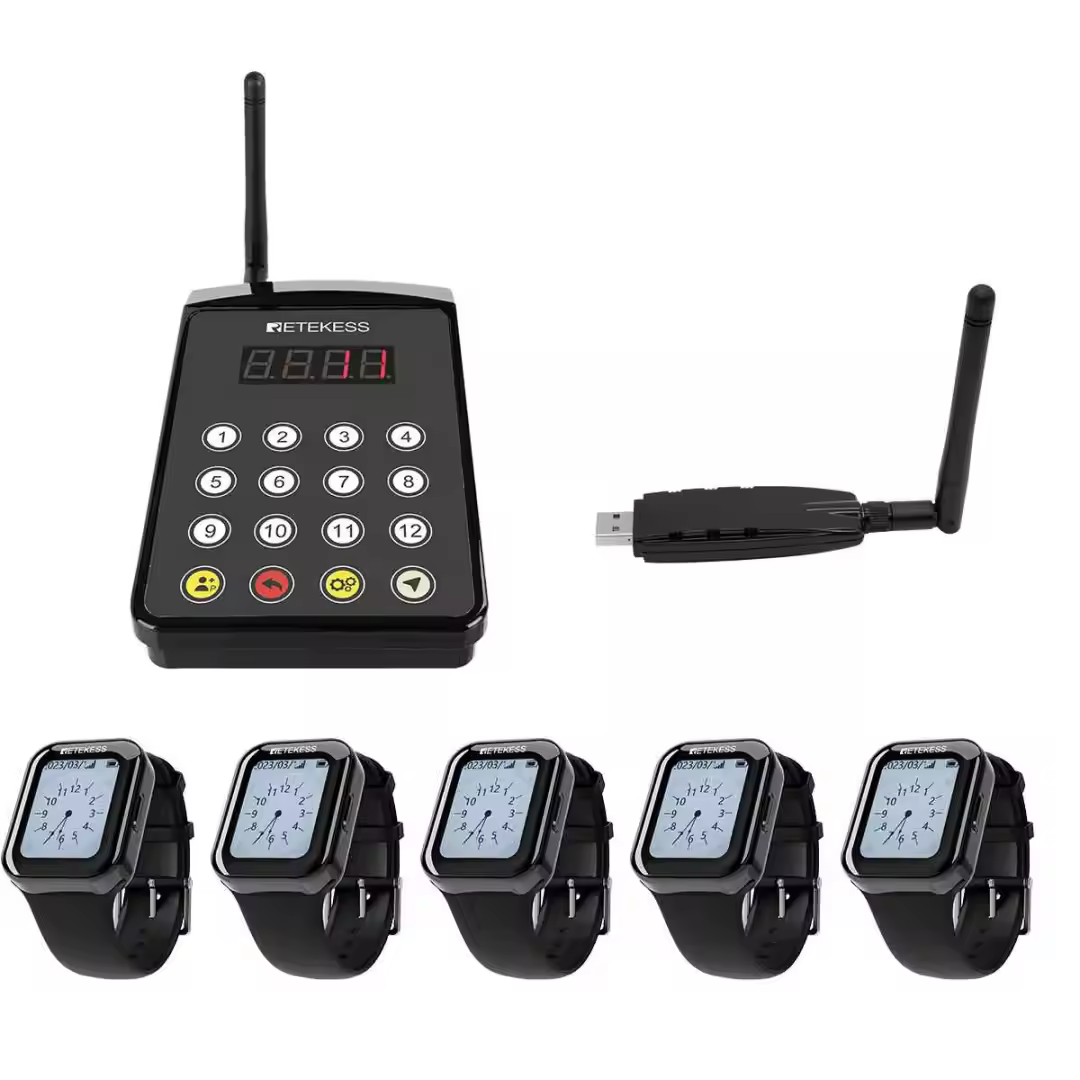

1Keypad-5Watches

5 Watches, 5 USB magnetic 4PIN hcarging cables, 5 Transparent PC cases, 1 User manual, 1 TD154 keypad, 1 Power adapter, 1 user manual, 1 USB pager

1Keypad-9Watches

9 Watches, 9 USB magnetic 4PIN hcarging cables, 9 Transparent PC cases, 1 User manual, 1 TD154 keypad, 1 Power adapter, 1 user manual, 1 USB pager

1Keypad-12Watches

12 Watches, 12 USB magnetic 4PIN hcarging cables, 12 Transparent PC cases, 1 User manual, 1 TD154 keypad, 1 Power adapter, 1 user manual, 1 USB pager
