Mute function;
4k HD camera;
Intelligent AI algorithm;
Intelligent noise reduction;
Multiple connection methods;
Equipped with infrared remote control;
120° wide field of view, 5x digital zoom;
Compatible with mainstream software and systems;
Add to Favorites Delivery & Returns Inquiry

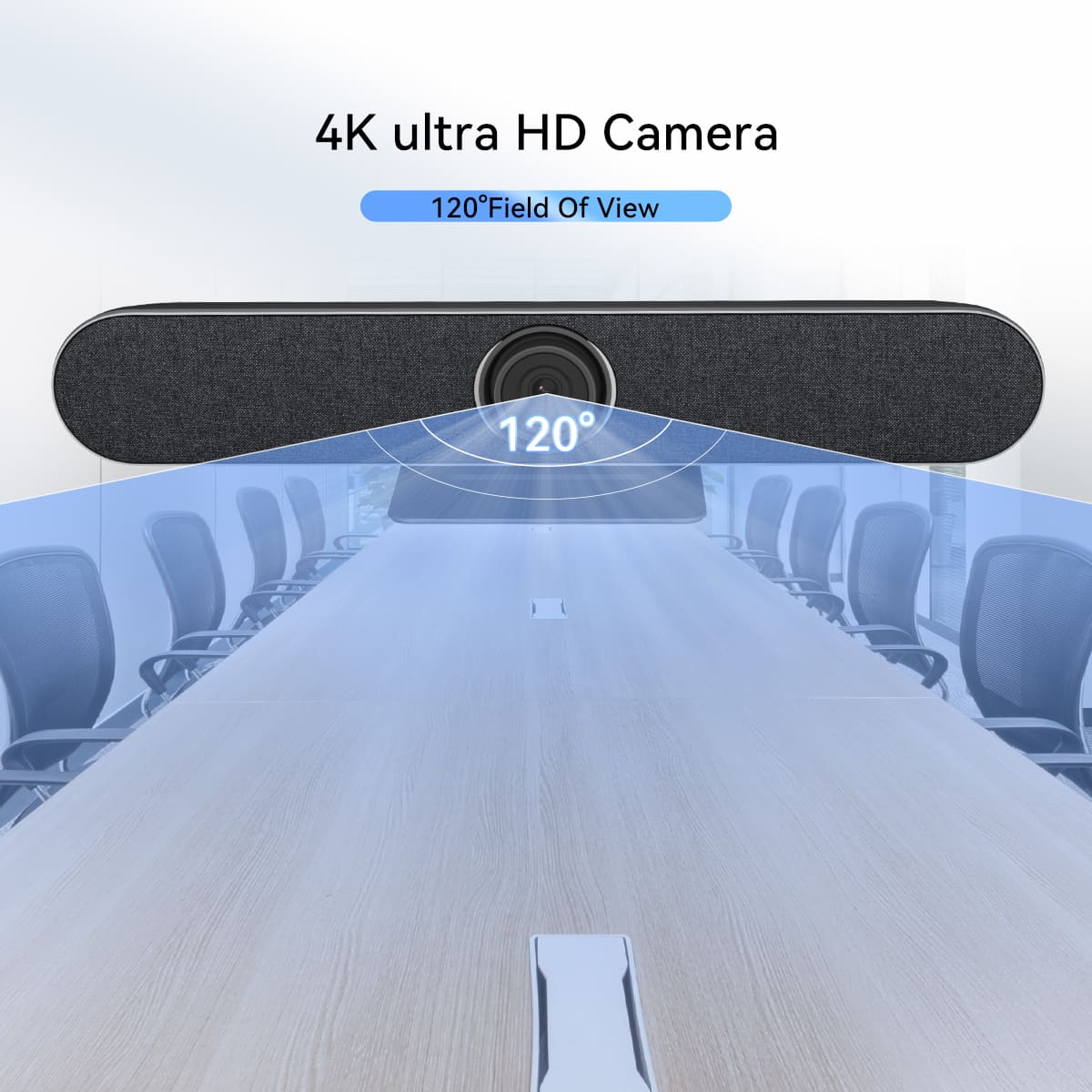

This conference camera has a 120° wide field of view and a 5x digital zoom ratio. Whether you are close to the camera or the edge of the room, you can clearly see all members in the conference room, and the 5x magnification of the picture can avoid the problem of unclear vision due to the distance.

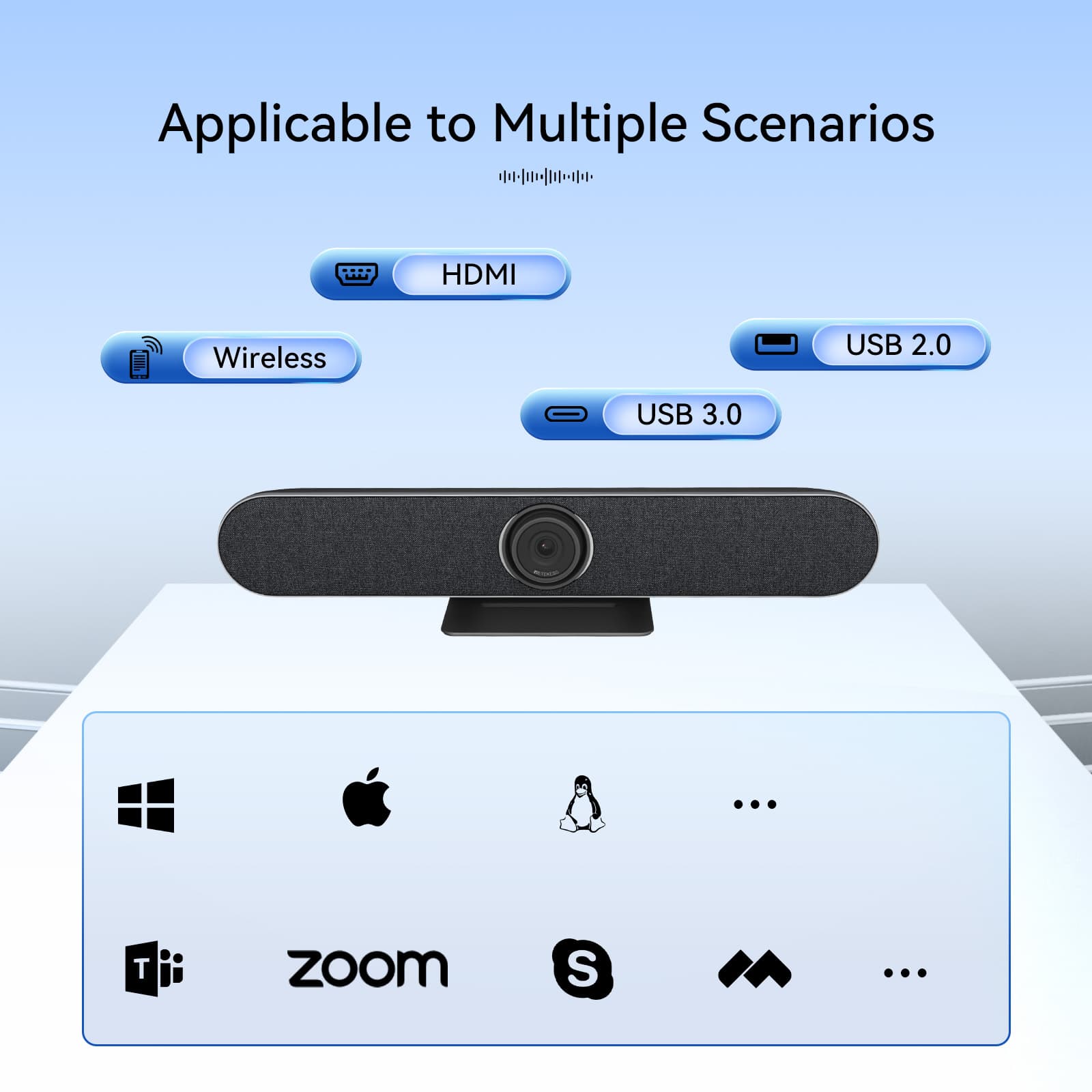

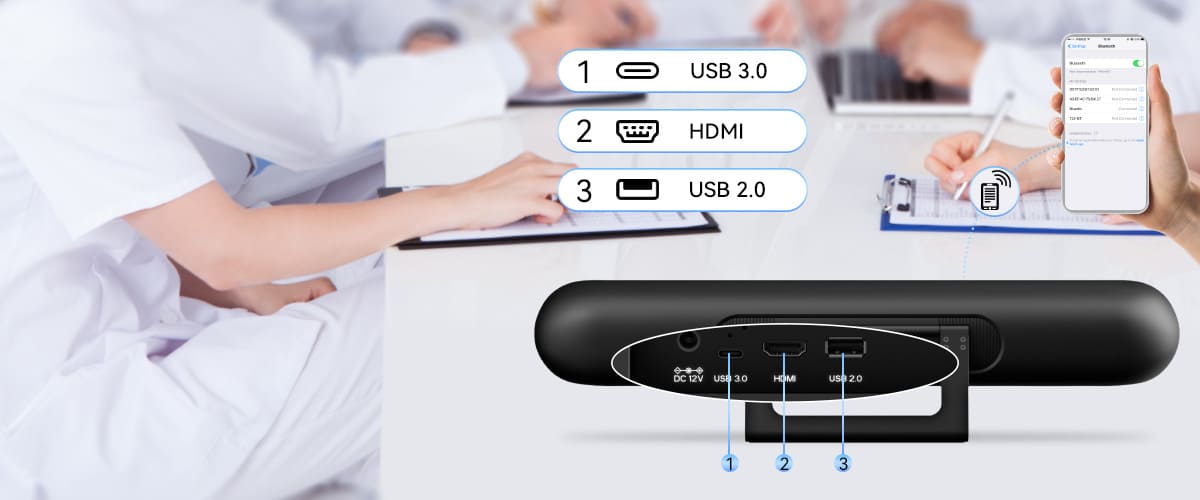

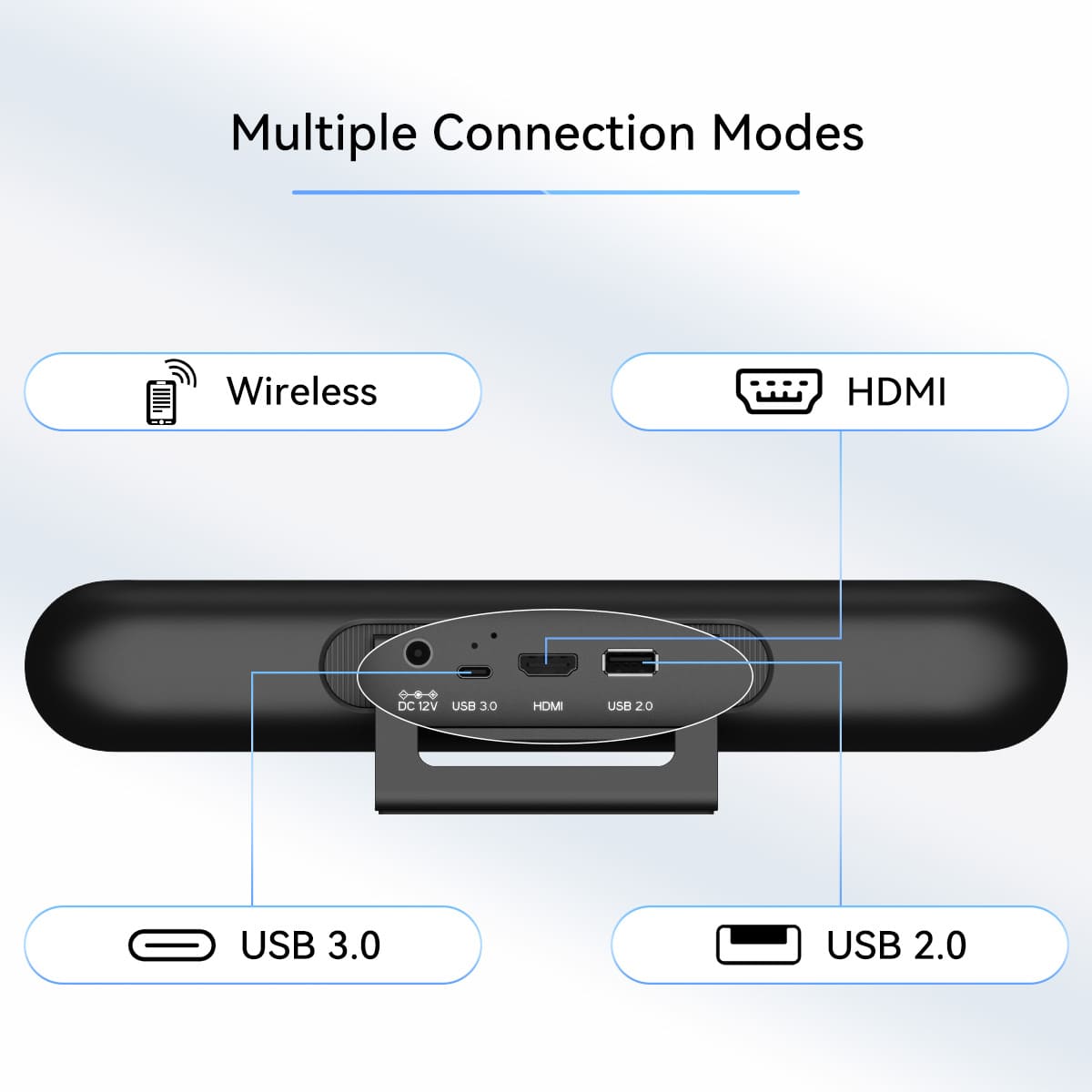

Supports multiple connection methods between conference cameras and terminals such as HDMI, USB 3.0, Type-C interface and mobile phone wireless connection, ensuring that the meeting can proceed smoothly regardless of the terminal device used.

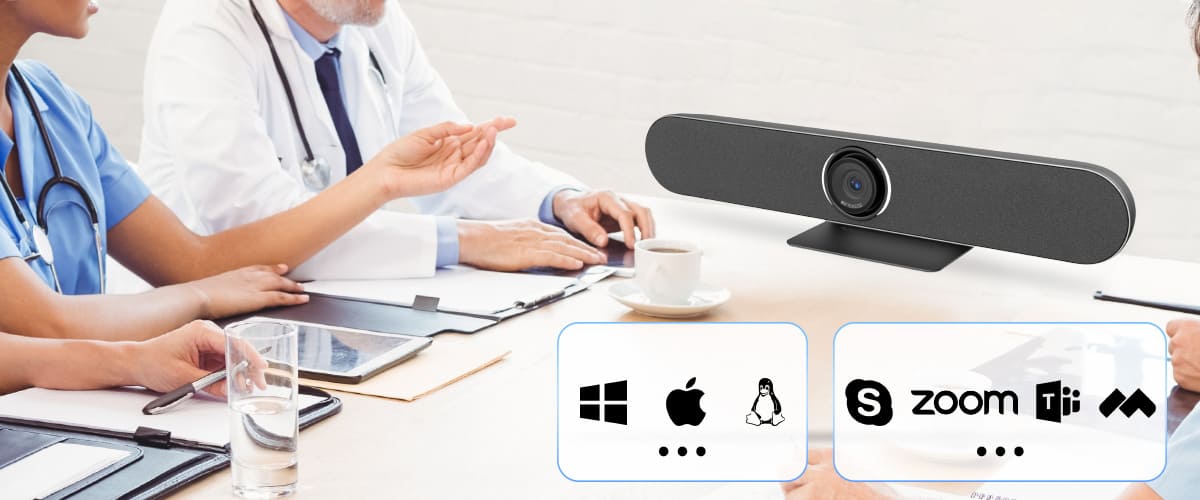

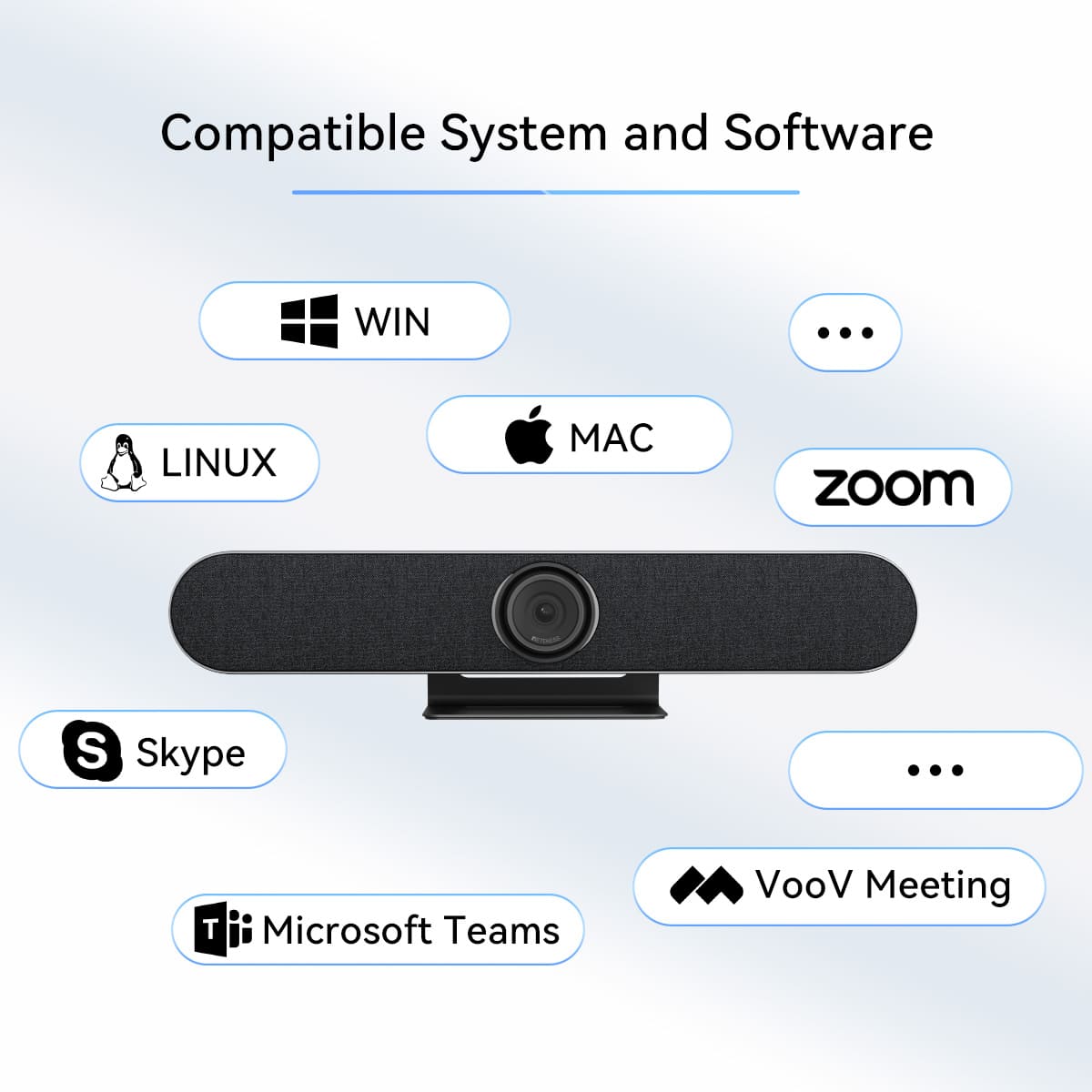

This conference all-in-one machine is compatible with WIN, MAC, LINUX systems, as well as Zoom, Microsoft Teams and Tencent conference software. No matter what system or software your team members use, they can easily connect.

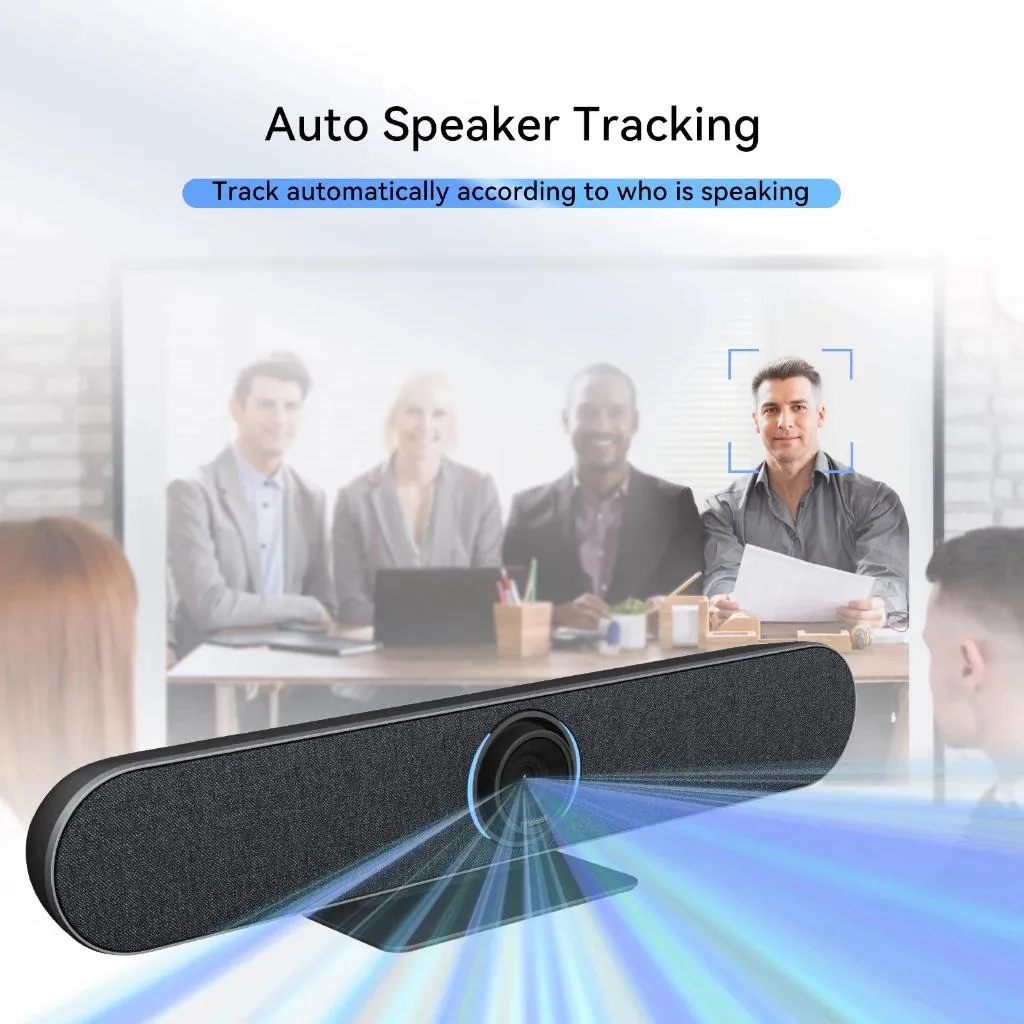

Intelligent AI algorithm, conference camera intelligently tracks the speaker according to the sound source position, ensures that the speaker is in the center of the screen, and adjusts the screen image to ensure that all participants are on the screen.

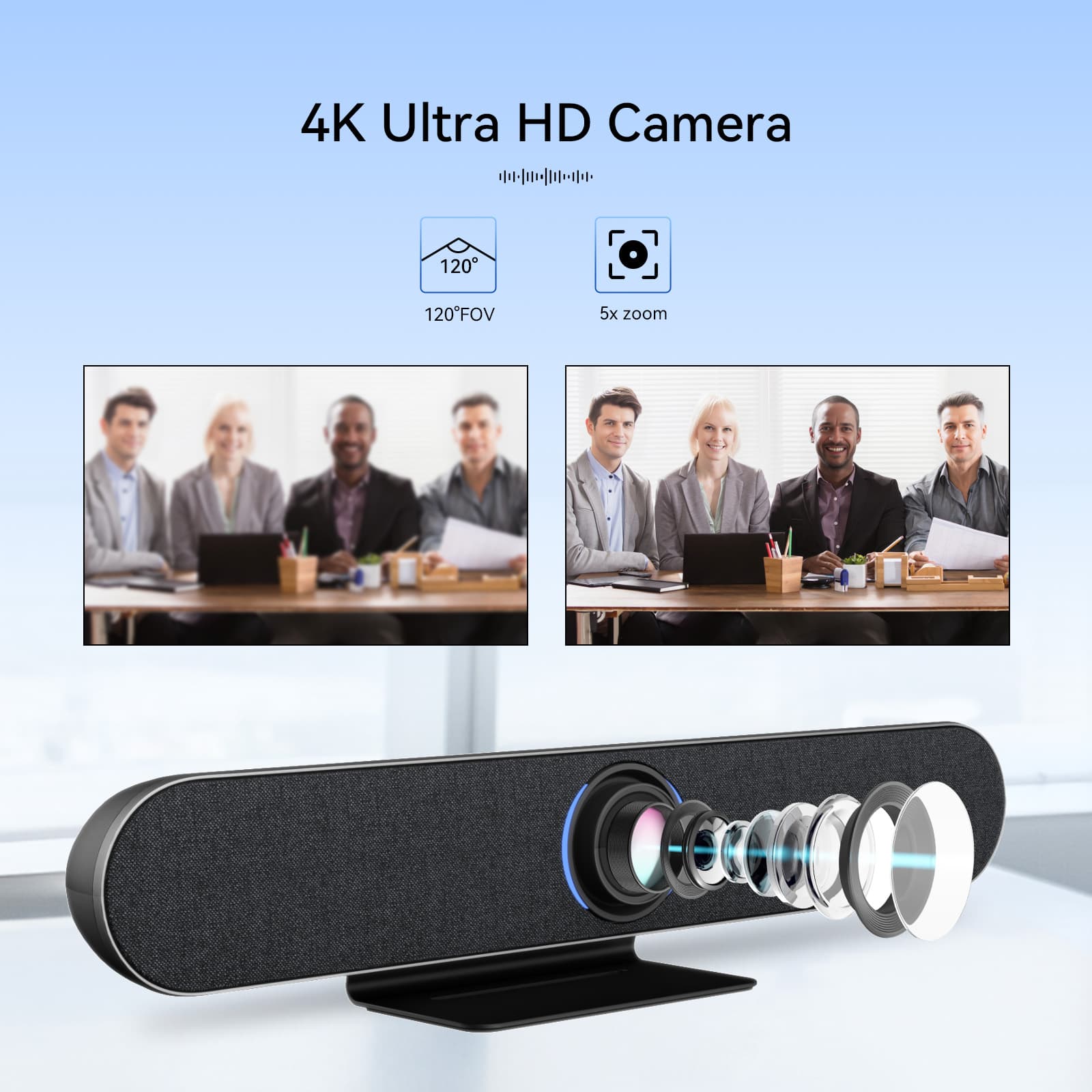

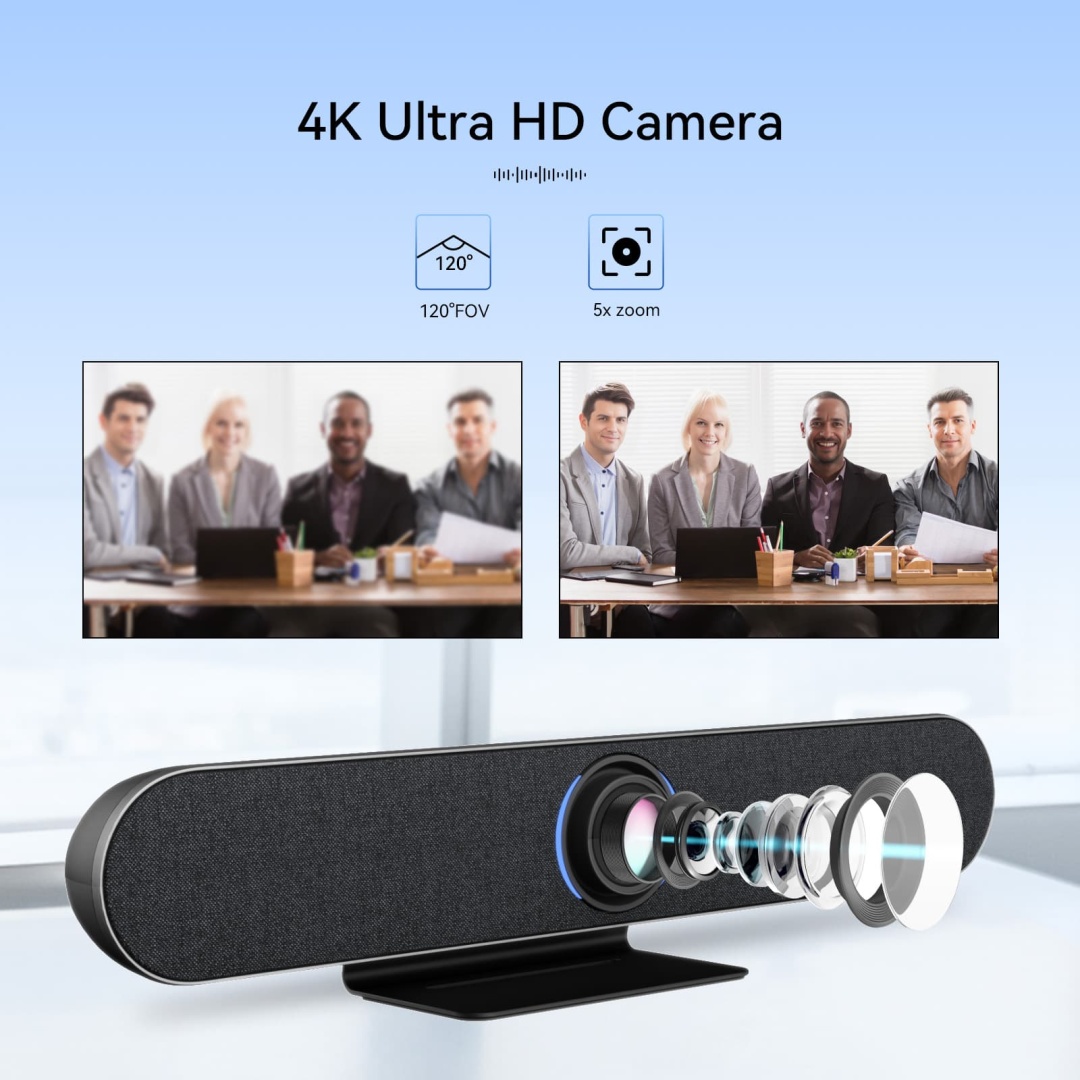

The 4k HD camera improves the picture quality and brings clearer video. The built-in electronic pan/tilt improves the video stability and provides a stable and comfortable user experience.

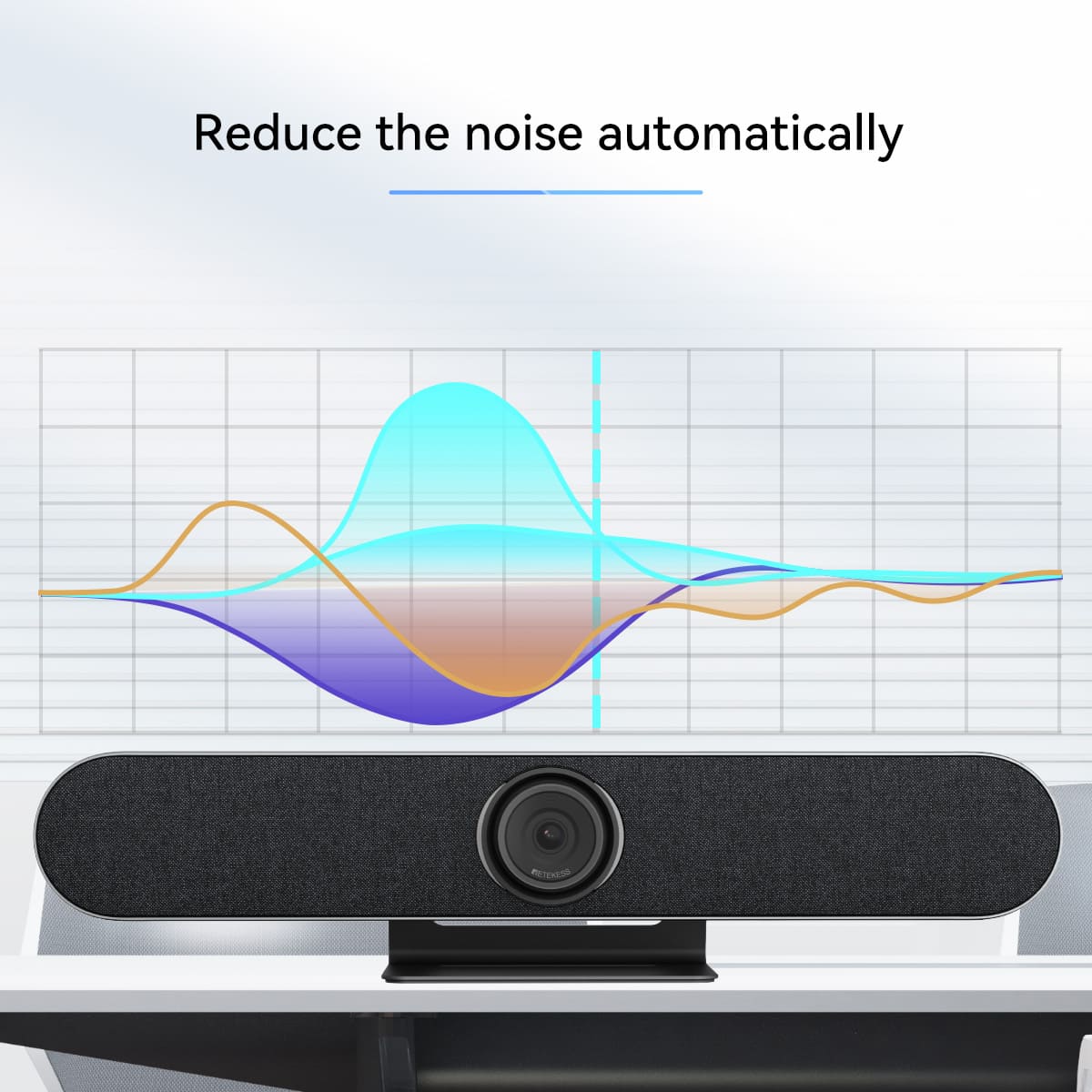

The conference camera microphone is equipped with 3A audio processing technology (ANS; AEC; AGC), which improves the call quality, provides a noise-free environment, and automatically reduces noise.

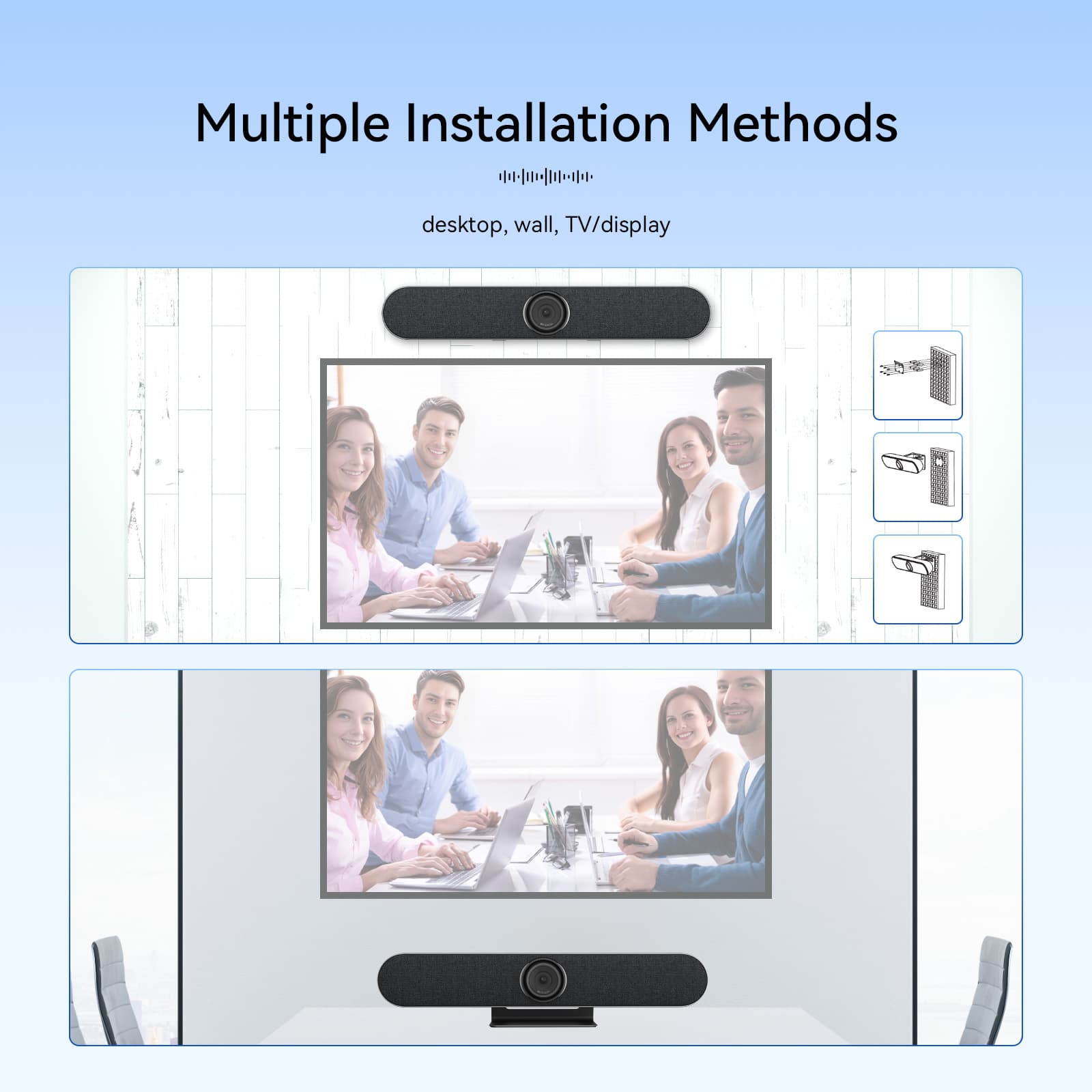

The all-in-one conference machine has a variety of installation methods, supports bracket hanging and flat placement, suitable for most conference rooms.

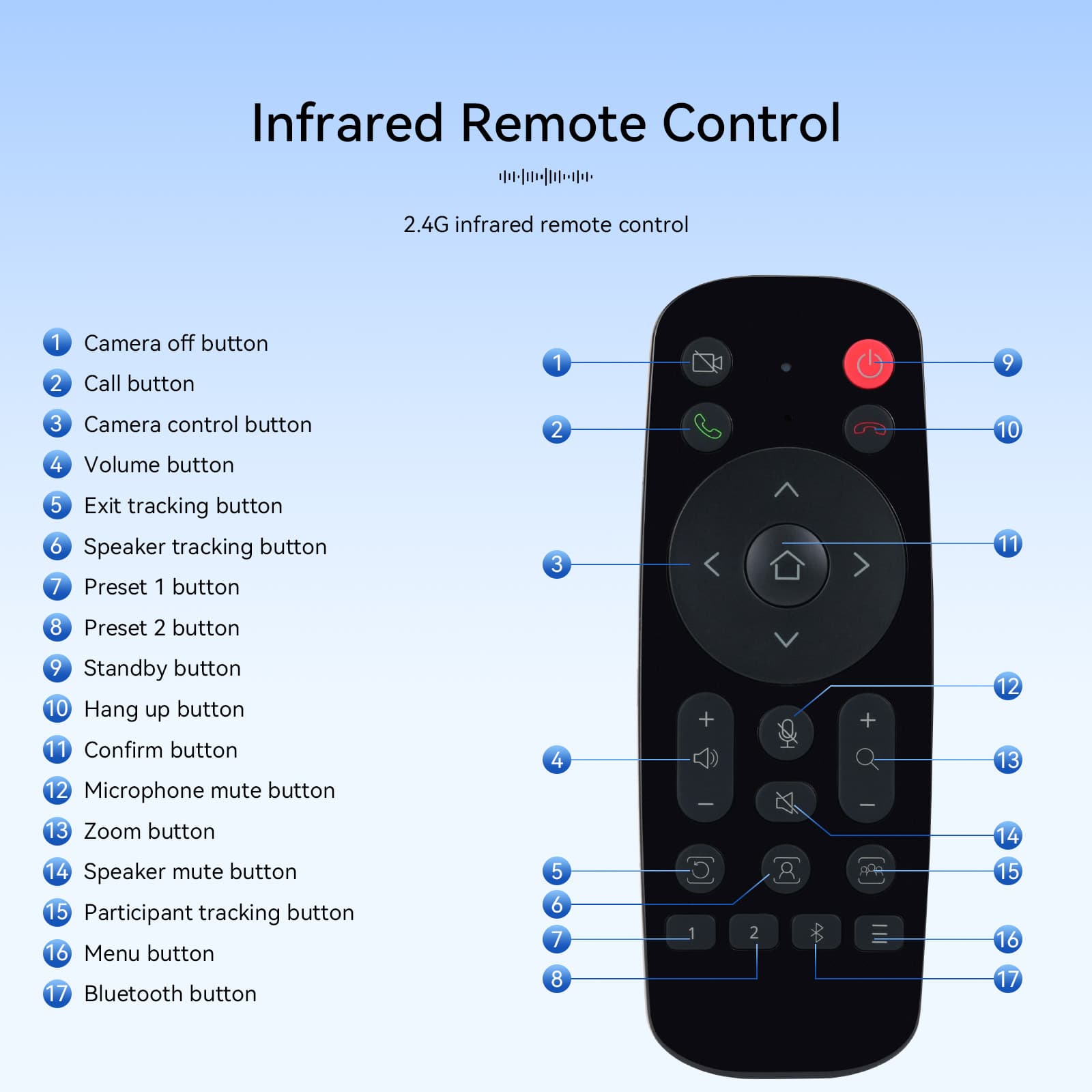

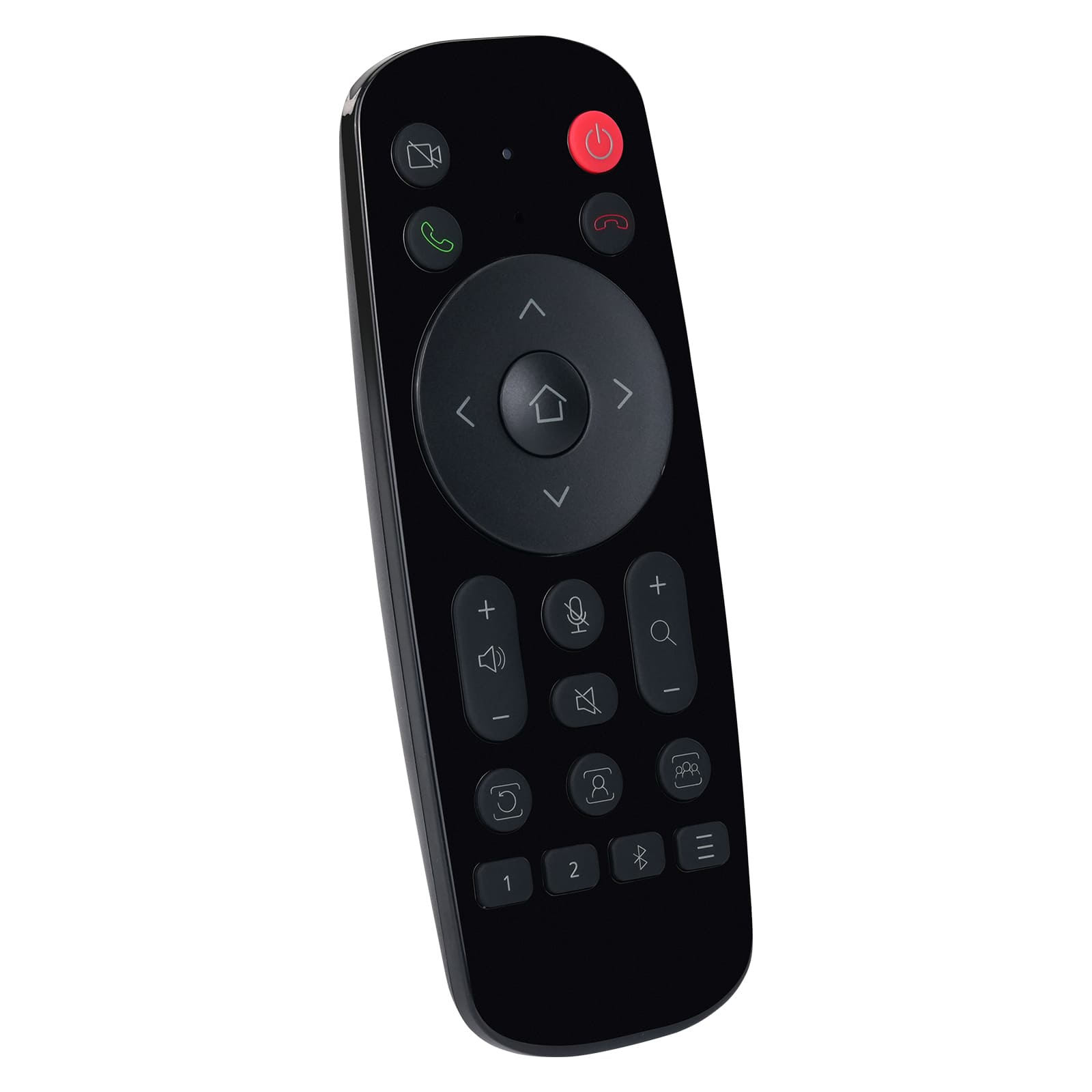

The package contains an infrared remote control that can be used to remotely control the conference all-in-one machine. You can control it through the remote control without leaving your seat.
Project | Specifications |
Signal system | 4K@30fps, 1080P@30fps, 720P@30fps |
Sensor | 1/2.5 inch, CMOS, 8.51 million effective pixels |
Lens & PTZ | 121° (DFOV), 110° (HFOV), 5x digital zoom, horizontal/pitch ±15°; mechanical PTZ (MPT) + electronic PTZ (EPTZ) |
Signal-to-noise ratio | ≥55dB |
Backlight compensation | Support |
Full-range speaker | High-fidelity 8W speaker, sound pressure 96 dB SPL at 0.5m peak |
Microphone array | Beamforming microphone, built-in 4 microphones, pickup distance 6 meters; support TC106 expansion use |
USB features | USB3.0, backward compatible with 2.0. 32K audio sampling rate, support UAC1.0, using UVC 1.1~1.5 communication protocol |
Working temperature | 0°C~40°C |
Charging method | DC 12V, 2A (max) |

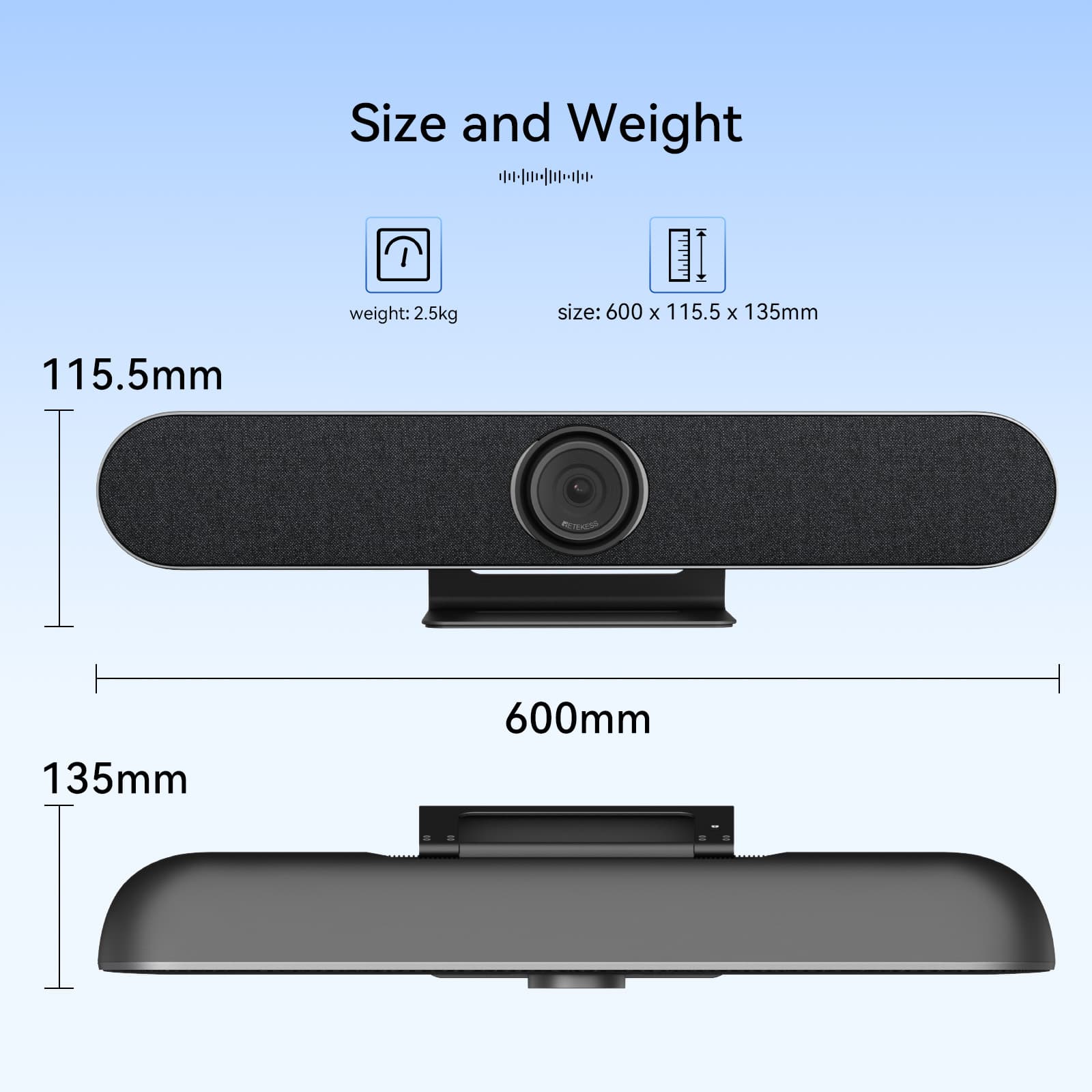

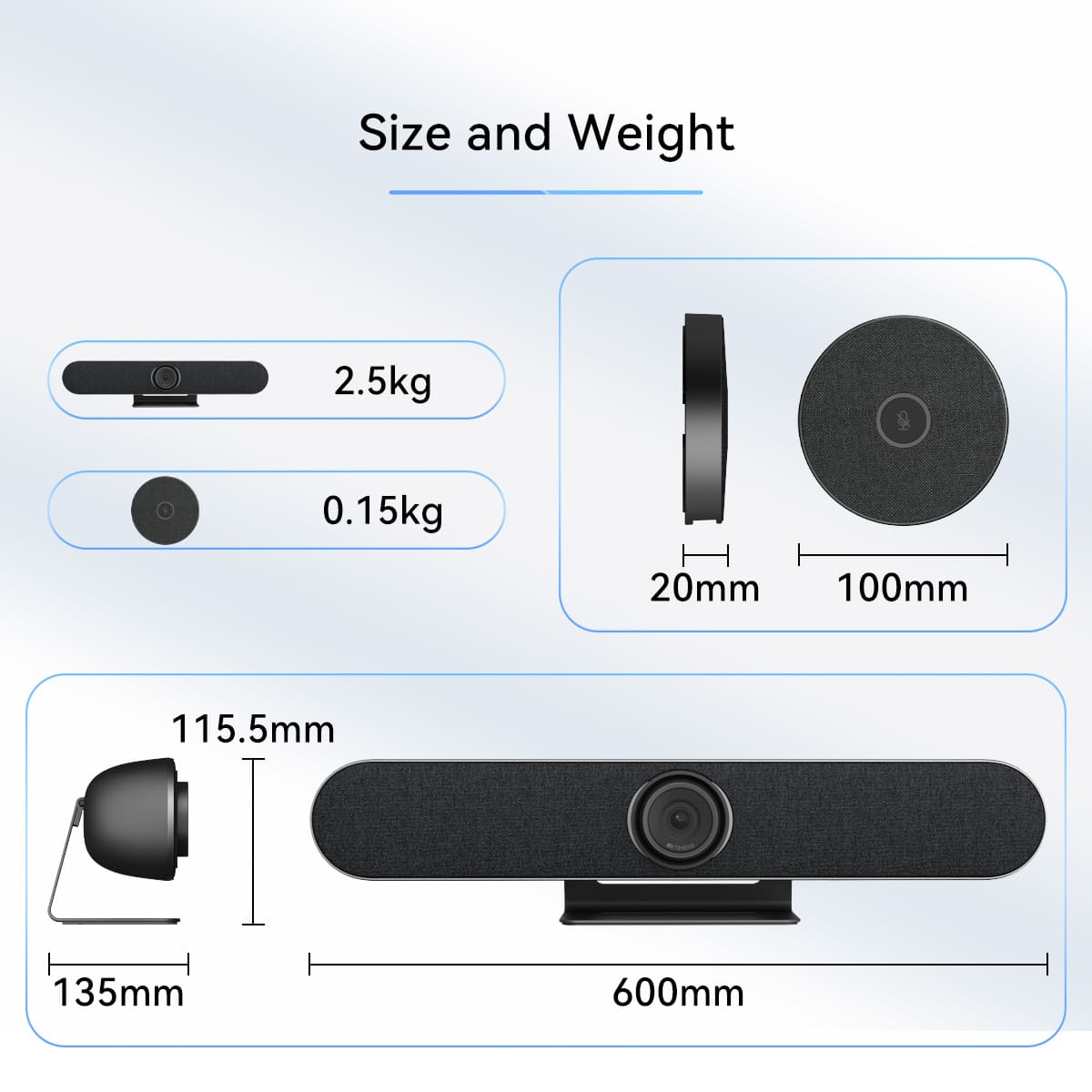

All-in-one weight | 2.5kg |
Bare machine size | 600 x 115.5 x 135mm (bare machine including bracket) |
Remote control | 2.4G remote control |
Installation method | Desktop, wall, TV/display |
Compatibility | Compatible with mainstream operating systems, compatible with mainstream video conferencing software (such as zoom, Microsoft teams, etc.) |

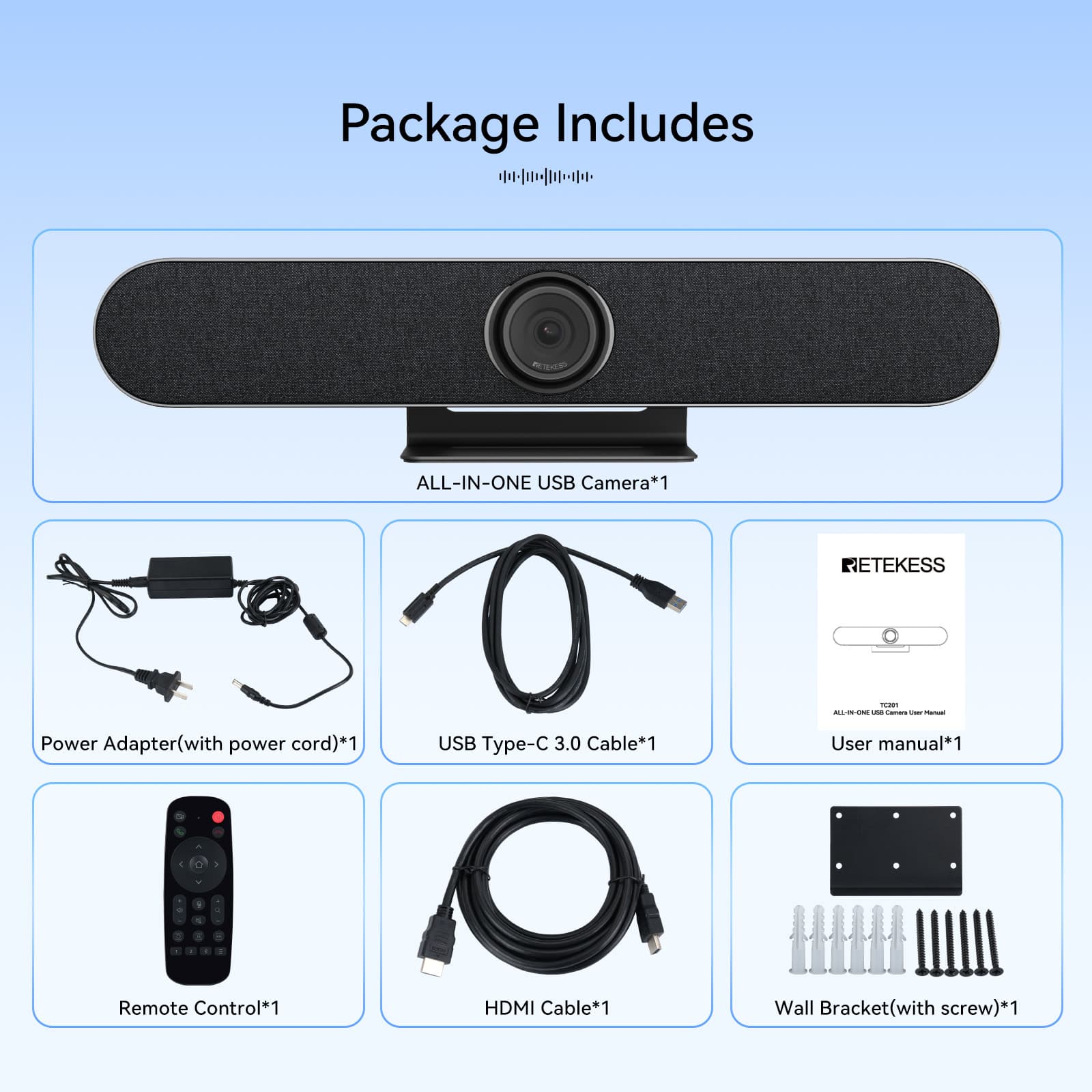

Product Name | Quantity |
USB Camera | x1 |
Power Adapter(with power cord) | x1 |
USB type-C 3.0 cable | x1 |
User manua | x1 |
Remote Control | x1 |
HDMI cable | x1 |
Wall Bracket(with screw) | x1 |
