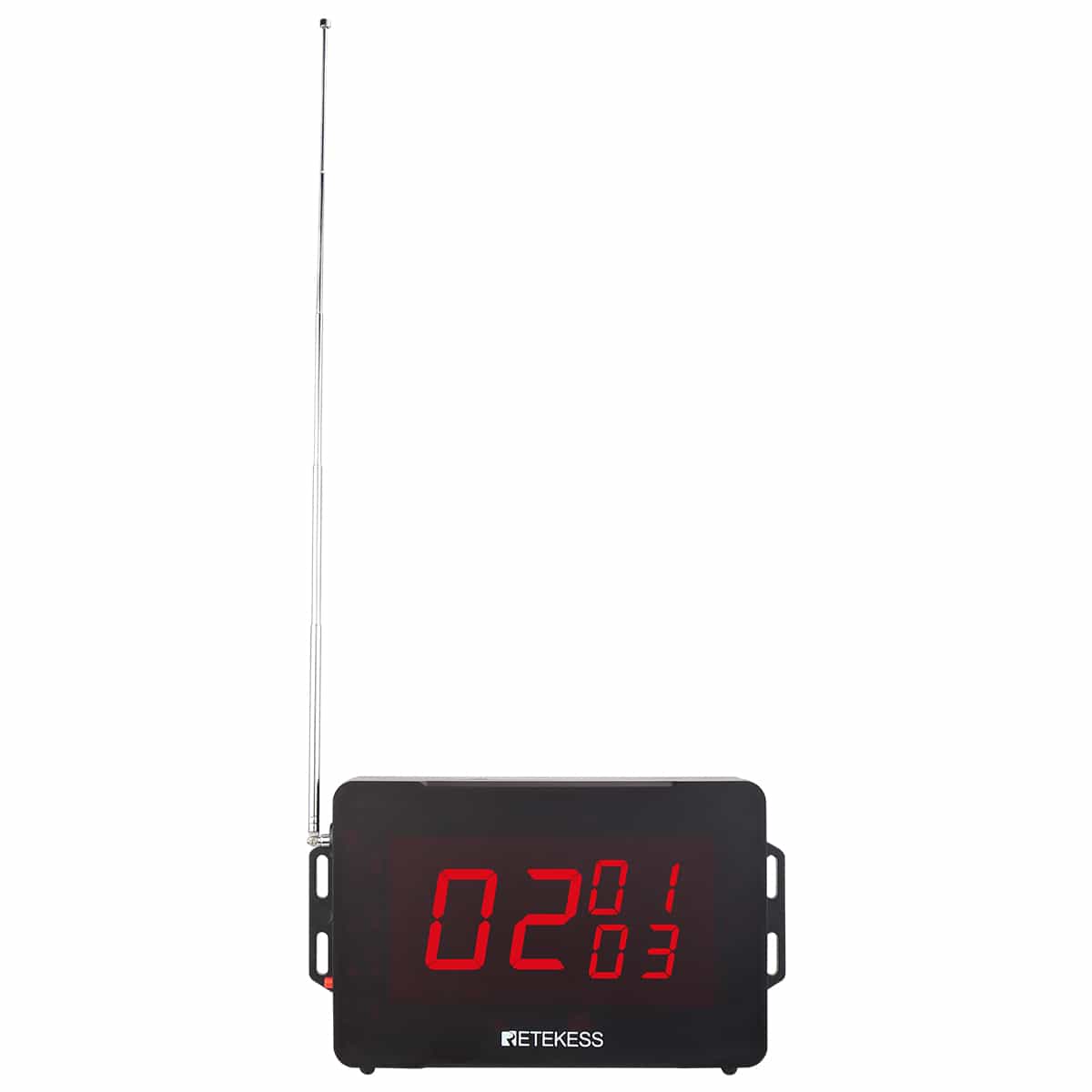

Retekess TD136 patient call system receiver with TD019 call button
Adjustable volume level; adjust the volume from 0-15 levels;
Any choice of 9 call modes to meet different usage scenarios;

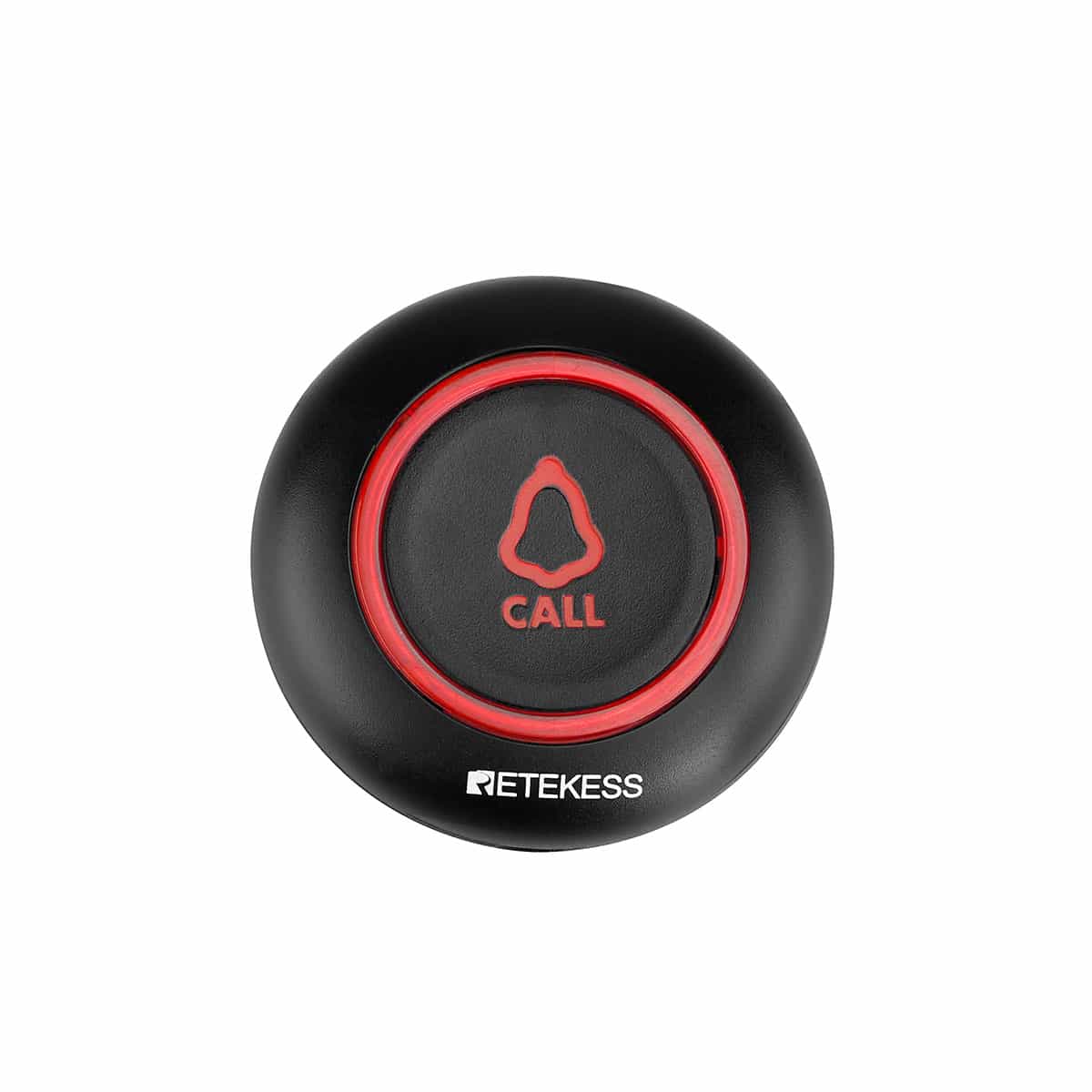

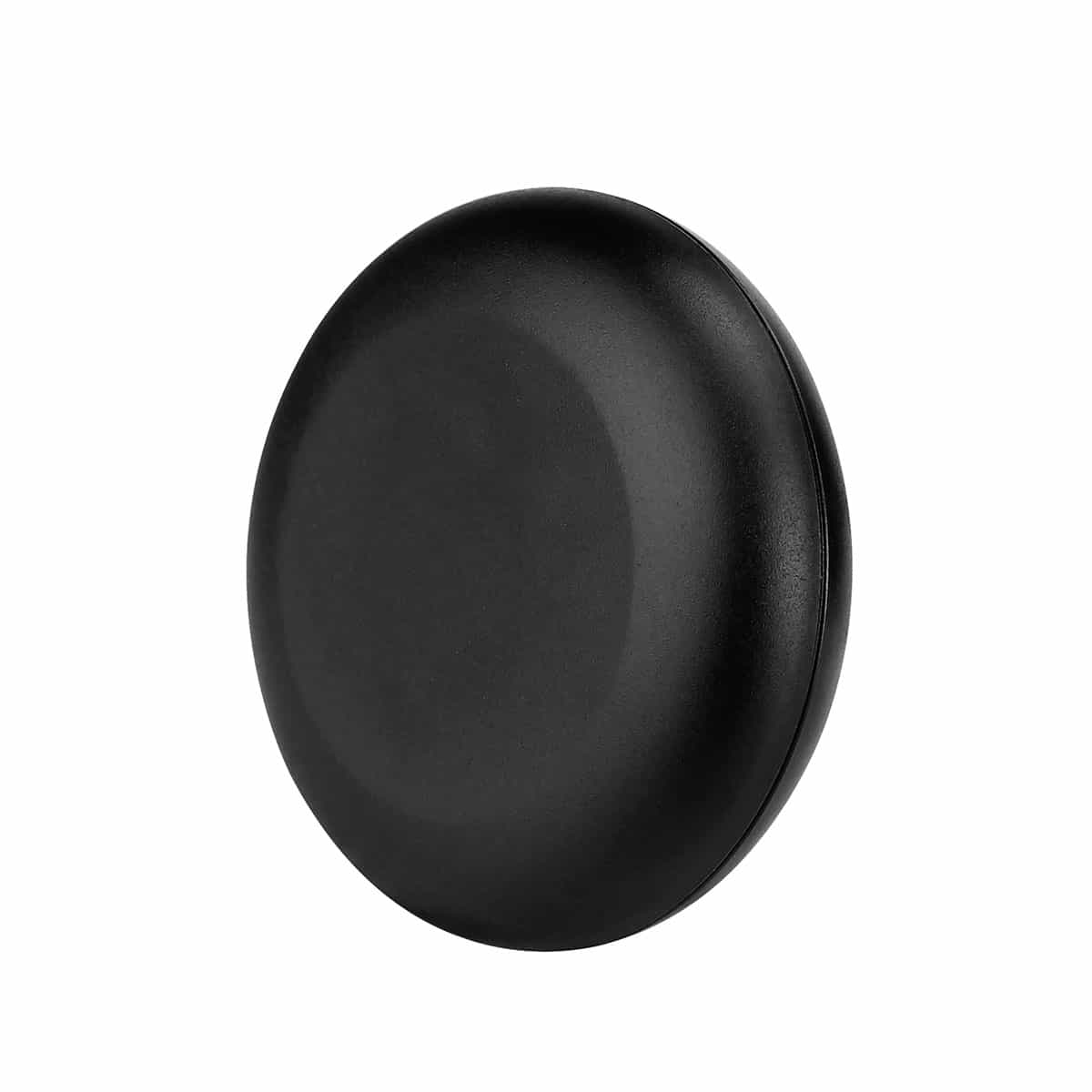

The call button is simple and easy to operate

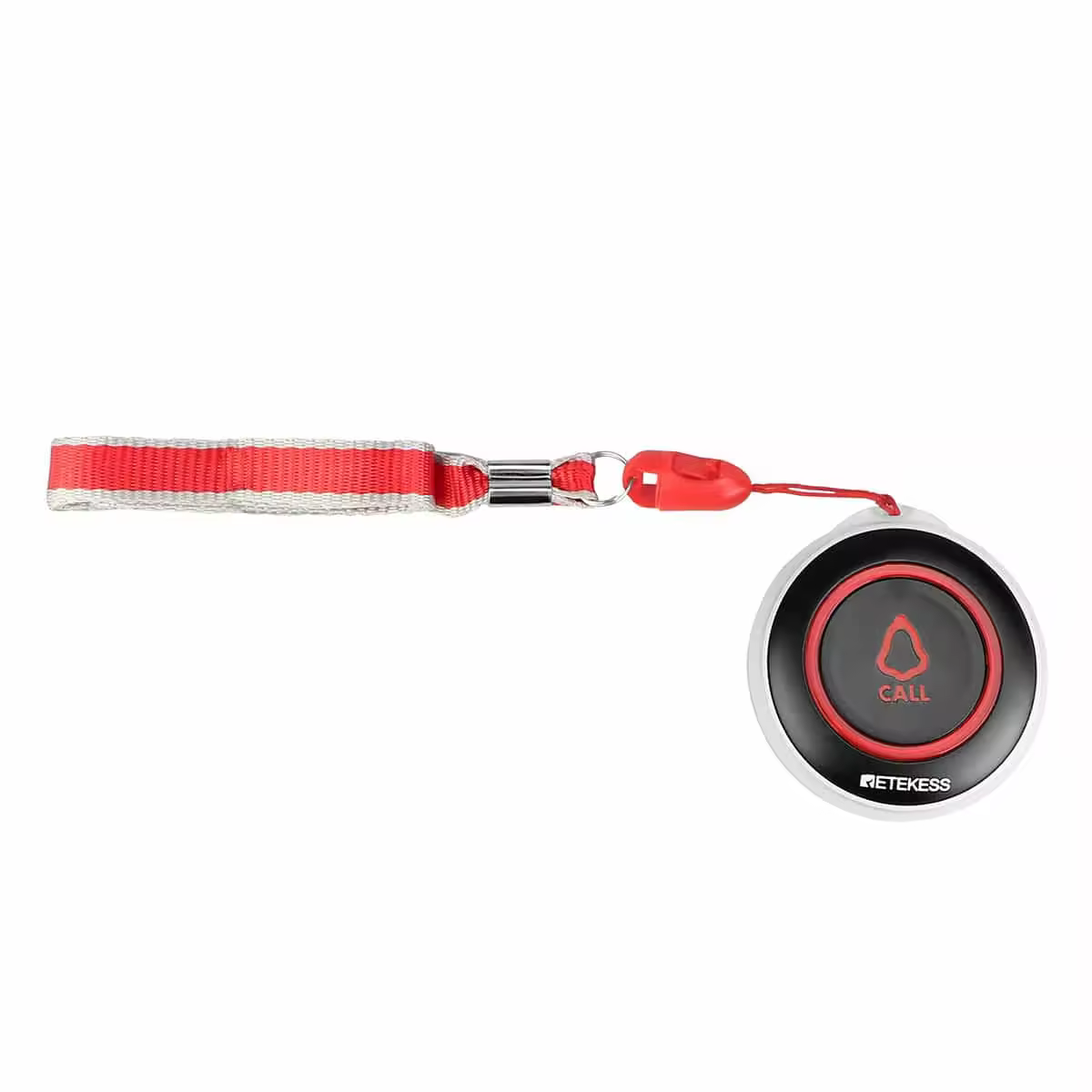

Equipped with double-sided tape, silicone sleeve, and lanyard
Easy to fix, dustproof and portable
Add to Favorites Delivery & Returns Inquiry

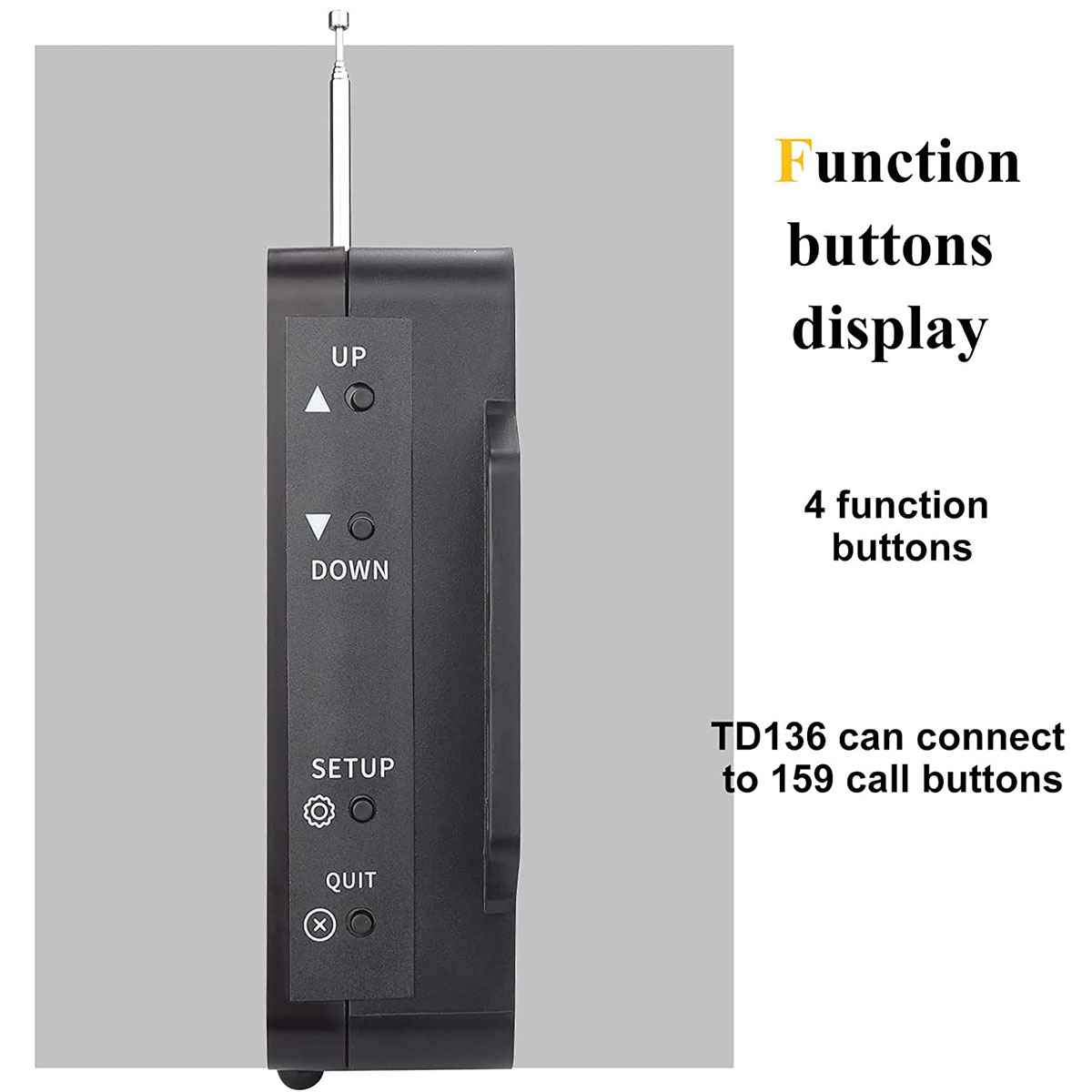

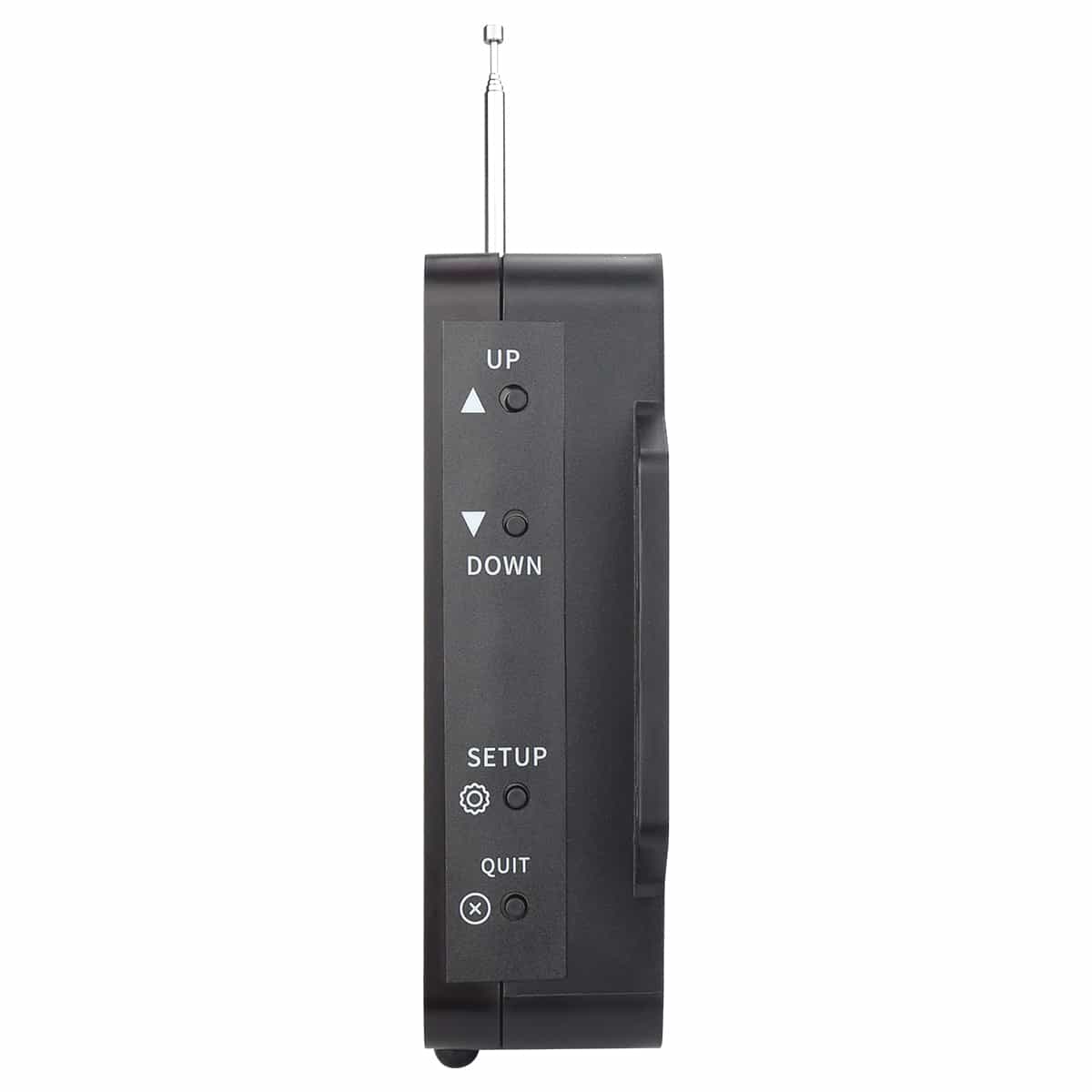

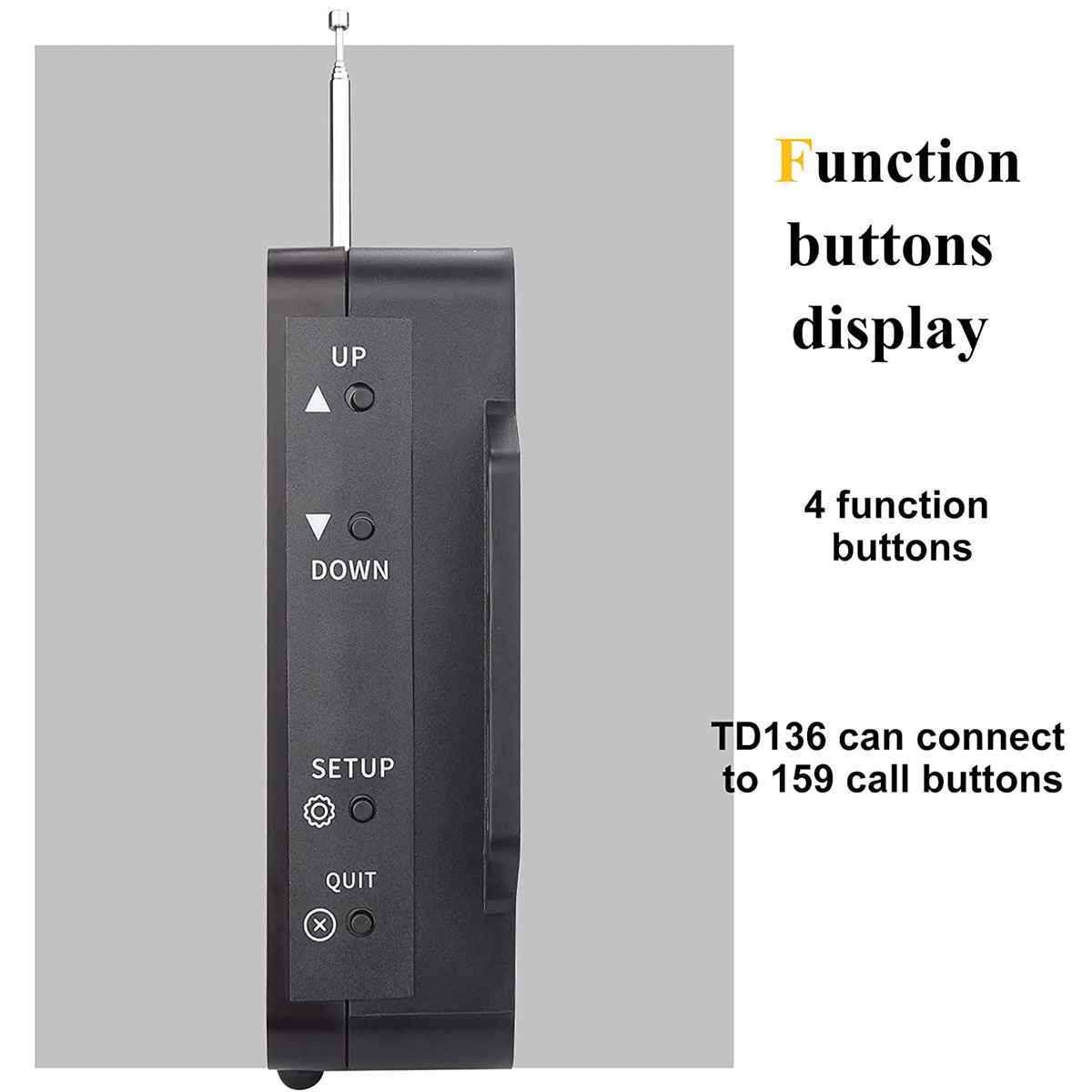

Menu setting with voice prompts, simple and convenient operation

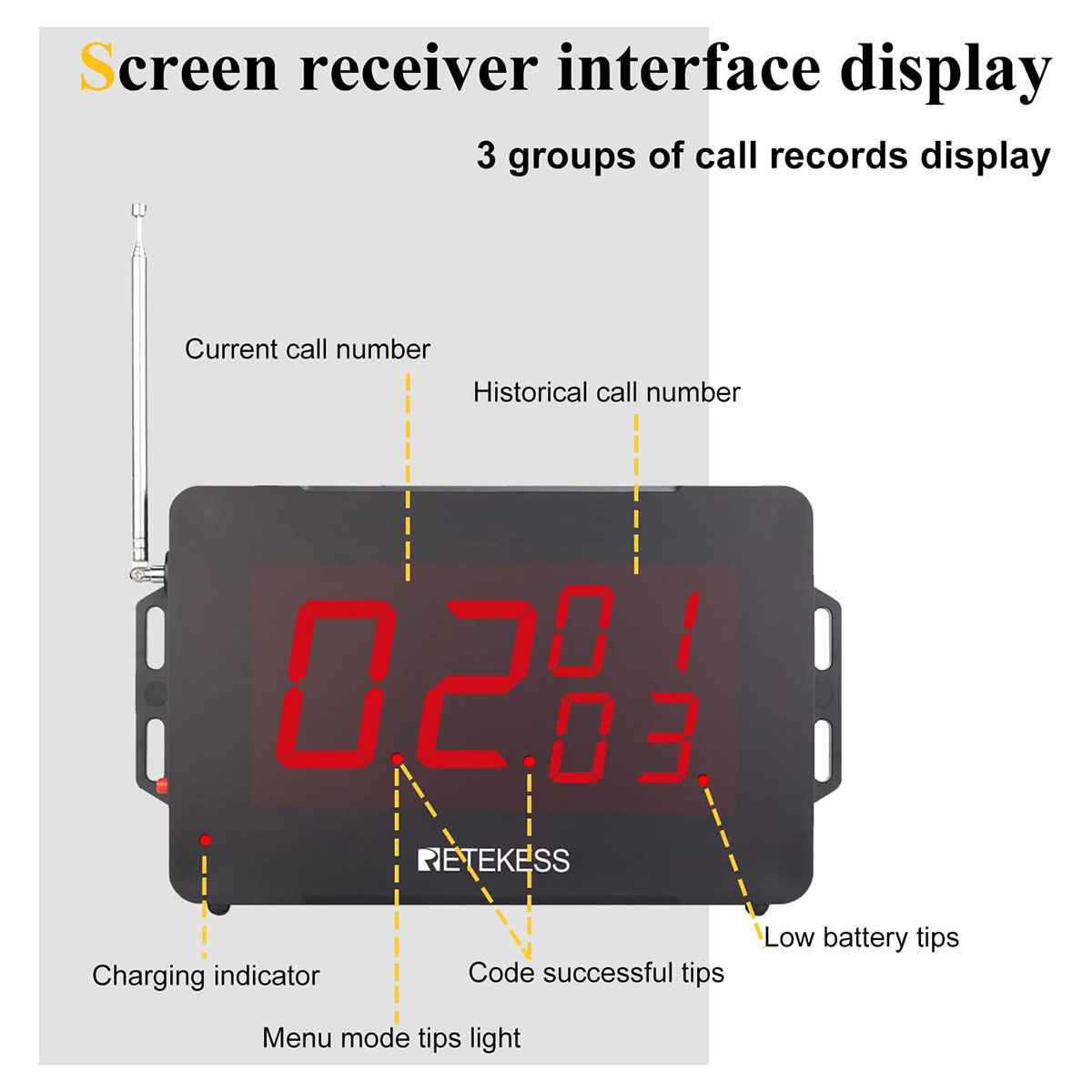

Can be set up individually 1 group / 2 groups / 3 groups of the same screen display. can display 3 groups of calling numbers at the same time, distinguish the calling sequence, avoid missing any information, and make it more convenient to use.
9 call modes can be selected at will
2W speaker, clear voice, and loud voice
You can choose to set the number of call voice annunciation
Support 6 countries English, French, German, Spanish, Italian, and Russian voice broadcast

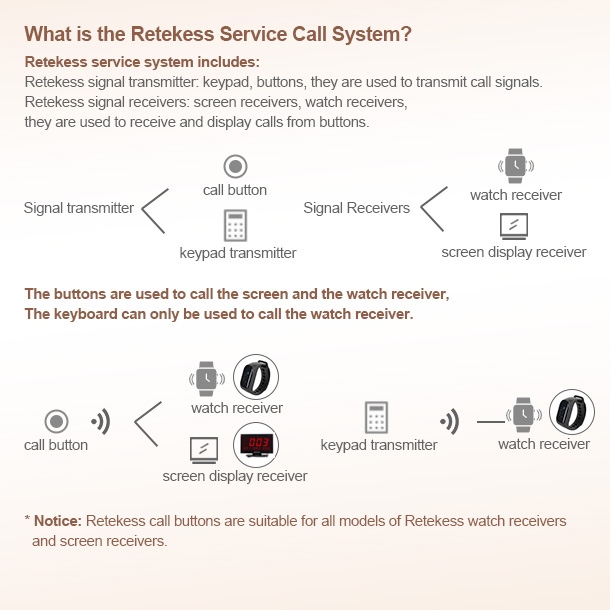

One caller can be used for multiple receivers
Can be used for about 4-5 hours when it is fully charged, and it can be used normally even if it cannot be placed where it is convenient to access the power source.

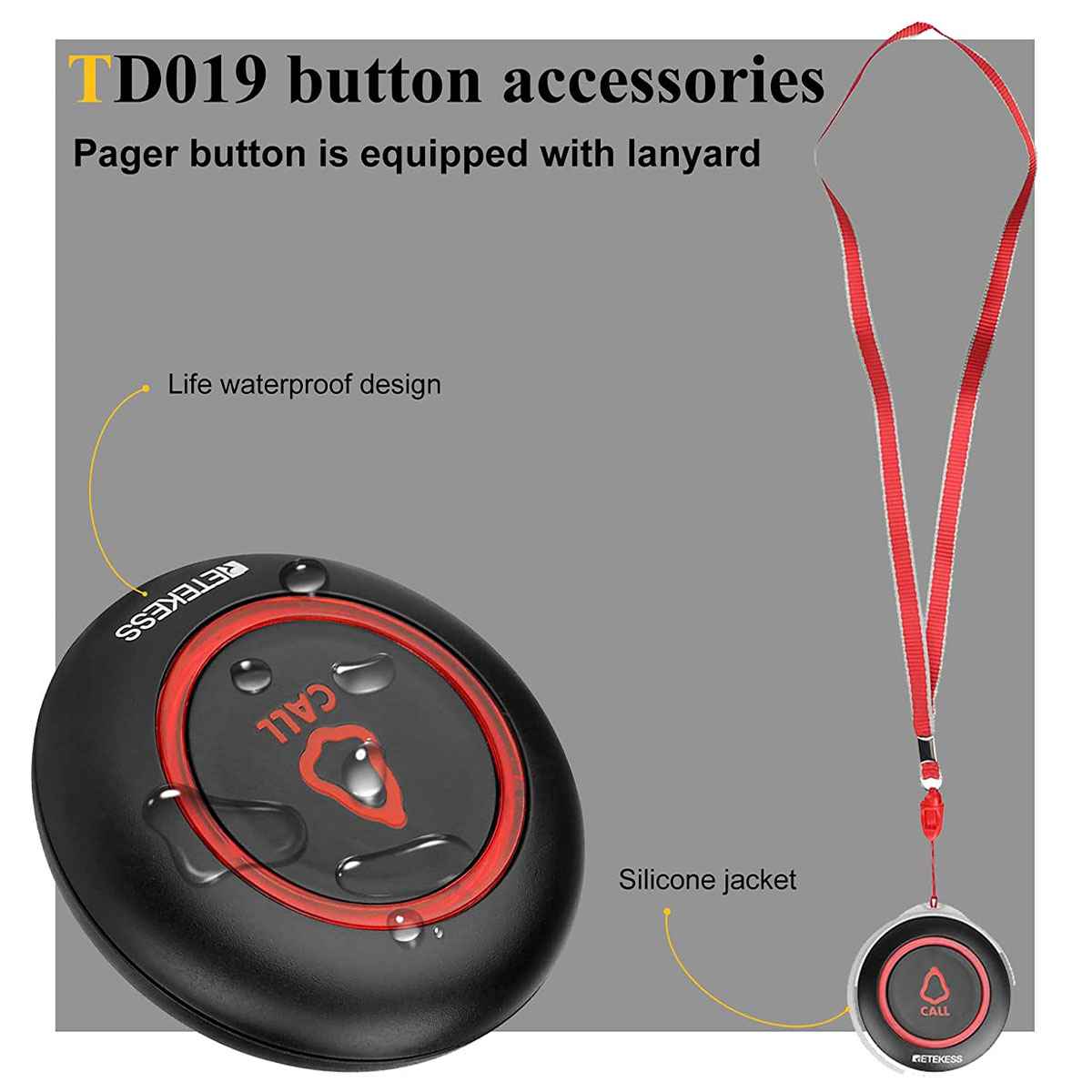

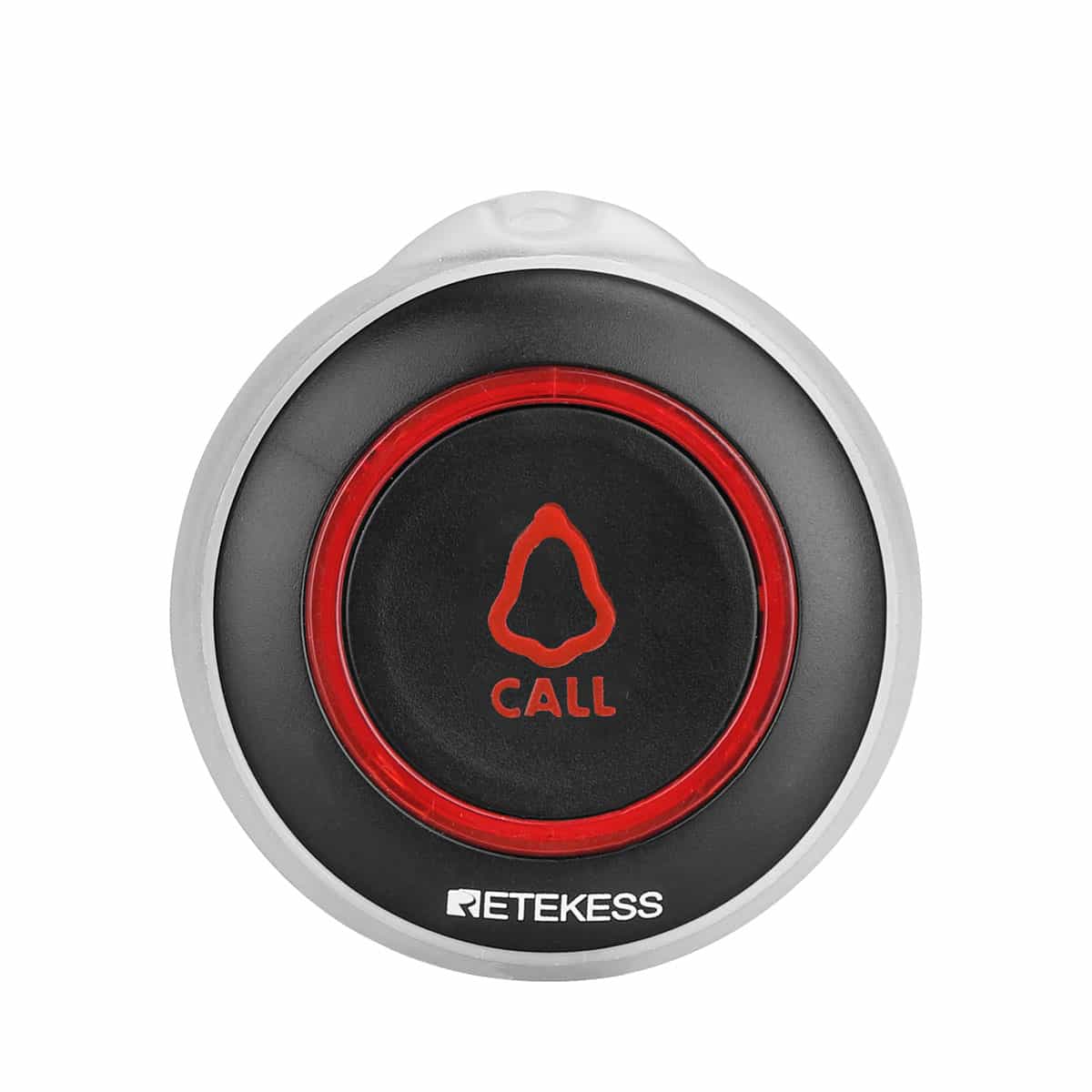

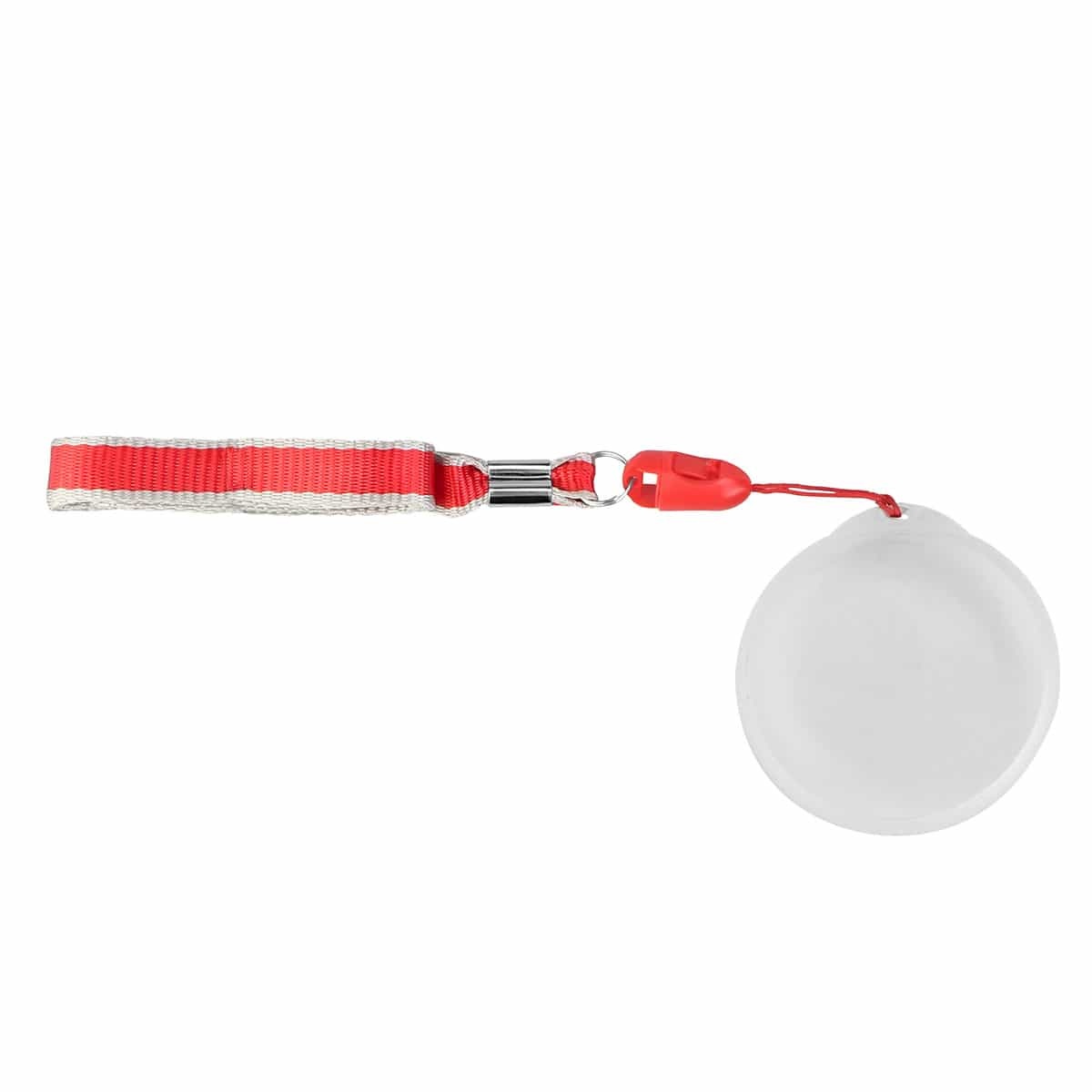

Each button is equipped with double-sided tape for easy installation. Equipped with silicone shell and lanyard to meet the needs of different scenarios.
Can meet the needs for long distances, and the open area has a range of up to 60m. Stable signal so that you will not miss the needs of customers.

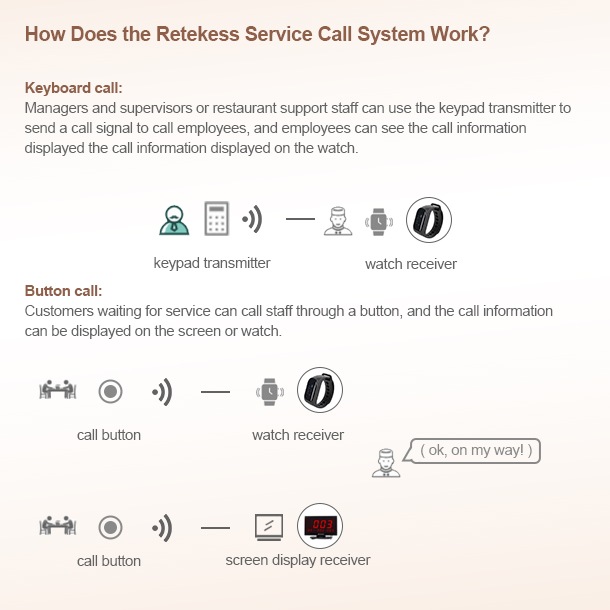

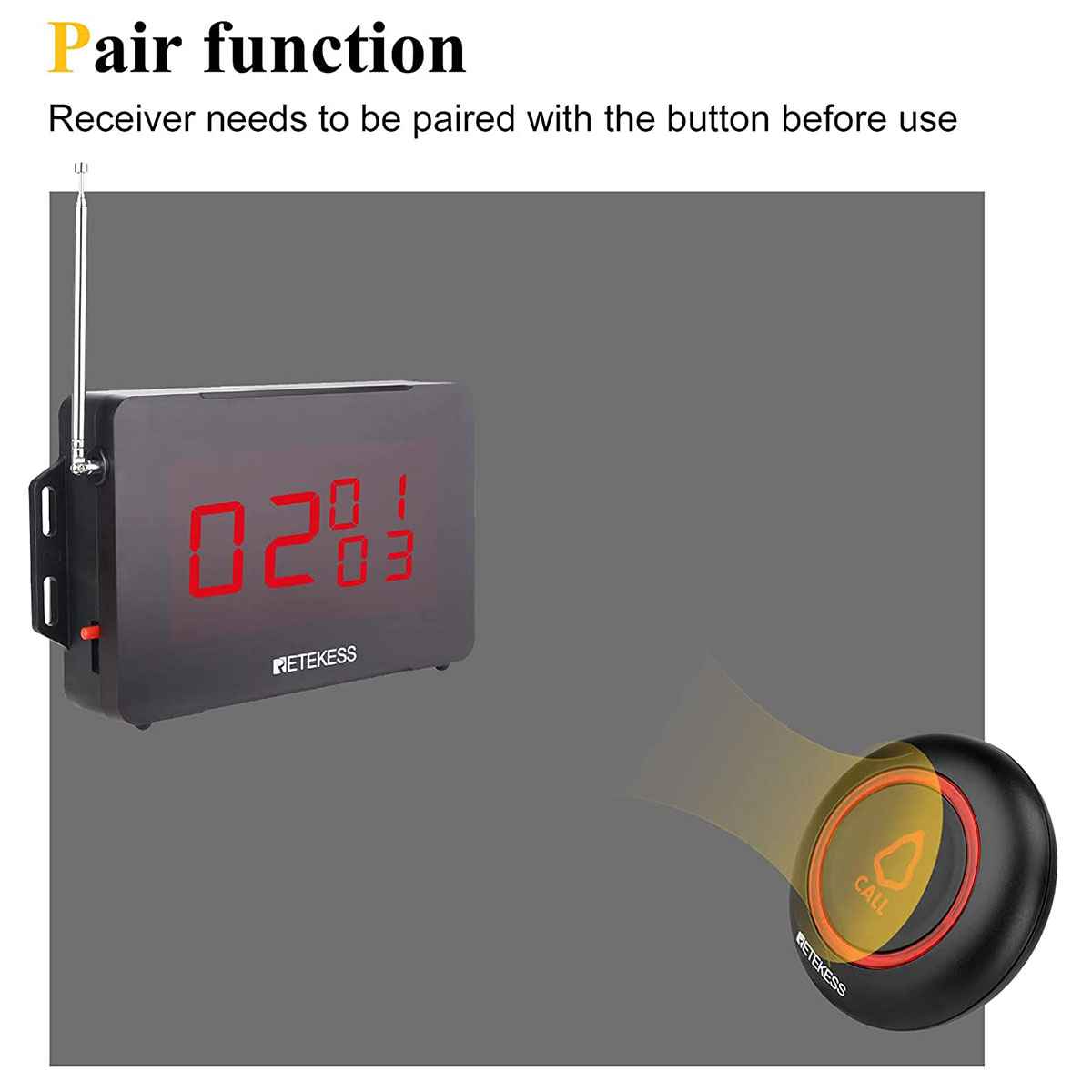

The receiver must be paired with the call button, when the guest needs service, ordering, or check out press the button corresponding to the pager on the table, then the receiver at the service counter displays the table number, and the waiter can go forward to provide the corresponding service after receiving the call.
Receive and display customer call information, broadcast and display call records to avoid missing
Optimize service environment and customer order management to improve service quality
Can realize humanized service and management
Simplify workflow, save labor cost and improve work efficiency
Maybe You Want to Know

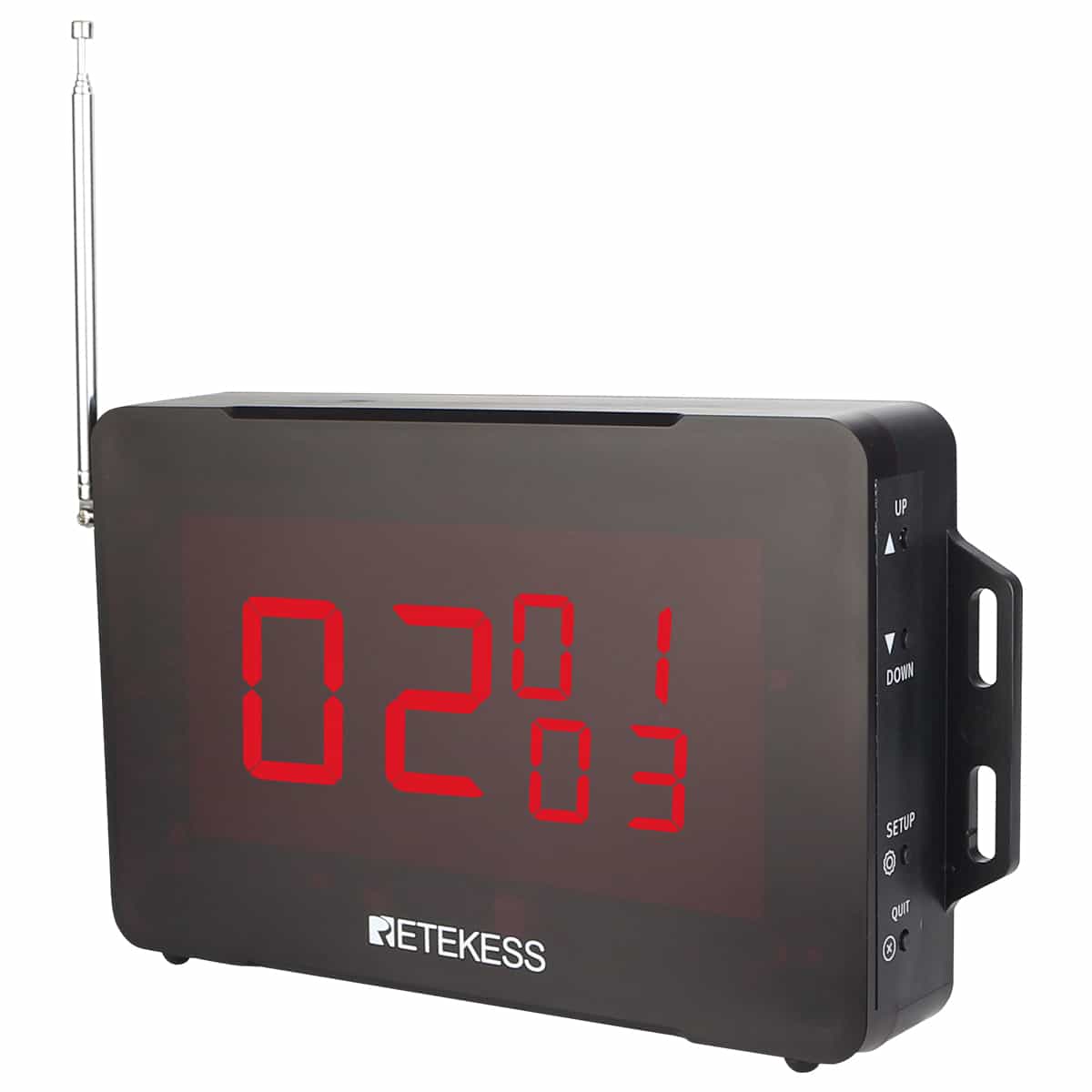

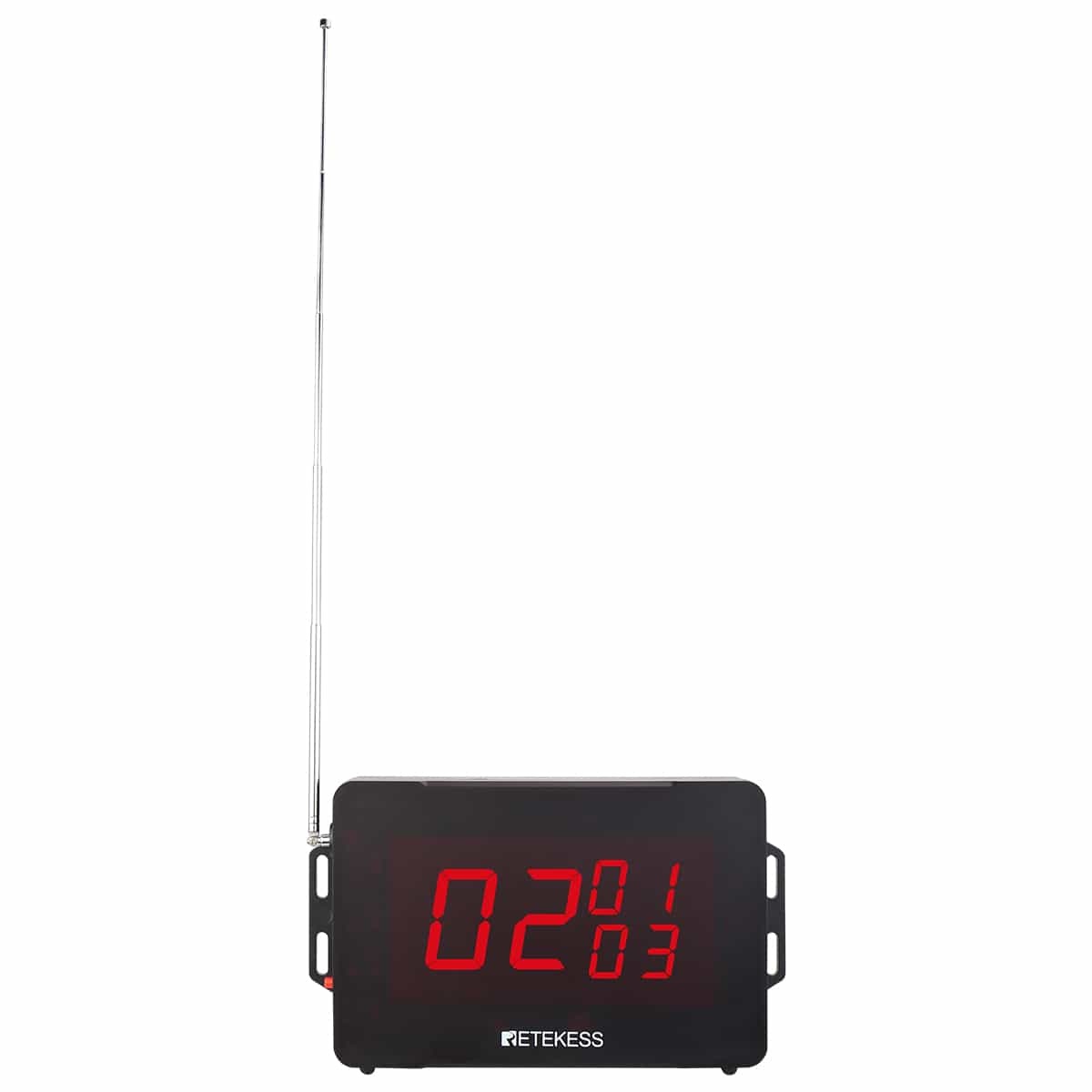

TD136 Display Receiver |
TD019 Call Button |
||
Dimension |
230*131*40mm |
RF frequency |
433.92MHz |
Material |
ABS |
Modulation mode |
ASK |
Modulation |
AM(OOK) |
Power |
3V/600mAh/CR2450 button lithium manganese dioxide battery (included) |
Rx Frequency |
433MHz |
Transmit power |
13dbm |
Standby time |
20h |
Standby power |
<1uA |
Battery |
550mAh |
Coding mode |
EV1527 |
Working hours |
4h~5h |
Rate |
3.3k |
Power Adapter |
INPUT:100-240V~50/60Hz 0.5A MAX OUTPUT:DC12V 1A |
Working current |
<15mA |
Product size |
φ55mm, H=18mm |

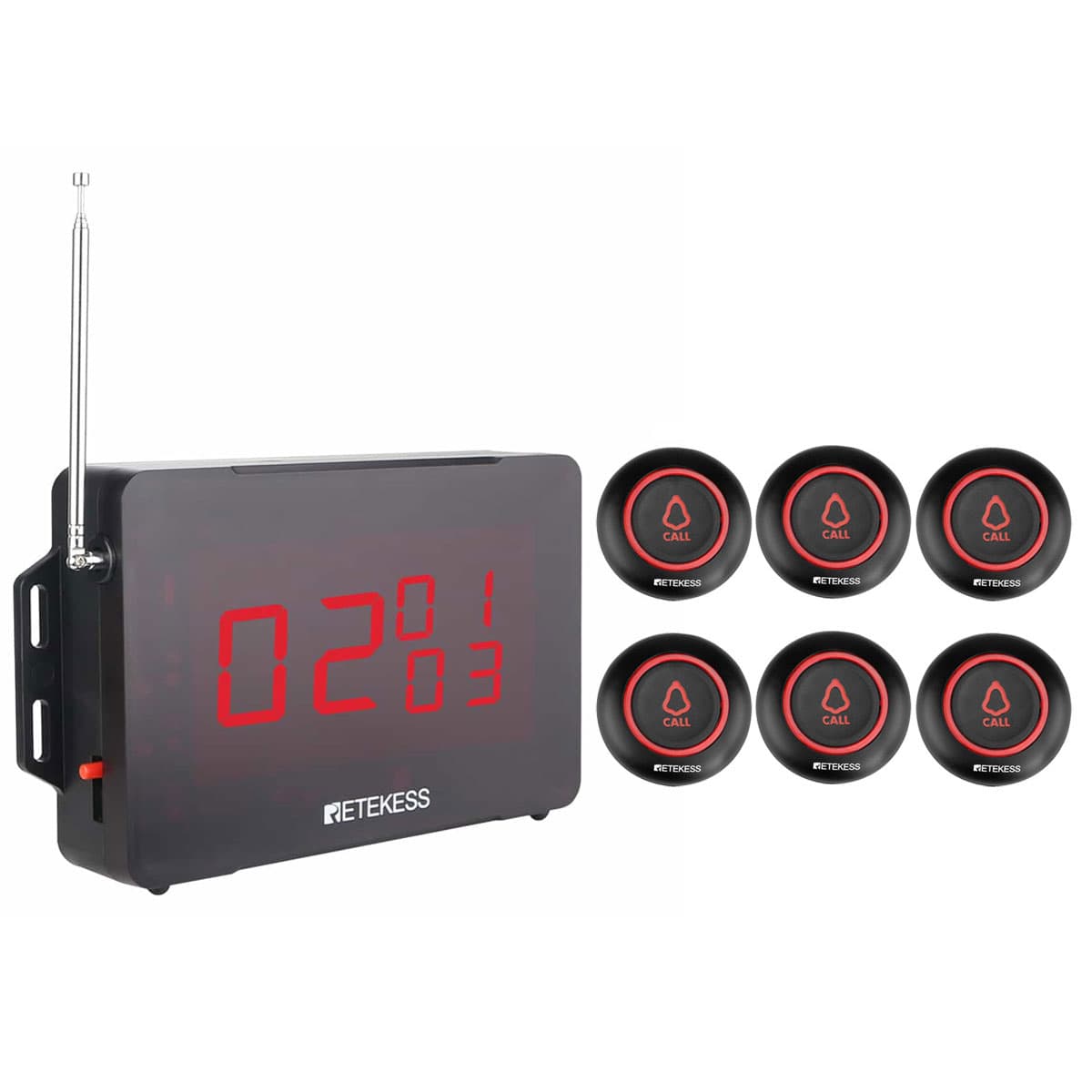

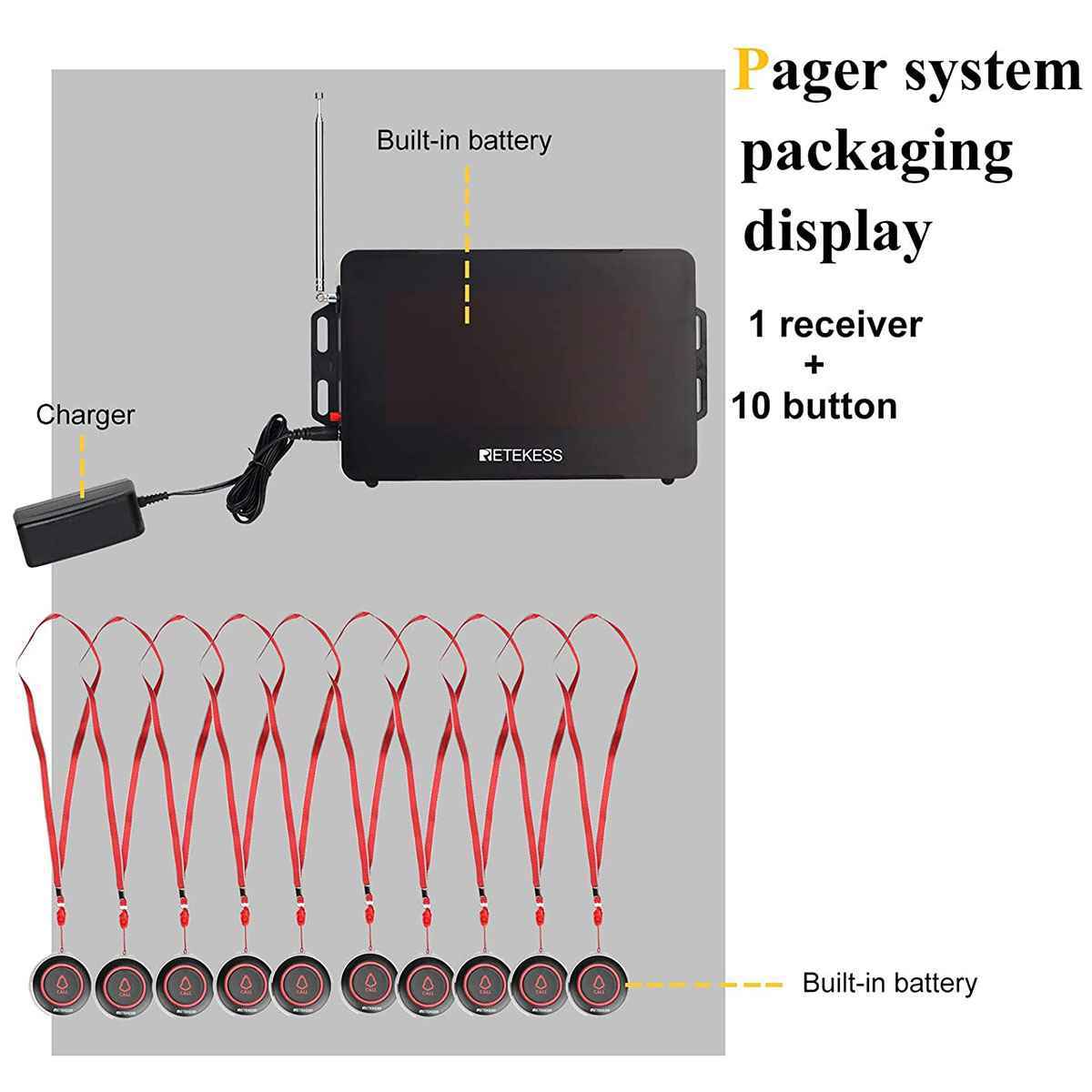

TD136 Display Receiver×1
Adapter ×1
Manual ×1

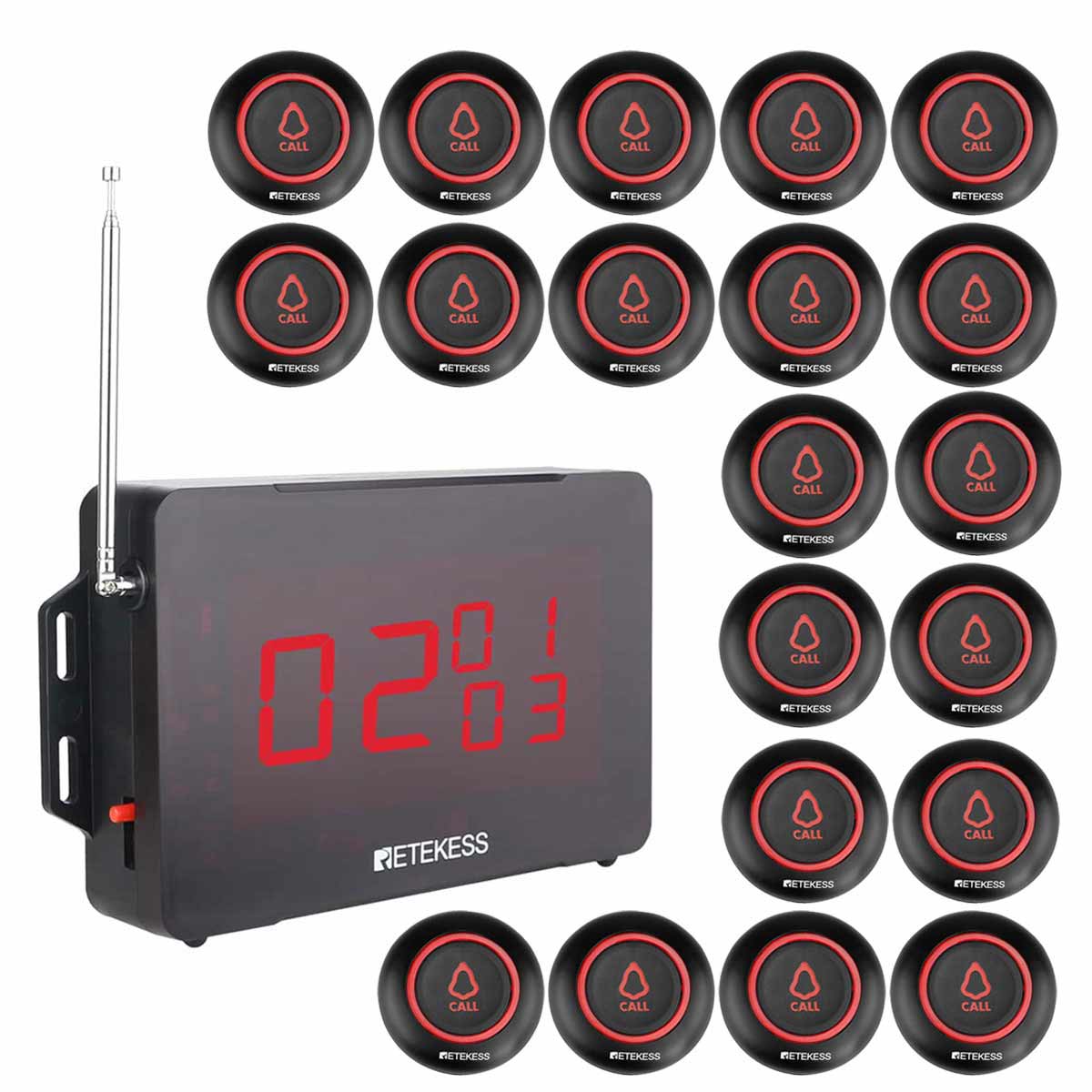

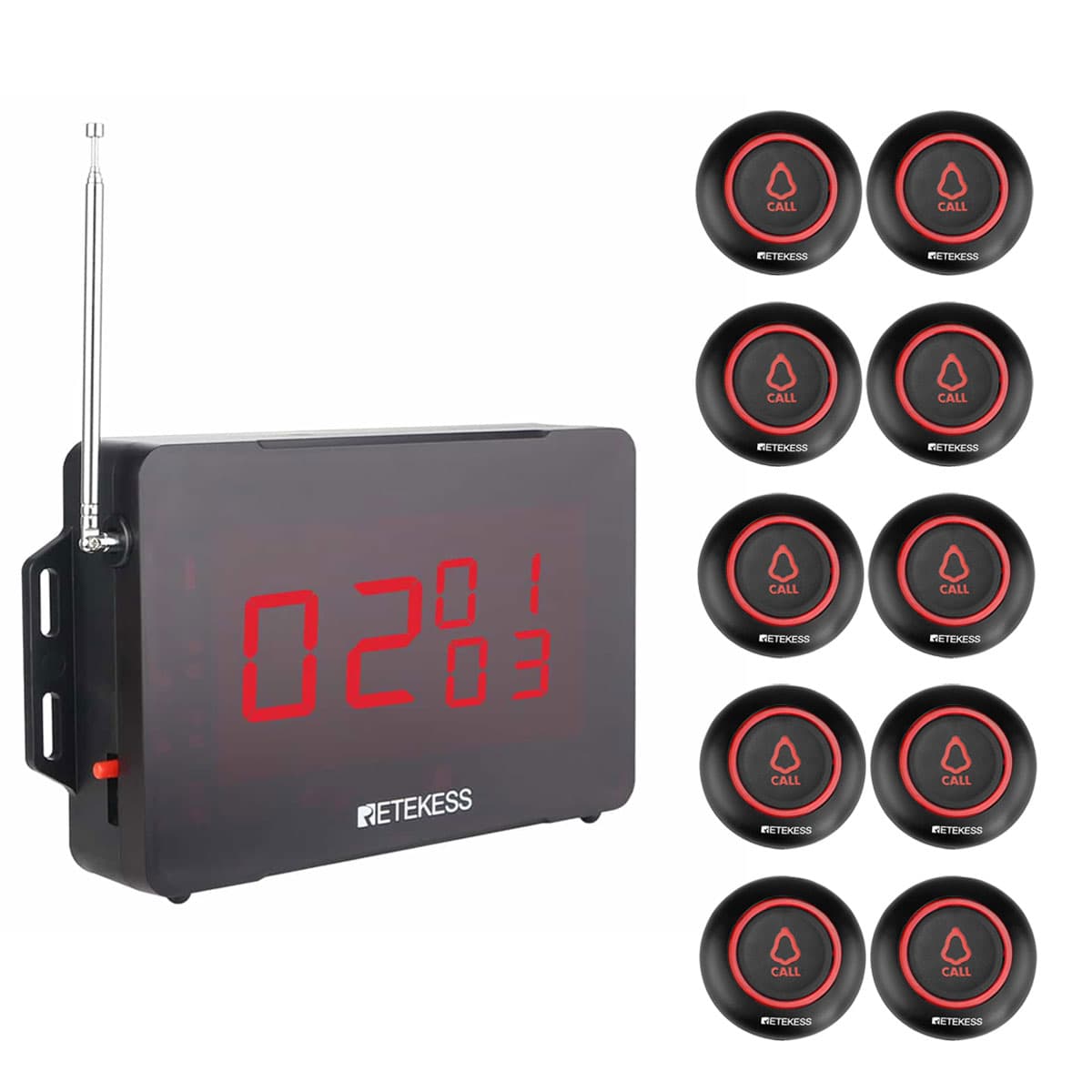

TD019 Call Buttons x 6/10/15/20 (optional)
A: Click here, and jump to the TD019 details page to purchase.
A: It depends on the working distance of the button transmitter. TD019 can reach 60 meters/ 200 ft in open areas
A: up to150 buttons
