Retekess TT106 Interpretation Systems Wireless Tour Guide System Ear Hook Receiver for Schools, Conference, Training, Assisted Listening

Order Status: In Stock Unavailable
Brand:


9999 channels

One-touch mute transmitter

Wireless ear hook receiver, no need for additional headphone

Easy to operate and durable

Allow two transmitters to speak at the same time

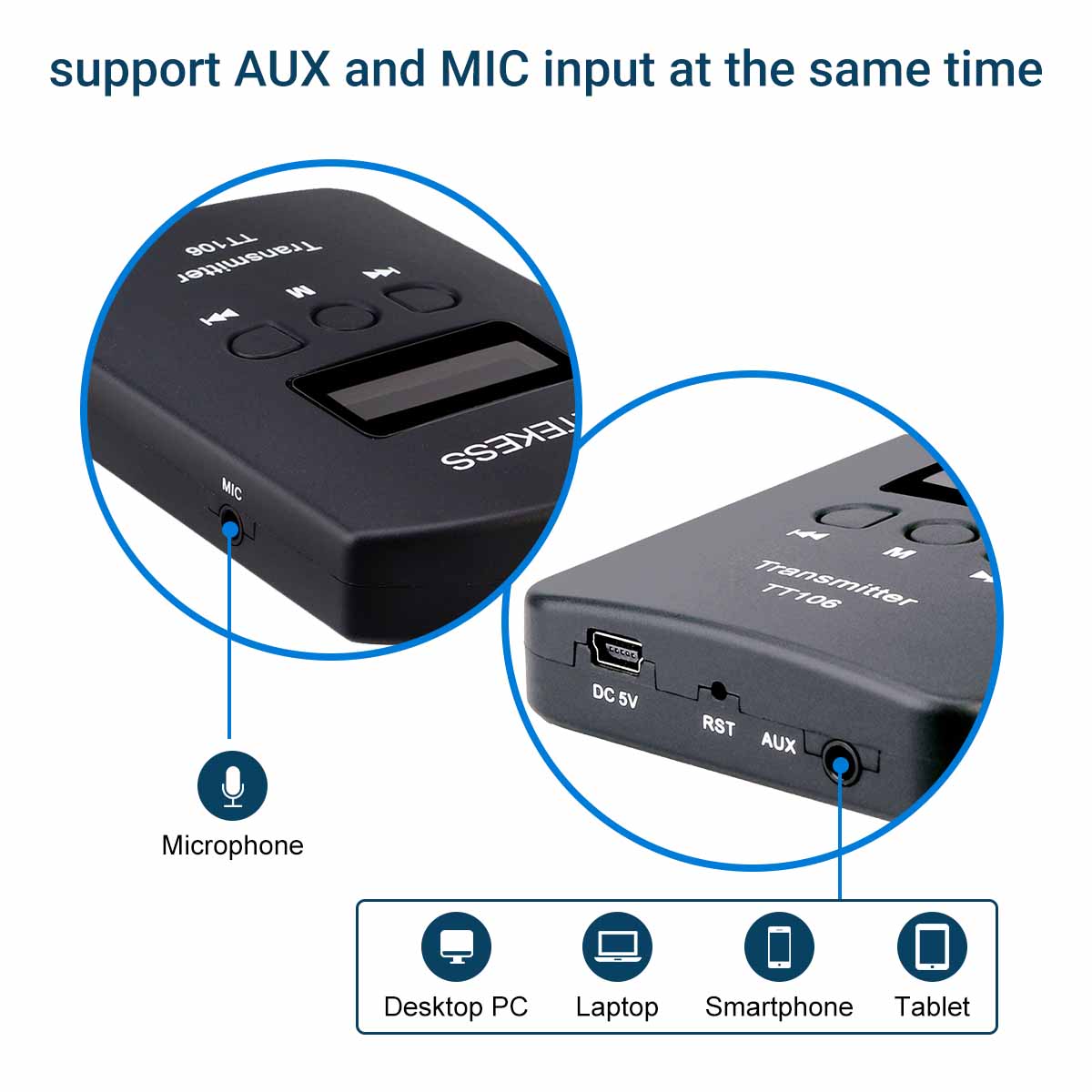

Support MIC and AUX input at the same time

Communication range up to 150 m/492 ft

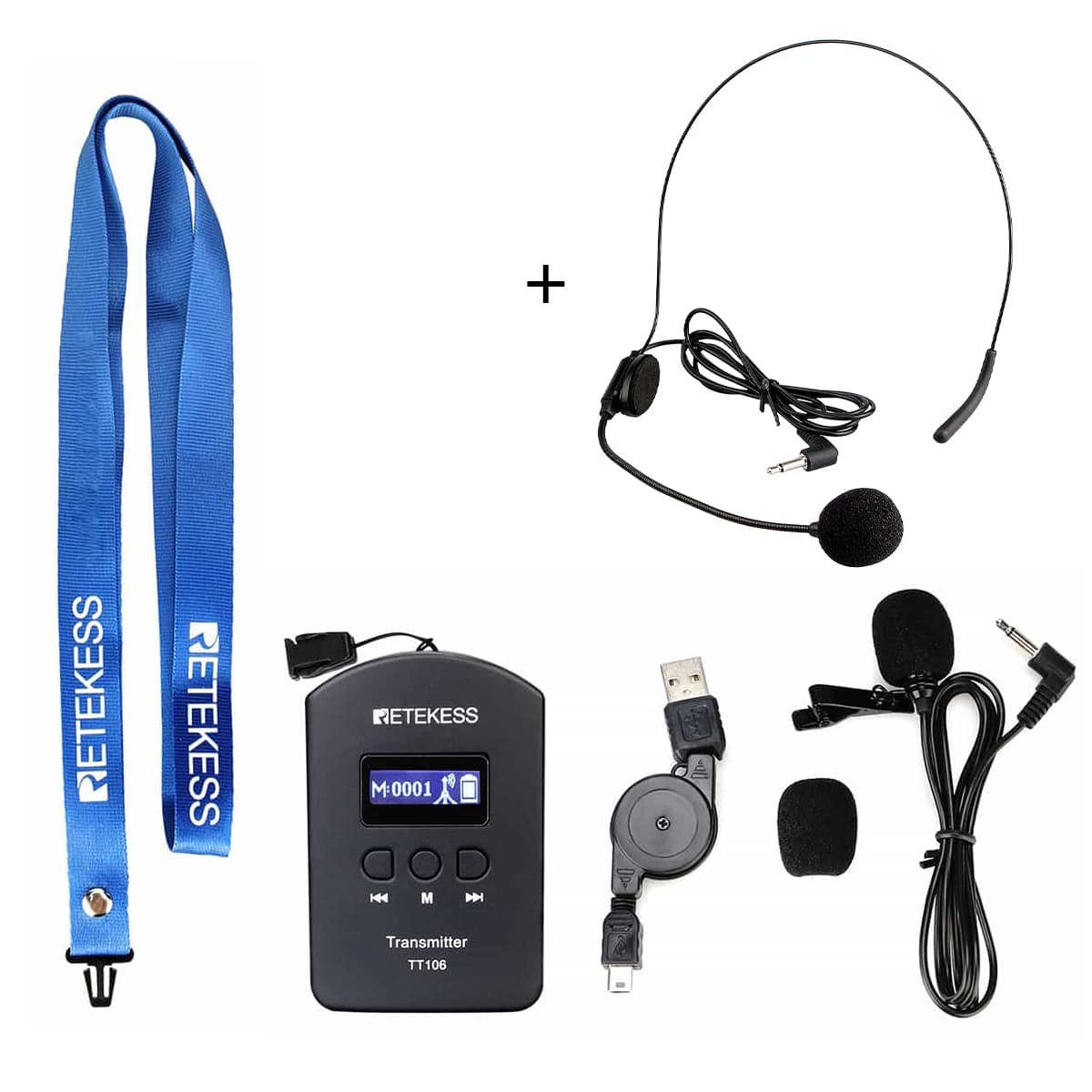

This Interpretation Systems kit includes:
- 4 transmitters (with mic)
- 60 receivers
- 1 64-slot charging case

-4 free headset microphone

In-stock in our US warehouse, get it within 2-5 business days.
Only 3 left in stock - order soon.


4 transmitters-60 receivers-1 64-port charging-case
14 People are Looking for this Product

Description

The Retekess TT106 tour guide interpretation system is a flexible, high-performance wireless audio solution perfect for schools, conferences, training, and assisted listening. Its lightweight ear hook receiver ensures comfort and mobility, while 9999 channels enable multiple groups to work seamlessly in the same area. For more detailed feature, view the following content!

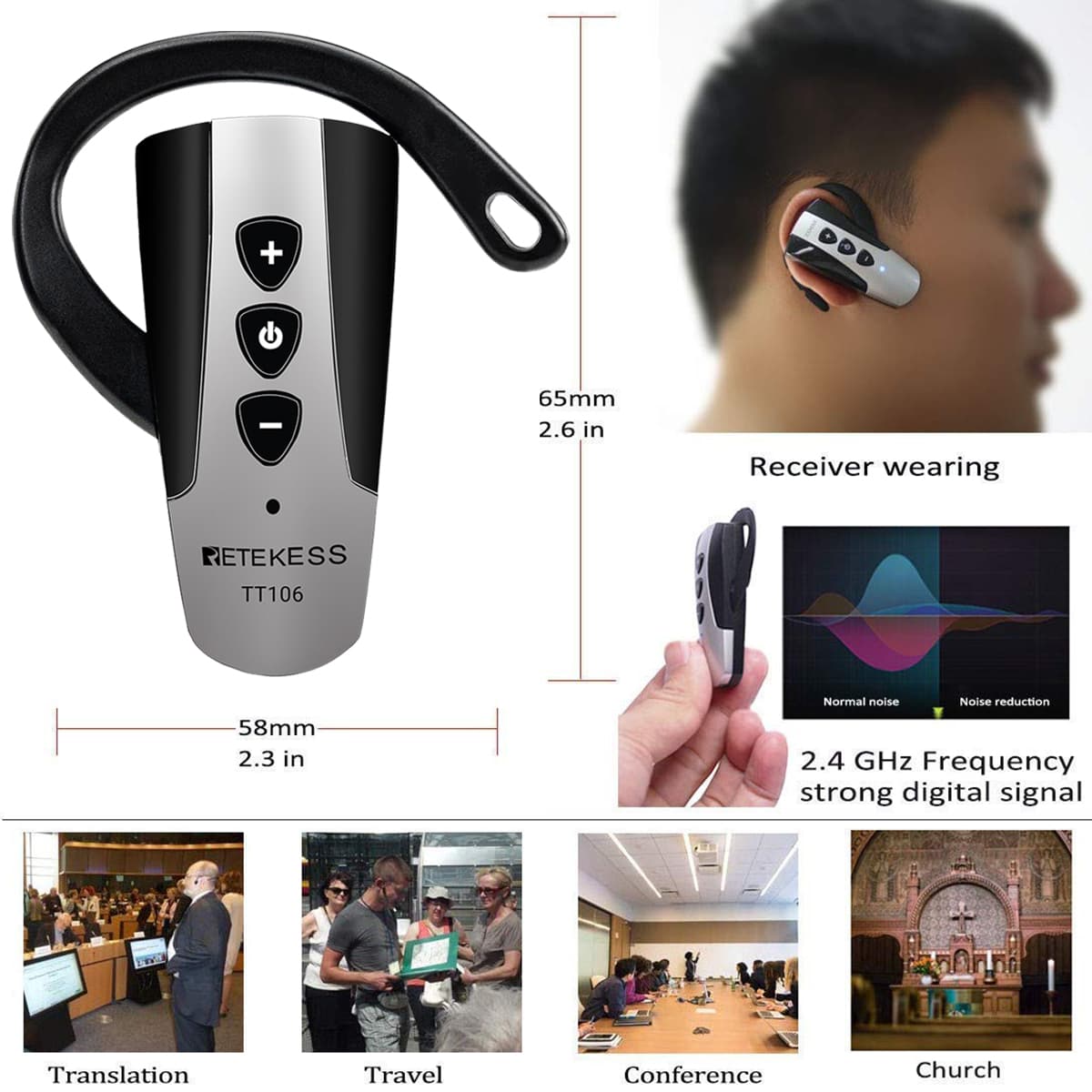

Wireless Ear Hook Receivers

TT106 wireless ear hook receiver eliminates the need to plug in additional headset cables, providing users with convenience and freedom of movement. Wireless design reduces the risk of cable tangles and allows students to focus on the class or presentation without any distractions. The volume up and down buttons on the receiver allow audiences the freedom to adjust the volume and hear clearly, regardless of their hearing ability or the noise level around them.

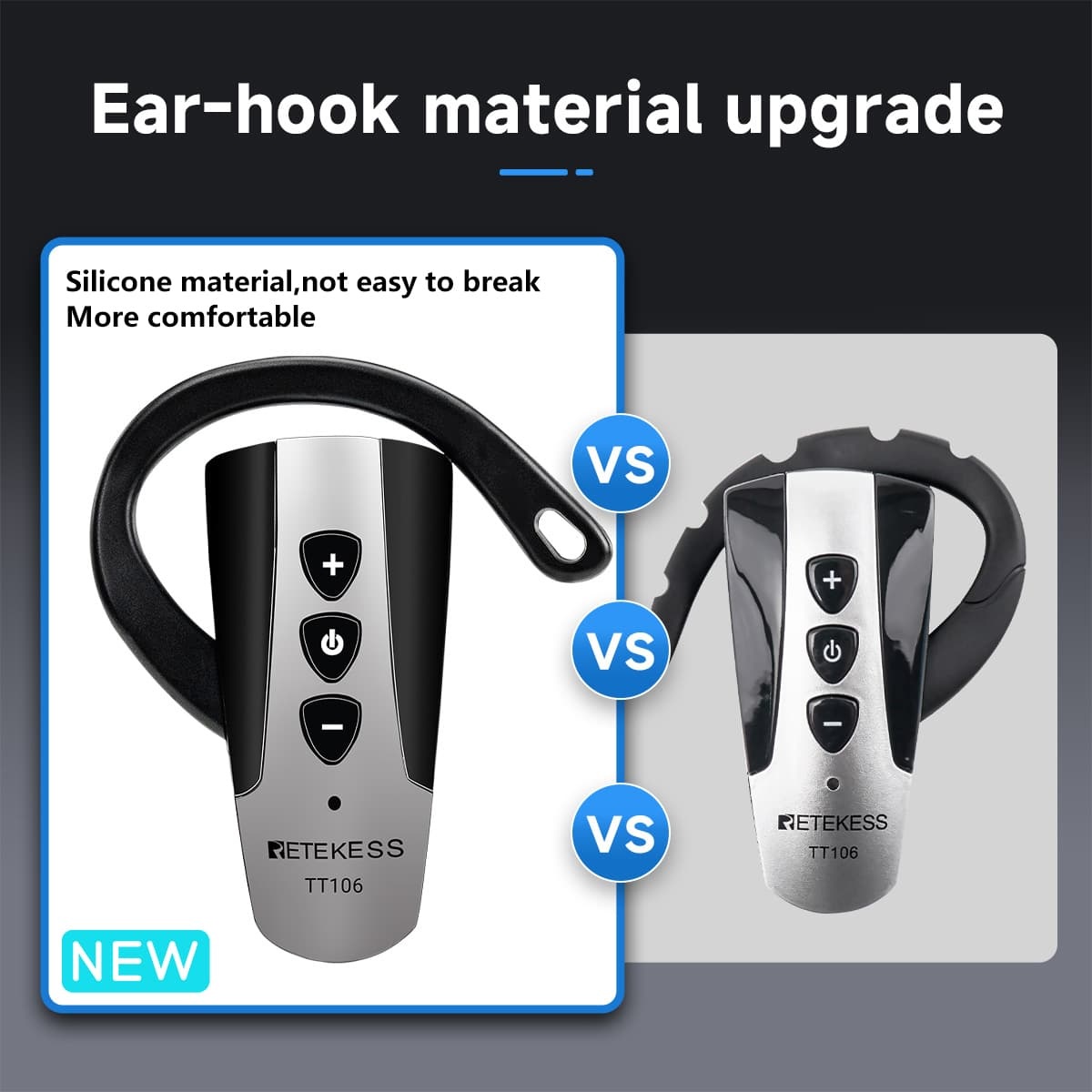

Now upgraded to full silicone material, more comfortable to wear, not easy to break.

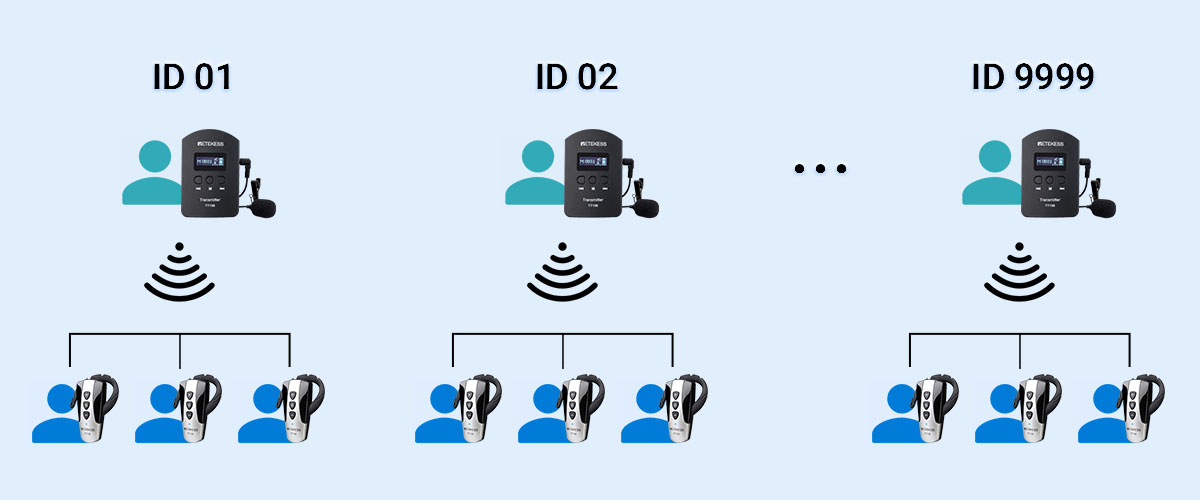

9999 Channel IDs

Translation devices for schools offer 9999 channels to choose from. Allowing you to set up multiple teams in the same area. This ensures clear and reliable communication between every translation team, even when there are many languages to be translated.

Flexibility to Add Receivers

The TT106 transmitter supports connecting any number of receivers and working together, allowing you to add or subtract receivers as group size changes. This means that whether it's a small group or a large crowd, the TT106 interpretation devices can accommodate all participants.

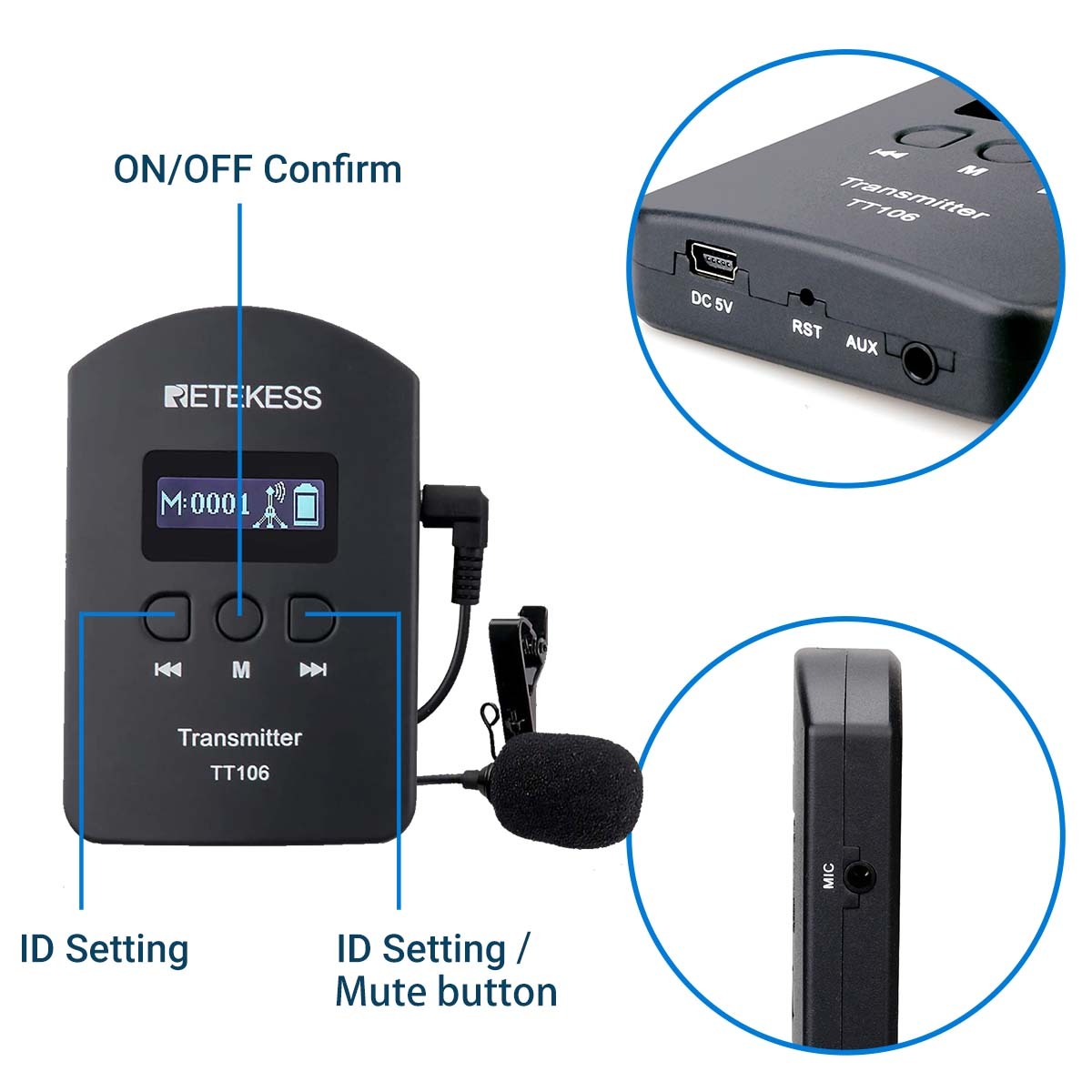

One-touch Mute Function

The transmitter with a convenient one-button mute function, which allows you to interrupt audio transmission by just clicking the right button. This feature allows presenters or interpreters to quickly mute the microphone when needed, avoiding the transmission of unwanted sound to the receiver and increasing flexibility and control over the communication process.

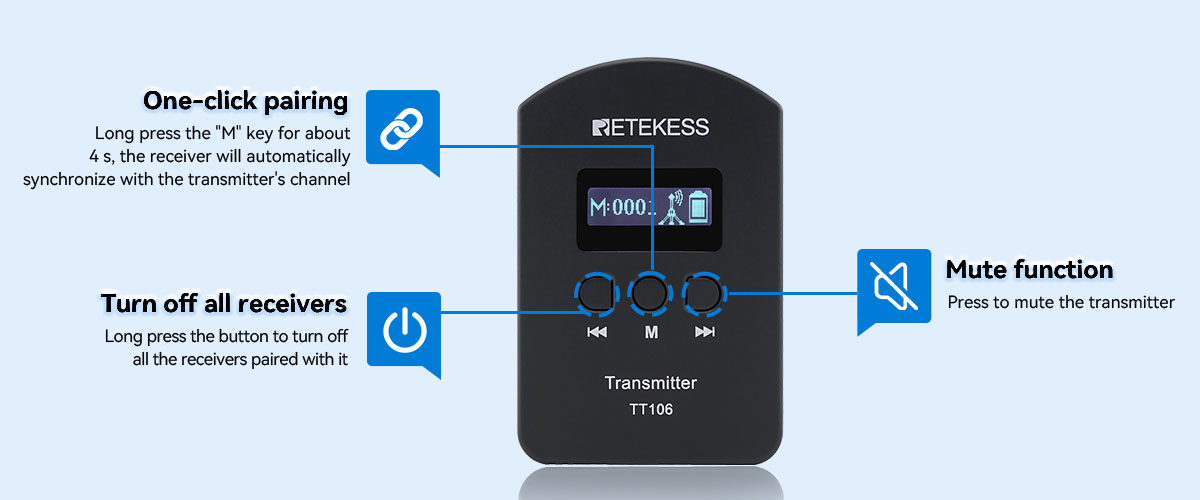

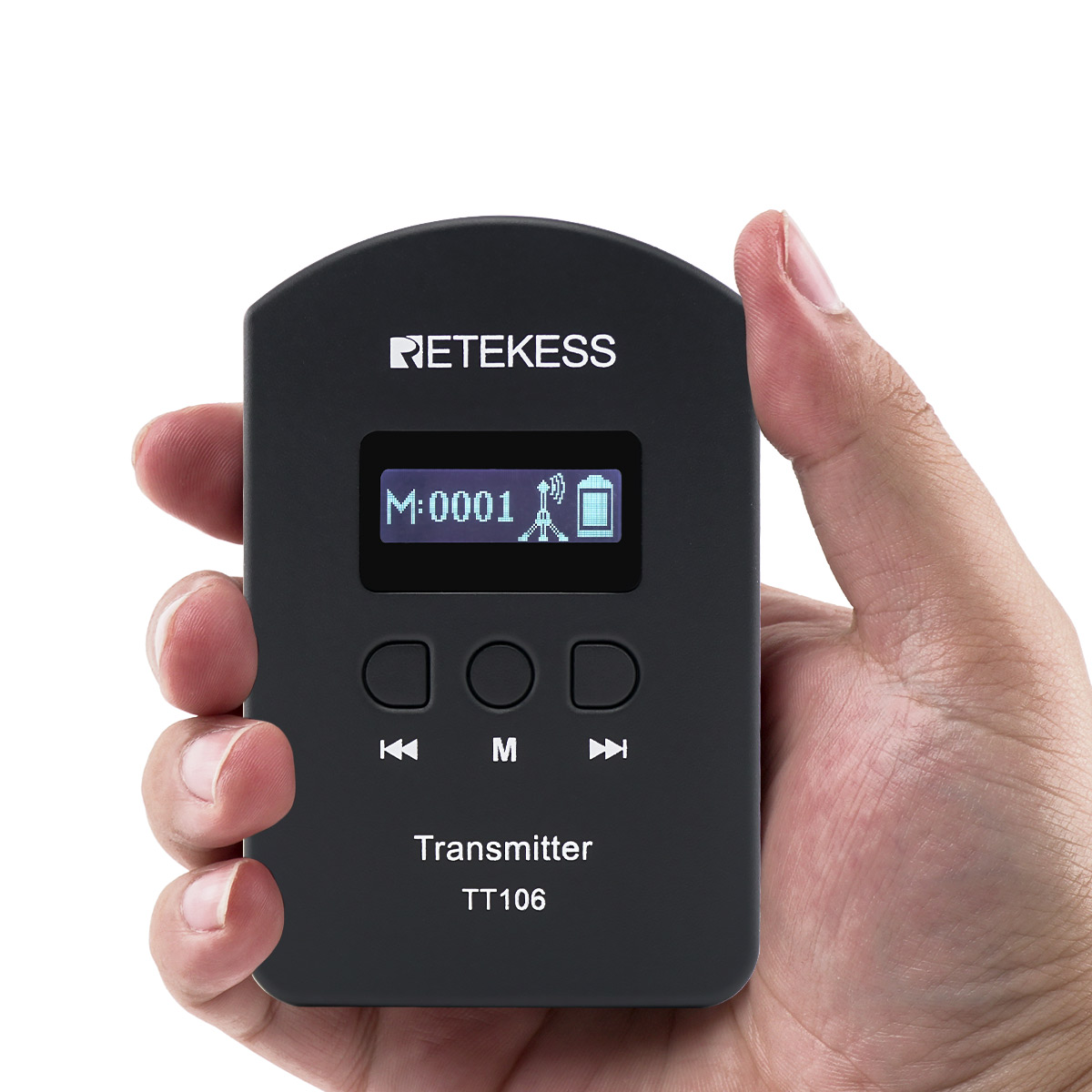

Easy to use

Translation Equipment Supports Auto-pairing: the transmitter and receiver can automatically synchronize channels, simplifying the setup process. No need to manually set them up one by one, thus saving time and effort.

One-touch Shutdown of All Receivers: To simplify the shutdown process, Retekess wireless interpretation system supports one-touch shutdown of all paired receivers. This feature simplifies the power-off procedure saves time, and ensures the effective shutdown of devices at the end of school event.

Operating Time of Interpretation Systems

The transmitter can be fully charged in less than 3 hours and can be used continuously for up to 25 hours. The receiver can be fully charged in 2 hours and provides up to 23 hours of operation. The long battery life ensures that the device can be used throughout the day without frequent charging.

Communication Range

The tour guide interpretation system has an operating range of up to 150 meters / 492 feet in open areas. This extended range ensures that participants can spread out and move freely within a designated area while receiving clear, uninterrupted audio transmission. It is especially useful in larger classrooms, auditoriums, or outdoor school events.

2.4GHz Global Public Frequency

The Retekess tt106 interpretation system operates on the 2.4GHz frequency band. This band is widely used and license-free worldwide, ensuring compatibility and interference-free communications in a variety of international environments.

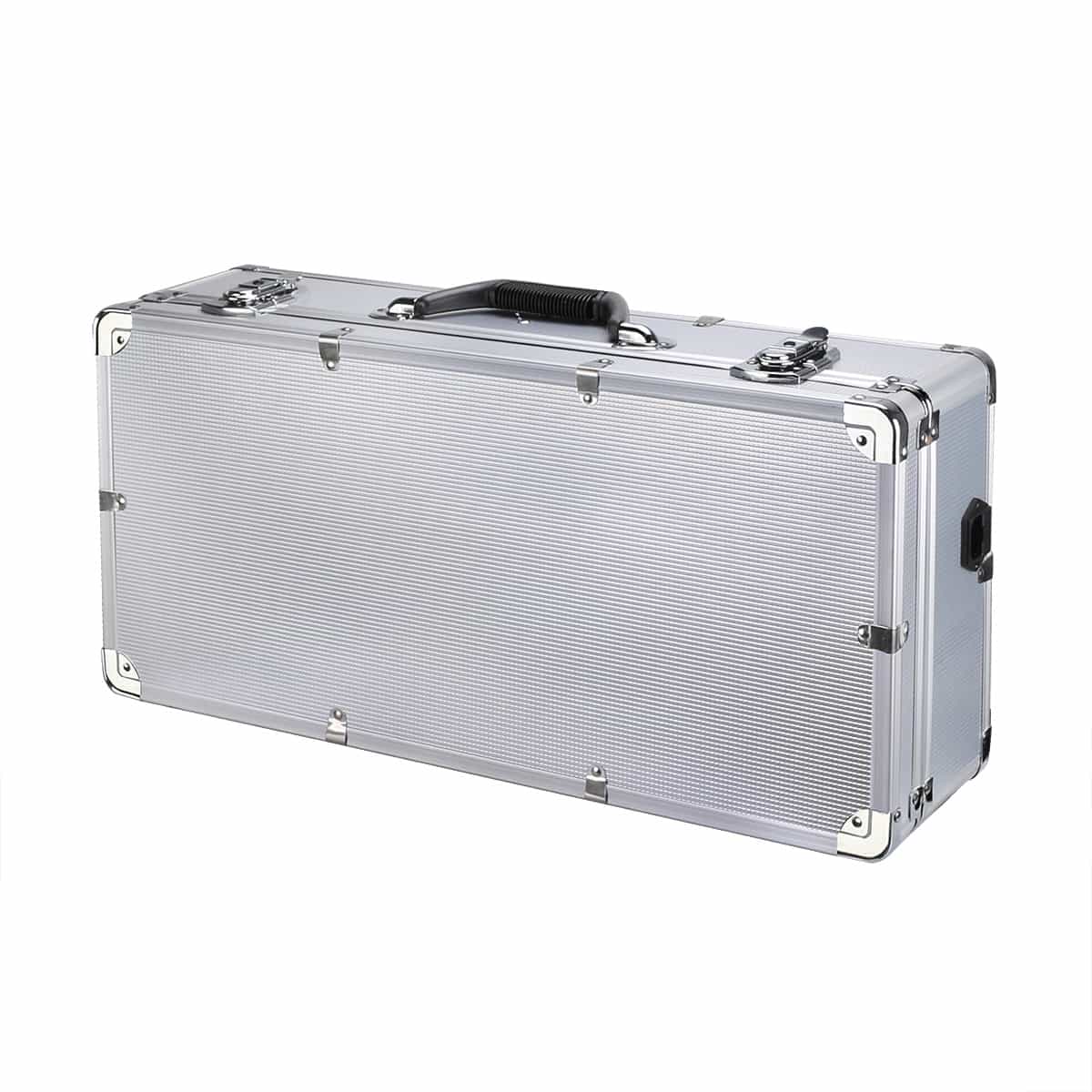

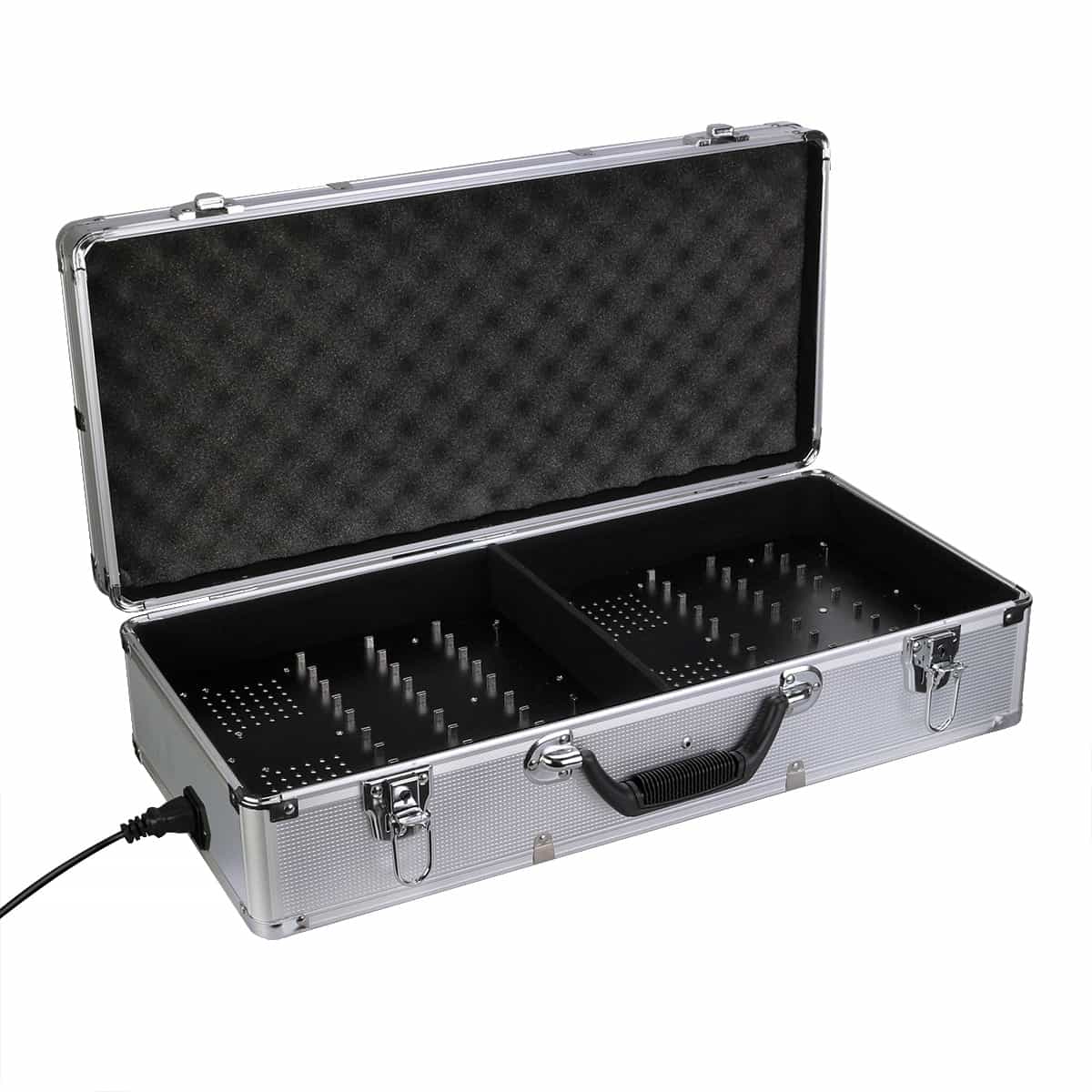

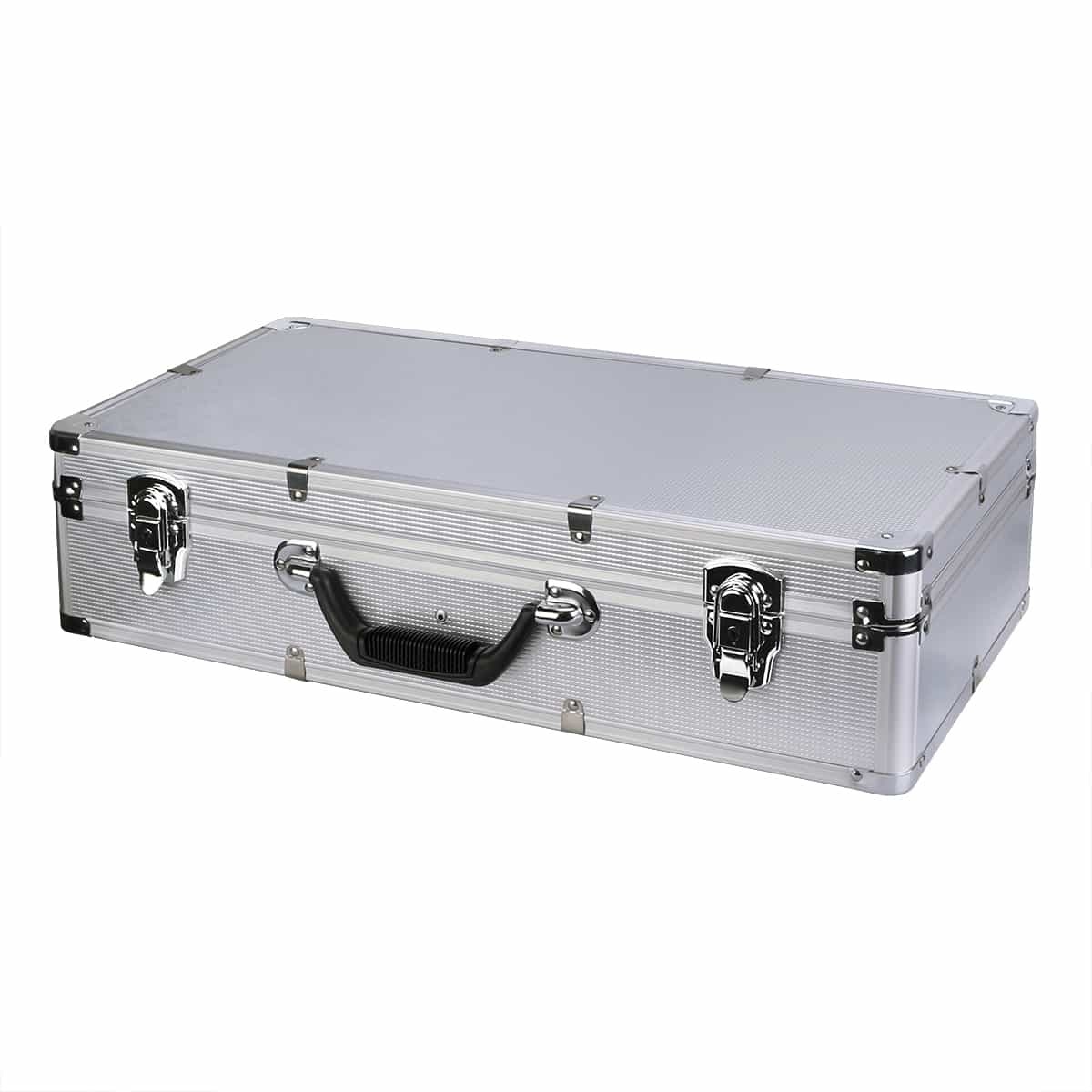

Portable Charging Case

The wireless interpretation system comes with a portable 64-port charging case, that can be used as both a batch charging unit and a carry case. It comes with a portable handle that holds the transmitter, receiver, lanyard, and microphone, and can be easily carried to different locations around campus, providing a convenient and organized solution for transport and storage.

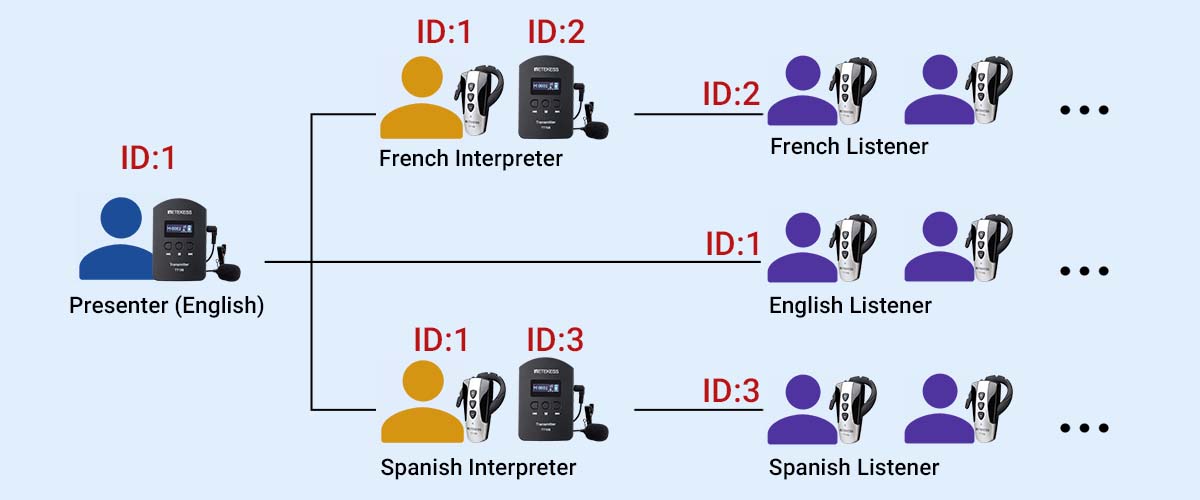

How does the Interpretation System work?

Functional comparison between TT106 and TT106S

TT106S: Using technological innovation to bring lower prices and better functions

TT106 TT106S
Working Range(Open area) 150m/492ft 200m/656ft
Battery runtime Transmitter 24 hours
Receiver 23 hours
Transmitter 23 hours
Receiver 50 hours
Sound quality Normal

Signal-to-noise ratio ≥80dB

Display Reflection exists

Strong light is still clear

Auto pairing
One-touch mute
MIC Input
AUX Input
One-touch shut down of all receivers
Weight Transmitter 0.15 pounds
Receiver 0.04 pounds
Transmitter 0.158 pounds
Receiver 0.04 pounds
Receiver automatically shuts down / No signal for 20 minutes
Number of channels 9999 9999

Note: TT106S is not compatible with TT106

Spec

Transmisor

Frecuencia

433.92MHz

LCD

Pantalla de 4 tubos digitales

Método de modulación

ASK

Poder de transmision

360mW

Distancia de trabajo

500 metros (al aire libre)

Botón

táctil capacitivo 4*5

Potencia de entrada

Batería CC 12 V/1 A o AAA*3

interfaz USB

conectar a USB-A (hembra)

Tamaño del producto

136mm*90mm*35mm

Buscapersonas

Frecuencia

433.92MHz

LCD

Pantalla de 4 tubos digitales

modo de aviso

vibrar, pitido, parpadear,

Tiempo de espera

alrededor de 20 horas

Batería

Batería de litio incorporada de 300 mAh

recordar el tiempo

0-99 definido por el usuario

Recepción de sensibilidad

-113dBm

Grado impermeable

IP67 a prueba de agua y polvo

teclas táctiles

Una tecla de silencio

Tamaño del producto

52mm*100mm*15mm

base de carga

Ranuras de carga

10

Expansión

3 conexiones

Soporte

soporte de base de hardware (opcional)

Potencia de entrada

DC 12V/2A

Tamaño del producto

167*120*190mm

Listado de paquetes:

Paquete

1 x transmisor-

10 buscapersonas

El paquete incluye

1 x Transmisor

10 x Buscapersonas

1 x base de carga

2 x Adaptador

1 x manual

1 x transmisor-

20 buscapersonas

1 x Transmisor

20 xBuscapersonas

2 x base de carga

2 x Adaptador

1 x manual

1 x Soporte

1 x transmisor-

30 buscapersonas

1 x Transmisor

30 x Buscapersonas

3 x base de carga

2 x Adaptador

1 x manual

1 x Soporte



Specification:

TT106 Wireless Transmitter TT106 Wireless Receiver
Frequency Range 2400~2483MHz Frequency Range 2400~2483MHz
ID Number 9999 ID Number 9999
Supply Voltage DC3.7V Supply Voltage DC3.7V
Transmitting power <=50mW TIS -90dBm
Frequency stability ±0.001 Frequency stability ±0.001
SNR 80dB SNR 80dB

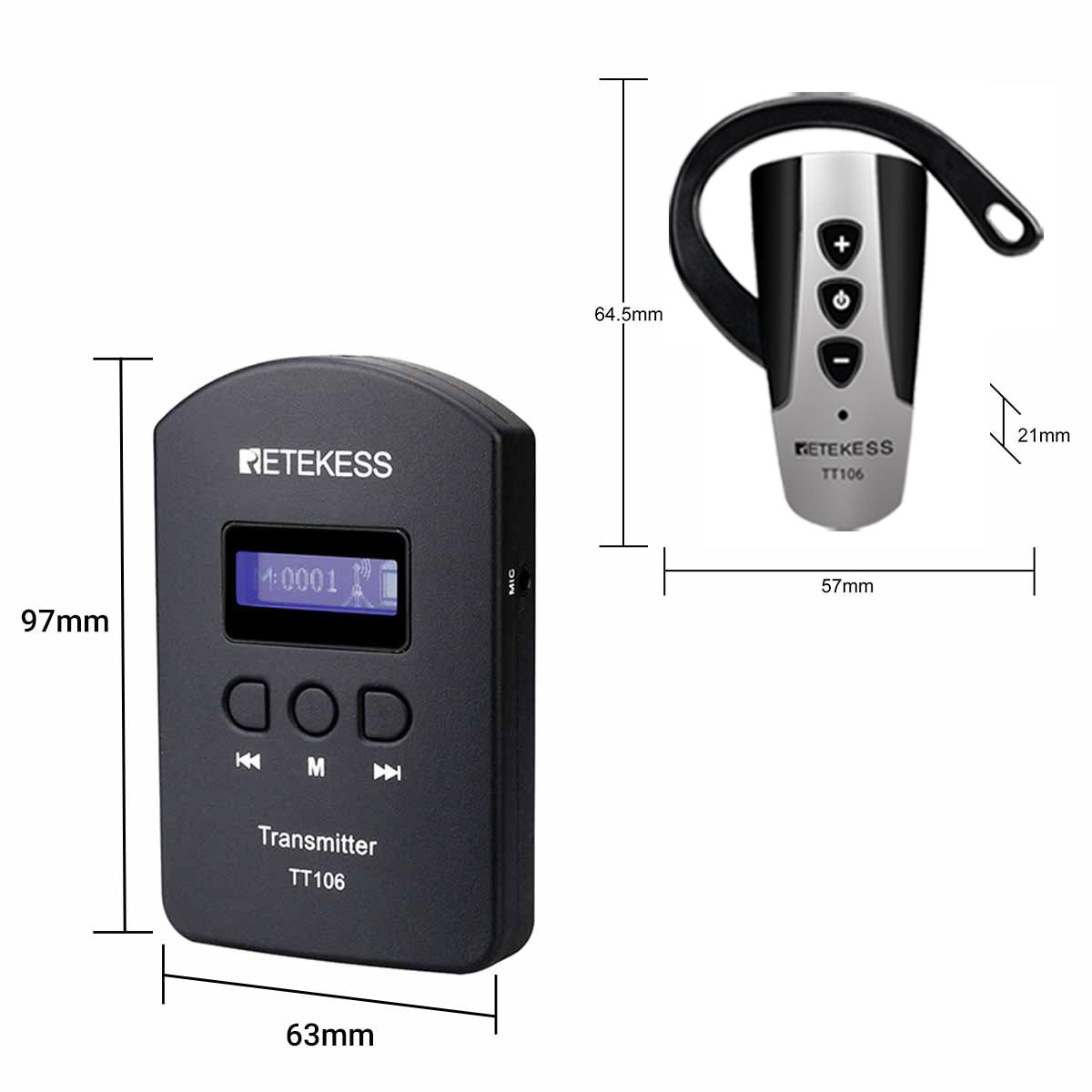

Size 97*63*18mm Size 65*58*11mm
Weight 70g Weight 18g
Charge time 3H Charge time 2H
Working time 25H Working time 23H
Battery specification 3.7V/1300mA Battery Specification 3.7V/380mA
Charge Jack MINI USB Charge Jack MINI USB
Modulation frequency deviation ±320KHz Modulation frequency deviation ±320KHz
Working current 62mA Working current 15mA
Communication range 150m (open air) Standby current 1mA
Charging voltage DC5V Charging current 320mA
Communication range 150m (open air)
Charging voltage DC5V

Specification of TT006 64-slot charging case:

Input properties Input voltage AC90-250VAC, 47~63Hz
AC input current 1.5A/230VAC
Power supply efficiency 76%
Inrush current cold start current 36A/230V
Leakage current <2mA/240VAC
Output characteristics DC output voltage 5V
Output voltage tolerance ±1%
Output current range 0~7A (single power supply)
Output power 140W
Ripple and noise 80mVp-p
Protection characteristics Overload protection Overload protection starts at 115%~135% of rated output power
Protection mode: hiccup mode, automatically recovers after abnormal load conditions are removed
Overvoltage protection 145%~170% of rated output voltage
Protection mode: hiccup mode, automatically recovers after abnormal conditions are removed
Over-temperature protection When the internal contact temperature of the transistor exceeds 150°C, over-temperature protection is activated.
Protection mode: hiccup mode, automatically resumes when the temperature returns to normal
working environment Working temperature and humidity -10℃~+60℃; 20%~90%RH (please refer to the load derating curve)
Safety Voltage resistance Between input and output: 1.5KVAC Input and ground: 1.5KVAC Output and ground: 0.5KVAC
Insulation resistance between input and output: input and ground, output and ground: 100M Ohms/500VDC
Size 575 x290 x 140mm
Weight 4320g
Remarks: 1. Unless otherwise specified, all parameters are measured under the conditions of 230VAC voltage input, rated load and 25℃.
2. The ripple and noise voltages are measured on a 20MHz bandwidth oscilloscope with 0.1u and 47u capacitors added to the end of a 12-inch twisted pair.
3. Tolerance is the sum of voltage setting error, voltage regulation rate and current regulation rate.

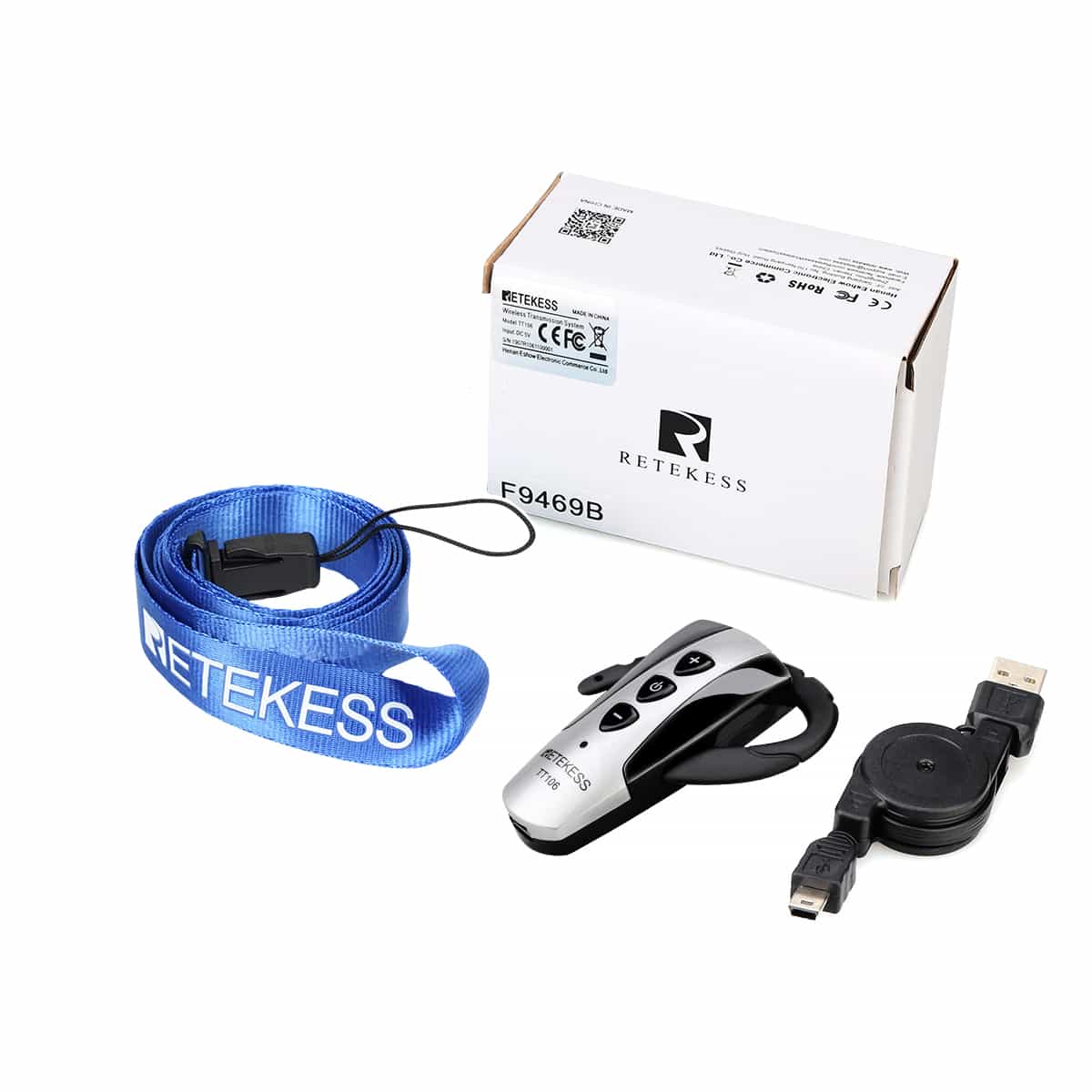

Package Includes:

4 X TT106 transmitter

4 X Lavalier microphone

60 X TT106 receiver

64 X Charging cable

1 X 64-slot charging case

1 X  User manual

4 X Headset Microphone





Features

P: ¿Cuál es el alcance de este sistema de localización de restaurantes TD177?

R: El alcance es de hasta 500 metros en área abierta.

P: ¿Cuánto dura la batería con una sola carga?

R: puede estar en espera durante aproximadamente 24 horas.

P: ¿Puedo configurar diferentes modos de aviso para el buscapersonas?

R: Sí, hay tres modos de aviso diferentes: vibración, pitido y parpadeo.

P: ¿Impermeable?

R: Los buscapersonas admiten resistencia al agua IP67.

P: ¿Se pueden configurar los números de buscapersonas al mismo tiempo incluso si todos los buscapersonas están colocados en tres estaciones de carga?

R: Sí.

Si aún tiene otras preguntas, no dude en contactarnos por teléfono al +86-15639073051 o por correo electrónico a support@retekess.com



Q: How many pieces of receivers can i use in one group?

A: It max support 9999 channels

Q: Can i use 2 pieces of transmitters in one group?

A: Yes, you can. All the receivers will get 2 transmitters' signals at the same time.

Q: How long can i use the transmitter and receivers?

A: The transmitters use a 1300mAh battery, it can work 25 hours once you charge fully.

and receives use 300mAh battery, can work up to 20 hours.

Q: Can i use the wireless tour guide system in my country?

A: There system adopts 2.4G technology, it is free in the whole world. Of course, you can use it.

Q: Can i buy another type charging box for it?

A: Yes, we also have 32 ports, you can contact us to get the price.
