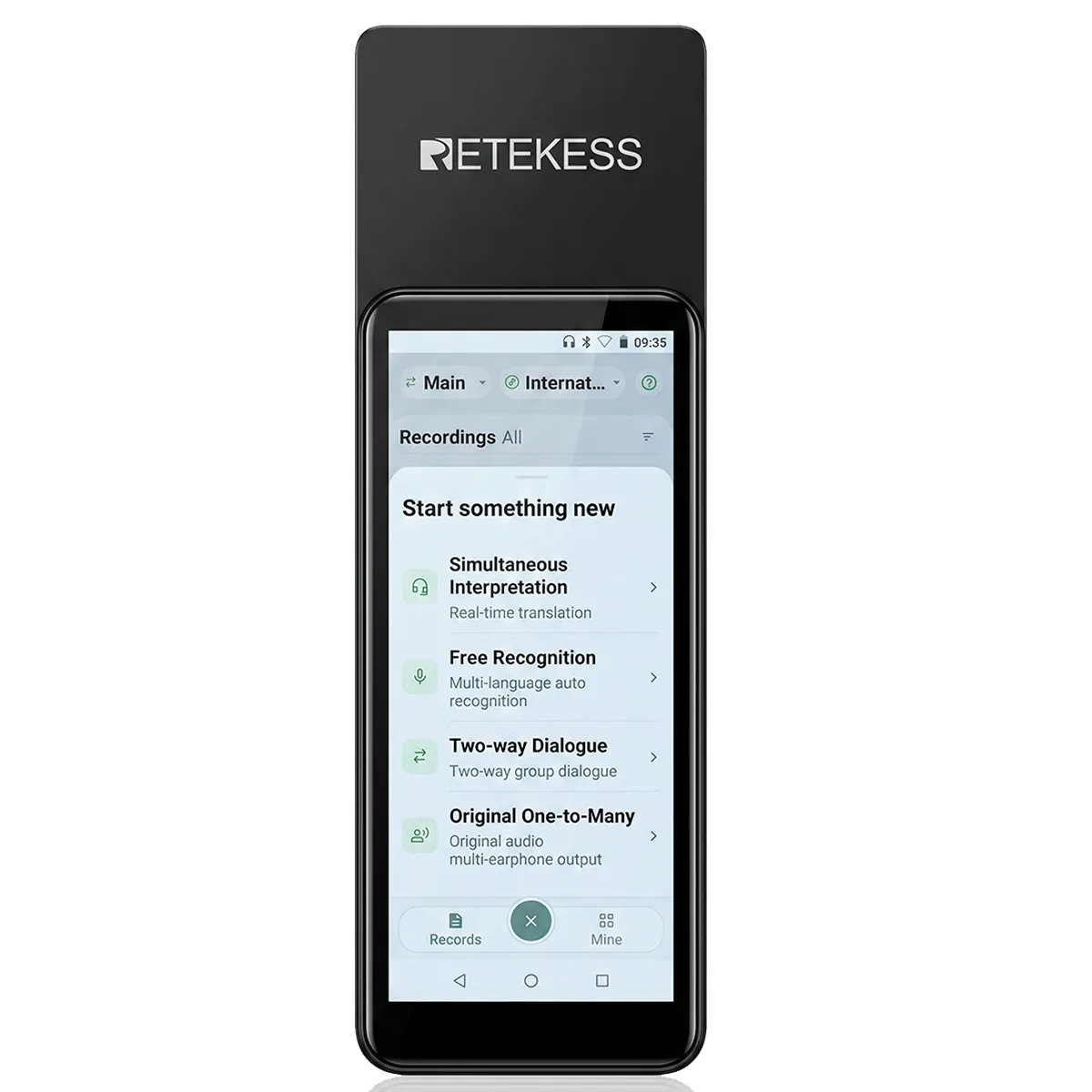

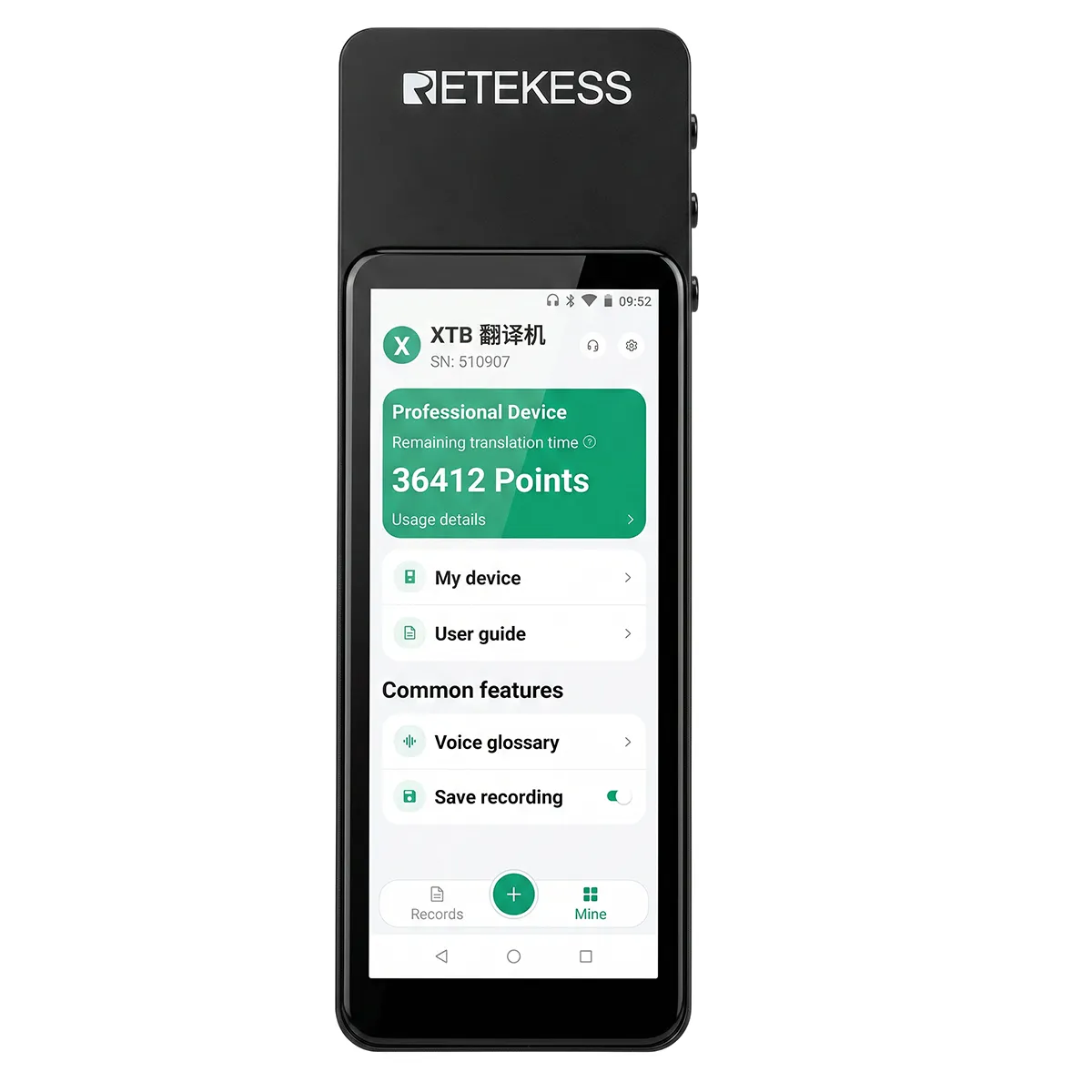

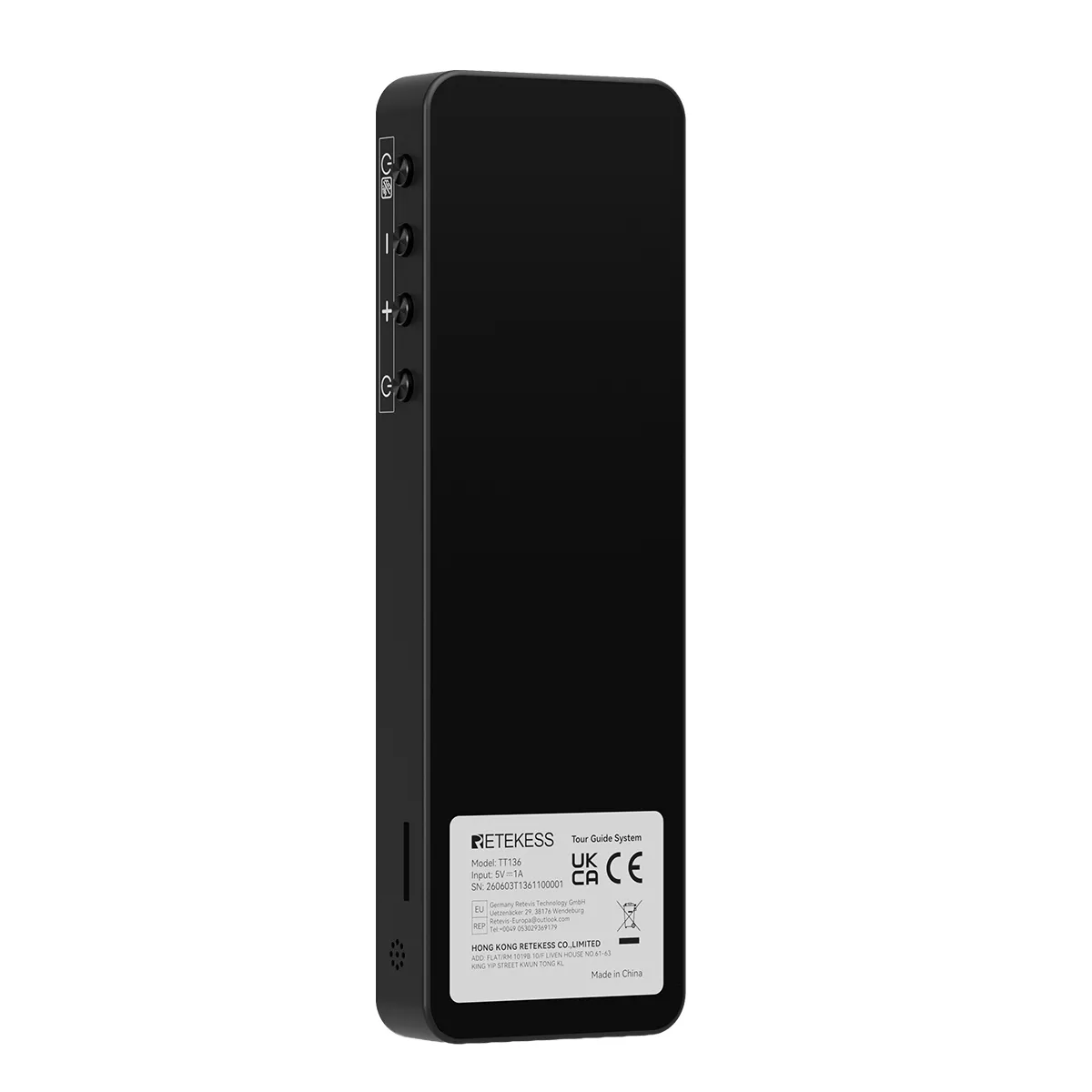

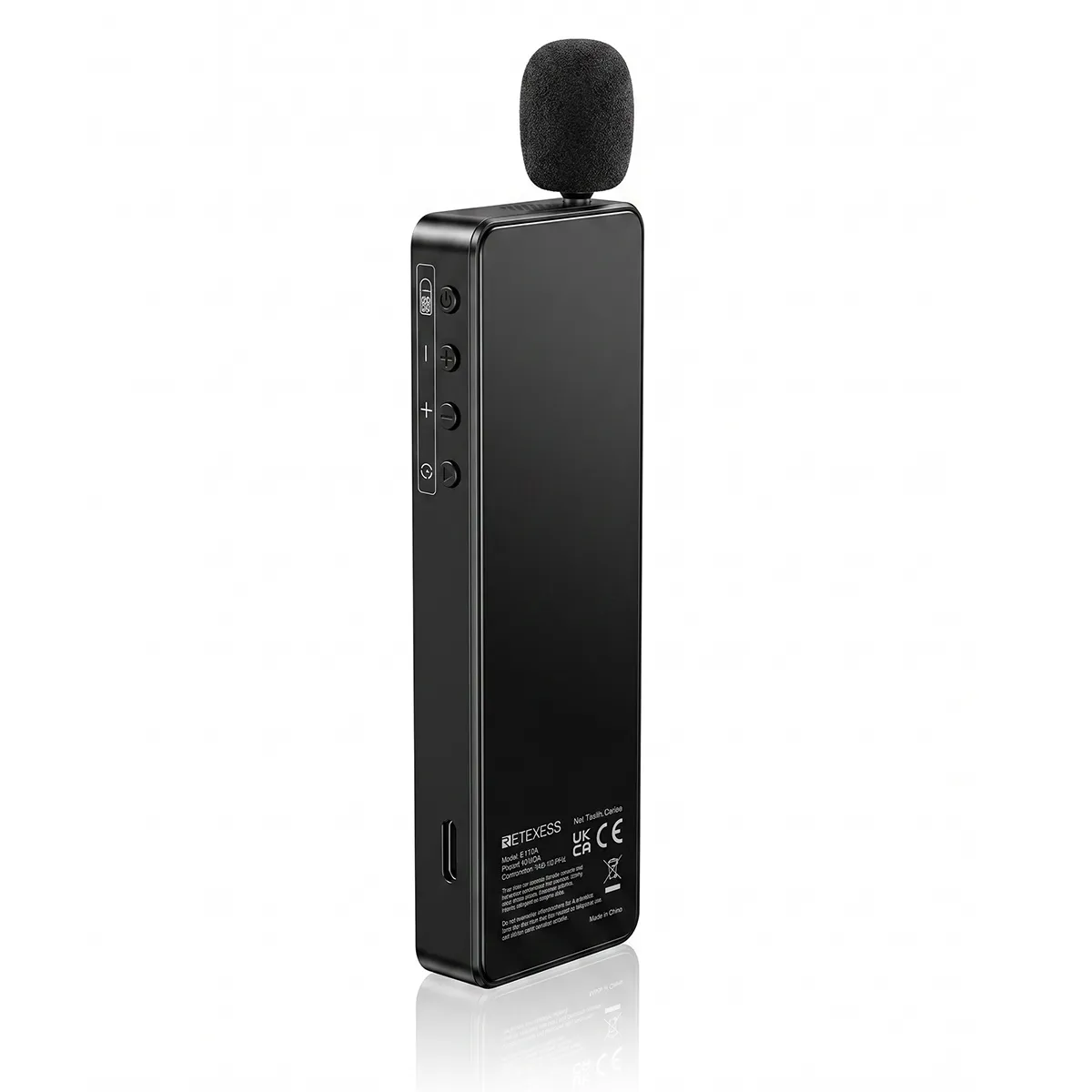

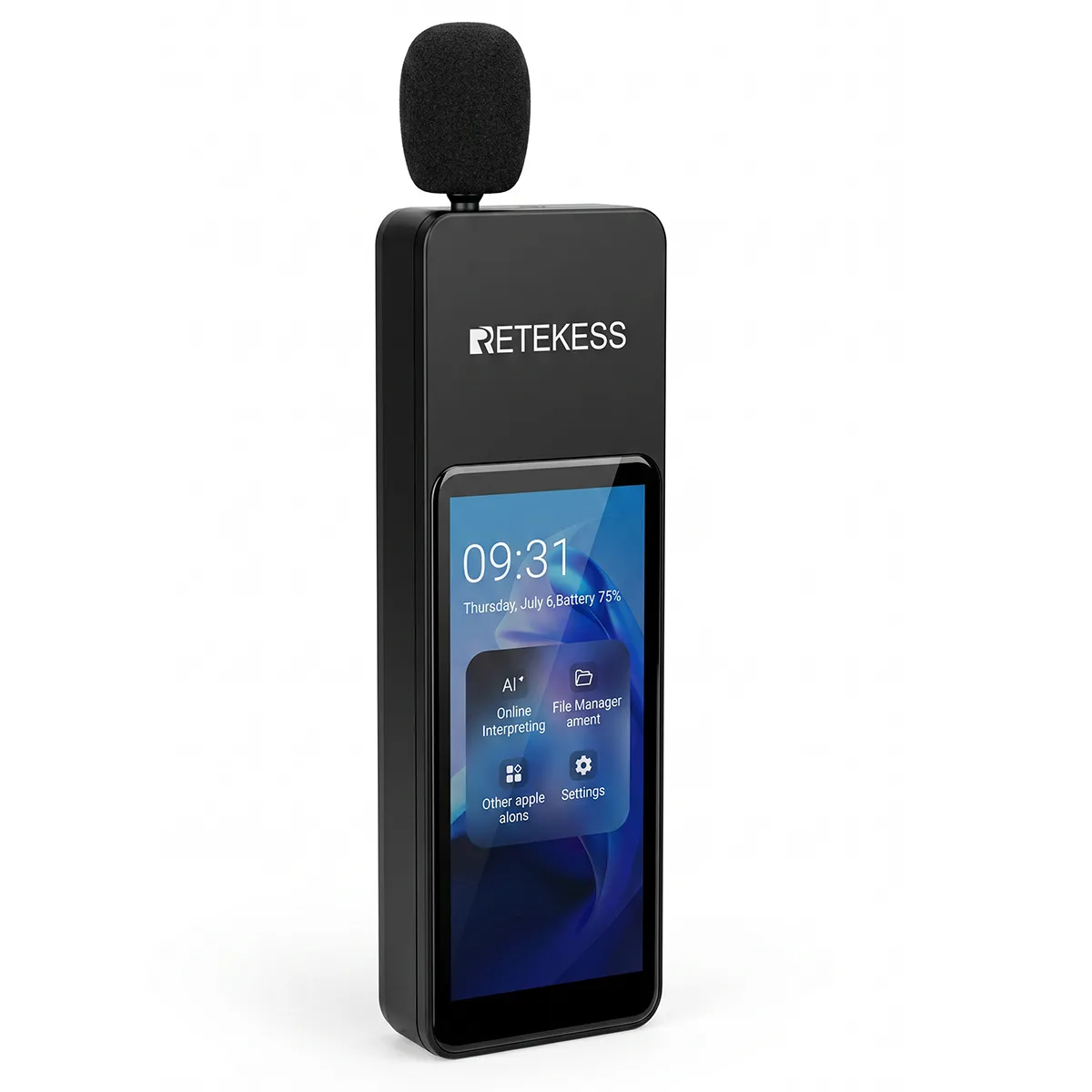

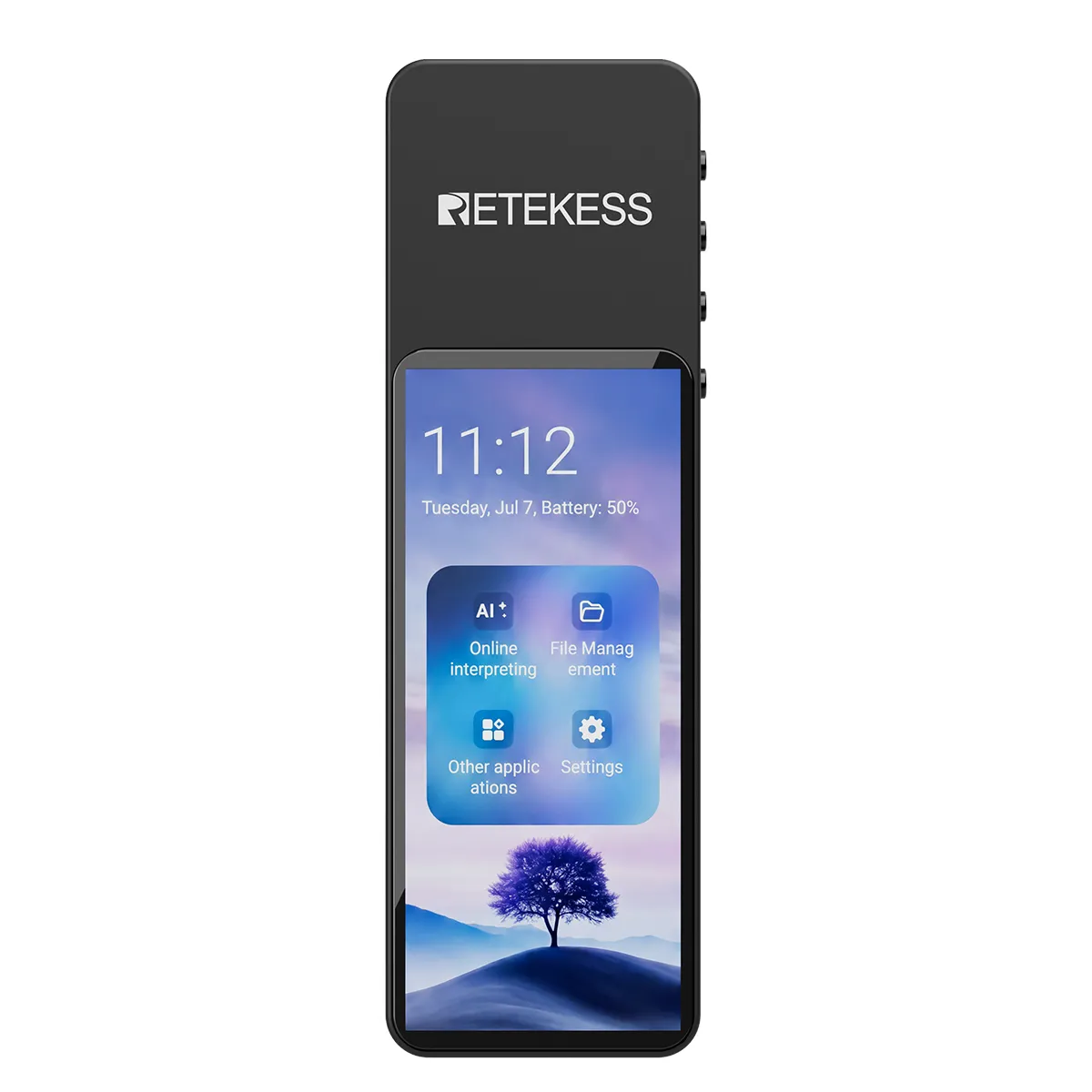

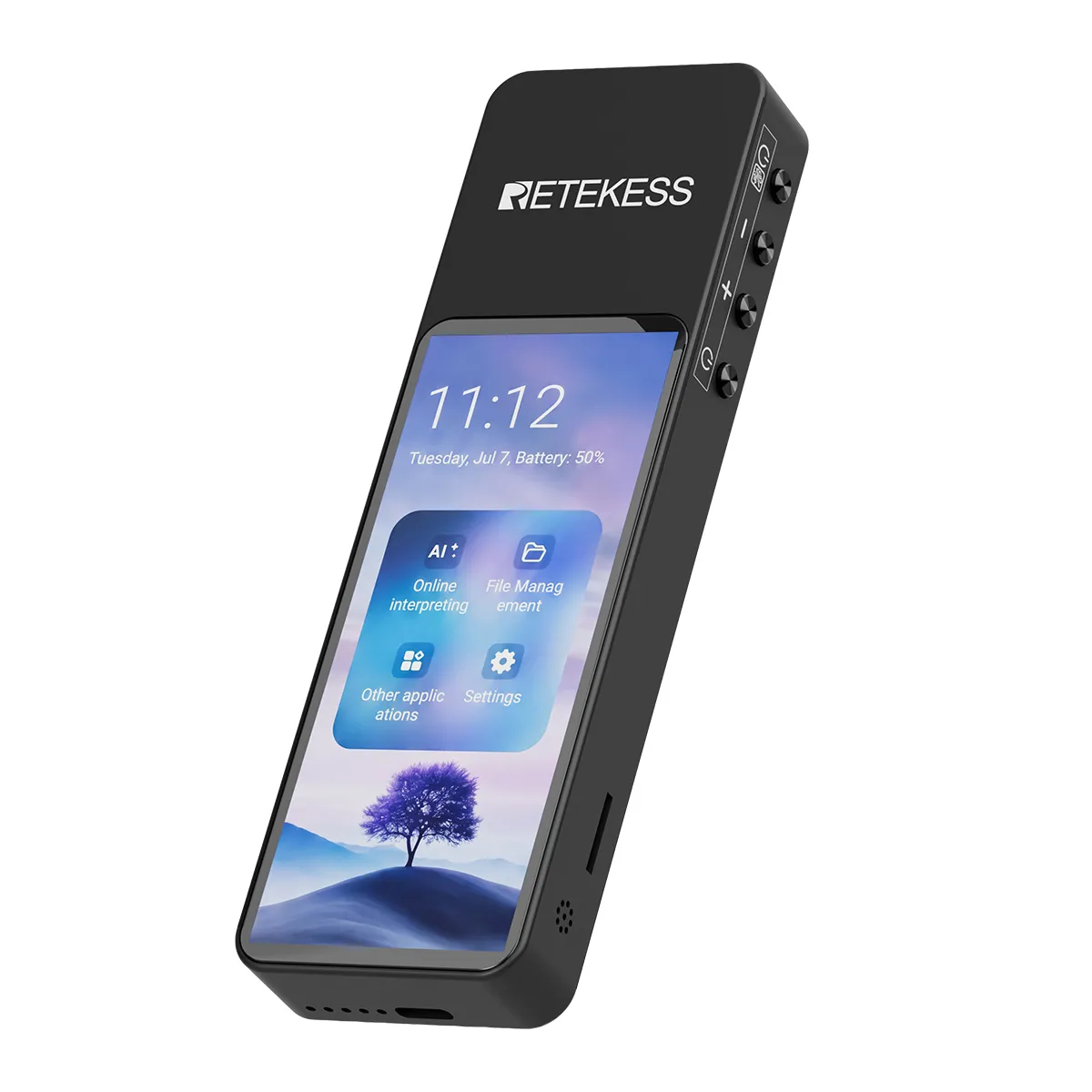

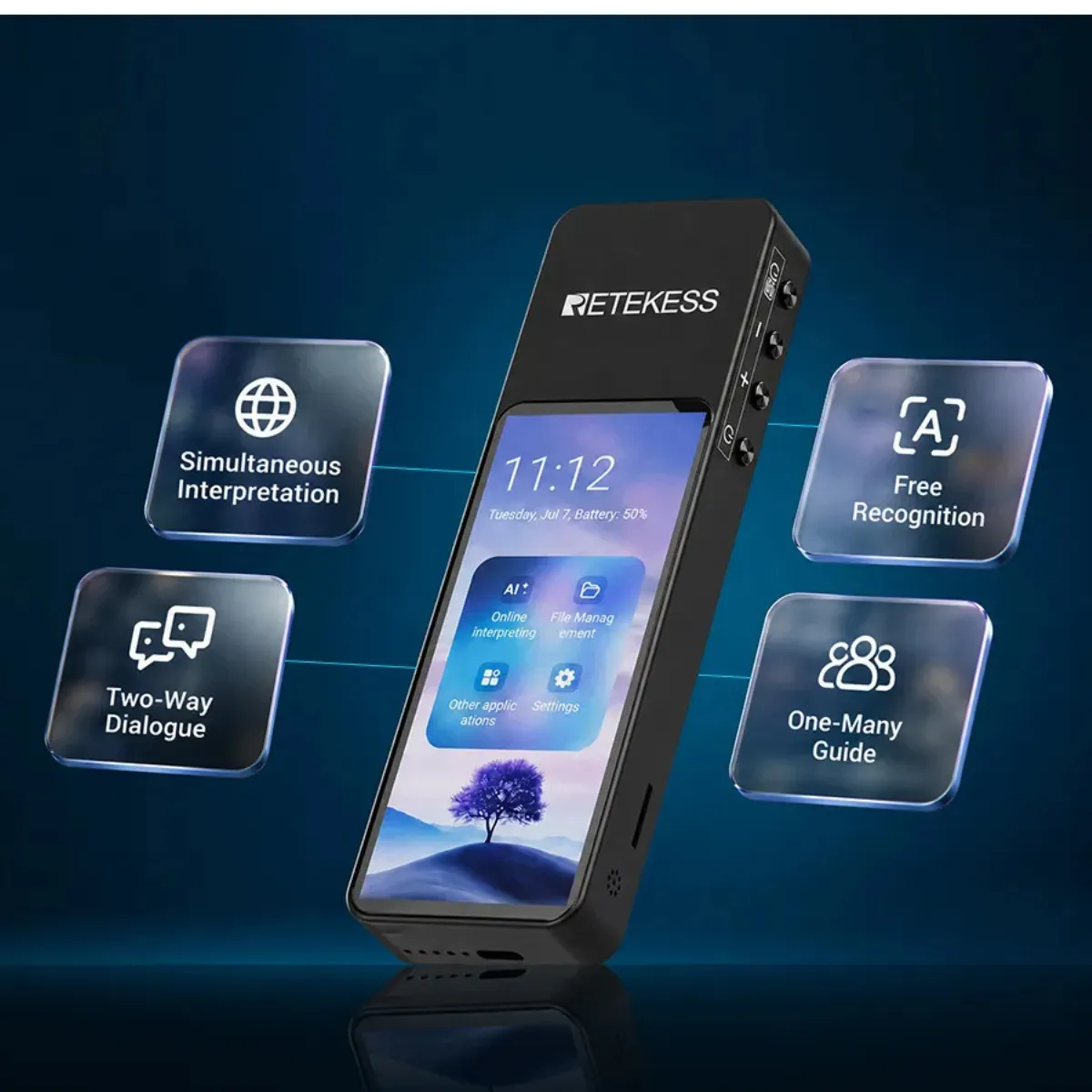

Retekess TT136 Transmitter

The Retekess TT136 transmitter is built for guided tours, multilingual communication, training sessions, business visits, and group presentations. As the speaking device in the TT136 system, it captures the speaker's voice and supports real time transmission and translation functions for smooth communication across different languages and usage scenarios.

Compact, portable, and easy to operate, the transmitter helps one guide or speaker deliver clear content to a group more efficiently, whether in tourism, education, exhibitions, factory visits, or international reception settings.

Designed for Speaking and Control

The TT136 transmitter works as the main speaking unit in the system. It is used by the guide, host, trainer, or presenter to capture voice input and manage communication flow during tours, meetings, and multilingual group activities.

Supports Real Time Translation Functions

When used within the TT136 system, the transmitter supports real time multilingual communication. It helps a single speaker communicate more naturally with international visitors, foreign language groups, and mixed language audiences.

Clear Voice Pickup for Group Use

Built for practical field use, the transmitter is suitable for guided speaking, presentations, and mobile interpretation scenarios. It helps deliver the speaker's voice clearly for group listening and translation-based communication.

Portable and Easy to Operate

The transmitter is compact and convenient to carry, making it suitable for daily operations in museums, attractions, business visits, training sessions, and outdoor guided tours. Its user-friendly design supports fast setup and efficient use.

Ideal Applications

The TT136 transmitter is suitable for a wide range of group communication scenarios, including:

  • Guided tours and travel groups
  • Museums and cultural exhibitions
  • Factory visits and site presentations
  • Business reception and international meetings
  • Educational tours and training programs
  • Multilingual group communication and interpretation support

Why Choose the TT136 Transmitter

For users who need a dedicated speaking unit for the TT136 system, this transmitter offers a practical solution for voice delivery and multilingual communication support. It is suitable for replacing an existing unit, expanding a current system, or building a more flexible tour guide and translation setup.

Whether you are serving tour groups, organizing training, receiving overseas visitors, or managing multilingual site communication, the Retekess TT136 transmitter helps improve clarity, efficiency, and communication reach.

Spec

Main Unit Size 48mm × 154mm × 17mm (1.890" × 6.063" × 0.669")
Main Unit Weight Approx. 155g
Material ABS body, tempered-glass back cover, acrylic display window

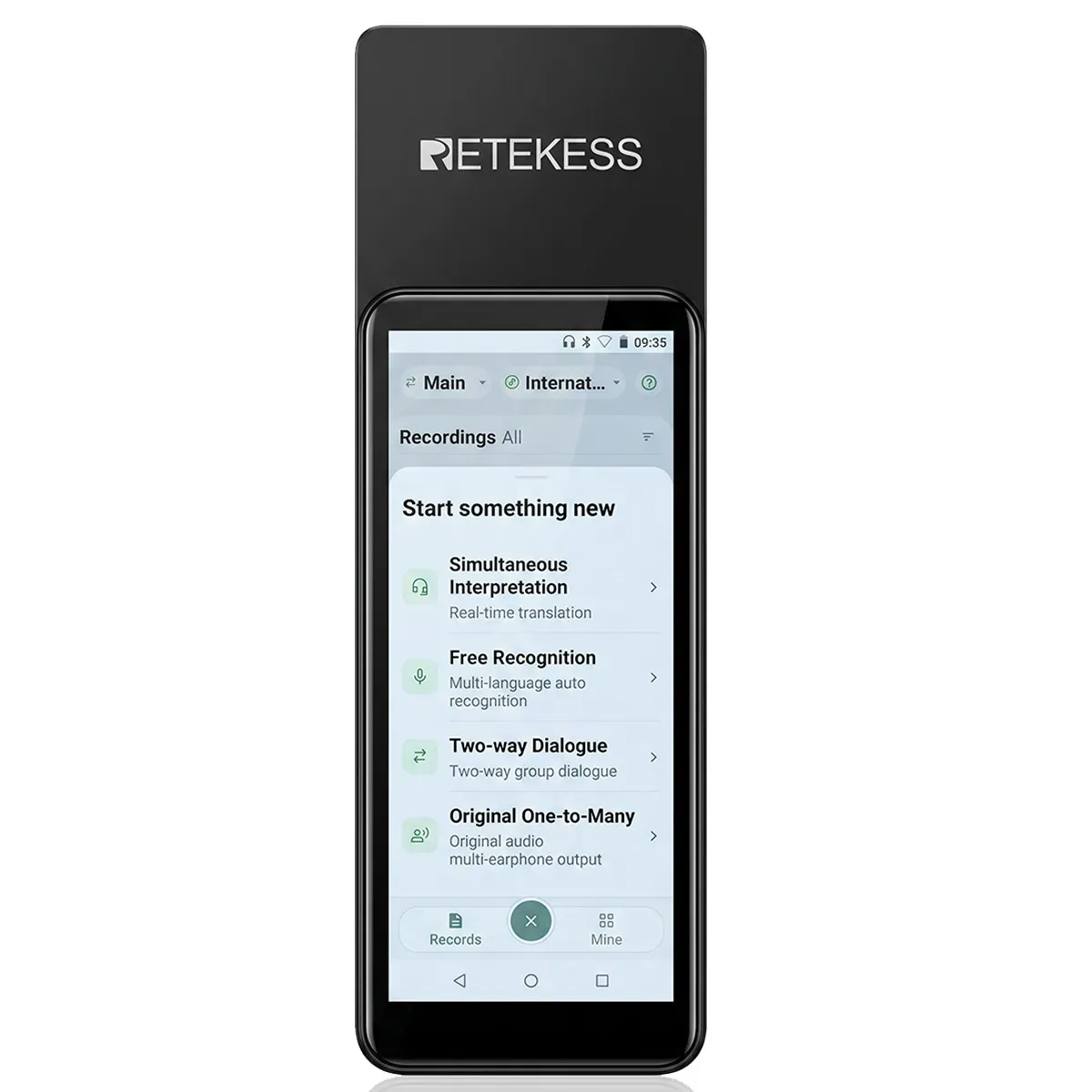

Display 3.99-inch touchscreen
Storage / Expansion 2GB + 16GB; TF card supports up to 128GB
System and Apps Supports mainstream Android APK installation; background playback, mono/bilingual translation, AI summaries, recording/playback, image browsing, video playback, etc.
Network Connection Wi-Fi / mobile hotspot
Bluetooth Bluetooth 5.0

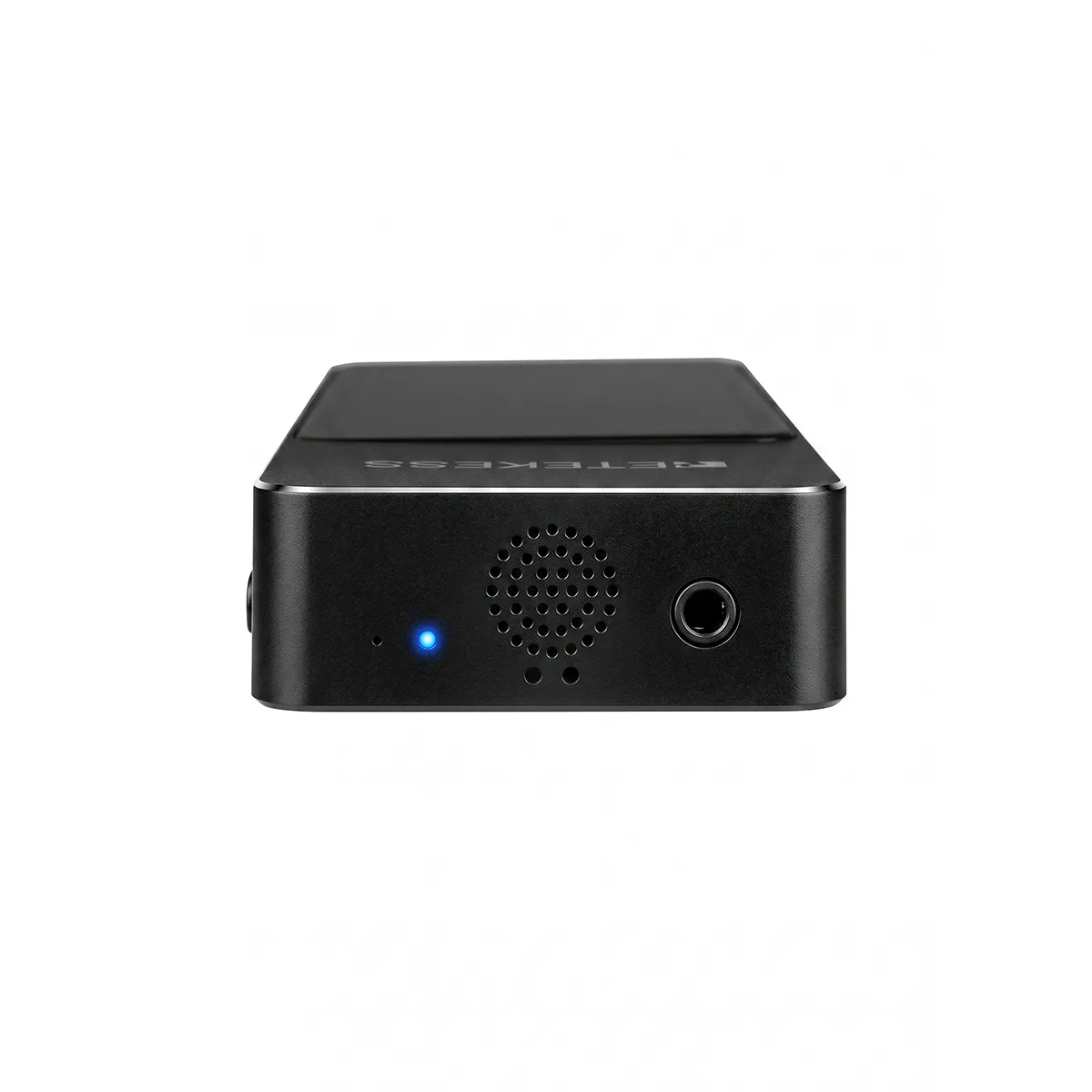

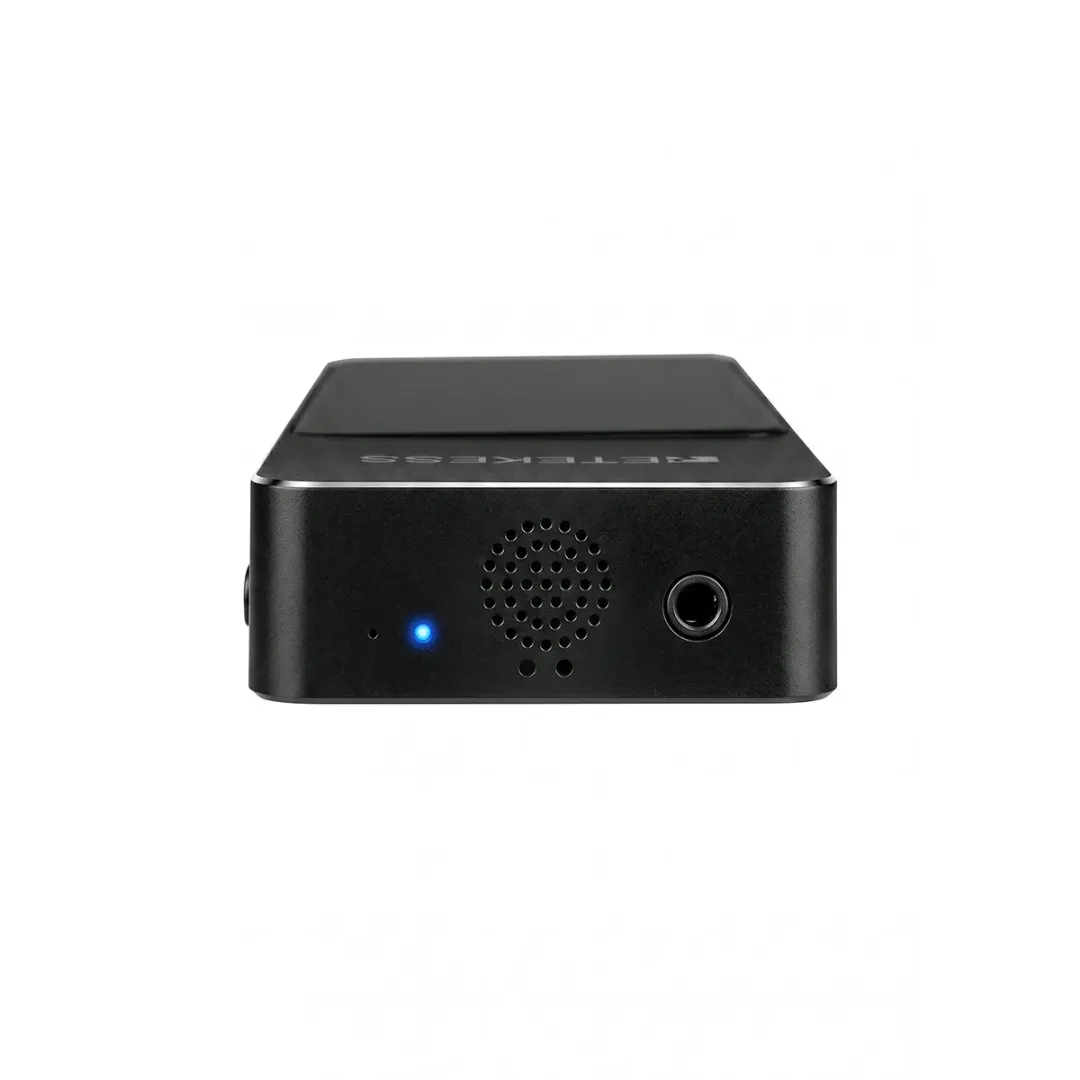

Audio Interface 3.5mm audio input/output; built-in microphone
Operating Frequency 2400.0-2483.5MHz
Number of Channels 0-9999
Frequency Stability 20ppm
SNR ≥82dB
Frequency Response 20Hz-16kHz
Channel Spacing 250-500kHz
Distortion <1%
TX Power 16dBm
Charging Method Type-C, 5V/1A
Battery Capacity 3250mAh lithium battery
Working Time Approx. 20h for transmission only; approx. 4-6h for transmission + translation. Actual runtime depends on operating conditions.
Transmission Range Approx. 150–200m (492 – 656 ft) in open areas
Charging Time Approx. 3h
Operating Temperature 0℃-50℃
Main Unit Size 50mm × 15.5mm × 65.5mm (1.9685" × 0.6102" × 2.5787")
Main Unit Weight Approx. 13g
Wearing Style Open ear-hook structure; supports left/right ear wearing
Charging Method Type-C / charging case
Operating Frequency 2400.0-2483.5MHz
Number of Channels 0-9999
Frequency Stability 20ppm
SNR ≥82dB
Frequency Response 20Hz-16kHz
Distortion <1%
Sensitivity -80dB
Working Current 16mA
Charging Current 100mA
Battery Capacity 200mAh lithium battery
Working Time Approx. 13h
Receiving Range Approx. 200m (656 ft) in open areas
Volume Adjustment 5 levels
Charging Time Approx. 2h
Slots 30 slots
AC Input 110-220V AC
DC Output 5V DC
30-slot Case Size / Weight Product size: 452 × 248 × 162mm (17.80" × 9.76" × 6.38"); gross weight approx. 3.4kg
Charging Current Constant max. 480mA, average approx. 400mA
Charging Time Approx. 3h
Functions Centralized charging, storage, and disinfection; over-voltage, over-current cut-off, and short-circuit protection
Slots 50 slots
AC Input 110-220V AC
DC Output 5V DC
50-slot Case Size / Weight Product size: 540 × 368 × 162mm (21.26" × 14.49" × 6.38"); gross weight approx. 4.7kg
Charging Current Constant max. 480mA, average approx. 400mA
Charging Time Approx. 3h
Functions Centralized charging, storage, and disinfection; over-voltage, over-current cut-off, and short-circuit protection

FAQ

Q: What is the warranty policy for the TT136 AI Multilingual Communication System?
A: Support a 30-day no-reason return policy and a 3-year warranty. During the warranty period, free repair or replacement service is provided for quality-related issues.

Q: What’s the main difference between TT136 and traditional tour guide systems?
A: Traditional systems only transmit original voice audio. The TT136 automatic multilingual translation device integrates AI real-time translation with one-to-many audio broadcasting, allowing cross-language group communication that traditional systems cannot do.

Q: Does TT136 support real-time AI translation?
A: Yes. It uses AI speech recognition and online translation engines (Microsoft & Google) to provide real-time translation in up to 120 languages.

Q: How many languages can TT136 support at the same time?
A: A single transmitter can broadcast a maximum of 2 target languages simultaneously. To support 3 different languages at once, you will need 2 transmitters.

Q: Will translation delay be greatly affected by the network connection?
A: Translation response speed is slightly affected by the network. The delay is consistently controlled between 80-400ms, and users can adjust the translation interval according to their needs.

Q: How accurate is dialect translation?
A: The device is equipped with a dual translation system. The main standard-language translation system provides an accuracy rate of over 85%. For dialects and regional accents, users can switch to the dedicated backup translation system, which improves translation accuracy up to 97% (excluding classical poetry).

Q: Does TT136 need internet to work?
A: The AI translation function requires a network (Wi‑Fi/hotspot). When used only as a traditional audio guide, it works without any internet connection.

Q: How do I use the translation function?
A: To use the translation function on the transmitter, an internet connection is required first. Translation time must then be activated by contacting the seller and providing the device's internal code for recharge.

Q: How do I pair the transmitter and receivers?
A: After powering on, the transmitter and receivers will automatically search for and connect to each other within a 5-meter pairing range.

If no signal is detected, keep the transmitter powered on, then press and hold the receiver's Volume + and Volume - buttons simultaneously to search for nearby transmitters and complete pairing.

Q: What scenarios is TT136 suitable for?
A: It is widely used in tourism, factory tours, international conferences, exhibitions, corporate training, multilingual education, and other group communication occasions.
