Five-section trolley antenna for stronger transmission signal
Two keyboards can call the pager at the same tim
Pager with Mute key. Customer can turn off the beep

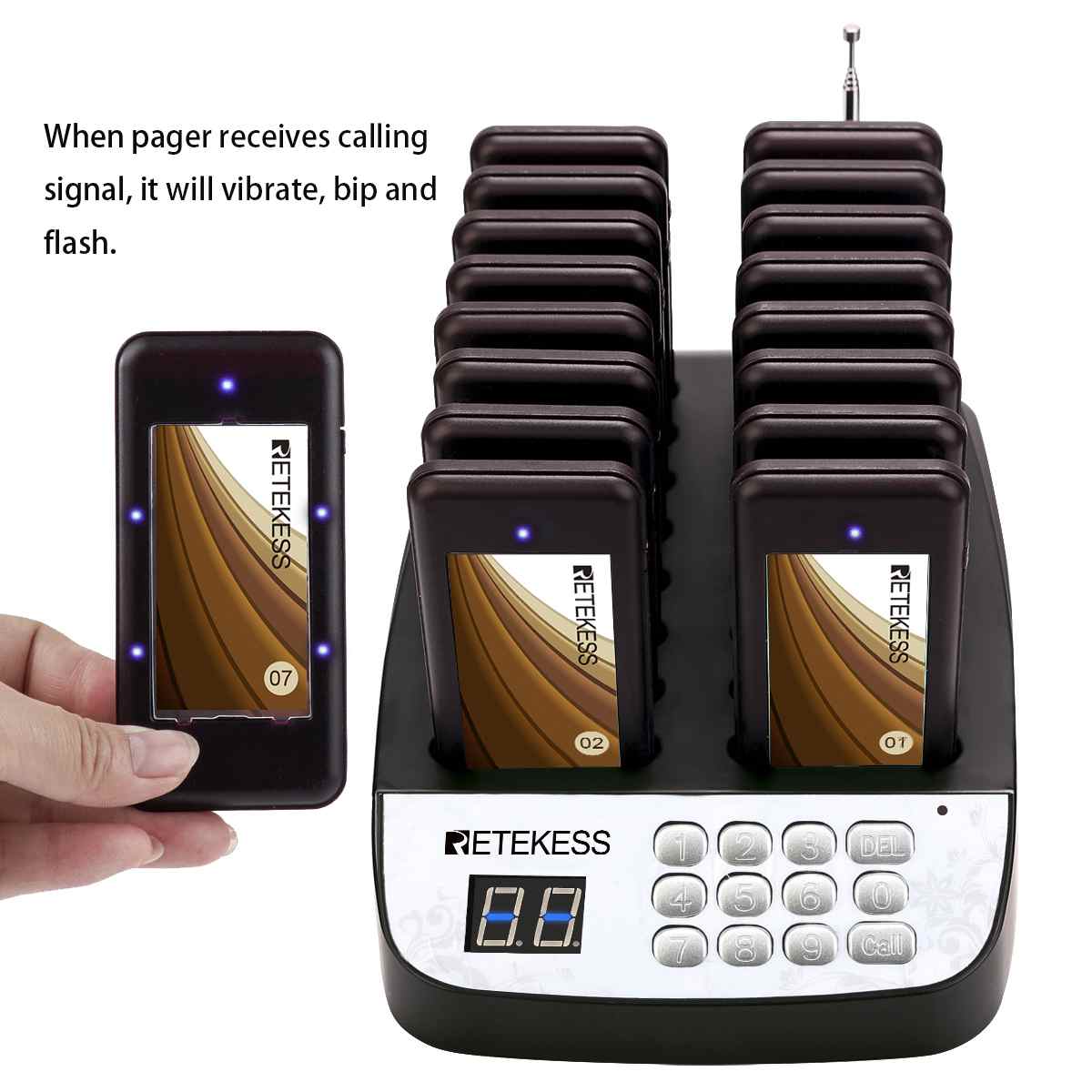

2 prompt modes: flashing and vibration; flashing, vibration, and beep
Reminder duration can be changed: 7-35 seconds
Working distance: 300 meters/1640ft
Support one-click shutdown
Add to Favorites Delivery & Returns Inquiry

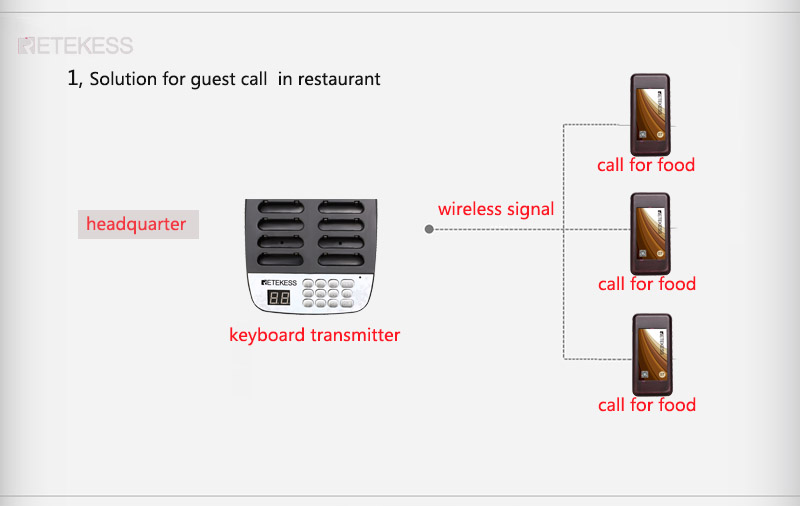

The Wireless calling System greatly improves efficiency and eliminates long queues for customers. This is why it is widely used in fast-food restaurants, food trucks, pizzerias, church nurseries, car shops, or many other places where customers are waiting to be served. You run a pizzeria with a very good business and at meal times the queue is very large and they gather around your restaurant waiting for a seat or a pizza. Customers can't go anywhere because they don't know when a seat will be available or the pizza is ready. If you use the paging system in your restaurant, give the customer a pager after they have ordered and record the corresponding pager ID, then when the customer's meal is ready you can enter the corresponding ID on the keypad to make the call and the customer will soon receive an alert. Improving the efficiency of the restaurant, giving the customer a great experience, and improving the queuing situation.

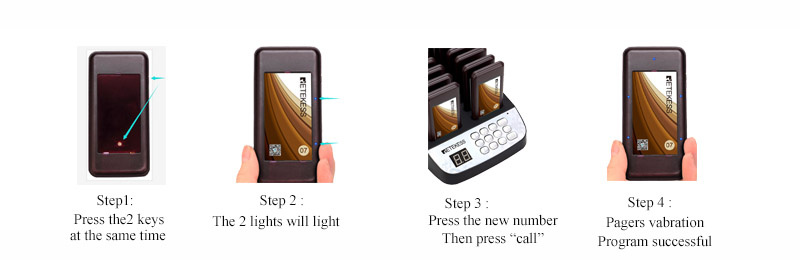

Change ID: 1 to 99 IDs can be set, when multiple hosts are used in the same place, different ID numbers can be set to avoid interference.
5 reminder lengths: short press the set button to set 7, 14, 21, 28, and 35 seconds reminder lengths depending on the number of lights.
Prompt time can be changed: time from 5S-35s. It has 5 lights in the pagers, each light flashes means adding 5S, You can set the time based on your need.

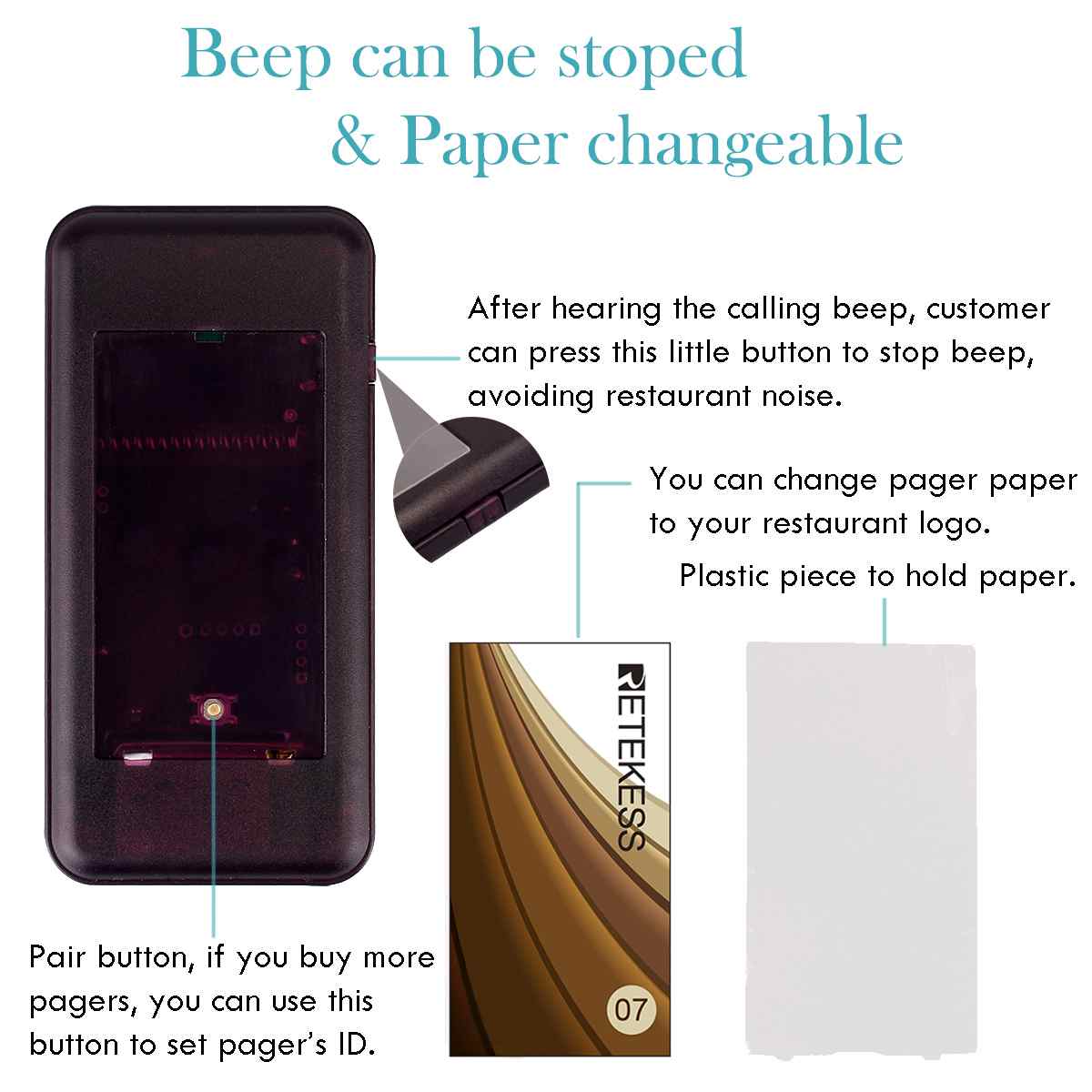

Turning off the pager: The pager side button allows you to turn off the reminder with one touch so that customers don't have to be bothered by the beeping sound in a quiet environment. Press and hold the set button on the menu to switch off the menu.

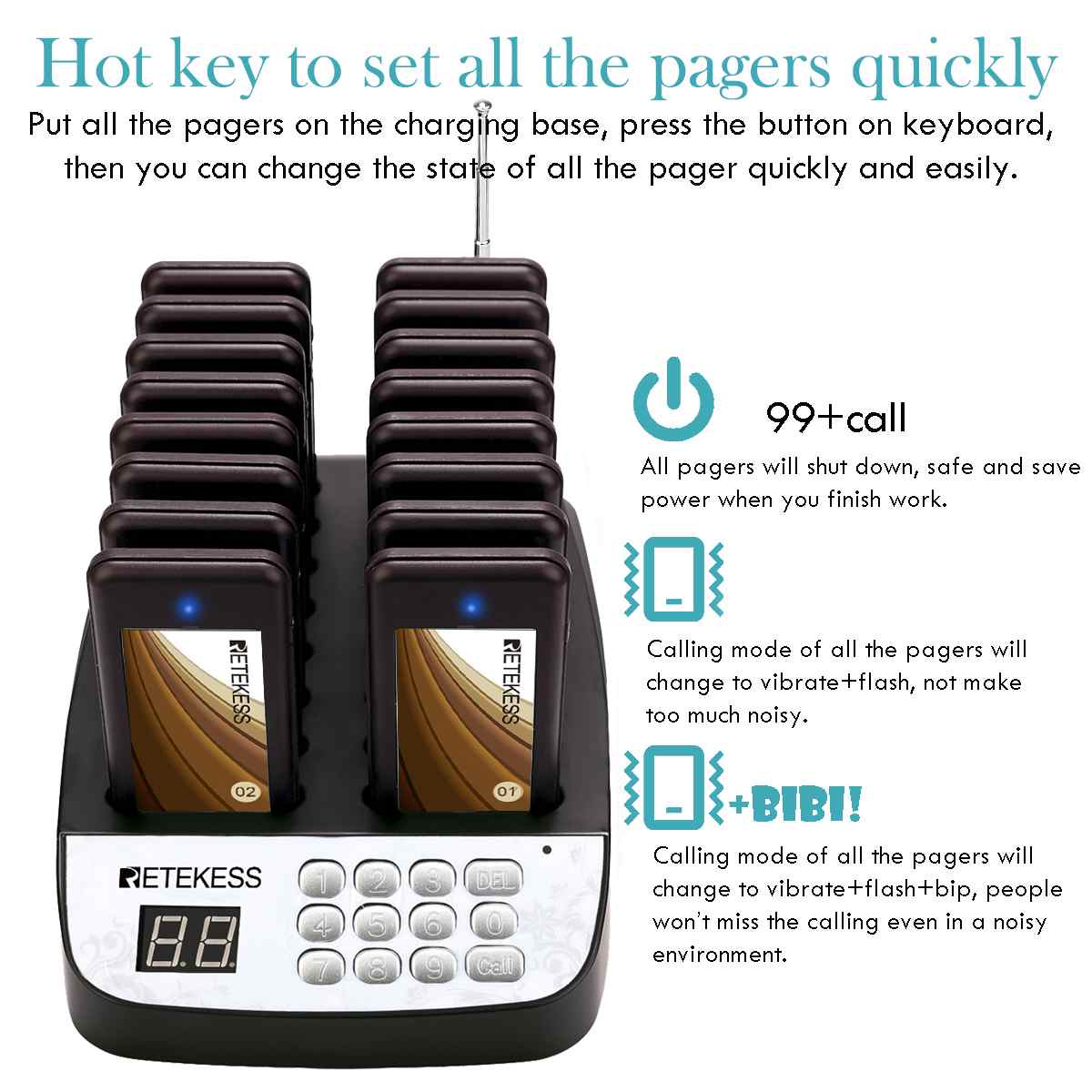

One-touch off: plug the extension into the charging slot and enter 99+call to turn off the phone with one touch, for easy operation.

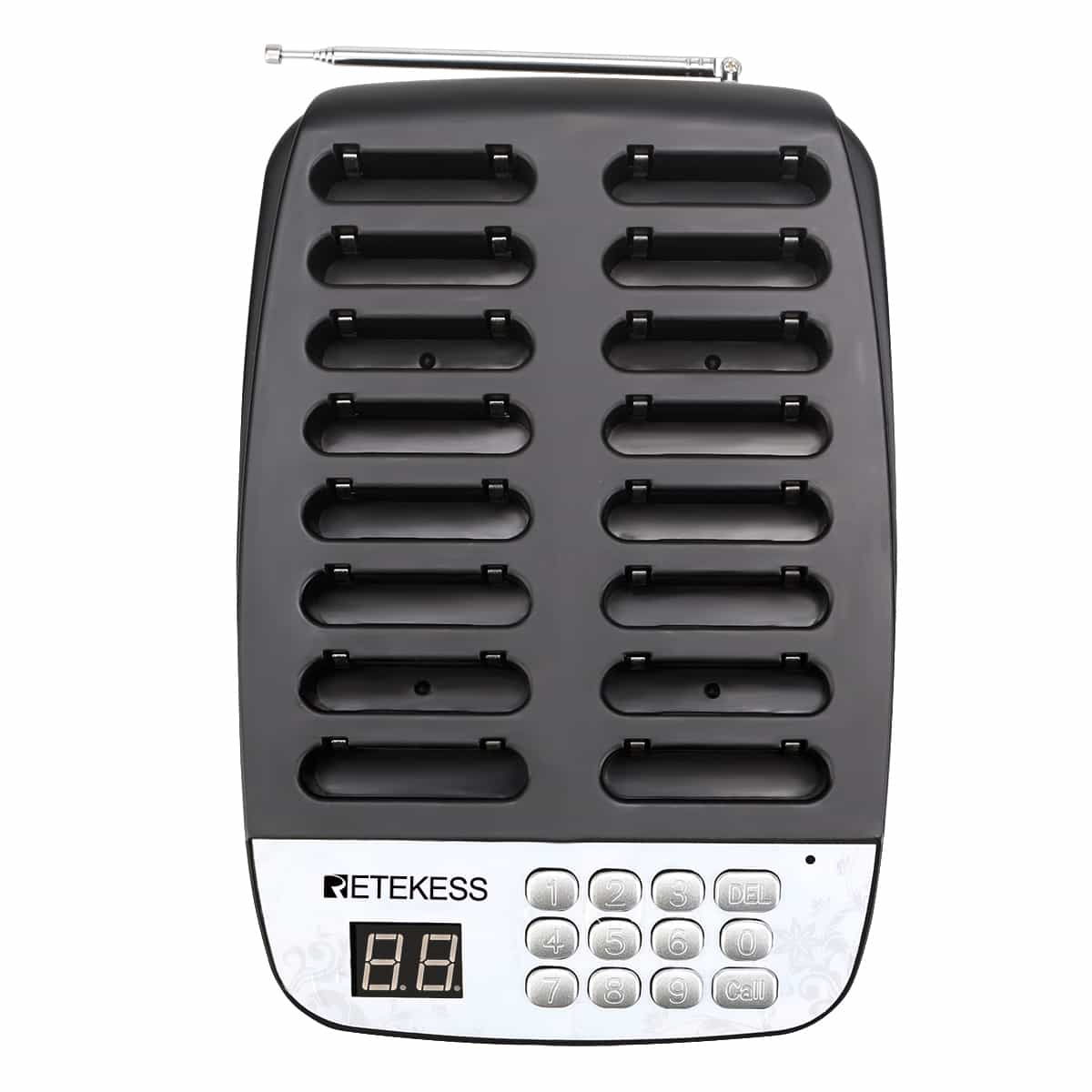

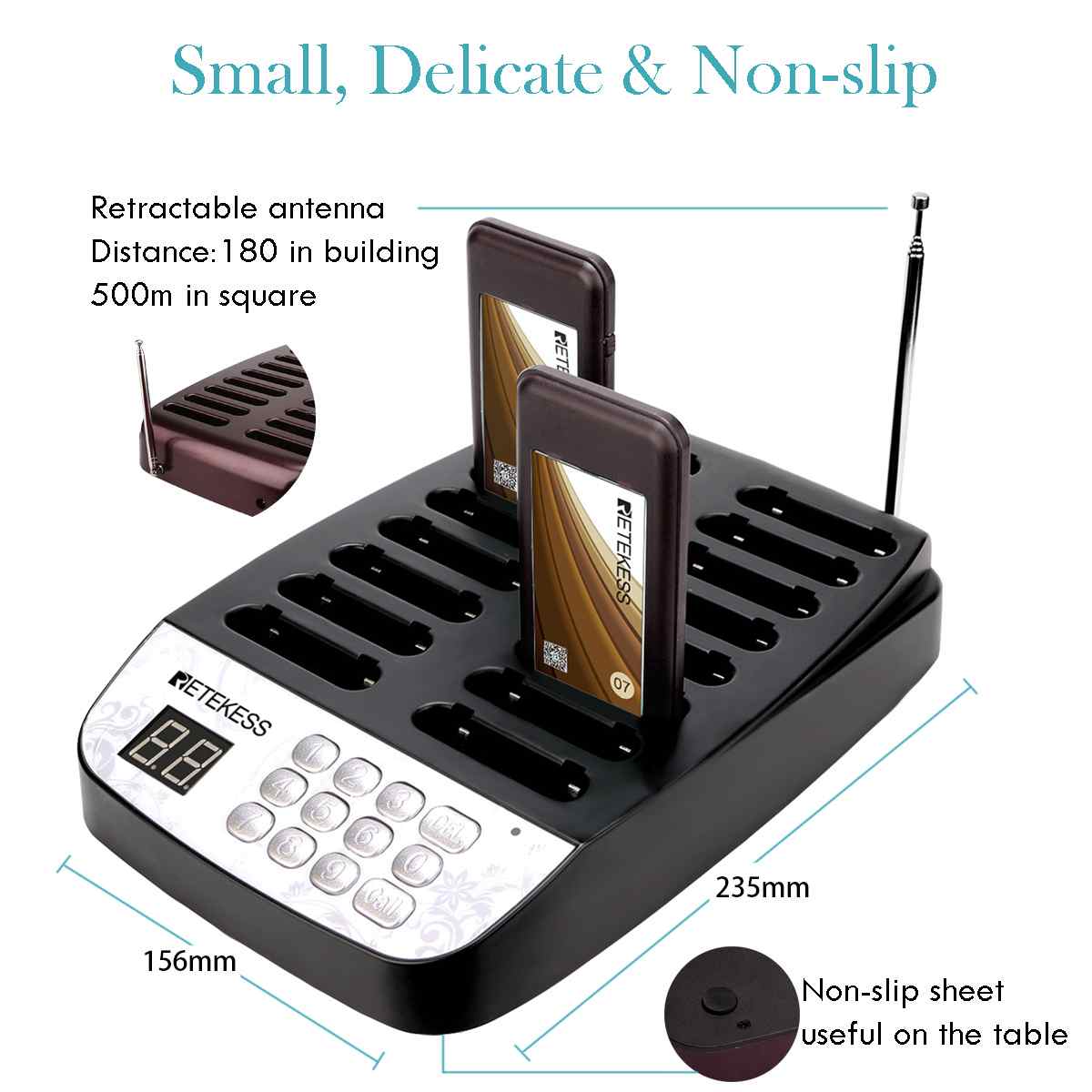

The Keypad is painted black with rubber paint for a non-slip feel.

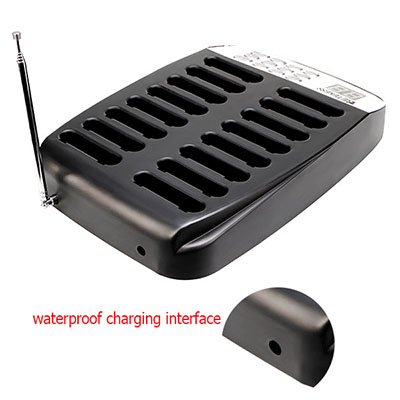

The waterproof charging port on the Keypad for better waterproofing.

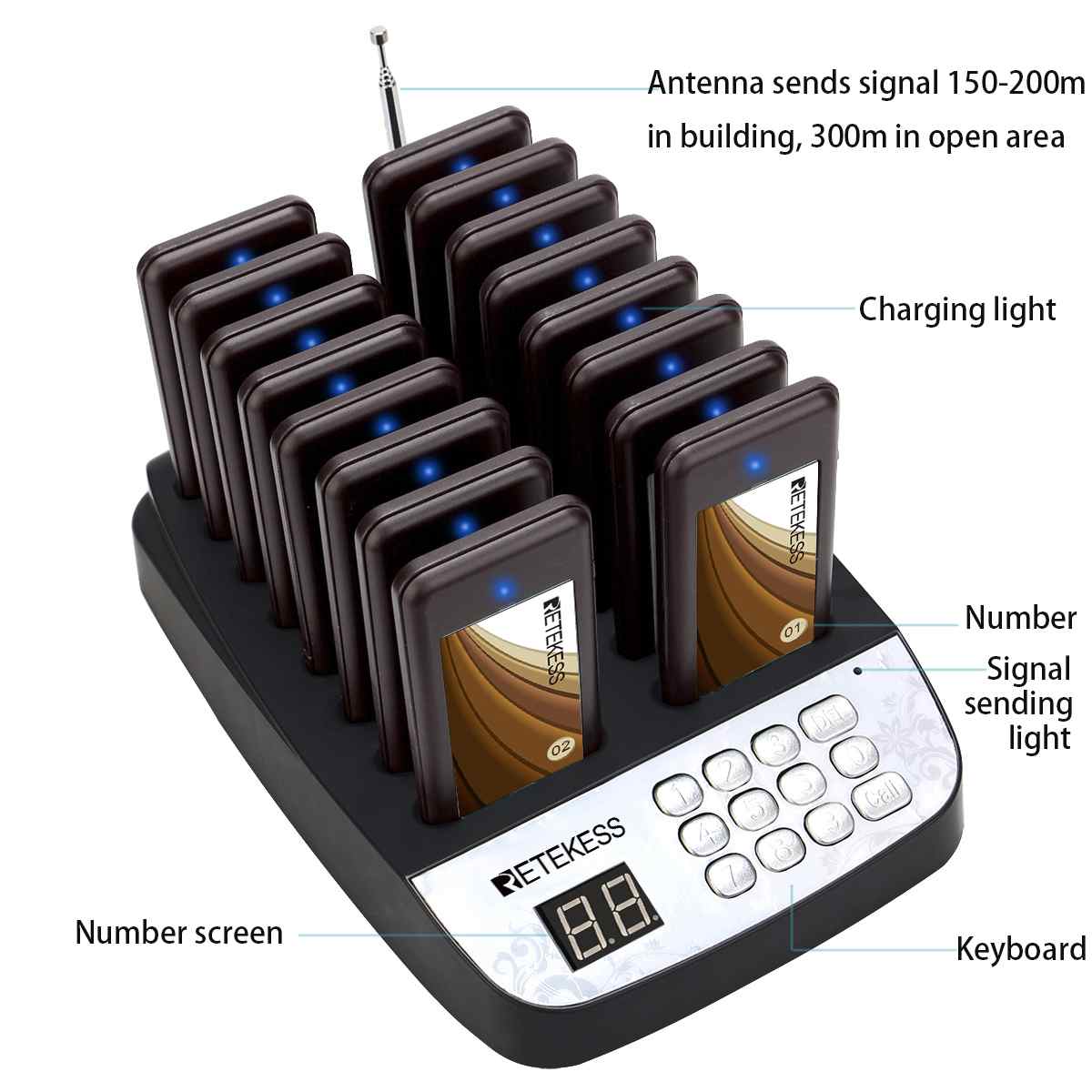

The two-digit digital display supports up to 98 pagers.

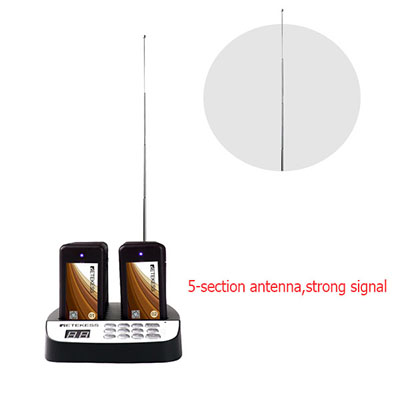

Five-section trolley antenna for better signal transmission.
Over 300m calling distance.

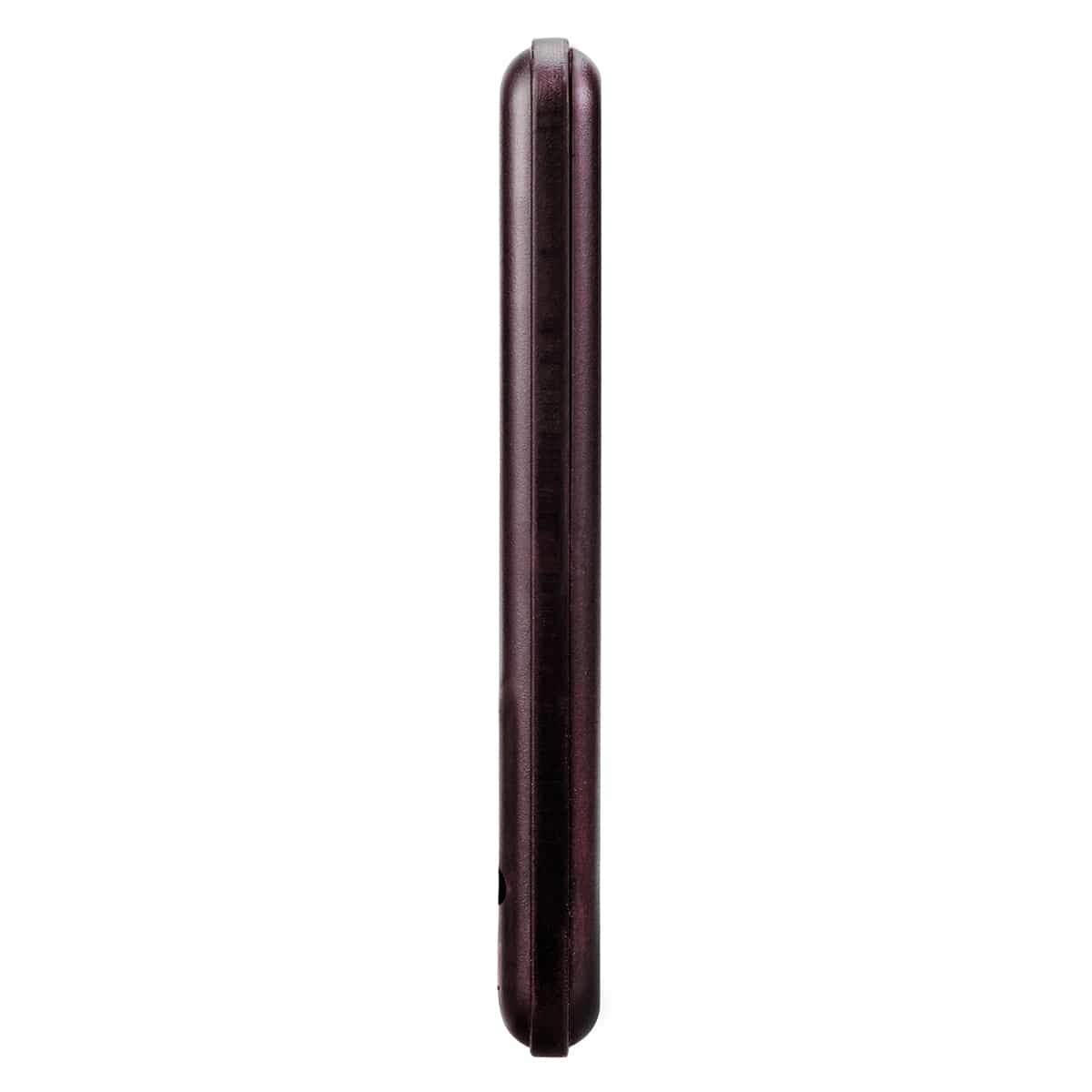

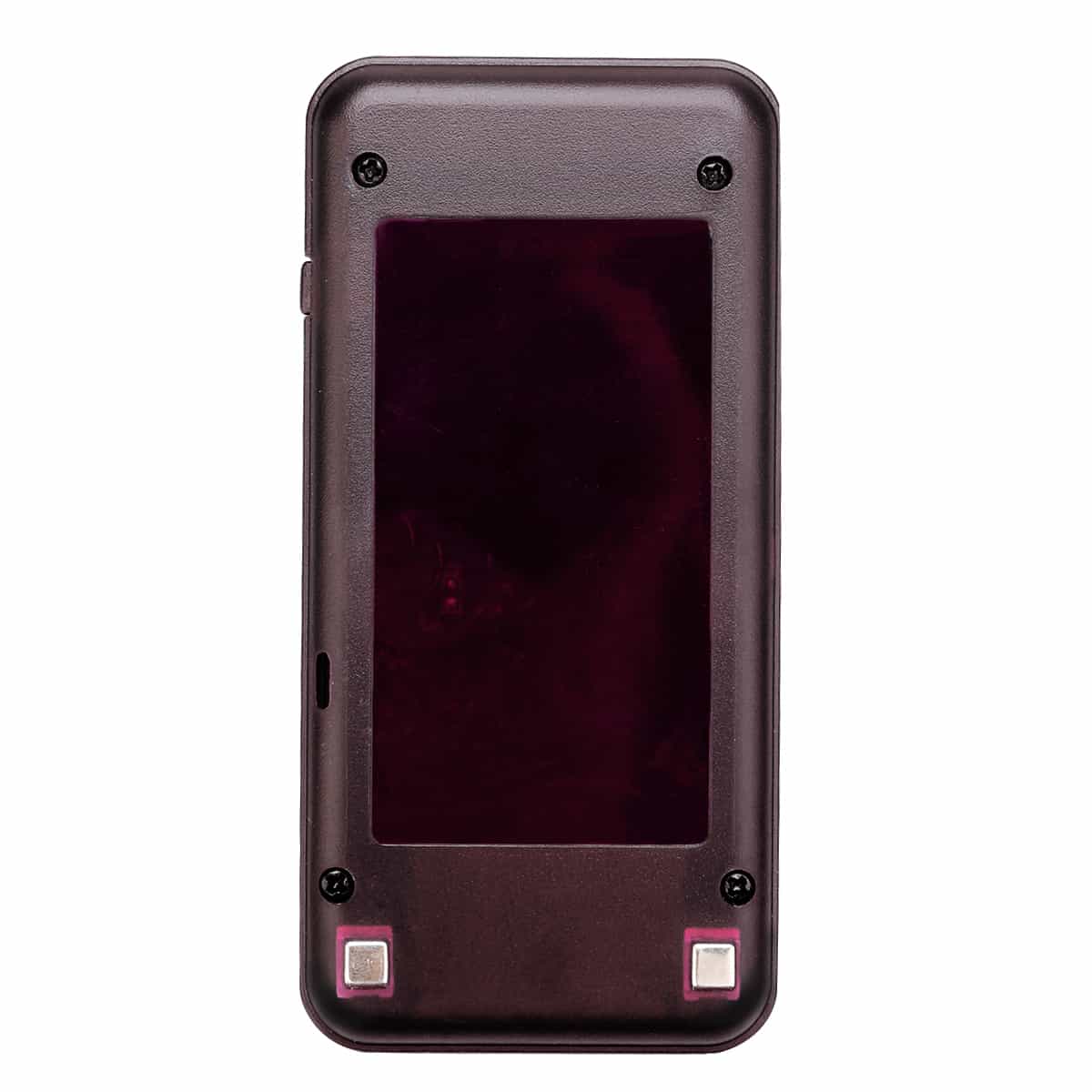

Mini size pager, easy to handle.

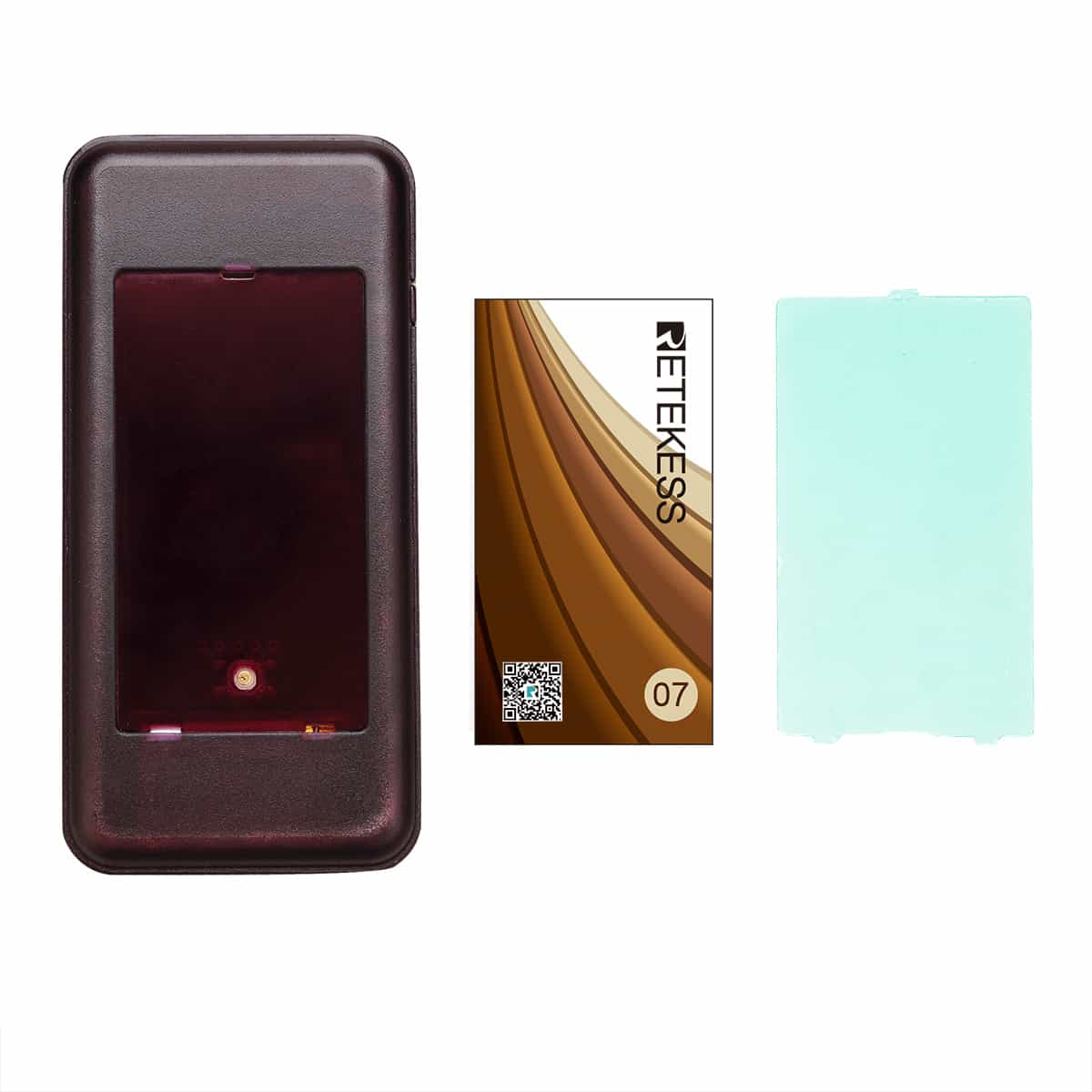

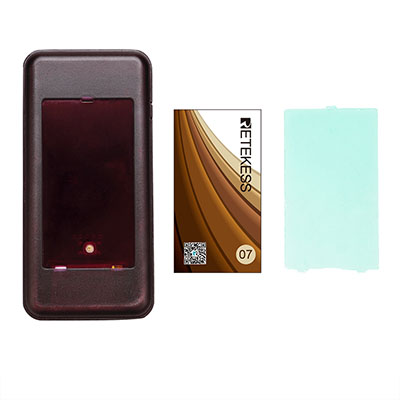

Support customize logo, just move the paper and make, it the right size then put it in the pagers.
Solutions
Restaurant, Cafe, church nursery, hotel, bank, hospital, clinic, SPA, salon, school, nursing home, bar, brewery, food truck, factory, worksite, office, casino.
Transmisor |
Receptor |
||
Rango de frecuencia |
195-216MHz |
Rango de frecuencia |
195-216MHz |
Canales | 49CH | Canales | 49CH |
Tensión de trabajo | DC 3.7V | Tensión de trabajo | DC 3.7V |
Entrada de micrófono/auxiliar | 3.5mm |
Enchufe de audífonos |
3.5mm |
Respuesta frecuente |
50-18000Hz |
Respuesta frecuente | 50-18000Hz |
SNR | 80dB(Típico) | SNR | 80dB(Típico) |
Rechazo espurio de RF | ≥90dB | Rechazo espurio de RF | ≥90dB |
T.H.D |
<0.3% |
T.H.D |
<0.3% |
Rango de operación | 100m(línea de visión) | Rango de operación | 100m(línea de visión) |
Capacidad de la batería | 4200mAh | Capacidad de la batería |
900mAh |
Duración de la batería | Aproximadamente 20 horas típicas | Duración de la batería | Aproximadamente 20 horas típicas |
Peso | 120g(sin accesorios) | Peso | 30g(sin accesorios) |
Tamaño | 103*61*25.8mm(sin antena) | Tamaño | 73*42*12mm |
Estuche de carga TT001 | |
Color |
plata |
Material | aleación de aluminio |
Entrada | AC110-220V, 50 / 60Hz |
Salida | DC 5V, 7A |
Tamaño | 500 x 265 x 140 mm / 19,7 x 10,4 x 5,5 pulgadas |
Peso | 3200 g / 7 libras |
paquete incluye:
2 x transmisor |
2x micrófono de solapa |
30 x receptor |
30 x auricular |
32 x cordón |
32 x cable de carga |
1 x estuche de carga |
T113 Wireless Guest Paging System Transmitter |
T113 Wireless Guest Paging System Pager |
||
Dimension | 235*155*35mm | Dimension | 103*51*10mm |

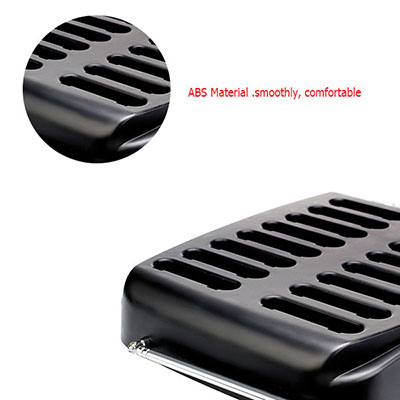

Material | ABS | Material | ABS |
Transmit Power | 480mW | Receiving Sensitivity | -114dB |
Standby Power | 650mW | Standby Power | 148mW |
Frequency | 433MHz | Li-Polymer | 3.7V/200mAh |
Power Supply | DC12V/1A | Frequency | 433MHz |
Launch Distance | >800M(Open Area) | Standby Time | About 6 Hour |
Support Receiver | 99(16/Set) | Support Receiver | Vibration Beep Flashing |
IP Grade | IP32 | IP Grade | IP32 |
Guest Pagers x 16/20 (quantity optional)
Antenna x 1
Power adaptor x 1
Keypad transmitter x 1
User manual x 1
P: ¿Funciona para diferentes habitaciones? ¿O sólo se puede utilizar para la transmisión al aire libre?
R: Es posible utilizar este sistema de guía turística T130S-T131S en diferentes habitaciones, pero la distancia de transmisión se verá afectada, unos 40m. Si se utiliza para la transmisión al aire libre, la distancia puede ser de hasta 100 m.
P: ¿Tienen que sincronizarse estos dispositivos cada vez que se utilizan o permanecerán sincronizados?
R: Después de sincronizar el transmisor y el receptor, permanecerán sincronizados y no será necesario ajustar el canal cada vez que los encienda y los utilice.
P: ¿Puedo añadir más receptores si la demanda aumenta en el futuro? ¿Cuál es el número máximo de receptores que se pueden añadir a un transmisor?
R: Sí, se pueden añadir receptores adicionales cuando se desee. El transmisor puede funcionar con innumerables receptores siempre que estén en el mismo canal.
A: In the original set, there are 16 pieces of pagers. It supports 99 channels, and 98 pagers the number, 99 is for the power of all the receivers at one time.
A: 2 ways: Vibration + buzzer + flashing light / Vibration + flashing light.
A: Yes, the time from 7-35s. Every light flash means 7s, there are 5 lights in all.
