Description

TT126 two-way tour guide system for group communication

Two-way communication
The TT126 two-way tour guide system supports communication between tour guides and participants, and real-time interaction makes the tour process more interesting.

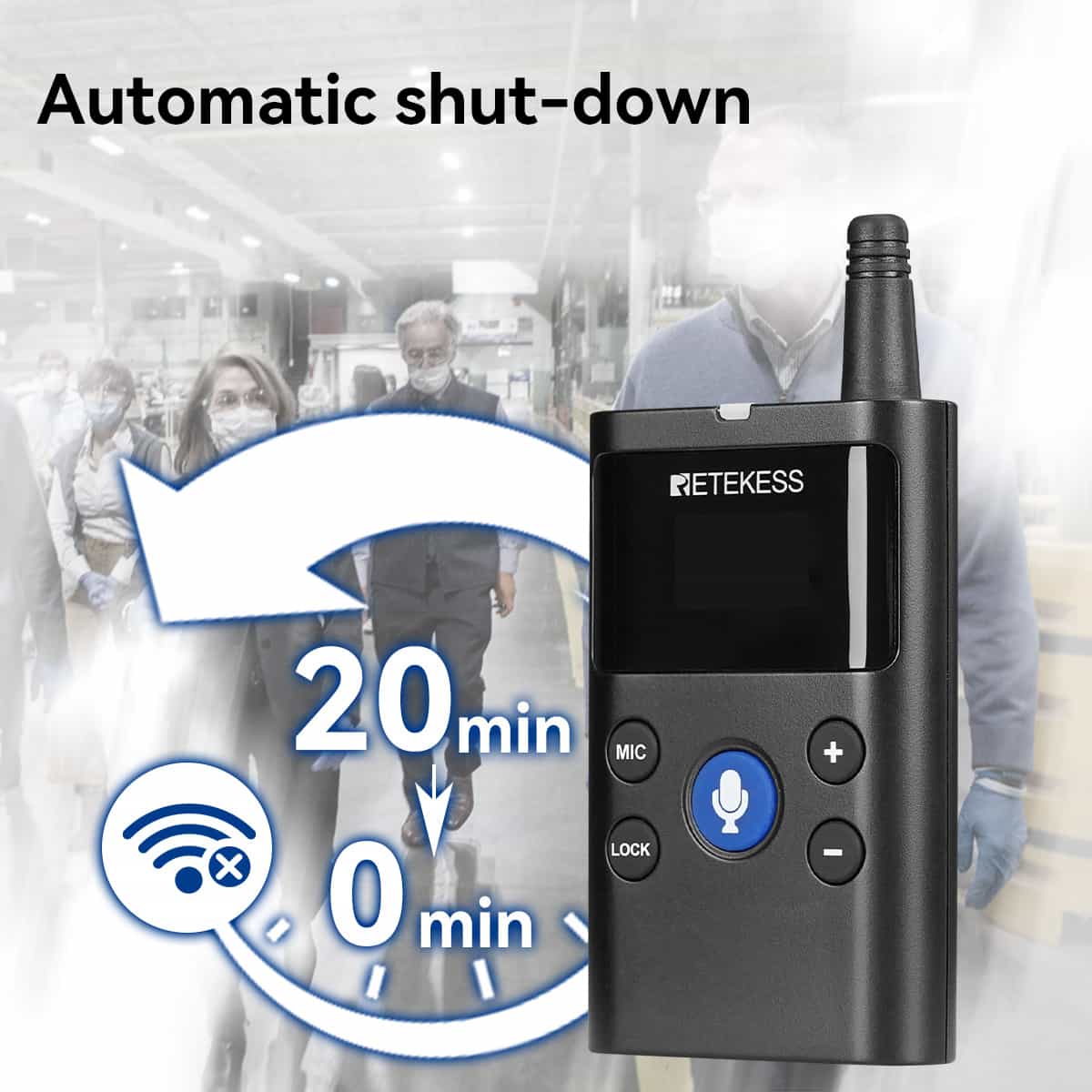

Automatic shutdown without signal
The vice transmitter will automatically shut down if it does not receive an audio signal within 20 minutes, which helps save battery life and ensures that the vice transmitter does not run out of power unnecessarily when not in use.

25/12 channels
The two-way tour guide device has 25/12 different channels (12 channels for the European version and 25 channels for the US version), allowing multiple groups to work in the same area at the same time, with each group using a different channel, thus avoiding crosstalk.

Automatic pairing
The two-way communication system supports automatic pairing of the main transmitter and vice transmitter. No cumbersome setup process is required, saving time for users.

Adjustable microphone gain
The two-way headsets have a microphone gain adjustment function from levels 1 to 7, which means you can control the sensitivity of the microphone according to the surrounding noise. Ensure that everyone in the group can hear clearly during the factory tour, regardless of surrounding noise.

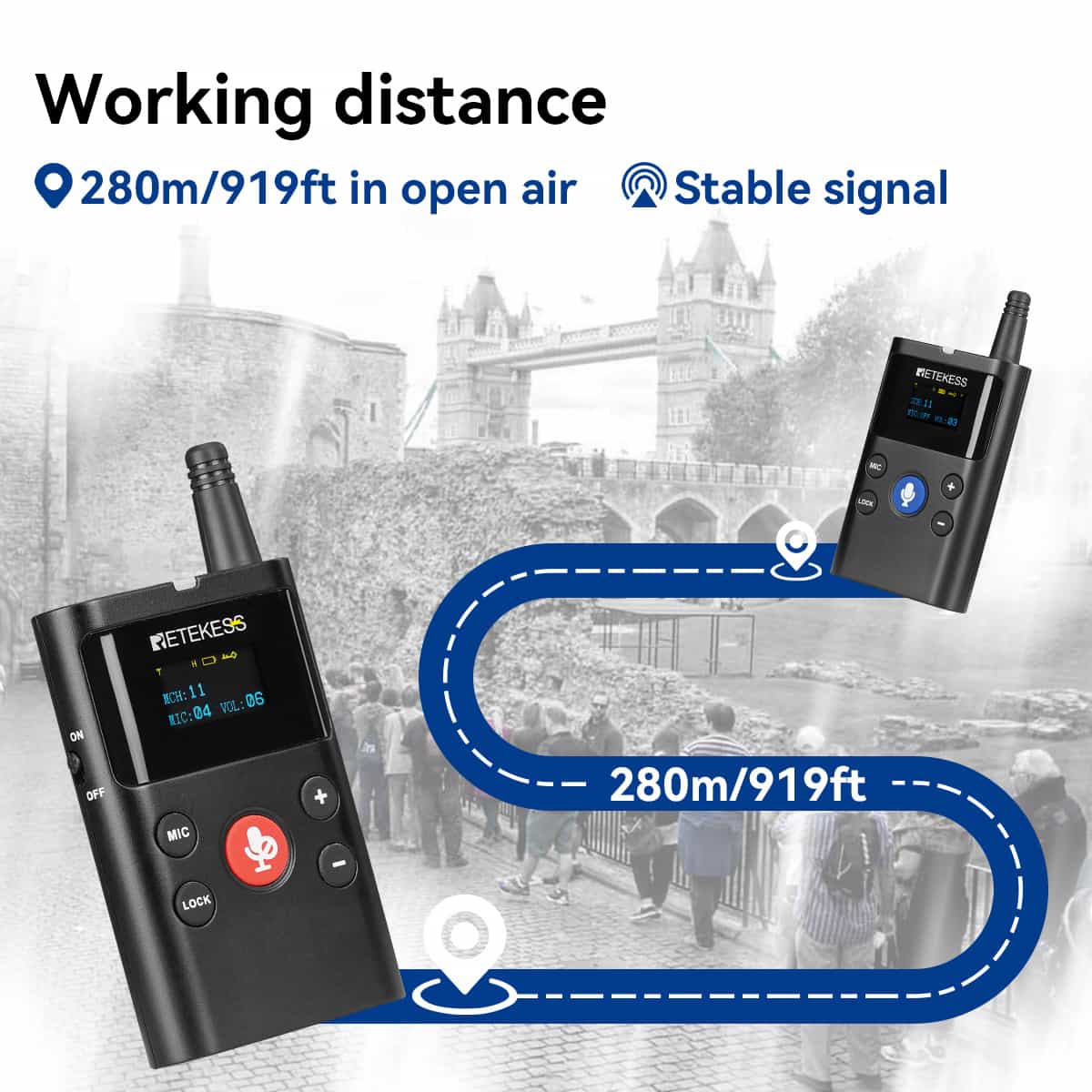

Working distance
The two-way headset has an operating range of 280 m/919 ft. Participants can move freely within this range without losing connection, which means that during the factory tour, participants can freely explore different areas of the factory within a certain range while staying in touch with the tour guide.

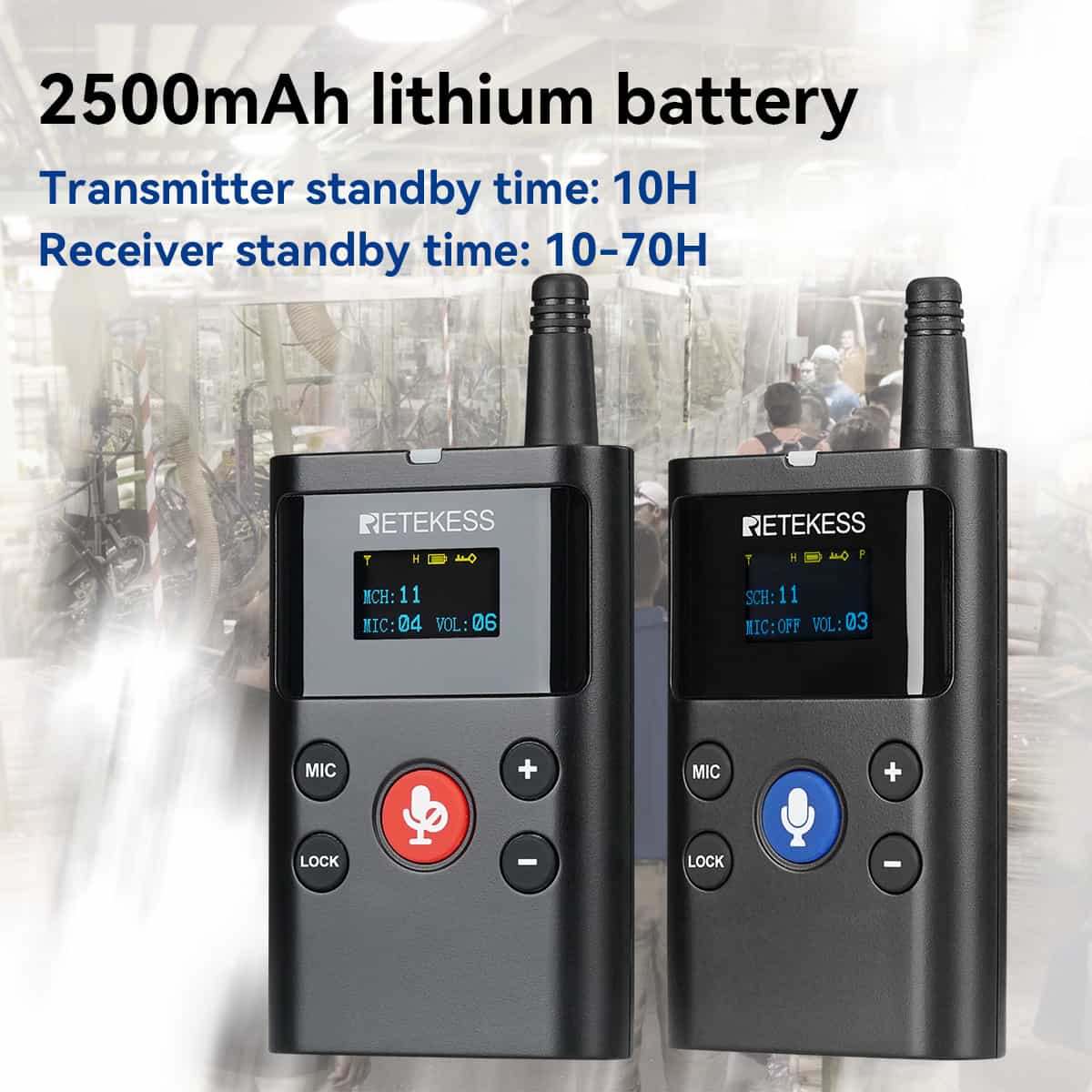

Working time
After the tour equipment is fully charged, the main transmitter can be used for 10 hours and the vice transmitter can be used for 10-70 hours. Ensure that participants have a smooth factory tour without worrying about interruptions due to battery exhaustion.

Transmitter one-button mute
The tour guide can mute the transmitter by simply pressing the relevant button, without turning off the two-way audio system. It is very practical when the tour guide needs to take a break, speak privately, or pause the audio transmission.

Application scenario
The 2-way audio system is not only used for factory tours, but also for equestrian activities, training, tours, meetings, etc.

Spec

TT126 Two-way Headsets Specifications

Main Transmitter Vice Transmitter
Operating Frequency Range European Version: 823–832MHz / 863–865MHz
US Version: 902–928MHz
Operating Frequency Range European Version: 823–832MHz / 863–865MHz
US Version: 902–928MHz
Number of Channels European Version: 12 channels
US Version: 25 channels
Number of Channels European Version: 12 channels
US Version: 25 channels
Operating Temperature -10°C to 50°C Operating Temperature -10°C to 50°C
Transmit Power 25dBm (max) Sensitivity -97dB
Signal-to-Noise Ratio ≥70dB Frequency Response Range 20Hz–5kHz
Frequency Response Range 20Hz–5kHz Charging Time 5–6 hours
Charging Time 5–6 hours Charging Current 500mA
Charging Current 500mA Working Time 10H–70H
Working Time 10H Receiving Distance 280 meters in the open visual environment
Transmitting Distance 280 meters in the open visual environment Battery Capacity 2500mA lithium battery
Battery Capacity 2500mA lithium battery Charging Method TYPE-C / charging case
Charging Method TYPE-C / charging case Weight European Version: 183g, US Version: 182g
Weight European Version: 190g, US Version: 191g

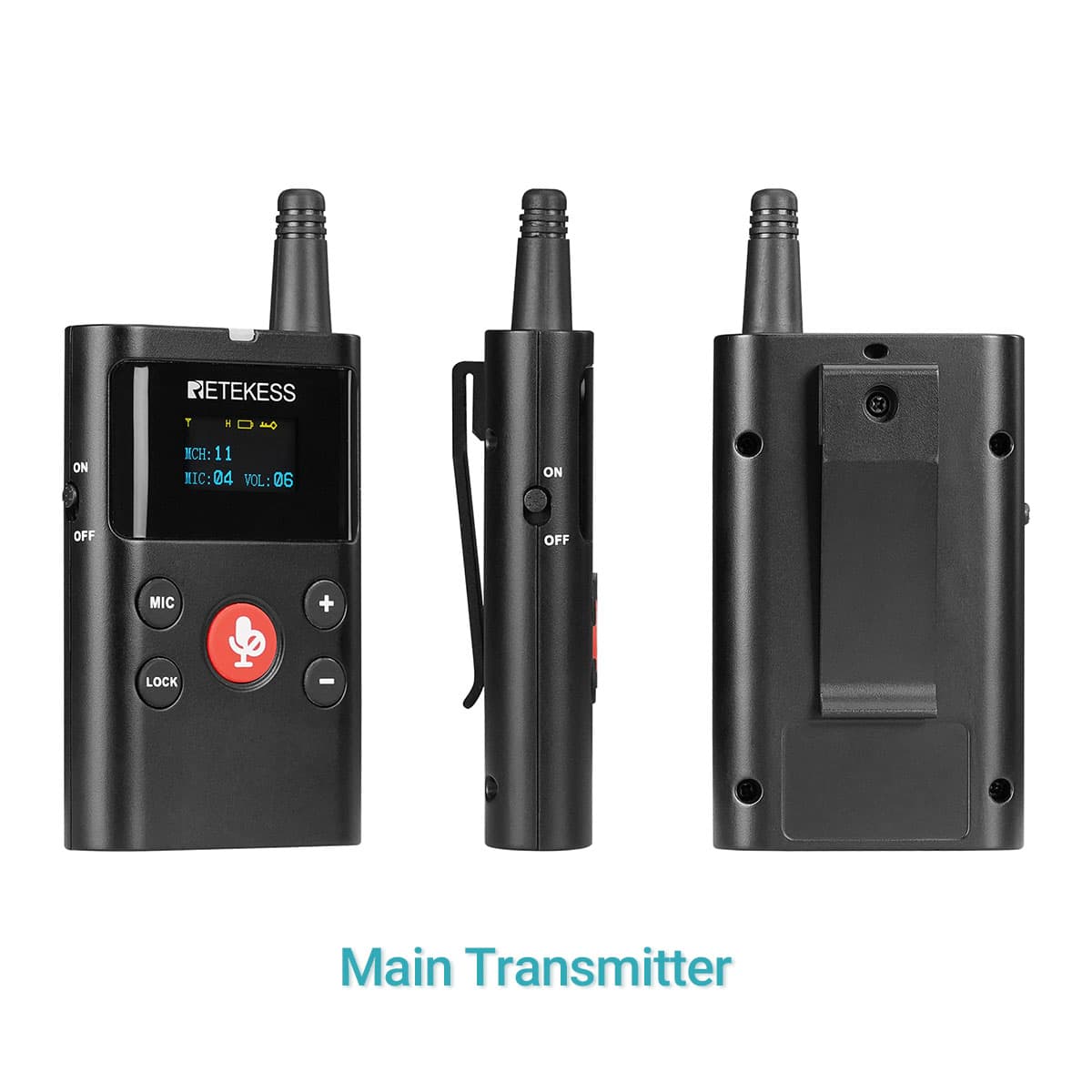

Main Transmitter
Operating Frequency Range European Version: 823–832MHz / 863–865MHz, US Version: 902–928MHz
Number of Channels European Version: 12 channels, US Version: 25 channels
Operating Temperature -10°C to 50°C
Transmit Power 25dBm (max)
Signal-to-Noise Ratio ≥70dB
Frequency Response Range 20Hz–5kHz
Charging Time 5–6 hours
Charging Current 500mA
Working Time 10H
Transmitting Distance 280 meters in the open visual environment
Battery Capacity 2500mA lithium battery

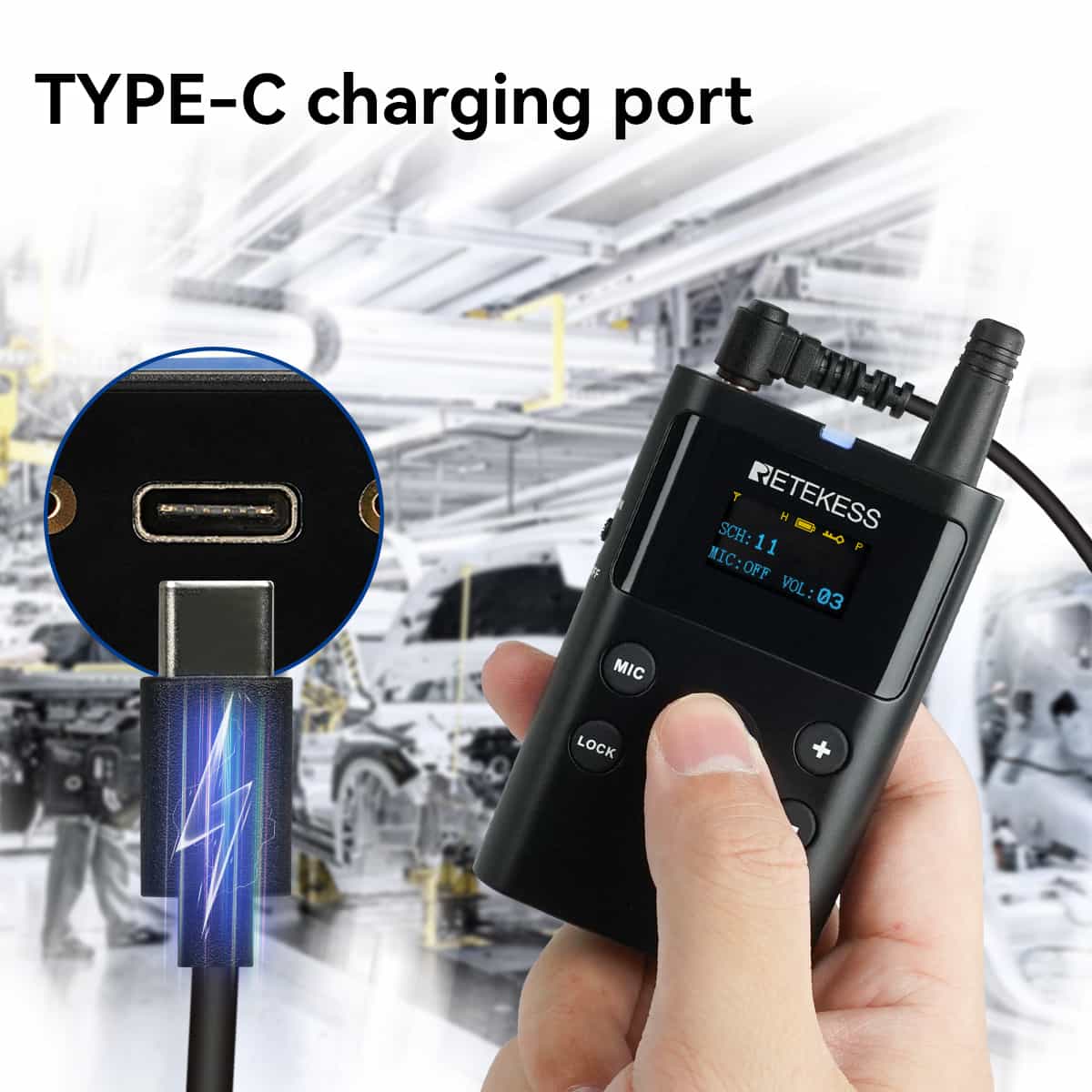

Charging Method TYPE-C / charging case
Weight European Version: 190g, US Version: 191g

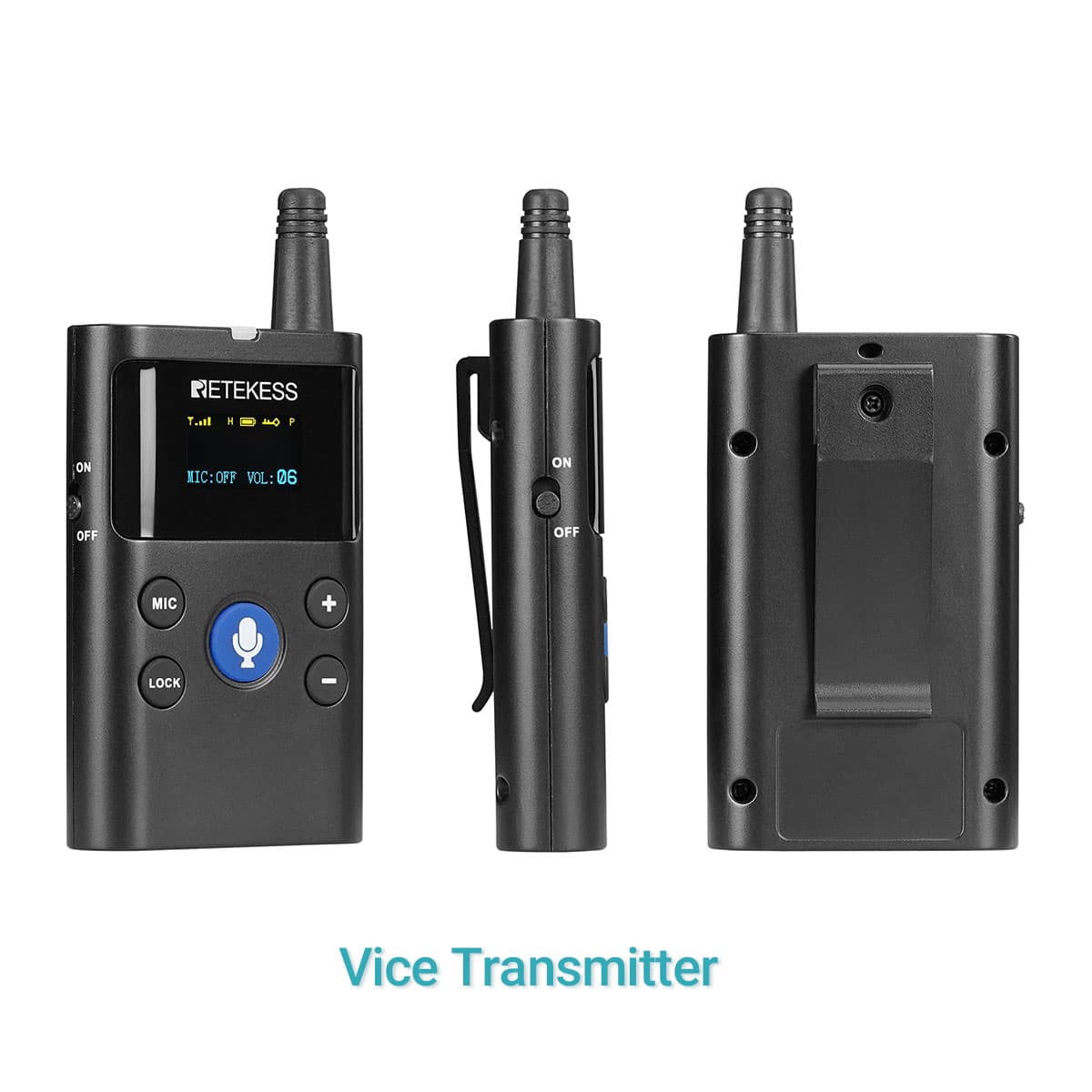

Vice Transmitter
Operating Frequency Range European Version: 823–832MHz / 863–865MHz, US Version: 902–928MHz
Number of Channels European Version: 12 channels, US Version: 25 channels
Operating Temperature -10°C to 50°C
Sensitivity -97dB
Frequency Response Range 20Hz–5kHz
Charging Time 5–6 hours
Charging Current 500mA
Working Time 10H–70H
Receiving Distance 280 meters in the open visual environment
Battery Capacity 2500mA lithium battery
Charging Method TYPE-C / charging case
Weight European Version: 183g, US Version: 182g
16 Port USB Charging Case
USB Output DC 5V, 7A
Adapter Input AC 100–240V, 50/60Hz
Size 190 × 95 × 50mm
Weight 430g

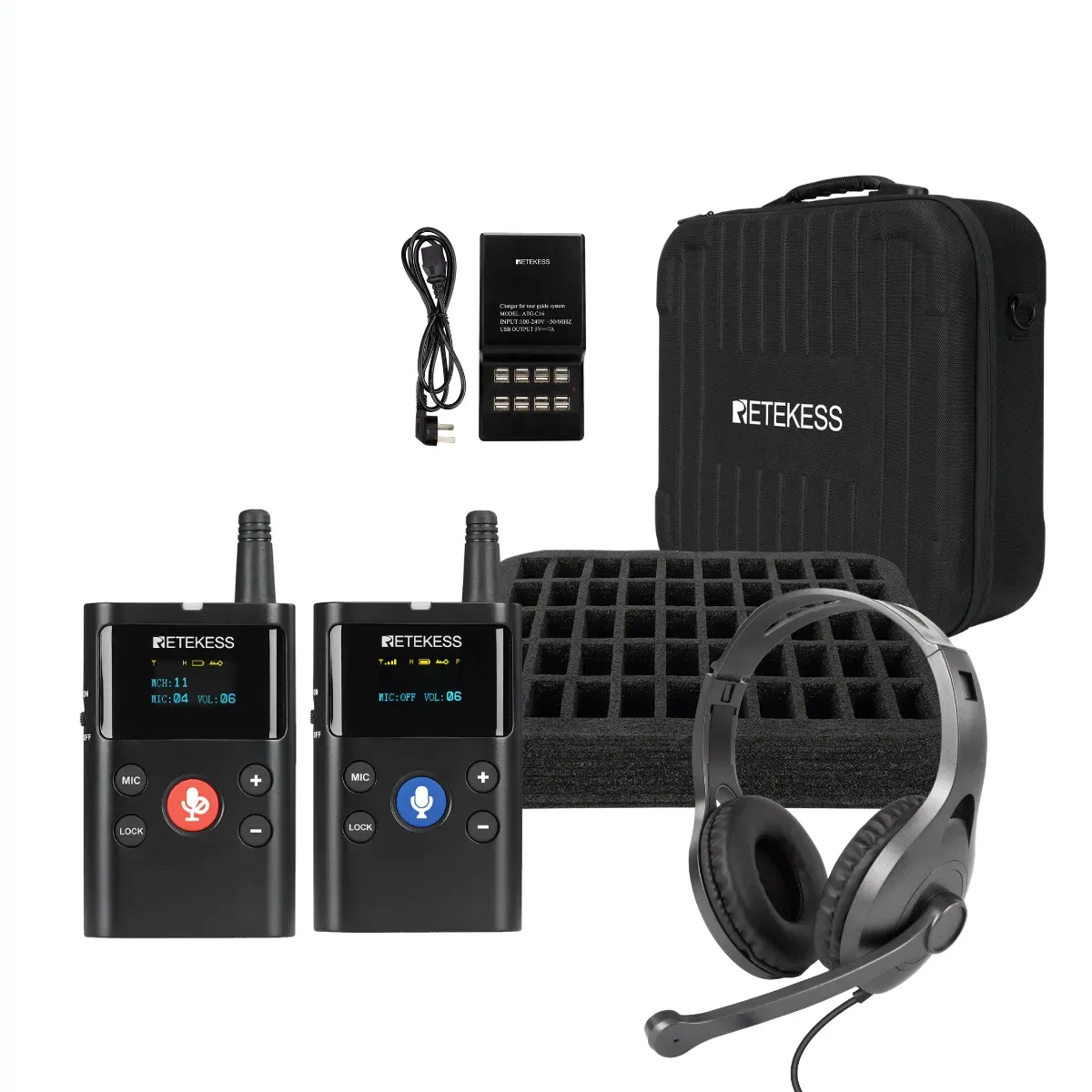

TT017 50-port Carry Case
Material Nylon cloth wrapped with EVA
Size 370 × 340 × 110mm / 14.56 × 13.38 × 4.33 inch
Weight 1890g

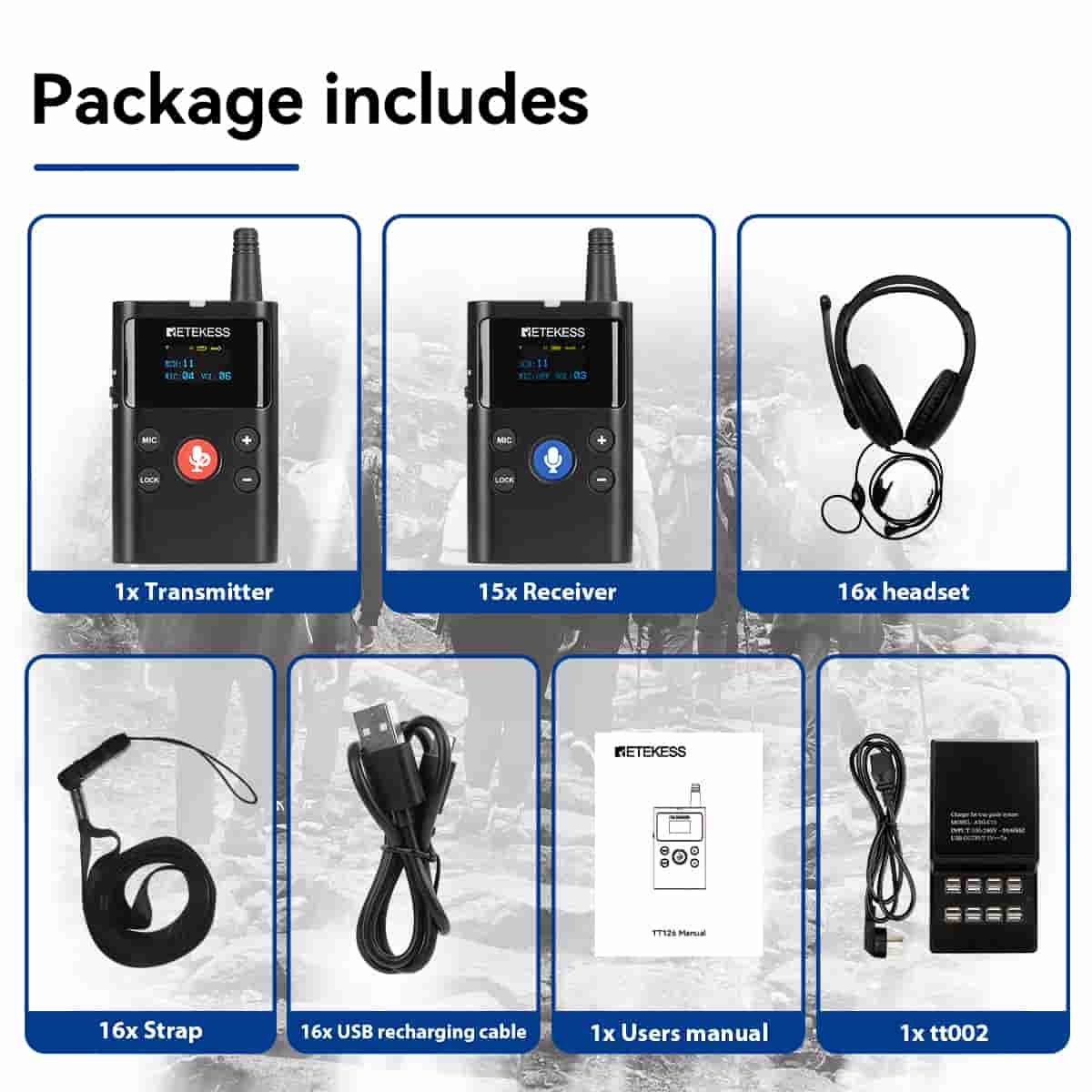

Package Include

Kit Package List

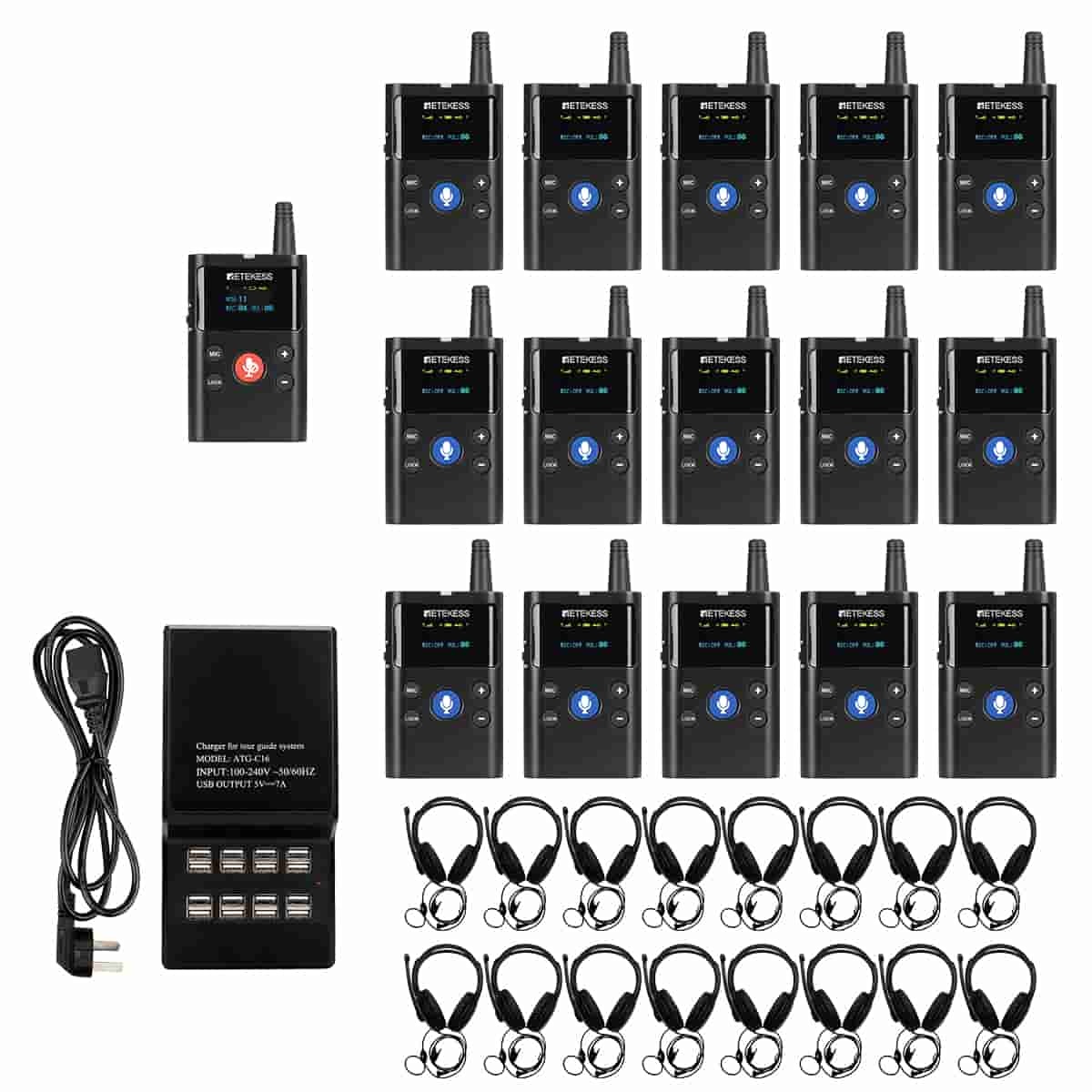

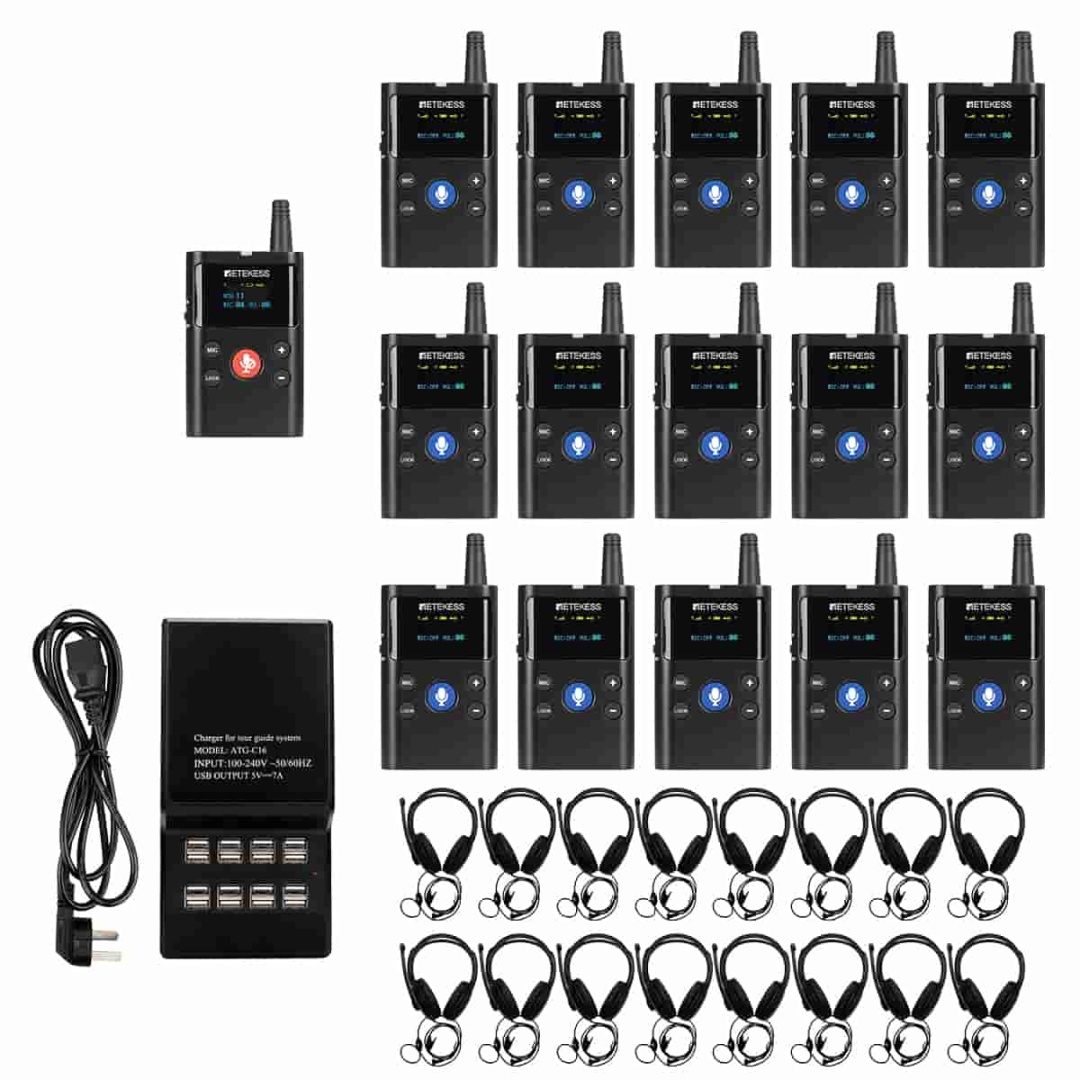

1TX + 15RX + 1 Charging Base Main Transmitter ×1, Vice Transmitter ×15, Headset ×16, Charging Base ×1, Strap ×16, USB Recharging Cable ×16, User Manual ×1
1TX + 15RX + 1 Charging Base + 1 Bag Main Transmitter ×1, Vice Transmitter ×15, Headset ×16, Charging Base ×1, Bag ×1, Strap ×16, USB Recharging Cable ×16, User Manual ×1
1TX + 15RX + 16 Microphone Headphones + 1 Charging Base Main Transmitter ×1, Vice Transmitter ×15, Microphone Headphones ×16, Charging Base ×1, Strap ×16, USB Recharging Cable ×16, User’s Manual ×1

FAQ

Q: For the TT126 two-way audio guide systems, if a vice transmitter speaks, can only the main transmitter hear what they are saying, or can all of the vice transmitters and the main transmitter hear what they are saying?

A: When the TT126 vice transmitter speaks, the main transmitter and all vice transmitters in the team can hear what they say.

Q: Can I connect more vice transmitters for use?

A: Of course, the main transmitter can pair with any number of vice transmitters and work together. If you need more vice transmitters, please contact us.

Q: What is the warranty for the two-way headsets?

A: We offer a 30-day no-reason return and a 2-year warranty, so you can try it with confidence.

Q: What components are included in this kit? What is the exact quantity?

A: Click here to find out, or contact customer service directly for information.

Q: Can I purchase the transmitter/receiver/charging case separately?

A: Yes! We offer all components for individual sale. Please visit our Accessories Center page to find the components you need, or contact customer service directly for a separate quote.

Q: What is the warranty policy?

A: We offer a 3-year warranty. Free repairs will be provided during the warranty period.

Q: Do you offer demo testing? How do I apply?

A: Retekess.com offers free demo testing (a deposit is required). Please click Demo Application , and our customer service will contact you within one business day to arrange shipping.

Q: How do I customize the quantity (e.g., 99 transmitters + 9999 receivers)?

A: Retekess.com supports customization of any quantity. Please click here to tell us your desired model and the specific quantity needed. Large orders may also receive a surprise additional discount! 🎁

Q: Can you customize my company logo? What are the logo size specifications? What is the minimum order quantity for customization?

A: Retekess.com supports tour guide system logo customization. However, the specifications and minimum order quantity may vary depending on the product model. Please click here to tell us the product model you wish to purchase so we can provide you with detailed information one-on-one.
