Large capacity, anti-dump function
Transmitter keypad detaches from charging base
Auto-repeat call
One-touch mute button
600m operating range
24h+ standby time
Out-of-bounds alarm

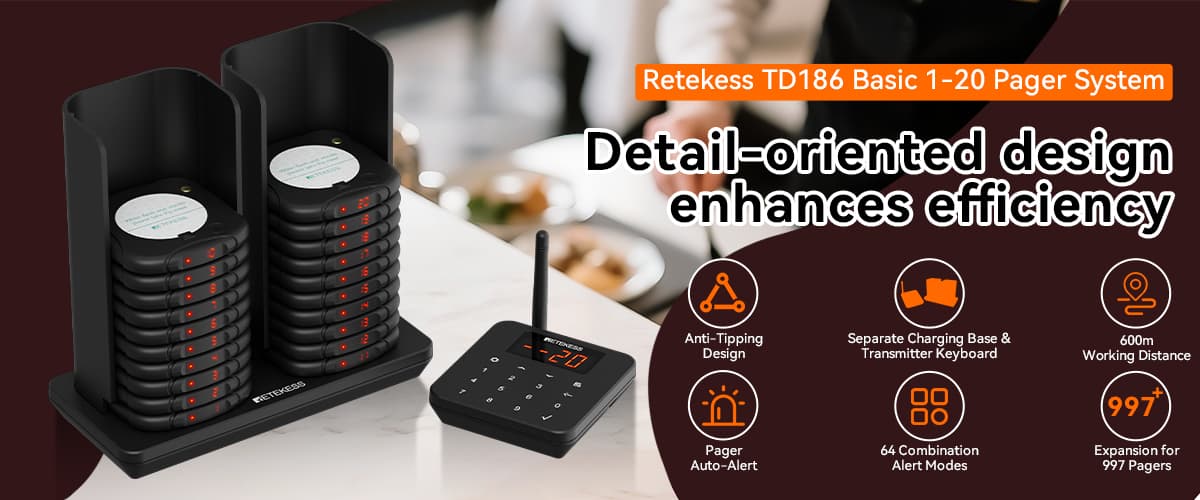

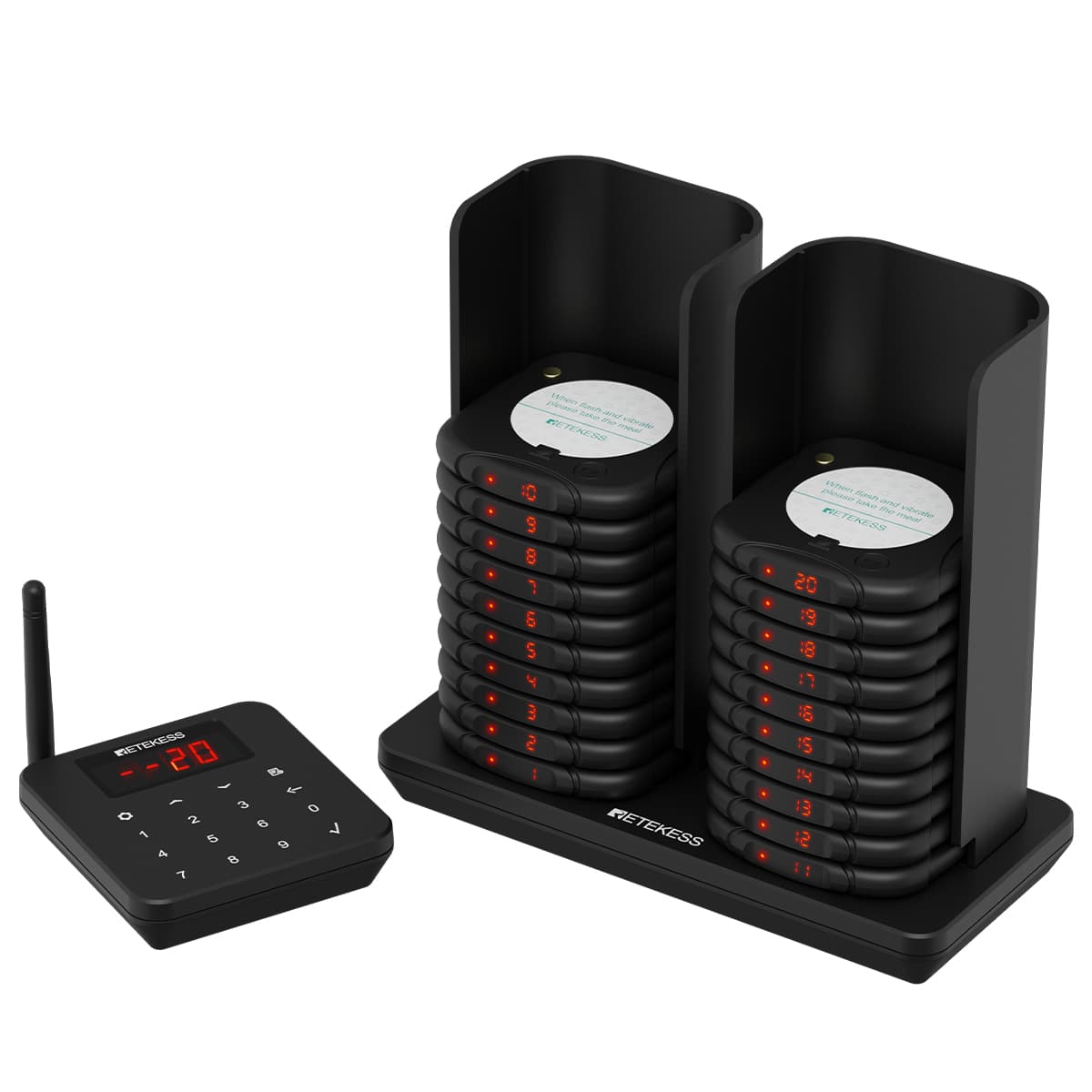

Retekess TD186 features an anti-tip design and allows the charging base and transmitter keypad to be separated. Multiple pager combinations and one-touch muting of the pagers help you create a comfortable and convenient dining experience for your customers and improve service efficiency

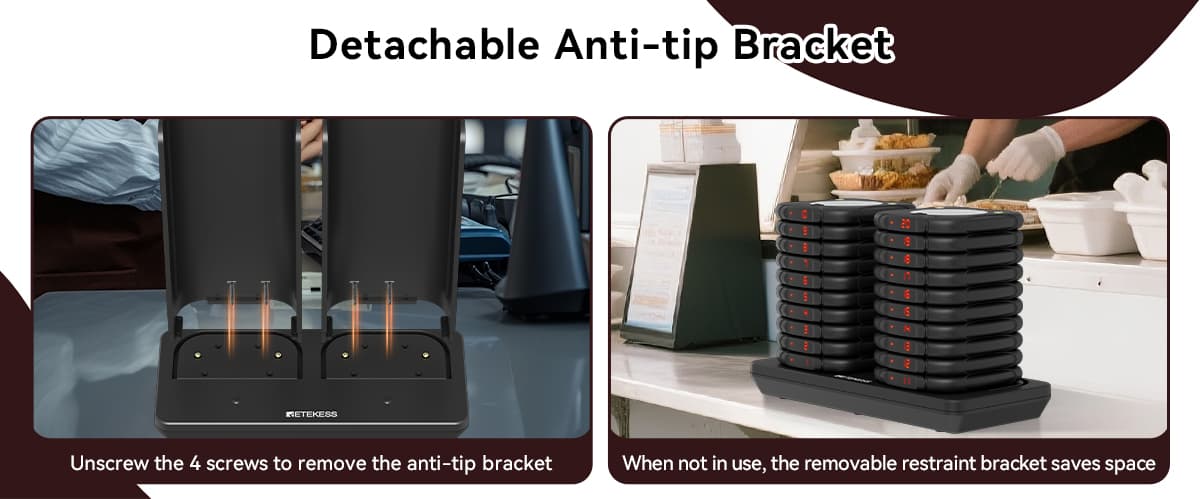

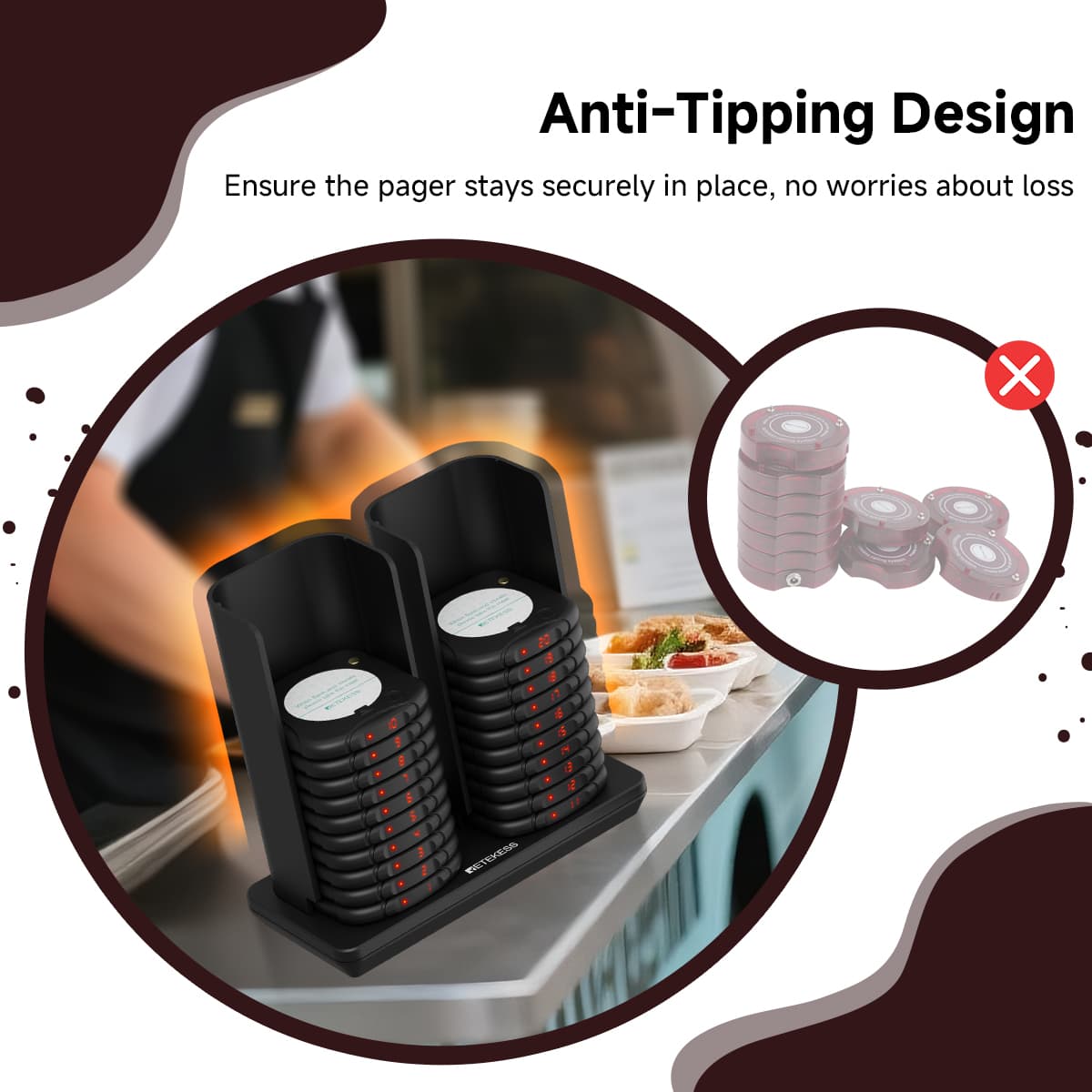

Anti-tip design
The restaurant callers are stable and reliable when stacked for charging or storage, solving the problem of stacked charging food dispensers tipping over, while allowing restaurant callers to be removed from the top or pulled out from the bottom, providing greater flexibility and convenience

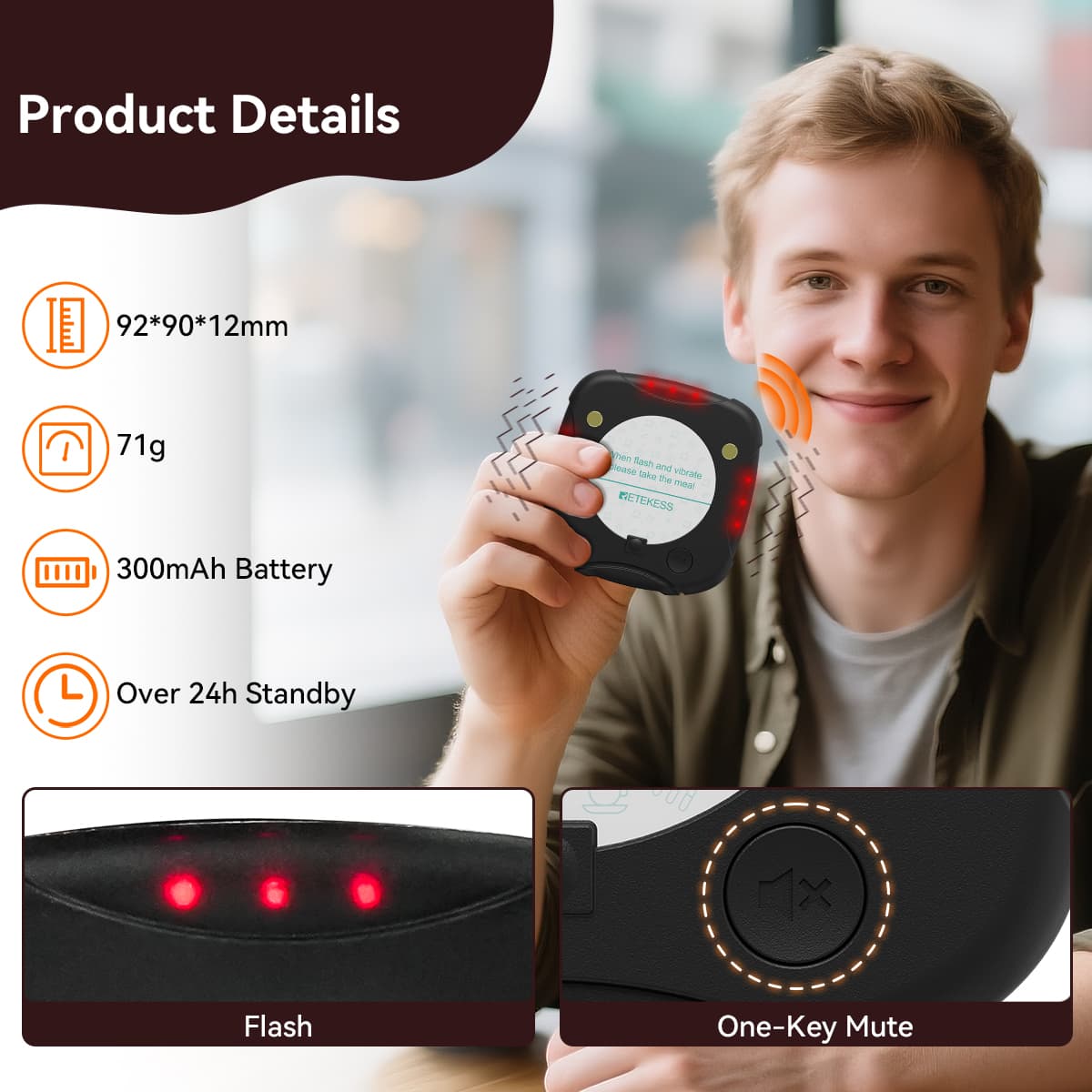

Mute Button
Our restaurant callers feature a unique mute button. When the restaurant caller emits an alert sound, customers can simply press the button to easily mute it, preventing prolonged noise from disrupting the dining atmosphere

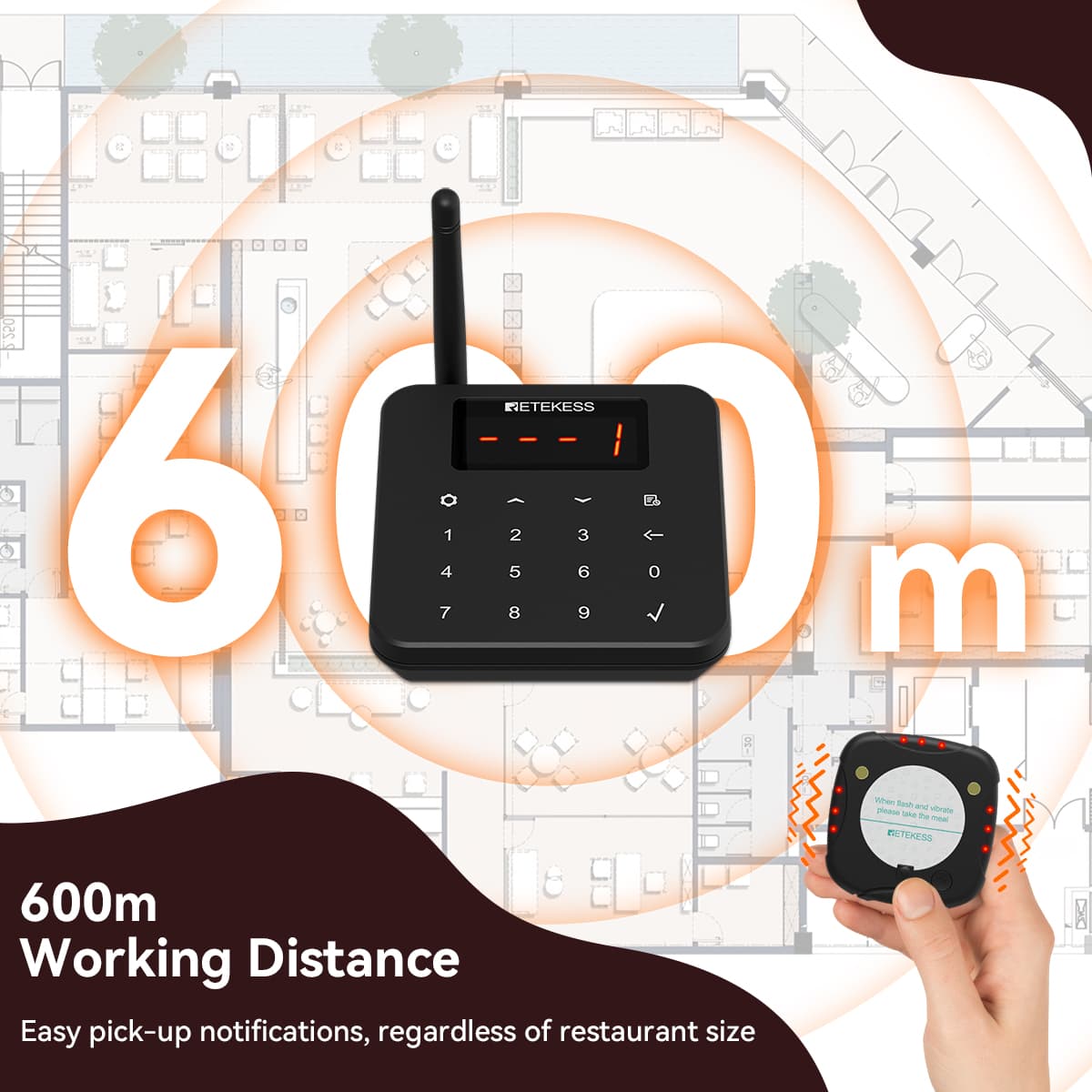

Working distance 600m
Stacked wireless restaurant callers are particularly suitable for large restaurants, banquet halls, or outdoor dining venues, allowing customers to remotely receive meal pickup notifications via the wireless caller system without having to move around

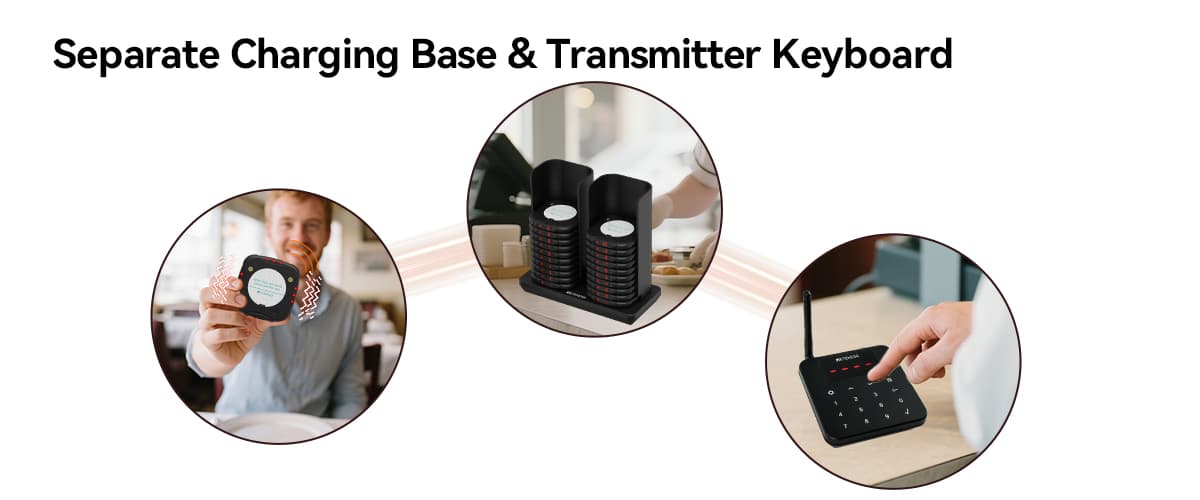

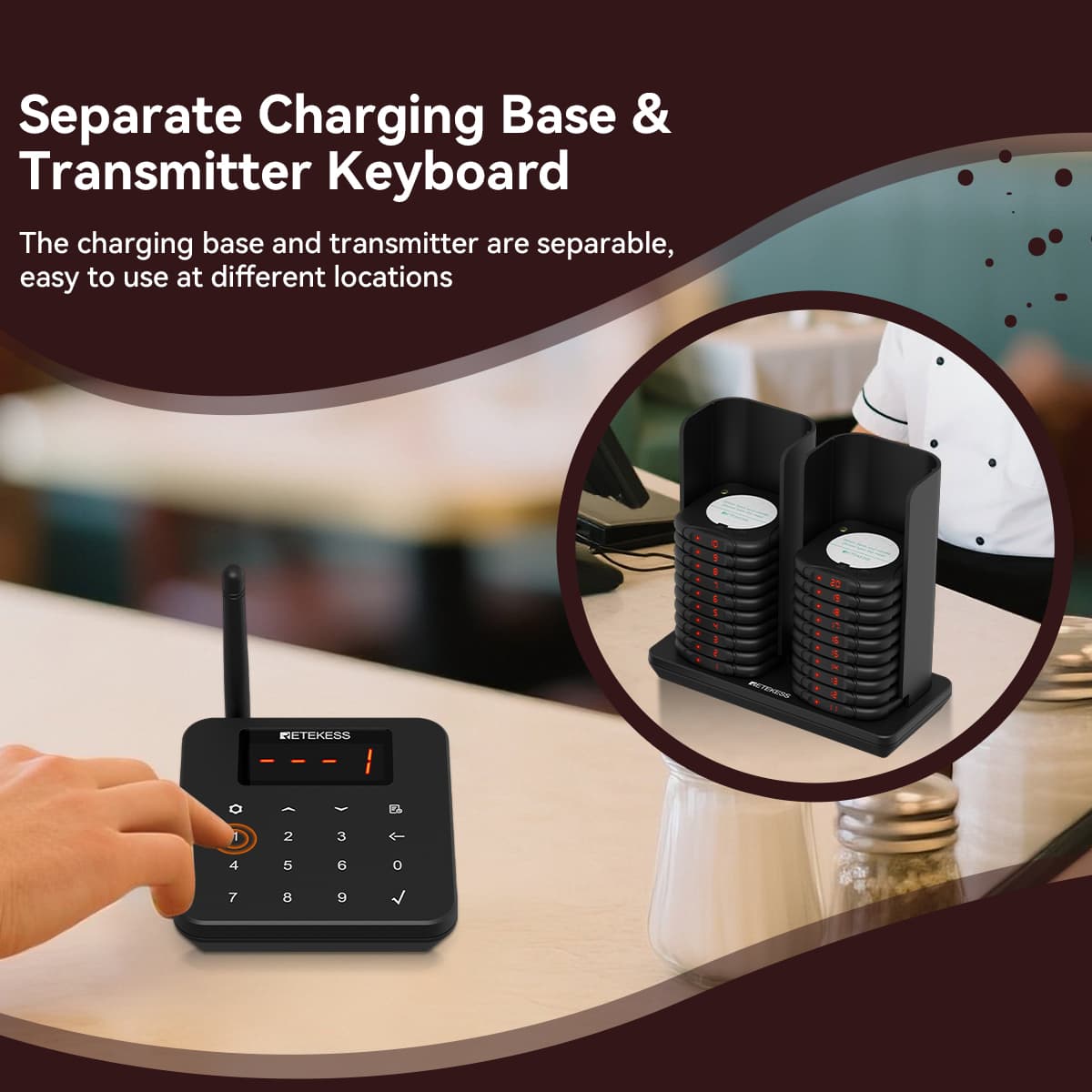

Separate design
The wireless pager system's charging base and transmitter keyboard feature a separate design, enabling the keyboard and menu to be used in different locations, providing greater flexibility and convenience for your restaurant
Long-lasting Battery
300mAh battery, 24+ hours standby, 4-5 hours fast charging, ensuring all-day seamless pager operation. Efficient charging, quick full power, significantly reduces charging time

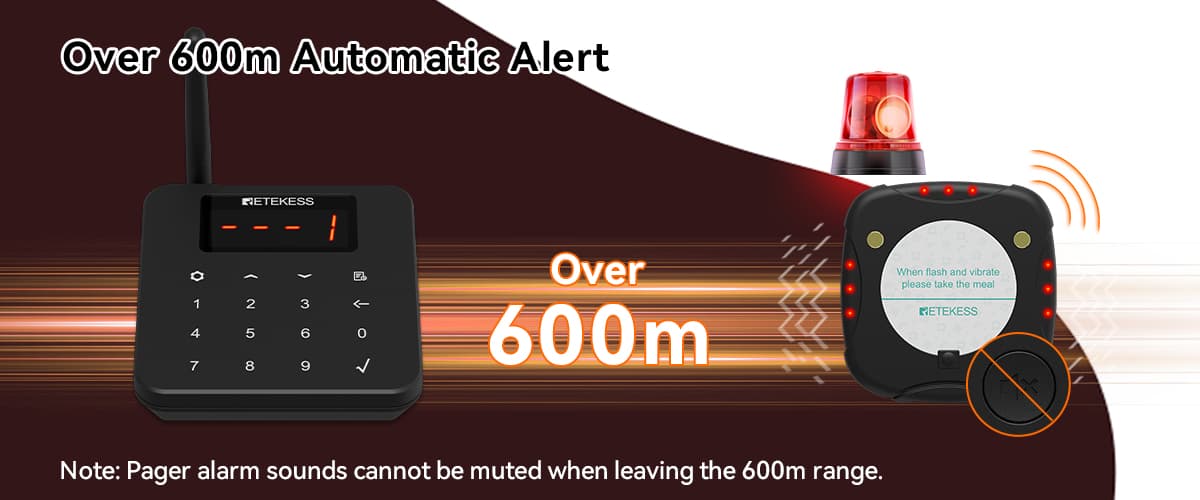

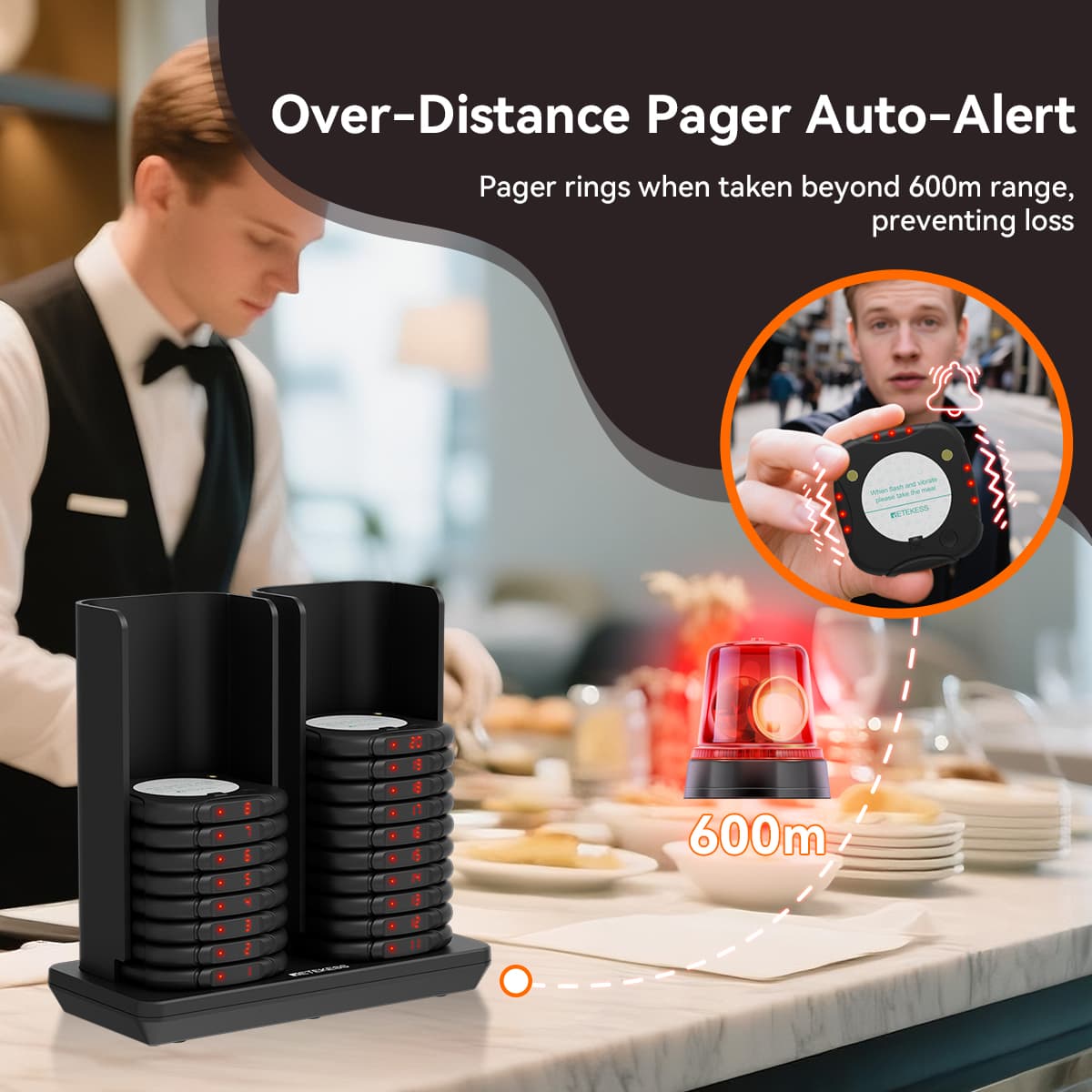

Automatic Alarm
If customers accidentally take the pager more than 600 metres away, the pager will ring to remind them. This effective reminder helps prevent the restaurant pager from being taken away

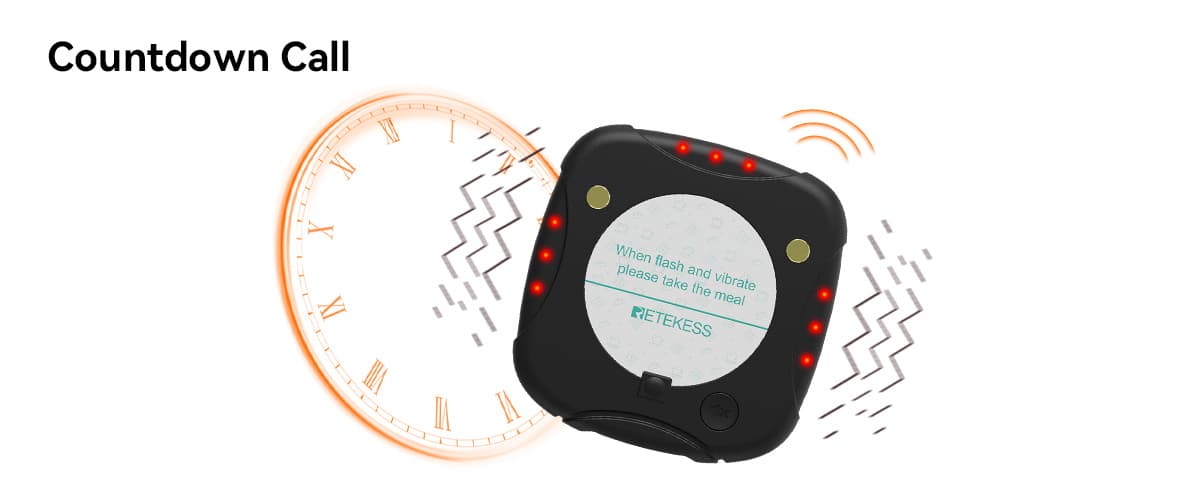

Countdown call time
After the restaurant call system leaves the charging base, it will automatically notify after a preset time, ideal for improving service efficiency and keeping your restaurant operations seamless
One-touch operation
The transmitter keyboard of the wireless call system features one-touch operation for group calls and shutdown, simplifying communication processes and enhancing restaurant efficiency. Sensitive response and convenient operation, just a light touch to complete the operation

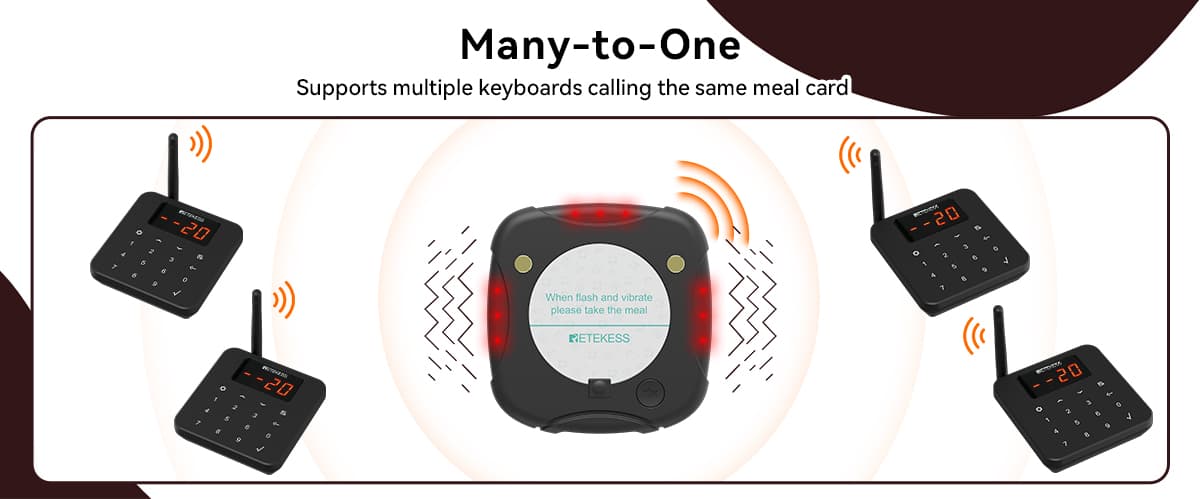

Many-to-one
Expandable 997+ pagers. Supports many-to-one, multiple keyboards to call the same menu card

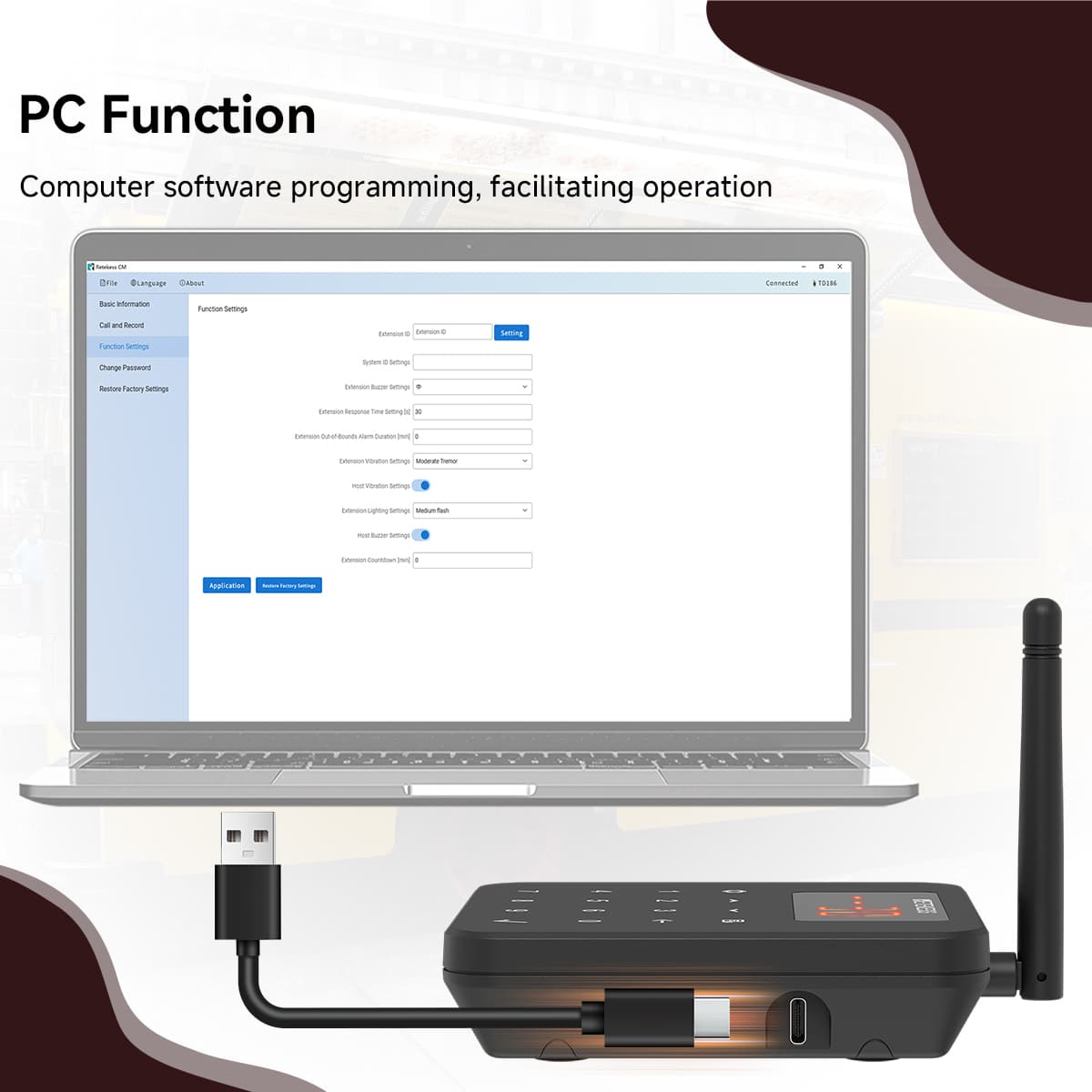

Easy control
The wireless call system can be easily managed via PC, with a user-friendly interface for effortless setup and configuration of callers and transmitters

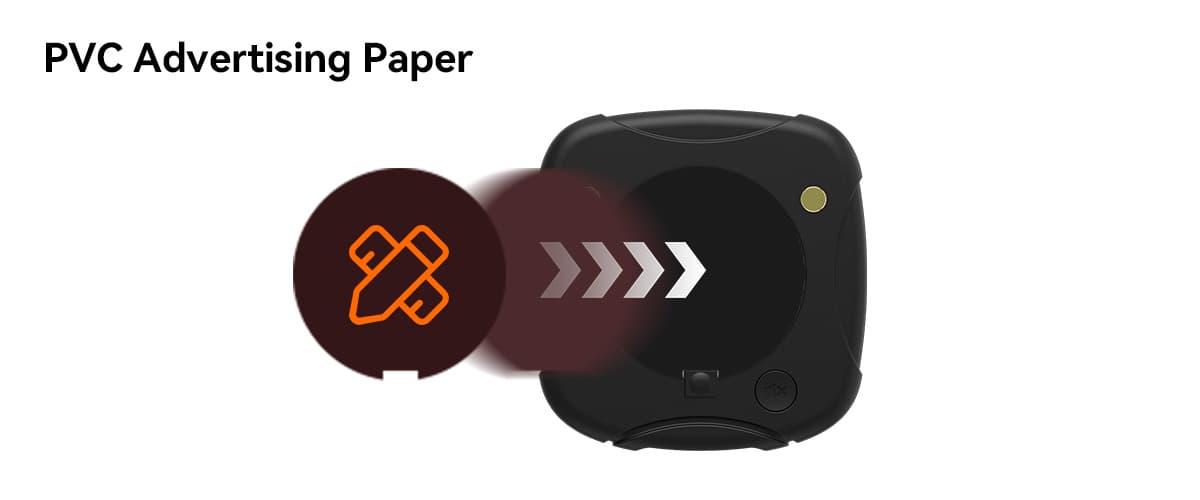

PVC advertising paper
The product has an elegant design, excellent waterproof performance, and durability. It can be customised with advertising content according to your needs, making it ideal for use with restaurant call systems

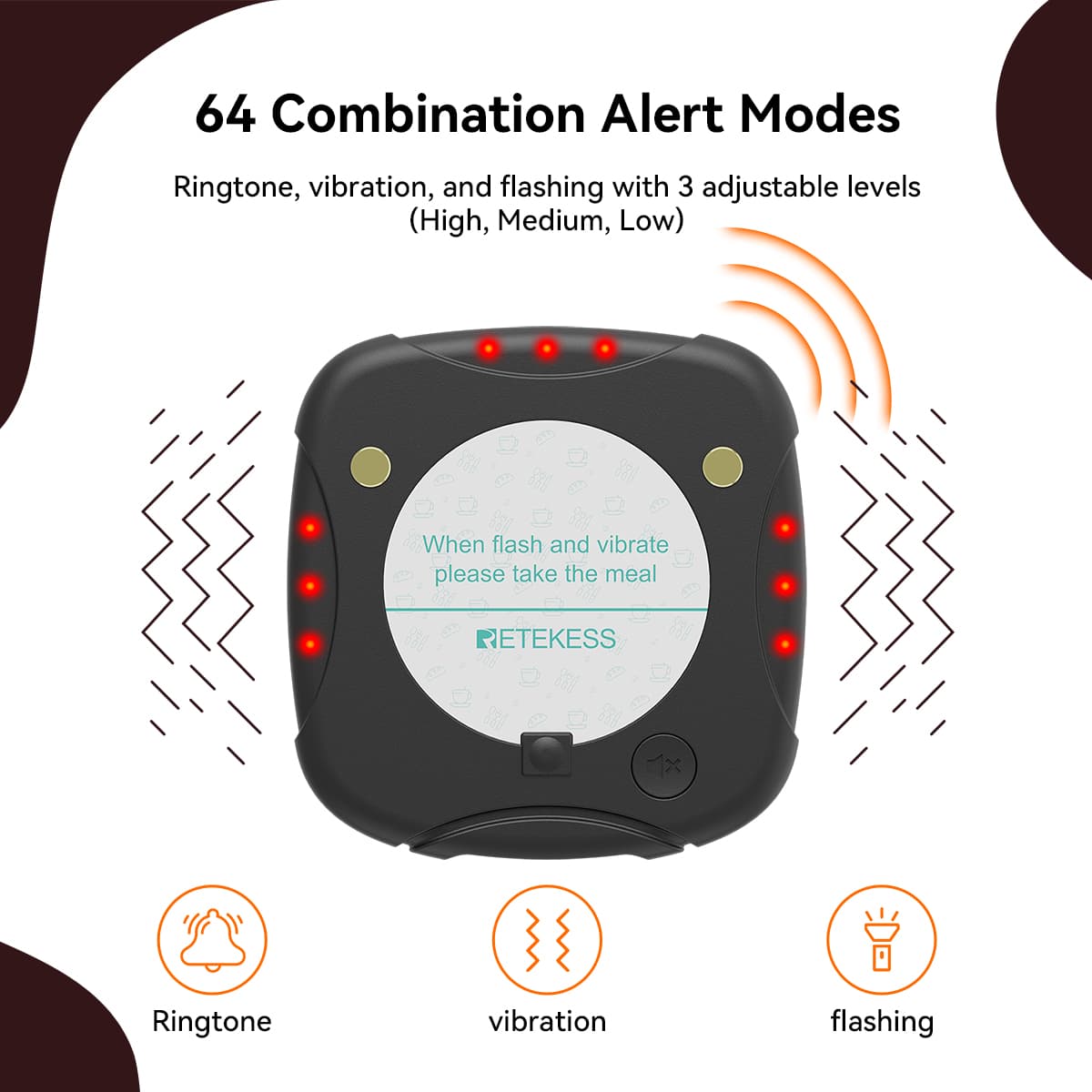

64 combination options
The restaurant pager system features ringtones, vibrations, and flashing lights, all adjustable across three levels: high, medium, and low. This allows you to customise notifications according to your restaurant's specific needs

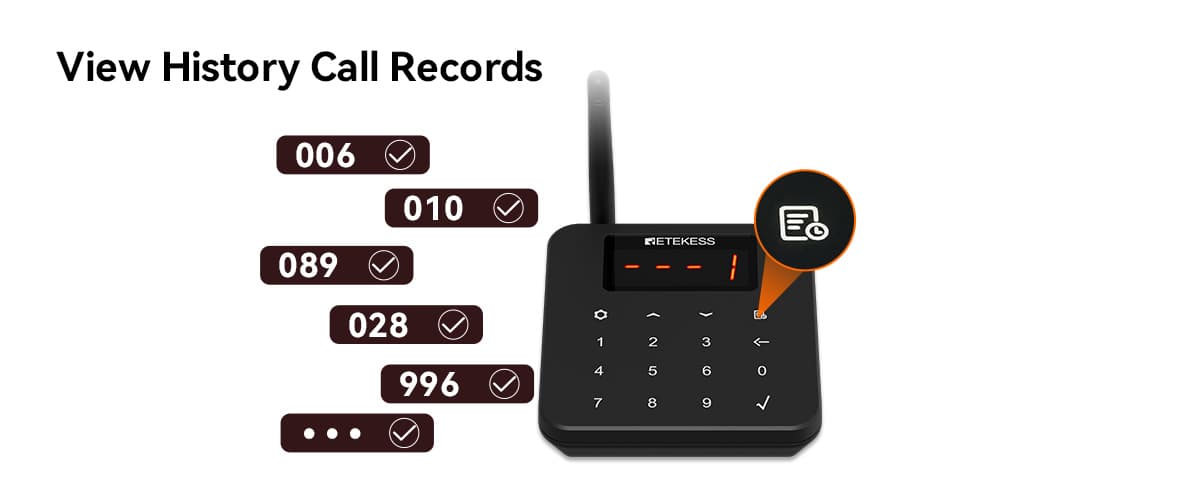

10 call records
You can check unprocessed calls at any time to avoid customers waiting for extended periods due to missed calls
Please fill in your procurement needs and contact information
TD186 Anti-tip Call System Product Parameters
| TD186 Keyboard Transmitter | |
| Modulation Mode | OOK (amplitude modulation) |
| Transmit Frequency | 433.92Mhz |
| Button | 0-9 numeric keys, del key, call key, up key, down key, set key, call log key |
| Input Voltage | 12v/1A |
| Standby Current | ＜20mA |
| Transmit Power | 20-27（dBm） |
| Operating Current | 120mA |
| Configurable Number of Plates | 1-997 (999 as one-touch shutdown; 998 as group call) |
| Interface | DC power interface, host computer connection interface Type-c |
| Communication Distance | 600M, open area |
| Weight | 125g |
| Charging Base | |
| Interface | DC power connector |
| Charging Port | Dual-row charging contacts |
| Input Voltage | 12v/2A |
| Weight | 508g |
| Pager | |
| Modulation Mode | OOK (amplitude modulation) |
| Receiver Frequency | 433.92Mhz |
| Charging Time | 4-5 hours |
| Alert Mode | Beep/flash/vibration, 64 combination prompt modes |
| Volume | ≥85db, adjustable in three levels: large, medium and small |
| Battery | Polymer lithium battery, 300mAh, supports charge and discharge over-discharge and over-current protection |
| Buttons | 1 mute button, stop prompt |
| Standby Time | >24h |
| Weight | 71g |

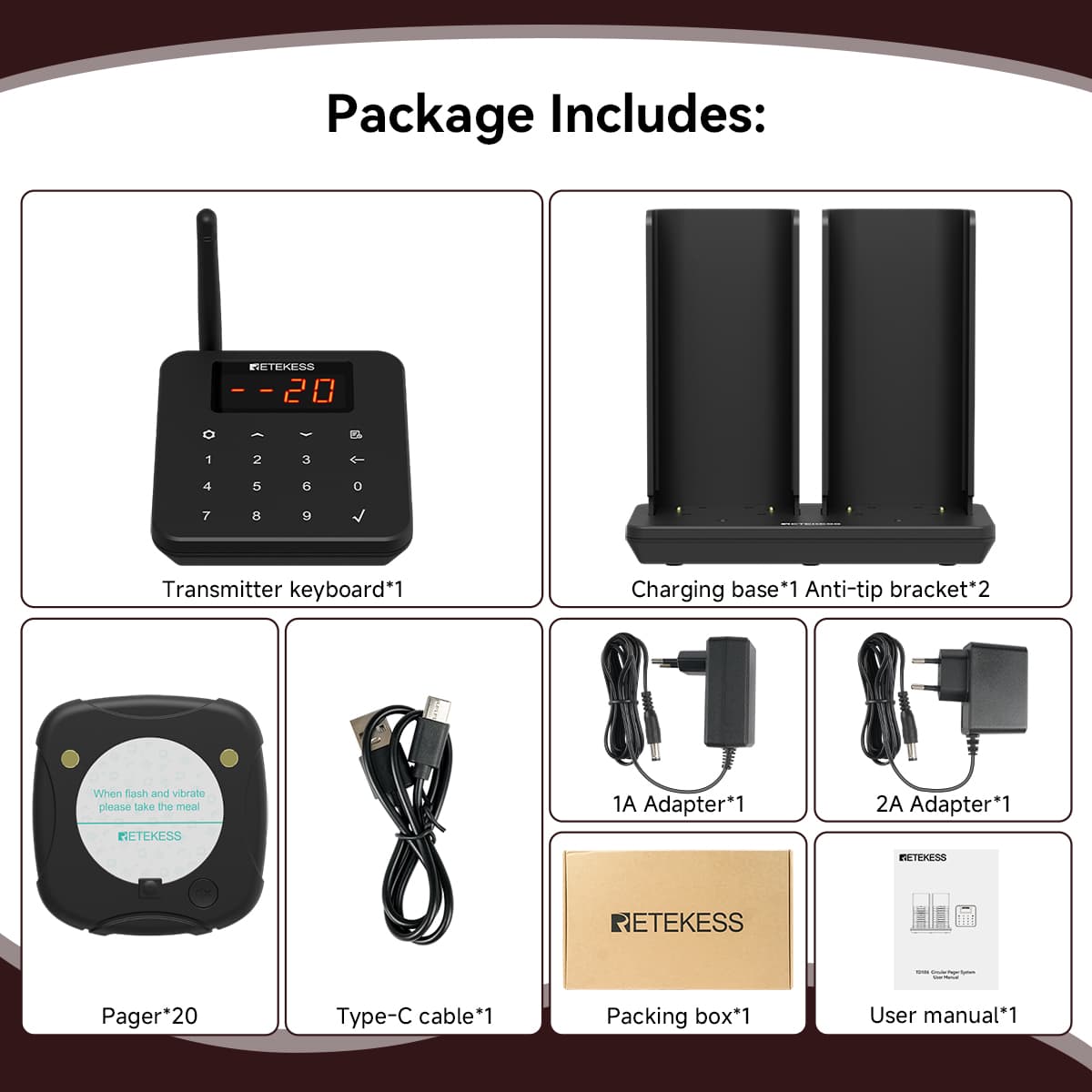

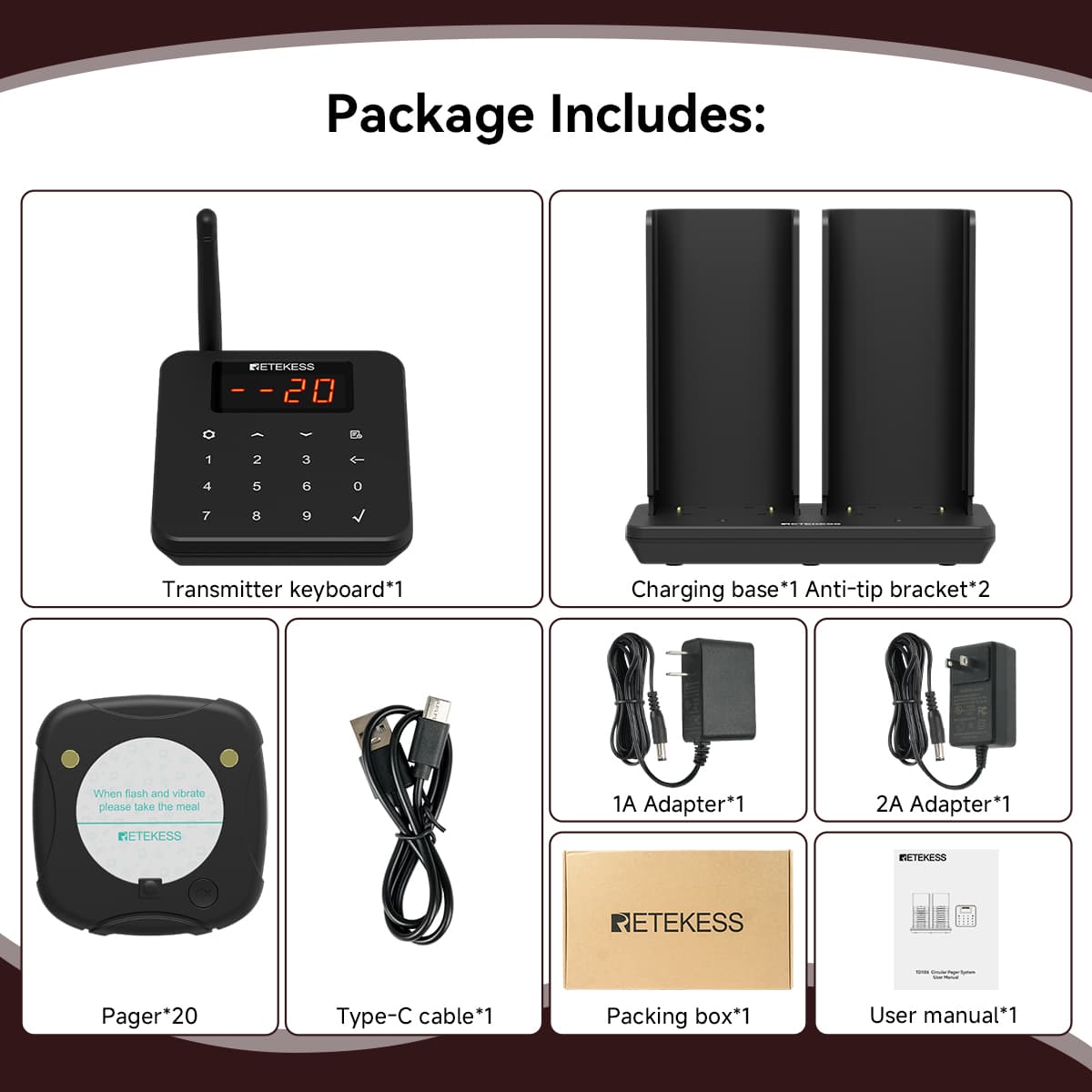

TD186 paging system product packaging details
| Name | Quantity |
| Transmitter Keypad | X1 |
| Charging Base | X1 |
| Charging Base Cover | X2 |
| Menu Plates | X20 |
| Power Adapter | X2 |
| Packaging Box | X1 |
| Instruction Manual | X1 |
