Long distance: 1312-1640ft/400-500M in open areas and 328-984ft/100-300M indoors
Customers can wait in a comfortable area or in their own car
Easy to use, plug in and play without setting
7 prompt modes: vibration buzzer and flash can be combined at will
Charge 20 pagers at the same time; easier to expand business
Adjustable reminder time; prompt time of the restaurant pager can be adjusted between 0-250 seconds, it also be set to always remind
Bulk order Inquiry
OverView

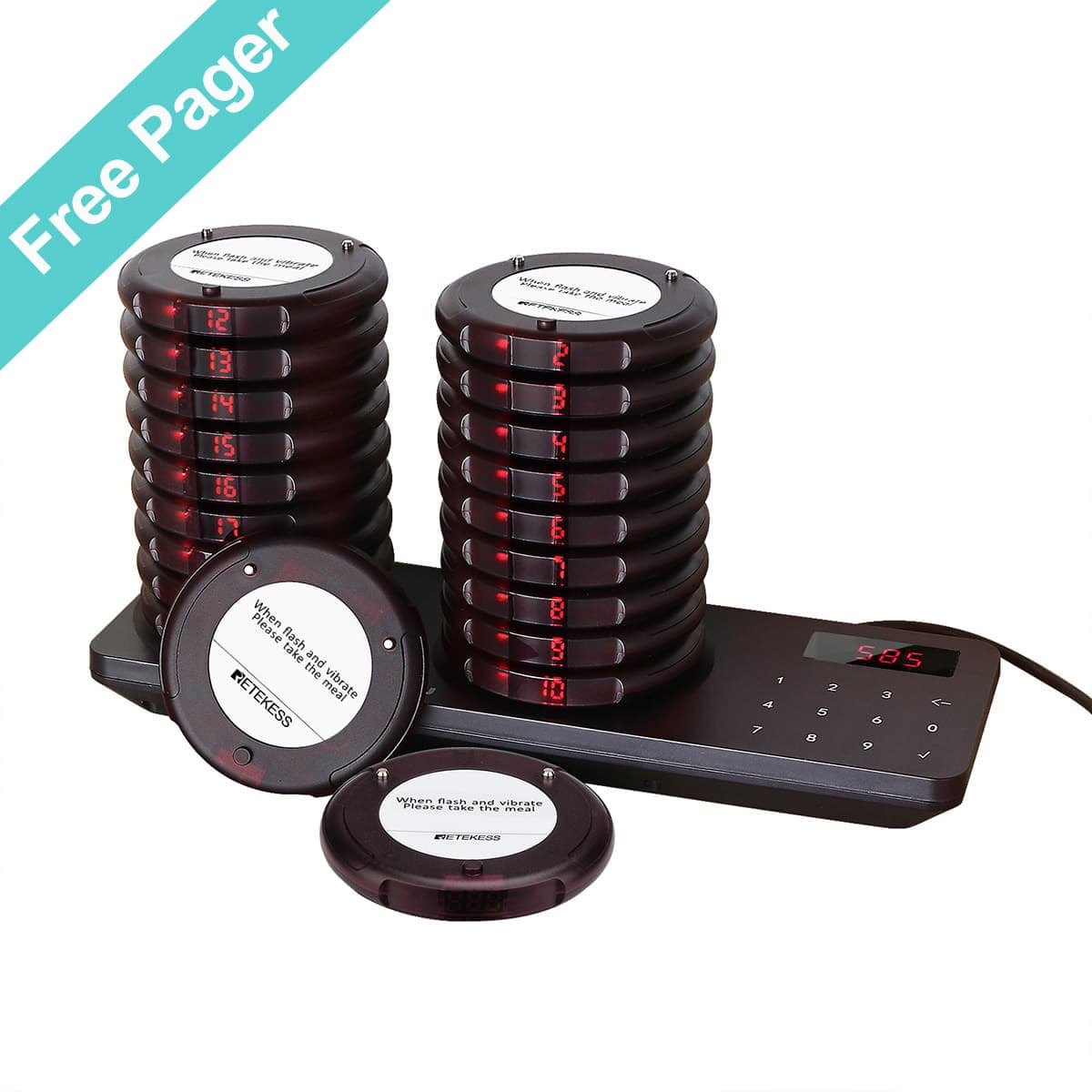

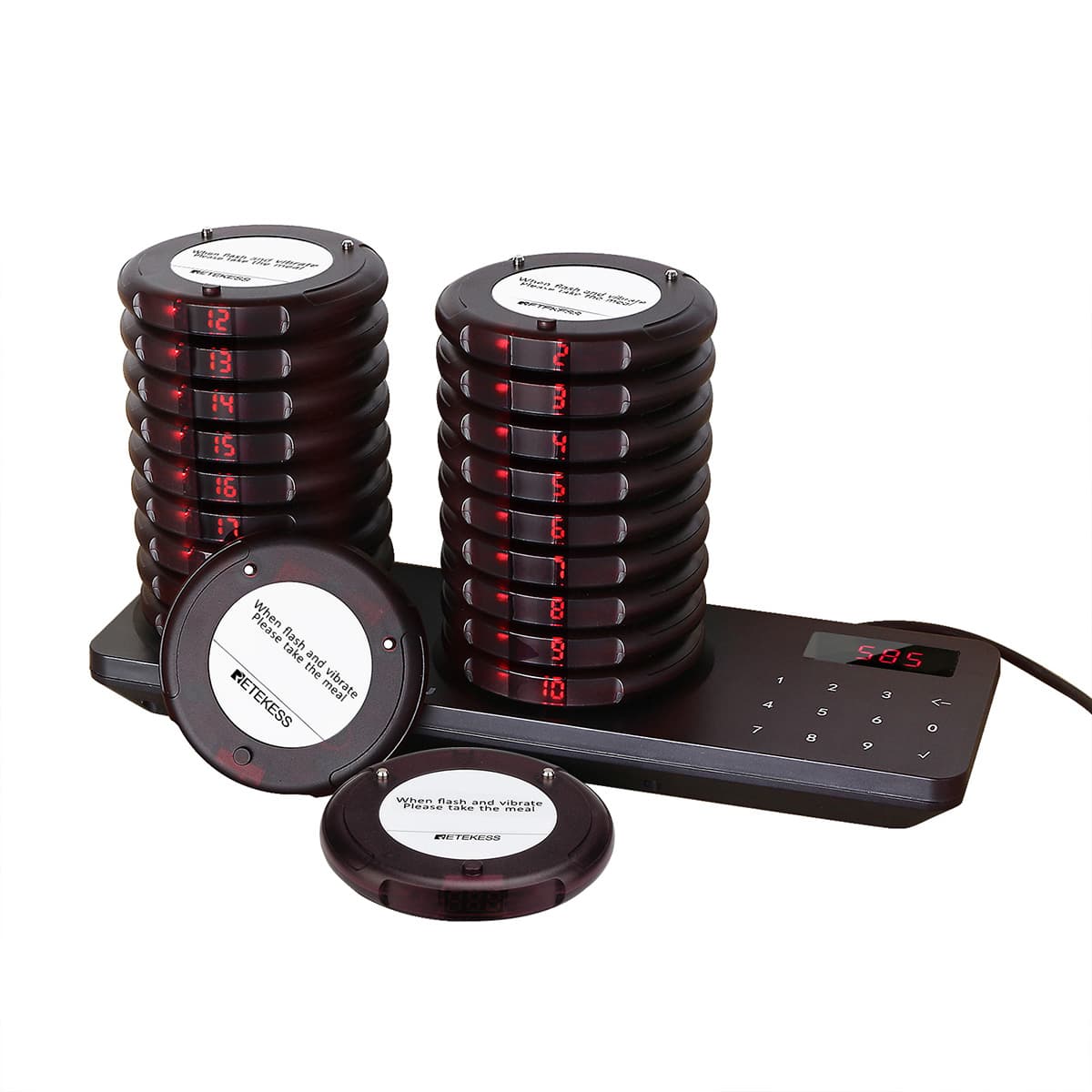

Retekess TD163 wireless paging system is the new model designed for the business who need more coaster restaurant buzzer. Each keypad transmitter could charge 20 guest pagers at the same time. And the extension pagers could be added to 998 units. Compared with other paging systems, this model saves space and more convenient to use.
Features for TD163 wireless paging system for restaurant
Durable
Built with high-quality materials for maximum durability and environmentally friendly
AM Technology
Adopts AM Modulation-mature technology 433MHz
Touch Keypad
White touch keypad transmitter, IP33 waterproof level
Rechargeable Battery
Built-in 3.7V 300mAh rechargeable lithium battery, charging full time only need 4h, standby for 18-20 hours
Changeable Prompt Way
Buzzing /vibrating /flashing lights can be chosen freely
One Key Power Off
0 + call, shut down all the pagers one time
Multiple Keyboards Work with the Same Pagers
One pager can work with several keypad transmitters, you can call the same pagers in the different places
Indicator Light
Flash when charging, but light when charging full, it is easy to know the charging condition
Support Customize
Each pagers support customize your own pager/brand to publicize your own business
Reminder Time can be Set
Time from 0-200S, on F3 station, press the number and then pick up one-pager from the charging case in the charging condition.
Confirm it within 3S. If successful, the pager will be Buzzer + flashing. The default setting is the 30S. "O" means reminds all the time
Easy to Program the Pager ID
Press set key choose F2 and press the Confirm key to enter the number that you want and press the confirm key within 3s and pick up the pagers that you need to change the numbers. If success, the pagers will be Beep + flashing for 3 times
Note:
1. The pager ID can be any from 1-998
2. Charger Standard (EU, US, AU, UK). The kit comes with the charging specifications corresponding to your country
3. Please use the keypad transmitter on the table which be made of wood, plastic, glass and other materials, and avoid the table top of metal and marble.
Applications:
Spec
Specifications of TD163 Coaster Paging System:
| Keypad Transmitter | Coaster Pagers / Buzzers | ||
| Power input | DC12V/2A | Operating Voltage | DC 3.7V (Rechargeable battery) |
| Weight | 196g/6.91oz | Standby current | ≤9mA |
| Size | 270*90*25mm/10.63*3.54*0.98inch | Standby time | ≈20Hour |
| Receiving sensitivity | -110dBm | ||
| Battery capacity | 300mAh | ||
| Weight | 46g/1.62oz | ||
| Size | Φ80*12mm/φ3.15*0.47inch | ||
Package Includes:
Kit Qty |
Package Details |
| 1 keypad + 20 pagers |
1 Keypad Transmitter, 20 Coaster Pagers, 1 Charger, 1 Power Adapter, 1 User Manual |
| 1 keypad + 30 pagers |
1 Keypad Transmitter, 30 Coaster Pagers, 1 Charger, 1 Power Adapter, 1 User Manual |
FAQ
Q: How many pieces of pagers can I use in the one guest paging system?
A: Support 998 pcs pagers, since the 999 is for turning off pagers
Q: What is the working range?
A: It can be 500M in the open area. If in the building, it may shorten.
Q: Can I customize the logo on the pagers?
A: Sure, you just need to email us with your detailed requirements.
Q: How can I shut down all the pagers?
A: First, you need to put all the pagers on the charging base and then press 0+call.
Click here to view the TD163 FAQ blog, if you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at support@retekess.com
