15-level volume adjustment, supports external audio equipment
Space-saving: The screen is designed with a stand and string holes, allowing the receiver to be placed on the counter or hung on the wall
Four-key functions: Call; Cancel; Pay; Order
Replaced battery. NOTE: There is Not Included Battery in our package, and 4pcs 1.5V AAA battery
Paste label logo freely
PC material for durable use
Add to Favorites Delivery & Returns Inquiry
Open area working range up to 200 meters or 656 feet; signal transmission distance; high sensitivity receiving technology, product signal stability
Screen receiver with 15-level volume adjustment for nursing pager system; support external audio equipment; freely adjust according to your needs

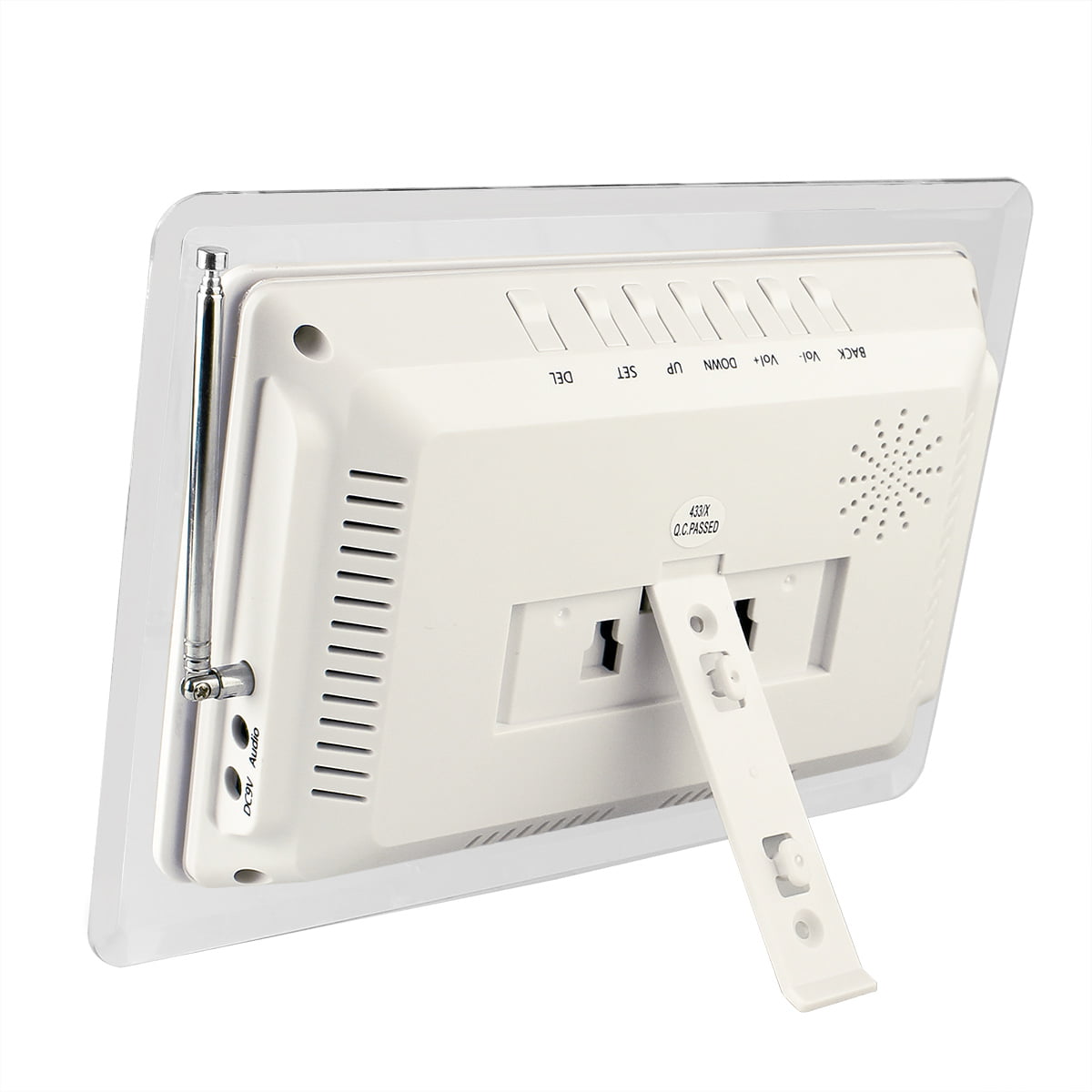

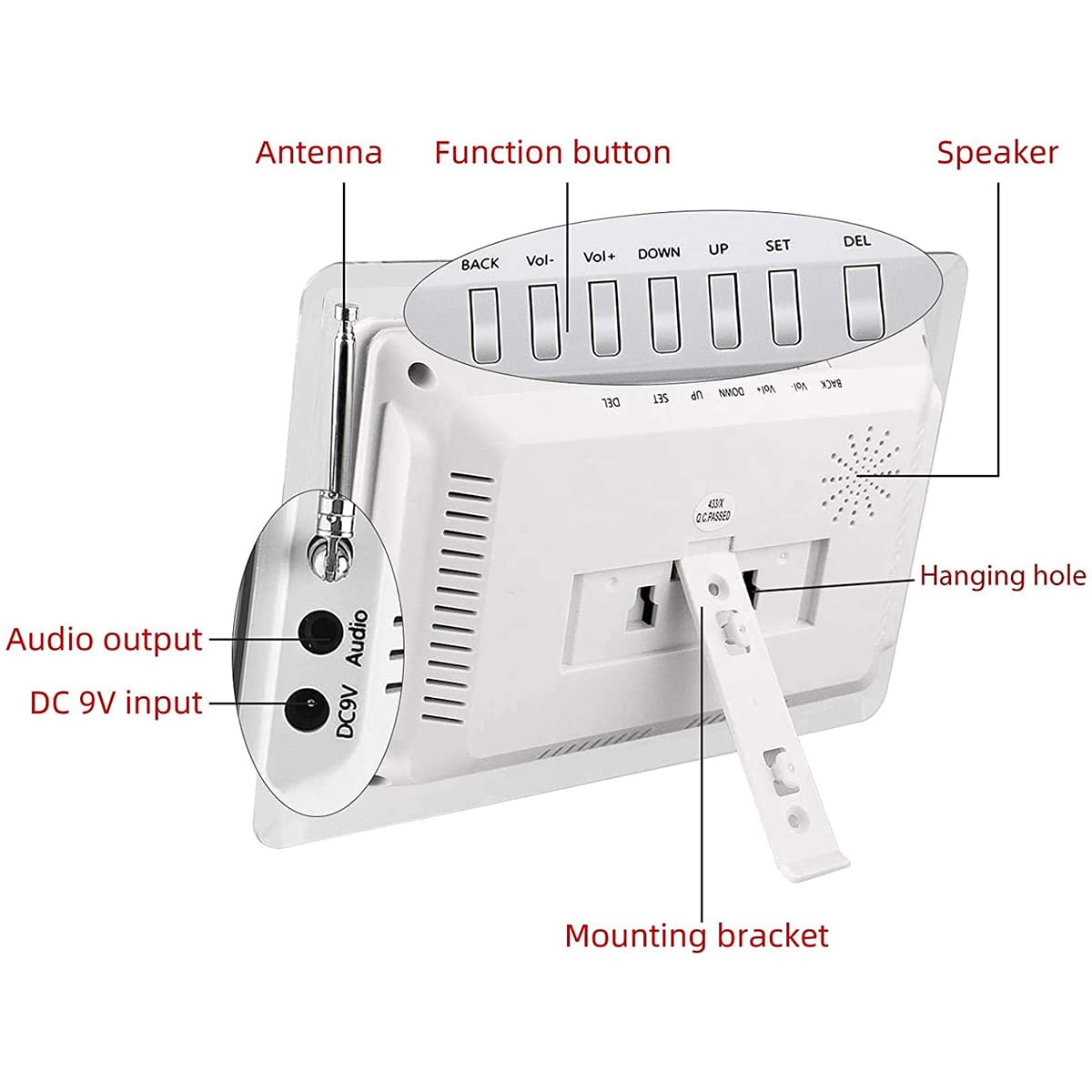

Screen: Bracket and string hole design; compact size; it won't take up much space; you can put the receiver on the counter or hang it on the wall
Button: with a double-sided sticker; so you can stick it on the table; don't worry about losing the pager; screwless design, easy to remove the back cover and replace the battery
Single caller host can match up to 999 Pager buttons for any occasion;
You can always add up to more pagers to the pager system as your business grows
You can set fixed or cycle calling records display; And Display Time is Adjustable from 001--180 seconds

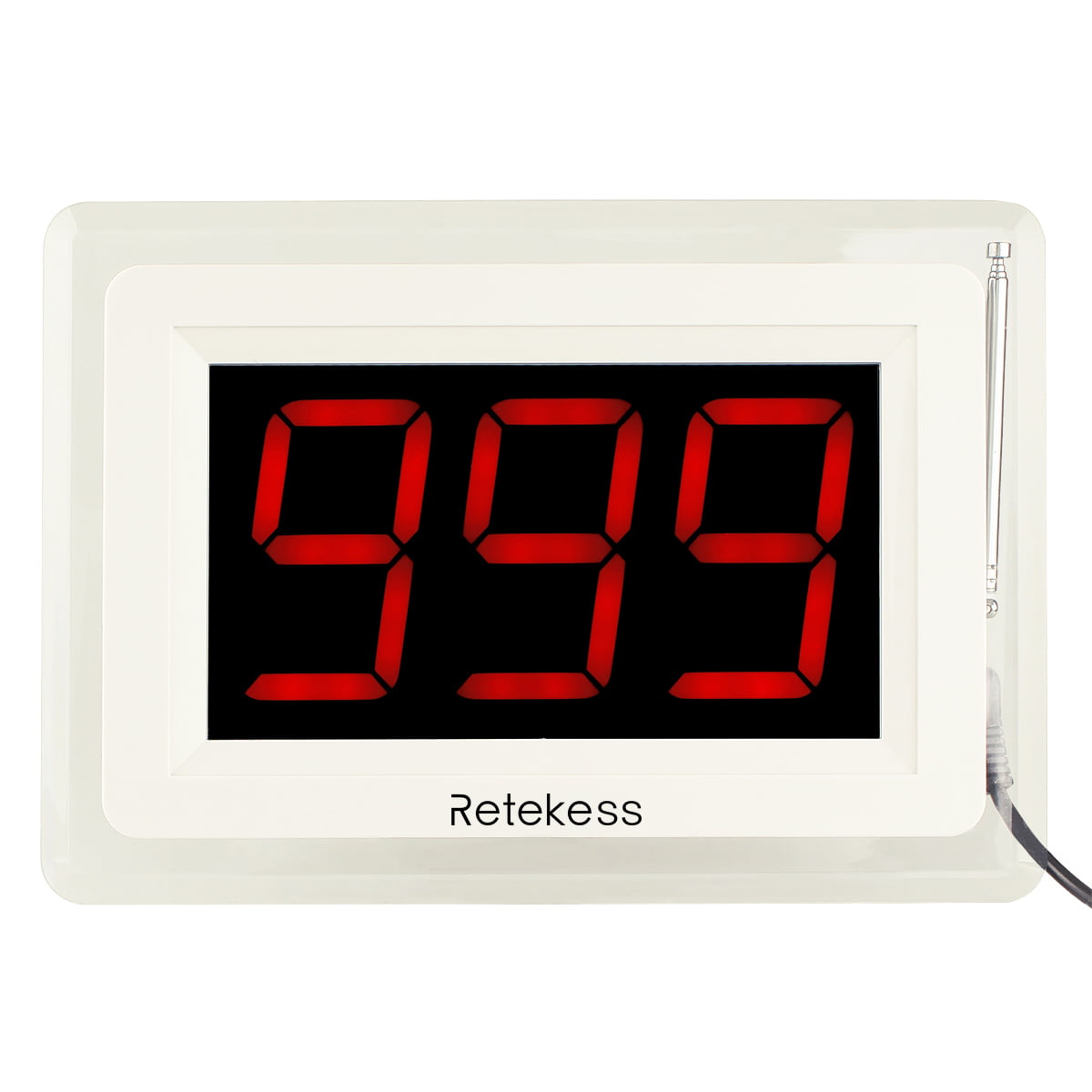

Large display screen, easy to read; thus both you and your customers would not worry about missing the meal anymore

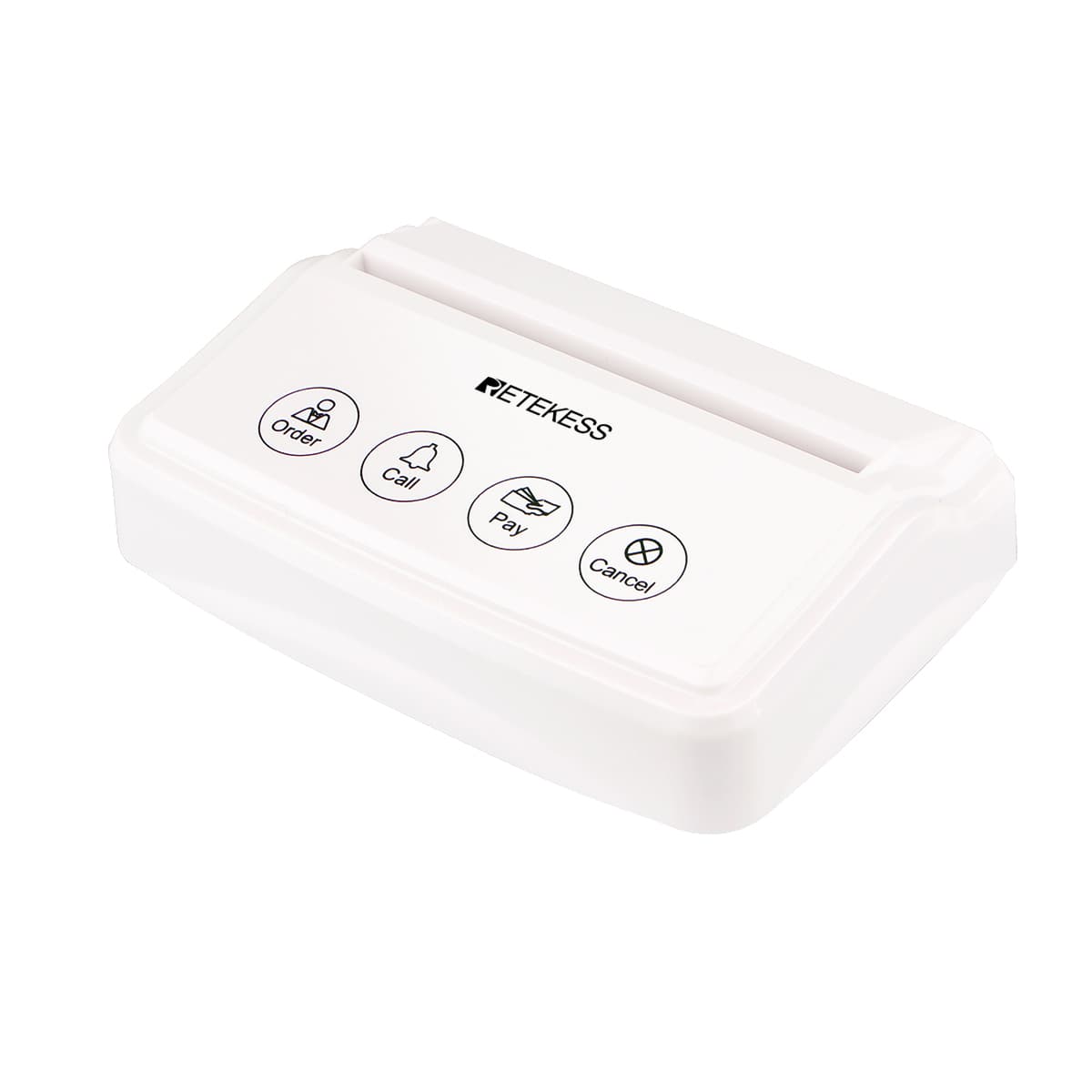

4 key functions: Call; Cancel; Pay; Order; can meet varied needs, easy to use
Use PC material for durable use
Advanced work chip; restaurant pager use newest chipset with learning code; so the transmission signal can be more stable; less interfaces
Replaced battery; NOTE: There is Not Included Battery in our package, and 4pcs 1.5V AAA battery need for the white table card, it is easy to get; and you can replace the battery when they run out; easy to operate

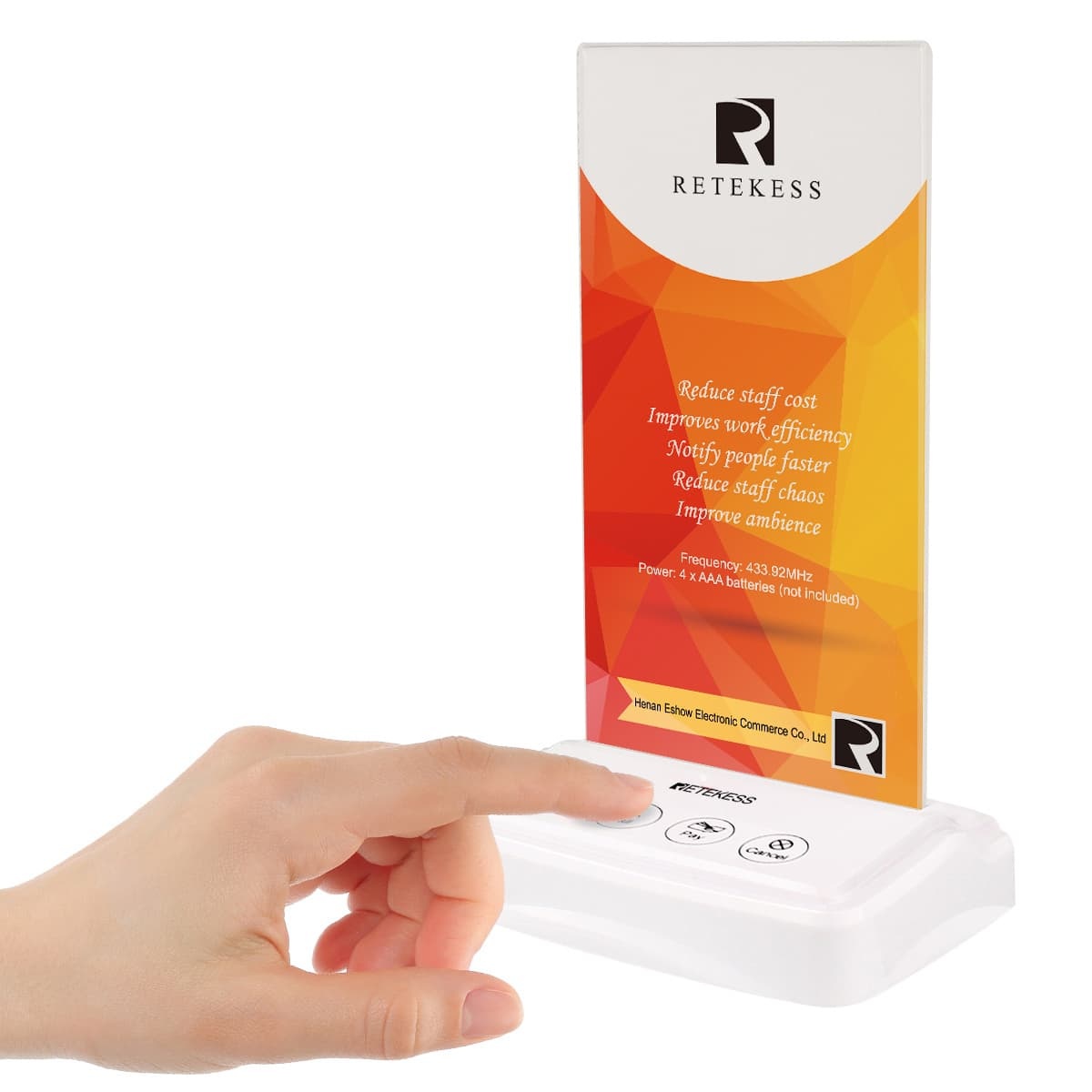

Paste the label logo freely; you can place paper logo pasted on the acrylic plate; and it can helpful to show your business information
Restaurant, bars, cafe, pizza shops, F&B industry
T114 Display Receiver |
TD001 Table Call Button |
||
Frequency | 433MHz | RF frequency | 433MHz |
Decoding | learning code | Modulation mode | ASK (AM) |
With transmitter quantity | max 999pcs | Working chip | learning code |
Prompt modes | Dingdong / Music / English voice report | Power | 4pcs 1.5V AAA battery (not included) |
Letters show | A.B.C.D.E.F | Emission distance | 800 meters (open area) |
Adapter | AC 100-240V 50/60Hz, output: DC 9V/1A | Working temperature | -20 Celsius to 55 Celsius |
Working current | <600mA | Size | 180 x 108 x 46mm / 7.1 x 4.3 x 1.8 in |
Standby current | <60mA | Weight | 212g / 7.5oz |
Size | 230 x 160 x 35mm / 9 x 6.3 x 1.3 in | ||
Weight | 350g / 0.77lb |
Option |
Package Includes |
1 Display Receiver + 6 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 6 x Retekess TD001 Pager 1 x Acrylic plate |

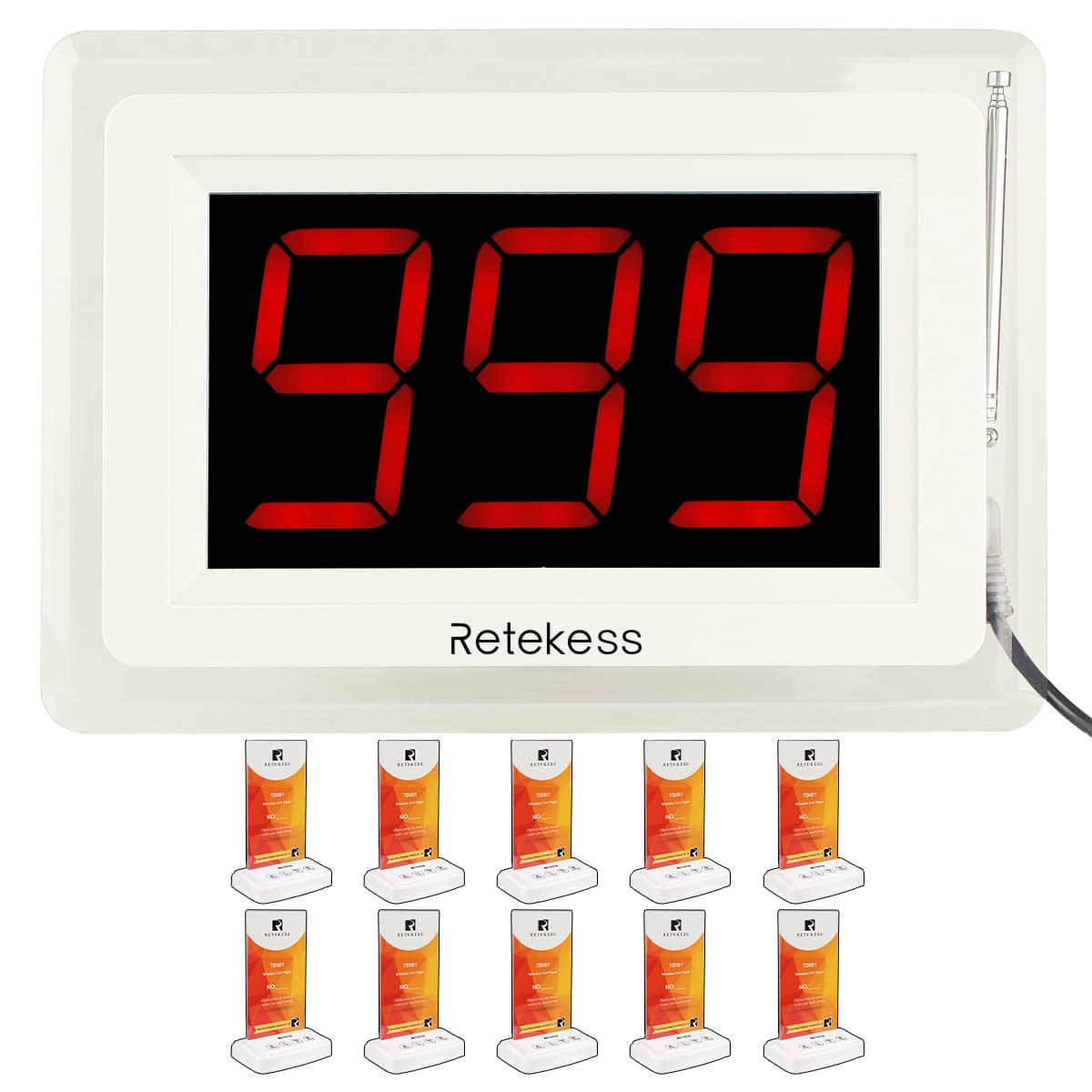

1 Display Receiver + 10 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 10 x Retekess TD001 Pager 1 x Acrylic plate |
1 Display Receiver + 15 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 15 x Retekess TD001 Pager 1 x Acrylic plate |

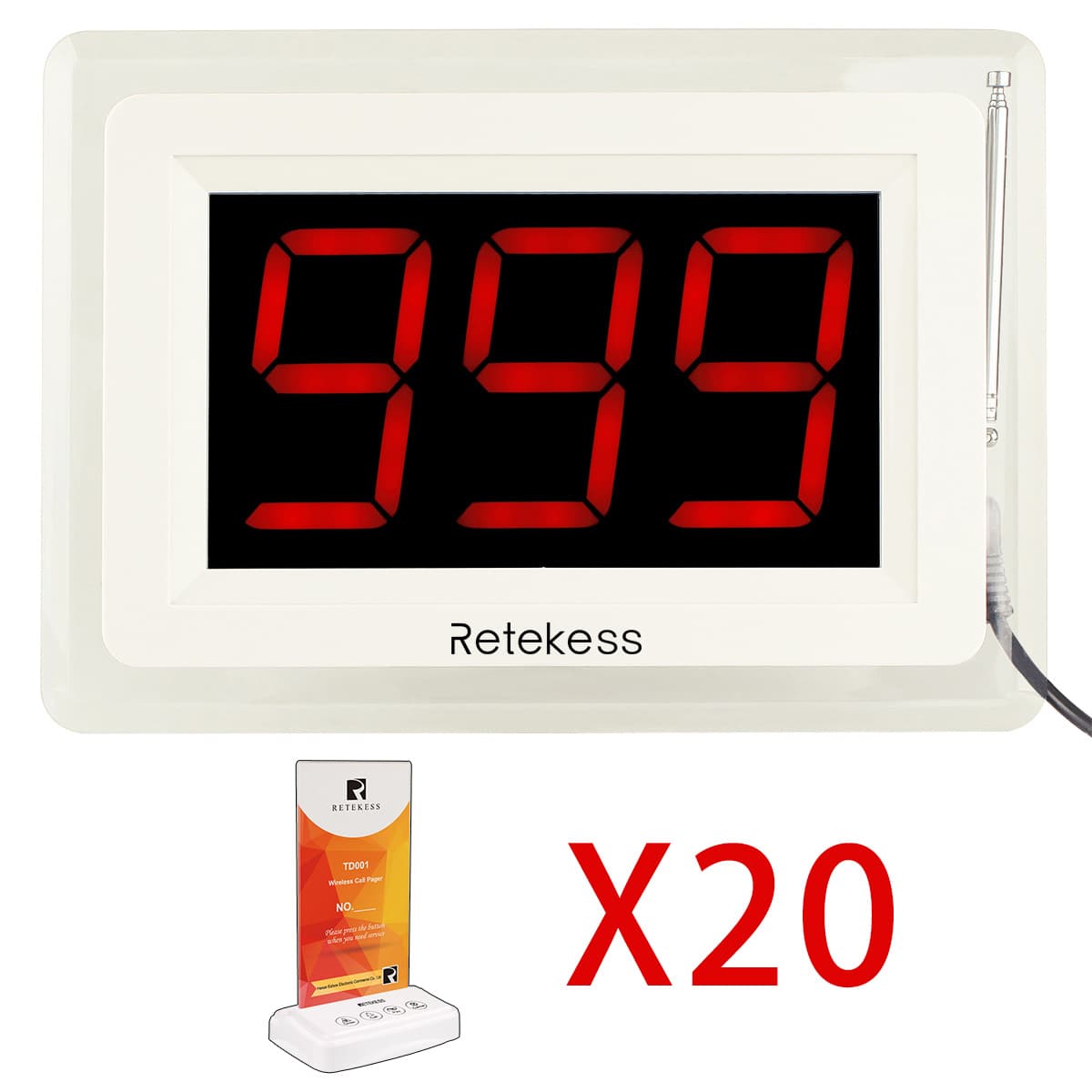

1 Display Receiver + 20 Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 20 x Retekess TD001 Pager 1 x Acrylic plate |
A: It uses high-quality PC material to be more sturdy, supports long time use
A: The TD001 call button is powered by 4pcs 1.5V AAA battery (not included) and you can replace the batteries yourself.
A: It has 4 main functions: order, call, pay and cancel. Simple operation, one-click response
A: TD001 call button is compatible with all Retekess wireless receivers
