Description

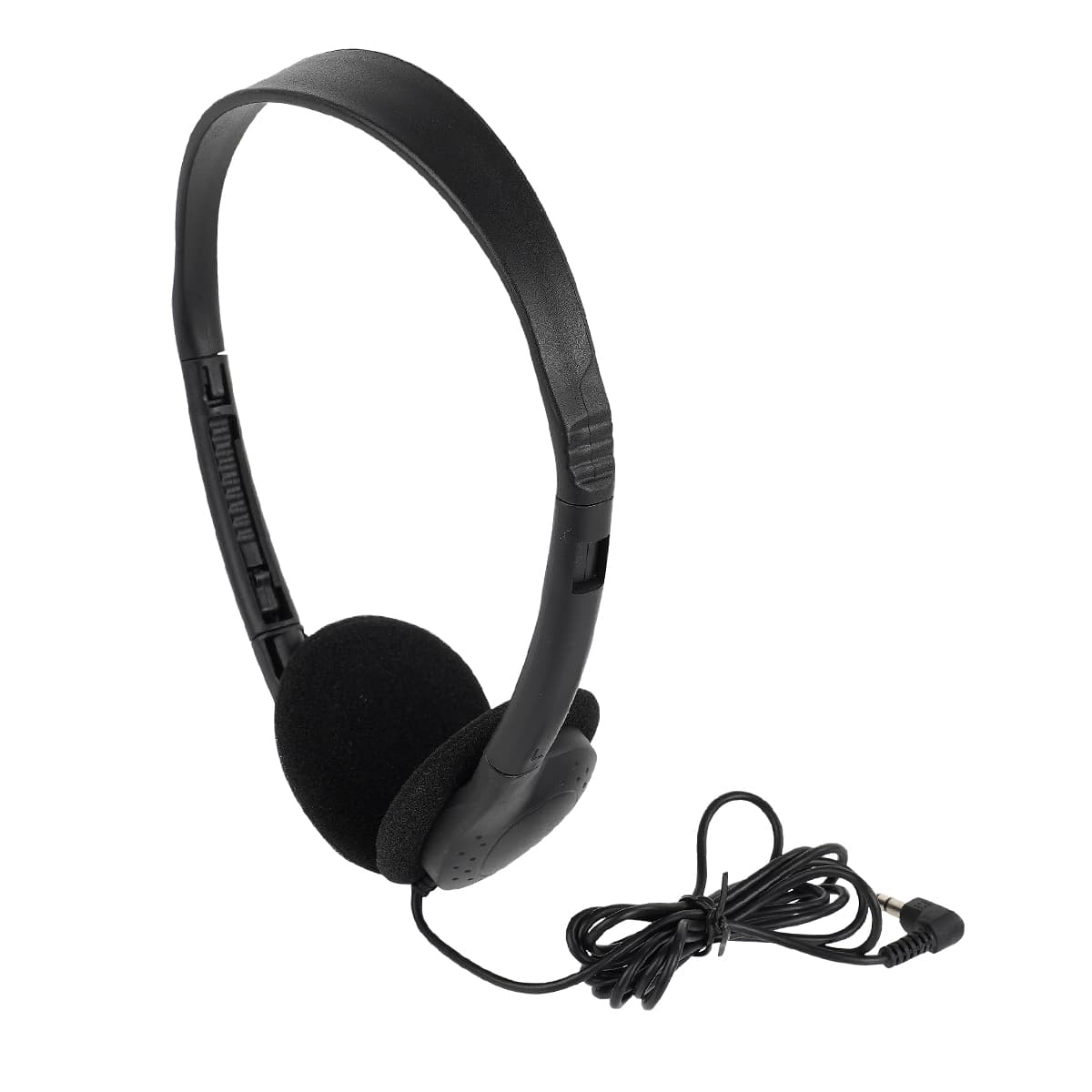

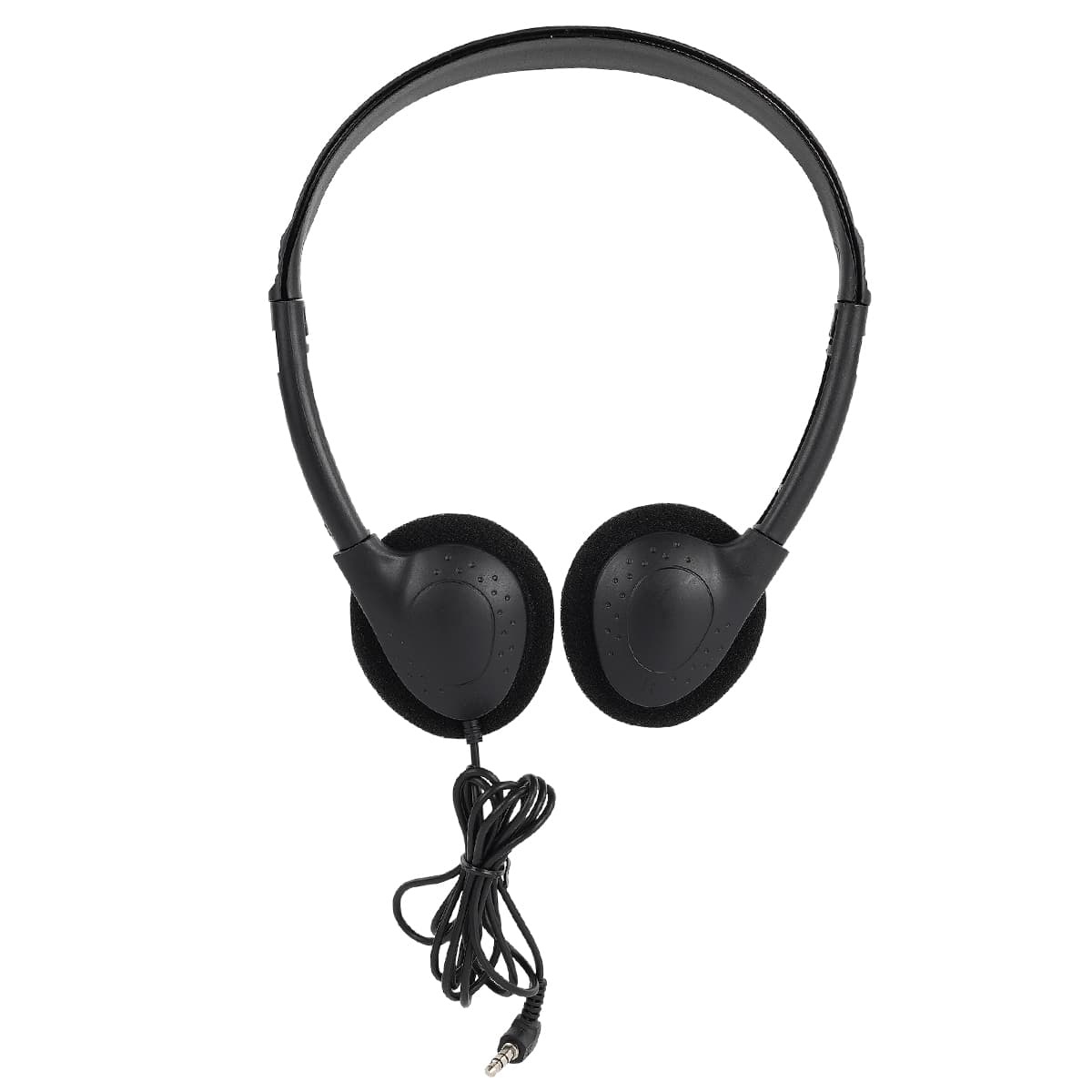

Head-mounted headphones for receivers

The T131S receiver comes with head-mounted headphones, and the foam on the ear cups makes you feel soft and comfortable while helping isolate external noise. The length of the headband is adjustable to fit your head size.

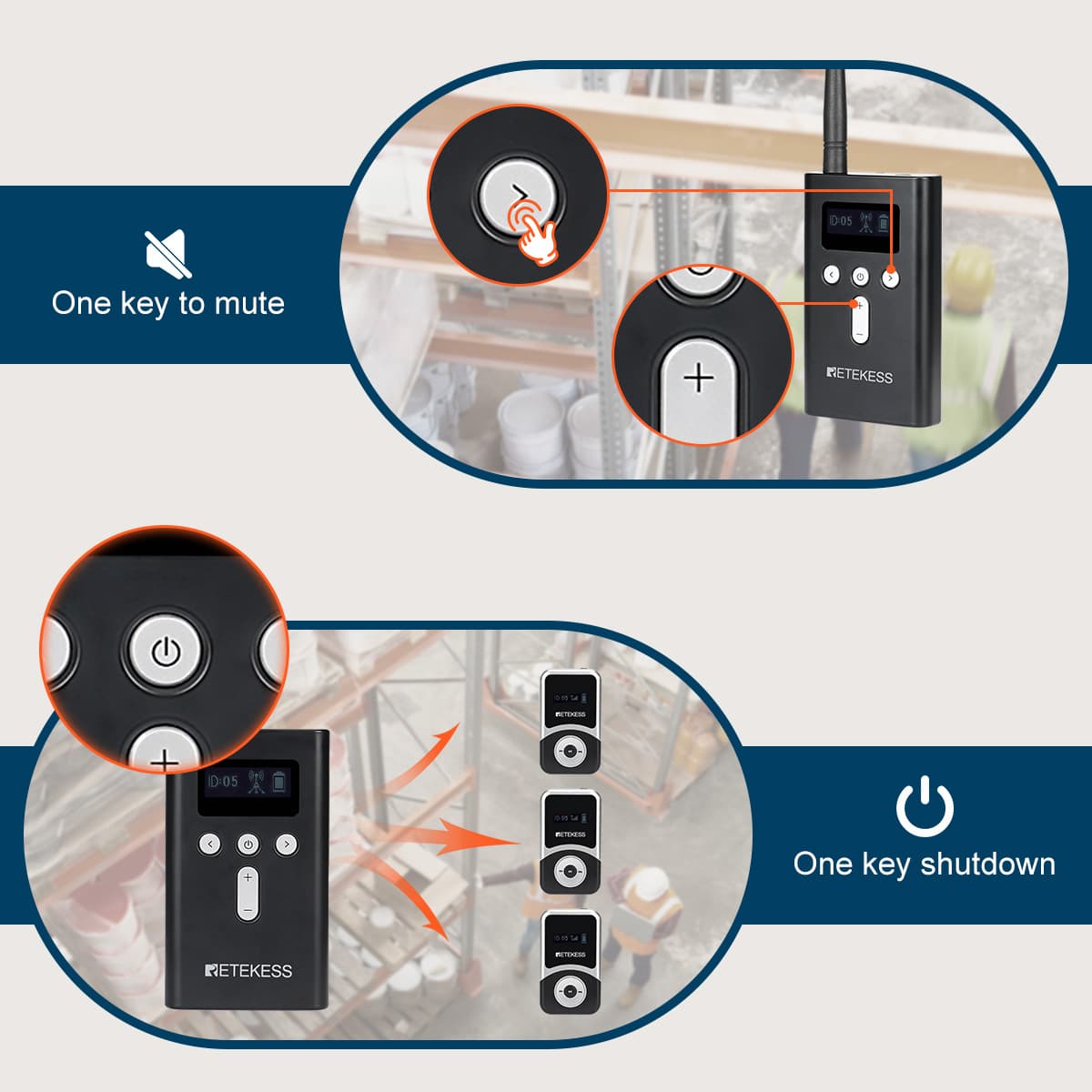

Transmitter supports one-key mute

Interpreters need this feature very much. The mute button allows them to quickly mute the transmitter when they cough, sneeze, or take a break, interrupting the audio transmission to prevent the listener from hearing unintended information.

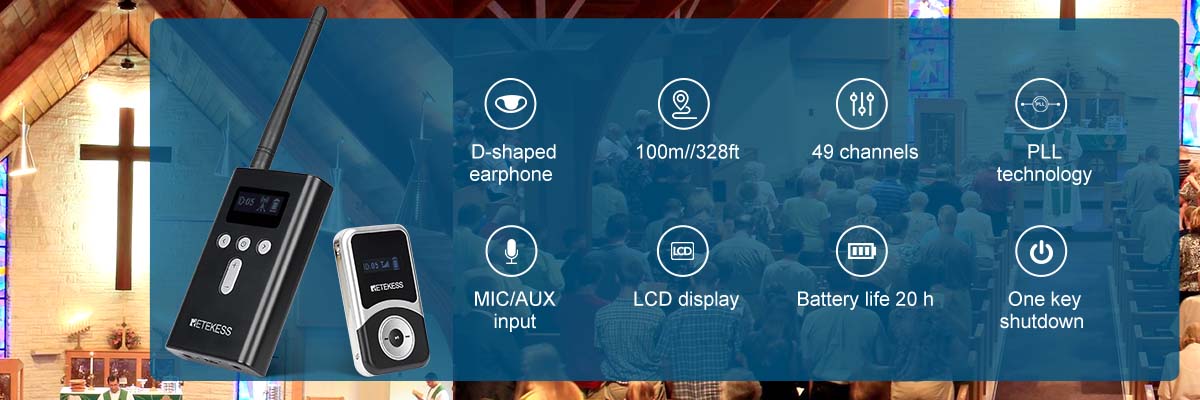

Retekess T130S wireless interpretation system function display

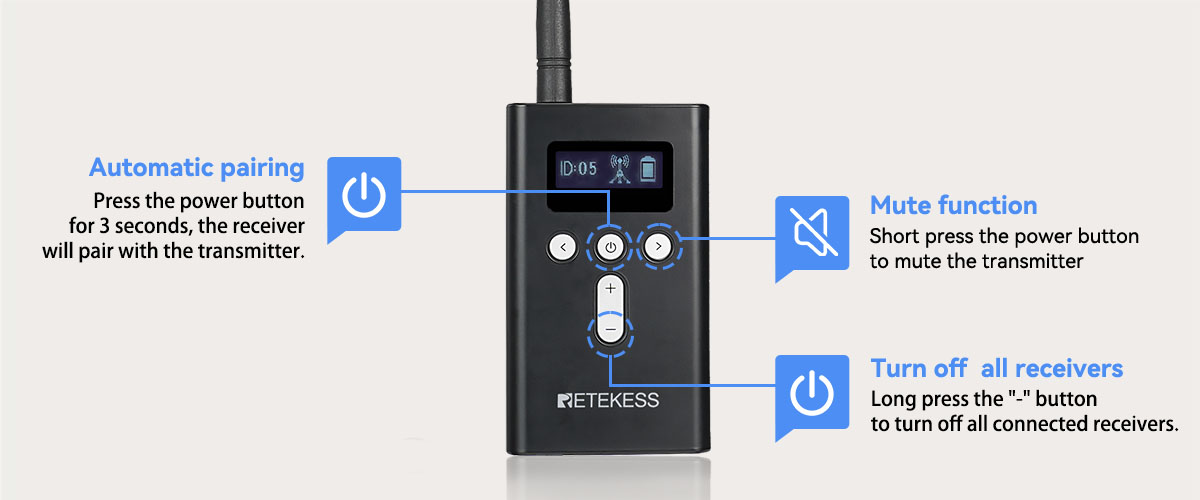

Easy to use

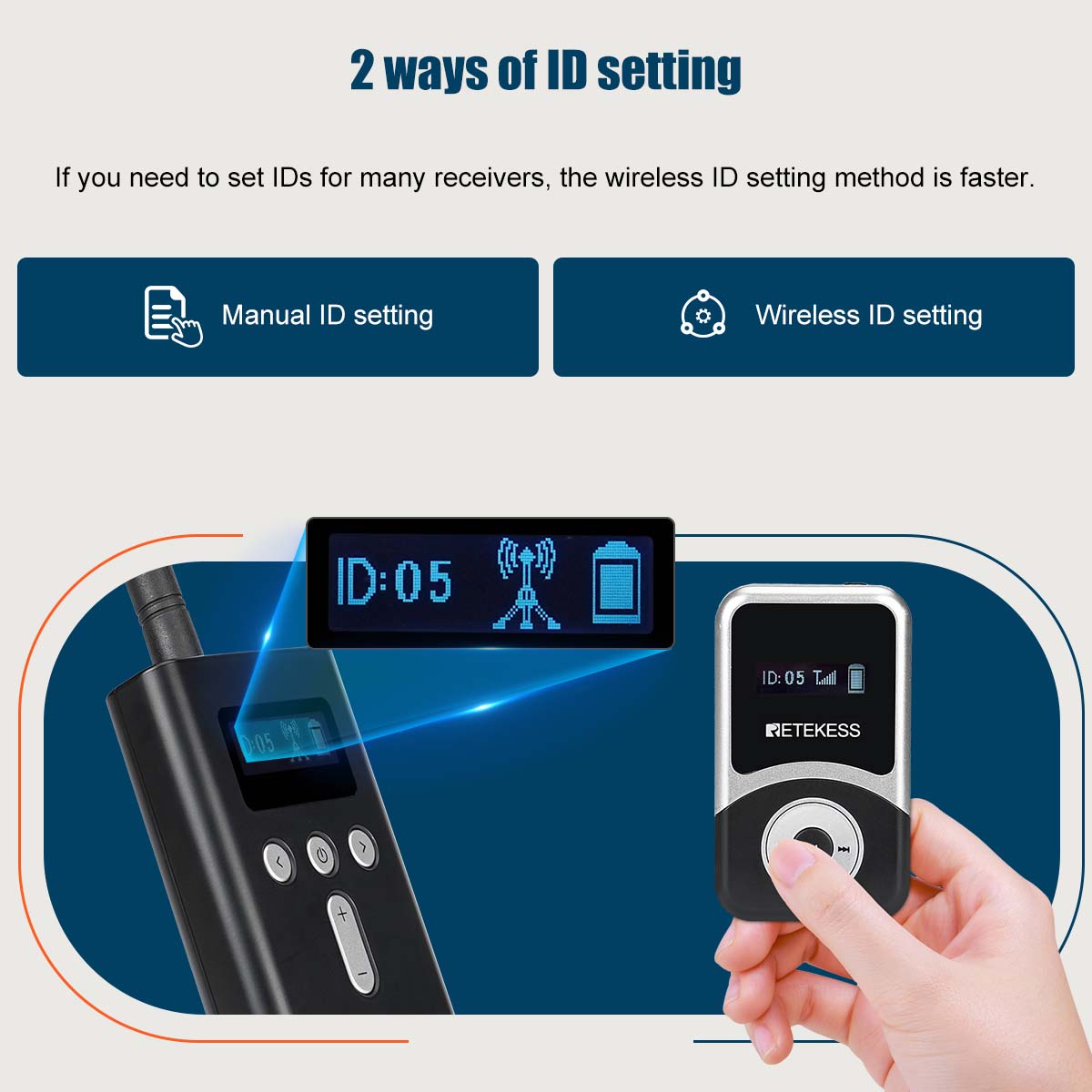

One-button automatic channel synchronization: The T130S T131 portable interpreter device can synchronize the channels of all devices in 8 seconds, so you don't need to spend a lot of time adjusting the channels one by one. In addition, they have the function of channel memory, with no need to re-pair when used again after successful pairing.

One key to turn off all receivers: The guide only needs to long-press the transmitter "-" button for about 5 seconds, and all receivers on the same channel as the transmitter will be turned off, saving time.

Adjustable volume

The T130S wireless receiver has a volume up/down button, so listeners can adjust the volume to suit their hearing condition. Don't worry if you have elderly or hard-of-hearing people in your group, the 10-level volume range makes it easy for everyone to listen.

Expanded wireless interpretation systems

If your team grows in size, you can increase the number of receivers as needed. There is no limit to the number of receivers that can be added, as transmitters can be paired and used together with countless receivers. If the number of languages to be translated increases by 1, then 1 additional transmitter is required. This portable interpretation system has 49 channels and can create groups of up to 49 different languages in the same area.

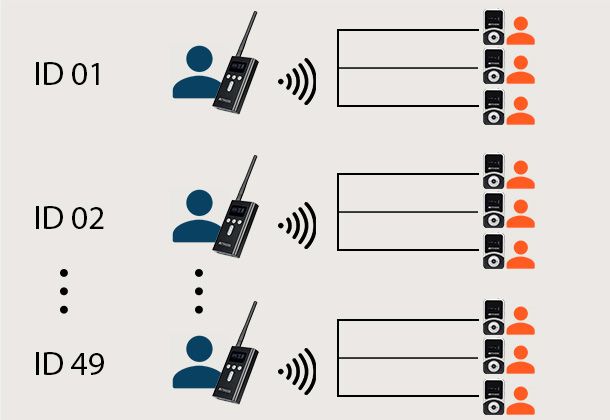

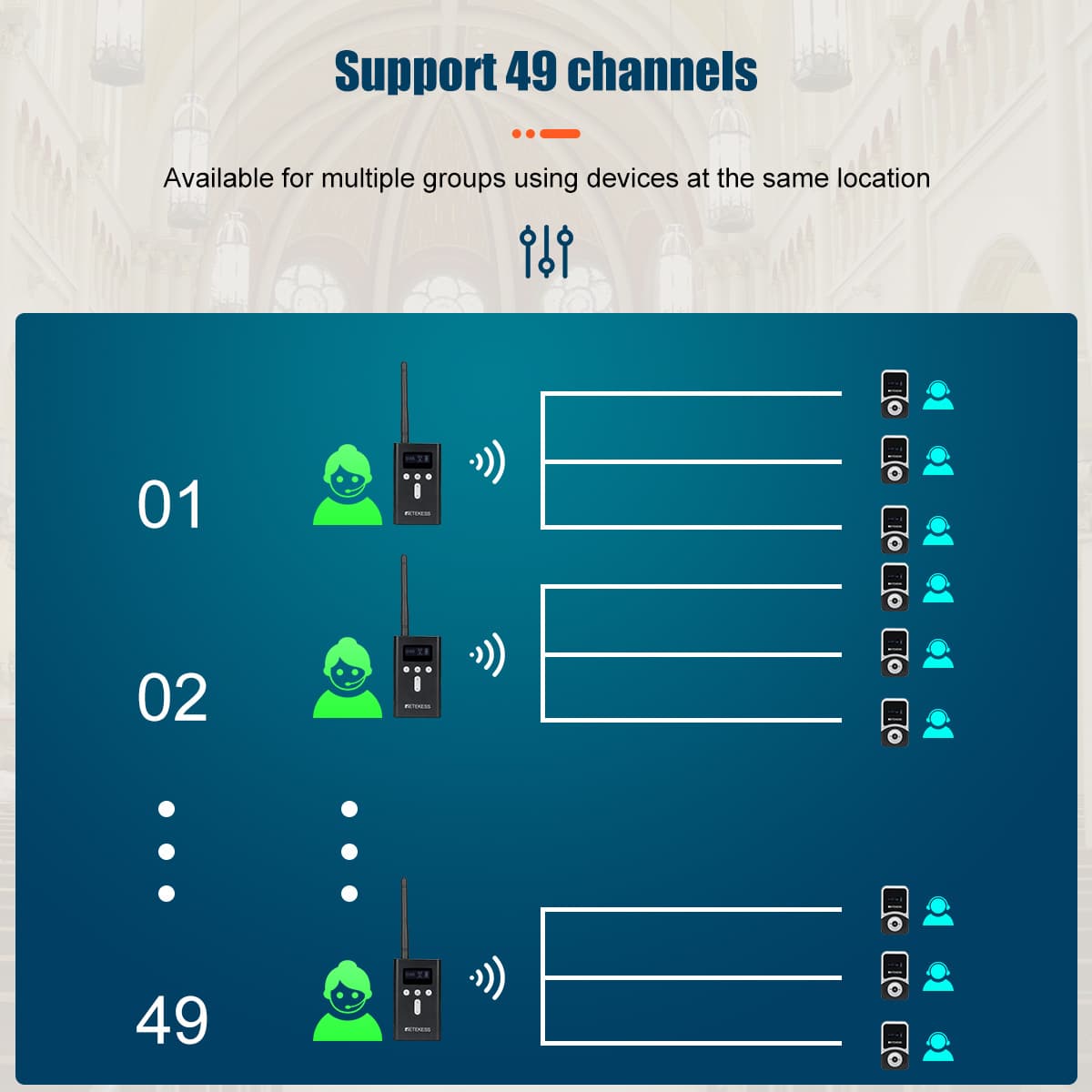

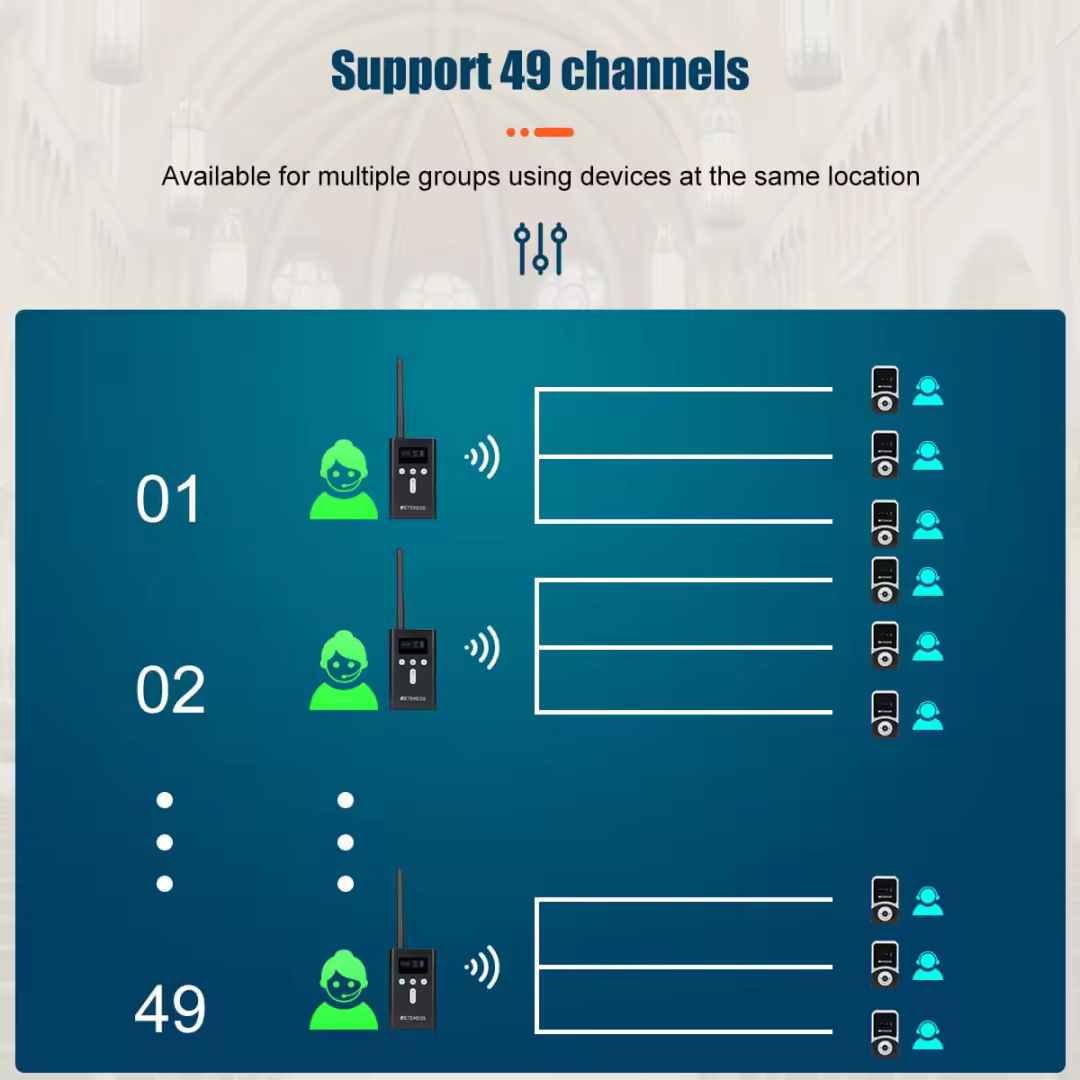

49 Channel IDs

T130S wireless interpretation equipment offers 49 channels. This provides the flexibility to translate multiple languages in the same area. Each language group can be assigned a different channel, ensuring that they can communicate without interference from other groups or external signals.

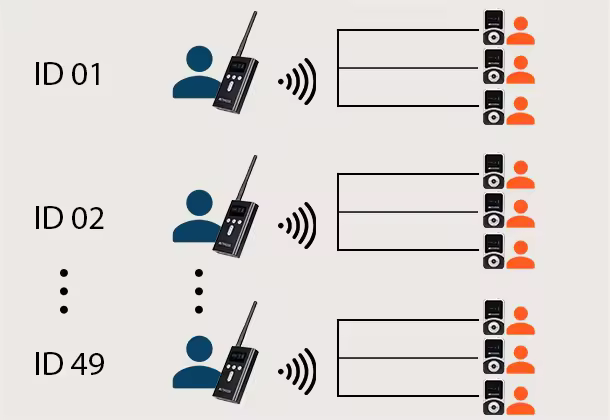

Retekess T130S interpretation device with 49 channels Retekess T130S MIC input and AUX input display

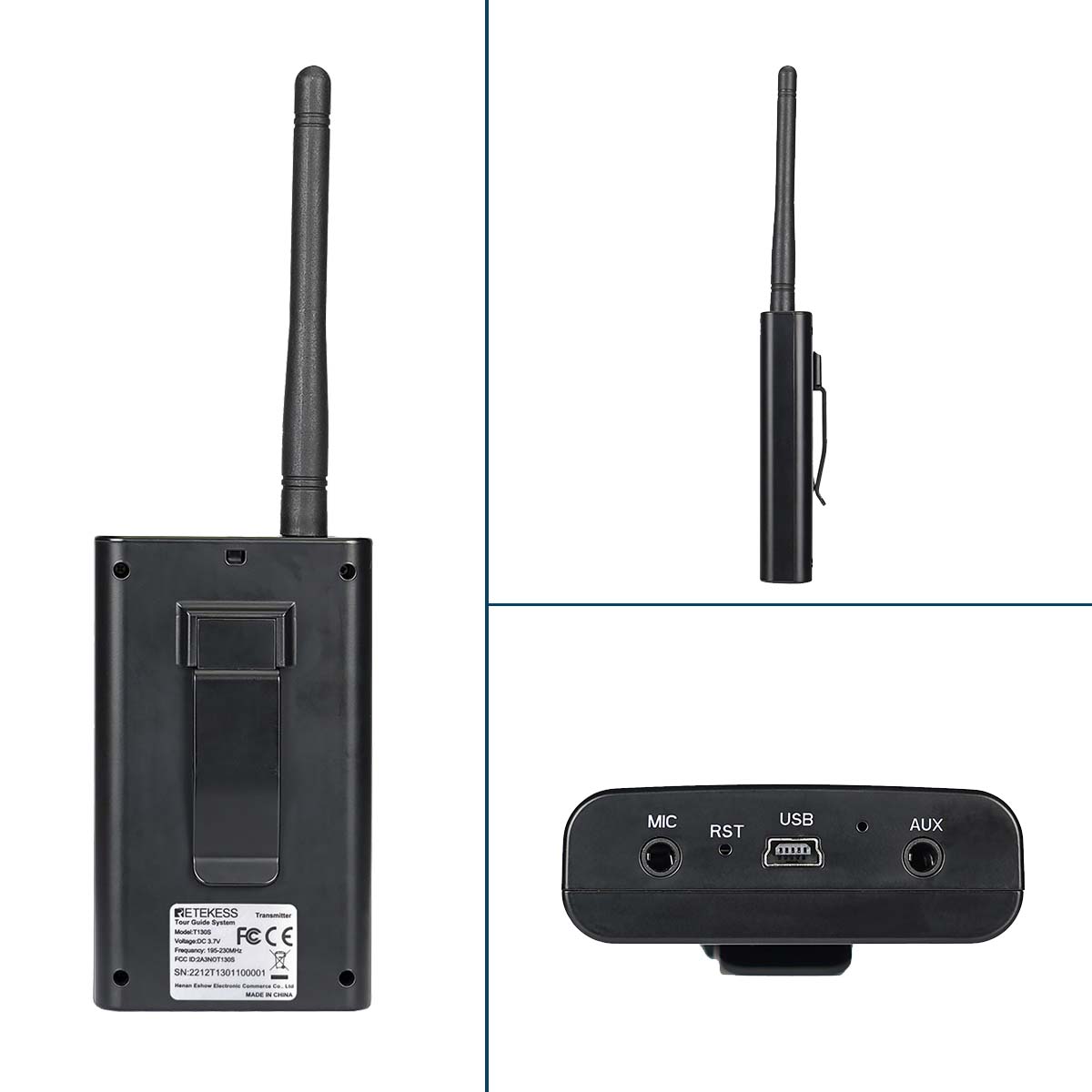

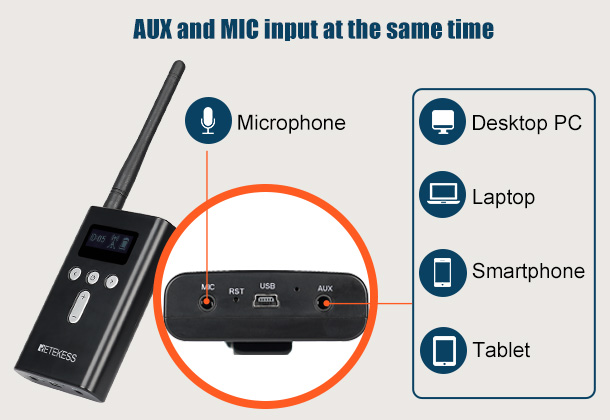

MIC input and AUX input

The T130S transmitter has a MIC jack and an AUX jack. In addition to supporting microphone speech input, it also supports connecting external audio devices such as a computer, cell phone, MP3 player, etc. You can play music or other voice files for the church congregation through this function.

Long-range interpretation equipment

Wireless transmitters can communicate with receivers up to 100 m/328 ft. This means that interpreters can do their work away from the audience so that the audience is not distracted by the interpreter's voice, and the church congregation and court participants are more focused on the content of the message.

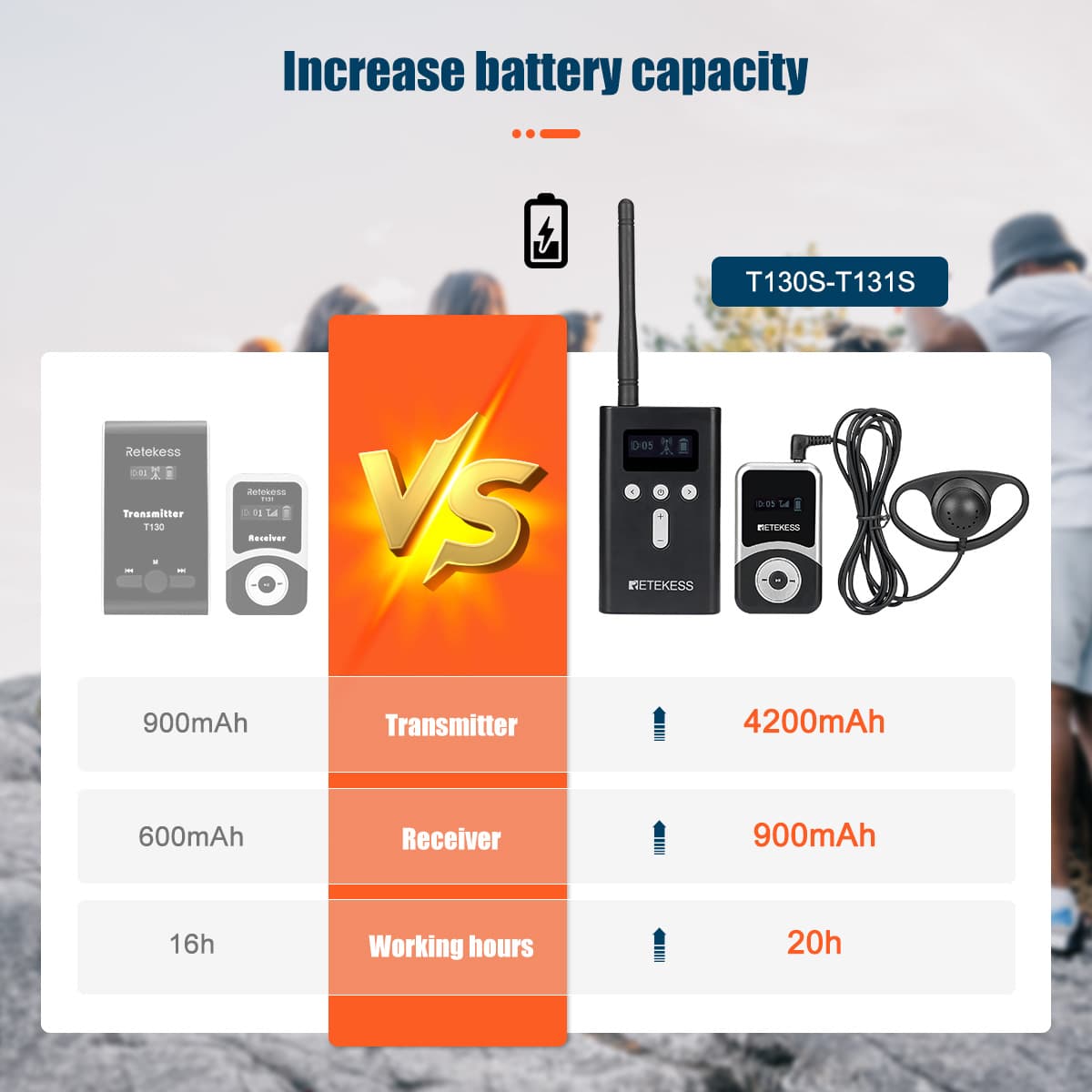

Long running time

The battery capacity of the upgraded T130 interpretation system is much improved compared to the older version of the T130 interpretation system. The transmitter and receiver can stay on standby for up to 20 hours, so you don't need to charge them as often or worry about running out of power in the middle of use.

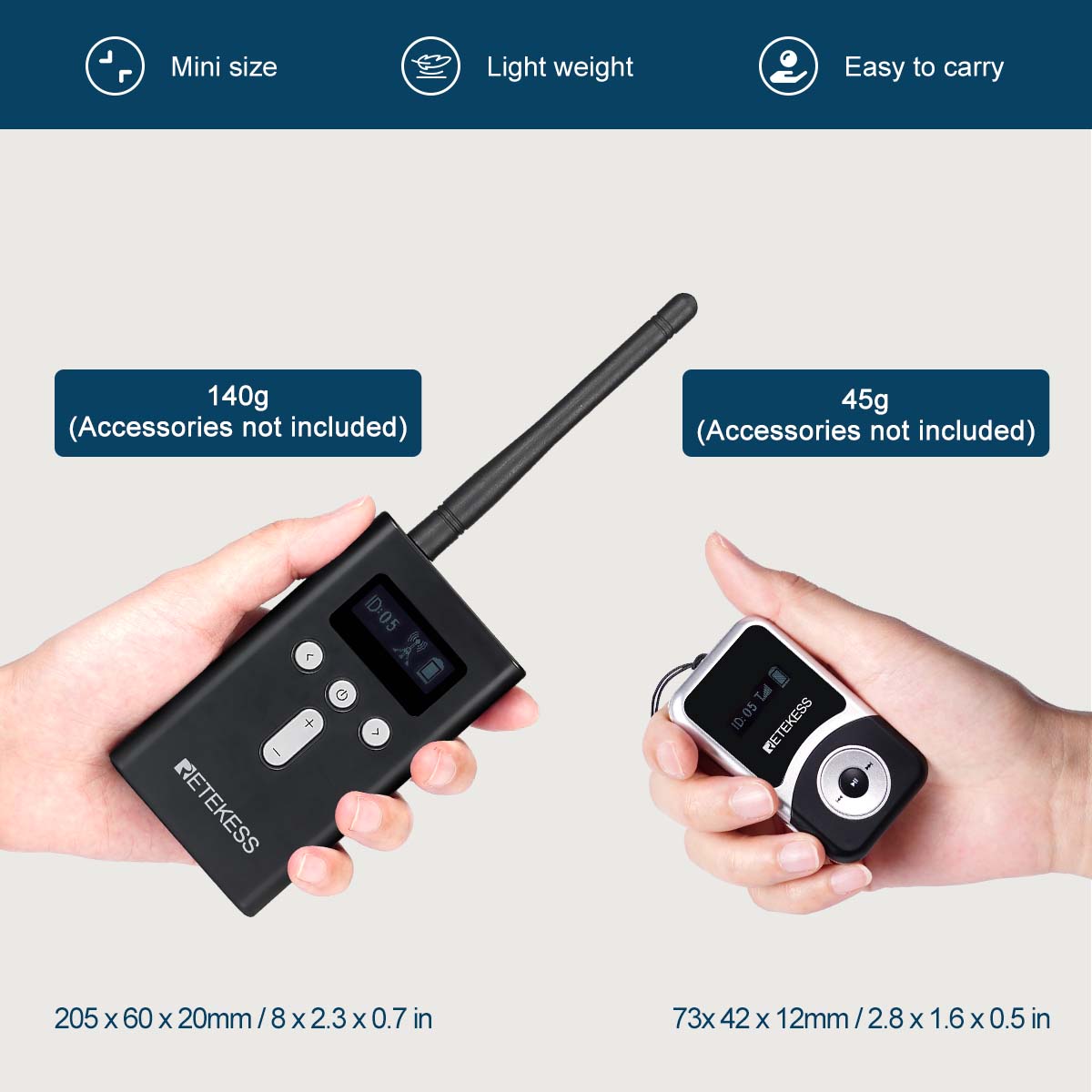

User-friendly design

T130S T131S wireless interpretation system is plug-and-play, with no need to install it in advance. The wireless transmitter can be worn in two ways: around the neck with the included lanyard or on the belt with the back clip, and the receiver can be hung around the neck with the lanyard or placed in the pocket. The hands-free design frees your hands and also helps prevent the device from being dropped.

Comparison of 3 Wireless Interpretation Equipment in the T130 Series

First generation
T130-T131
Second generation
T130S-T131S
Third generation
T130P-T131P
Working range 40-60 m 100 m/328 ft 160 m/524 ft
Battery runtime Transmitter 12 h; Receiver 18 h Transmitter 20 h; Receiver 20 h Transmitter 20 h; Receiver 36 h
Charging method Mini USB Mini USB Type-C & charging contacts
Noise Reduction / / Noise reduction level 1-4 adjustable
Auto Pairing
One-touch mute /
One-touch shutdown of all receivers /
Weight Transmitter 58 g; Receiver 45 g Transmitter 140 g; Receiver 45 g Transmitter 140 g; Receiver 49 g
Accessories

Lavalier microphone

Single ear hook headset

Lavalier microphone

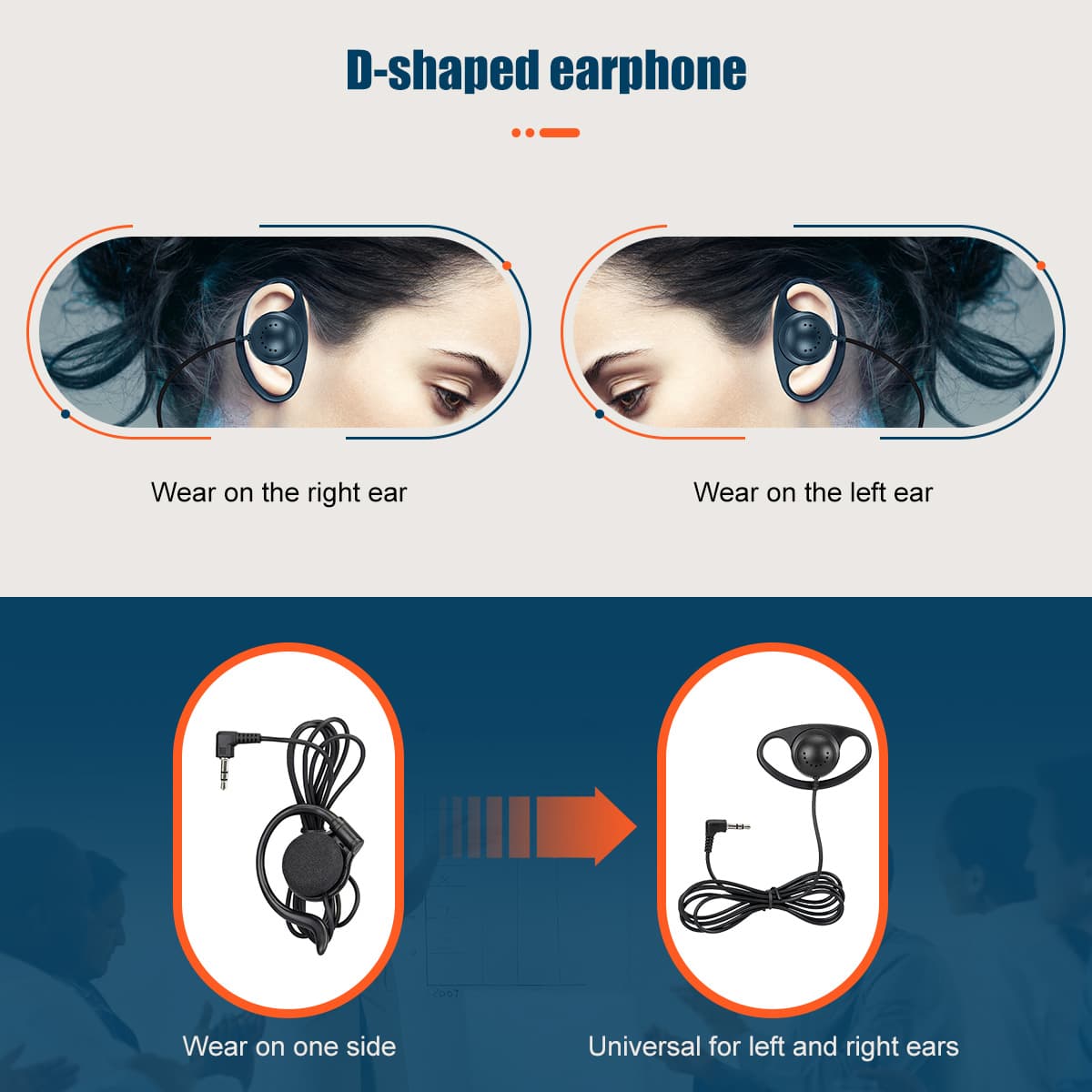

D-shape headset (fits left and right ear)

Lavalier microphone

D-shape headset (fits left and right ear)

Spec

T130S Portable Interpretation Equipment Specifications

T130S Transmitter Receiver
Frequency Range 195–216MHz Frequency Range 195–216MHz
Channels 49CH Channels 49CH
Working Voltage DC 3.7V Working Voltage DC 3.7V
Mic / Aux Input 3.5mm Earphone Jack 3.5mm
Frequency Response 50–18000Hz Frequency Response 50–18000Hz
SNR 80dB (Typical) SNR 80dB (Typical)
RF Spurious Rejection ≥90dB RF Spurious Rejection ≥90dB
T.H.D <0.3% T.H.D <0.3%
Operating Range 100m (line of sight) Operating Range 100m (line of sight)
Battery Capacity 4200mAh Battery Capacity 900mAh
Battery Run Time About 20 hours typical Battery Run Time About 20 hours typical
Weight 120g (without accessories) Weight 30g (without accessories)
Size 103 × 61 × 25.8mm (without antenna) Size 73 × 42 × 12mm
T130S Transmitter
Frequency Range 195–216MHz
Channels 49CH
Working Voltage DC 3.7V
Mic / Aux Input 3.5mm
Frequency Response 50–18000Hz
SNR 80dB (Typical)
RF Spurious Rejection ≥90dB
T.H.D <0.3%
Operating Range 100m (line of sight)
Battery Capacity 4200mAh
Battery Run Time About 20 hours typical
Weight 120g (without accessories)
Size 103 × 61 × 25.8mm (without antenna)
Receiver
Frequency Range 195–216MHz
Channels 49CH
Working Voltage DC 3.7V
Earphone Jack 3.5mm
Frequency Response 50–18000Hz
SNR 80dB (Typical)
RF Spurious Rejection ≥90dB
T.H.D <0.3%
Operating Range 100m (line of sight)
Battery Capacity 900mAh
Battery Run Time About 20 hours typical
Weight 30g (without accessories)
Size 73 × 42 × 12mm

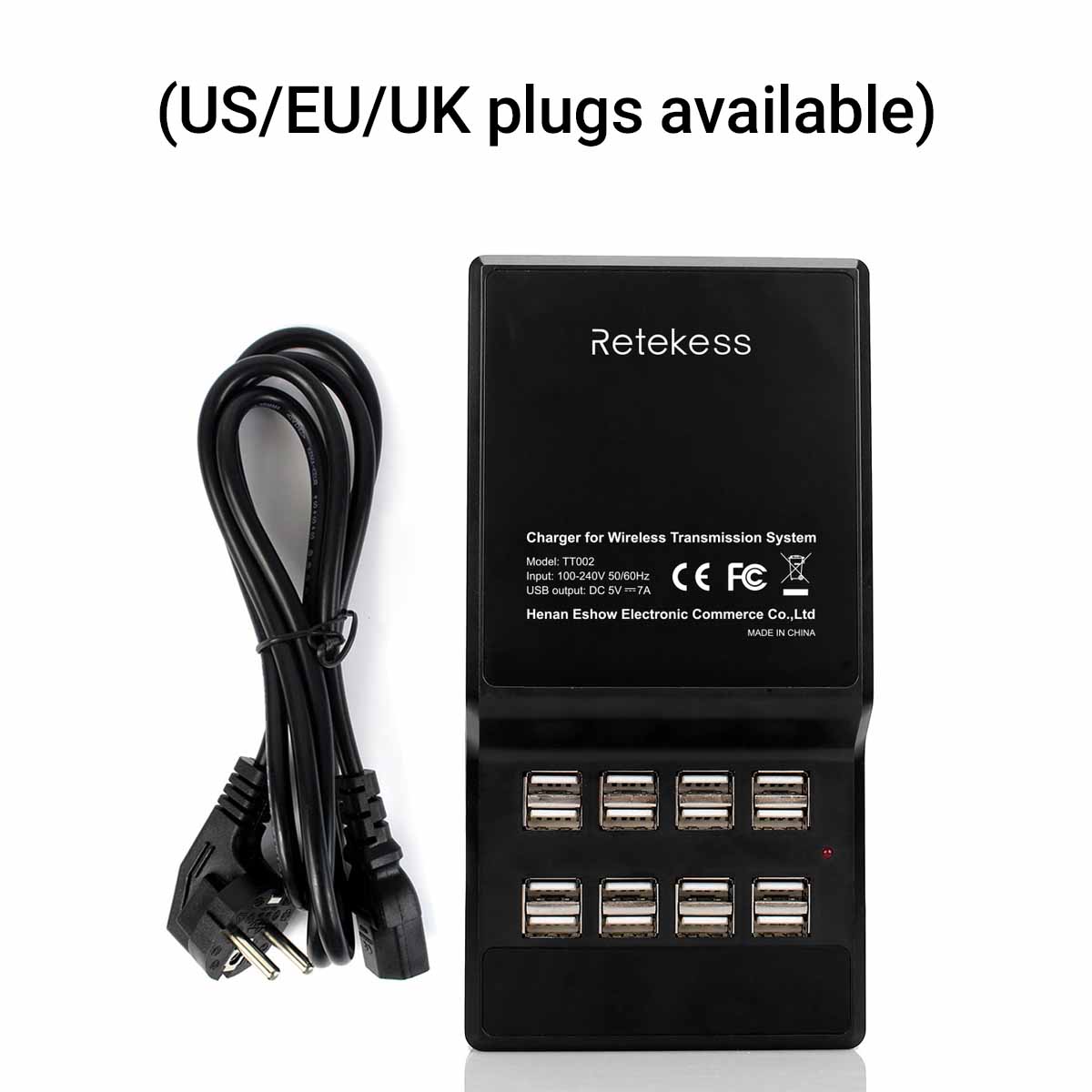

TT002 16-port USB Charging Base
USB Output DC 5V, 7A
Adapter Input AC 100–240V, 50/60Hz
Size 190 × 95 × 50mm
Weight 430g

Package Includes

Kit Package Includes
1TX + 15RX Transmitter ×1, Lavalier Mic ×1, Receiver ×15, Head-mounted Headphone ×15, Lanyard ×16, Charging Cable ×16, User Manual ×1, Headset Microphone ×1
1TX + 15RX + 1 Charging Base Transmitter ×1, Lavalier Mic ×1, Receiver ×15, Head-mounted Headphone ×15, Lanyard ×16, Charging Cable ×16, 16-slot Charging Base ×1, User Manual ×1, Headset Microphone ×1

FAQ

Q: What is the warranty policy for these devices?

A: This T130S T131S wireless interpretation equipment comes with a 30-day no-questions-asked return policy and a 2-year warranty.

Q: Will I hear static or noise from the headphones?

A: No, the listener will not be disturbed by noise within a communication range of 100 meters. If you still hear noise while the listener is within the transmitter's working range, there may be strong signal interference in the environment, or the channel you are using may be occupied. In that case, please try changing the environment or switching the channel ID.
