Retekess TR506 long-range portable fm transmitter
Add to Favorites Delivery & Returns Inquiry
If you are looking for an fm transmitter that is small in size and lightweight, then this TR506 portable fm transmitter adjustable power is right up your alley. Due to its compact size, it is also very comfortable for you.
FM transmitter
The transmitter can work with countless fm receivers . It works 80-120M in the normal use where has many obstacles.
Music Player
Support microphone and Audio input to play music, you can convert the audio signals in various portable audio and video players such as Discman, MD, MP3 (including Apple iPod) into high fidelity wireless FM stereo signals.
You can also enjoy stereo music when a car or home radio is the receiving object.
Rechargeable Lithium Battery

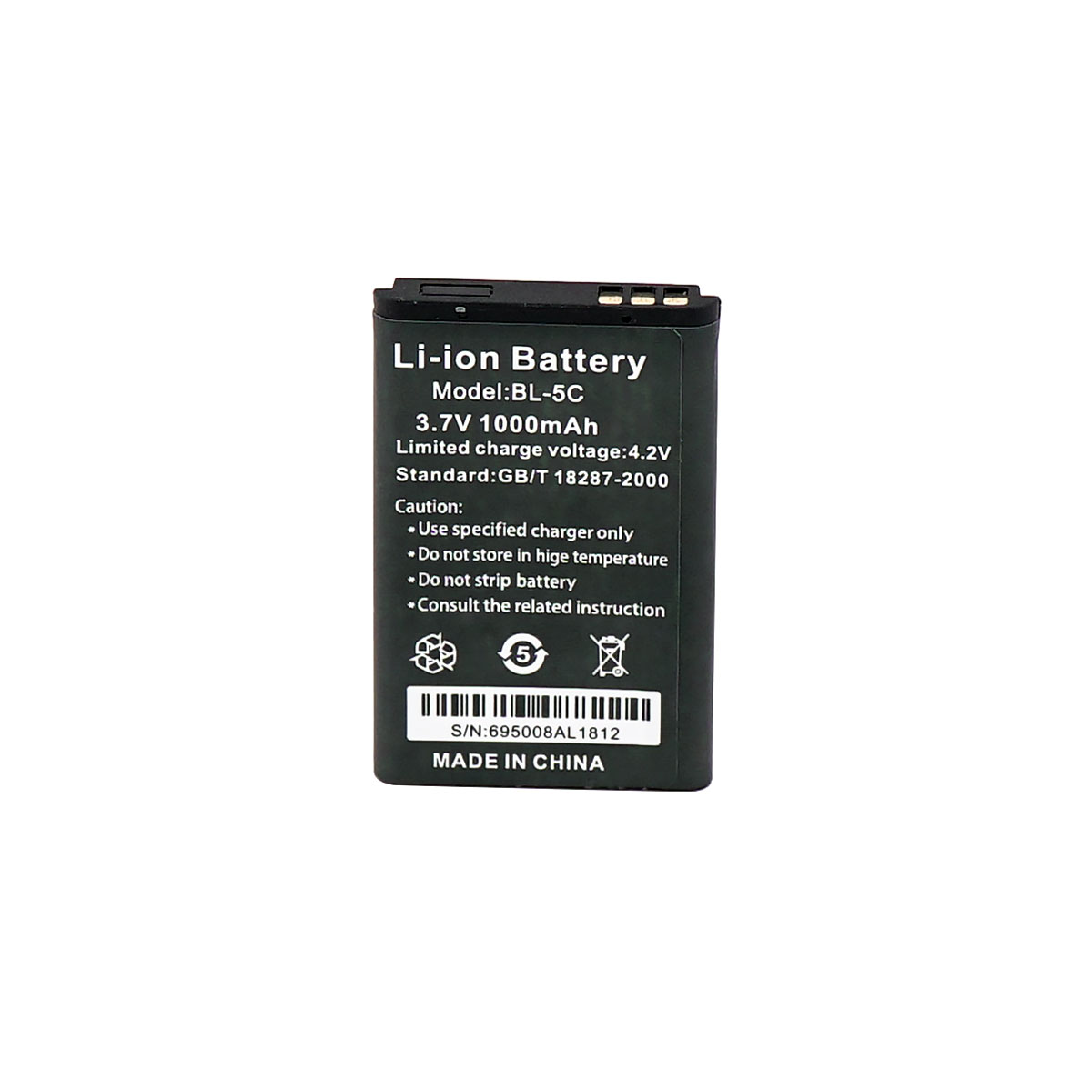

The low power FM transmitter equipped with a 1000mAh BL-5C Li-ion battery.
Charging time for about 5 hours, charging voltage 5V
Many applications
The tour guide, school, church, interpretation company, driving school, multilingual school, scenic
Receptor de reloj TD108 |
Botón de llamada blanco TD010 |
||
Tensión de funcionamiento | 3.7V | Operating temperature | -10~50°C |
Potencia de entrada | 5V | Temperatura de almacenamiento | -20~60°C |
Corriente de funcionamiento | 3mA | Codificación inalámbrica | EV1527 |
Corriente de espera | <50µA | Batería | 12V 23A |
Frecuencia inalámbrica | 433MHz | Corriente de funcionamiento | 15±3mA |
Distancia de recepción | 150 metros (área abierta) | Frecuencia de operación | 433MHz |
Temperatura de trabajo | -20℃ - 55℃ | Rango | 100 m(Open area) |
Material | ABDOMINALES ; Correa de reloj: TPU | Tamaño | Ø60*21.3mm |
Tamaño | 61×41×14mm (No incluye correa de reloj) | Material | ABS+ Silica gel |
Peso neto | 45g | Peso del Producto | 38g |
Impermeable | IP67 |
1 x receptor de reloj inalámbrico TD108 (color opcional)
1 x cable micro USB.
1 x manual de usuario
6/10/15/20 x Pulsadores de llamada (cantidad opcional)
Specifications:
Model Number: TR506
Power supply: BL-5C Li-ion Battery 3.7V 1000mAh
Frequency stability: ±10PPM
Stepped - Frequency: 100KHz
Charging time: About 5 hours
charging voltage: 5V
Stray and Harmonic Radiation:≤-30dB
Audio distortion:≤0.2%
Input level:≤-15 dBV
Modulation frequency offset: ±75KHZ
SRN: ≥60 dB

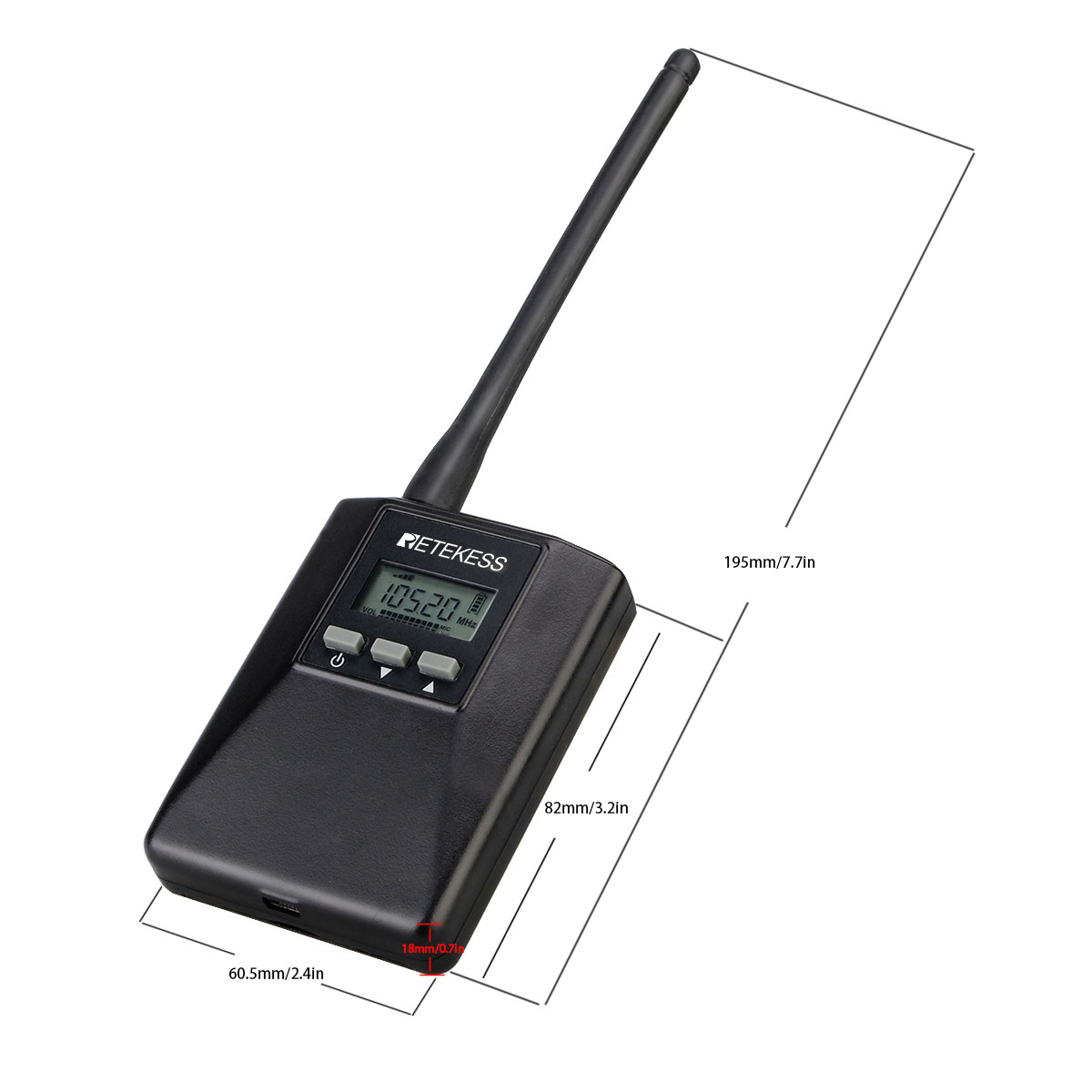

Host Size: 82*60*22mm (No salient part)
Machine weight: About 67 grams (without batteries)
FM antenna: Anti-screw direction
Car charger: With IC protection

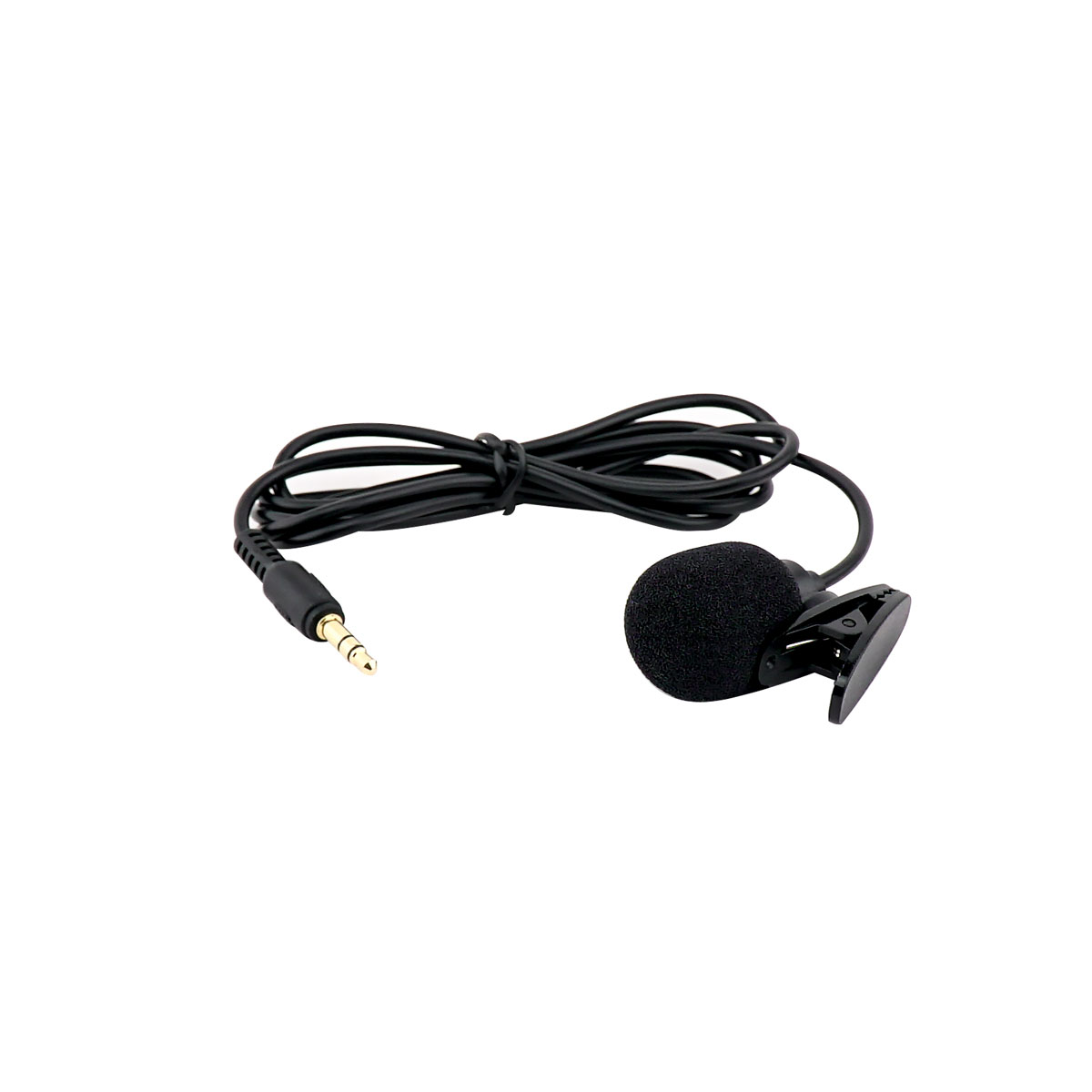

Lavaliere microphone: Stereo, gold plating,1.2 meters with shielding function.
Audio cable: 3.5 male to male
USB cable: USB to T port (MINI)
Package Includes:
1 X TR506 Transmitter
1 X FM antenna
1 X Li-on battery
1 X Car charger
1 X Lavaliere microphone
1 X Audio cable
1 X USB cable
Mini FM transmitter with 0.57lb; 7.1 X 4.8 X 2.1 inch size; easy to put in your hand or pocket; portable fm transmitter for a tour guide; church; interpretation; school etc.
Easy to operate; 10 level volume adjustment; Support one-click locking and one-click unlocking; Broadcast music support AUX and microphone input
Portable FM transmitter is a mini radio station; which can convert the audio signals in various portable audio and video players into high fidelity wireless FM stereo signals
TR506 low power FM transmitter operated by 1000mAh BL-5C lithium battery; charging time for 5 hours; long working time for using
5 (Overall) | Based on 1 Reviews
I have the TR 502 and the TR 506 The TR 506 is great because it is very mobile very little set up and it works. I don’t have to worry about using to much power. It has a good clean signal.
