T114 Display Receiver:
Large digital display for easy viewing
Volume adjustable 1-15 levels, can be connected to 3.5mm audio amplifier, adjust the volume according to your needs
Partitions can be set to quickly identify which patient is calling
TD003 Call button:
Long range and stable signal
Buit in rechargerable 12V/23A battery
Equipped with a 59mm handle cable and sub button, easy to press on bed

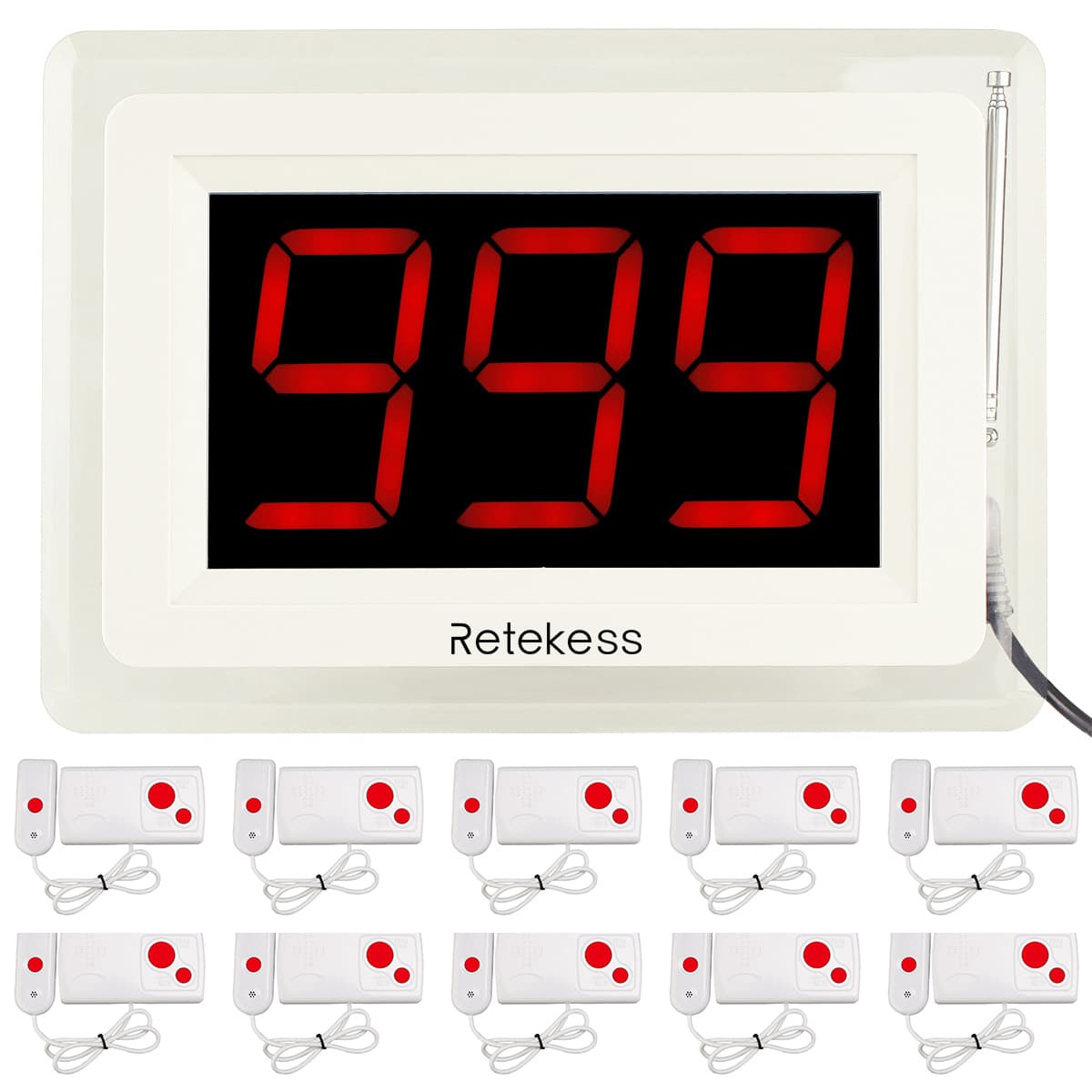

Retekess Wireless Nurse Call System T114 Display and TD003 Call Button Transmitter with Handle for Hospital, Nursing Home
Advantages:
Long Working Distance
Up to 200 meters or 656 feet working range outdoors; high sensitivity and signal stability
Adjustable 1-15 levels Volume
Screen receiver with 15-level volume adjustment for nursing pager system; support external audio equipment
Humanized Design
Screen: Bracket and string hole design; compact size; it won't take up much space; you can put the receiver on the counter or hang it on the wall
Button: With lanyard to hang over the bed
Feature of Retekess T114 Display Receiver:
Add up to 999 call buttons
Single caller host can match up to 999 Pager buttons for any occasion;
You can always add up to more pagers to the pager system as your business grows
Multi-function Display Settings
You can set fixed or cycle calling records display; And Display Time is Adjustable from 001--180 seconds
Large LED Display Screen
Large display screen, easy to read; thus both you and your customers would not worry about missing the meal anymore
Features of Retekess TD003 Call Button:
Long range and stable signal
Buit in rechargerable 12V/23A battery
Equipped with a 59mm handle cable, which make it be available to put it on the bed for hospital clinic
Long range and stable signal, make the patients’ needs get a quick response
With “Call” and “Cancel” keys; Easy to pair with the nurse call system
Applications:
Wireless call button for elderly emergency use in clinic, hospital and nursing home
Please fill in your procurement needs and contact information
Specification:
T114 Display Receiver |
TD003 Calll Button |
||
Frequency | 433MHz | RF frequency | 433MHz |
Decoding | learning code | Modulation Mode | ASK (AM) |
With transmitter quantity | max 999pcs | Material | ABS |
Prompt modes | Dingdong / Music / English voice report | Power | 12V/23A battery (included) |
Letters show | A.B.C.D.E.F | Working current | 18mA |
Adapter | AC 100-240V 50/60Hz, output: DC 9V/1A | Standby current | <1uA |
Working current | <600mA | Waterproof | IPX3 |
Standby current | <60mA | Size | 130 x 70 x 15mm |
Size | 230 x 160 x 35mm / 9 x 6.3 x 1.3 in | Weight | 73g |
Weight | 350g / 0.77lb |
Package Includes:
Option |
Package Details |
1 Display Receiver + 6 Call Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 6 x Retekess TD003 Call Transmitter Buttons |
1 Display Receiver + 10 Call Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 10 x Retekess TD003 Call Transmitter Buttons |
1 Display Receiver + 15 Call Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 15 x Retekess TD003 Call Transmitter Buttons |
1 Display Receiver + 20 Call Buttons |
1 x Retekess T114 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 20 x Retekess TD003 Call Transmitter Buttons |
