External antenna, measured open range can reach 300 meters
TD112 watch pager has IPX7 level waterproof
7 languages, English, Chinese, Italian, Spanish, German, French, Portuguese
Use the special charging clip to charge, it can be fully charged in 3 hours
Can standby for 48 hours after full
Advantages of TD005 Call Button:
External antenna, ultra-long-range transmission, the measured open distance can reach 300 meters.
The product can be hung on the wall, can be attached to the adhesive, convenient for customers to apply different scenarios.
The surface of the shell metal baking paint treatment has, a brighter appearance, more wear-resistant.
Built-in 2 12V23A battery, standby time is longer, can reach more than 1 year, the use of the number of times more than 20000 times, to avoid the trouble of frequent battery replacement.
Advantages of TD112 Watch Pager:
Key-value can be set as needed.
IPX7 level waterproof, daily wear can be submerged in water for a short time, no need to take off the bracelet when it rains or wash hands.
Rechargeable with a special charging clip can be fully charged in 3 hours and can standby for 48 hours after being fully charged.
Can be used with software: add, modify, delete staff, keyboard, area information, set pager keys, keyboard name, edit bracelet information. This application requires a separately purchased USB transmitter (F9624E).
7 languages, English, Chinese, Italian, Spanish, German, French, and Portuguese, you can choose as you need.

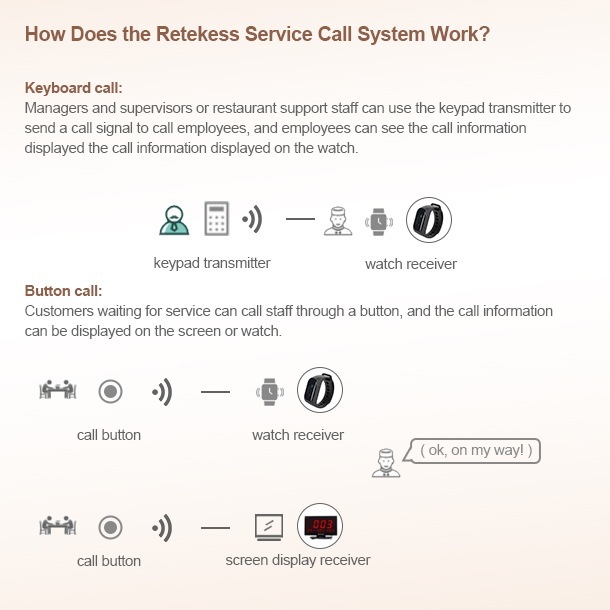

Application scenarios where TD005 works with TD112 watch pager:
Restaurant kitchen call service
The multi-button pager is mainly used in the restaurant kitchen to call waiters to pass food. The multi-button pager is paired with the watch pager of waiters 1-5 respectively. When the food at the table of the No.1 waiter is ready, the kitchen will use the pager to press "Ⅰ", No.1 waiter will receive the message of passing food and immediately go to the kitchen to send the food to the designated table, and other waiters will pass the food with the same principle. It improves the communication efficiency between the kitchen and the waiter and optimizes the restaurant environment.
Factory or warehouse call service
The multi-button pager is paired with receiving watches 1-5 respectively. The pager is installed in the management or command center, and the receiving watch is given to each post personnel to wear so that when a task needs to be assigned to a post, the corresponding post personnel can be called through the pager.
Please fill in your procurement needs and contact information
TD112 Watch Pager |
|
Communication frequency |
315/433MHz |
Reception sensitivity |
-114dBm |
Battery Capacity |
180mAh |
Prompt Length |
1-15S |
Number of Stored Messages |
10 |
Standby Time |
48h |
Charging |
USB |
Display Screen |
OLED |
Shell material |
Polyurethane+PC |
Size |
48*25*15 |
TD005 Call Button |
|
RF frequency |
433MHz |
Modulation Mode |
ASK (AM) |
Material |
ABS |
Power |
12V/23A battery (included) |
Working current |
18mA |
Standby current |
<1uA |
Waterproof |
IPX3 |
Size |
96*42*15mm |
Q: How do I get the watches to work separately. I have 5 waiters and want each watch to pair independently with the 1-5 button on the pager?
A: You can enable the " choose receiver " mode. “choose receiver” working mode allows the user to set the watch to receive calls from the specific keys.
Q: If I purchase it, what's in the package?
A: The package contains 5 watch pager, 5 charging clips, a call button, and an instruction manual.
Q: Can I Get separate watch pager?
A: Sure, you can purchase TD112 at this link: https://www.retekess.com/td112-watch-pager#F9624A
