Long distance; high receiving sensitivity; in an open area; reach 1000ft; effectively pass through walls
1-15 level volume adjustment function, loud to remind
Restaurant paging system can add up to 999 call buttons;
Waterproof call button includes a double-sided sticker; can be attached to a table or wall
4 call records can be displayed on the screen
Widely used in clinics; restaurant; clubs; hospital; hotels

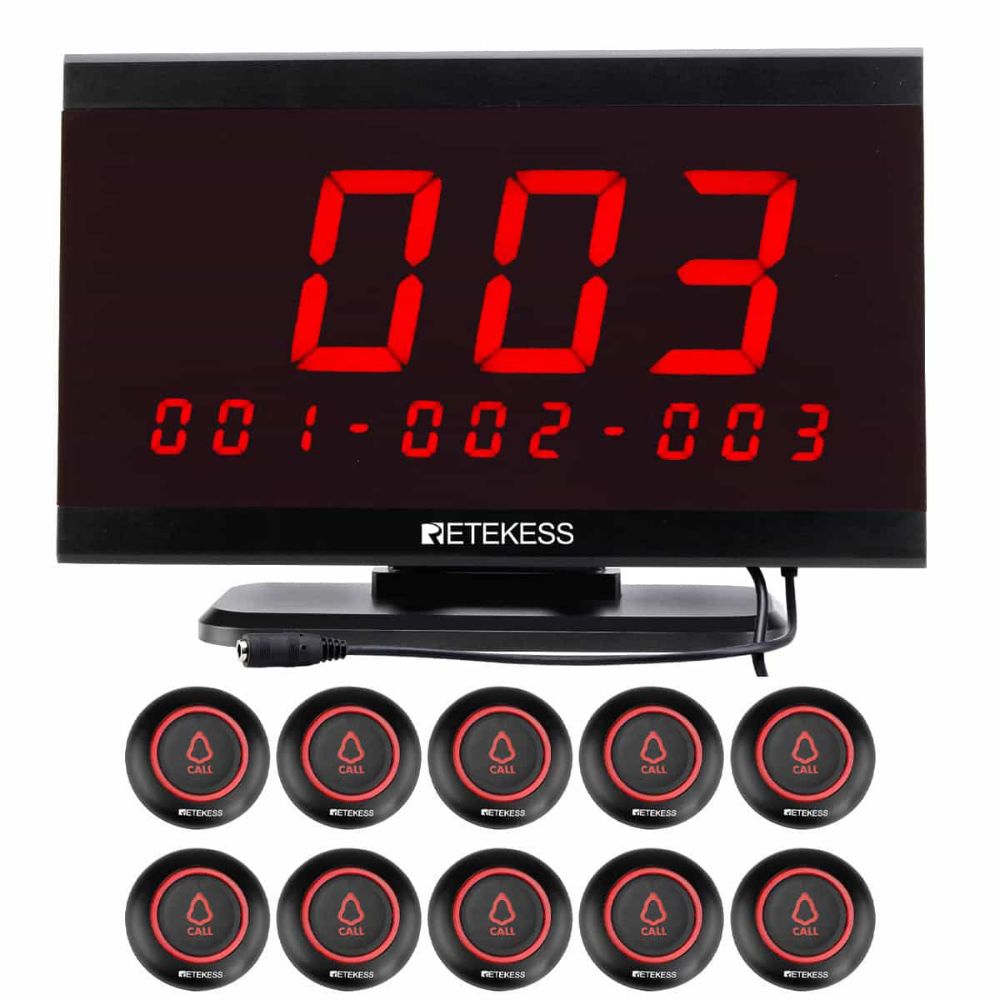

Retekess Restaurant Table Call System TD105 Display Receiver T117 Call Button for F&B, Hotels

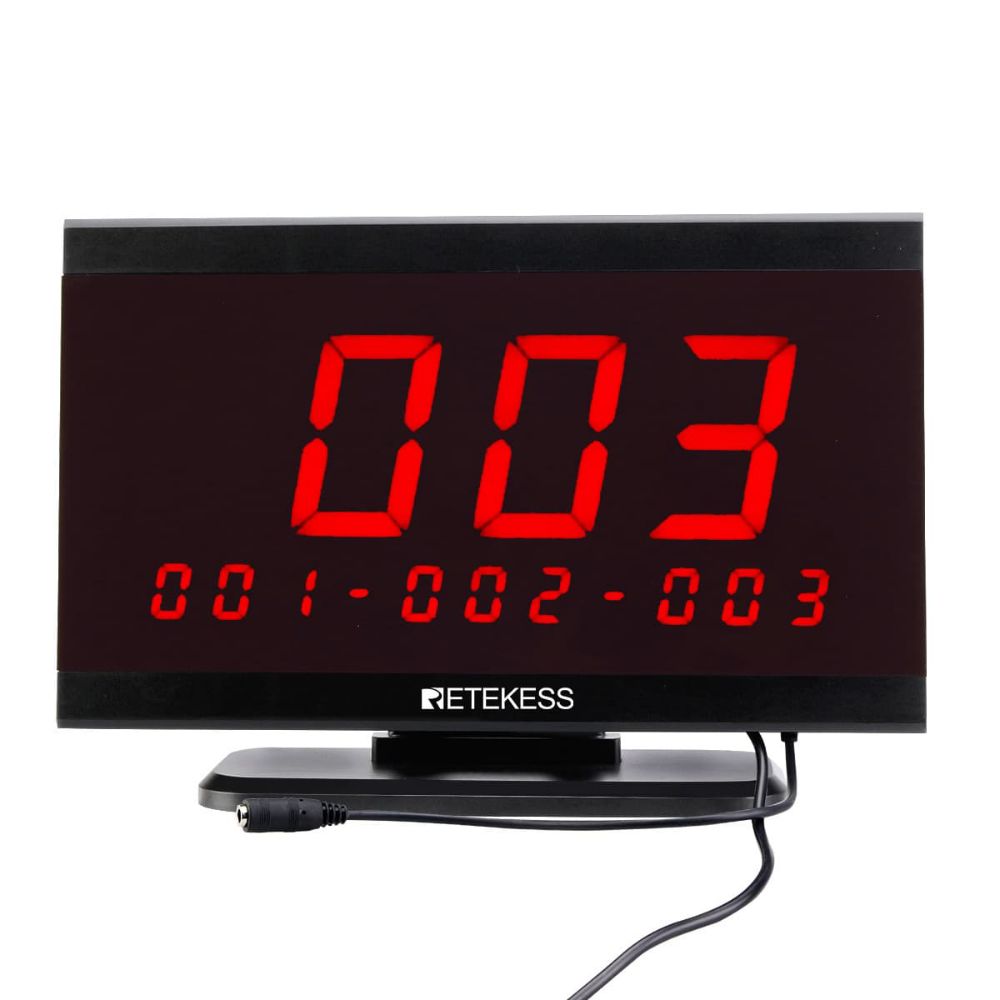

Key Features of TD105 Display Receiver:
Easy to set up
No area and A-F areas setting switch freely
00-999s cycle time setting; 00-999s automatic delete setting
Easy to transmit signal
More than 300m or 1000ft in open area
Easy to adjust
7 Kinds of alerts for your choice: 6 voice broadcast plus "Ding Dong" prompt sound
When someone press the button, TD105 screen receiver will display a number to show you which table or room is calling
Easy to display
Easy to set the call number cycle. Easy to set alert times and alert interval
Easy to place
Freely placed according to needs. Can be twisted to different angles
Easy to play
Retekess TD105 wireless calling system can connect external audio sound. Can connect external alarm, meet the diverse needs of user
Key Features of T117 Bell for Restaurants:
Easy to paste
Can be easily installed on each table or wall with sticker. Easy to use and simple to operate
Durable call button
Compact size, more durable material. Meet the requirements of various places
Long life
Allow long time use, 2pcs 3V CR2016 battery for each call button, standby time up to 6-12 months
Easy to use
Press the call button to respond，easy to operate. 4-key call pager: call, pay, order and cancel
Maybe you Want to Know
Applications
Please fill in your procurement needs and contact information
Specifications:
TD105 Display Receiver |
T117 Call Button |
||
| Operating Frequency | 433.92MHz | RF frequency | 433MHz |
| Decoding method | Learning code | Modulation mode | ASK (AM) |
| With transmitter quantity | Max 999pcs | Working chip | learning code |
| Adapter | AC 100-240V 50/60Hz | Power | 3V CR2016 battery (included) |
| Output | DC 9V/1A | Working current | 17mA |
| Sensitivity | Better than -108dBm | Emission distance | 200 meters (theoretical distance of open area) |
| Operating voltage | Host with 12V/2A matched power supply | Working temperature | -20 Celsius to 55 Celsius |
| Size | 260*180*70mm | Size | 64 x 61 x 15mm / 2.5 x 2.4 x 0.6 in |
| Weight | 26g / 1oz | ||
Package Includes:
Option |
Package Includes |
| 1 Display Receiver + 6 Buttons |
1 x Retekess TD105 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 6 x Retekess T117 Call Transmitter Buttons |
| 1 Display Receiver + 10 Buttons |
1 x Retekess TD105 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 10 x Retekess T117 Call Transmitter Buttons |
| 1 Display Receiver + 15 Buttons |
1 x Retekess TD105 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 15 x Retekess T117 Call Transmitter Buttons |
| 1 Display Receiver + 20 Buttons |
1 x Retekess TD105 Receiver Host 1 x Power Adapter for Receiver Host(EU/US/AU/UK optional) 1 x English User Manual for Receiver Host 20 x Retekess T117 Call Transmitter Buttons |
Q: Can I buy more T117 bells?
A: Yes, please click here and get more T117 restaurant call buttons.
Q: Is this restaurant calling system plug-and-play?
A: Please check whether each button can call the screen receiver when you receive the goods. If you are not in the matching state, please email us at support@retekess.com or call us at+86-15639073051
