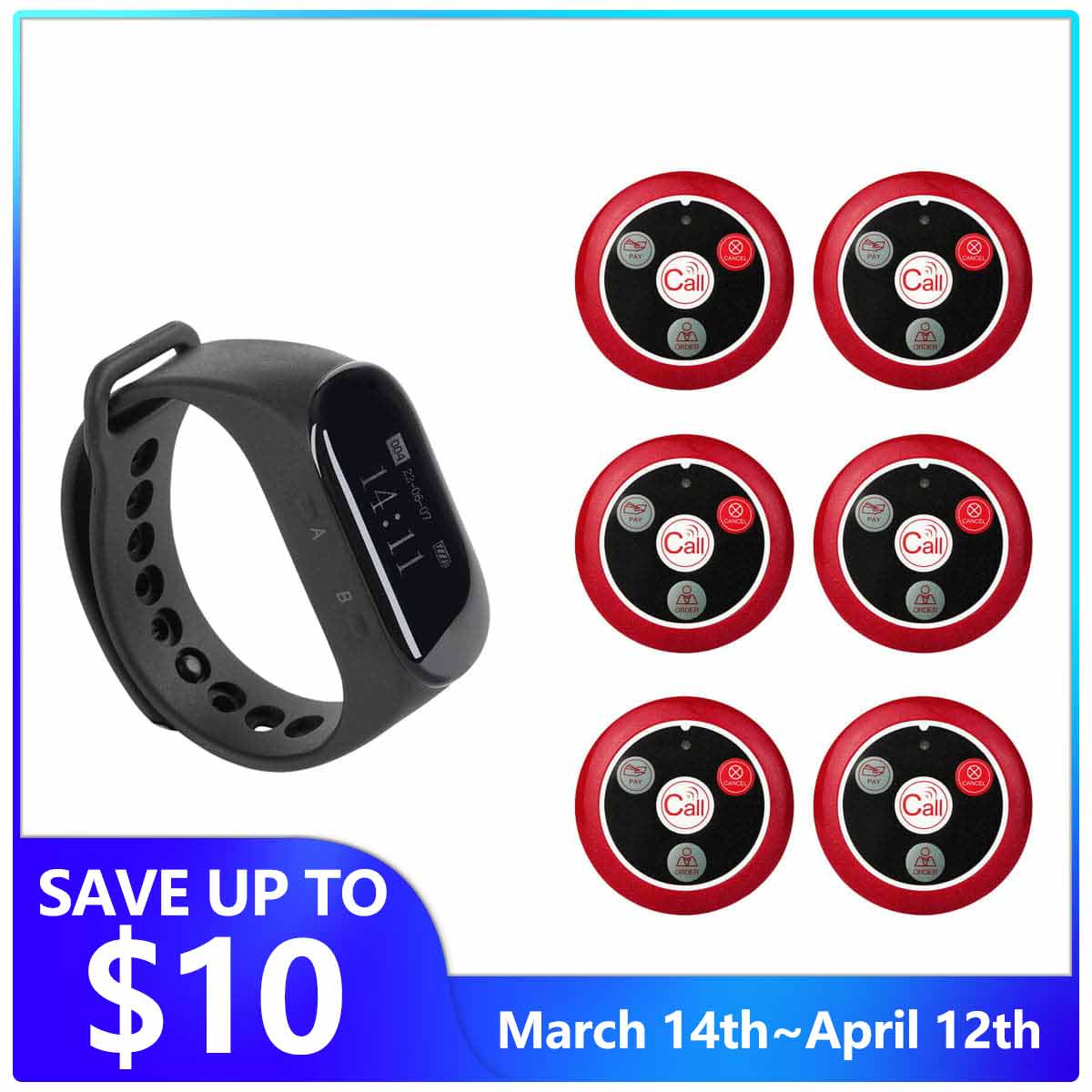

Retekess TD112 Wrist Watch Receiver with T117 4-keys Call Buttons Wireless Restaurant Waiter Call System
Retekess TD112 watch receiver with T117 wireless call button helps support faster service
TD112 Calling System support max 999 channel pagers call at the same time
One watch pager watch can add up to 500 call buttons
T117 wireless call button with four key functions: Call, Cancel, Pay, Order
Standby time is more than 8 months;Size of call button is 64*64*15mm.
Convenient to install anywhere, stick to dinning tables
Button is life waterproof, oil-proof, and easy to clean and disinfect
Bulk order Inquiry
OverView
TD112 Pager Watch:
Long press B to turn on and off the phone, the first time you turn on the phone must set the bracelet ID and name, in standby mode, long press A to enter the settings menu, B to exit, menu mode A and B keys are up and down flip keys.
Clock set: you can set the real-time time and date.
You can set 2 sets of alarms, the alarms are still valid in the off state, and you can be reminded to do something at regular intervals.
Timer on/off time can be set to avoid wasting electricity by forgetting to turn off the phone after using it.
Alert mode can change the vibration time and alert time, set according to the demand, no beep sound nd, and create a quiet atmosphere.
10 call records can be displayed, easy for you to check.
Customizable key value, customize the suitable key value according to your business.
Language setting: 7 built-in languages, Chinese, English, Spanish, Italian, Portuguese, French, and German, users can choose a suitable language according to their needs.
Retekess T117 push for service buttons
4 Keys Function
Call, Cancel, Pay, Order Function Key
Very easy for guest use, especially in restaurants; you can get to know your customer detailed wants; watch pager can improve the working efficiency effectively
Light Weight
27g or 1oz net weight for the pager;
Round Style design; Easy to handhold;
The service call button will not take up so much space on the table
ABS Material
The call button T117 adopts quality ABS material; more sturdy; it is waterproof and oil-proof in restaurant or food truck use
Sticker Design
It comes with a dual adhesive sticker in the package
So you can paste the coaster pager fixed on the food table; there is no need to worry about pager loss issues
Battery Replacement
Watch pager is built-in 2pcs 3V CR2016 battery
17mA Working current means low current draw for long use
You can also replace the battery when they run out; humanized design
Stable Signal
Calling pagers use higher working frequency with learning code
Compared with fixed code type, the signal interference can be well controlled with better signal stability
Application:
Spec
Specification:
TD112 Staff Paging System Pager Watch |
T117 Call Button Transmitter |
||
Communication frequency |
315/433MHz |
RF frequency |
433MHz |
Reception sensitivity |
-114dBm |
Modulation mode |
ASK (AM) |
Battery Capacity |
180mAh |
Working chip |
learning code |
Prompt Length |
1-15S |
Power |
3V CR2032 battery (included) |
Number of Stored Messages |
10 |
Working current |
17mA |
Standby Time |
48h |
Emission distance |
200 meters (open area) |
Charging |
USB |
Working temperature |
-20 Celsius to 55 Celsius |
Display Screen |
OLED |
Size |
64 x 61 x 15mm / 2.5 x 2.4 x 0.6 in |
Shell material |
Polyurethane+PC |
Weight |
27g / 1oz |
Size |
48*25*15 |
|
|
FAQ
Q: How long can this system work on a full charge?
A: The TD112 watch pager will work 48 hours. The T117 call button can use 6-12 months due to different using frequency.
Q: What is the charging time of the watch pager?
A: Our door is equipped with a fast special charging clip, full in just 3 hours.
Q: What's the prompt mode of pager watch receiver TD112?
A: It has only 1 mode, that is vibration and display number on the screen. It has no beep.
