TR508 FM Transmitter Low Power Broadcast Station for Drive-in Church School

Order Status: In Stock Unavailable
Brand:

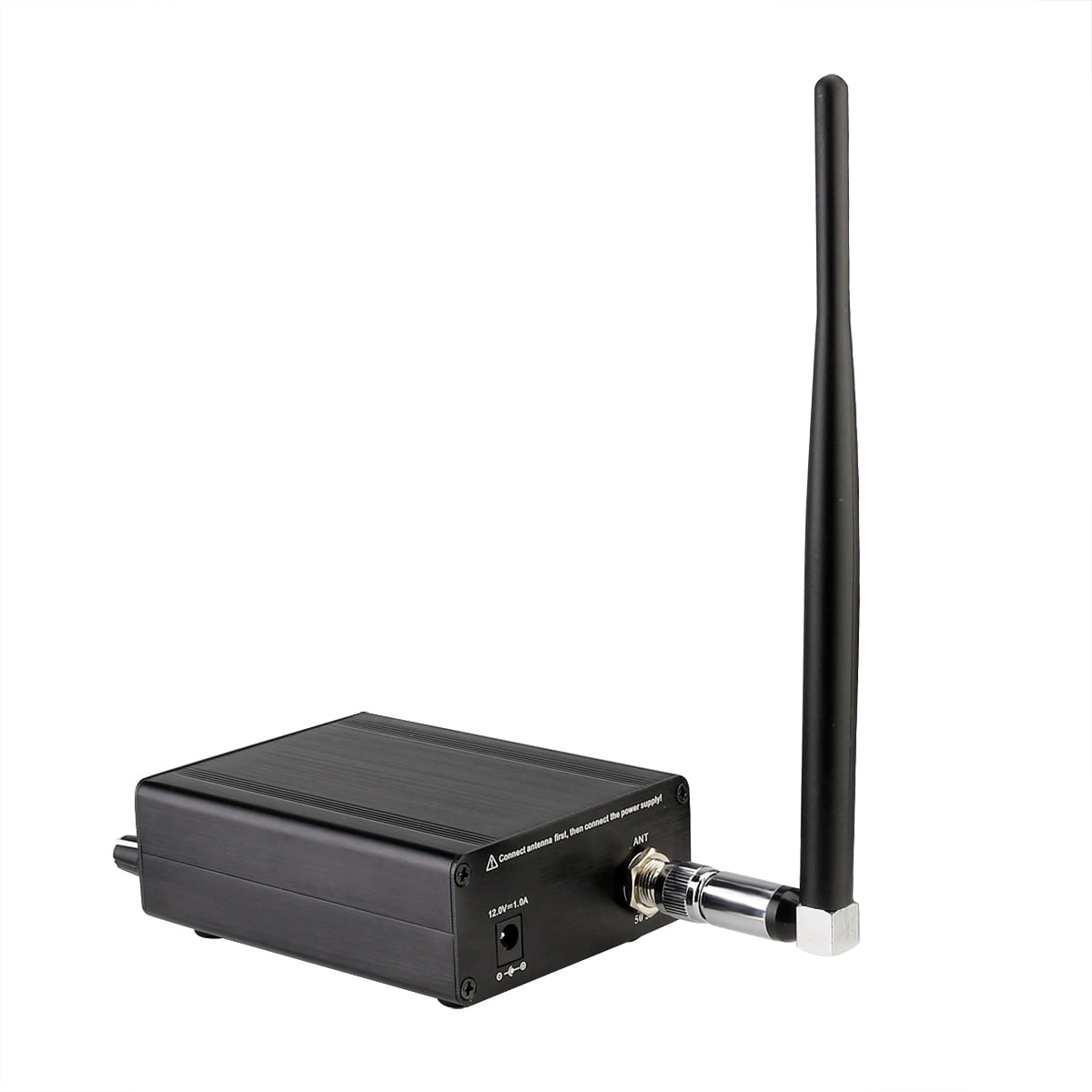

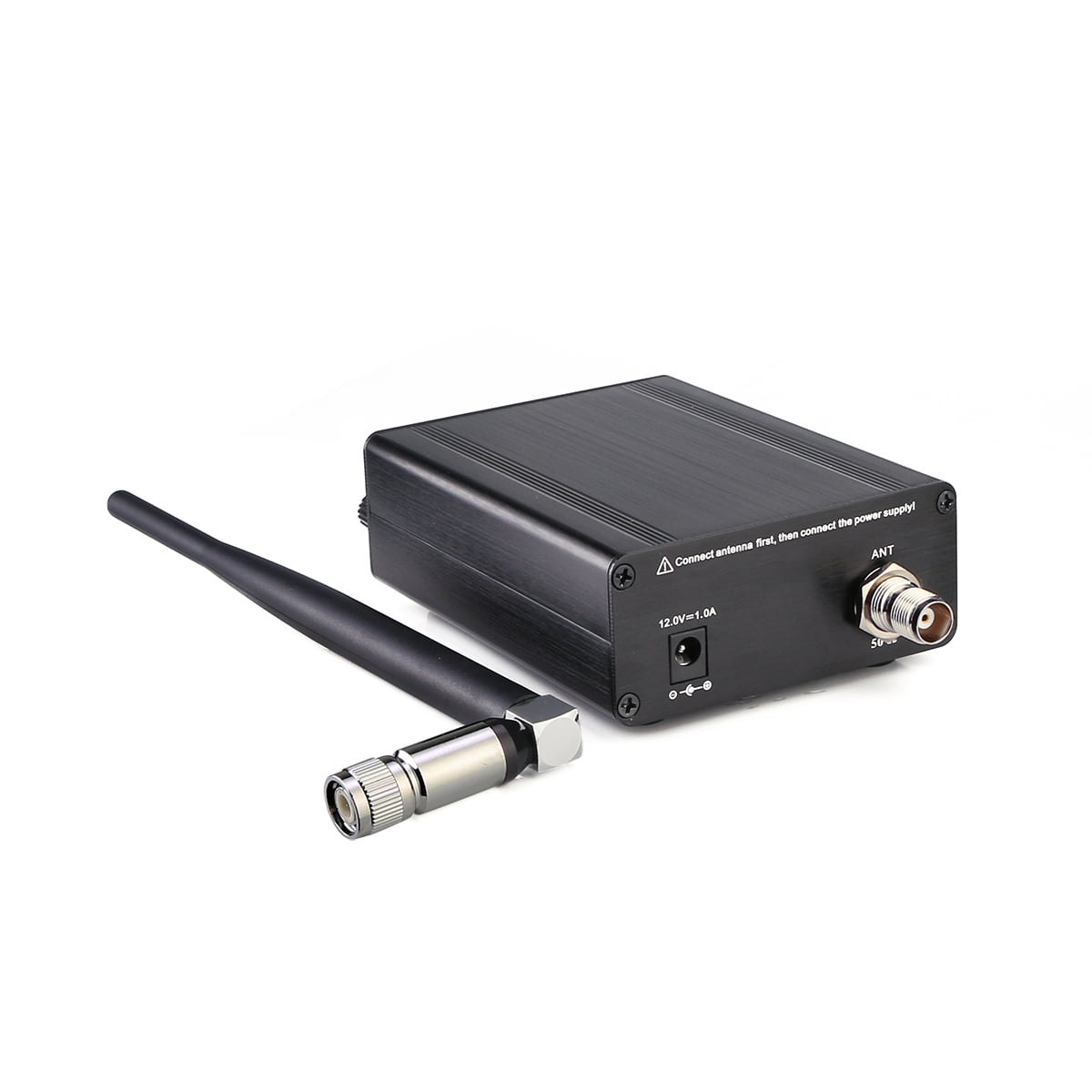

Low power FM transmitter complies with part 15 of FCC rule, 3.5mm jack for Microphone and audio cable, BNC Type antenna output, LCD digital display, jack for DC 11-13V


14 People are Looking for this Product

Description

Retekess New Arrival FM Transmitter Low Power Broadcast Radio Station

As we all know, COVID-19 is more serious in the whole world. The governments advise us to stay at home to keep safe.

So we have the new way to do the church services now-Drive-in church using the FM broadcast transmitter in the parking lot.

Many FM transmitters in the market are out of stock, but Retekess makes the new one meet the marking needs.

Pls check the details of TR508

1. Audio volume
2. MIC volume
3. 3.5mm Jack for Audio Cable input
4. 3.5mm Jack for electret microphone (And the computer use the same microphone) input
5. Power Button (On / Off)
6. "+" Frequency Up Button (To increase the radio frequency)
7. "-" Frequency Down Button (To decrease the radio frequency)
8. LCD Digital Display for the Radio Frequency,
9. Jack for DC 11-13V

The feature of TR508 FM Transmitter:

1. low power complies with part 15 of FCC rule
2. MIC volume
3. Stereo voice, clear sound
4.  Stable signal, little affected by the outside
5.  Lightweight and excellent heat dissipation
6.  The motherboard adopts a new generation of integrated special-purpose NC FM PLL stereo wireless transmission chip BH1415 from Japan ROHM company, and has a built-in PLL frequency phase-locked loop, audio pre-emphasis, limiting and low-pass filter circuit, which can achieve high fidelity and high stable signal transmission
If you want to know more, pls email us at support@retekess.com

Spec

Anfitrión

Color

Blanco

Fuente de alimentación

Batería de litio de 800 mAh, 3,7 V

Duración de la batería

Funcionamiento normal 8 horas

Distancia de comunicación

Alcance máximo 100 m (espacio abierto)

PIR Sensor

Color

Cuerpo blanco + luz indicadora roja

Material

ABS

Tiempo de espera

6 meses

Modo de comunicación

OOK (433,92 MHz)

Distancia de comunicación

Máx. 100 m (espacio abierto)

Zona de detección

8m/110°

Sensor de puerta

Voltaje de trabajo

Batería de 12 V 23 A

Corriente de trabajo

<25mA

Distancia inalámbrica

100 metros (espacio abierto)

Frecuencia de transmisión inalámbrica

433MHz

Resistencia del oscilador

HS1527 220K

TH013 WiFi Panic Button

Tamaño

55mm*18mm

Peso

32.7g

Colores compatibles

Blanco y azul

Material

ABS blanco

Cubierta superior de ABS semitransparente de color azul

Modelo de batería

Batería de litio recargable LIR2450 *1

Voltaje de funcionamiento

3.6V

Consumo de energía en modo de espera

3uA

Capacidad de la batería

580 mAh

Tiempo en modo de espera

un año

Modulación

ASK

Frecuencia de transmisión

433.92MHz±75K

Potencia de transmisión

13dbm





TR508 FM Transmitter Specification

Working: voltage11~13V DC (Rated voltage 12 v)

Working current<300mA

Frequency stability:±10PPM

Frequency Step:100KHZ

The operating temperature of the environment -10℃~50℃

output impedance: 50Ω

Harmonic and noise radiation: ≤-60dB

Audio distortion: <0.30%

Frequency response: 20HZ~15000HZ

Preemphasis delay: 50us

degree of separation:≥40 dB

input level:≤-10 dBV

Modulation frequency deviation: ±75KHZ

SNR(Signal to Noise Ratio)≥65 dB

Machine Size:113mm;W:88mm;H:39mm

Machine weight: 269g

Package Contents

  • 1xTR508 FM Transmitter
  • 1x100~240VPower Supply
  • 1x 3.5mm Audio Cable

Features

P: ¿Qué software necesito descargar?

R: Smart Life.

P: ¿Se puede vincular el botón al software como una alarma independiente?

R: No, el TH013 no se puede, pero el botón de llamada TH012 sí.

P: ¿Pueden todos funcionar con el host? Es decir, ¿pueden todos llamar al host? ¿Entonces se puede saber cuál es el que llama?

Se puede comprobar qué producto es el que llama en el software.



Q: Can i use the FM Transmitter for the drive-in church in the parking lot?

A: Sure, we made the item for drive-in Scenes, people can set the frequency of the car the same as it, then receive the message from the transmitter.

Q: Does the FM transmitter have the FCC ID

A: Yes, it does.

Reviews

Leave a Reply

Customer Reviews

5 (Overall) | Based on 1 Reviews

works fantastic. Connected to my audio video system & can play what I want all over my property and buildings. Purely entertainment for me. I did have one channel dropping out after 4 years of steady use. I took it apart and resoldered the main circuit board. Fixed my problem. The unit is very repairable and easy to work with way after the warranty.
