How to increase the range of Retekess Calling System?

How to increase the range of Retekess Calling System?

How to increase the range of Retekess Calling System?

How to increase the range of Retekess Calling System?

Retekess is committed to developing communication products based on wireless technology. Our aim is to make communication in our daily life and work much easier.

Retekess wireless calling systems such as service calling system, guest paging system, nurse call system have been widely used in restaurants, food trucks, cafe shops, grocery stores, warehouses, hospitals, hotels, clinics, Gym, casinos as well as elderly care.

Due to the different requirements on the range of the calling systems, more and more customers want to know if there is a way to increase the range of them. The answer is YES.

You could use the TD021 Signal Amplifier to improve the distance of the Retekess Calling System. If the range of the service calling system is 60m, after you use the TD021 repeater, the range could up to 120m. If you need the push call buttons works for more than 120m, you could use two signal amplifiers.

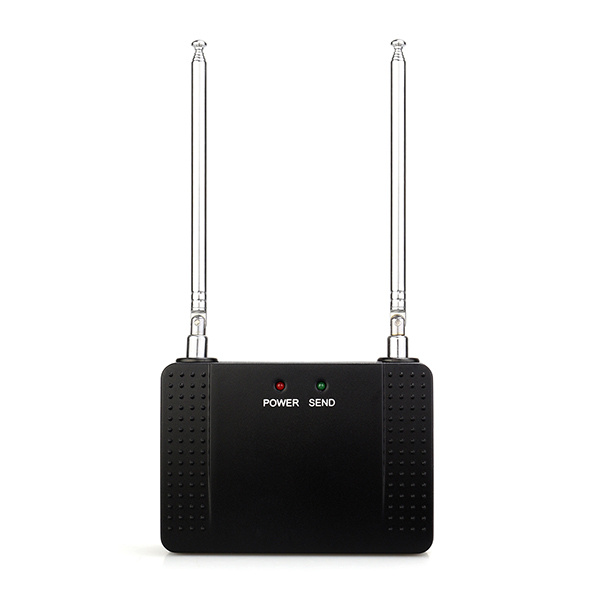

 TD021 signal  amplifier.jpg

How many TD021 repeaters could be used for one set of Retekess Service Calling System or Guest Paging System? That is 6 in total.

How to set the signal amplifier?

It is very easy to set up, if you use one repeater, you just need to pull up the 1 to the status of ON, and then put the repeater in the middle of the call buttons and wrist watch receiver and plug it in the power will be OK. After installing, when you push call buttons, the send indicator light will turn green, it shows the repeater works fine for the calling system.

If you use more than one repeater, the settings should be

For the first repeater, pull up the 1 to the status of ON

For the second repeater, pull up the 2 to the status of ON

For the third repeater, pull up the 1 and 2 to the status of ON

For the fourth repeater, pull up the 1 and 3 to the status of ON

For the fifth repeater, pull up the 2 and 3 to the status of ON

For the sixth repeater, pull up the 1, 2 and 3 to the status of ON

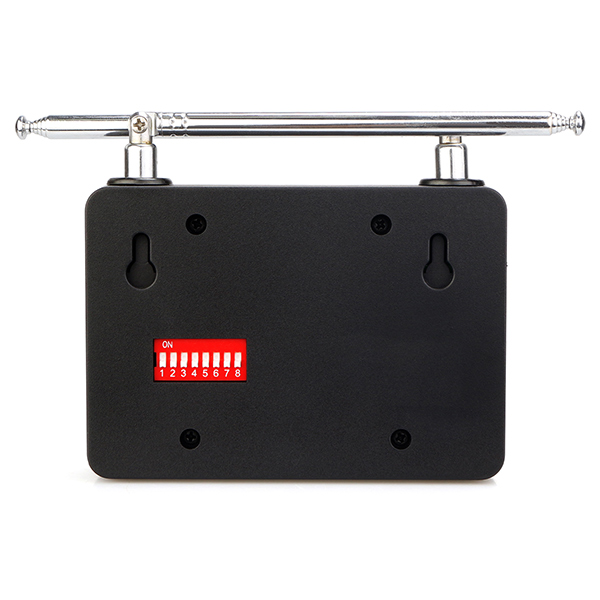

TD021 repeater setting.jpg

The TD021 signal amplifier working for Retekess Service Calling System and Guest Paging System.

Should you have any other questions on Retekess products, welcome to email us at support@retekess.com or leave us the comment below.
