Retekess TD177 Matrices Paging System Comprehensive Upgrade Wall-Mountable Wireless Pager System for Restaurant, Clubs, Entertainment

Order Status: In Stock Unavailable
Brand:

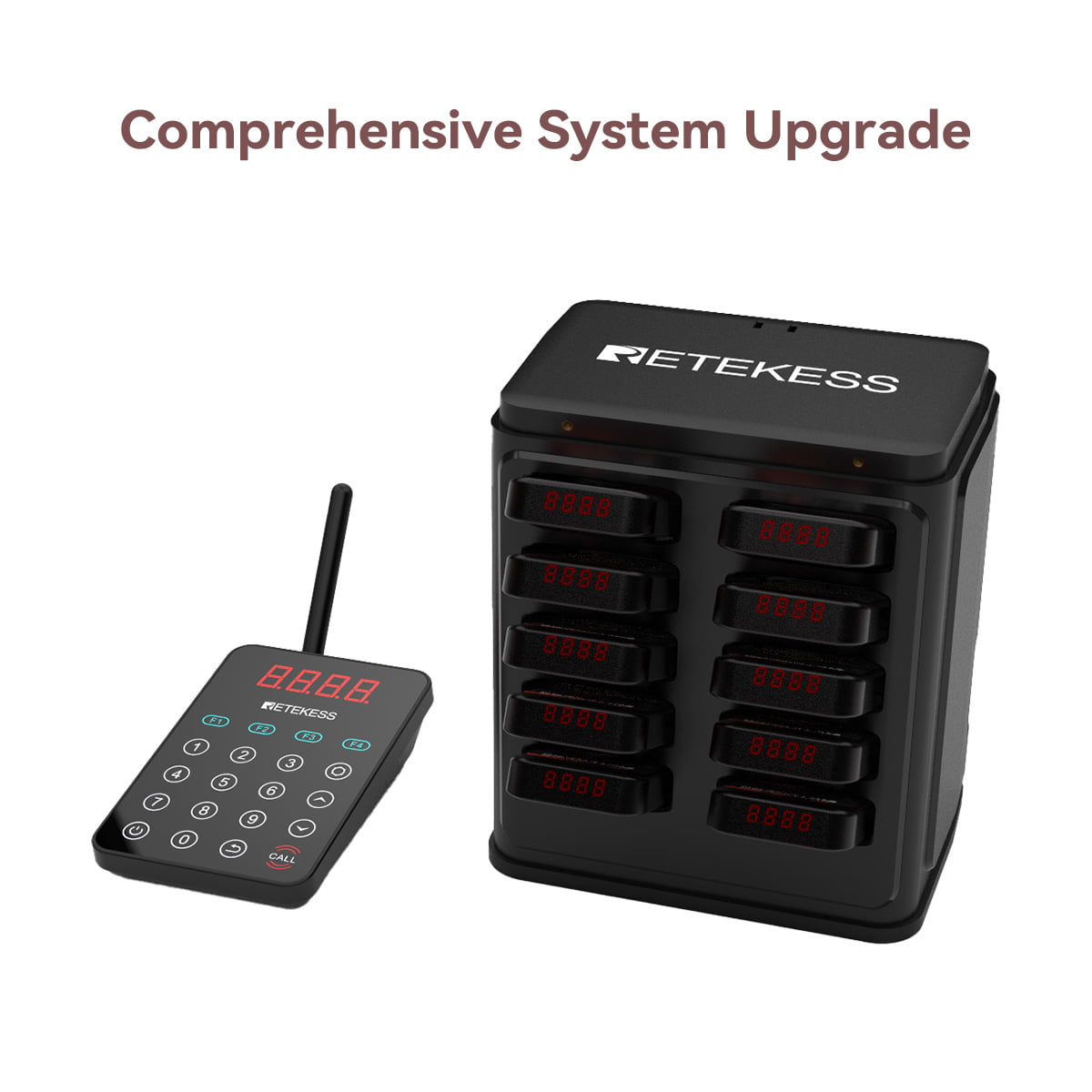

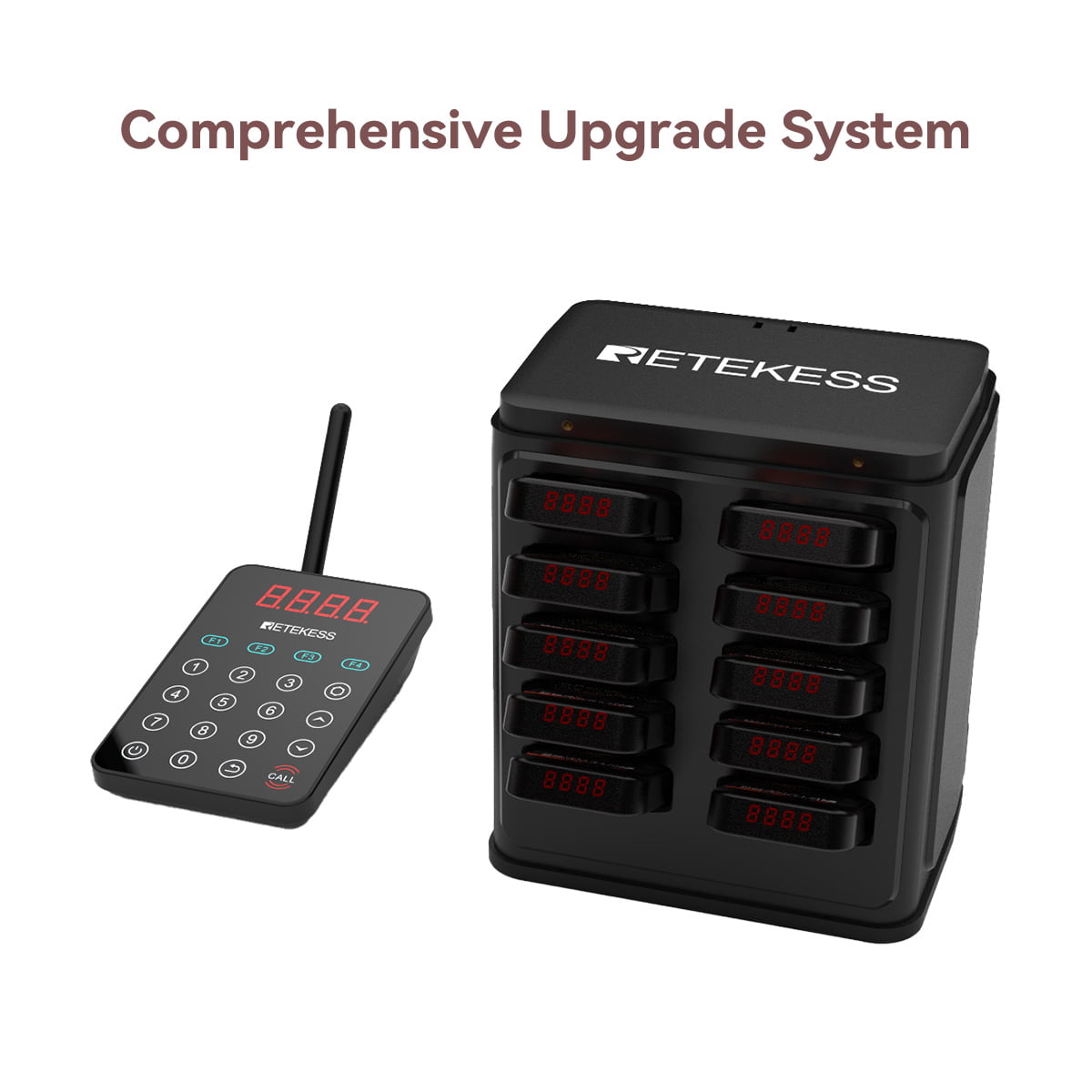

Comprehensively upgraded paging system, wall-mounted design saves space

Over-range alarm function, 03-30min adjustable,anti-lost

Group calling function, all pagers can be called at the same time

Automatic repeat call function to avoid customers missing your call

One key to changing all pager ID numbers, ease and convenience

Equipped with USB cable, free protocol file integration function

IP67 water-proof, made of PC material, which is drop-proof, durable, waterproof, and oil-proof

Hot-Sale


1 keypad + 10 pagers
1 keypad + 20 pagers
1 keypad + 30 pagers
14 People are Looking for this Product

Description

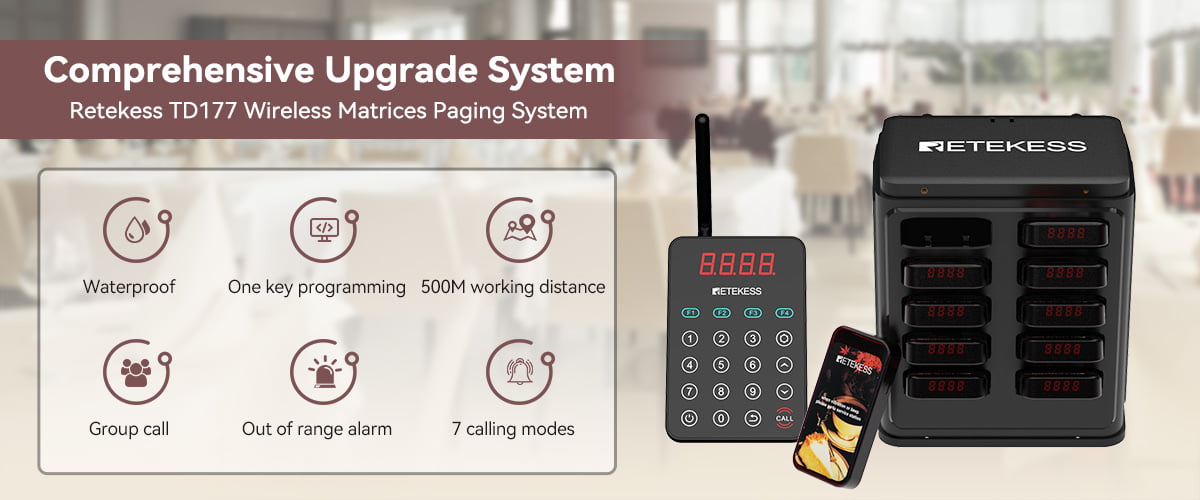

Retekess TD177 Matrices Wireless Pager System,one-click automatic programming, ease and convenience

As a newly upgraded Retekess pager system, TD177 gives us more functionality, ease of use, and quality reliability than our other restaurant pager systems like the classic T112 restaurant guest paging system. We want to make restaurant staff or waiters save unnecessary troublesome operations, so with TD177,  users can change all pager numbers at the same time with one click. Durable and resistant to falling, upgraded sound quality and improved customer experience!

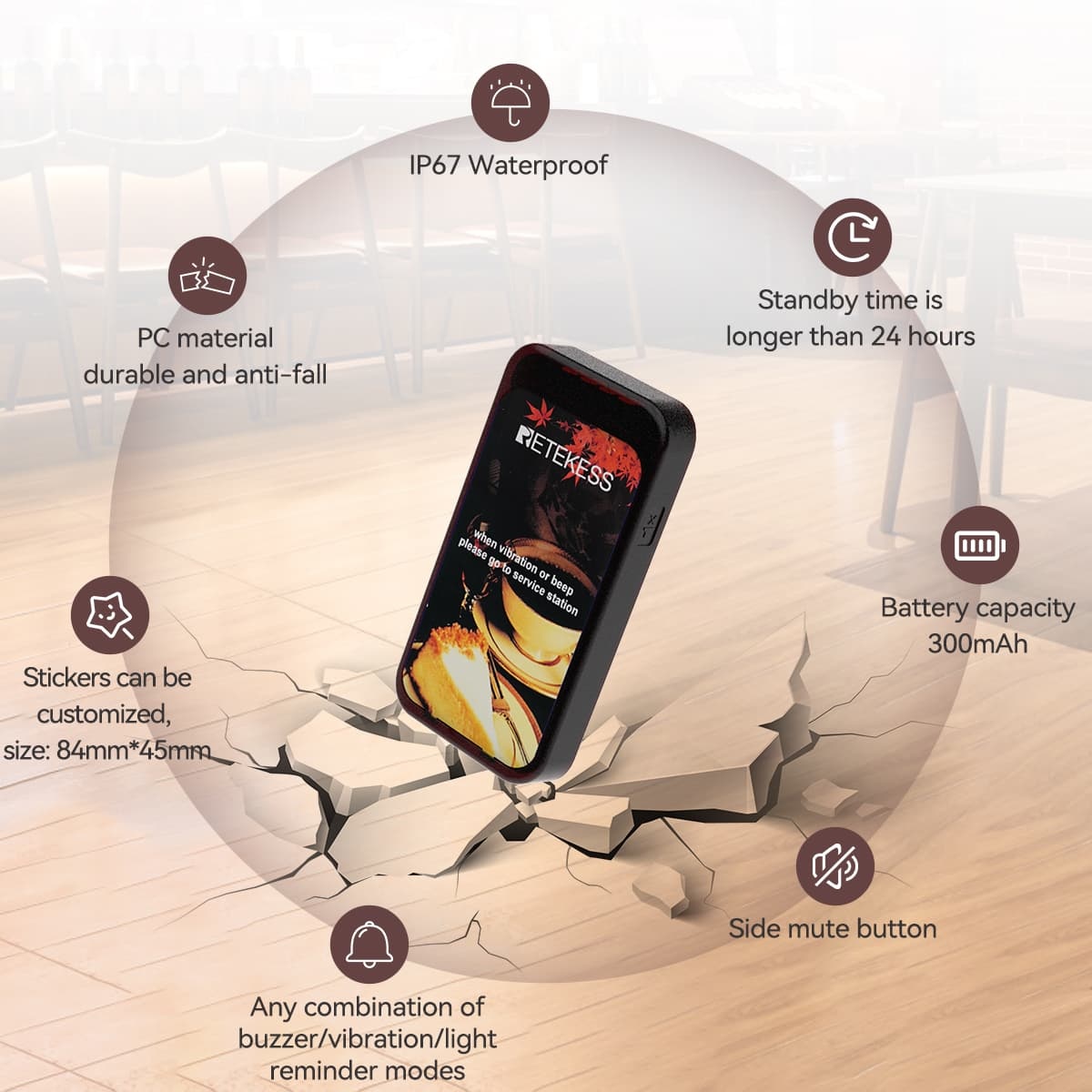

The pager has a slim design, strong vibration, and replaceable sticker slots that adapt to various environments.

Applicable to catering scenarios: Specialty restaurants, pubs and lounges, bars, barbecues, cafes, bakeries, seafood restaurants, catering event receptions.

Applicable to service reception and paging customer scenario: Banks and financial institutions, Consulting companies, 4S stores, associations, salons, customized service companies, breweries, brewing companies.

Applicable to entertainment service paging customer scenario: Sports Club, golf clubs, bowling clubs, resort clubs, go-kart clubs, skating clubs, hotels, music festivals.

More newly upgraded user experience features of TD177 are described below:

One-click automatic programming guest paging system

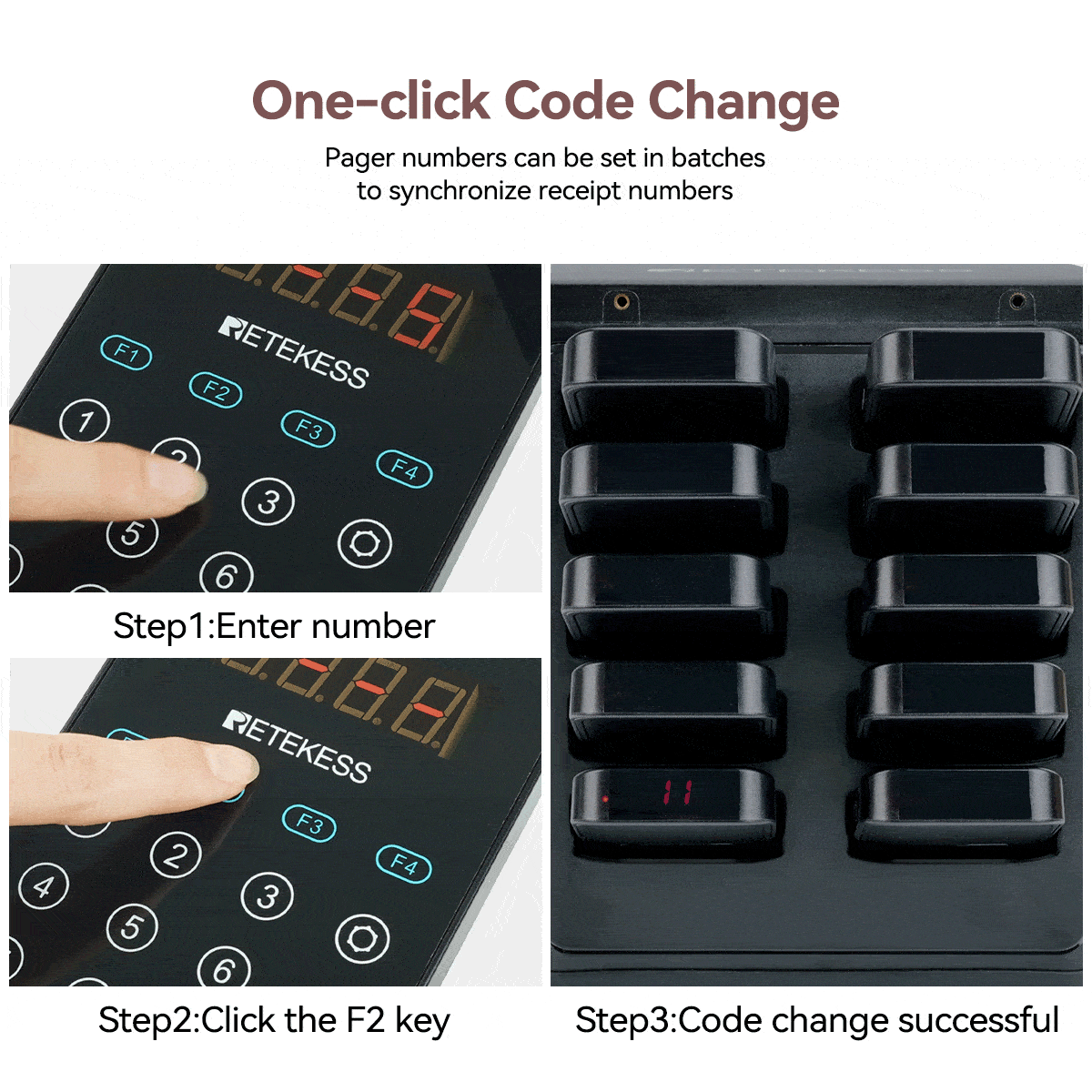

One-click all pager numbers change

Change all pager ID numbers with one key and sort them automatically. There is no need to pair pagers one by one like traditional pager systems, and TD177 is an independent system and does not need to be connected to WiFi.

One-click all pager pairing

One-key pairing makes restaurant work more efficient. No need to pair pagers with keypads one by one, eliminating the troublesome process and saving more time.

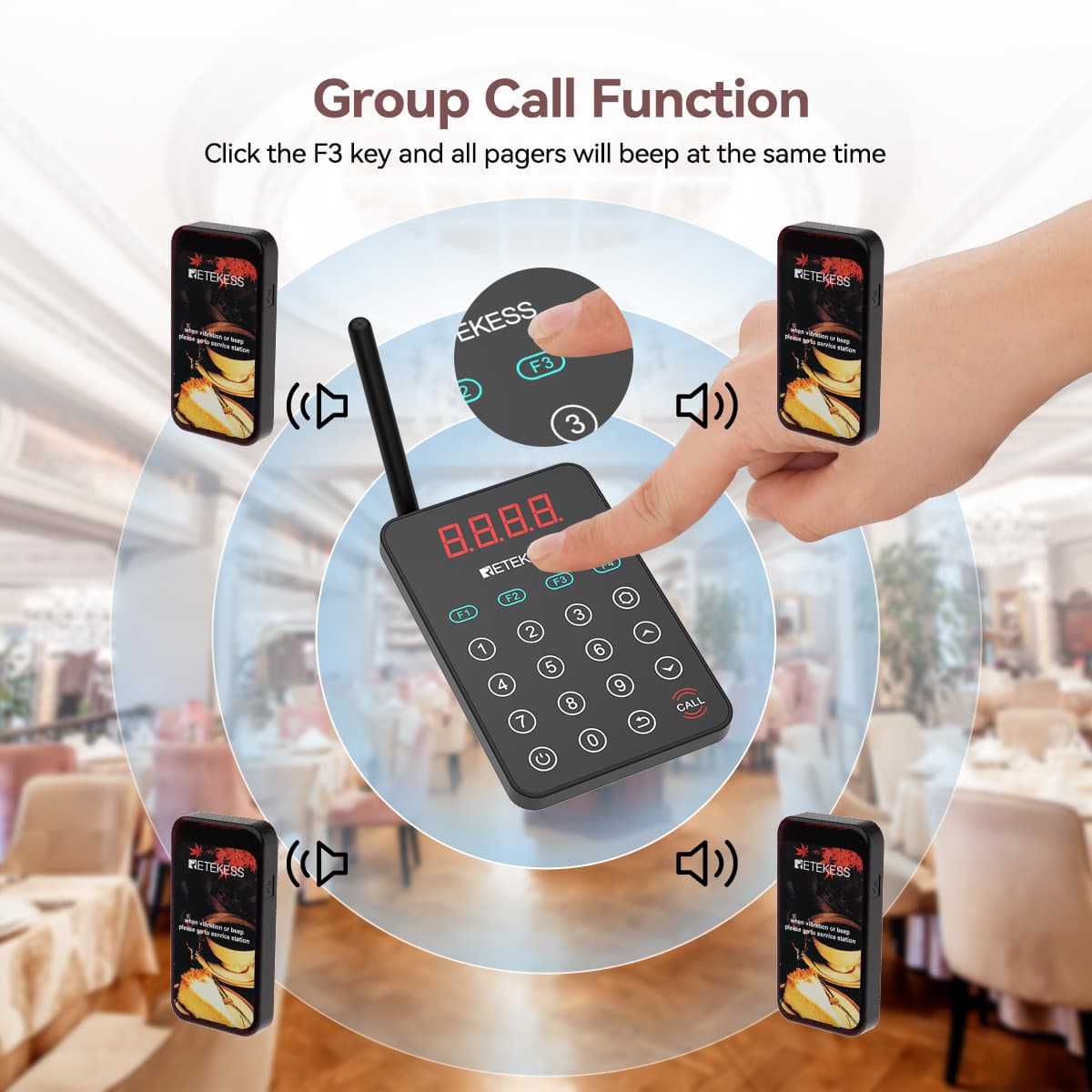

One-click group call

One key can call all pagers at the same time. It can call all the employees at the same time, saves you the time of searching for pagers.

One-click shutdown

Press the power off button and the entire system automatically shuts down.One-click power-off for convenience, durability, and energy efficiency.

Reliable functionality

Out-of-range reminder

Time 03-30min adjustable. Once the pager is out of the signal range, it will send a reminder when the countdown time is over. This prevents customers from taking the pager by mistake.

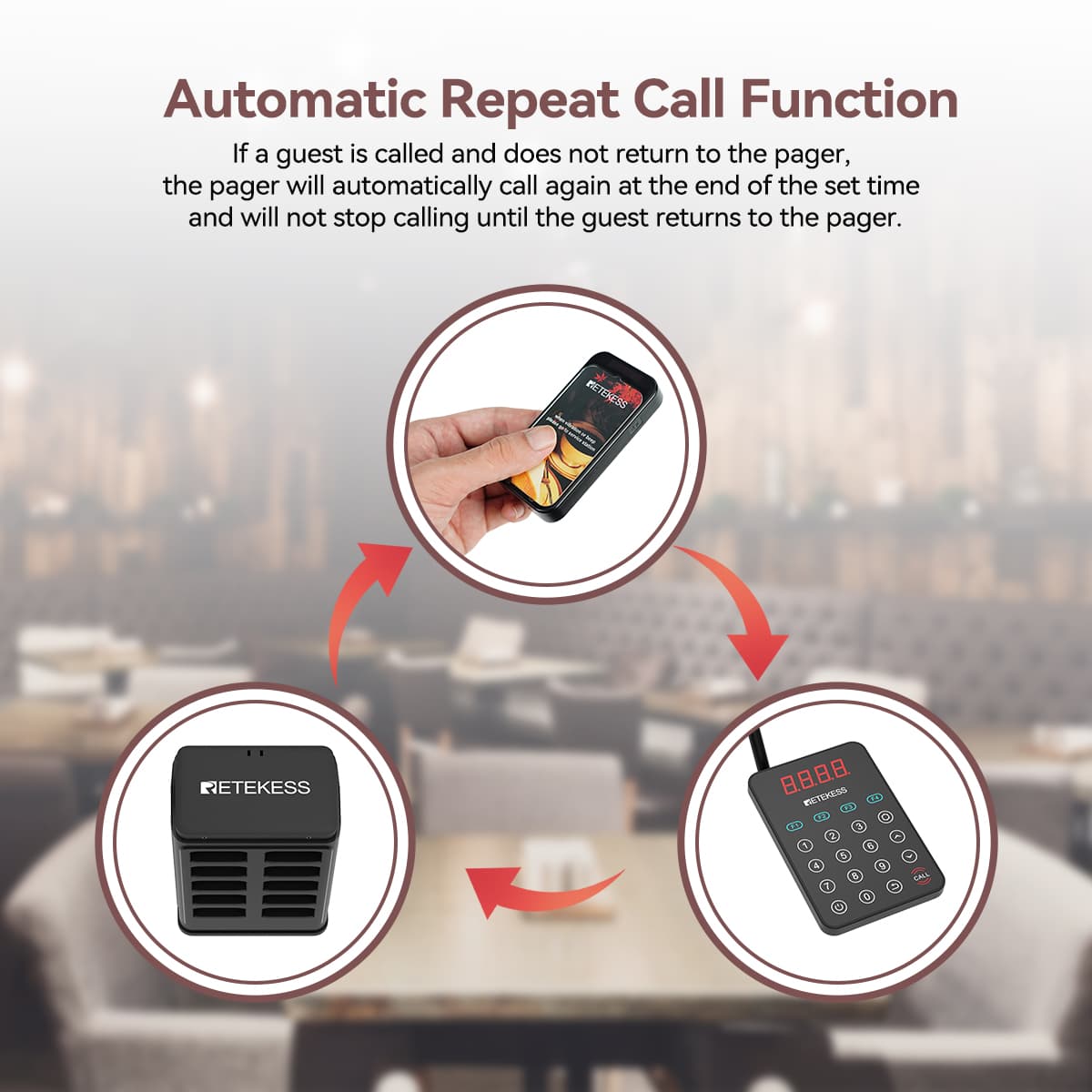

Automatic repeat call

Time  0 to 90 minutes  adjustable. If the customer does not put the pager back into the charging base after the first call, the pager will send out reminders again, and the reminders will stop only when it is put back into the charging base, preventing the customer from missing your call.

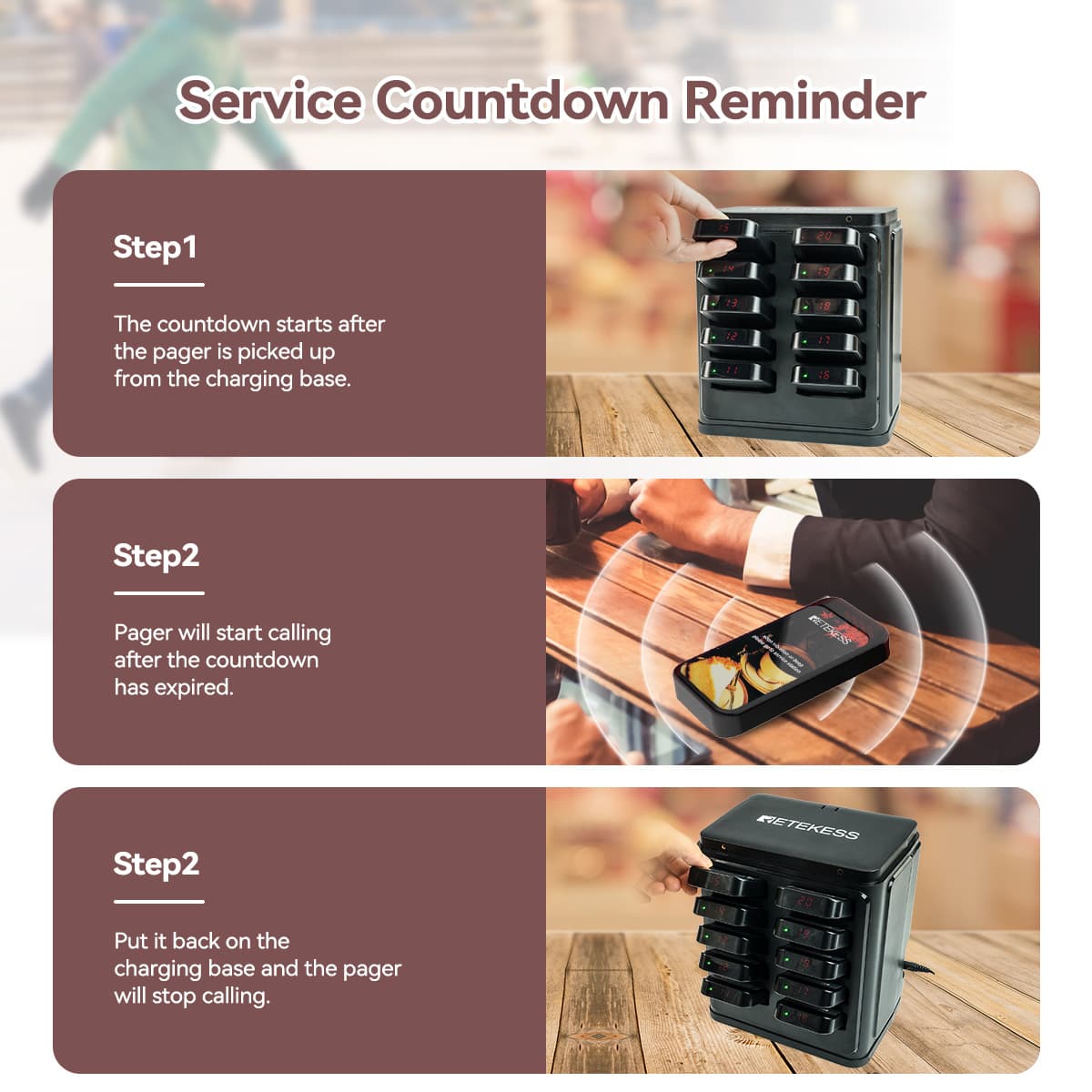

Countdown function (Service timing reminder)

Time 0 to 90 minutes  adjustable. After picking up the pager, it will start counting down, when the time is over, the pager will send out beep soud reminder, and the reminder will stop only when it is put back into the charging base, which is very suitable for amusement parks or clubs that need to provide timed services.

IP67 water-proof

The pager is made of PC material, which is drop-proof, durable, waterproof, and oil-proof.

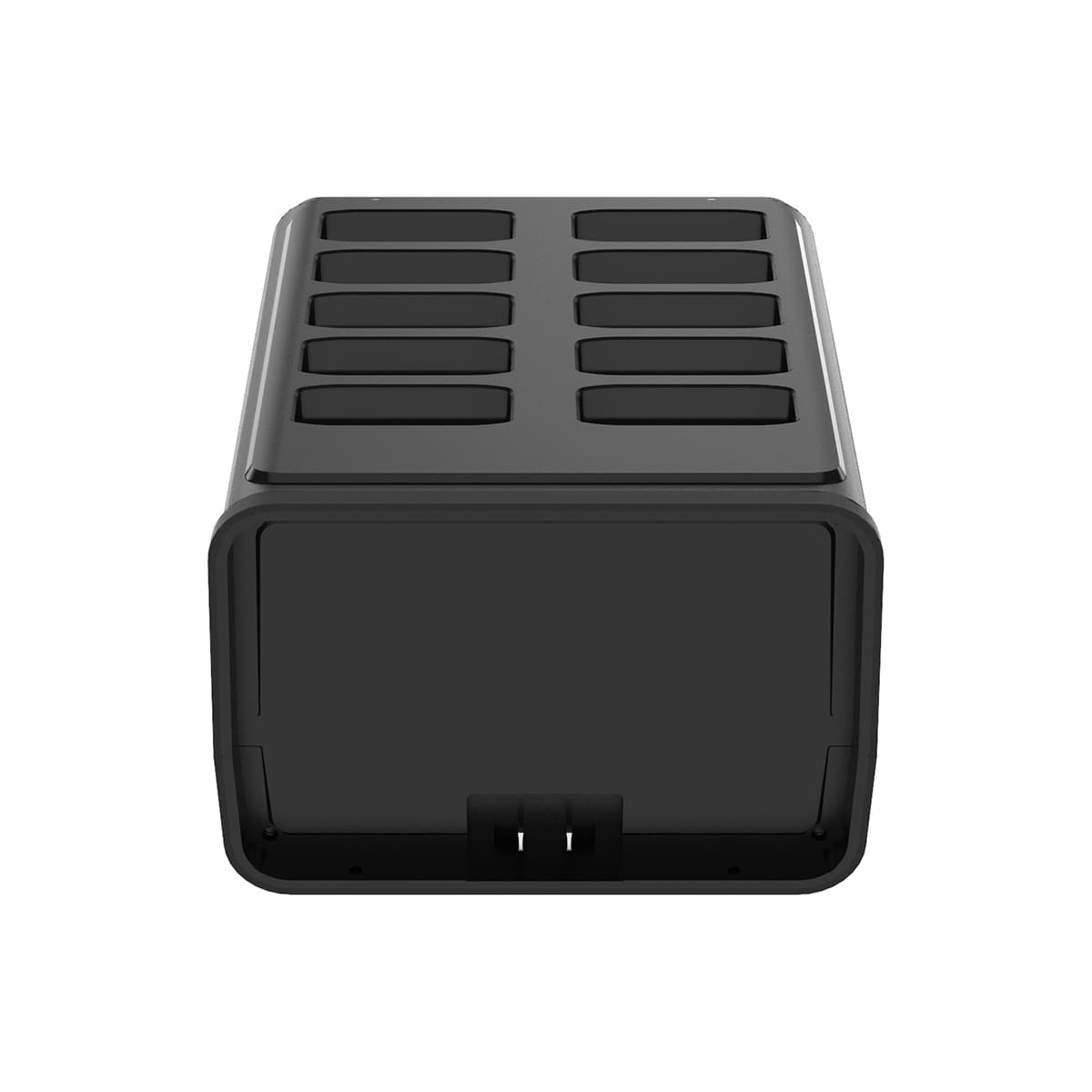

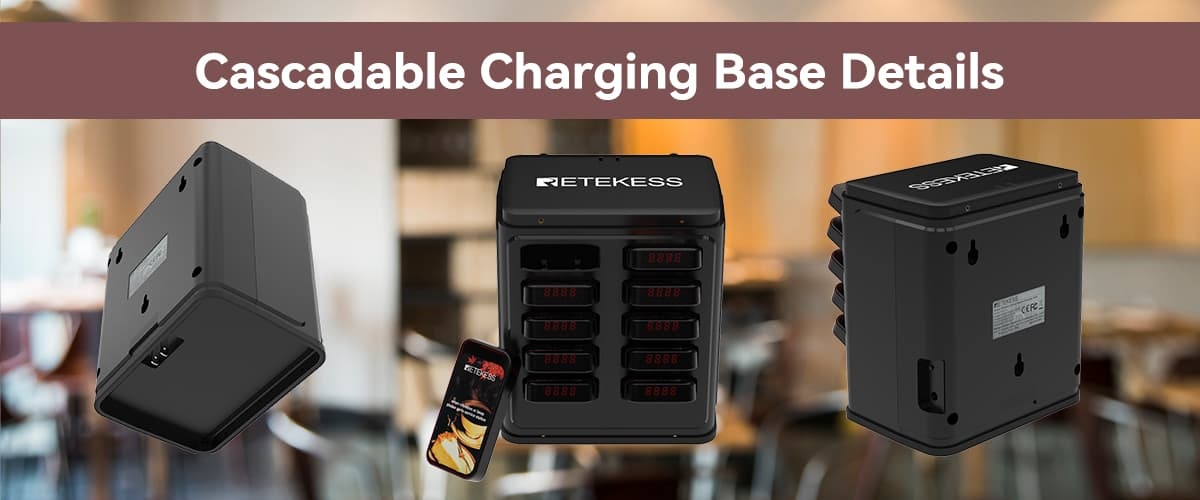

Wall-mountable cascade stand alone charging base features to save space

Wall mounting frees up space on the dining room table and prevents oil and dust from entering the charging station.

If you choose the combo with anti-slip pads, the recessed anti-tip design on the bottom makes it very stable even on slippery desktops.

Easily place the pager in the charging slot.Hang the charging slot on the wall to save more workspace. Independent keyboard facilitates multi-window movement.

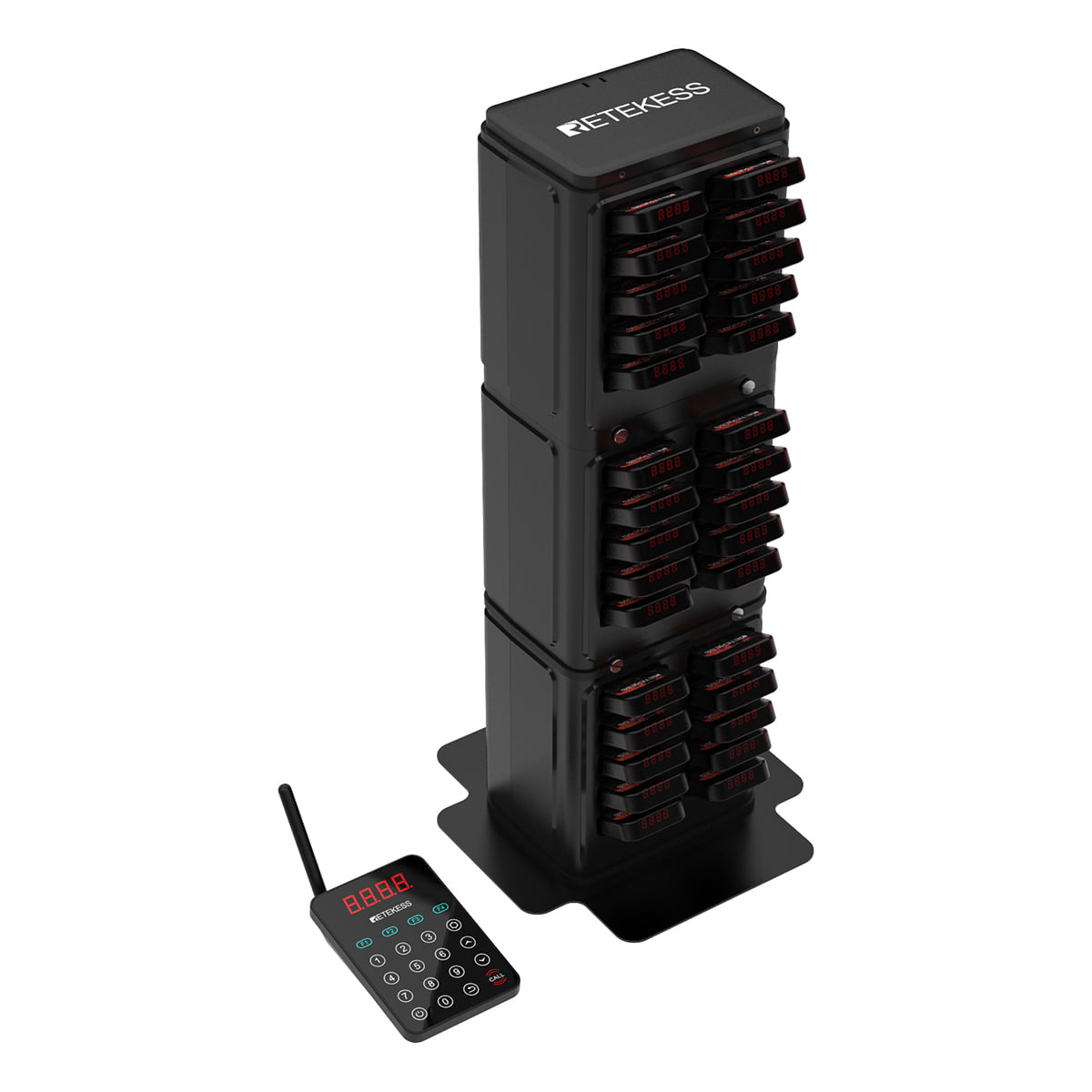

The pager will automatically charge when placed back into the charging cradle. The charging base can be stacked up to three to meet your larger needs.

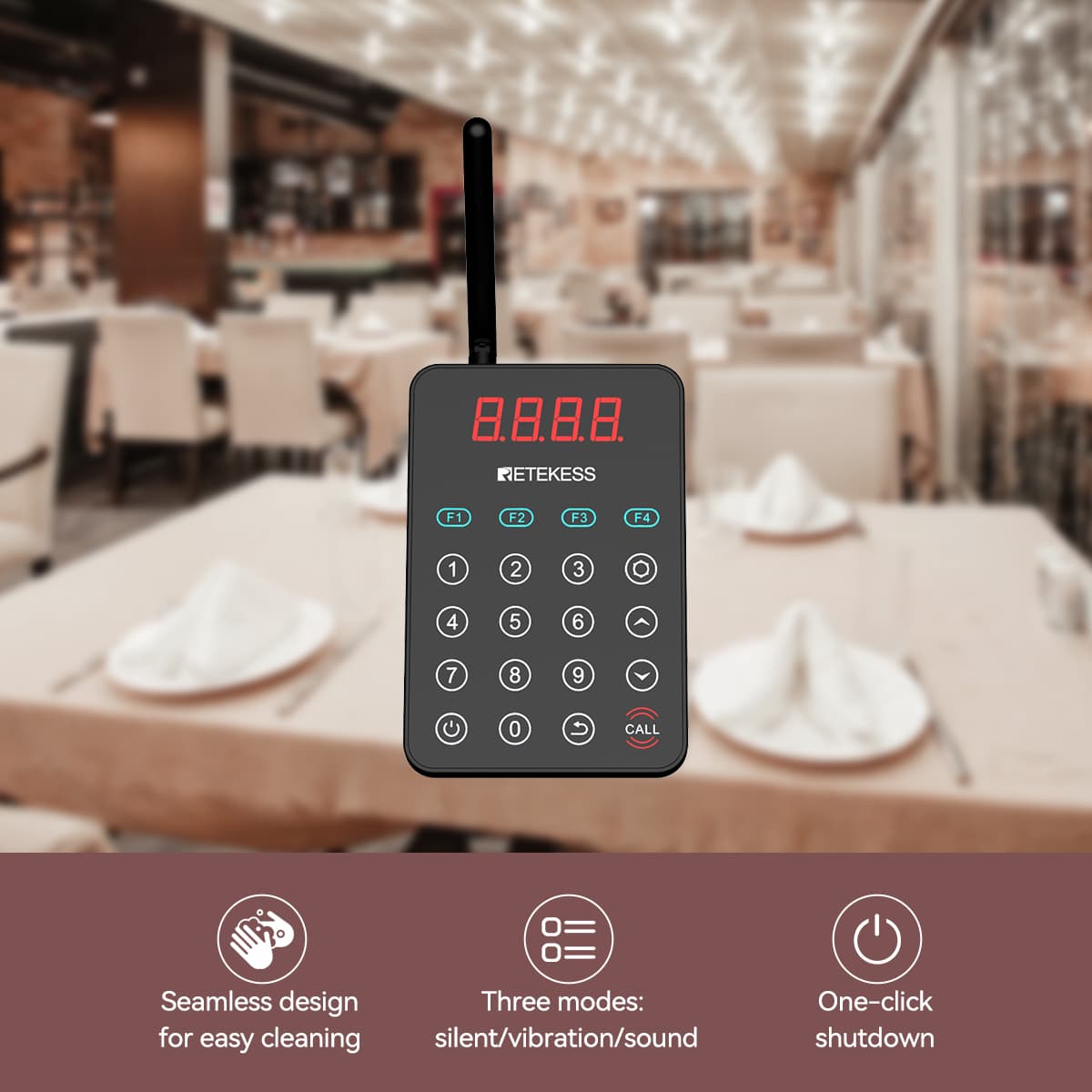

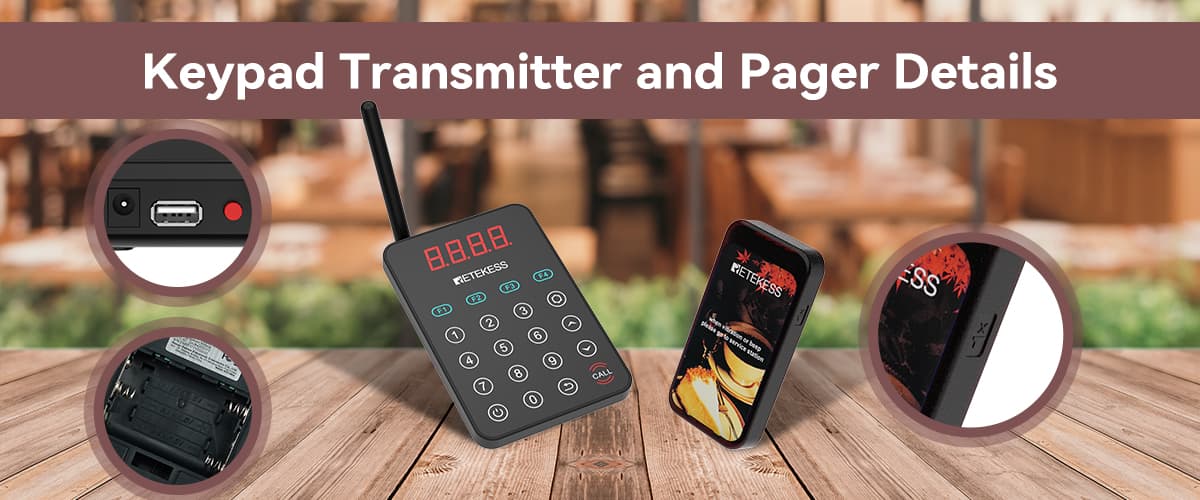

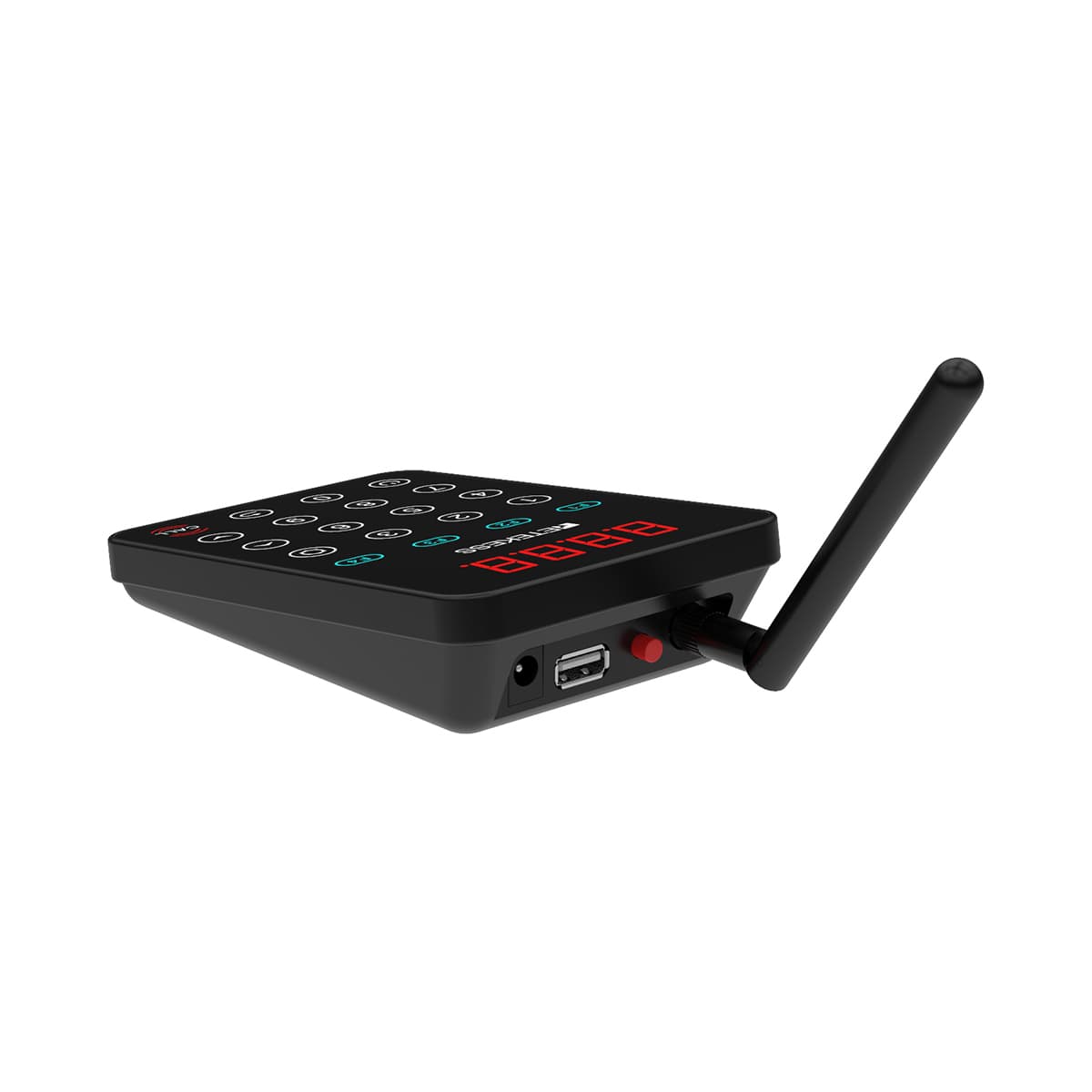

Pager and keyboard transmitter features for easy operation and improve business service credibility

More Retekess pager system TD177 new details:

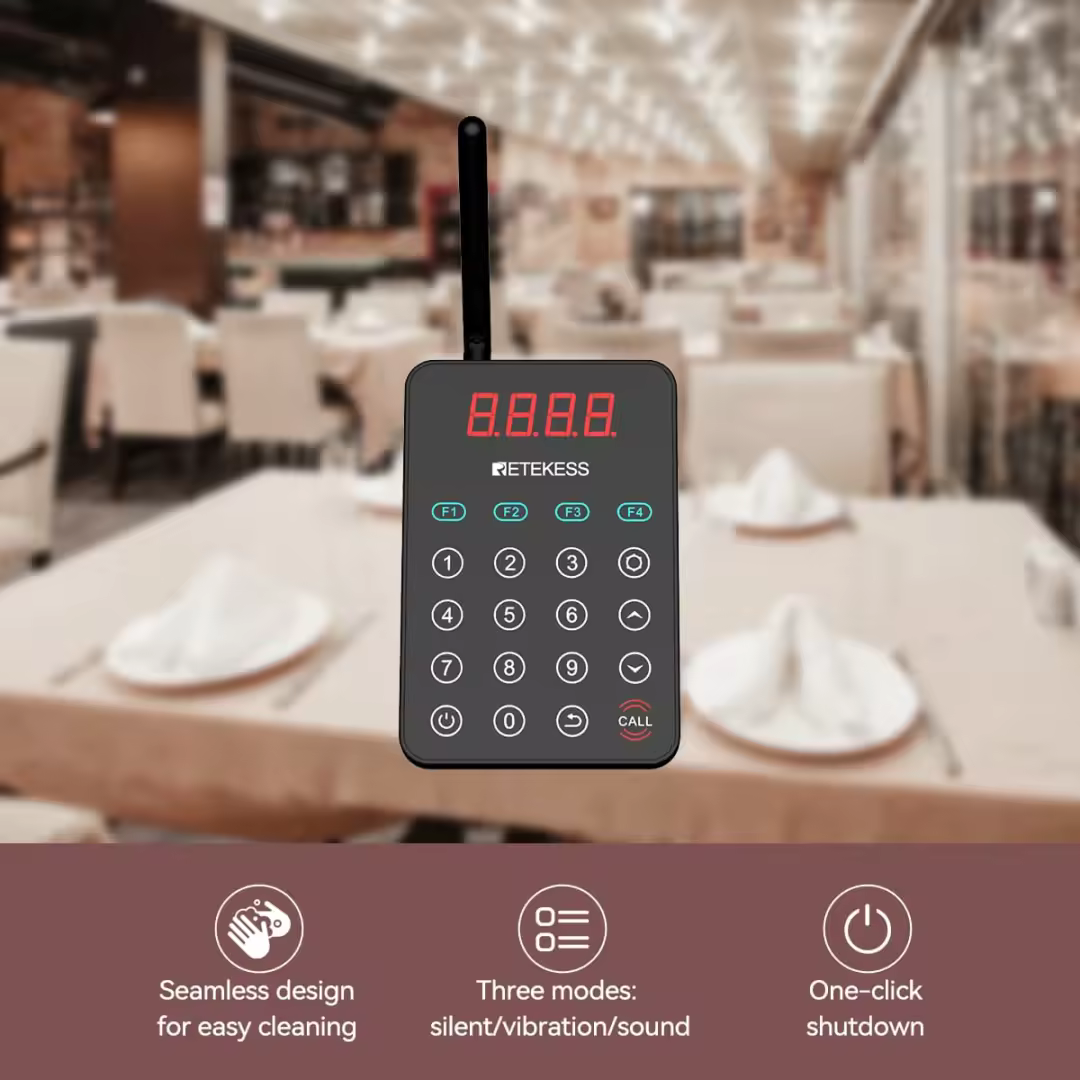

Four shortcut operation keys: F1: one-key pairing; F2: one-key code change; F3: one-key group call; F4: one-key integrated functions.

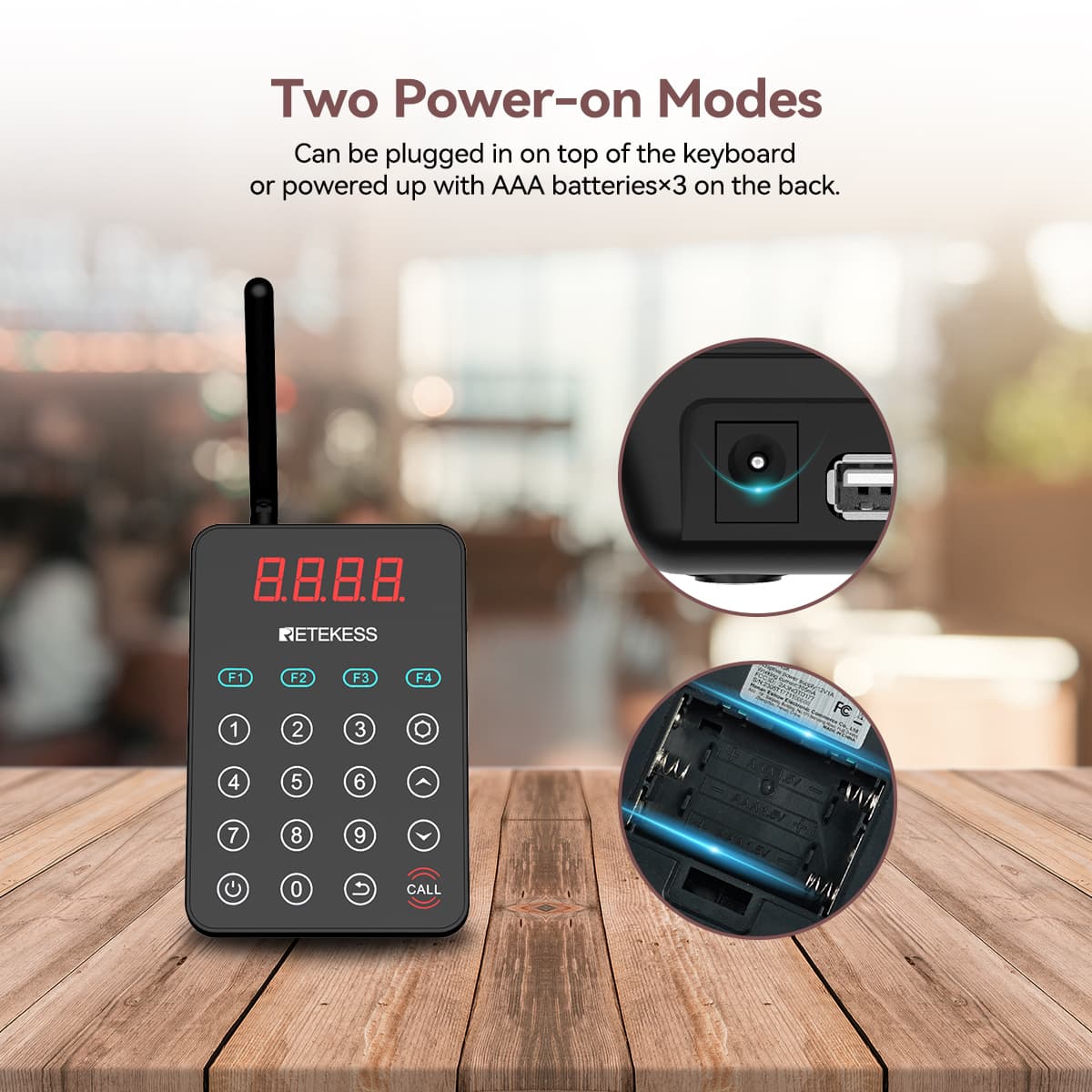

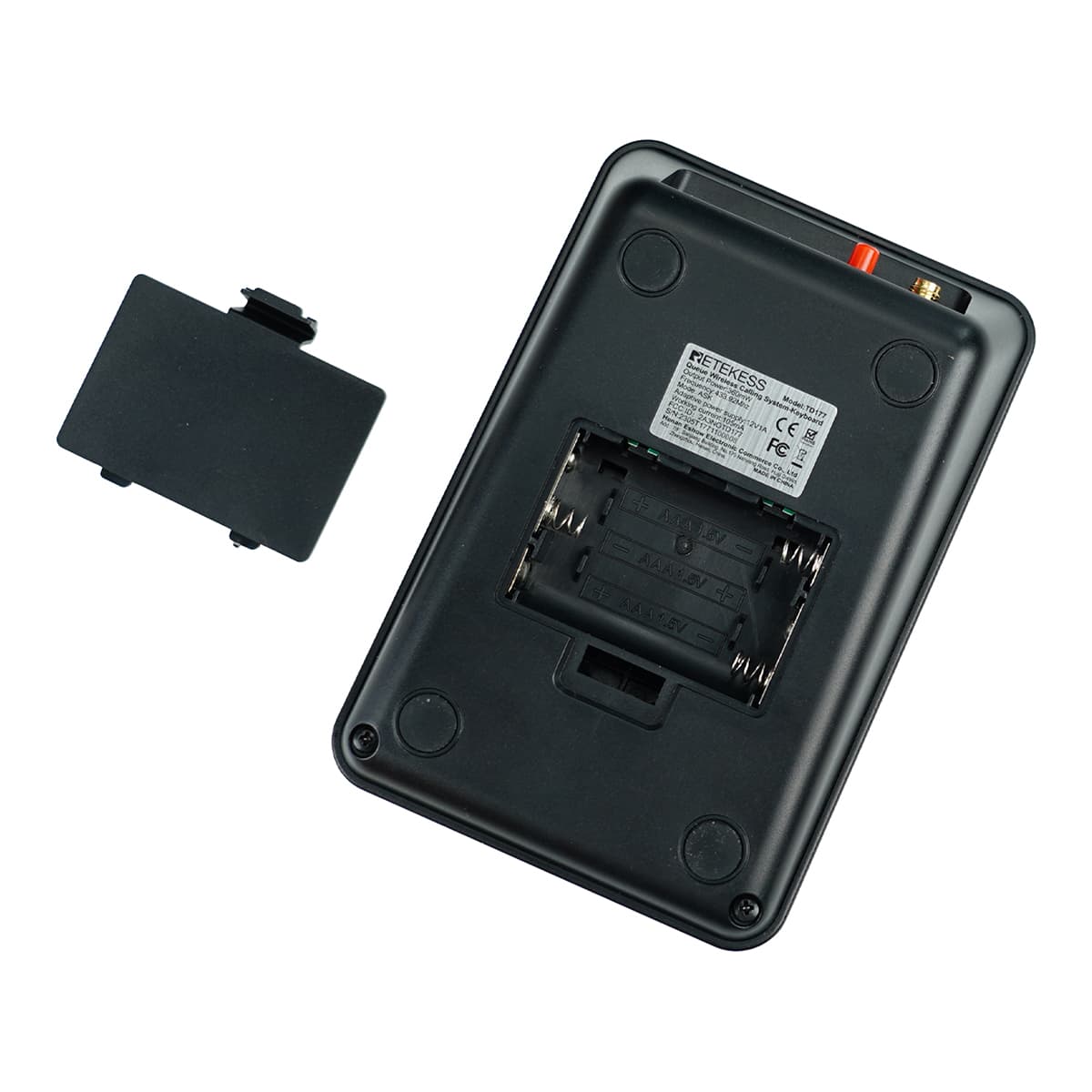

  1. Put three AAA batteries in the keyboard to make it work and move the keyboard more freely within the working range to make your work more flexible, Whether you run a food truck, restaurant, or bar, it can make your work more convenient.

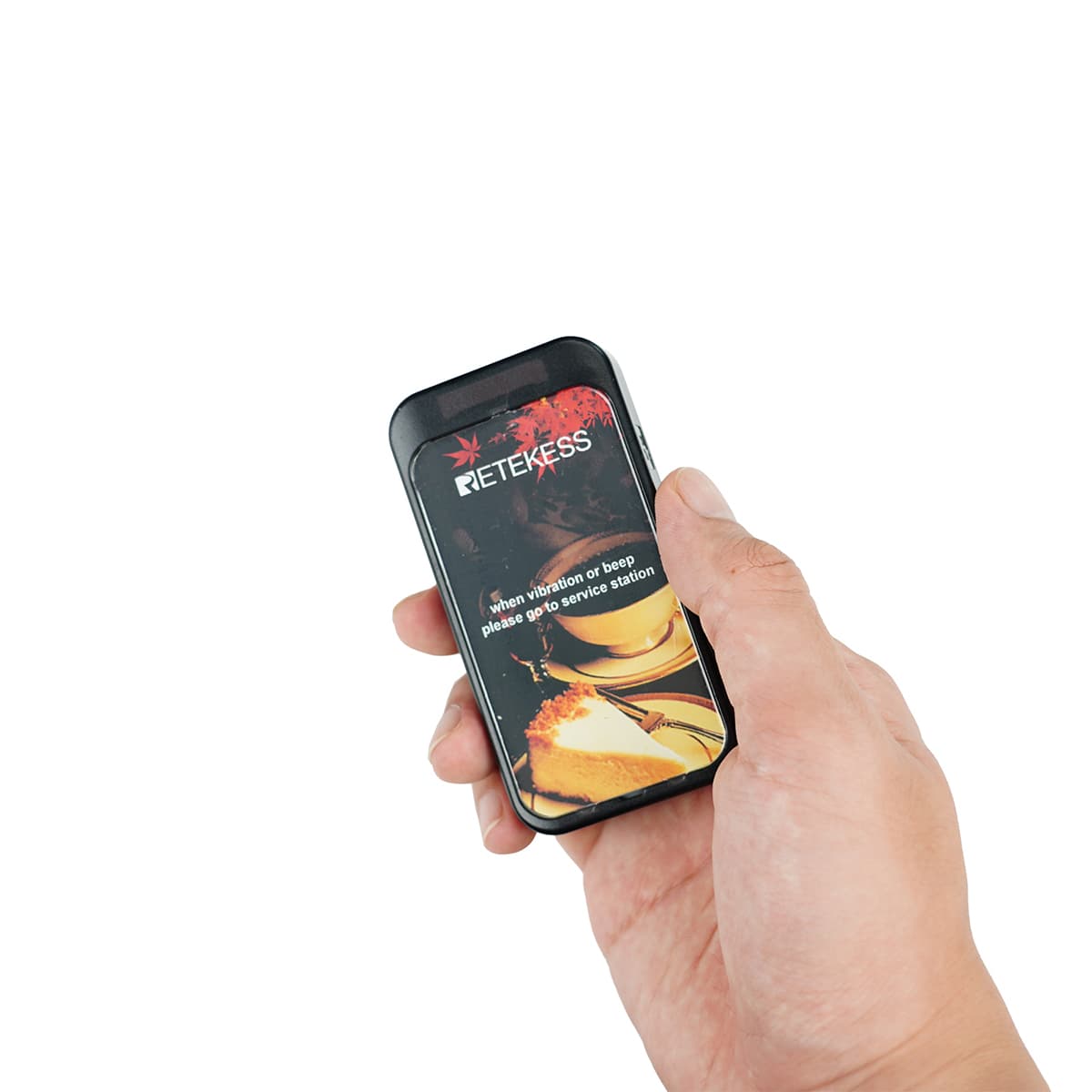

  2. The pager has replaceable sticker slots so you can customize your logo and place it there to promote your brand while your customers are waiting for service.
  3. Other features:
  4. If you are interested in these matrices paging system, it might be a good idea to add it to your cart, as it’s a great companion for your restaurant business! Retekess TD177 has impressive performance in terms of working distance and standby working time and solves various issues that may occur after use!

1. Pager range: up to 500m/1640.41ft in the open area, stronger and more stable signal.

2. Changeable system host ID: ID can be changed, and 001-999 can be set.

3. Call employees: Can be used with TD112 bracelet to call employees.

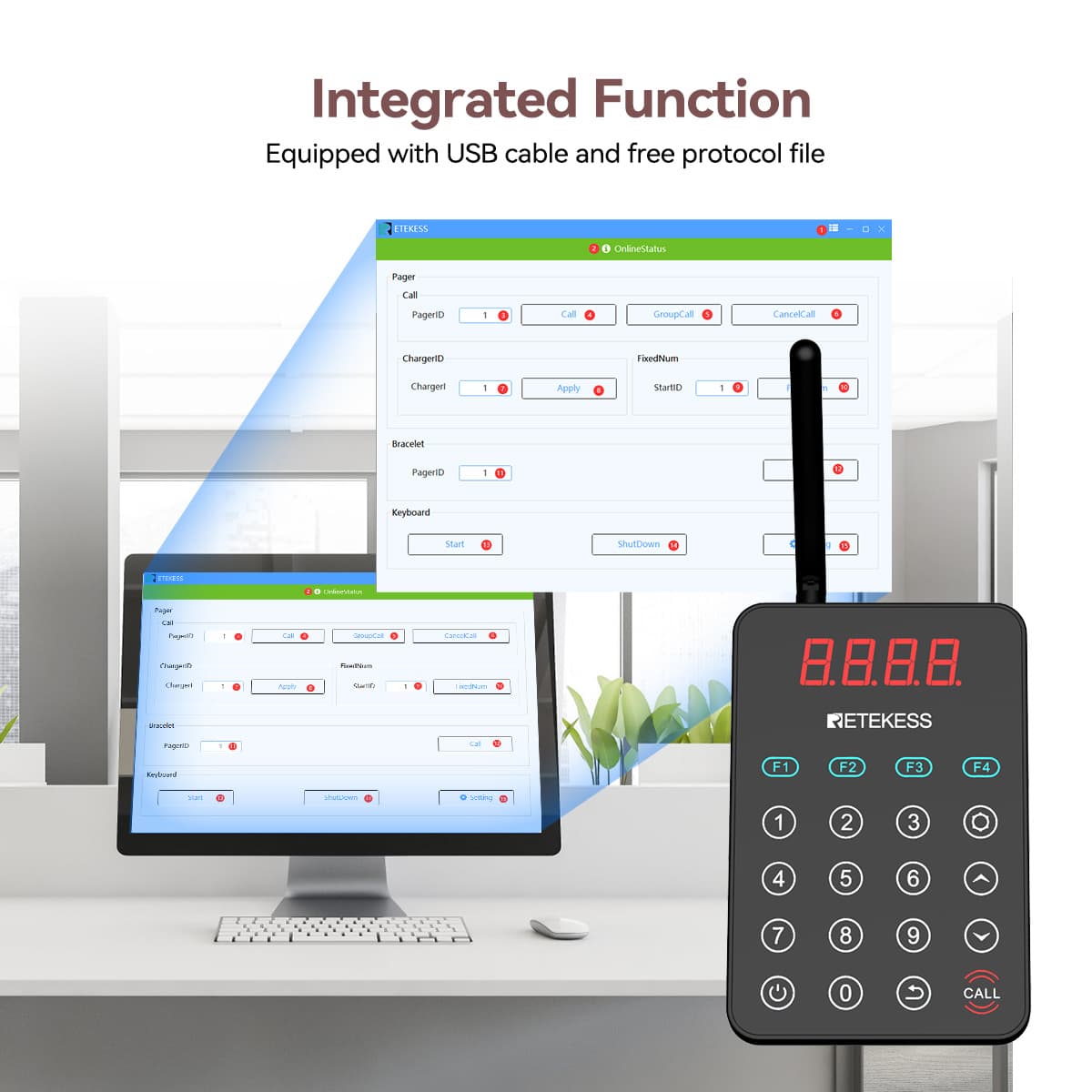

4. Integrated function: equipped with USB cable, can be plugged into the computer, free of charge to provide the agreement file.

5. Customisable pager sticke: Size: 84mm*45mm.

6. standby time: Battery capacity 300mAh, standby time is longer than 24 hours.

  1. Notice:
  2. 1. Select a 20 or 30-pager system combination that will be equipped with a bracket (anti-fall pad).

Avoid using the keypad on a table made of metal or marble. Please use the keypad transmitter on a desktop made of wood, plastic, glass, etc.

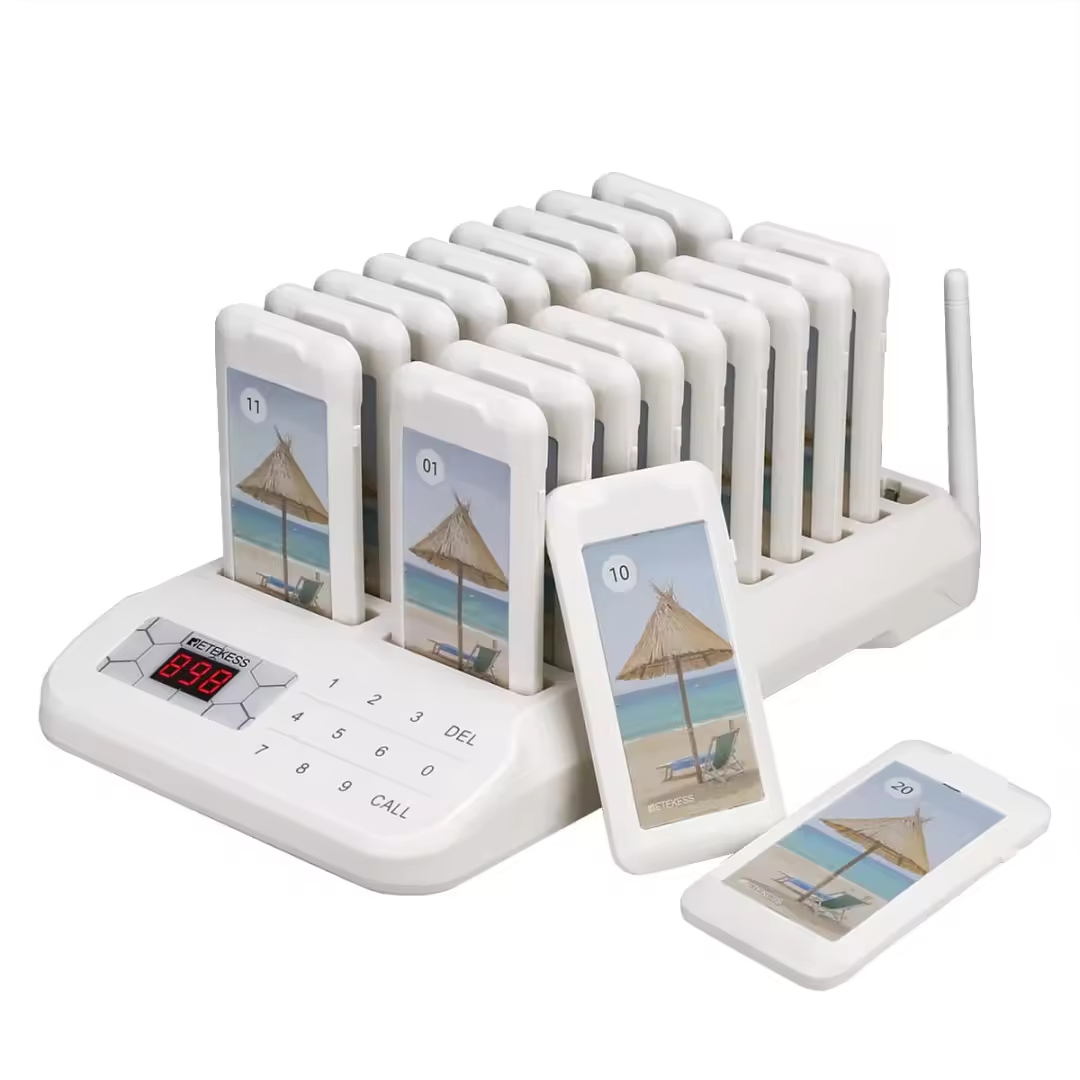

Comparison of Retekess Wireless Restaurant Paging System:

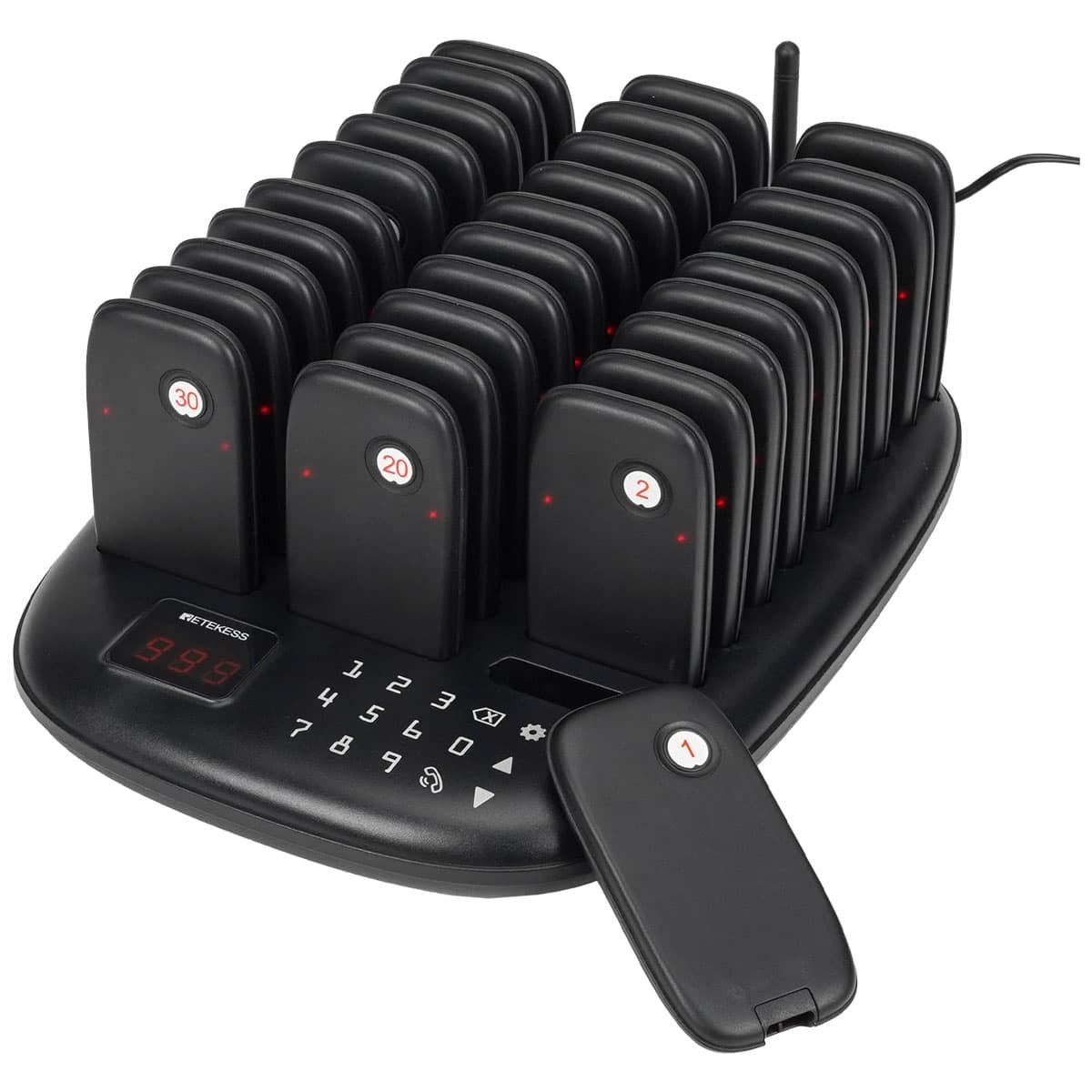

Retekess TD177

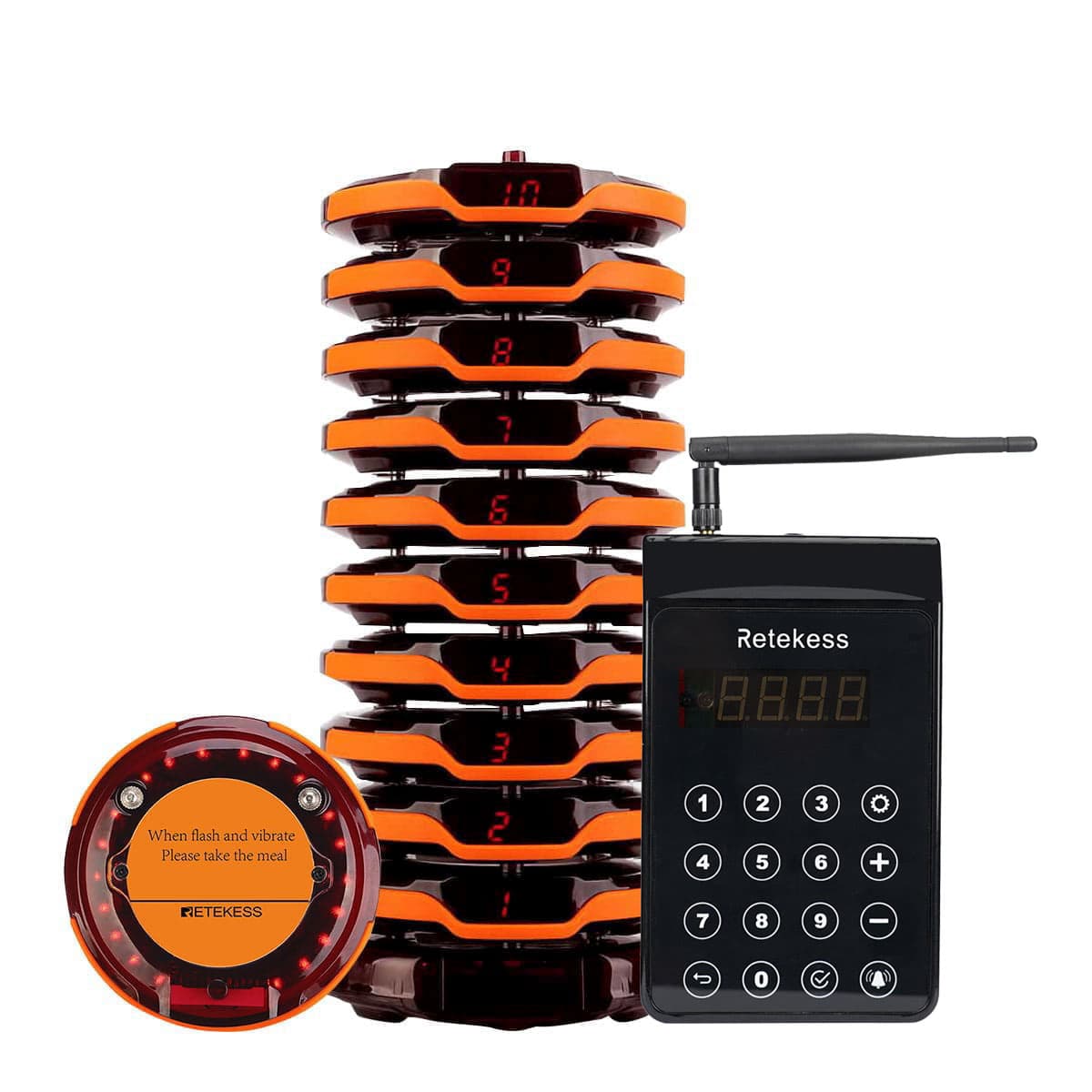

Retekess TD156



Retekess TD165



Retekess TD175P

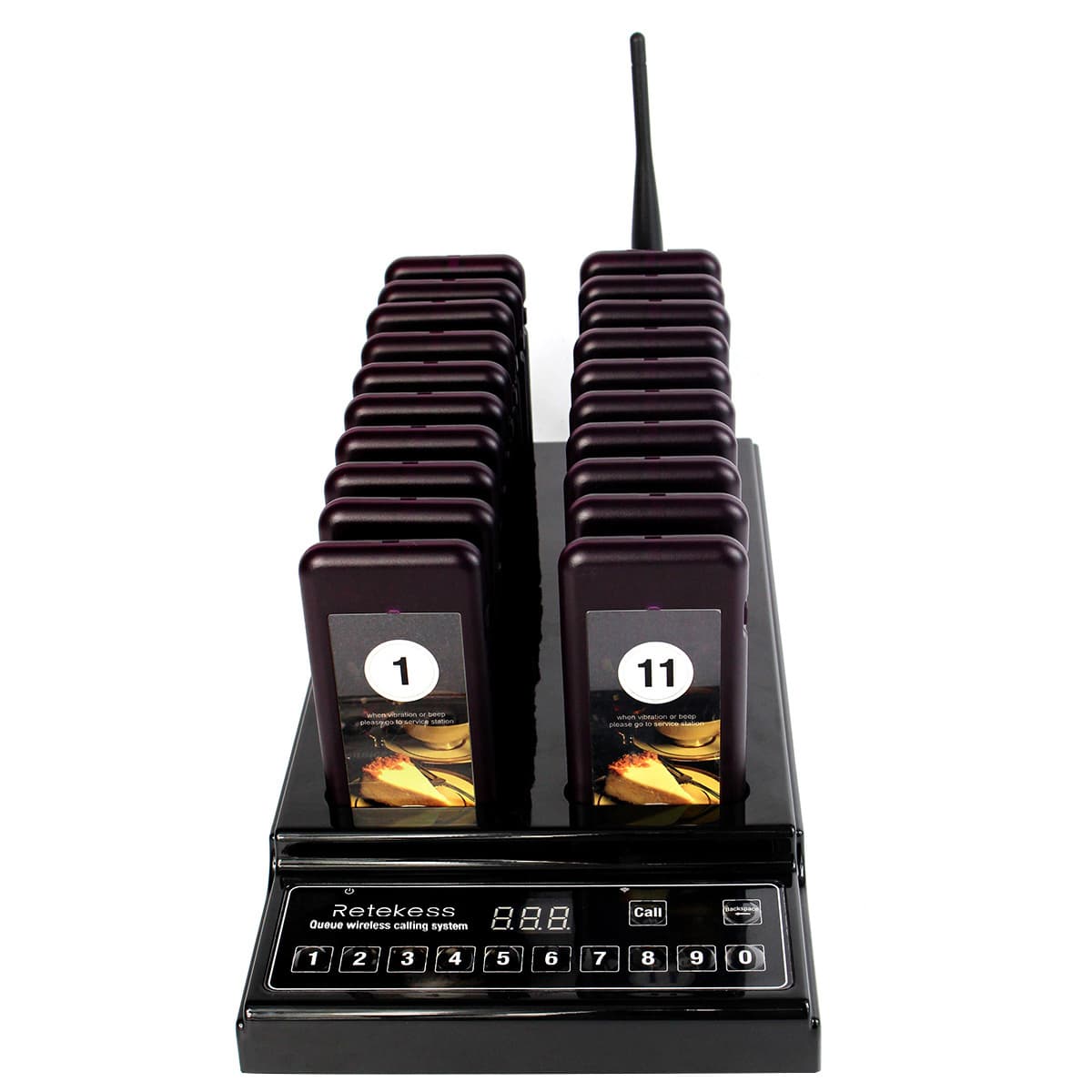

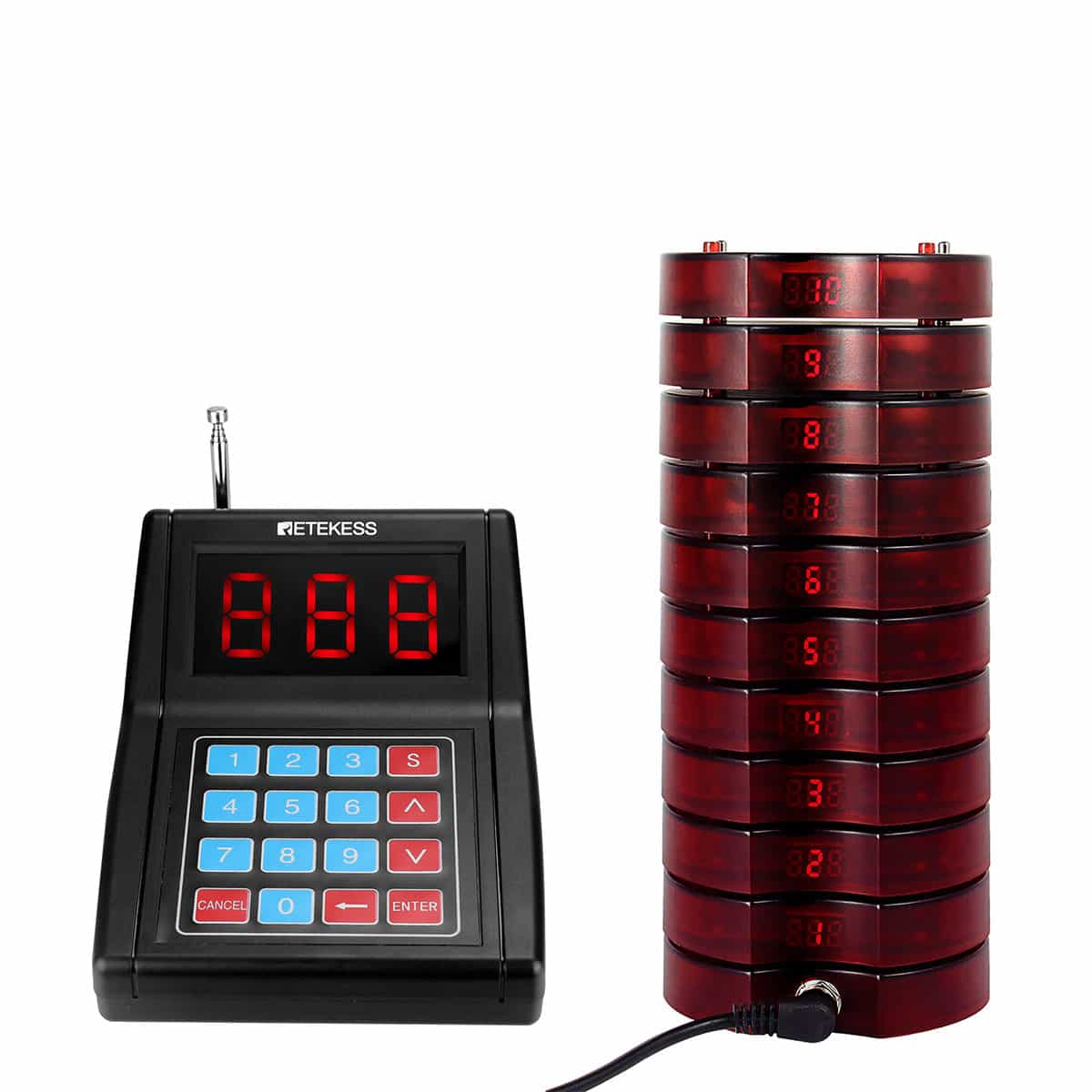

Retekess T112

Retekess TD157

Retekess TD172

Number of pagers

(Expandable)

10/20/30

10

10

30

20

16

20

Outdoor working range

500m

800m

400m

500m

 250m

300

400m

Standby time

20hours

48hours

19hours

15hours

24hours

20hours

12 hours

Reminder modes

7 7

2

Out of range alarm

×

×

×

×

×

One-key pairing

×

×

×

×

×

×

One-key code change

×

×

×

×

×

×

Adjust keypad modes

×

×

×

×

Replaceable stickers

×

Spec

Retekess TD177 Restaurant Matrices Paging System Specification:

Transmitter

Frequency

433.92MHz

LCD

4 digital tube display

Modulation method

ASK

Transmission power

360mW

Working distance

500 meters (open air)

Button

capacitive touch 4*5

Input power

DC 12V/1A Or AAA battery*3

USB interface

connect to USB-A (female)

Product size

136mm*90mm*35mm

Pager

Frequency

433.92MHz

LCD

4 digital tube display

Prompting mode

vibrate、beep、flashing、

Standby time

about 20 hours

Battery

Built-in 300mAh lithium battery

Remind time

0-99s user-defined

Receiving sensitivity

-113dBm

Waterproof grade

IP67 waterproof and dustproof

Touch keys

One mute key

Product size

52mm*100mm*15mm

charging base

Charging slots

10

Expansion

3 connections

Bracket

hardware base bracket (optional)

Input power

DC 12V/2A

Product size

167*120*190mm

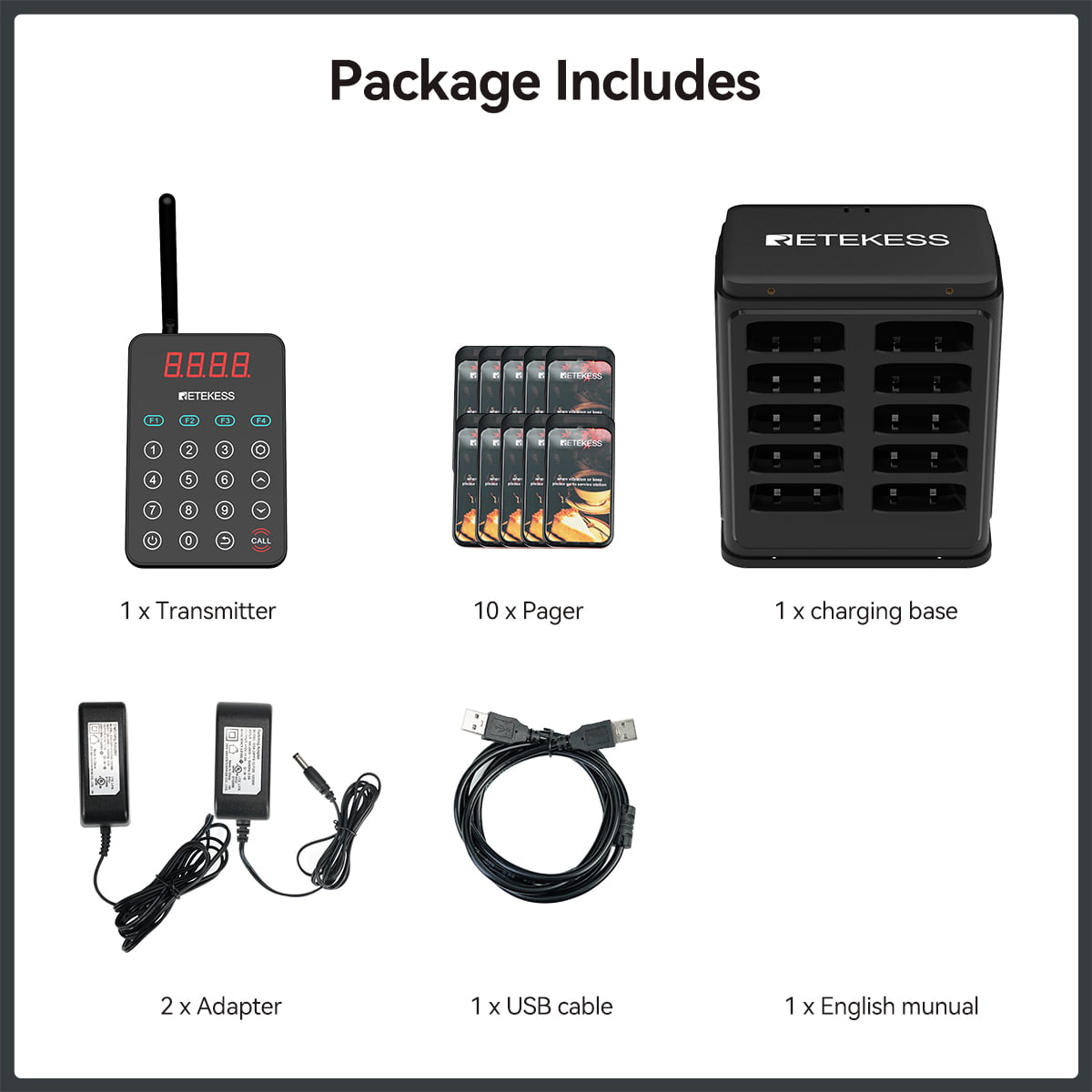

Package listing:

Package

Package Include

1 x Transmitter-

10 x Pager

1 x Transmitter

10 x Pagers

1 x charging bases

2 x Adaptors

1 x manual

1 x Transmitter-

20 x Pager

1 x Transmitter

20 x Pagers

2 x charging bases

2 x Adaptors

1 x manual

1 x Bracket

1 x Transmitter-

30 x Pager

1 x Transmitter

30 x Pagers

3 x charging bases

2 x Adaptors

1 x manual

1 x Bracket

Features

Q: How does Retekess TD177 paging system work?

A: Give the pager to customers who need to wait for service. When it is the customer's turn to pick up food or get service, press the call button on the keyboard, and the pager will sound or vibrate as a reminder.

The same principle can be applied to other places where customers need to be paged, such as bars, clubs,pubs, cafes, bakeries, banks, food trucks, church nurseries, etc.

Q: How long does the battery last of this wireless calling system on a single charge?

A: it can stand for about 24 hours.

Q: Can I set different prompt modes for the beeper?

A: Yes, there are seven different prompt mode combinations about vibrate、beep、flashing.

Q: Can one keyboard control pagers on three bases at the same time?

A:Yes, but you need to pair the keyboard with the three bases separately, and please note that you need to set three different base ID numbers when pairing.

Q: Can I customize our own logo on the guest pagers?

A: Please contact us and tell us more details about your needs.

Q: How does the out-of range alarm function work?

A: Prevent customers from taking the pager. When the pager exceeds the signal working range, the pager will make a beep sound and will only stop making beeps when it is put back into the charging slot.

Q: How do I hang it on the wall?

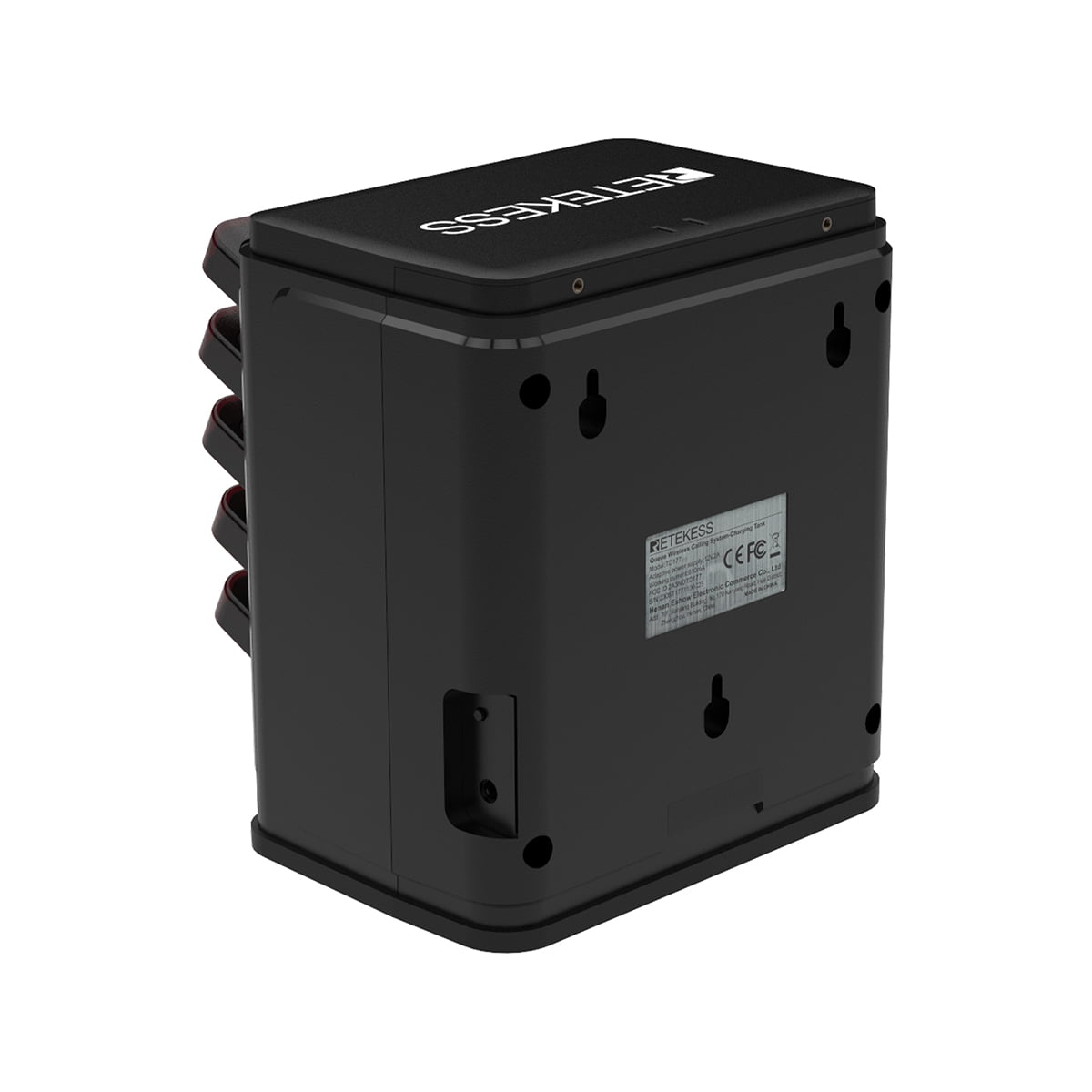

A: There are three holes on the back of the TD177 charging stand, and you can use screws to fix the charging slot to the wall. This will make collecting pagers more convenient and save you unnecessary time.

Q: We have a 20 set of td177 pagers and would like to set up a second keypad in our kitchen so the staff can be paged from multiple places.

A: Yes, TD177 supports multiple keyboards calling the same pager

TD177 keyboards

Click here to see the blog about How to Use TD177 Paging System.

If you still have other questions, please feel free to contact us by phone at +86-15639073051 or email at support@retekess.com
