Retekess TR506 fm transmitter adjustable power (0.01mW/10mW/100mW/200mW)
If you are looking for an fm transmitter that is small in size and lightweight, then this TR506 portable fm transmitter adjustable power is right up your alley. Due to its compact size, it is also very comfortable for you.
FM transmitter
Frequency range: 76-108MHz
0.2W portable FM transmitter with 4-level power-adjustable;0.01mW; 10mW; 100mW;200mW and 10m; 50m; 100m; 200m transmission distance in the open air
The transmitter can work with countless fm receivers . It works 80-120M in the normal use where has many obstacles.
Music Player
Support microphone and Audio input to play music, you can convert the audio signals in various portable audio and video players such as Discman, MD, MP3 (including Apple iPod) into high fidelity wireless FM stereo signals.
You can also enjoy stereo music when a car or home radio is the receiving object.
Rechargeable Lithium Battery
The low power FM transmitter equipped with a 1000mAh BL-5C Li-ion battery.
Charging time for about 5 hours, charging voltage 5V
Working time for 16 hours(0.01mW); 10 hours(10mW); 8 hours(100mW); 5 hours(200mW)

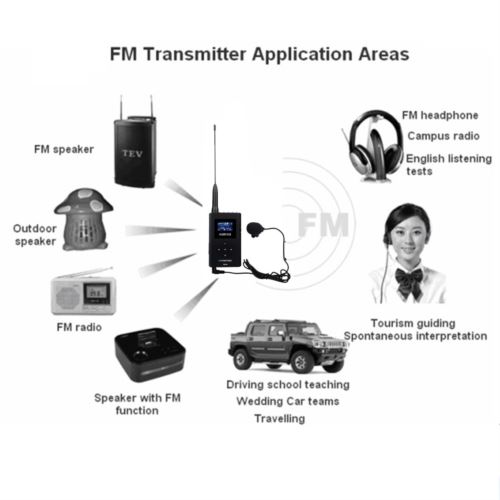

Many applications
The tour guide, school, church, interpretation company, driving school, multilingual school, scenic
Please fill in your procurement needs and contact information
Specifications:
Model Number: TR506
Frequency range: 76-108MHz
Power supply: BL-5C Li-ion Battery 3.7V 1000mAh
Frequency stability: ±10PPM
Stepped - Frequency: 100KHz
Emission power: (1/2/3/4 power)
0.01mW10mW100mW200mW
Reference distance: (1/2/3/4 power)
10m/100m/300m/400m
Duration of the voyage: (1/2/3/4 power)
16 hours/10 hours/8 hours/5 hours
Charging time: About 5 hours
charging voltage: 5V
Stray and Harmonic Radiation:≤-30dB
Audio distortion:≤0.2%
Frequency response:50Hz~15000Hz
Input level:≤-15 dBV
Modulation frequency offset: ±75KHZ
SRN: ≥60 dB
Host Size: 82*60*22mm (No salient part)
Machine weight: About 67 grams (without batteries)
FM antenna: Anti-screw direction
Car charger: With IC protection
Lavaliere microphone: Stereo,gold plating,1.2 meters with shielding function.
Audio cable: 3.5 male to male
USB cable: USB to T port (MINI)
Package Includes:
1 X TR506 Transmitter
1 X FM antenna
1 X Li-on battery
1 X Car charger
1 X Lavaliere microphone
1 X Audio cable
1 X USB cable
Mini FM transmitter with 0.57lb; 7.1 X 4.8 X 2.1 inch size; easy to put in your hand or pocket; portable fm transmitter for a tour guide; church; interpretation; school etc.
4-level power-adjustable fm transmitter; 0.01mW; 10mW; 100mW;200mW and 10m; 100m; 300m; 400m transmission distance in the open air
Easy to operate; 10 level volume adjustment; Support one-click locking and one-click unlocking; Broadcast music support AUX and microphone input
Portable FM transmitter is a mini radio station; which can convert the audio signals in various portable audio and video players into high fidelity wireless FM stereo signals
TR506 low power FM transmitter operated by 1000mAh BL-5C lithium battery; charging time for 5 hours; long working time for using
