How to set one pager working with one more keypad transmitters?

How to set one pager working with one more keypad transmitters?

How to set one pager working with one more keypad transmitters?

There are many customers ask me that: we want two or more keypad transmitters in different areas to call the same pager, is it possible?

For our Retekess T111, T112, SU-68G-10, and T119 paging systems, the answer is YES. And one-pager could work with 5 different keypad transmitters within the communication range.

Let me introduce you to how to pair the one-pager with two keypad transmitters.

For the Retekess T111, T112 and SU-68G-10 guest paging systems, please follow the instructions as below:

F9402A (16).jpg

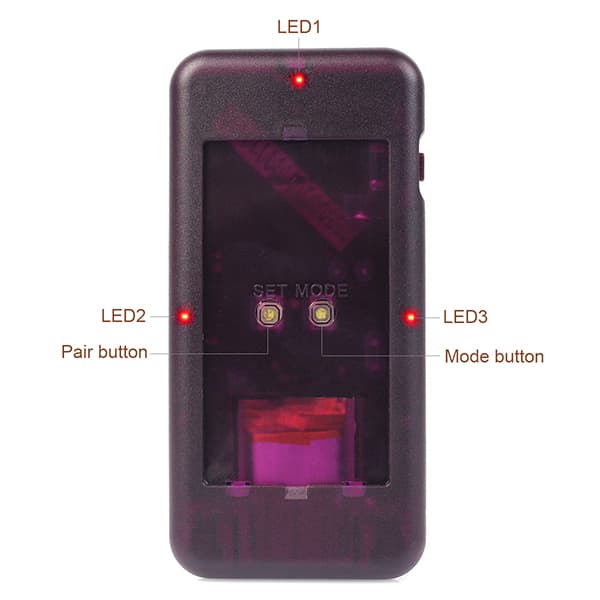

Remove the clear plastic and paper cover, you will see there are two buttons SET and MODE on the guest pager.

Before the new pairing, if you don’t know how many numbers the pager has been paired, delete all the paired numbers first. (Press and hold on the SET button for about 5 seconds, the LED1 indicator will be ON-OFF, then release the button, all the paired numbers will be deleted.)

Then you could pair the one-pager with the same number or different numbers to different keypad transmitters separately. (Short press the SET button, the LED1 indicator turns on, then press the number + CALL button on the keypad. The receiver gets the signal and the LED1 indicator turns off. The pairing is successful. If the receiver does not gets any signal in 10 seconds, it will quit pairing status automatically, you need to short press the SET button again to enter the pairing status).

Please note that before pairing it to the second or more keypad transmitters, do not delete the paired number for the first one.

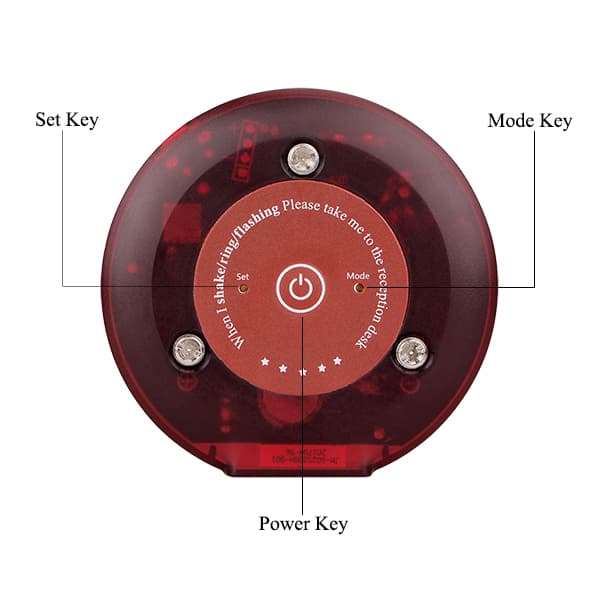

For the T119 coaster paging system, if one-pager works with more than one keypad transmitters, the pager must pair the same number with them.

The way to pair the number to the first keypad transmitter:

F3354A (11).jpg

Short press the SET button, the LED around the coaster pager bright up, then press a number (1-999)+ENTER button on the keypad transmitter within 5 seconds, the number is shown on the pager’s screen, the pairing is successful.

The way to pair the same pager to the second or more keypad transmitter:

Long press the MODE button for about 3 seconds until the pager beepers twice, then short press the SET button, the LED around the coaster pager bright up, then press the same number+ENTER button on the keypad transmitter within 5 seconds, the number is shown on the pager’s screen, the pairing is successful.

Hope the details instruction helpful to you. If you want to know more about the Retekess paging systems, welcome your comments below, or you could email us at support@retekess.com directly.

Notice: Retekess TD177 matrix paging system comprehensive system upgrade has been released. Compared with the classic T112, its performance is absolutely impressive!Click here to learn more about TD177.
